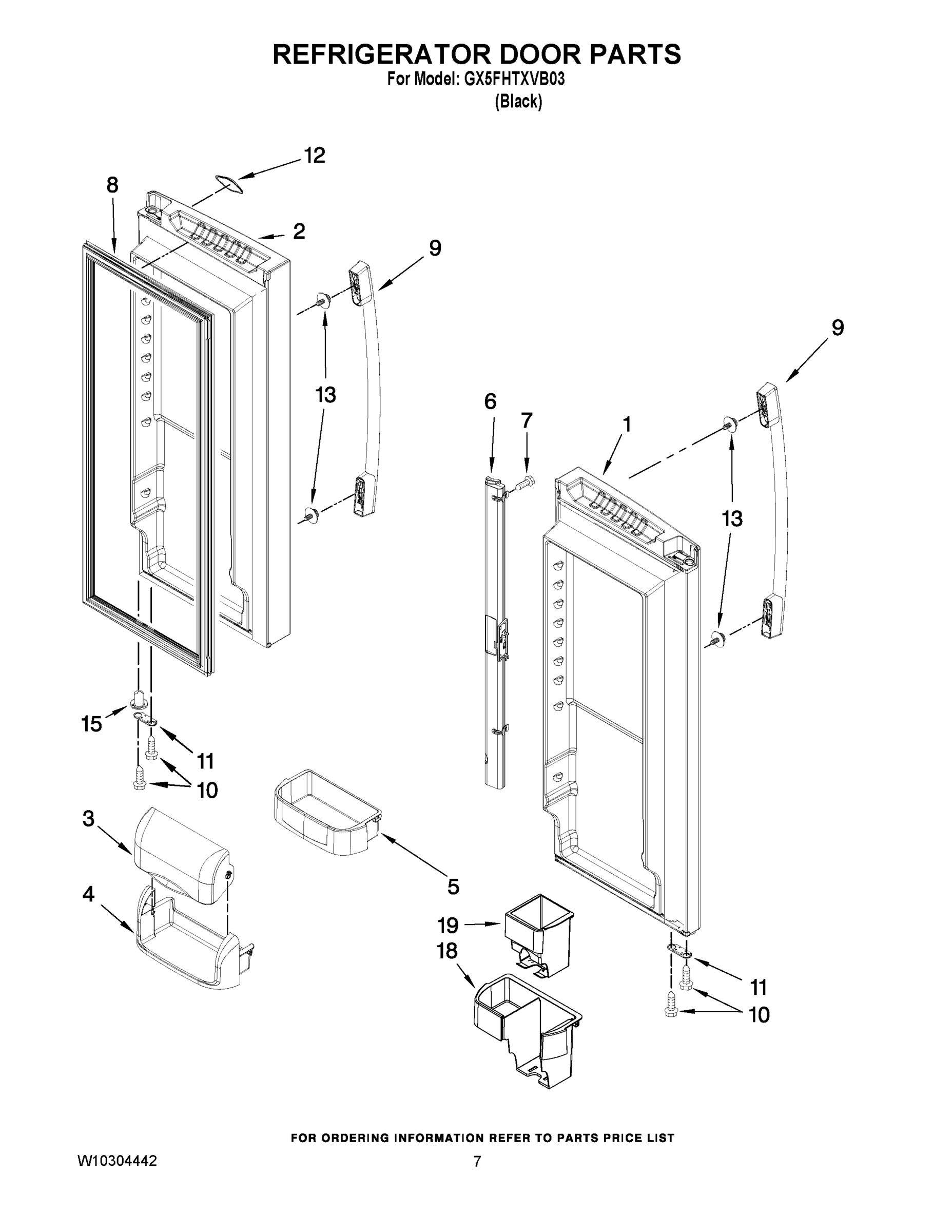

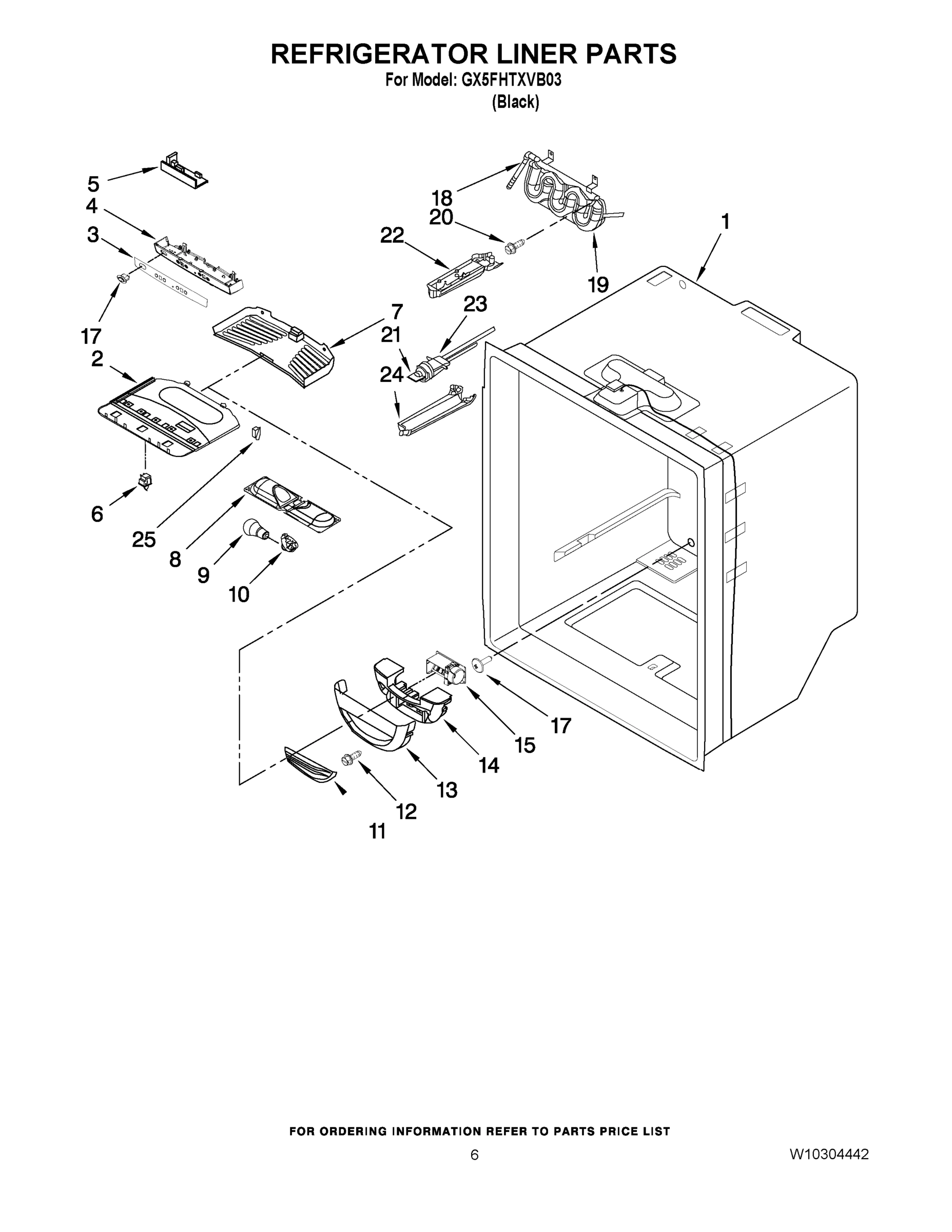

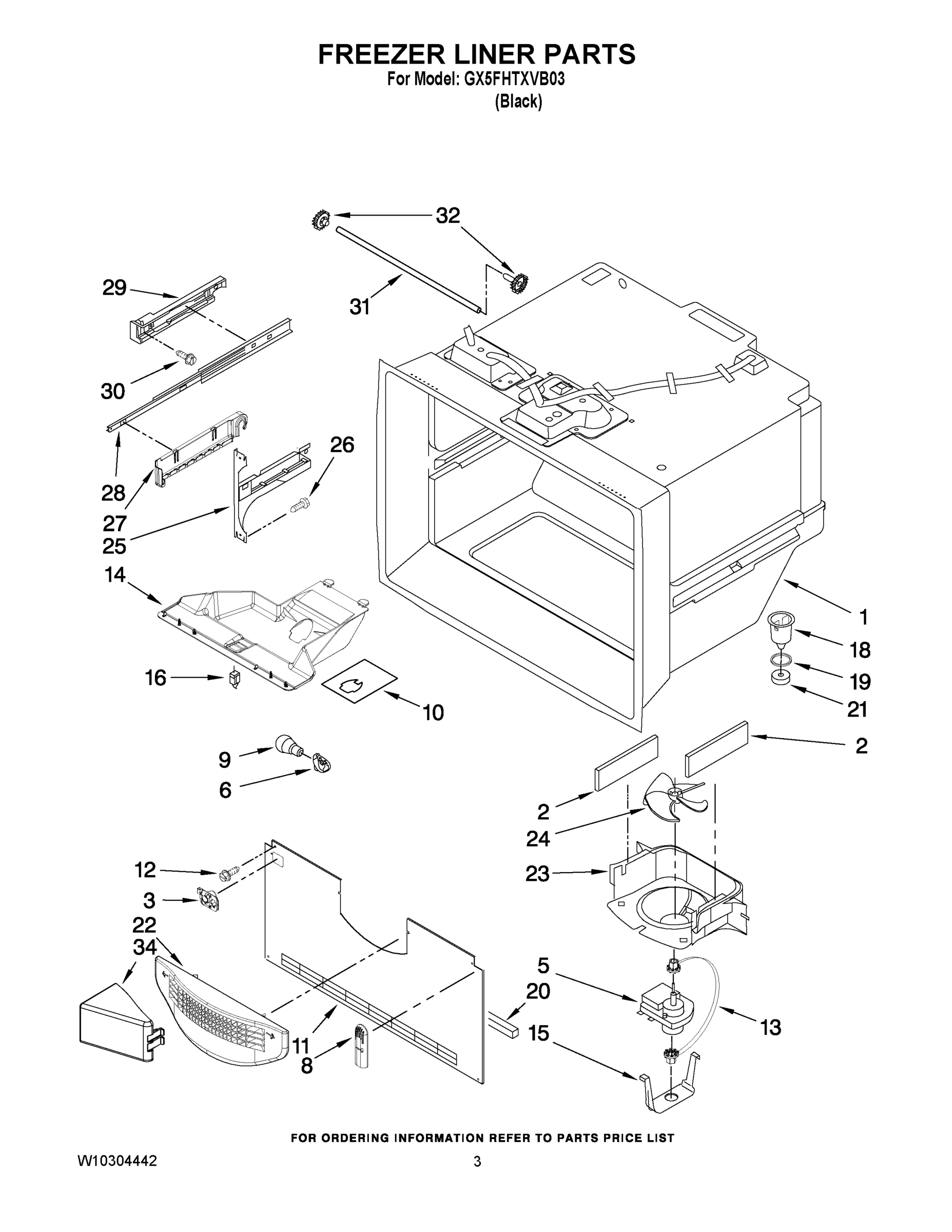

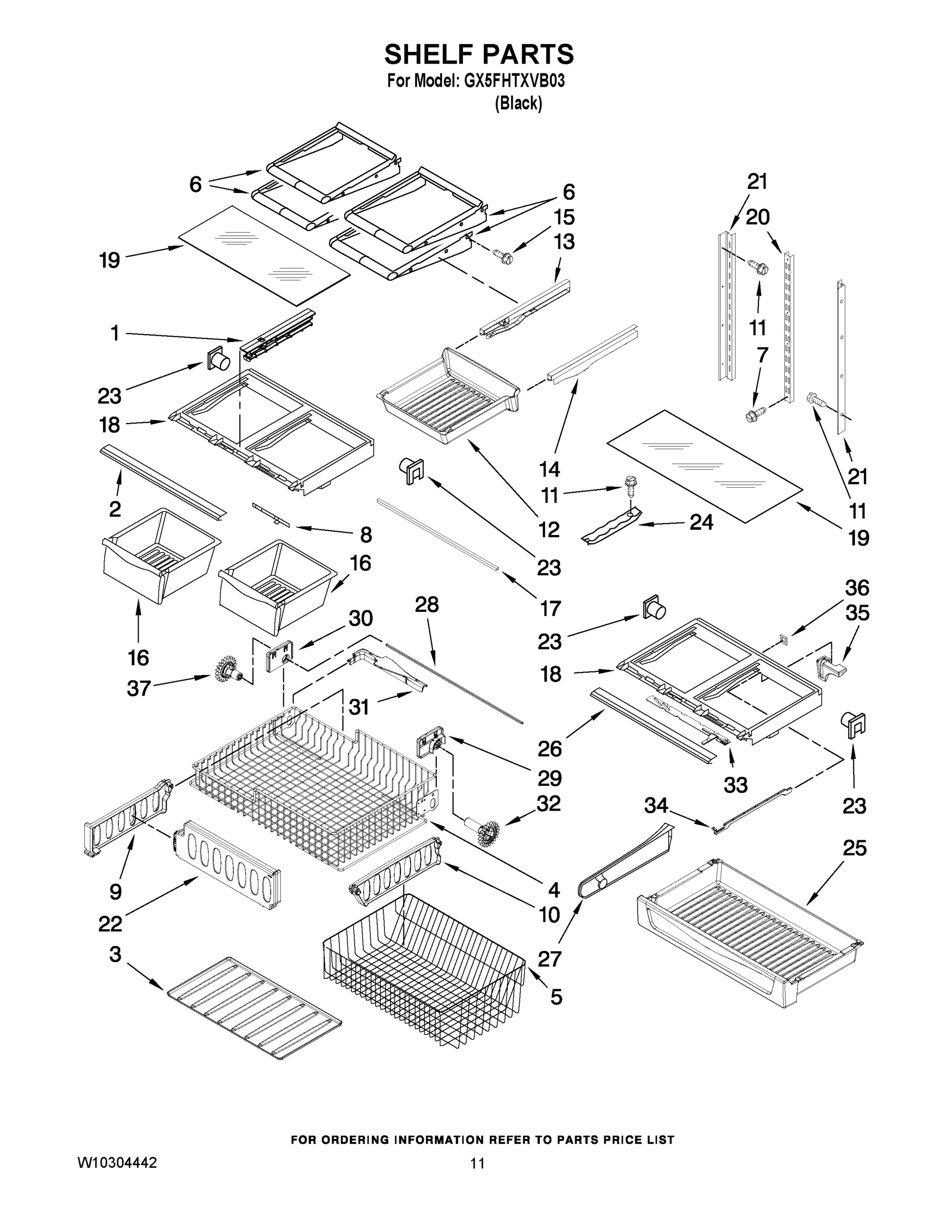

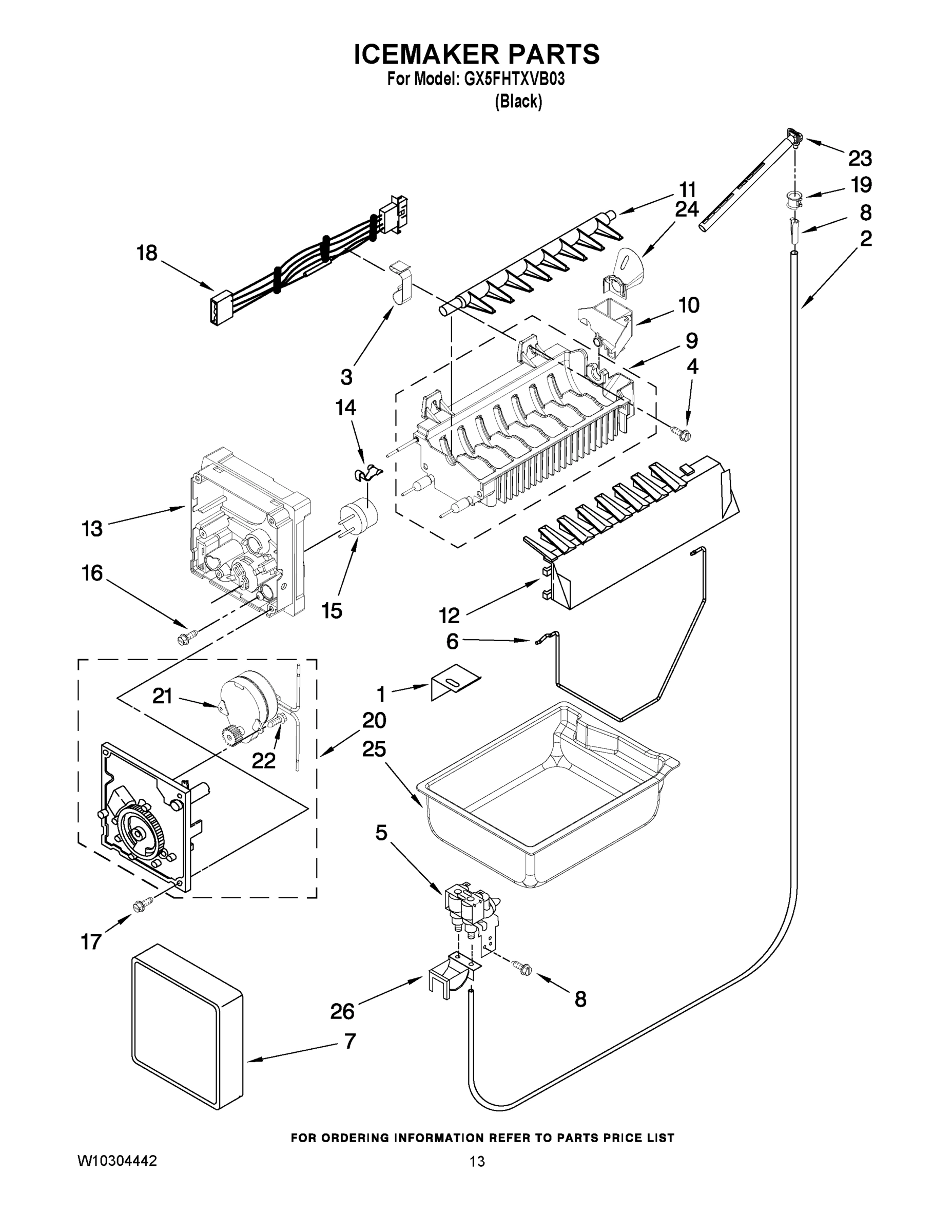

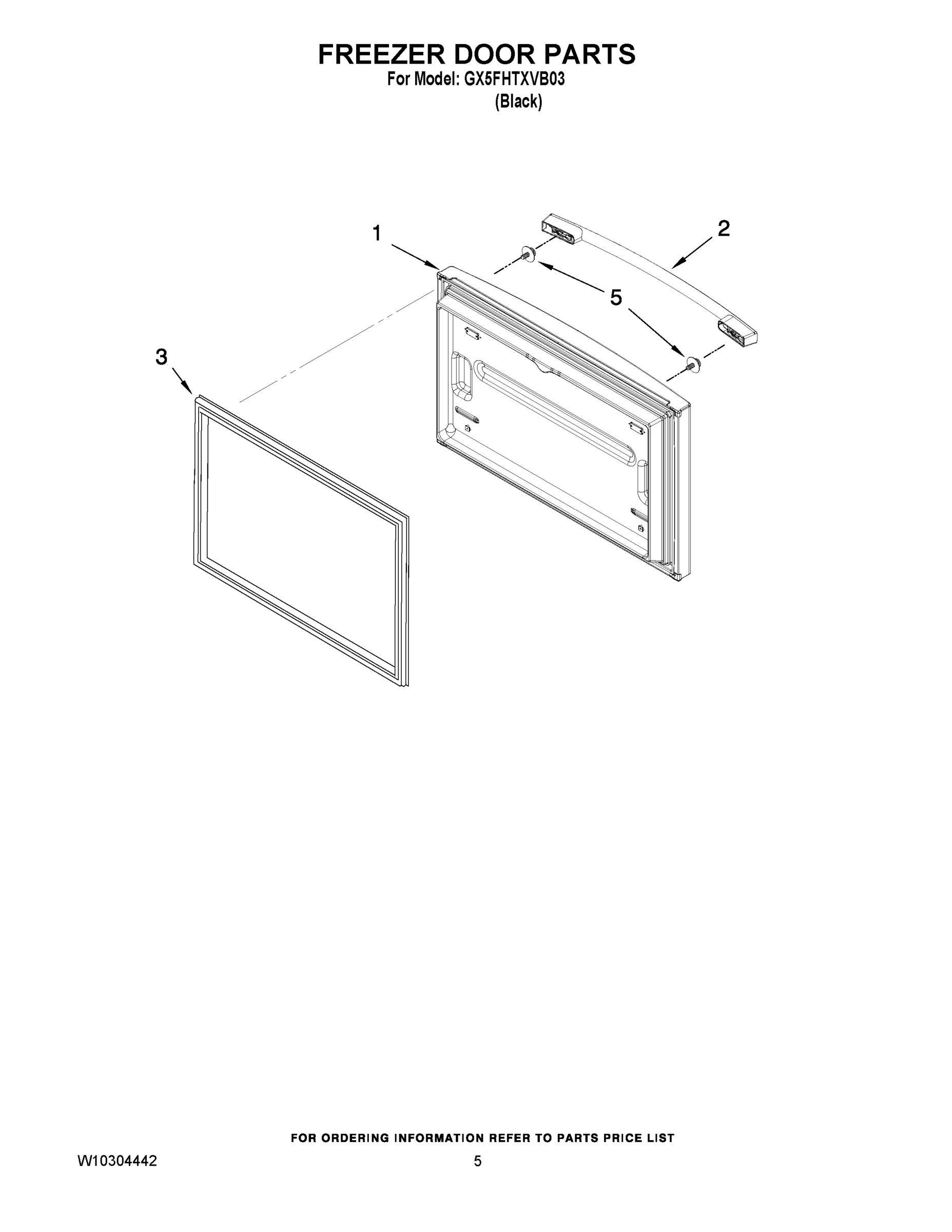

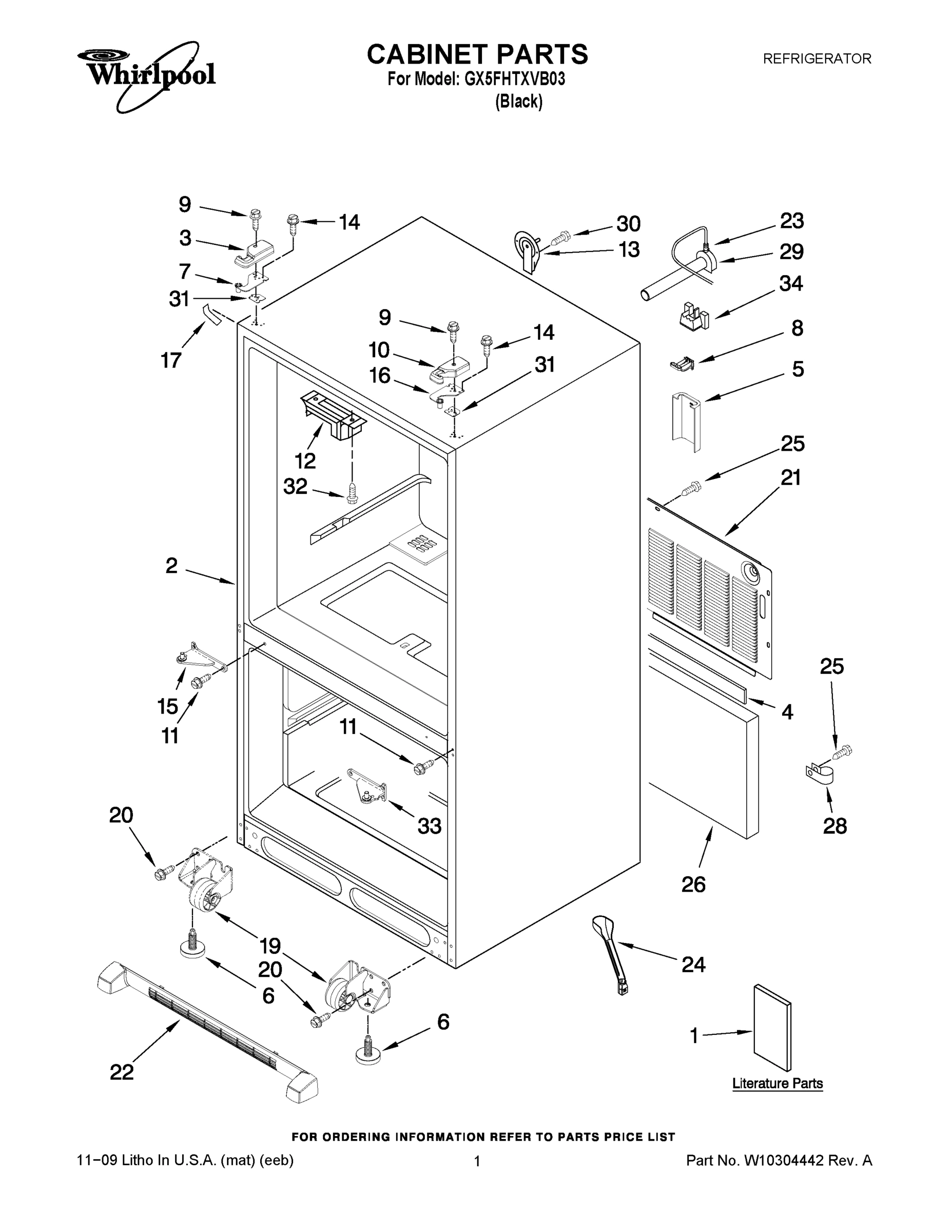

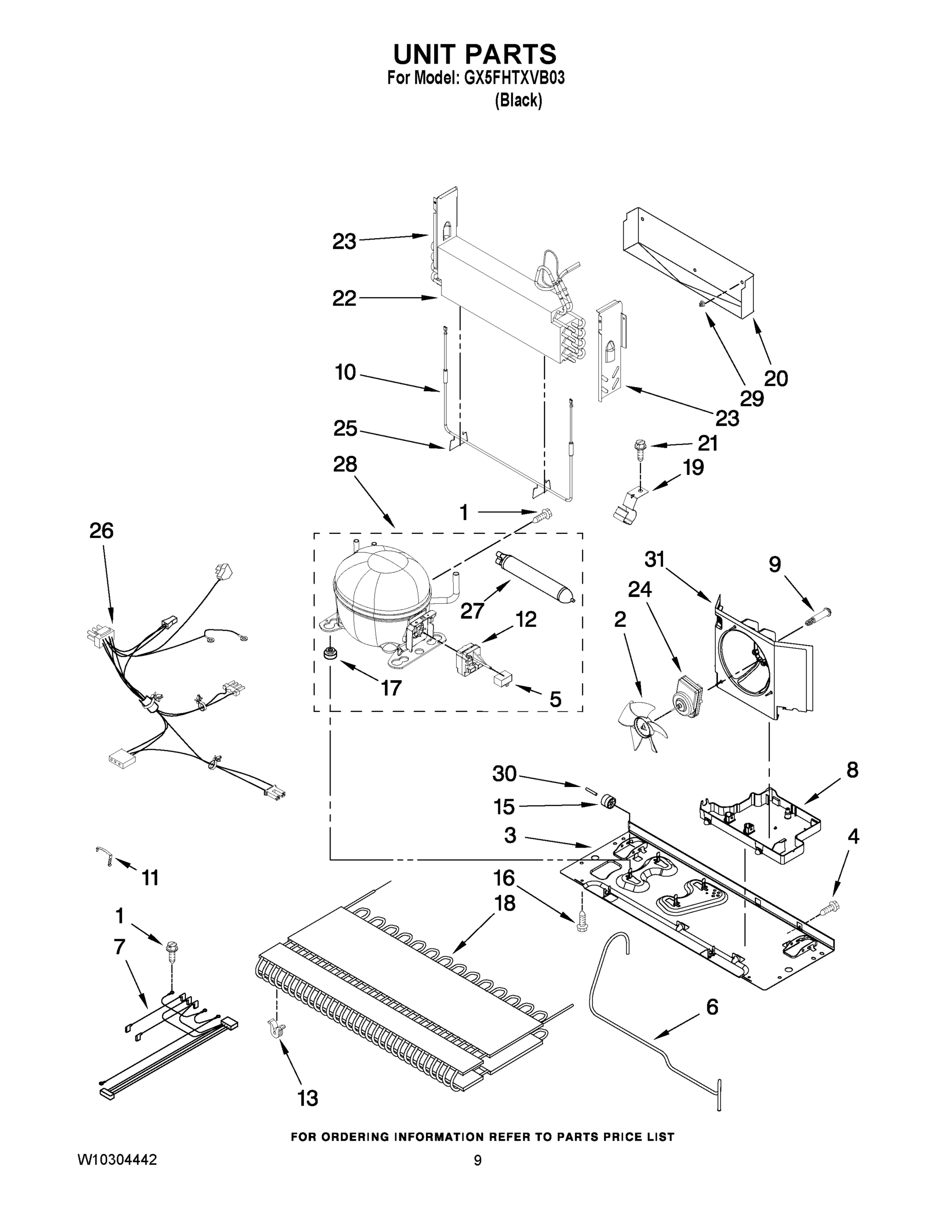

Model Whirlpool GX5FHTXVB03 REFRIGERATOR – Common Parts &amp; Diagrams

1

LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $43.54

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

2

DOOR, RIGHT (BLACK) WPL 12978075BQ Contact Us For Availability

2

TRIM, CRISPER WPL W10231508 Contact Us For Availability

2

MODULE, LIGHT WPL 12806302 Contact Us For Availability

3

W11448709 Whirlpool Refrigerator Bracket Backorder WPL W11448709 $11.69

3

WPW10180451 Whirlpool Refrigerator Overlay Backorder WPL WPW10180451 $31.16

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

WP12806407 Whirlpool Refrigerator Housing Backorder WPL WP12806407 $39.95

5

W10208593 Whirlpool Refrigerator Valve Cover Backorder WPL W10208593 $9.24

5

WP12544124 Whirlpool Refrigerator Valve In Stock WPL WP12544124 $109.42

5

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $118.83

5

Basket, Freezer (Lower) WPL W10150039 Contact Us For Availability

6

W11285509 Whirlpool Refrigerator Shut-Off Arm Backorder WPL W11285509 $50.05

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

6

WPW10233569 Whirlpool Refrigerator Tube Backorder WPL WPW10233569 $43.19

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $36.31

7

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $43.32

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $105.32

8

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

9

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.01

9

W11351146 Whirlpool Refrigerator Handle Backorder WPL W11351146 $100.67

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

W10825088 Whirlpool Refrigerator Defrost Heat In Stock WPL W10825088 $76.49

W10847995 Whirlpool Divider Assembly Backorder WPL W10847995 $28.80

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $32.79

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $4.56

WPW10194431 Whirlpool Start Device In Stock WPL WPW10194431 $58.28

Nameplate WPL 2220214 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $27.29

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $37.84

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.58

14

Backorder WPL W11750607 $18.30

14

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $52.87

15

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $46.85

15

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $74.68

15

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

16

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

16

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.15

16

W11592374 Whirlpool Refrigerator Top Door Hin Backorder WPL W11592374 $10.07

17

W11478401 Whirlpool Refrigerator Housing Backorder WPL W11478401 $83.33

17

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $43.11

17

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $27.69

18

WP13005401SP Whirlpool Can Rack In Stock WPL WP13005401SP $31.40

18

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $9.90

19

W11361728 Whirlpool Reservoir Assembly In Stock WPL W11361728 $57.63

19

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

19

WPW10169346 Whirlpool Refrigerator Beverage H Backorder WPL WPW10169346 $207.93

20

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $10.83

20

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

W10122551 Whirlpool Refrigerator Motor Model Backorder WPL W10122551 $141.39

W10251969 Whirlpool Refrigerator Ladder Backorder WPL W10251969 $11.51

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $24.32

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $76.82

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W10171558 Whirlpool Refrigerator Divider Backorder WPL W10171558 $27.72

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $6.31

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

W11346623 Whirlpool Refrigerator Water Filter In Stock WPL W11346623 $55.58

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $28.80

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $34.13

Dam (Left Side) WPL 12225602 Contact Us For Availability

24

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.69

24

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $44.58

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $27.82

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $56.82

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $42.00

WPW10330993 Whirlpool Refrigerator Bracket Backorder WPL WPW10330993 $56.13

26

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

26

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

26

Fiber, Acoustic WPL 12820505 Contact Us For Availability

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

27

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $35.12

27

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $35.12

28

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $10.87

28

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

29

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $14.42

29

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $14.51

30

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $33.89

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $34.28

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $28.80

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $27.80

32

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

33

W10918168 Whirlpool Refrigerator Door Hinge Backorder WPL W10918168 $27.61

34

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $28.80

34

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $4.15

35

WP12531601 Whirlpool Refrigerator Tunnel Backorder WPL WP12531601 $4.15

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP12868601 Whirlpool Refrigerator Wire Harnes Backorder WPL WP12868601 $48.29

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, 10 OZ. STAINLESS STEEL WPL 31462 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
