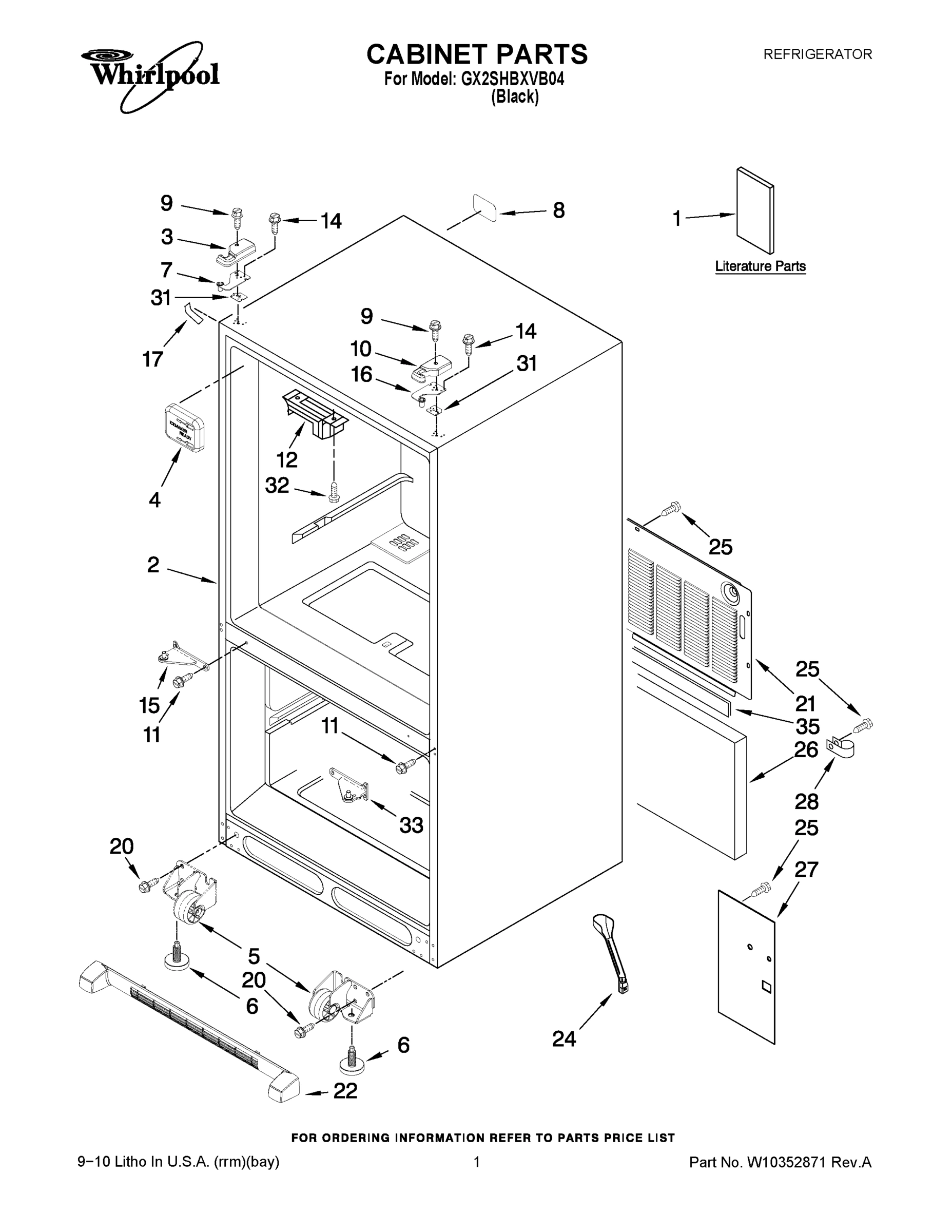

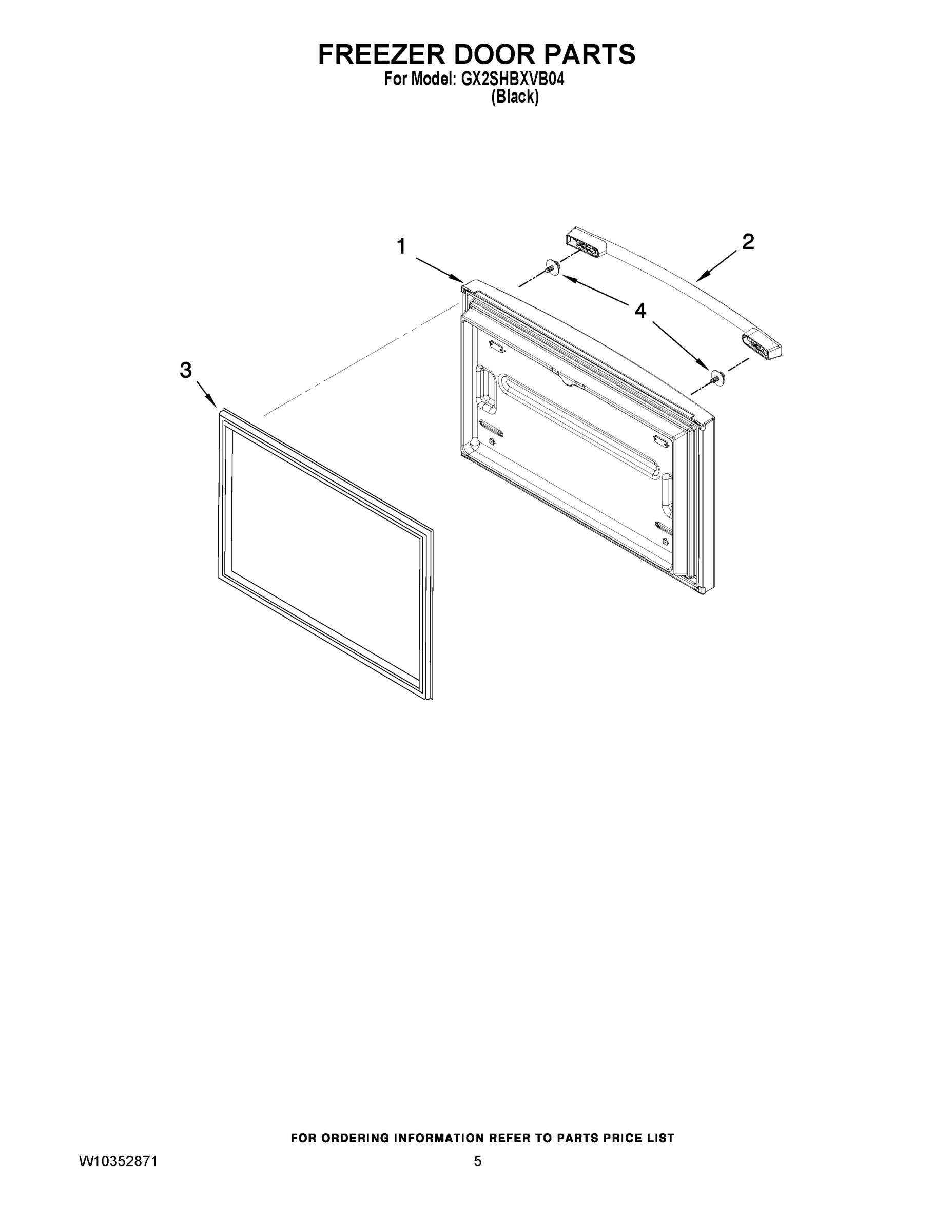

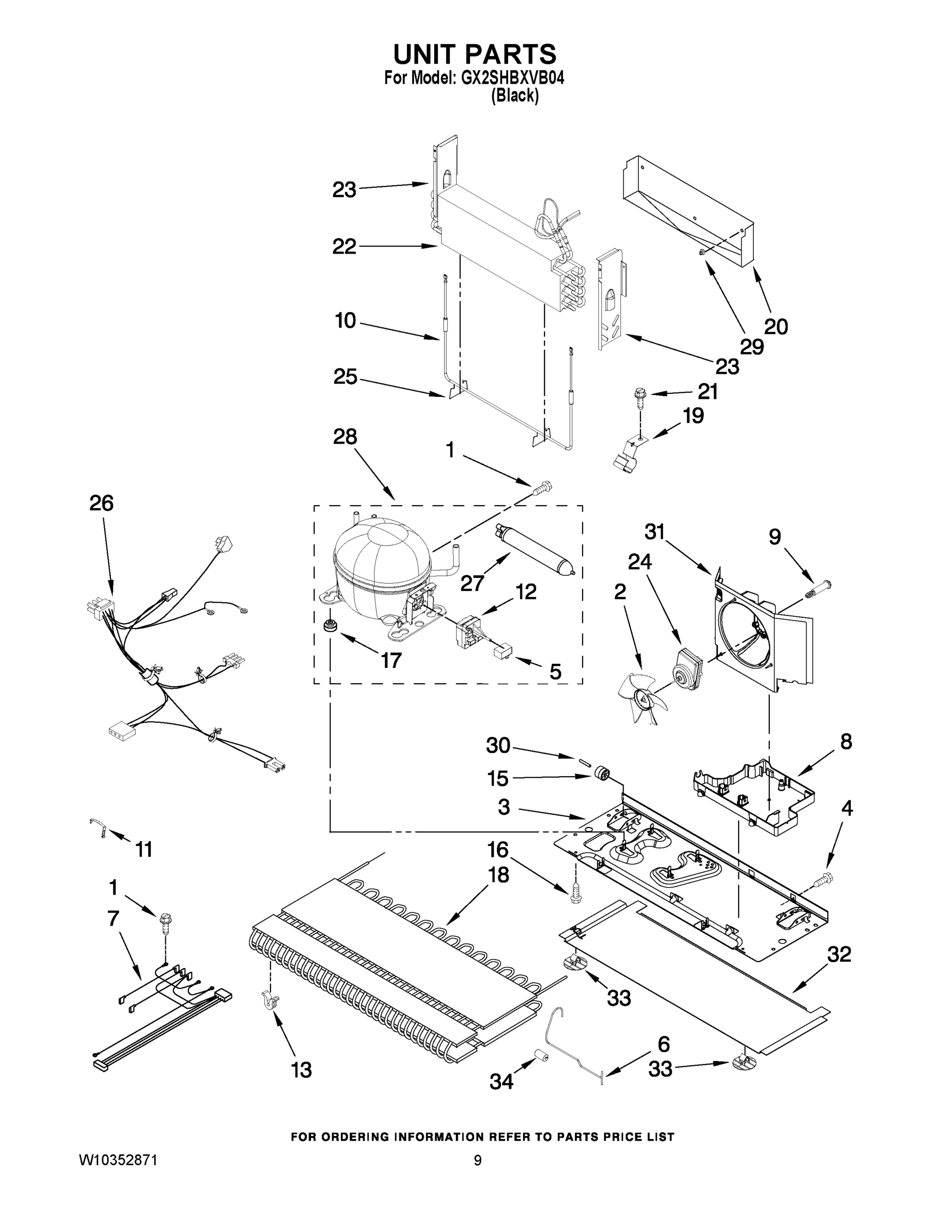

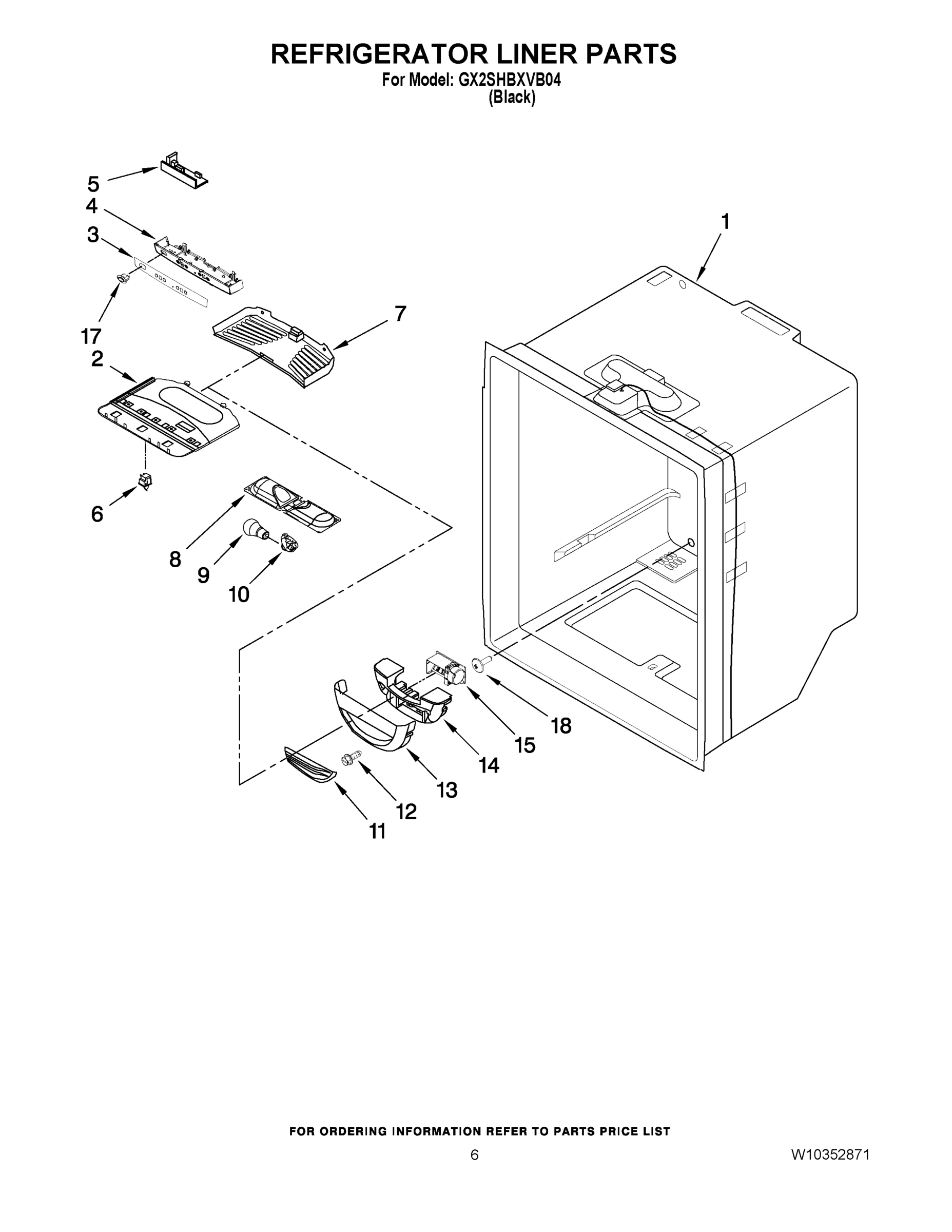

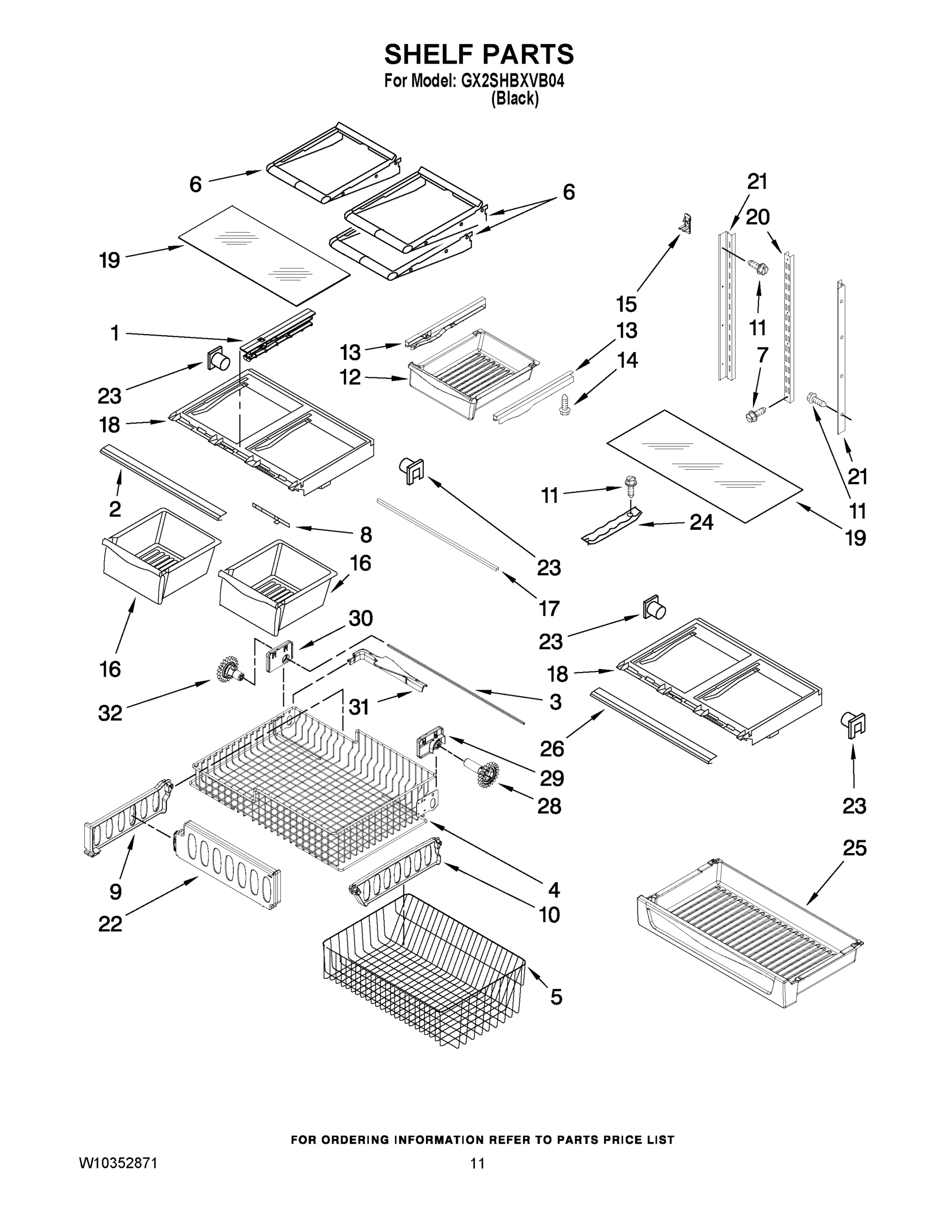

Model Whirlpool GX2SHBXVB04 REFRIGERATOR – Common Parts &amp; Diagrams

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

Use & Care Guide WPL W10208431 Contact Us For Availability

1

ENERGY GUIDE WPL W10260548 Contact Us For Availability

1

TECH SHEET WPL W10322959 Contact Us For Availability

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

2

WPW10231482 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231482 $40.83

2

CABINET (NOT A SERVICABLE PART) WPL NP Contact Us For Availability

2

Handle, Door (Black) WPL W10189640 Contact Us For Availability

3

W10337647 Whirlpool Refrigerator Cover Backorder WPL W10337647 $13.74

3

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $127.04

3

Bucket, Can Dispenser WPL W10169347 Contact Us For Availability

3

OVERLAY WPL W10316011 Contact Us For Availability

4

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

4

WP12806407 Whirlpool Refrigerator Housing Backorder WPL WP12806407 $39.95

4

WP13005401SP Whirlpool Can Rack In Stock WPL WP13005401SP $31.40

4

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.70

5

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

5

WPW10503183 Whirlpool Freezer Basket Backorder WPL WPW10503183 $130.46

5

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $37.39

5

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $37.73

6

W10296294 Whirlpool Refrigerator Tube Backorder WPL W10296294 $46.19

6

W11402523 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402523 $118.14

6

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

7

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.65

7

W11260592 Whirlpool Refrigerator Wire Harness In Stock WPL W11260592 $36.93

7

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

7

W11715937 Whirlpool Shaft Backorder WPL W11715937 $37.90

8

W11685757 Whirlpool Label Backorder WPL W11685757 $2.29

9

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.01

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

10

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

10

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $66.88

10

WP67005956 Whirlpool Refrigerator Cover Backorder WPL WP67005956 $12.06

11

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $105.96

11

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

W10293291 Whirlpool Refrigerator Start Device Backorder WPL W10293291 $60.96

WP67003405 Whirlpool Pivot Block In Stock WPL WP67003405 $3.70

WPW10194431 Whirlpool Start Device In Stock WPL WPW10194431 $58.28

Nameplate WPL 2220214 Contact Us For Availability

13

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $27.29

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $37.84

13

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.58

14

Backorder WPL W11750607 $18.30

14

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $52.87

15

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $46.85

15

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $74.68

15

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

16

W11592374 Whirlpool Refrigerator Top Door Hin Backorder WPL W11592374 $10.07

17

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

17

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $42.33

20

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.51

20

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $10.83

20

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $10.10

21

W10251969 Whirlpool Refrigerator Ladder Backorder WPL W10251969 $11.51

21

WPW10210979 Whirlpool Refrigerator Back Cover Backorder WPL WPW10210979 $76.16

22

W10311695 Whirlpool Refrigerator Divider Backorder WPL W10311695 $14.37

22

W11459354 Whirlpool Refrigerator Evaporator In Stock WPL W11459354 $102.30

22

WPW10534162 Whirlpool Refrigerator Front Gril In Stock WPL WPW10534162 $39.08

23

Dam (Left Side) WPL 12225602 Contact Us For Availability

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $24.50

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

25

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

25

DRAWER, PANTRY WPL W10328326 Contact Us For Availability

26

W10656986 Whirlpool Refrigerator Shelf Trim Backorder WPL W10656986 $42.82

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $167.82

26

Fiber, Acoustic WPL 12820505 Contact Us For Availability

W11684617 Whirlpool Valve Cover Backorder WPL W11684617 $7.41

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $35.12

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $35.12

28

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

28

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

28

WPW10474715 Whirlpool Refrigerator Gear Backorder WPL WPW10474715 $10.96

29

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $30.38

29

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $14.42

29

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $14.51

30

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $30.38

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $33.89

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $34.28

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $28.80

W11556315 Whirlpool Shroud Backorder WPL W11556315 $27.80

32

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

32

WPW10474716 Whirlpool Refrigerator Gear Backorder WPL WPW10474716 $10.87

33

W10918168 Whirlpool Refrigerator Door Hinge Backorder WPL W10918168 $27.61

34

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

35

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11459724 Whirlpool Refrigerator Icemaker In Stock WPL W11459724 $154.33

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, 10 OZ. STAINLESS STEEL WPL 31462 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
