Model Whirlpool GX2FHDXVA03 REFRIGERATOR – Common Parts & Diagrams

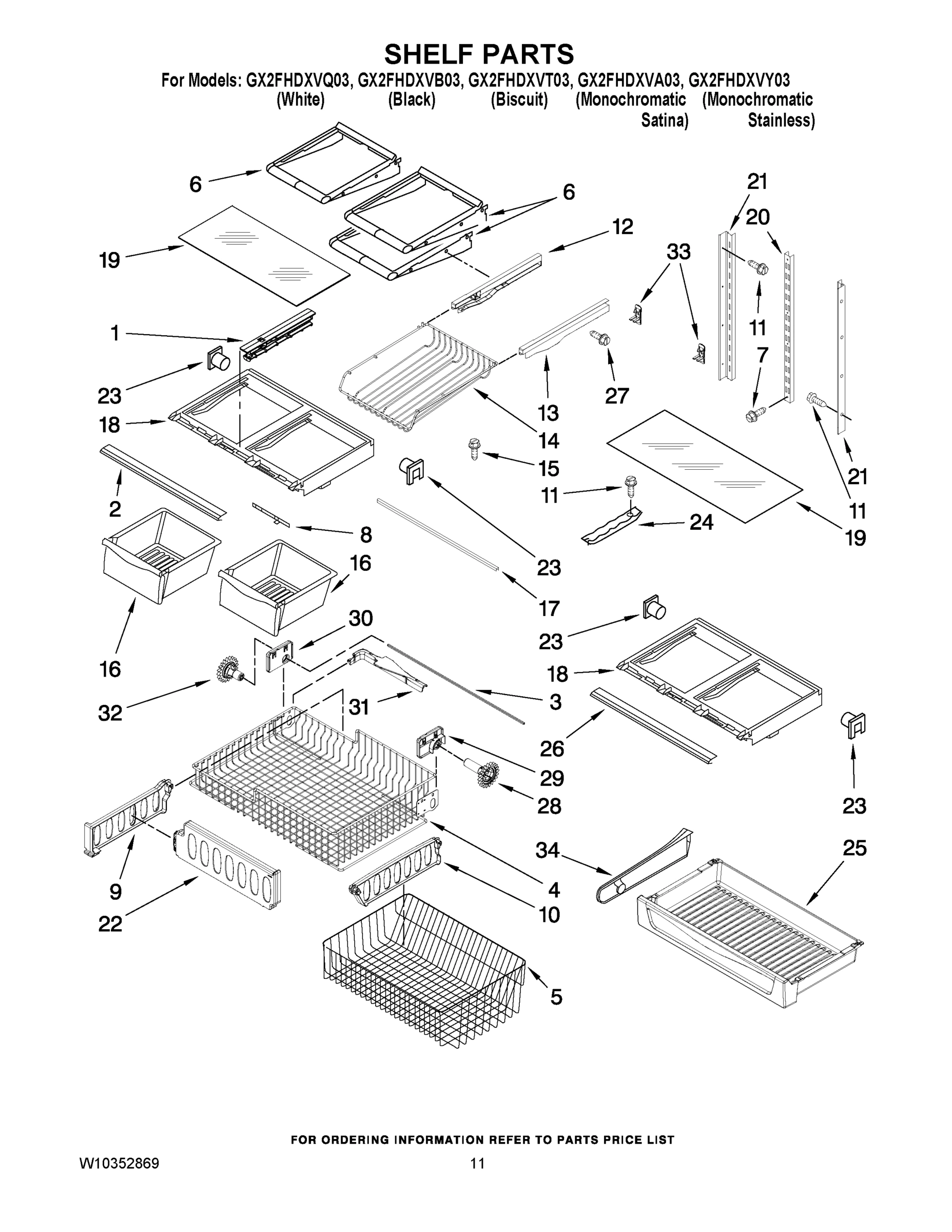

07 - SHELF PARTS
09 - OPTIONAL PARTS
05 - REFRIGERATOR DOOR PARTS
08 - ICEMAKER PARTS
01 - CABINET PARTS
02 - FREEZER LINER PARTS
03 - FREEZER DOOR PARTS
04 - REFRIGERATOR LINER PARTS
06 - UNIT PARTS
Common parts from model Whirlpool GX2FHDXVA03 REFRIGERATOR
1
SCREW WPL 12992301 Contact Us For Availability
2
Handle, Door (White) WPL W10189639 Contact Us For Availability
3
Bucket, Can Dispenser WPL W10169347 Contact Us For Availability
3
OVERLAY WPL W10316011 Contact Us For Availability
4
GEAR,(L & R) WPL 12002497 Contact Us For Availability
4
GASKET, MC BACK WPL B5759655 Contact Us For Availability
6
TUBE, DISCHARGE WPL W10296294 Contact Us For Availability
7
SCREW WPL W10215666 Contact Us For Availability
9
Divider, Basket (Upper) WPL W10241046 Contact Us For Availability
11
Stop, Door (White) WPL 12968202W Contact Us For Availability
11
COVER, EVAPORATOR WPL W10308415 Contact Us For Availability
12
START DEVICE (PRODUCTION) WPL W10293291 Contact Us For Availability
12
Nameplate WPL 2220214 Contact Us For Availability
13
GROMMET WPL W10121318 Contact Us For Availability
13
COVER, WATER LINE WPL 12726003 Contact Us For Availability
15
CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability
16
Screw WPL 8533917 Contact Us For Availability
17
Cover, Corner (White) WPL 12587703W Contact Us For Availability
17
COVER, CORNER (BISCUIT) WPL 12587703C Contact Us For Availability
20
LADDER, CENTER WPL W10273463 Contact Us For Availability
21
LADDER, SIDE WPL W10251969 Contact Us For Availability
22
DIVIDER, UPPER FRZ WPL W10311695 Contact Us For Availability
22
SCREW WPL 489136 Contact Us For Availability
23
Dam (Left Side) WPL 12225602 Contact Us For Availability
24
FUNNEL, FILL TUBE WPL 12918001 Contact Us For Availability
25
DRAWER, PANTRY WPL W10328326 Contact Us For Availability
26
Fiber, Acoustic WPL 12820505 Contact Us For Availability
27
GUARD, WATER VALVE (SINGLE) WPL W10208592 Contact Us For Availability
31
Shim, Top Hinge (Left) WPL 12999501 Contact Us For Availability
31
Shim, Top Hinge (Right) WPL 12999502 Contact Us For Availability
33
Hinge, Center (RT) (White) WPL 13000002WD Contact Us For Availability
34
DIVERTER, AIR WPL W10157765 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
NI
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
NI
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
NI
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
NI
Kit, Terminal Connector WPL 833938 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH WPL 350942 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
