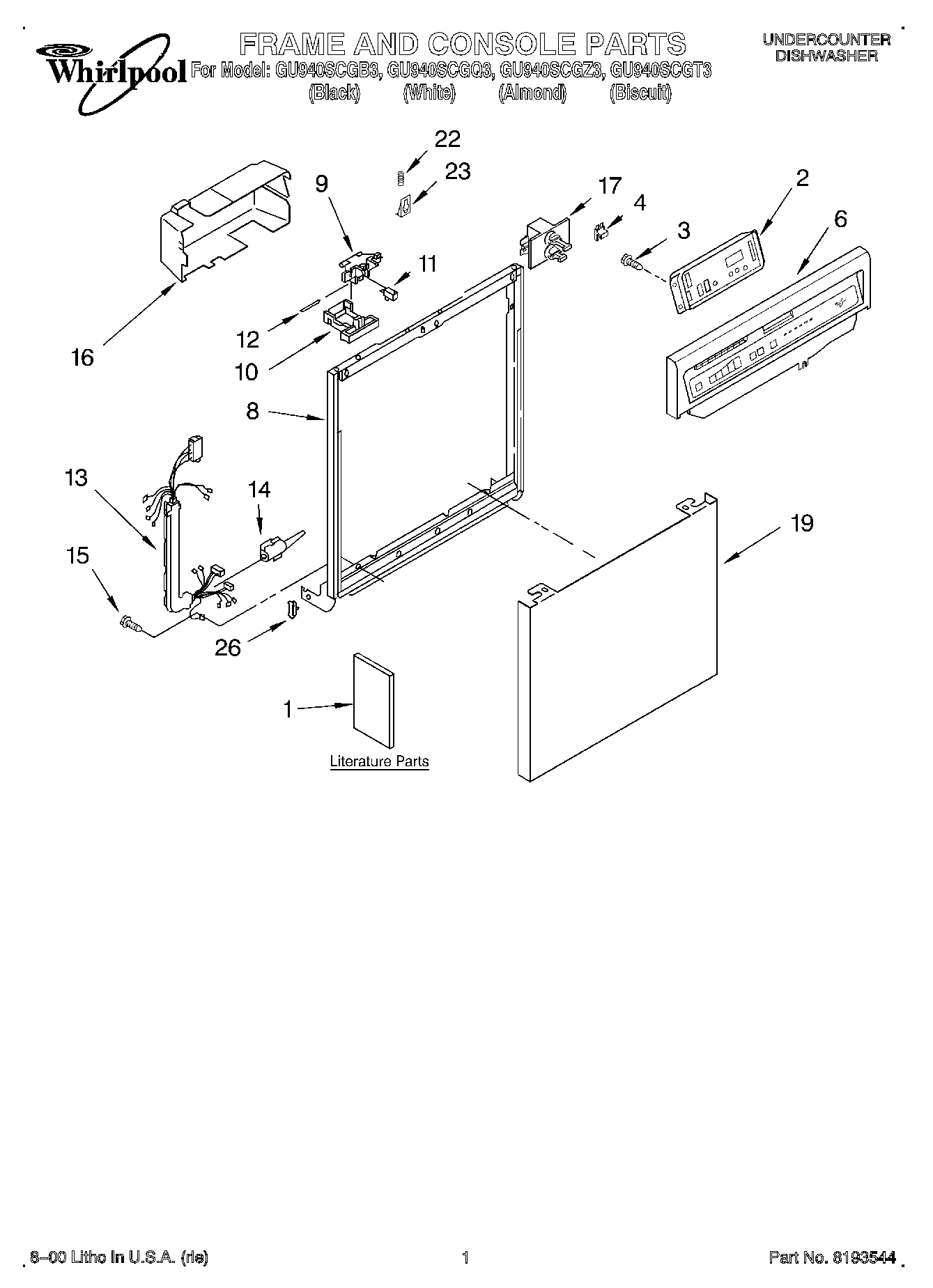

Model Whirlpool GU940SCGT3 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

Do-It-Yourself, Manual
Do-It-Yourself, Manual WPL LIT677967 Contact Us For Availability
View on Model
1
DOOR SPRING KIT: (HEAVY DUTY)
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
View on Model
1
Seal, Tube
Seal, Tube WPL 9742953 Contact Us For Availability
View on Model
1

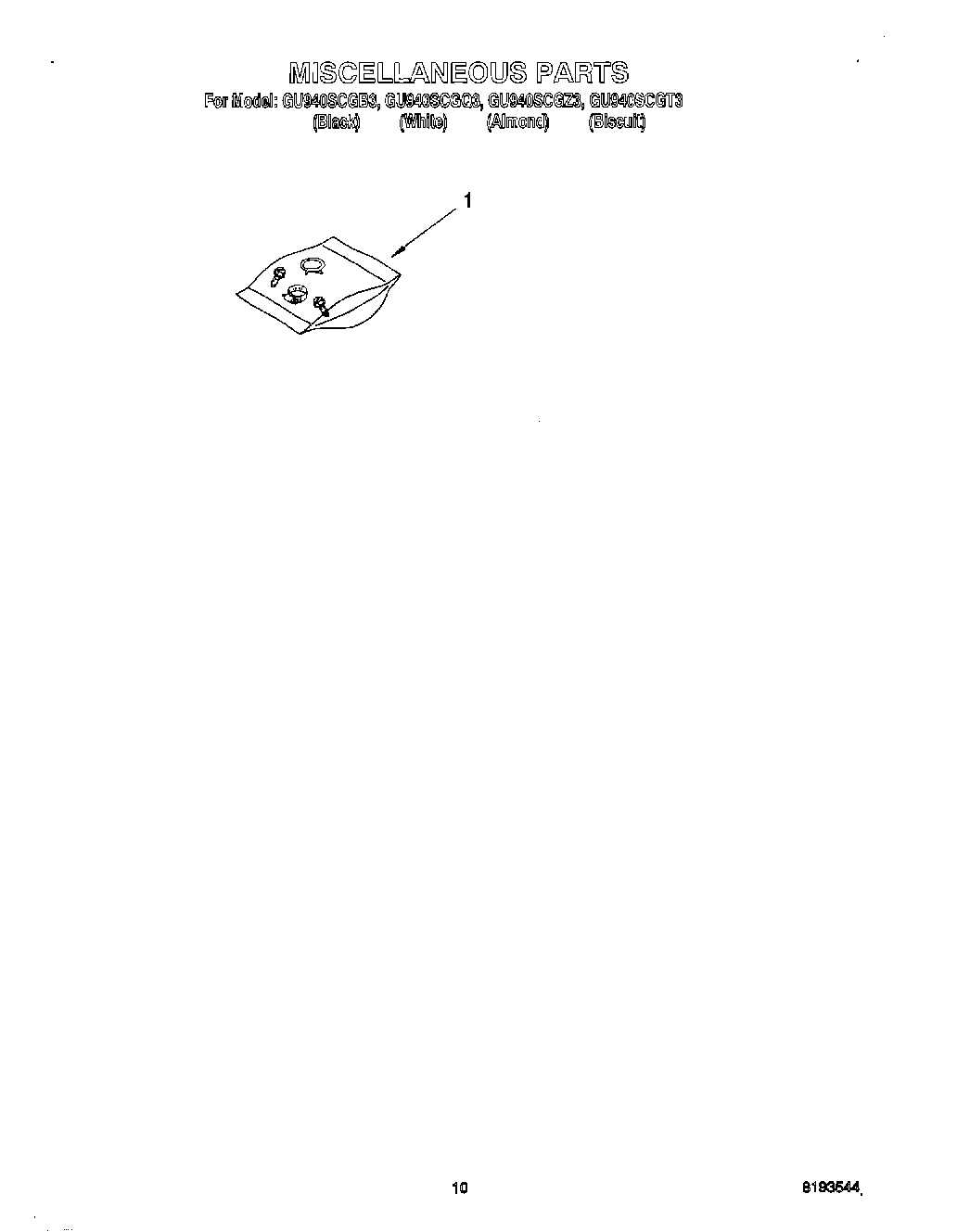

Miscellaneous Parts Bag (Includes 2 Screws &
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
View on Model
1
SIDE PANEL KITS: (WHITE)
SIDE PANEL KITS: (WHITE) WPL 4317925 Contact Us For Availability
View on Model
1
Side Panel Kits (Almond)
Side Panel Kits (Almond) WPL 4317929 Contact Us For Availability
View on Model
1
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
View on Model
1
Tine Tip Repair Kit (Blue - Enough For Two Co
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
View on Model
1
Black (Uncut)
Black (Uncut) WPL 799340 Contact Us For Availability
View on Model
1
Almond (Uncut)
Almond (Uncut) WPL 978883 Contact Us For Availability
View on Model
1

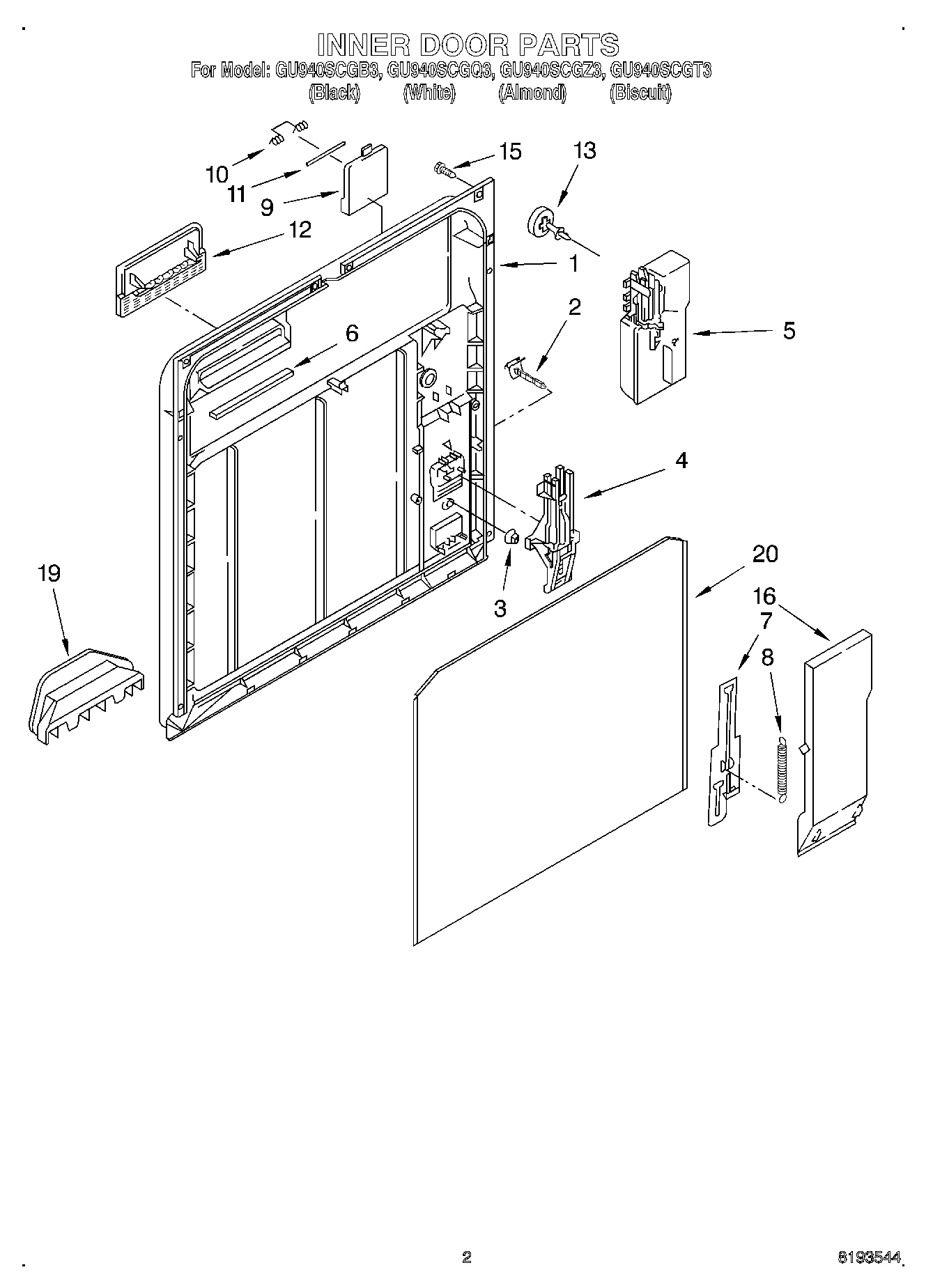

Door, Inner (Includes Items 2 & 3)
Door, Inner (Includes Items 2 & 3) WPL 8051463 Contact Us For Availability
View on Model
2

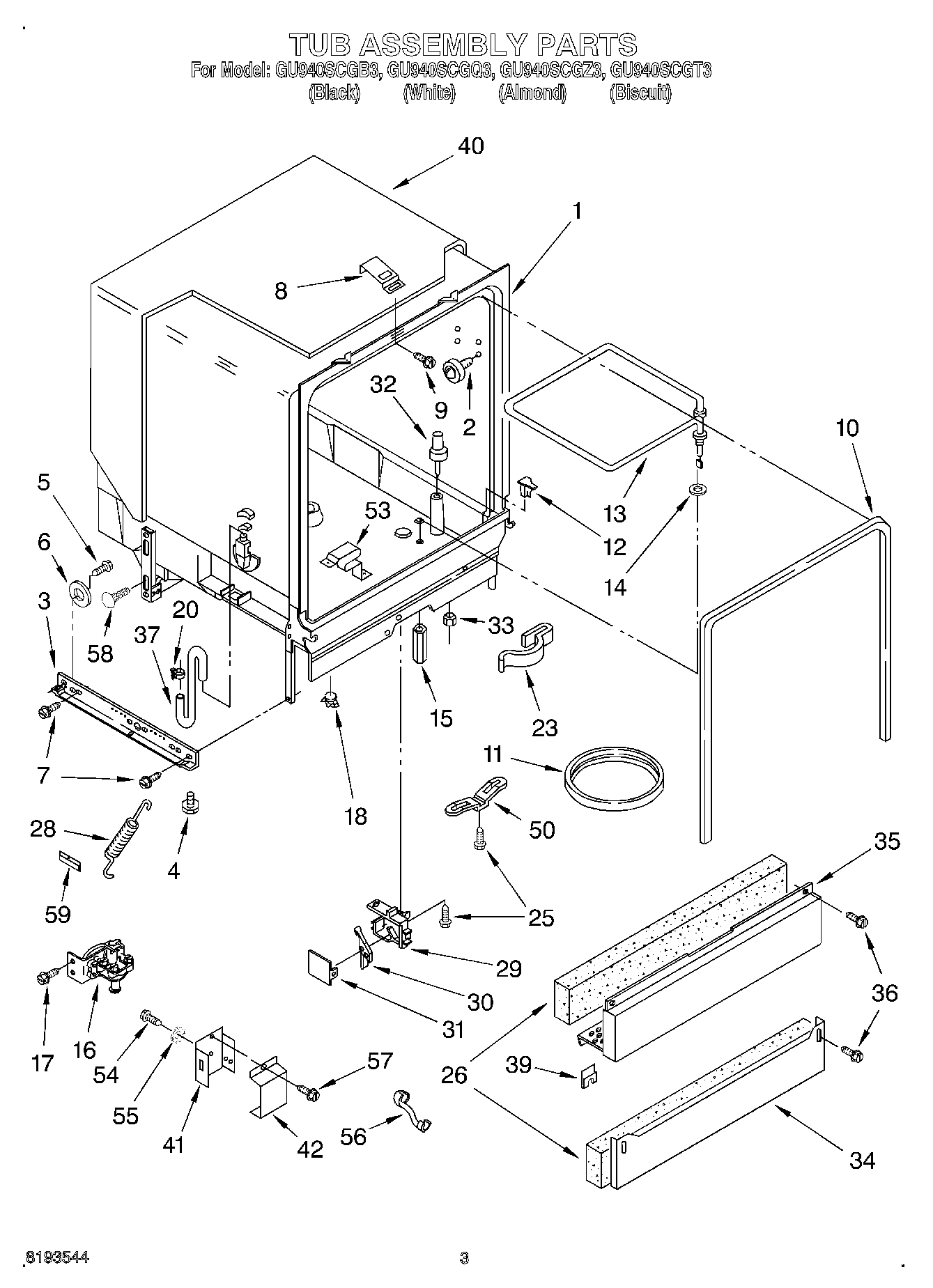

Tub, Wheel Assembly (8)
Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability
View on Model
4

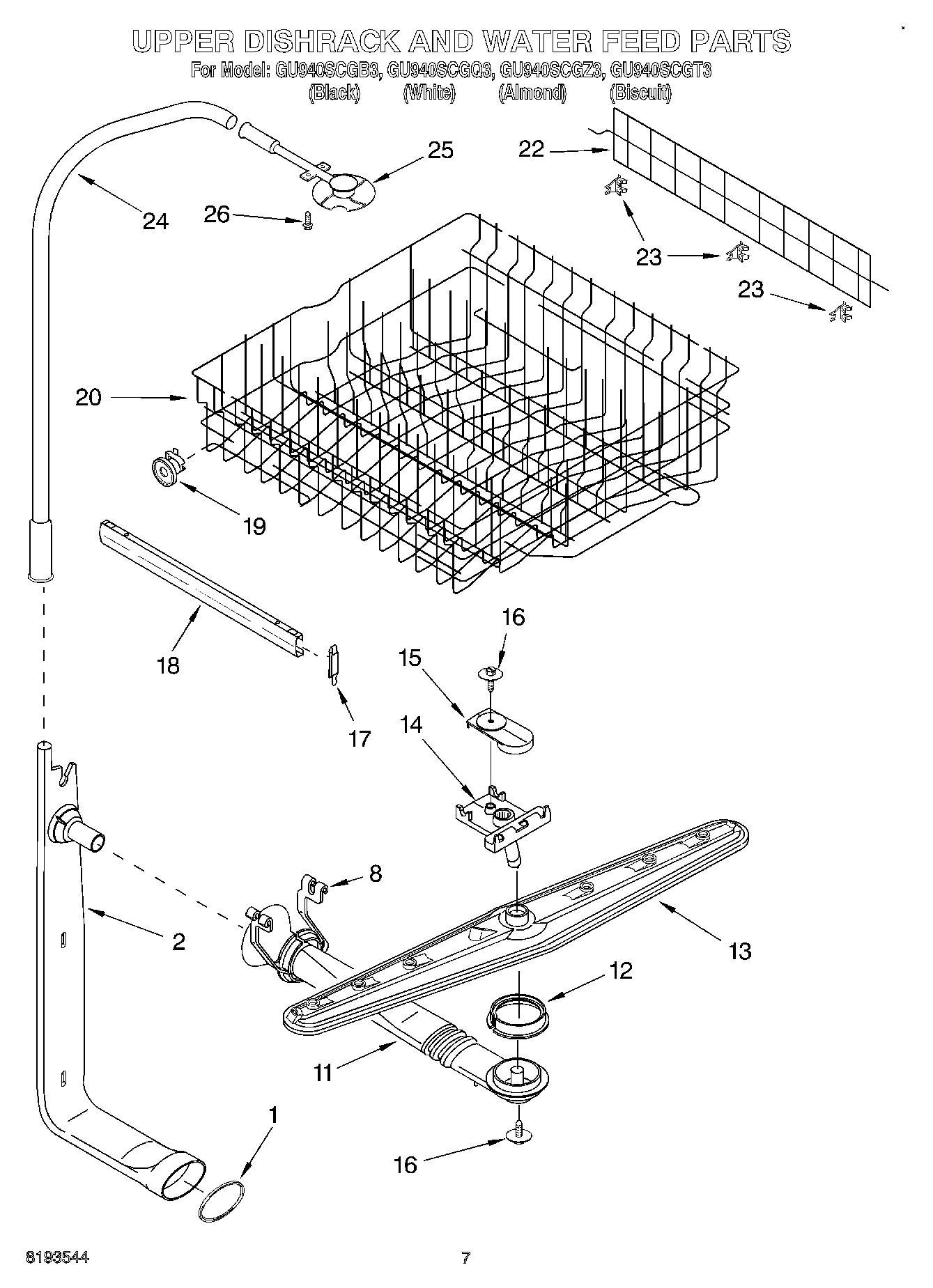

Tinerow, Folding
Tinerow, Folding WPL 8268869 Contact Us For Availability
View on Model
6
Console (Includes Insert) (Black)
Console (Includes Insert) (Black) WPL 8051707 Contact Us For Availability
View on Model
7
Silverware Basket Assembly
Silverware Basket Assembly WPL 8268884 Contact Us For Availability
View on Model
7
Draw Bar, Electronic
Draw Bar, Electronic WPL 3369448 Contact Us For Availability
View on Model
8
Plate, Latch
Plate, Latch WPL 3378149 Contact Us For Availability
View on Model
8
Door, Silverware Basket
Door, Silverware Basket WPL 8519540 Contact Us For Availability
View on Model
9
Filter Assembly (Includes Items 12, 13 & 22)
Filter Assembly (Includes Items 12, 13 & 22) WPL 3384593 Contact Us For Availability
View on Model
10
Lever, Latch (Black)
Lever, Latch (Black) WPL 3369457 Contact Us For Availability
View on Model
10
Lever, Latch White
Lever, Latch White WPL 3372231 Contact Us For Availability
View on Model
12
Pin, Switch (2)
Pin, Switch (2) WPL 3368955 Contact Us For Availability
View on Model
16
Cover, Drip
Cover, Drip WPL 3371569 Contact Us For Availability
View on Model
17
Motor, Dual
Motor, Dual WPL 3374501 Contact Us For Availability
View on Model
19
Panel Front (White)
Panel Front (White) WPL 3379376 Contact Us For Availability
View on Model
19
Panel Front (Black)
Panel Front (Black) WPL 3379375 Contact Us For Availability
View on Model
19
Panel, Front (Biscuit)
Panel, Front (Biscuit) WPL 8054178 Contact Us For Availability
View on Model
20
Absorber, Sound
Absorber, Sound WPL 8271325 Contact Us For Availability
View on Model
23
Cover, Drain (Also Order Item 30) See Note A.
Cover, Drain (Also Order Item 30) See Note A. WPL 3376845 Contact Us For Availability
View on Model
23
Clip, Cupshelf
Clip, Cupshelf WPL 8268817 Contact Us For Availability
View on Model
24
Tube, Feed
Tube, Feed WPL 9743958 Contact Us For Availability
View on Model
29
Housing, Float Switch
Housing, Float Switch WPL 3369048 Contact Us For Availability
View on Model
31
Tool, Pump Centering
Tool, Pump Centering WPL 303918 Contact Us For Availability
View on Model
33
Nut
Nut WPL 717488 Contact Us For Availability
View on Model
