Model GE GTS15CTHJLWW Refrigerator – Common Parts & Diagrams

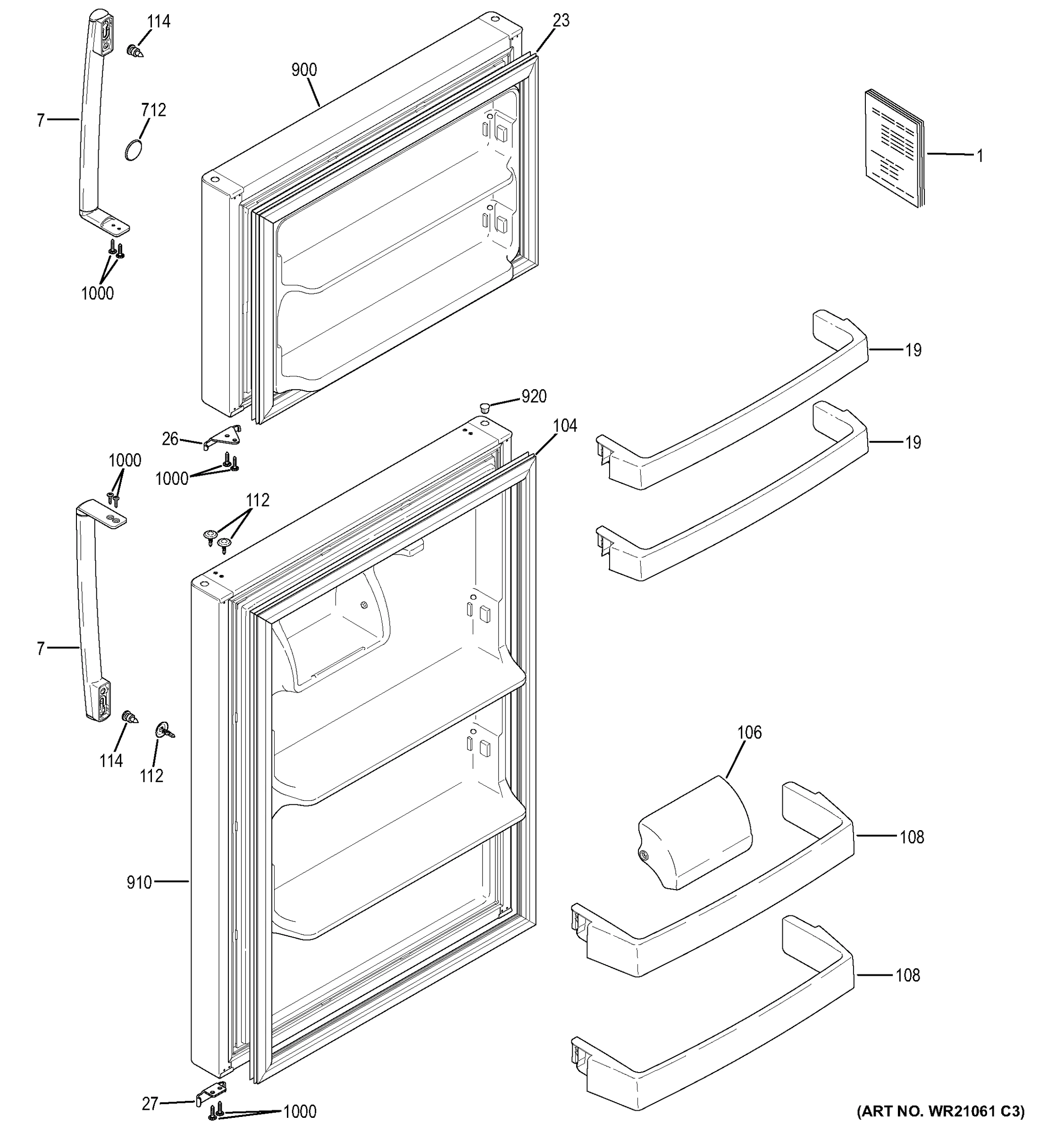

DOORS

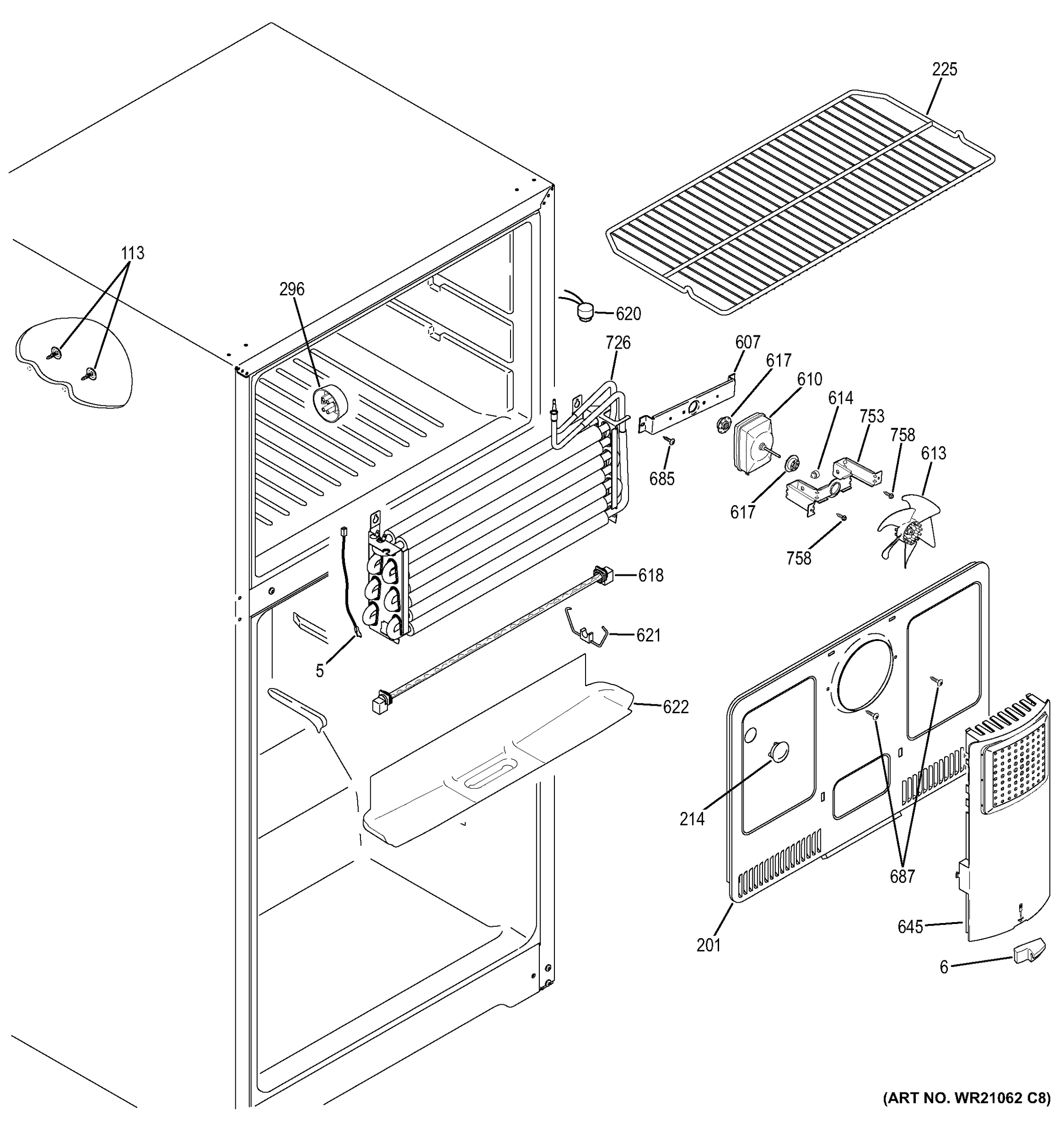

FREEZER SECTION
FRESH FOOD SECTION
FRESH FOOD SHELVES
MACHINE COMPARTMENT
ICE MAKER
Common parts from model GE GTS15CTHJLWW Refrigerator
6
ACTUATOR AIR FOAM GEN WR02X23833 Contact Us For Availability
27
STOP DOOR GEN WR02X21152 Contact Us For Availability
112
PLUG DOOR RVSBL GEN WR01X21159 Contact Us For Availability
151
SCR 10-16 AB 43WHEX 5/8 GEN WD02X10151 Contact Us For Availability
214
PLUG BUTTON GEN WR02X11760 Contact Us For Availability
225
SHELF WIRE FZ GEN WR71X21169 Contact Us For Availability
228
SHELF WIRE FF GEN WR71X21181 Contact Us For Availability
244
SHELF GLASS GEN WR32X21260 Contact Us For Availability
251
GASKET SUPPLY FOAM GEN WR02X23409 Contact Us For Availability
263
SLIDER ADJ GEN WR2X7877 Contact Us For Availability
276
HINGE CENTER GEN WR13X21174 Contact Us For Availability
279
PIN HINGE CTR GEN WR02X21173 Contact Us For Availability
280
CAP CORNER OC WHITE GEN WR02X10703 Contact Us For Availability
282
HINGE BOTTOM GEN WR13X21175 Contact Us For Availability
287
MOBILITY ASM FRONT LH GEN WR02X21258 Contact Us For Availability
297
KNOB CONTROL GEN WR02X21250 Contact Us For Availability
304
NOZZLE SUPPLY FOAM GEN WR02X21253 Contact Us For Availability
318
HARNESS MECH CNTRL GEN WR55X21257 Contact Us For Availability
614
BUMPER GEN WR02X10540 Contact Us For Availability
618
HEATER DEF ASM GEN WR09X21107 Contact Us For Availability
621
HOLDER ELEMENT ASM GEN WR02X13678 Contact Us For Availability
651
BLADE COND FAN ASM GEN WR60X10207 Contact Us For Availability
687
SCR 8-15 AB IHXW 1/2 S GEN WR01X10589 Contact Us For Availability
692
SCR 8-32 CA HXW 1/2 NS GEN WR01X23006 Contact Us For Availability
735
OVERLOAD PTCR COMBO GEN WR07X20215 Contact Us For Availability
737
GROMMET GEN WR02X22869 Contact Us For Availability
758
SCR 8-32 TT HXW 3/8 S GEN WR01X10860 Contact Us For Availability
802
CLIP U GEN WR01X10182 Contact Us For Availability
806
TUBE PLASTIC GEN WR17X11492 Contact Us For Availability
807
CLAMP GEN WR02X11437 Contact Us For Availability
820
KIT RPLCMT WR30X10093 GEN WR30X10093 Contact Us For Availability
865
STRIPPER IM GEN WR29X10083 Contact Us For Availability
909
SUPPORT CONDENSER GEN WR02X21166 Contact Us For Availability
920
PLUG BTN WHT GEN WR2X8233 Contact Us For Availability
1000
SCR 10-16 AB TRP 3/4 NBS GEN WR01X21151 Contact Us For Availability
× ![]()
