Model GE GTE18ITHPRWW Refrigerator – Common Parts & Diagrams

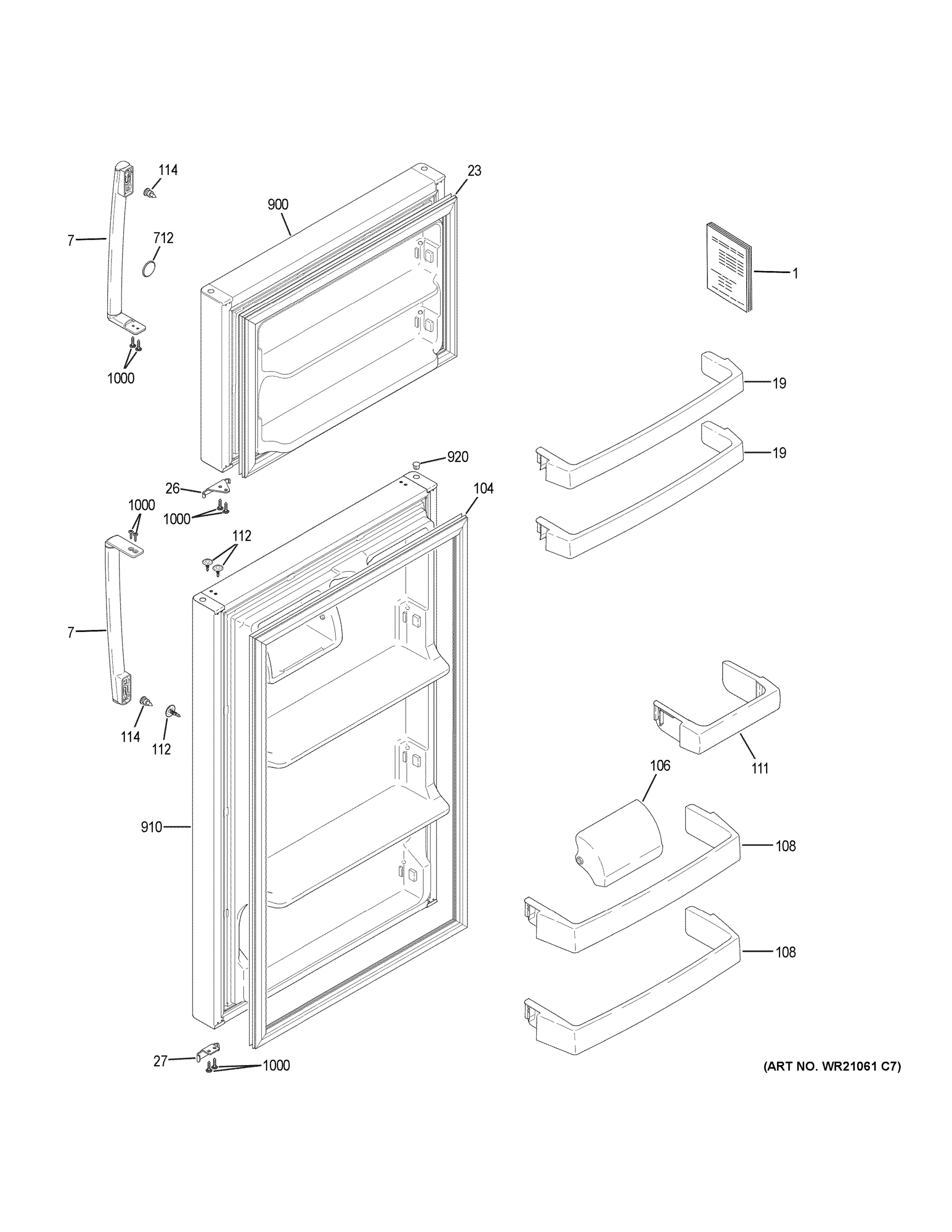

DOORS

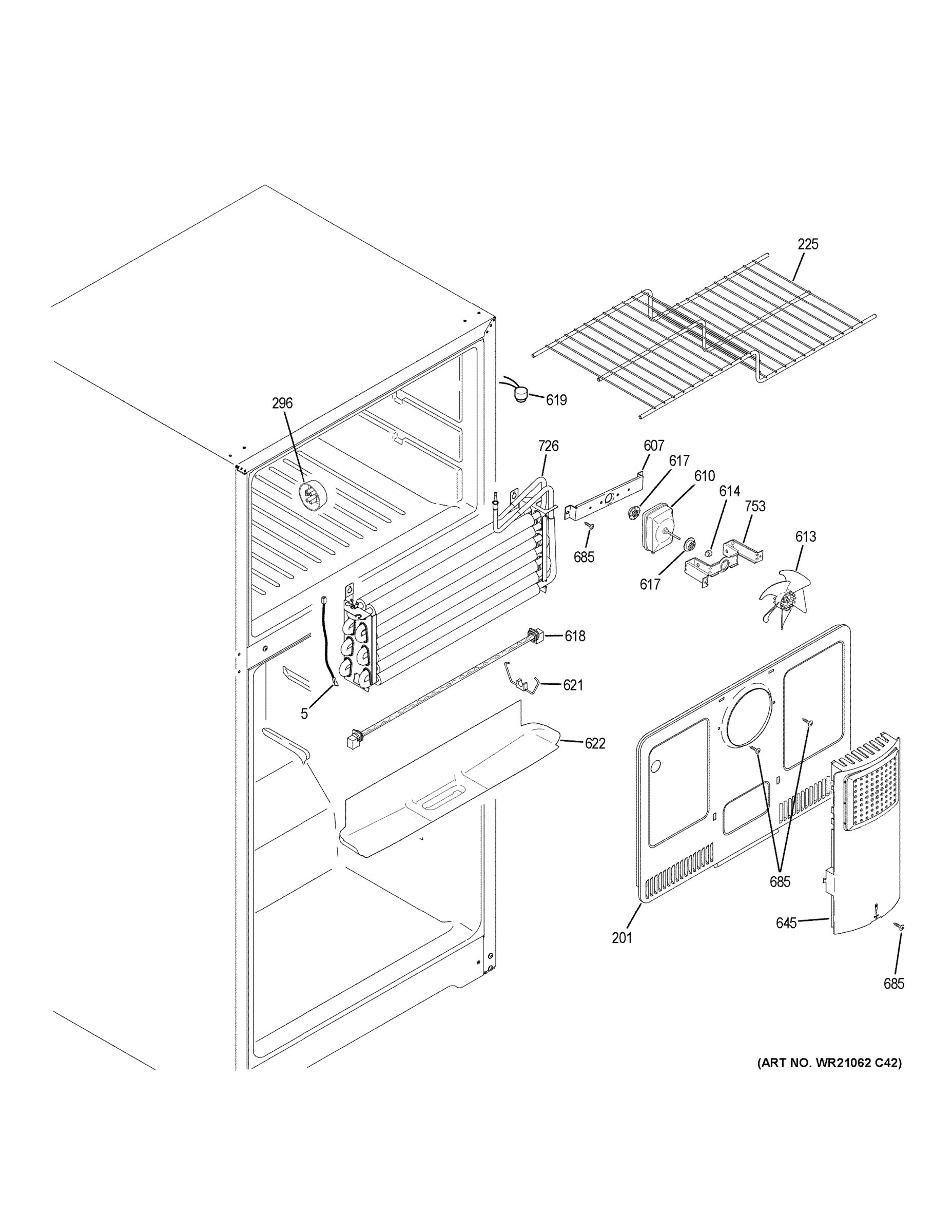

FREEZER SECTION
FRESH FOOD SECTION
FRESH FOOD SHELVES
MACHINE COMPARTMENT
ICE MAKER
Common parts from model GE GTE18ITHPRWW Refrigerator
19
SHELF FRONT FULL FZ GEN WR71X10681 Contact Us For Availability
23
GASKET DOOR FZ GEN WR24X10187 Contact Us For Availability
26
FREEZER DOOR STOP WHITE GEN WR02X28287 Contact Us For Availability
27
REFRIGERATOR DOOR STOP WHITE GEN WR02X28283 Contact Us For Availability
104
GASKET DOOR FF GEN WR24X10186 Contact Us For Availability
106
REFRIGERATOR CLEAR DAIRY DOOR GEN WR22X28065 Contact Us For Availability
108
BIN FIXED RAINGUTTER GAL GEN WR71X10525 Contact Us For Availability
111
SHELF FRONT HALF FF GEN WR71X10682 Contact Us For Availability
112
PLUG DOOR RVSBL GEN WR01X21159 Contact Us For Availability
151
SCR 10-16 AB 43WHEX 5/8 GEN WD02X10151 Contact Us For Availability
201
COVER EVAP ASM GEN WR17X11641 Contact Us For Availability
225
SHELF ASM FZ GEN WR71X10702 Contact Us For Availability
228
TRIM FRONT GLASS SHELF GEN WR38X10221 Contact Us For Availability
229
SHELF CANT FULL GEN WR71X10279 Contact Us For Availability
230
SHELF CANT GLASS FULL GEN WR32X10176 Contact Us For Availability
236
REFRIGERATOR SNACK PAN GEN WR32X28066 Contact Us For Availability
240
REFRIGERATOR VEGETABLE BIN GEN WR32X28064 Contact Us For Availability
242
COVER VEG PAN GEN WR32X10537 Contact Us For Availability
244
SHELF CANT GLASS GEN WR32X10540 Contact Us For Availability
249
SUPPORT VEG PAN GEN WR02X11775 Contact Us For Availability
250
SCR 8-18 AB 13/4 S HXW GEN WR01X10634 Contact Us For Availability
260
TRIM REAR GLASS SHELF GEN WR38X10223 Contact Us For Availability
263
SLIDER ADJ GEN WR2X7877 Contact Us For Availability
267
COVER ACCESS GEN WR82X27711 Contact Us For Availability
276
HINGE CENTER GEN WR13X21174 Contact Us For Availability
279
PIN HINGE CTR GEN WR02X21173 Contact Us For Availability
280
CAP CORNER OC WHITE GEN WR02X10703 Contact Us For Availability
282
HINGE BOTTOM GEN WR13X21175 Contact Us For Availability
285
PIN HINGE BOTTOM GEN WR02X27092 Contact Us For Availability
287
LH MOBILITY ASM FRONT GEN WR02X26157 Contact Us For Availability
297
KNOB THUMB CONTROL FF GEN WR02X11860 Contact Us For Availability
300
CONTROL TEMP GEN WR09X26874 Contact Us For Availability
304
NOZZLE CONTROL FOAM GEN WR02X13779 Contact Us For Availability
305
WHEEL DAMPER GEN WR02X11583 Contact Us For Availability
311
BLOCK FOAM CONTROL GEN WR02X10709 Contact Us For Availability
316
SPACER SHAFT TEMP CTRL GEN WR02X11632 Contact Us For Availability
319
SHAFT DAMPER GEN WR02X10727 Contact Us For Availability
320
SPRING KNOB GEN WR01X20124 Contact Us For Availability
321
SHIELD REFLECTOR FF GEN WR02X11858 Contact Us For Availability
400
SHELF CANT HALF GEN WR71X10280 Contact Us For Availability
401
SHELF CANT GLASS HALF GEN WR32X10177 Contact Us For Availability
402
TRIM FRONT GLASS SHELF GEN WR38X10222 Contact Us For Availability
403
TRIM REAR GLASS SHELF GEN WR38X10224 Contact Us For Availability
433
LAMP SOCKET GEN WR02X30348 Contact Us For Availability
472
SLIDE SNACK PAN GEN WR72X10086 Contact Us For Availability
473
SLIDE SNACK PAN LH GEN WR72X10055 Contact Us For Availability
610
EVAPORATOR FAN MOTOR GEN WR60X28785 Contact Us For Availability
613
BLADE EVAP FAN ASM GEN WR60X10205 Contact Us For Availability
614
BUMPER GEN WR02X10540 Contact Us For Availability
618
HEATER DEF ASM GEN WR09X21107 Contact Us For Availability
621
HOLDER ELEMENT ASM GEN WR02X13678 Contact Us For Availability
622
TROUGH DRAIN GEN WR17X26031 Contact Us For Availability
645
TOWER BOTTOM FZ GEN WR17X11521 Contact Us For Availability
651
BLADE COND FAN ASM GEN WR60X10207 Contact Us For Availability
692
SCR 8-32 CA HXW 1/2 NS GEN WR01X23006 Contact Us For Availability
696
SCR 12-24 TT PNPSD .785 GEN WR01X26527 Contact Us For Availability
735
COMPRESSOR OVERLOAD PTCR COMBO GEN WR08X28626 Contact Us For Availability
737
GROMMET GEN WR02X22869 Contact Us For Availability
738
CLIP RETAINER MEI GEN WR02X26153 Contact Us For Availability
802
CLIP U GEN WR01X10182 Contact Us For Availability
806
TUBE PLASTIC GEN WR17X11492 Contact Us For Availability
807
CLAMP GEN WR02X11437 Contact Us For Availability
820
KIT RPLCMT WR30X10093 GEN WR30X10093 Contact Us For Availability
821
COVER ICEMAKER GEN WR29X10084 Contact Us For Availability
865
STRIPPER IM GEN WR29X10083 Contact Us For Availability
909
SUPPORT CONDENSER GEN WR02X21166 Contact Us For Availability
920
PLUG BTN WHT GEN WR2X8233 Contact Us For Availability
1000
SCR 10-16 AB TRP 3/4 NBS GEN WR01X21151 Contact Us For Availability
× ![]()
