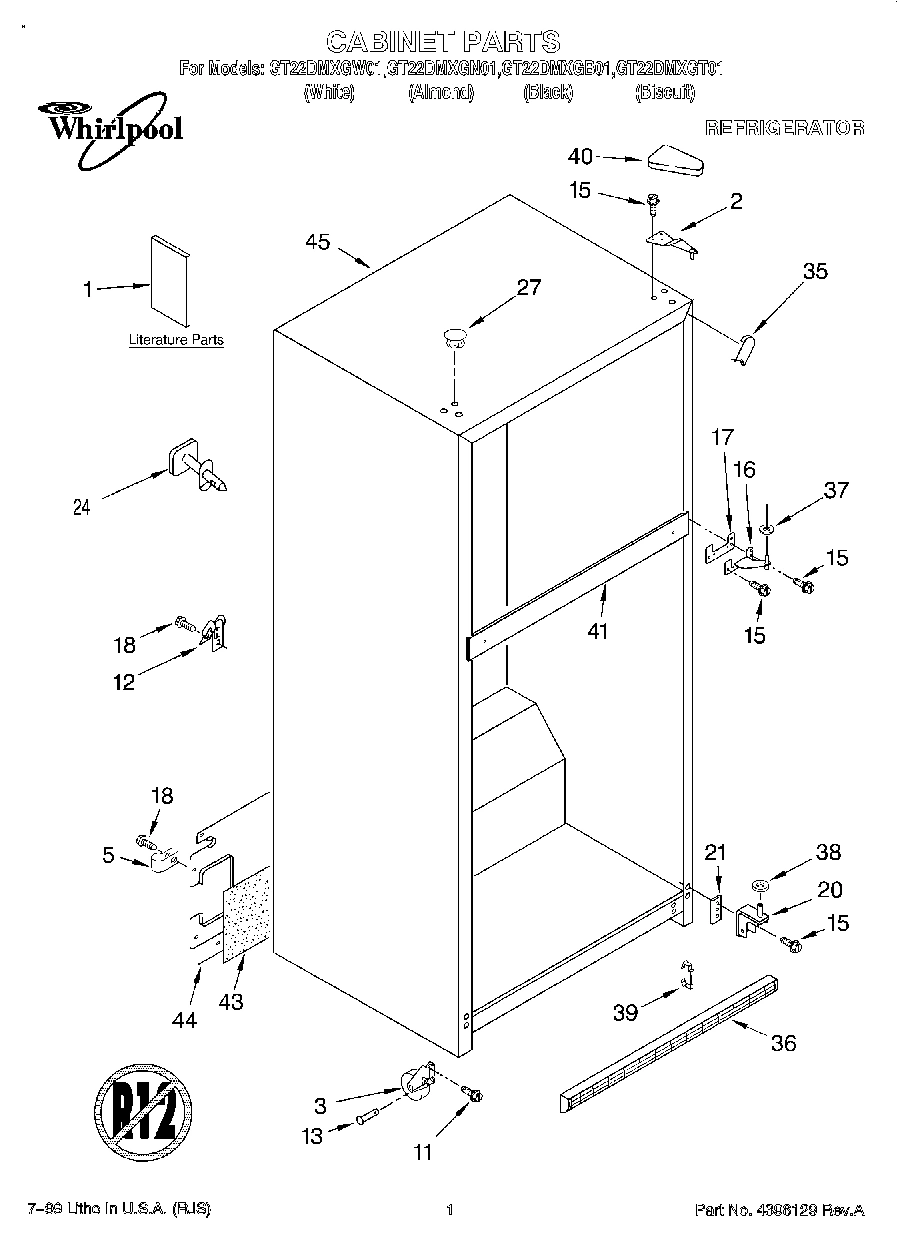

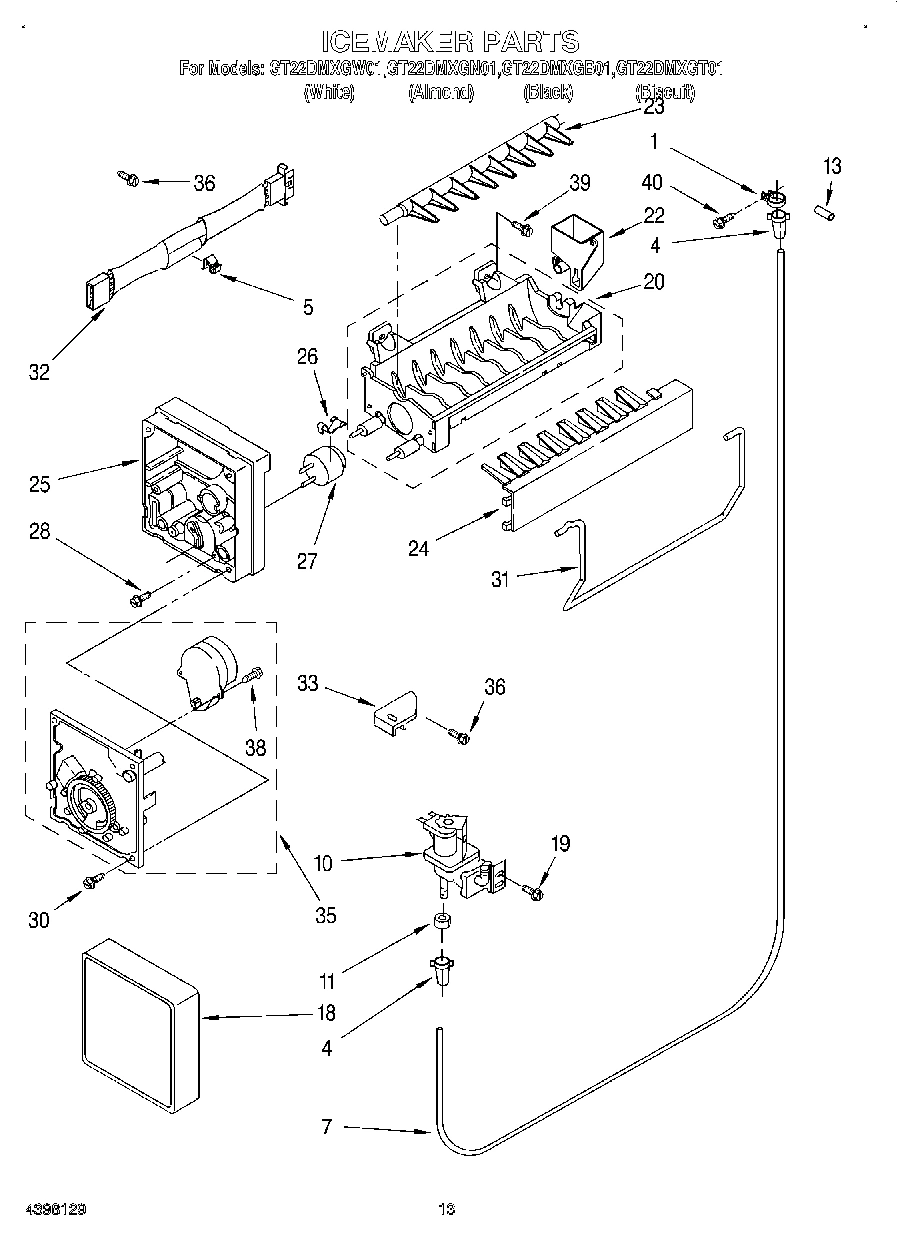

Model Whirlpool GT22DMXGN01 REFRIGERATOR – Common Parts &amp; Diagrams

1

Freezer Door (Includes No.8 & No.12) (White) WPL 2183862 Contact Us For Availability

1

Freezer Door (Includes No.8 & No.12) (Almond) WPL 2183863 Contact Us For Availability

1

Freezer Door (Includes No.8, No.12) (Black) WPL 2200621 Contact Us For Availability

1

Freezer Door (Includes No.8& No.12) (Biscuit) WPL 2200928 Contact Us For Availability

1

Shelf, Ladder (2) WPL 2163756 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (Wh WPL 2183868 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (Al WPL 2183869 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (Bl WPL 2200615 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (Bi WPL 2204905 Contact Us For Availability

2

Divider, Door Bin WPL 1123293 Contact Us For Availability

2

Shelf, Ladder Center WPL 2163826 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

5

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

6

Screw Support WPL 2189314 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2172620 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Frame Assembly, Shelf (2) WPL 2174447 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $94.28

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $151.83

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

WP2314549 Whirlpool Refrigerator Cover In Stock WPL WP2314549 $103.84

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2176225 Whirlpool Glass Shelf Backorder WPL WP2176225 $120.79

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Clamp (Production Only) WPL 943322 Contact Us For Availability

Housing Compartment WPL 2156062 Contact Us For Availability

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

12

Cover (Service Only) WPL 1105055 Contact Us For Availability

12

Frame Assembly, Meat Shelf WPL 2179717 Contact Us For Availability

2183409 Whirlpool Refrigerator Overload Backorder WPL 2183409 $43.54

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $33.47

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability

Tube, Water Inlet WPL 2174755 Contact Us For Availability

Gasket, Crisper Cover WPL 2172684 Contact Us For Availability

Tray, Door WPL 2195388 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

14

Hook, Shelf WPL 2169608 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

Relay (See Overload) WPL ARI72857A8 Contact Us For Availability

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

16

WP999520 Whirlpool Refrigerator Glass Shelf Backorder WPL WP999520 $127.04

4388239 Whirlpool Refrigerator Primary Cabine In Stock WPL 4388239 $39.33

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

Shelf, Freezer WPL 2184667 Contact Us For Availability

Nameplate (White) WPL 2186437 Contact Us For Availability

Nameplate (Almond) WPL 2186438 Contact Us For Availability

Nameplate (Black) WPL 2186439 Contact Us For Availability

Nameplate (Biscuit) WPL 2204863 Contact Us For Availability

4388947 Whirlpool Refrigerator Door Handle Ki Backorder WPL 4388947 $97.92

4388949 Whirlpool Refrigerator Handle Backorder WPL 4388949 $99.97

4388950 Whirlpool Refrigerator Handle Backorder WPL 4388950 $126.93

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $89.14

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

Handle (Almond) WPL 2193350N Contact Us For Availability

Handle (Almond) WPL 2193351N Contact Us For Availability

20

WP2204813 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204813 $48.02

20

WP2218132K Whirlpool Crisper Meat Pan In Stock WPL WP2218132K $102.95

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $39.75

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Nut (Not Serviced) WPL ARI72858A5 Contact Us For Availability

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

WP2218109 Whirlpool Refrigerator Door Compres Backorder WPL WP2218109 $42.64

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Support Block WPL 2189906 Contact Us For Availability

Screw WPL 489419 Contact Us For Availability

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Air Tower WPL 2182340 Contact Us For Availability

Trim, Door Shelf WPL 2159306 Contact Us For Availability

Cover, Unit WPL 2198740 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $2.51

Hole Plug, Handle (Almond) WPL 2189008 Contact Us For Availability

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

Track Assembly, Shelf WPL 2176241 Contact Us For Availability

Cover, Endcap (Black) WPL 2193353B Contact Us For Availability

Cover, Endcap (Almond) WPL 2193353N Contact Us For Availability

Cover, Endcap (Biscuit) WPL 2193353T Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

28

Installation Kit WPL 482801 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

32

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

36

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

Endcap, Door Trim WPL 2177340 Contact Us For Availability

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

39

Air Baffle WPL 2198921 Contact Us For Availability

40

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

42

Wire Assy. Unit WPL 2200629 Contact Us For Availability

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $27.12

43

Blade, Fan WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Trim, Meat Pan WPL 2176357 Contact Us For Availability

46

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.91

46

Tube, Discharge WPL 2184451 Contact Us For Availability

47

Tube, Suction WPL 2189173 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

48

Shelf Assembly, Spillguard WPL 2195349 Contact Us For Availability

49

Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

56

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

57

Screw WPL 489462 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Tray, Evaporator WPL 2189433 Contact Us For Availability

Start Kit WPL 482278 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

FeaturePak (Includes 2,11, 20,21,22,23,39) Al WPL 2199049 Contact Us For Availability

Enamel, Biscuit (13 Oz. Spray Can) WPL 439290 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
