Model Whirlpool GT22DMXGN00 REFRIGERATOR – Common Parts & Diagrams
07 - ICE MAKER
01 - CABINET

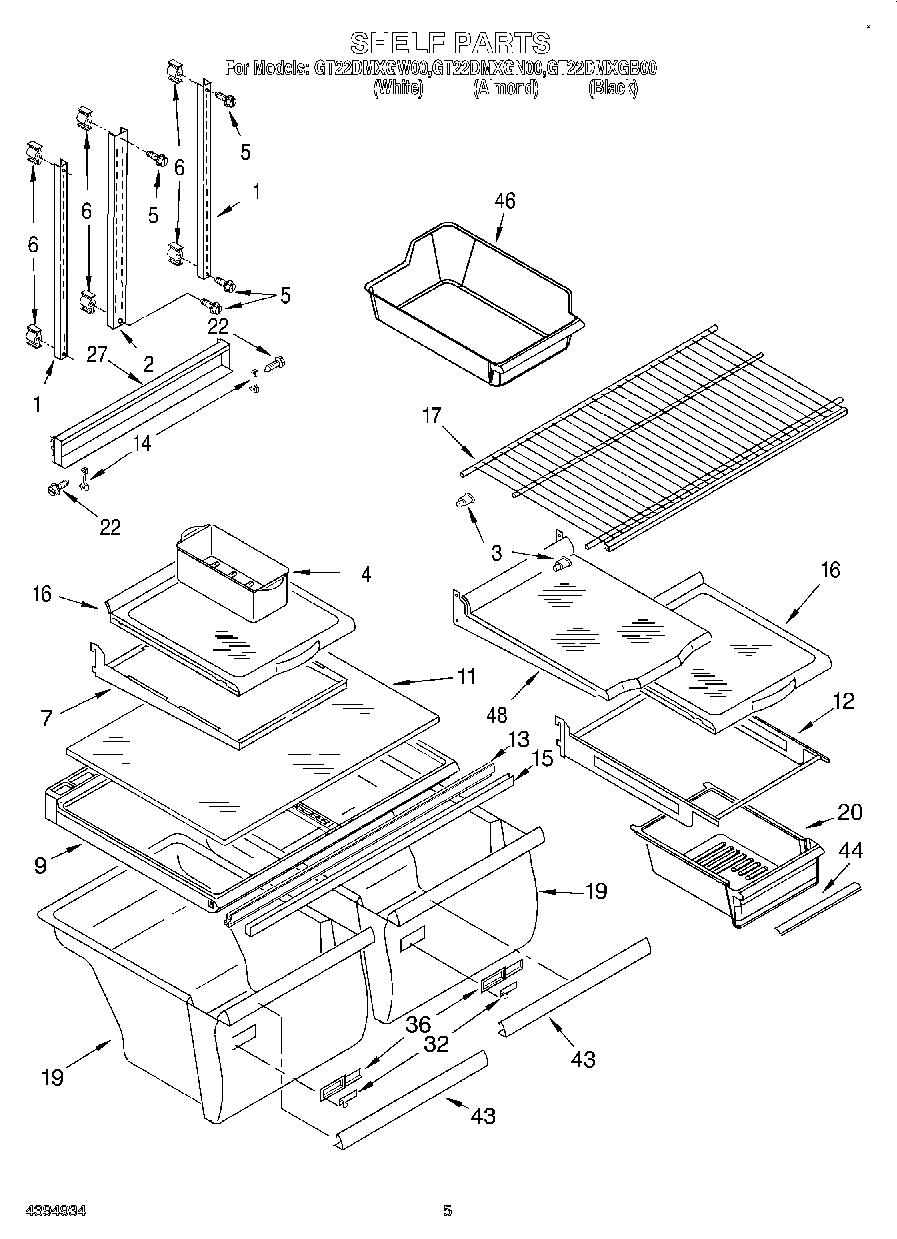

03 - SHELF

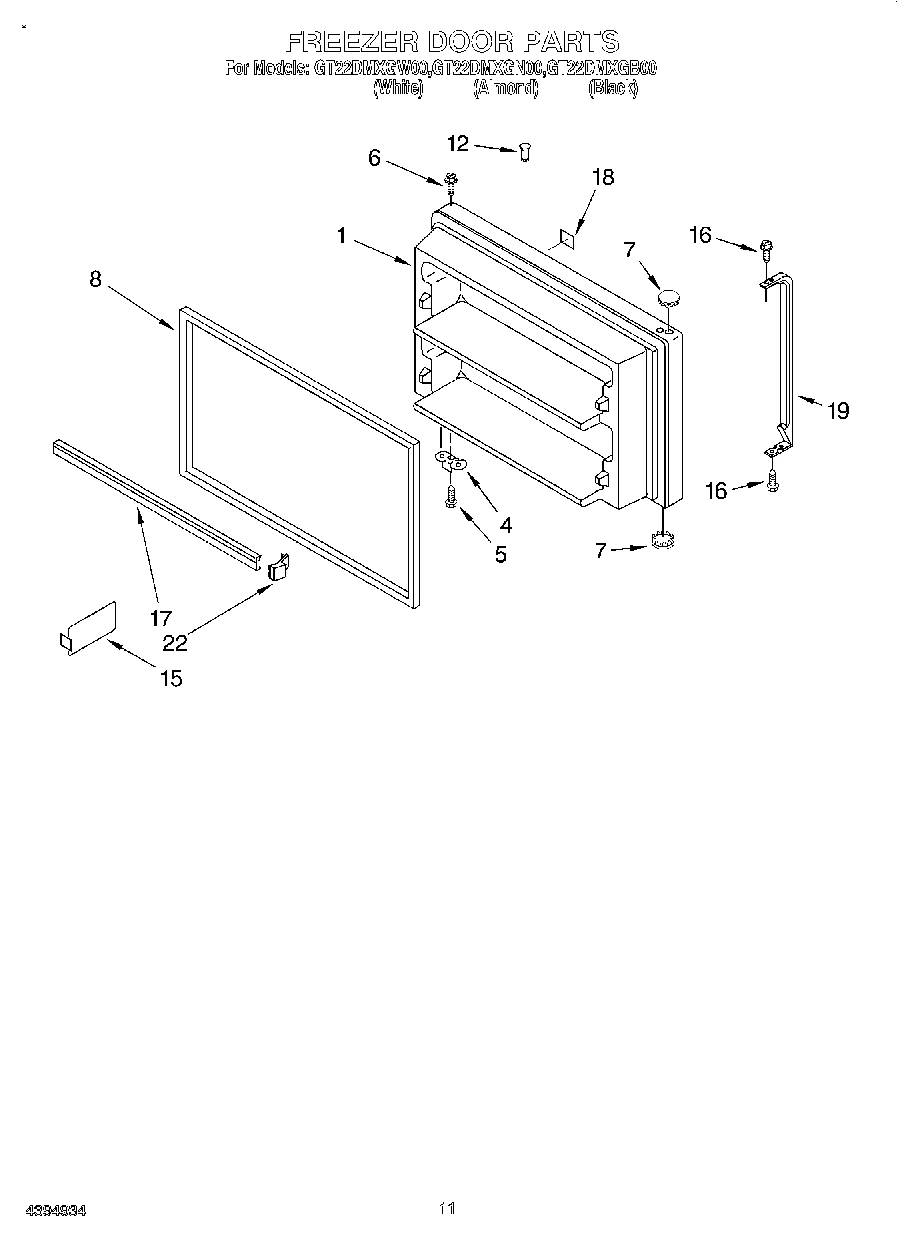

06 - FREEZER DOOR, LIT/OPTIONAL
05 - UNIT

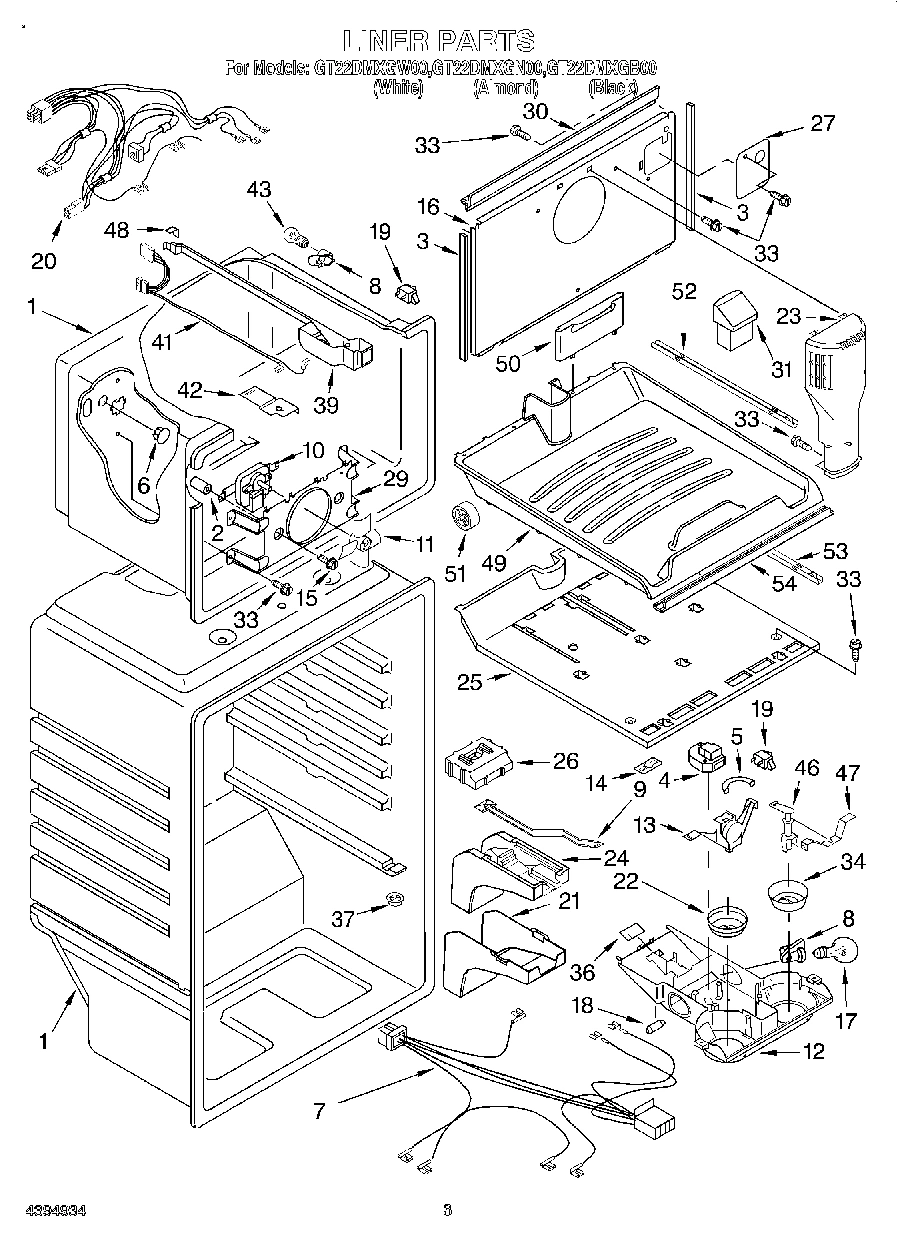

02 - LINER

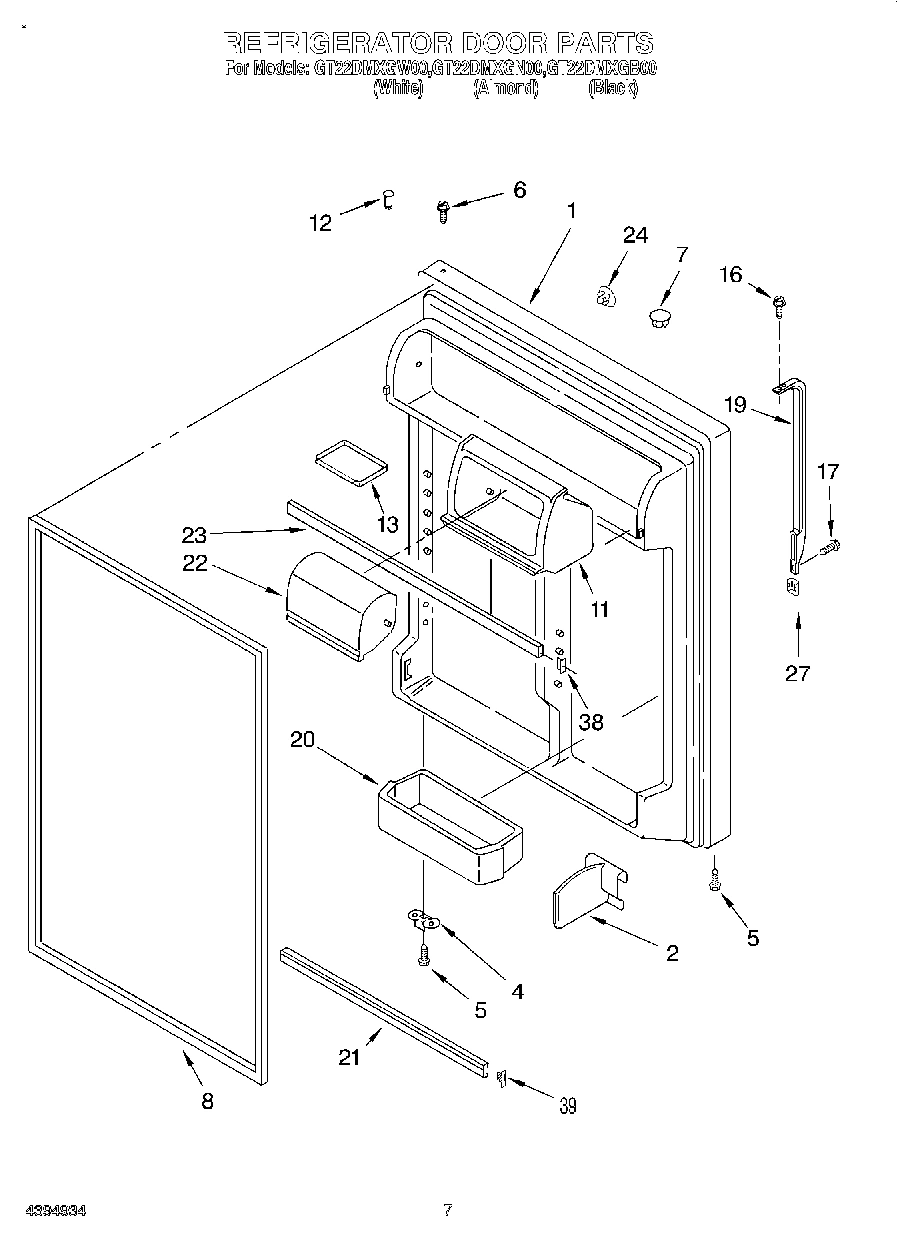

04 - REFRIGERATOR DOOR
Common parts from model Whirlpool GT22DMXGN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Plate, Unit Mounting WPL 2195272 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI72851A4 Contact Us For Availability
1
Refrigerator Door (Includes No.8 & No.12) (Wh WPL 2183868 Contact Us For Availability
1
Refrigerator Door (Includes No.8 & No.12) (Al WPL 2183869 Contact Us For Availability
1
Refrigerator Door (Includes No.8 & No.12) (Bl WPL 2200615 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Divider, Door Bin WPL 1123293 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
5
Evaporator Assy. WPL 2195390 Contact Us For Availability
6
Screw Support WPL 2189314 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193493 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
11
Clamp (Production Only) WPL 943322 Contact Us For Availability
11
Housing Compartment WPL 2156062 Contact Us For Availability
12
Cover (Service Only) WPL 1105055 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Tray, Door WPL 2195388 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Relay (See Overload) WPL ARI72852A2 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover-Evaporator WPL 2189833 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle (Almond) WPL 2193351N Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2195656 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI72853A6 Contact Us For Availability
21
Trim, Door Shelf WPL 2195498 Contact Us For Availability
22
Support Block WPL 2189906 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Trim, Door Shelf WPL 2159306 Contact Us For Availability
23
Cover, Unit WPL 2198740 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 2189008 Contact Us For Availability
25
Freezer Floor WPL 2190589 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Cover, Endcap (Black) WPL 2193353B Contact Us For Availability
27
Cover, Endcap (Almond) WPL 2193353N Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2198901 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
39
Housing Base WPL 2184633 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2198892 Contact Us For Availability
42
Wire Assy. Unit WPL 2189997 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
46
Post, Damper WPL 2179859 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
47
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189846 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2189992 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Door Reversal Instructions WPL 2176379 Contact Us For Availability
100
FeaturePak (Includes 2,11, 20,21,22,23,39) Al WPL 2199049 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799832 WPL 799832 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
