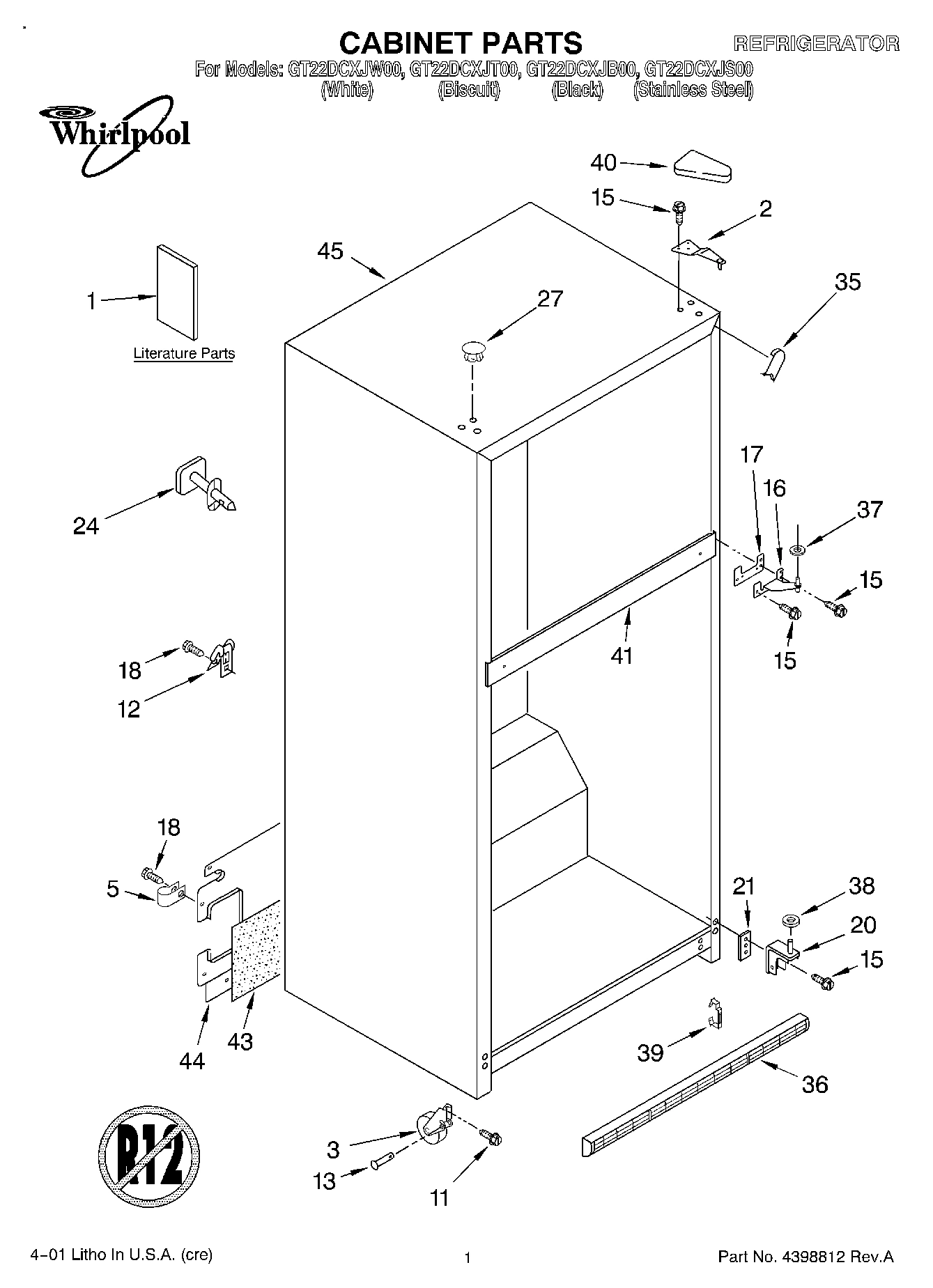

Model Whirlpool GT22DCXJW00 REFRIGERATOR – Common Parts &amp; Diagrams

1

Plate, Unit Mounting WPL 2201162 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI72771A6 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (Wh WPL 2202519 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (Bi WPL 2204865 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (Bl WPL 2204867 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (St WPL 2212558 Contact Us For Availability

2

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

2

Grommet (2) WPL 531933 Contact Us For Availability

2

Divider, Door Bin WPL 1123293 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $8.67

3

Condenser WPL 2205471 Contact Us For Availability

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $63.70

4

Timer, Defrost WPL 2193084 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Evaporator Assy. WPL 2195390 Contact Us For Availability

5

Thermostat Tube Barrier WPL 2212485 Contact Us For Availability

5

HOLE PLUG, ENDCAP (WHITE) WPL 2204837 Contact Us For Availability

5

Hole-Plug Endcap (Biscuit) WPL 2204838 Contact Us For Availability

5

HOLE PLUG, ENDCAP (BLACK) WPL 2204840 Contact Us For Availability

5

Hole-Plug Endcap (Grey) WPL 2212533 Contact Us For Availability

6

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2172620 Contact Us For Availability

7

Wire Assy. Control Box WPL 2200632 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $98.99

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $107.38

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $159.43

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

Damper, Air WPL 2179858 Contact Us For Availability

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

10

Fan Motor WPL 2183448 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

WP2176225 Whirlpool Glass Shelf In Stock WPL WP2176225 $126.83

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Clamp (Production Only) WPL 943322 Contact Us For Availability

Housing Compartment WPL 2156062 Contact Us For Availability

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

12

Cover (Service Only) WPL 1105055 Contact Us For Availability

12

Control Box WPL 2200820 Contact Us For Availability

2183408 Whirlpool Refrigerator Overload Backorder WPL 2183408 $49.67

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $35.14

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability

Tray, Door WPL 2195388 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

14

Clip, Defrost Timer WPL 2176341 Contact Us For Availability

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

Relay (Production (Service - See Overload)) WPL 2176805 Contact Us For Availability

15

Screw WPL 489412 Contact Us For Availability

16

Cover, Evaporator WPL 2201180 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

18

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

18

Weight, Thermal WPL 2200831 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

Handle (White) WPL 2205184 Contact Us For Availability

Handle (Biscuit) WPL 2205185 Contact Us For Availability

Handle (Black) WPL 2205187 Contact Us For Availability

Handle (Grey) WPL 2212681 Contact Us For Availability

Handle (White) WPL 2205188 Contact Us For Availability

Handle (Biscuit) WPL 2205189 Contact Us For Availability

Handle (Black) WPL 2205191 Contact Us For Availability

Handle (Grey) WPL 2212682 Contact Us For Availability

20

WP2204813 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204813 $51.09

20

Wire Assembly, Freezer Compartment WPL 2187279 Contact Us For Availability

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $41.74

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Nut (Not Serviced) WPL ARI72772A9 Contact Us For Availability

W10829461 Whirlpool Refrigerator Thermal Knob Backorder WPL W10829461 $12.08

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Support Block WPL 2201185 Contact Us For Availability

Door, Compartment WPL 2188398 Contact Us For Availability

23

Air Tower WPL 2182340 Contact Us For Availability

23

Trim, Door Shelf WPL 2159306 Contact Us For Availability

23

Cover, Unit WPL 2198740 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

25

Freezer Floor WPL 2190589 Contact Us For Availability

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

26

Clip WPL 2166683 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

28

Installation Kit WPL 482801 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

29

Bracket, Fan Motor WPL 2200641 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

32

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

32

Slide, Crisper WPL 2176222 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

Knob, Damper WPL 2176297 Contact Us For Availability

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

36

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $33.15

36

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

37

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

Endcap, Door Trim WPL 2177340 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

CLIP, GRILLE WPL 2189356 Contact Us For Availability

Air Baffle WPL 2198921 Contact Us For Availability

Housing Base WPL 2201153 Contact Us For Availability

40

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

41

Wiring Harness, Freezer Light WPL 2187280 Contact Us For Availability

42

Wire Assy. Unit WPL 2200628 Contact Us For Availability

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $6.28

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $28.47

43

Blade, Fan WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

45

Shield, heat WPL 2204639 Contact Us For Availability

46

Tube, Discharge WPL 2201141 Contact Us For Availability

46

Post, Damper WPL 2179859 Contact Us For Availability

47

Tube, Suction WPL 2189173 Contact Us For Availability

47

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $35.59

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2189449 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

51

Roller, Slide WPL 2176246 Contact Us For Availability

52

Side Support, Floor Assembly WPL 2179713 Contact Us For Availability

53

Center Support, Floor Assembly WPL 2179714 Contact Us For Availability

56

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

57

Screw WPL 489462 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Tray, Evaporator WPL 2189433 Contact Us For Availability

Start Kit WPL 482278 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
