Model GE GSD400YK-03 Dishwasher – Common Parts & Diagrams
0

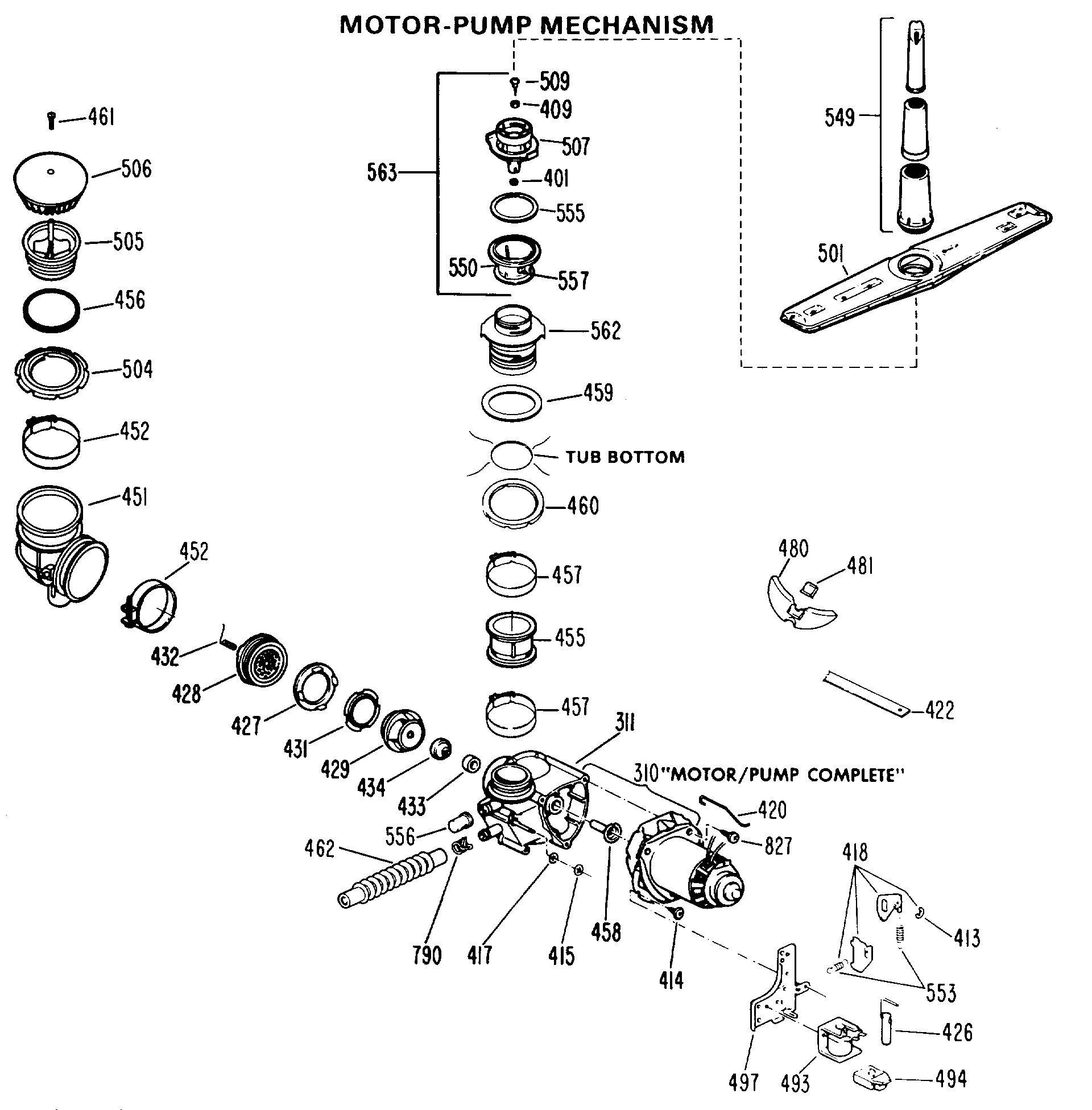

MOTOR-PUMP MECHANISM
MOTOR-PUMP MECHANISM
Common parts from model GE GSD400YK-03 Dishwasher
25
INSUL SOUND BACK GEN WD01X1328 Contact Us For Availability
50
KEEPER AND FASTENER GEN WD13X0068 Contact Us For Availability
50
GEN WZ06X0127 GEN WZ06X0127 Contact Us For Availability
70
GEN WD01X1223 GEN WD01X1223 Contact Us For Availability
91
GEN WD01X5391 GEN WD01X5391 Contact Us For Availability
91
GEN WD01X5392 GEN WD01X5392 Contact Us For Availability
101
ELEMENT HEATING ASM GEN WD05X0063 Contact Us For Availability
103
GEN WD03X0724 GEN WD03X0724 Contact Us For Availability
105
GEN WD02X5172 GEN WD02X5172 Contact Us For Availability
106
GEN WD03X5118 GEN WD03X5118 Contact Us For Availability
107
GEN WD03X0723 GEN WD03X0723 Contact Us For Availability
112
GEN WD01X5484 GEN WD01X5484 Contact Us For Availability
301
GEN WD21X0683 GEN WD21X0683 Contact Us For Availability
302
GEN WD12X5016 GEN WD12X5016 Contact Us For Availability
303
GEN WD01X1440 GEN WD01X1440 Contact Us For Availability
305
FLOAT TUBE & GASKET GEN WD12X5019 Contact Us For Availability
306
GEN WD02X5171 GEN WD02X5171 Contact Us For Availability
306
GEN WD03X0687 GEN WD03X0687 Contact Us For Availability
309
GEN WD02X0428 GEN WD02X0428 Contact Us For Availability
311
GEN WD19X0042 GEN WD19X0042 Contact Us For Availability
409
GEN WD03X0766 GEN WD03X0766 Contact Us For Availability
418
GEN WD35X0192 GEN WD35X0192 Contact Us For Availability
420
MOTOR HANGER GEN WD01X5485 Contact Us For Availability
422
GEN WD01X5486 GEN WD01X5486 Contact Us For Availability
427
GEN WD12X0354 GEN WD12X0354 Contact Us For Availability
428
GEN WD12X0378 GEN WD12X0378 Contact Us For Availability
429
GEN WD19X0053 GEN WD19X0053 Contact Us For Availability
431
GEN WD01X1341 GEN WD01X1341 Contact Us For Availability
432
GEN WD01X1339 GEN WD01X1339 Contact Us For Availability
433
GEN WD19X0051 GEN WD19X0051 Contact Us For Availability
434
GEN WD19X0052 GEN WD19X0052 Contact Us For Availability
451
GEN WD18X0212 GEN WD18X0212 Contact Us For Availability
455
SPRAY ARM TUBE GEN WD18X0175 Contact Us For Availability
456
SUPPORT GASKET GEN WD08X5092 Contact Us For Availability
458
GEN WD12X0106 GEN WD12X0106 Contact Us For Availability
459
SPRAY BASE GASKET GEN WD08X5093 Contact Us For Availability
460
SPRAY BASE NUT GEN WD03X0627 Contact Us For Availability
461
SUMP COVER MTG SCREW GEN WZ04X0250 Contact Us For Availability
480
GEN WD01X5505 GEN WD01X5505 Contact Us For Availability
481
GEN WD01X5506 GEN WD01X5506 Contact Us For Availability
494
GEN WD12X0350 GEN WD12X0350 Contact Us For Availability
496
GEN WD12X0349 GEN WD12X0349 Contact Us For Availability
497
GEN WD01X1439 GEN WD01X1439 Contact Us For Availability
501
GEN WD22X0132 GEN WD22X0132 Contact Us For Availability
504
SUMP INLET NUT GEN WD03X5119 Contact Us For Availability
505
GEN WD12X5027 GEN WD12X5027 Contact Us For Availability
506
GEN WD12X5028 GEN WD12X5028 Contact Us For Availability
507
HUB SPRAY ARM GEN WD22X0121 Contact Us For Availability
509
GEN WD03X0765 GEN WD03X0765 Contact Us For Availability
528
GEN WC01X5096 GEN WC01X5096 Contact Us For Availability
549
GEN WD22X0124 GEN WD22X0124 Contact Us For Availability
556
GEN WD01X5405 GEN WD01X5405 Contact Us For Availability
557
GEN WD01X5488 GEN WD01X5488 Contact Us For Availability
562
GEN WD22X0130 GEN WD22X0130 Contact Us For Availability
563
GEN WD22X0126 GEN WD22X0126 Contact Us For Availability
574
GEN WD01X5491 GEN WD01X5491 Contact Us For Availability
615
RACK UPPER & WHEEL ASM GEN WD28X5081 Contact Us For Availability
653
GEN WD03X5114 GEN WD03X5114 Contact Us For Availability
654
ROLLER & STUD UPR RACK GEN WD12X5050 Contact Us For Availability
701
GEN WD28X5083 GEN WD28X5083 Contact Us For Availability
703
ROLLER & STUD LWR RACK GEN WD12X5026 Contact Us For Availability
704
GEN WD12X5044 GEN WD12X5044 Contact Us For Availability
706
GEN WD03X0772 GEN WD03X0772 Contact Us For Availability
707
TUB ROLLER GEN WD12X5024 Contact Us For Availability
708
GEN WD03X0744 GEN WD03X0744 Contact Us For Availability
711
PANEL OUTER DOOR HA GEN WD27X5384 Contact Us For Availability
711
PANEL OUTER DOOR AD GEN WD27X5385 Contact Us For Availability
711
PANEL OUTER DOOR WH GEN WD27X5386 Contact Us For Availability
745
JUNCTION BOX COVER GEN WD01X0816 Contact Us For Availability
745
GEN WD01X5443 GEN WD01X5443 Contact Us For Availability
748
GEN WD01X5384 GEN WD01X5384 Contact Us For Availability
749
GEN WD03X5082 GEN WD03X5082 Contact Us For Availability
749
GROMMET TUB GEN WD08X5064 Contact Us For Availability
749
GEN WZ07X0037 GEN WZ07X0037 Contact Us For Availability
752
BRACKET HOLD DOWN GEN WD01X5433 Contact Us For Availability
752
GEN WZ04X0401 GEN WZ04X0401 Contact Us For Availability
756
PANEL & INSL SERVICE HA GEN WD27X5392 Contact Us For Availability
756
PANEL & INSL SERVICE AD GEN WD27X5393 Contact Us For Availability
756
PANEL & INSL SERVICE WH GEN WD27X5394 Contact Us For Availability
759
GEN WD27X5331 GEN WD27X5331 Contact Us For Availability
780
GEN WD24X0191 GEN WD24X0191 Contact Us For Availability
781
GEN WD08X0192 GEN WD08X0192 Contact Us For Availability
782
GEN WD24X5082 GEN WD24X5082 Contact Us For Availability
784
GEN WD02X5186 GEN WD02X5186 Contact Us For Availability
791
GEN WD01X5499 GEN WD01X5499 Contact Us For Availability
795
GEN WD01X5468 GEN WD01X5468 Contact Us For Availability
796
GEN WD01X1146 GEN WD01X1146 Contact Us For Availability
798
GEN WD03X5111 GEN WD03X5111 Contact Us For Availability
801
GEN WD24X5086 GEN WD24X5086 Contact Us For Availability
802
GEN WD13X5014 GEN WD13X5014 Contact Us For Availability
802
GEN WD01X5493 GEN WD01X5493 Contact Us For Availability
803
SWITCH LATCH GEN WD06X0183 Contact Us For Availability
804
GEN WD24X5071 GEN WD24X5071 Contact Us For Availability
805
GEN WD03X5112 GEN WD03X5112 Contact Us For Availability
806
GEN WD01X5477 GEN WD01X5477 Contact Us For Availability
807
GEN WD35X5072 GEN WD35X5072 Contact Us For Availability
814
GEN WD01X5504 GEN WD01X5504 Contact Us For Availability
817
GEN WD02X5065 GEN WD02X5065 Contact Us For Availability
818
GEN WD14X5076 GEN WD14X5076 Contact Us For Availability
818
GEN WD14X5077 GEN WD14X5077 Contact Us For Availability
821
GEN WD12X5039 GEN WD12X5039 Contact Us For Availability
823
CUP DET ASM & GASKET GEN WD16X0314 Contact Us For Availability
824
GEN WD08X5101 GEN WD08X5101 Contact Us For Availability
827
GEN WD02X0425 GEN WD02X0425 Contact Us For Availability
828
GEN WD16X0315 GEN WD16X0315 Contact Us For Availability
832
GEN WD08X5098 GEN WD08X5098 Contact Us For Availability
837
GEN WD12X0407 GEN WD12X0407 Contact Us For Availability
839
GEN WD02X0266 GEN WD02X0266 Contact Us For Availability
841
GEN WD17X5053 GEN WD17X5053 Contact Us For Availability
843
DOOR GASKET WITH CLIPS GEN WD08X5097 Contact Us For Availability
843
GEN WD17X5049 GEN WD17X5049 Contact Us For Availability
844
GASKET & RTNR ASM TUB FL GEN WD08X5100 Contact Us For Availability
847
GEN WD03X0659 GEN WD03X0659 Contact Us For Availability
853
GEN WD16X5042 GEN WD16X5042 Contact Us For Availability
855
GEN WD12X0117 GEN WD12X0117 Contact Us For Availability
900
GEN WD02X5157 GEN WD02X5157 Contact Us For Availability
901
GEN WD34X0703 GEN WD34X0703 Contact Us For Availability
904
GEN WD21X0644 GEN WD21X0644 Contact Us For Availability
906
GEN WD21X5194 GEN WD21X5194 Contact Us For Availability
907
GEN WD09X0206 GEN WD09X0206 Contact Us For Availability
910
GEN WD09X5181 GEN WD09X5181 Contact Us For Availability
910
GEN WD09X5192 GEN WD09X5192 Contact Us For Availability
915
GEN WD01X1432 GEN WD01X1432 Contact Us For Availability
927
GEN WD34X5247 GEN WD34X5247 Contact Us For Availability
935
GEN WD01X1434 GEN WD01X1434 Contact Us For Availability
936
GEN WD01X5490 GEN WD01X5490 Contact Us For Availability
937
GEN WD12X5041 GEN WD12X5041 Contact Us For Availability
939
SCR 6-20 X 5/16 HEXW S GEN NOT STOCKD Contact Us For Availability
940
GEN WD02X5184 GEN WD02X5184 Contact Us For Availability
940
GEN WD12X5042 GEN WD12X5042 Contact Us For Availability
948
GEN WD02X5169 GEN WD02X5169 Contact Us For Availability
949
SCREW-VENT LEVER MTG GEN WD02X0319 Contact Us For Availability
970
GEN WD09X0229 GEN WD09X0229 Contact Us For Availability
980
GEN WD02X5100 GEN WD02X5100 Contact Us For Availability
32767
GEN 31-3804 GEN 31-3804 Contact Us For Availability
32767
GEN 49-5402 GEN 49-5402 Contact Us For Availability
× ![]()
