Model GE GSC452-06 – Common Parts & Diagrams

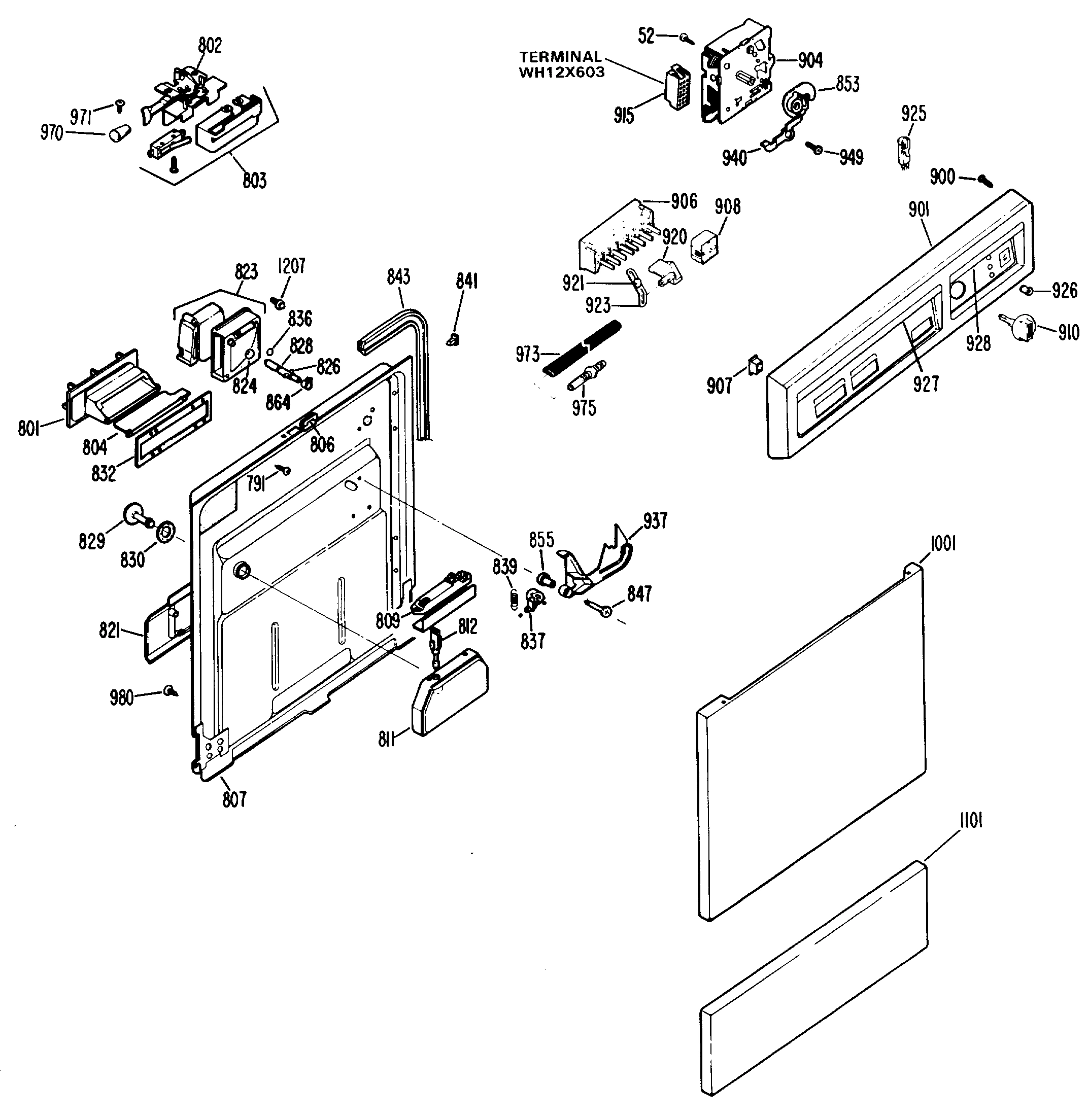

0

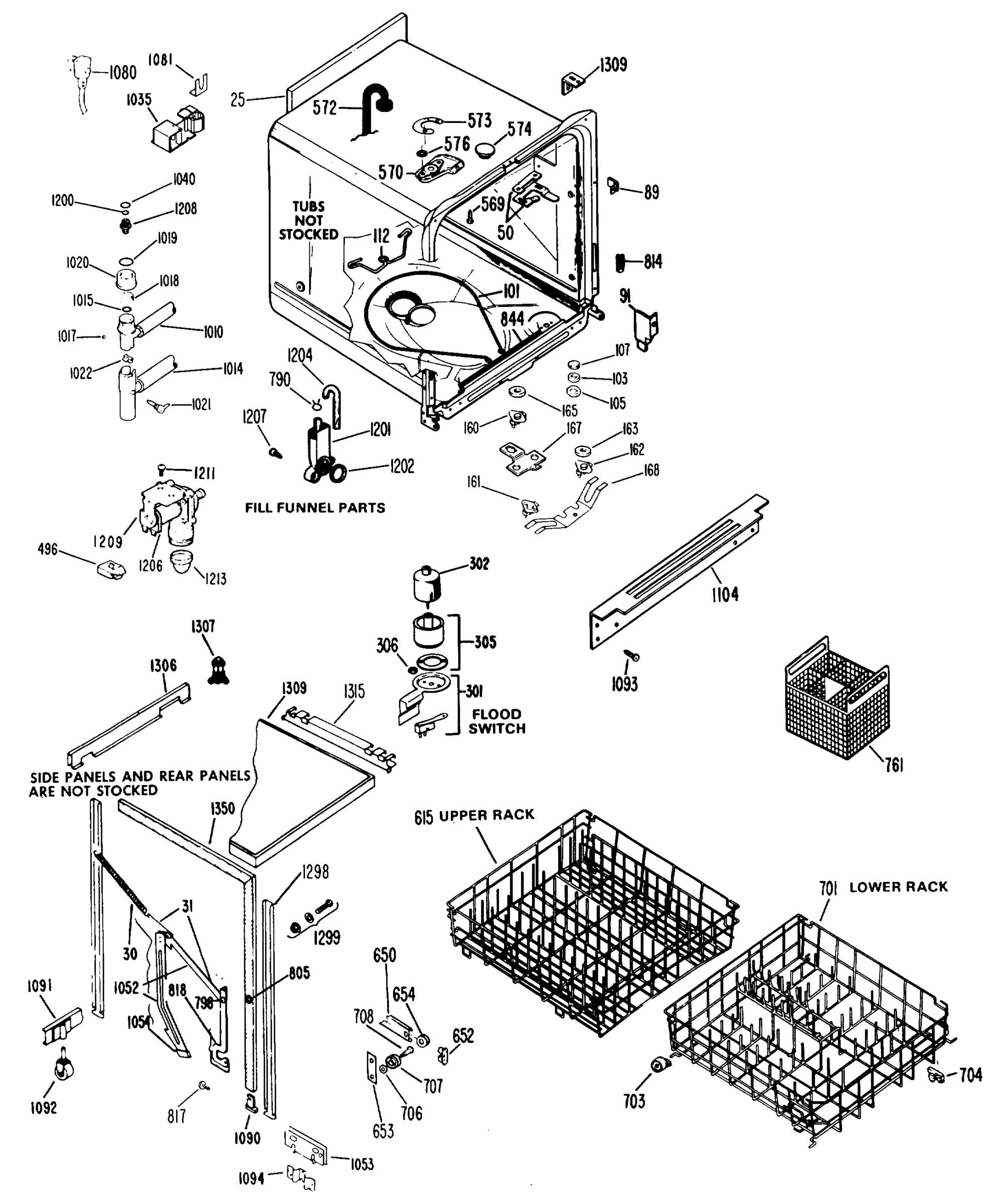

1

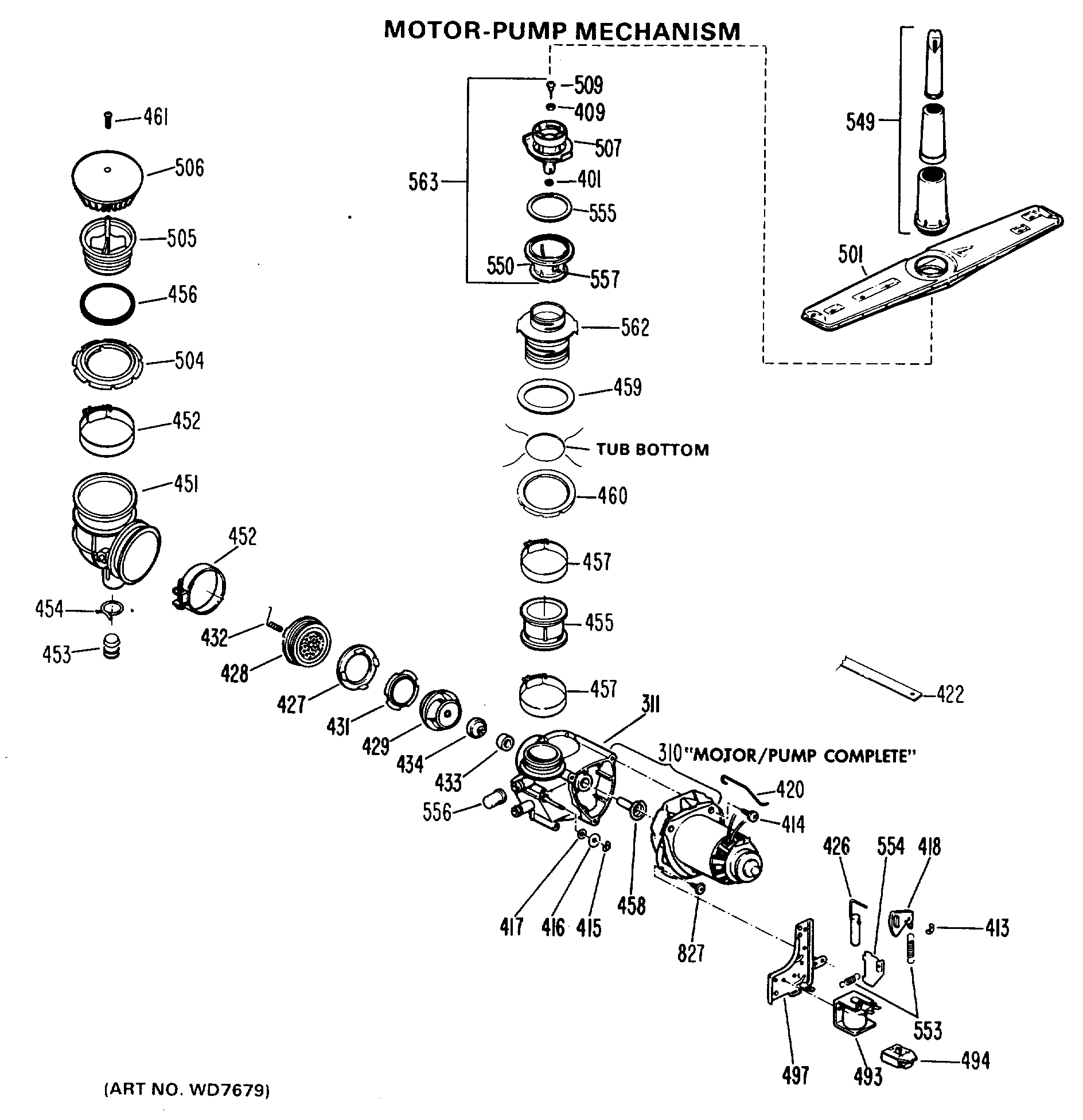

MOTOR-PUMP MECHANISM
Common parts from model GE GSC452-06
25
INSULATION GEN WD01X1328 Contact Us For Availability
30
GEN WD14X5073 GEN WD14X5073 Contact Us For Availability
31
SPRING EXTENSION GEN WD01X5364 Contact Us For Availability
31
GEN WD01X5425 GEN WD01X5425 Contact Us For Availability
50
GEN WD13X0068 GEN WD13X0068 Contact Us For Availability
50
GEN WZ06X0127 GEN WZ06X0127 Contact Us For Availability
89
SPEEDNUT A GEN WD03X5103 Contact Us For Availability
91
GEN WD01X5391 GEN WD01X5391 Contact Us For Availability
91
GEN WD01X5392 GEN WD01X5392 Contact Us For Availability
101
GEN WD05X0063 GEN WD05X0063 Contact Us For Availability
103
GEN WD03X0724 GEN WD03X0724 Contact Us For Availability
105
GEN WD02X5172 GEN WD02X5172 Contact Us For Availability
107
GEN WD03X0723 GEN WD03X0723 Contact Us For Availability
112
GEN WD01X5484 GEN WD01X5484 Contact Us For Availability
160
GEN WD21X5206 GEN WD21X5206 Contact Us For Availability
165
GEN WD01X1371 GEN WD01X1371 Contact Us For Availability
167
GEN WD01X1370 GEN WD01X1370 Contact Us For Availability
302
GEN WD12X5016 GEN WD12X5016 Contact Us For Availability
305
FLOAT TUBE & GASKET GEN WD12X5019 Contact Us For Availability
306
GEN WD02X5171 GEN WD02X5171 Contact Us For Availability
306
NUT 10X32 GEN WD03X0687 Contact Us For Availability
311
GEN WD19X0042 GEN WD19X0042 Contact Us For Availability
409
GEN WD03X0766 GEN WD03X0766 Contact Us For Availability
414
GEN WD02X5183 GEN WD02X5183 Contact Us For Availability
415
GEN WD01X1057 GEN WD01X1057 Contact Us For Availability
416
GEN WD01X1037 GEN WD01X1037 Contact Us For Availability
418
GATE VALVE ARM GEN WD12X0201 Contact Us For Availability
420
MOTOR HANGER GEN WD01X5485 Contact Us For Availability
422
GEN WD01X5486 GEN WD01X5486 Contact Us For Availability
427
GEN WD12X0354 GEN WD12X0354 Contact Us For Availability
428
GRADER/NUT GEN WD12X0378 Contact Us For Availability
429
PUMP IMPELLER GEN WD19X0053 Contact Us For Availability
431
GEN WD01X1341 GEN WD01X1341 Contact Us For Availability
432
GEN WD01X1339 GEN WD01X1339 Contact Us For Availability
433
GEN WD19X0051 GEN WD19X0051 Contact Us For Availability
434
GEN WD19X0052 GEN WD19X0052 Contact Us For Availability
451
PUMP INLET CONNECTOR GEN WD18X5014 Contact Us For Availability
453
GEN WD12X0213 GEN WD12X0213 Contact Us For Availability
455
SPRAY ARM TUBE GEN WD18X0175 Contact Us For Availability
456
SUPPORT GASKET GEN WD08X5092 Contact Us For Availability
458
GEN WD12X0106 GEN WD12X0106 Contact Us For Availability
459
SPRAY BASE GASKET GEN WD08X5093 Contact Us For Availability
460
SPRAY BASE NUT GEN WD03X0627 Contact Us For Availability
461
SUMP COVER MTG SCREW GEN WZ04X0250 Contact Us For Availability
494
GEN WD12X0350 GEN WD12X0350 Contact Us For Availability
496
GEN WD12X0349 GEN WD12X0349 Contact Us For Availability
497
SOLENOID BRACKET GEN WD01X1282 Contact Us For Availability
501
SPRAY ARM GEN WD22X5056 Contact Us For Availability
504
SUMP INLET NUT GEN WD03X5119 Contact Us For Availability
505
GEN WD12X5027 GEN WD12X5027 Contact Us For Availability
506
SUMP COVER GEN WD12X5028 Contact Us For Availability
509
GEN WD03X0765 GEN WD03X0765 Contact Us For Availability
549
GEN WD22X0124 GEN WD22X0124 Contact Us For Availability
554
SPRING PLATE GEN WD01X1283 Contact Us For Availability
556
GEN WD01X5405 GEN WD01X5405 Contact Us For Availability
557
CHECK VALVE GEN WD01X5488 Contact Us For Availability
562
GEN WD22X0130 GEN WD22X0130 Contact Us For Availability
563
GEN WD22X0126 GEN WD22X0126 Contact Us For Availability
615
RACK UPPER & WHEEL ASM GEN WD28X5080 Contact Us For Availability
653
STRIP NUT A GEN WD03X5114 Contact Us For Availability
654
GEN WD12X5050 GEN WD12X5050 Contact Us For Availability
701
GEN WD28X5083 GEN WD28X5083 Contact Us For Availability
703
LOWER RACK ROLLER & STUD GEN WD12X5026 Contact Us For Availability
704
GEN WD12X5044 GEN WD12X5044 Contact Us For Availability
706
GEN WD03X0772 GEN WD03X0772 Contact Us For Availability
707
TUB ROLLER GEN WD12X5024 Contact Us For Availability
708
GEN WD03X0744 GEN WD03X0744 Contact Us For Availability
790
GEN WH01X1036 GEN WH01X1036 Contact Us For Availability
798
RIVET A GEN WD03X5111 Contact Us For Availability
801
GEN WD24X5086 GEN WD24X5086 Contact Us For Availability
802
GEN WD13X5014 GEN WD13X5014 Contact Us For Availability
802
GEN WD01X5493 GEN WD01X5493 Contact Us For Availability
803
GEN WD01X1146 GEN WD01X1146 Contact Us For Availability
803
GEN WD01X5468 GEN WD01X5468 Contact Us For Availability
803
GEN WD06X0183 GEN WD06X0183 Contact Us For Availability
804
GEN WD24X5071 GEN WD24X5071 Contact Us For Availability
805
PUSHNUT A GEN WD03X5112 Contact Us For Availability
806
GEN WD01X5477 GEN WD01X5477 Contact Us For Availability
807
GEN WD35X5072 GEN WD35X5072 Contact Us For Availability
814
GEN WD01X5504 GEN WD01X5504 Contact Us For Availability
817
GEN WD02X5065 GEN WD02X5065 Contact Us For Availability
818
GEN WD14X5076 GEN WD14X5076 Contact Us For Availability
818
GEN WD14X5077 GEN WD14X5077 Contact Us For Availability
821
GEN WD12X5039 GEN WD12X5039 Contact Us For Availability
823
GEN WD16X5039 GEN WD16X5039 Contact Us For Availability
824
GEN WD08X5101 GEN WD08X5101 Contact Us For Availability
826
GEN WD01X5483 GEN WD01X5483 Contact Us For Availability
827
GEN WD02X0425 GEN WD02X0425 Contact Us For Availability
828
GEN WD16X0283 GEN WD16X0283 Contact Us For Availability
832
GEN WD08X5098 GEN WD08X5098 Contact Us For Availability
836
GEN WD01X0781 GEN WD01X0781 Contact Us For Availability
837
GEN WD12X0027 GEN WD12X0027 Contact Us For Availability
839
GEN WD02X0266 GEN WD02X0266 Contact Us For Availability
841
GEN WD17X5053 GEN WD17X5053 Contact Us For Availability
843
GEN WD08X5097 GEN WD08X5097 Contact Us For Availability
843
GEN WD17X5049 GEN WD17X5049 Contact Us For Availability
844
GASKET FLANGE & RETNR. GEN WD08X5100 Contact Us For Availability
847
GEN WD03X0659 GEN WD03X0659 Contact Us For Availability
853
GEN WD16X5042 GEN WD16X5042 Contact Us For Availability
855
GEN WD12X0117 GEN WD12X0117 Contact Us For Availability
864
GEN WD01X1030 GEN WD01X1030 Contact Us For Availability
900
GEN WD02X5157 GEN WD02X5157 Contact Us For Availability
901
GEN WD34X5258 GEN WD34X5258 Contact Us For Availability
904
GEN WD21X5201 GEN WD21X5201 Contact Us For Availability
906
GEN WD01X5489 GEN WD01X5489 Contact Us For Availability
906
GEN WD02X5156 GEN WD02X5156 Contact Us For Availability
906
GEN WD02X5169 GEN WD02X5169 Contact Us For Availability
906
GEN WD21X5205 GEN WD21X5205 Contact Us For Availability
907
GEN WD09X0206 GEN WD09X0206 Contact Us For Availability
908
GEN WD21X0516 GEN WD21X0516 Contact Us For Availability
910
GEN WD09X5181 GEN WD09X5181 Contact Us For Availability
910
GEN WD09X5192 GEN WD09X5192 Contact Us For Availability
915
GEN WD01X1258 GEN WD01X1258 Contact Us For Availability
927
GEN WD34X5237 GEN WD34X5237 Contact Us For Availability
928
GEN WD34X5236 GEN WD34X5236 Contact Us For Availability
937
GEN WD12X5041 GEN WD12X5041 Contact Us For Availability
940
GEN WD02X5184 GEN WD02X5184 Contact Us For Availability
940
GEN WD12X5042 GEN WD12X5042 Contact Us For Availability
949
GEN WD02X0319 GEN WD02X0319 Contact Us For Availability
970
GEN WD09X5162 GEN WD09X5162 Contact Us For Availability
971
GEN WZ02X0045 GEN WZ02X0045 Contact Us For Availability
980
GEN WD02X5100 GEN WD02X5100 Contact Us For Availability
1001
GEN WD27X5384 GEN WD27X5384 Contact Us For Availability
1001
GEN WD27X5385 GEN WD27X5385 Contact Us For Availability
1001
GEN WD27X5386 GEN WD27X5386 Contact Us For Availability
1010
GEN WD24X5087 GEN WD24X5087 Contact Us For Availability
1014
GEN WD24X5088 GEN WD24X5088 Contact Us For Availability
1015
GEN WD01X1375 GEN WD01X1375 Contact Us For Availability
1017
GEN WD03X5127 GEN WD03X5127 Contact Us For Availability
1018
GEN WD03X5128 GEN WD03X5128 Contact Us For Availability
1019
GEN WD01X1374 GEN WD01X1374 Contact Us For Availability
1020
GEN WD12X5047 GEN WD12X5047 Contact Us For Availability
1021
PRESSURE RELEASE LEVER GEN WD12X5048 Contact Us For Availability
1022
RELEASE ACTUATOR GEN WD12X5049 Contact Us For Availability
1035
GEN WD01X5359 GEN WD01X5359 Contact Us For Availability
1040
GASKET ADAPT EXT THD GEN WD03X0588 Contact Us For Availability
1052
ANTI-TIP ARM LH GEN WD01X5408 Contact Us For Availability
1052
ANTI-TIP ARM RH GEN WD01X5409 Contact Us For Availability
1053
GEN WD01X5389 GEN WD01X5389 Contact Us For Availability
1053
GEN WD01X5390 GEN WD01X5390 Contact Us For Availability
1054
GEN WD01X5370 GEN WD01X5370 Contact Us For Availability
1080
GEN WD01X5178 GEN WD01X5178 Contact Us For Availability
1080
GEN WD01X5496 GEN WD01X5496 Contact Us For Availability
1080
GEN WD06X5013 GEN WD06X5013 Contact Us For Availability
1081
GEN WD01X5494 GEN WD01X5494 Contact Us For Availability
1090
GEN WD34X5138 GEN WD34X5138 Contact Us For Availability
1091
GEN WD01X1311 GEN WD01X1311 Contact Us For Availability
1092
GEN WD01X1152 GEN WD01X1152 Contact Us For Availability
1093
SCR10-24X3/8D HEXW S GEN WD02X5187 Contact Us For Availability
1094
GEN WD01X5388 GEN WD01X5388 Contact Us For Availability
1101
GEN WD27X5392 GEN WD27X5392 Contact Us For Availability
1101
GEN WD27X5393 GEN WD27X5393 Contact Us For Availability
1101
GEN WD27X5394 GEN WD27X5394 Contact Us For Availability
1104
GEN WD27X5338 GEN WD27X5338 Contact Us For Availability
1200
GEN WD03X0289 GEN WD03X0289 Contact Us For Availability
1201
GEN WD24X0191 GEN WD24X0191 Contact Us For Availability
1202
GEN WD08X0192 GEN WD08X0192 Contact Us For Availability
1204
GEN WD24X5083 GEN WD24X5083 Contact Us For Availability
1207
GEN WD02X5186 GEN WD02X5186 Contact Us For Availability
1208
GEN WD10X0316 GEN WD10X0316 Contact Us For Availability
1209
GEN WD15X0081 GEN WD15X0081 Contact Us For Availability
1213
GEN WD10X0327 GEN WD10X0327 Contact Us For Availability
1298
GEN WD01X5222 GEN WD01X5222 Contact Us For Availability
1299
GEN WD03X5082 GEN WD03X5082 Contact Us For Availability
1299
GASKET MOUNTING A GEN WD08X5064 Contact Us For Availability
1299
PALNUT GEN WZ07X0037 Contact Us For Availability
1306
GEN WD02X5107 GEN WD02X5107 Contact Us For Availability
1306
GEN WD34X5051 GEN WD34X5051 Contact Us For Availability
1307
8-18X1/2 BT PH PAN GEN WD02X5105 Contact Us For Availability
1307
GEN WD34X5050 GEN WD34X5050 Contact Us For Availability
1309
BRACKET HOLD DOWN GEN WD01X5433 Contact Us For Availability
1309
GEN WD01X5509 GEN WD01X5509 Contact Us For Availability
1309
GEN WD02X5058 GEN WD02X5058 Contact Us For Availability
1309
CLAMP A GEN WD17X5032 Contact Us For Availability
1309
SCR 8-18X1 /2 AB RECESS GEN WZ04X0401 Contact Us For Availability
1315
GEN WD01X5190 GEN WD01X5190 Contact Us For Availability
1350
GEN WD34X5204 GEN WD34X5204 Contact Us For Availability
1350
SIDE TRIM LH GEN WD34X5203 Contact Us For Availability
9999
GEN 49-5354 GEN 49-5354 Contact Us For Availability
× ![]()
