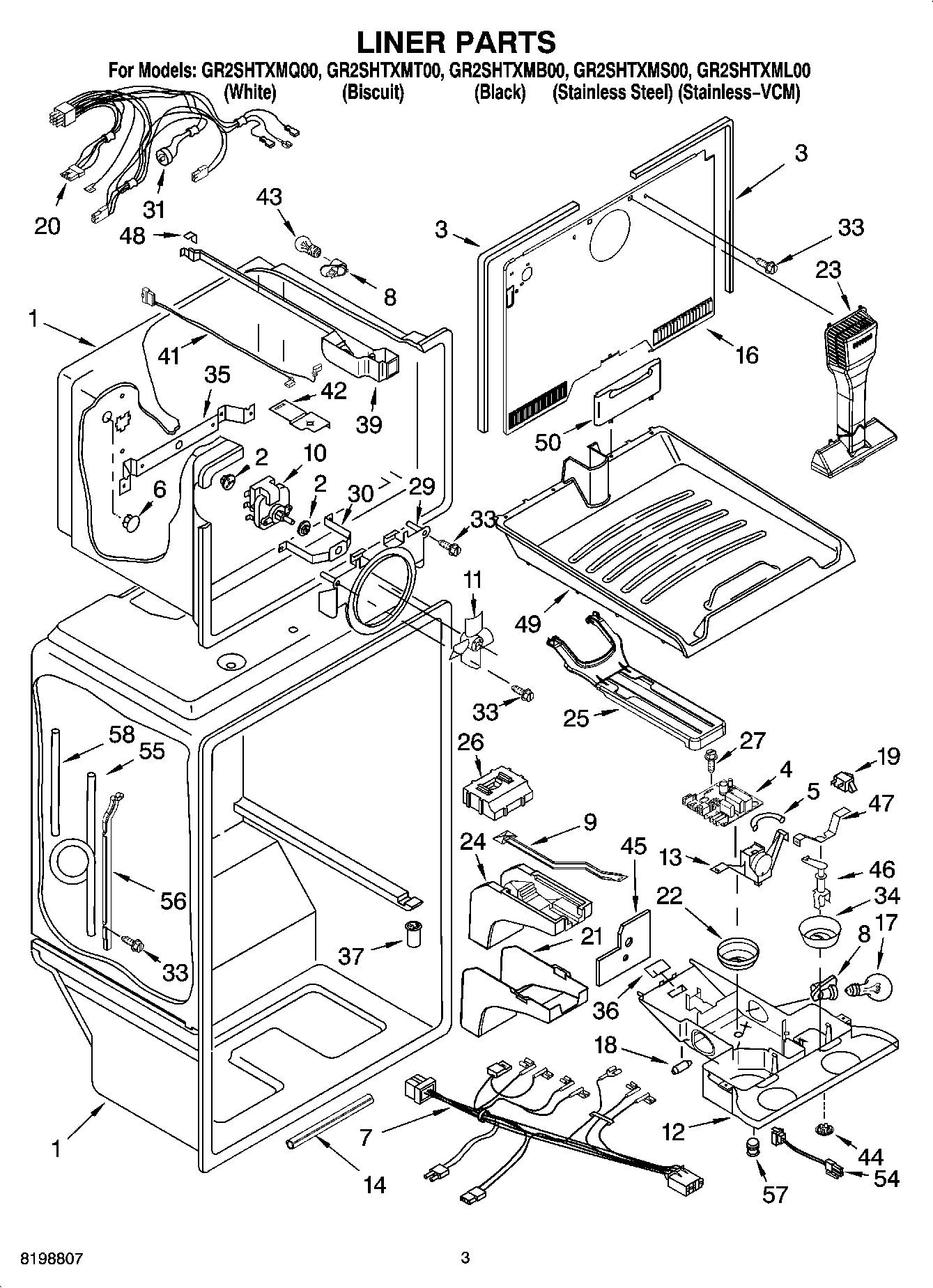

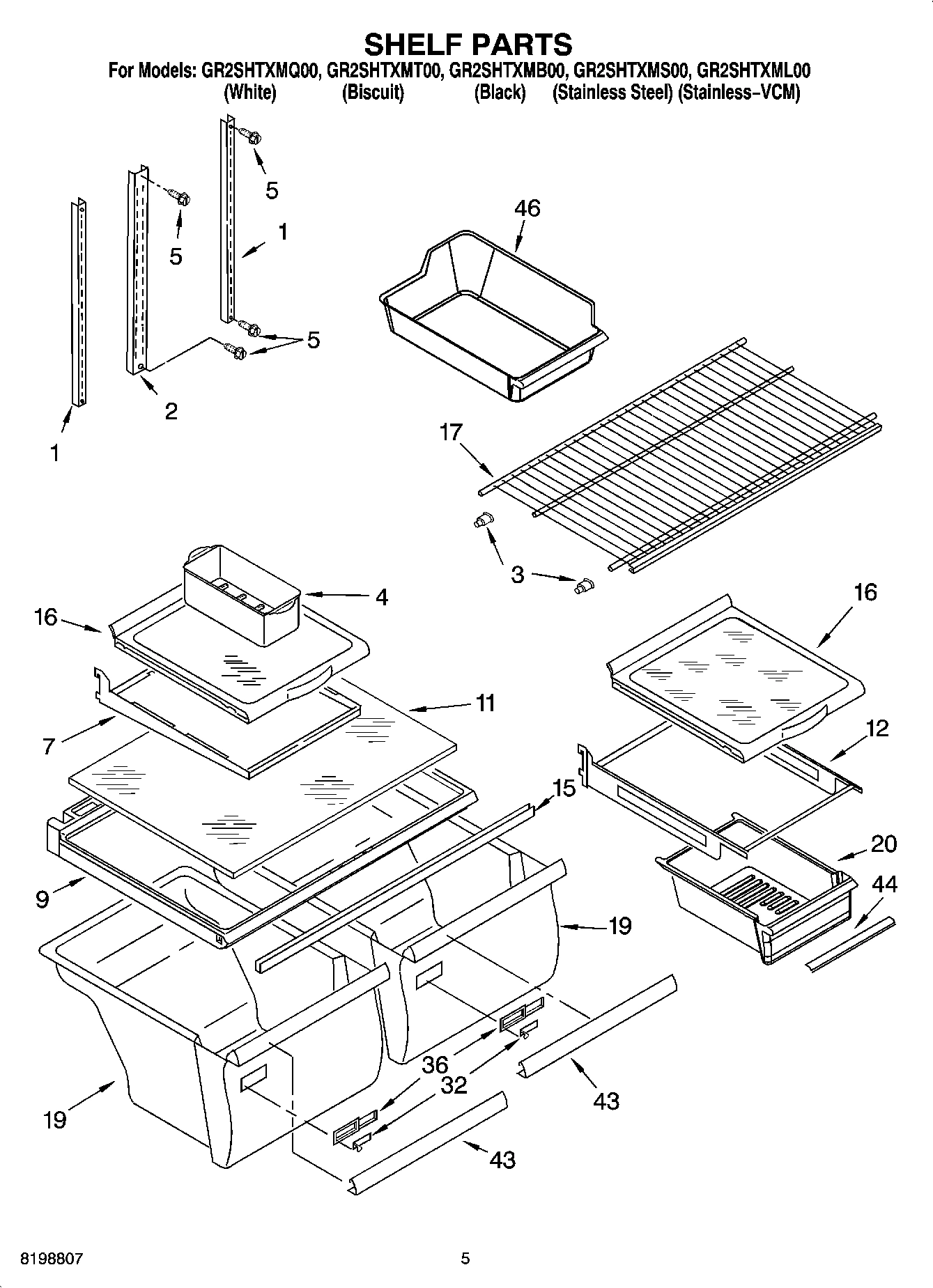

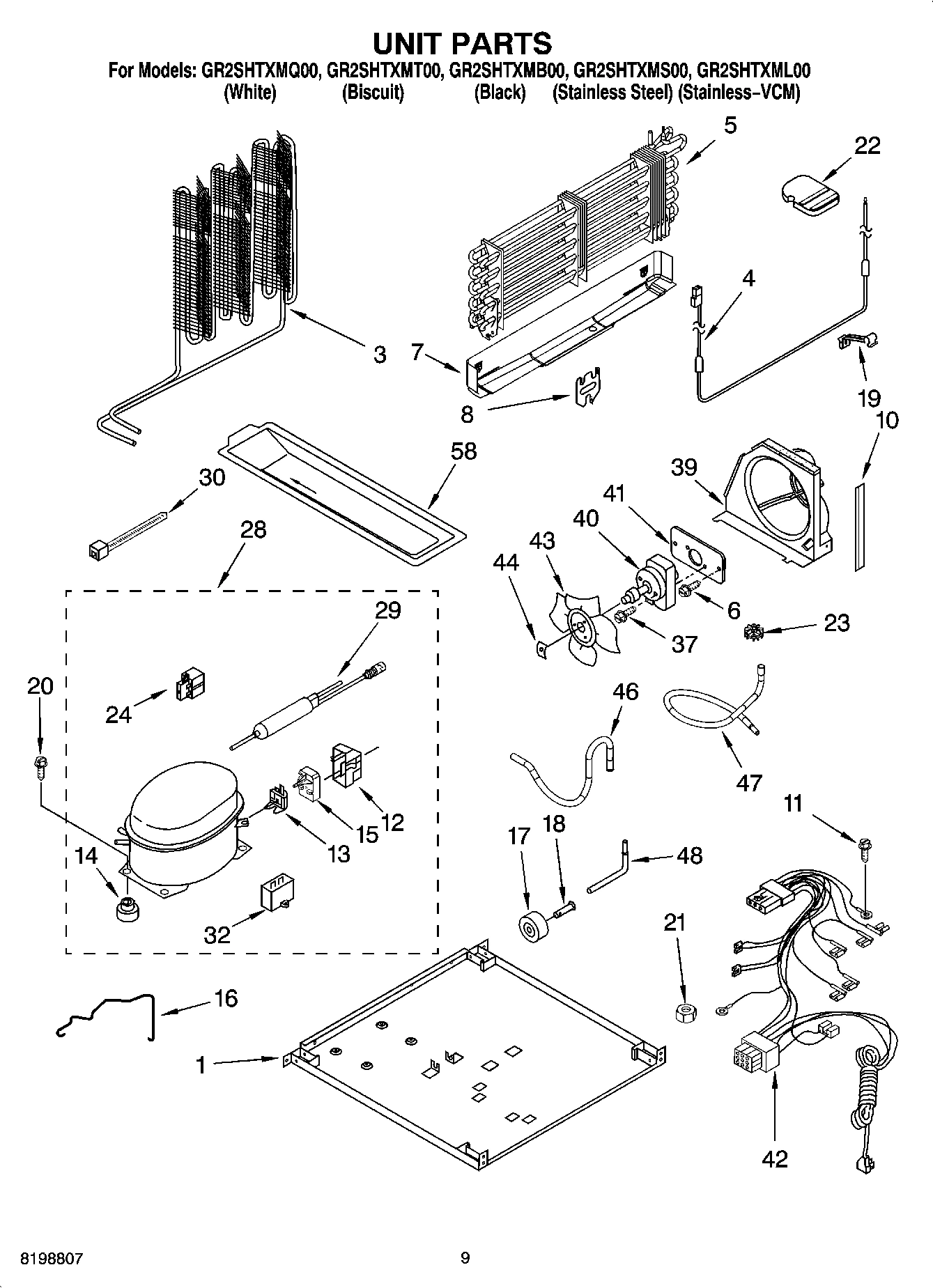

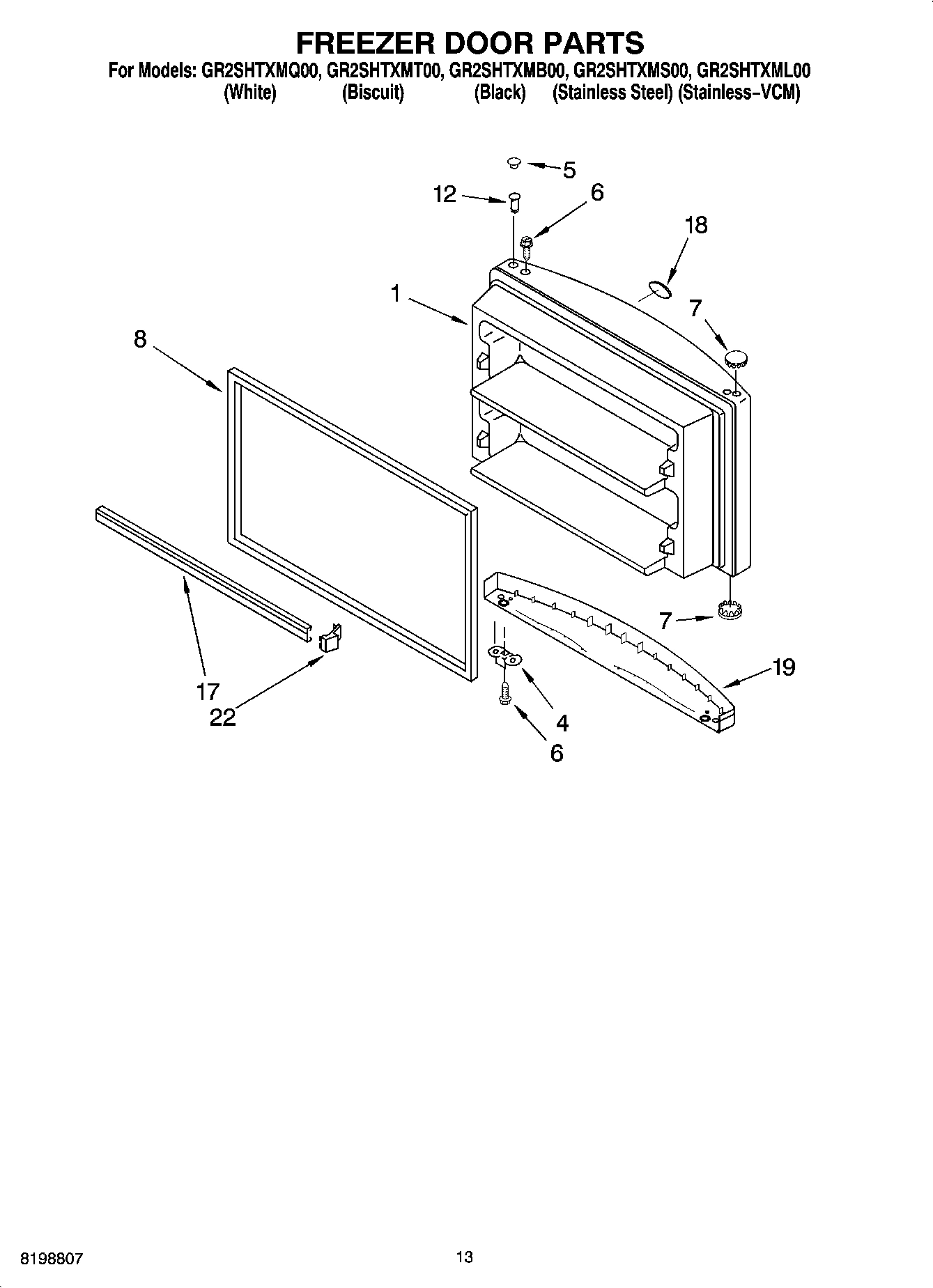

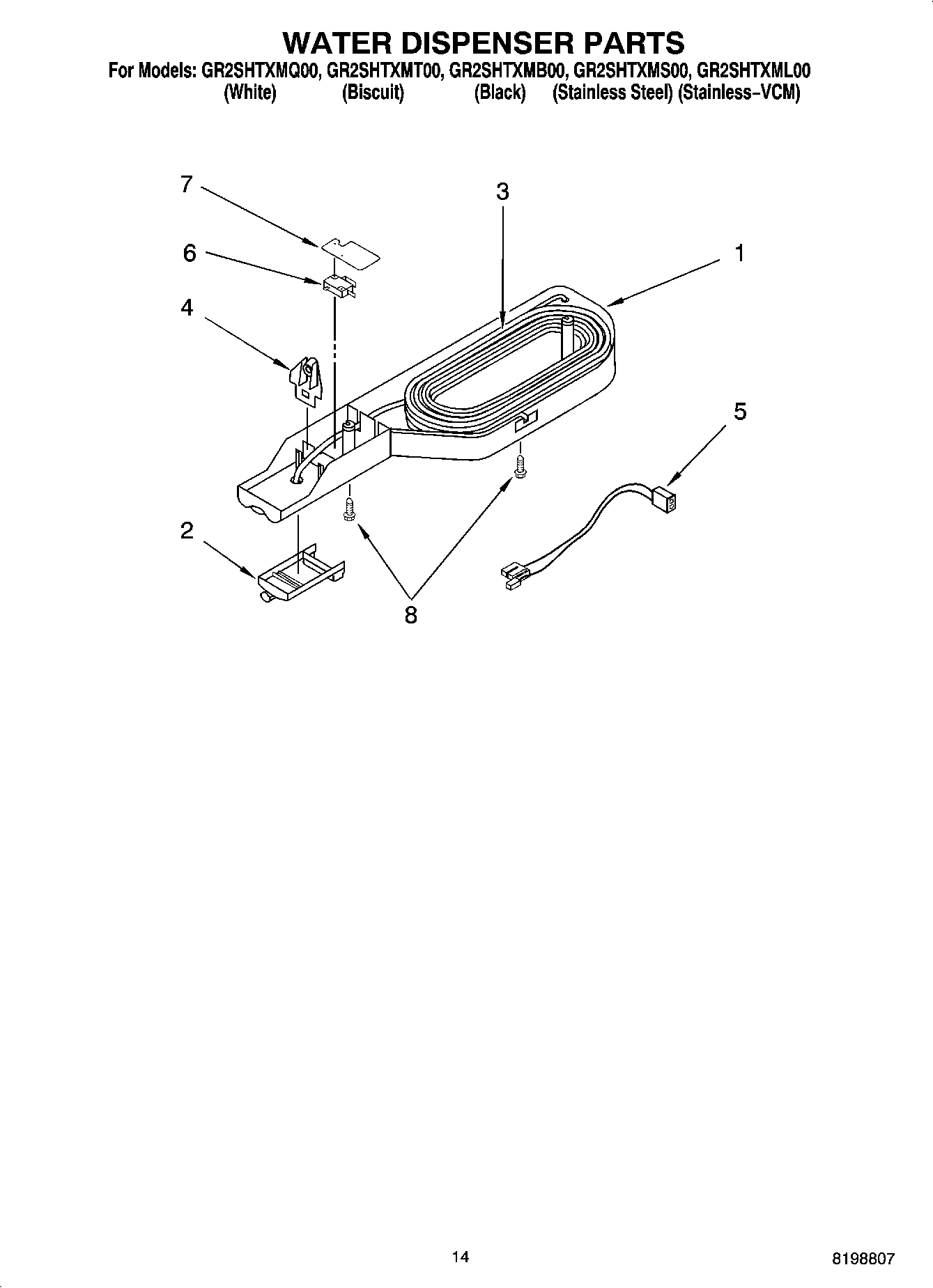

Model Whirlpool GR2SHTXMT00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Parts Not Illustrated and Optional Parts (Not WPL ARI68089A2 Contact Us For Availability

WPL ARI68090A8 WPL ARI68090A8 Contact Us For Availability

WPL ARI68091A9 WPL ARI68091A9 Contact Us For Availability

WPL ARI68092A5 WPL ARI68092A5 Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI68085A5 Contact Us For Availability

1

Freezer Door (Includes 8 & 12) (White) WPL 2202520 Contact Us For Availability

1

Freezer Door (Includes 8 & 12) (Biscuit) WPL 2204854 Contact Us For Availability

1

Freezer Door (Includes 8 & 12) (Black) WPL 2204856 Contact Us For Availability

1

Freezer Door (Includes 8 & 12) (Stainless, Br WPL 2212419 Contact Us For Availability

1

Freezer Door (Includes 8 & 12) (Stainless-VCM WPL 2218508 Contact Us For Availability

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $17.06

2

Button, Dispenser WPL 2210567 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $8.67

3

Condenser WPL 2214960 Contact Us For Availability

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

5

Wire Assembly WPL 2187291 Contact Us For Availability

5

Thermostat Tube Barrier WPL 2212485 Contact Us For Availability

5

HOLE PLUG, ENDCAP (WHITE) WPL 2204837 Contact Us For Availability

5

Hole-Plug Endcap (Biscuit) WPL 2204838 Contact Us For Availability

5

HOLE PLUG, ENDCAP (BLACK) WPL 2204840 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

6

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

7

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

7

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Shield, Switch WPL 2210547 Contact Us For Availability

7

Wire Assembly Control Box WPL 2187448 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $107.38

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $97.38

9

Damper, Air WPL 2179858 Contact Us For Availability

10

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $35.77

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

11

WP2176225 Whirlpool Glass Shelf In Stock WPL WP2176225 $126.83

11

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

12

Control Box WPL 2218304 Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

Thermostat Assembly (Includes Items 5, 18, & WPL 2210491 Contact Us For Availability

14

Insulation, Water Tube WPL 2301622 Contact Us For Availability

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

Cover, Evaporator WPL 2254262 Contact Us For Availability

17

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

Nameplate WPL 2220214 Contact Us For Availability

18

Weight, Thermal WPL 2200831 Contact Us For Availability

EDR6D1 Whirlpool EveryDrop® Ice and Water Re In Stock WPL EDR6D1 $43.40

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

Clip, Heater WPL 2182338 Contact Us For Availability

Endcap, Handle (White) WPL 2225094 Contact Us For Availability

Endcap, Handle (Biscuit) WPL 2225095 Contact Us For Availability

Endcap, Handle (Black) WPL 2225108 Contact Us For Availability

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

20

Wire Assembly, Freezer Compartment WPL 2187690 Contact Us For Availability

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

W10829461 Whirlpool Refrigerator Thermal Knob Backorder WPL W10829461 $12.08

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

DOOR COMPARTMENT WPL 2218109 Contact Us For Availability

Support Block WPL 2201185 Contact Us For Availability

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $54.06

23

Trim, Door Shelf WPL 2159306 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

24

Fitting, Water Tube (Not Serviced) WPL ARI68082A6 Contact Us For Availability

25

Retainer, Freezer Floor WPL 2225473 Contact Us For Availability

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

29

Bracket, Fan Motor WPL 2218696 Contact Us For Availability

30

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

31

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

32

Slide, Crisper WPL 2176222 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

Knob, Damper WPL 2176297 Contact Us For Availability

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

Bracket, Evap. Fan, Rear WPL 2214976 Contact Us For Availability

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $33.15

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Grille (White) WPL 2301618W Contact Us For Availability

Grille (Black) WPL 2301618B Contact Us For Availability

Grille (Biscuit) WPL 2301618T Contact Us For Availability

37

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

37

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

37

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

39

Housing Base WPL 2201153 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

41

Rail Center (Not Serviced) WPL ARI68083A7 Contact Us For Availability

41

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $6.28

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $28.47

44

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2253196 Contact Us For Availability

45

Cabin WPL ARI68084A1 Contact Us For Availability

45

Shield, heat WPL 2204639 Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $30.25

46

Post, Damper WPL 2179859 Contact Us For Availability

47

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2225476 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

54

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

55

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

56

Cover, Tubing WPL 2225531 Contact Us For Availability

57

Cover, Light Lens WPL 2213495 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Tube, Water WPL 2301621 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
