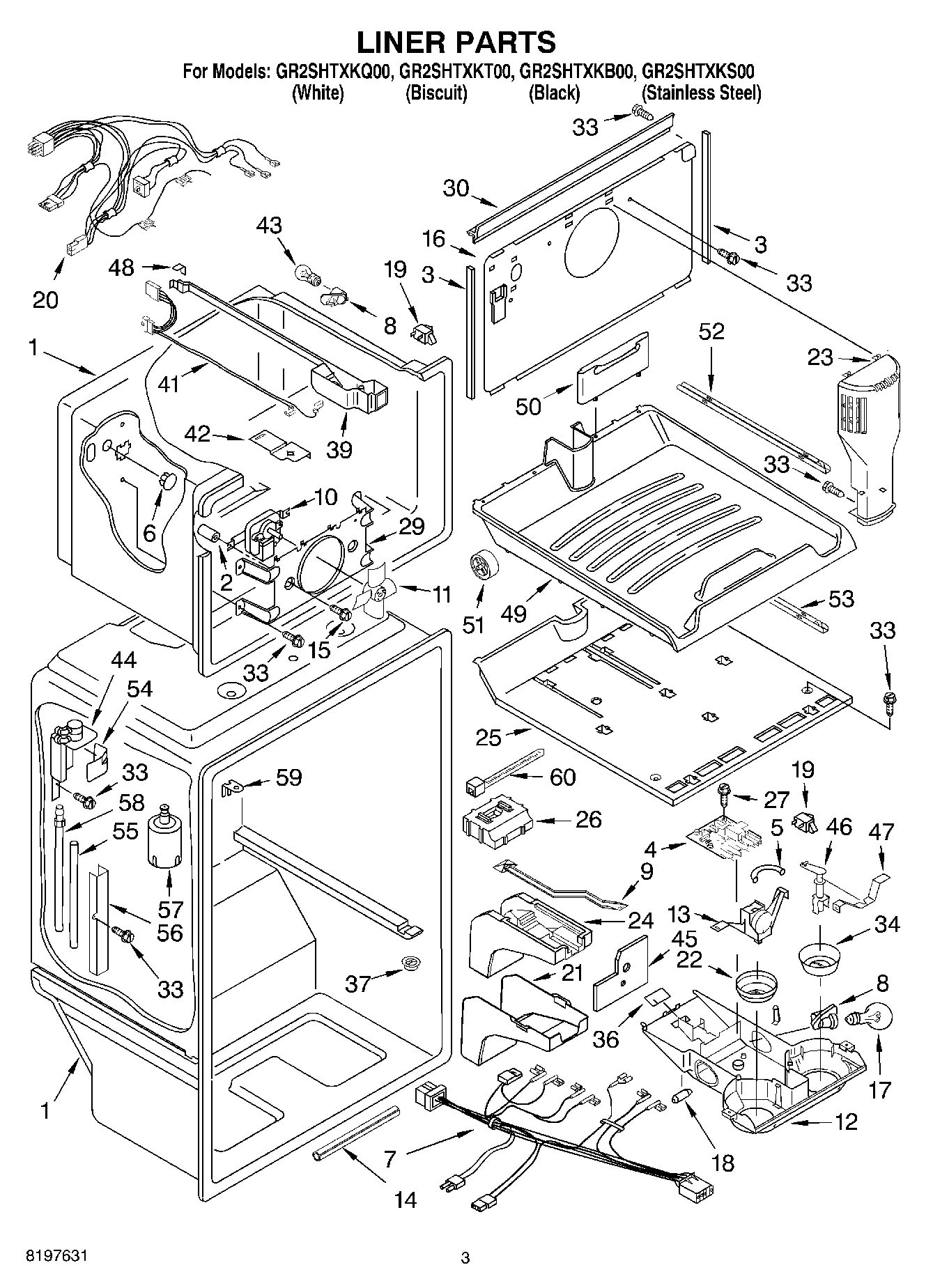

Model Whirlpool GR2SHTXKT00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (Bi WPL 2204865 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (Bl WPL 2204867 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (St WPL 2218278 Contact Us For Availability

1

Freezer Door (Includes No.8& No.12) (White) WPL 2202520 Contact Us For Availability

1

Freezer Door (Includes No.8& No.12) (Biscuit) WPL 2204854 Contact Us For Availability

1

Freezer Door (Includes No.8& No.12) (Black) WPL 2204856 Contact Us For Availability

1

Freezer Door (Includes No.8& No.12) (Stainles WPL 2212419 Contact Us For Availability

1

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

1

Plate, Unit Mounting WPL 2205340 Contact Us For Availability

2

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

2

Button, Dispenser WPL 2210567 Contact Us For Availability

2

Shelf, Ladder Center WPL 2202821 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $63.70

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

HOLE PLUG, ENDCAP (WHITE) WPL 2204837 Contact Us For Availability

5

Hole-Plug Endcap (Biscuit) WPL 2204838 Contact Us For Availability

5

Hole-Plug Endcap (Grey) WPL 2212533 Contact Us For Availability

5

Wire Assembly WPL 2187291 Contact Us For Availability

5

Evaporator Assy. WPL 2195390 Contact Us For Availability

6

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

6

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

Hole Plug (Black) WPL 2204840 Contact Us For Availability

7

Shield, Switch WPL 2210547 Contact Us For Availability

7

Frame Assembly, Shelf (2) WPL 2174447 Contact Us For Availability

7

Drain Pan WPL 2172620 Contact Us For Availability

8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $98.99

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $107.38

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $159.43

8

285006 Whirlpool Spray In Stock WPL 285006 $28.82

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

8

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

8

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

8

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

8

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

8

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

8

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

8

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

8

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

8

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

8

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

8

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

8

Torx Key WPL 1117510 Contact Us For Availability

8

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

8

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

8

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

8

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

8

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

WP2314549 Whirlpool Refrigerator Cover In Stock WPL WP2314549 $107.23

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

WP2176225 Whirlpool Glass Shelf In Stock WPL WP2176225 $126.83

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Housing Compartment WPL 2210566 Contact Us For Availability

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

12

Frame Assembly, Meat Shelf WPL 2205162 Contact Us For Availability

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $35.14

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

Thermostat Assembly (Includes Items 5, 18, & WPL 2210491 Contact Us For Availability

Tray, Door WPL 2195388 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

15

8201769 Whirlpool Refrigerator Compressor Rel In Stock WPL 8201769 $58.17

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP999520 Whirlpool Refrigerator Glass Shelf Backorder WPL WP999520 $133.39

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

Shelf, Freezer WPL 2184667 Contact Us For Availability

18

Nameplate WPL 2220214 Contact Us For Availability

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $93.60

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

Handle (White) WPL 2212624 Contact Us For Availability

Handle (Biscuit) WPL 2212645 Contact Us For Availability

Handle (Black) WPL 2221644 Contact Us For Availability

Handle (White) WPL 2225094 Contact Us For Availability

Handle (Biscuit) WPL 2225095 Contact Us For Availability

Handle (Black) WPL 2225108 Contact Us For Availability

20

WP2204813 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204813 $51.09

20

WP2218132K Whirlpool Crisper Meat Pan In Stock WPL WP2218132K $109.65

20

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $41.74

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Nut (Not Serviced) WPL ARI67962A8 Contact Us For Availability

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Support Block WPL 2201185 Contact Us For Availability

Door, Compartment WPL 2188398 Contact Us For Availability

23

Air Tower WPL 2182340 Contact Us For Availability

23

Trim, Door Shelf WPL 2159306 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

26

Clip WPL 2166683 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

28

Installation Kit WPL 482801 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

32

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

32

Slide, Crisper WPL 2176222 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $33.15

36

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

38

Endcap, Door Trim WPL 2177340 Contact Us For Availability

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

39

Air Baffle WPL 2198921 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

40

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

42

Wire Assy. Unit WPL 2187359 Contact Us For Availability

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $28.47

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Trim, Meat Pan WPL 2176357 Contact Us For Availability

45

Tube, Transition WPL 2212603 Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $30.25

46

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $15.66

47

Tube, Suction WPL 2219514 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $35.59

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

56

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

Evap. Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

100

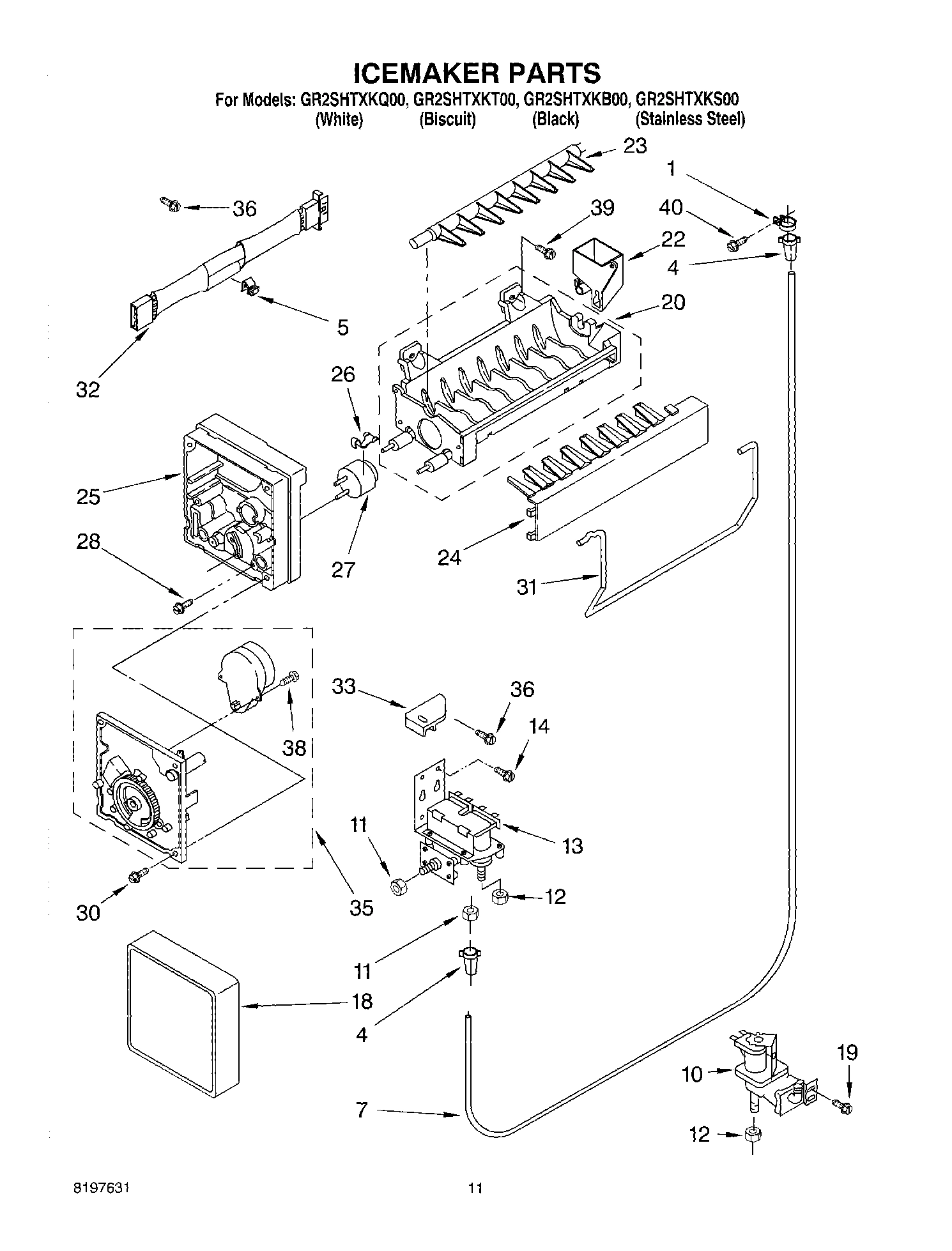

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
