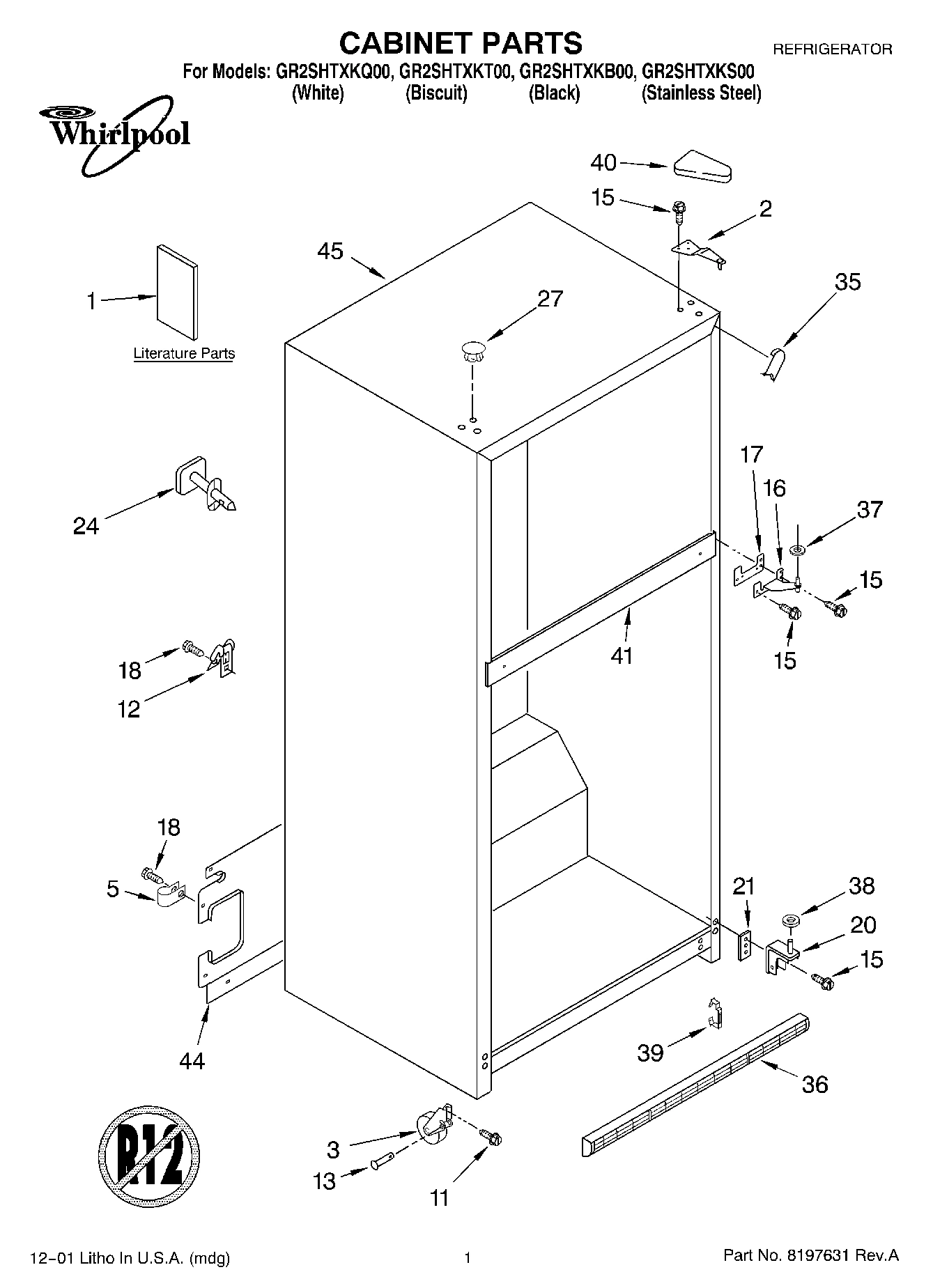

Model Whirlpool GR2SHTXKQ00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

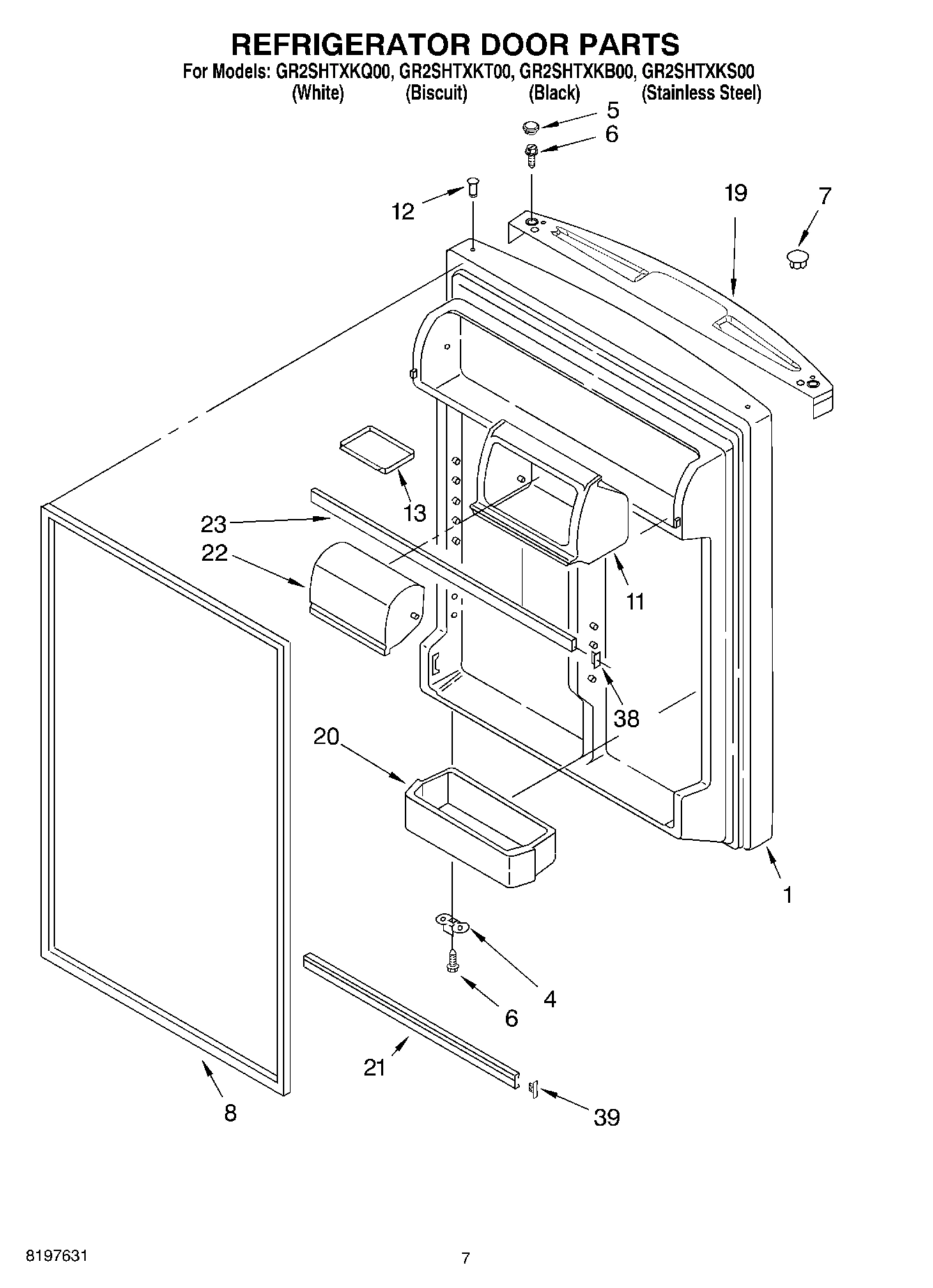

Refrigerator Door (Includes No.8 & No.12) (Wh WPL 2202519 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (Bi WPL 2204865 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (Bl WPL 2204867 Contact Us For Availability

1

Refrigerator Door (Includes No.8 & No.12) (St WPL 2218278 Contact Us For Availability

1

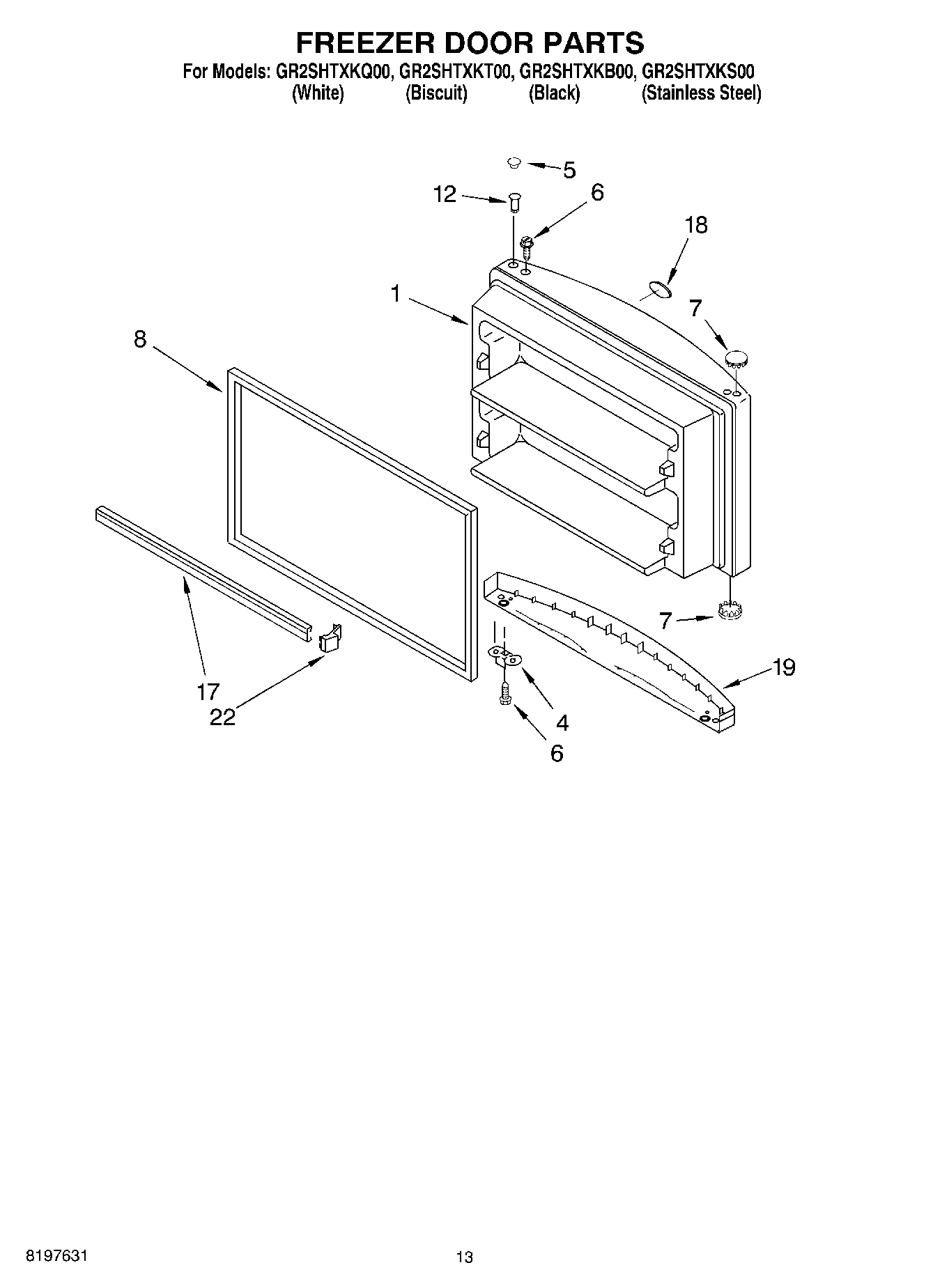

Freezer Door (Includes No.8& No.12) (White) WPL 2202520 Contact Us For Availability

1

Freezer Door (Includes No.8& No.12) (Biscuit) WPL 2204854 Contact Us For Availability

1

Freezer Door (Includes No.8& No.12) (Black) WPL 2204856 Contact Us For Availability

1

Freezer Door (Includes No.8& No.12) (Stainles WPL 2212419 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2212841 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2213207 Contact Us For Availability

1

Energy Label WPL LIT2218068 Contact Us For Availability

1

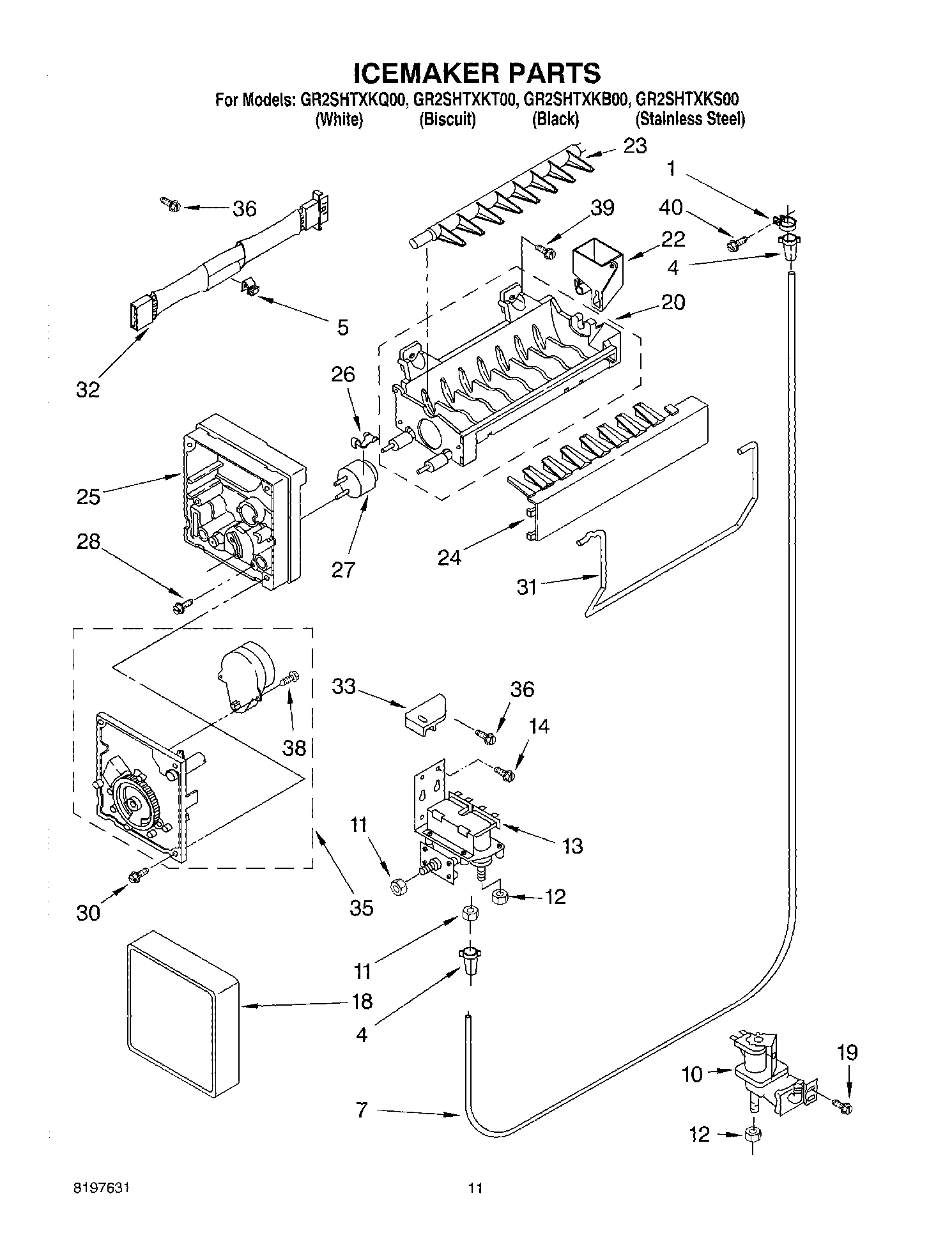

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Literature Parts (Do-It-Yourself Manual, Ref/ WPL LIT677969 Contact Us For Availability

1

Do-It-Yourself Manual, Icemaker WPL LIT677971 Contact Us For Availability

1

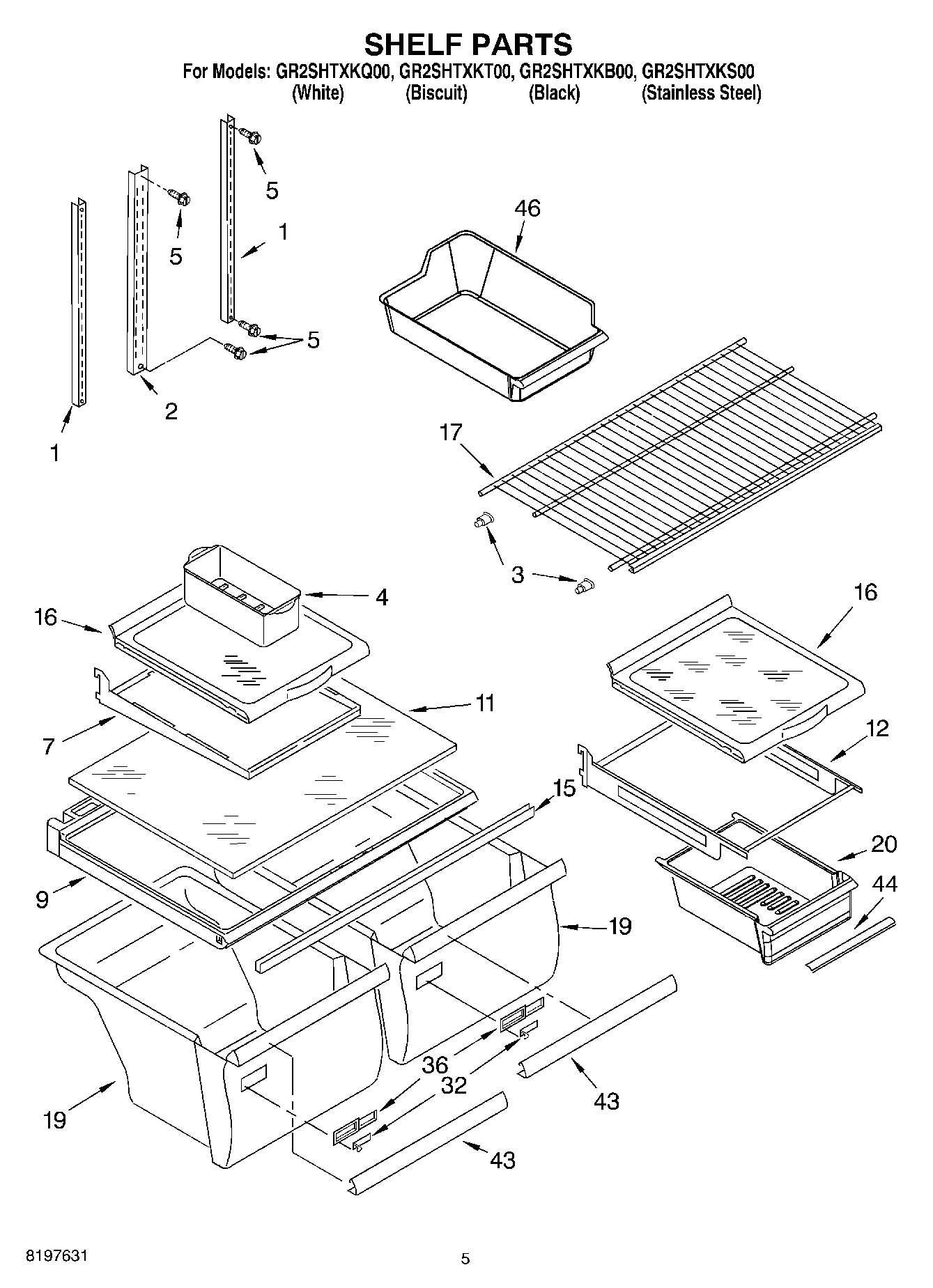

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

2

Button, Dispenser WPL 2210567 Contact Us For Availability

2

Shelf, Ladder Center WPL 2202821 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

HOLE PLUG, ENDCAP (WHITE) WPL 2204837 Contact Us For Availability

5

Hole-Plug Endcap (Biscuit) WPL 2204838 Contact Us For Availability

5

Hole-Plug Endcap (Grey) WPL 2212533 Contact Us For Availability

5

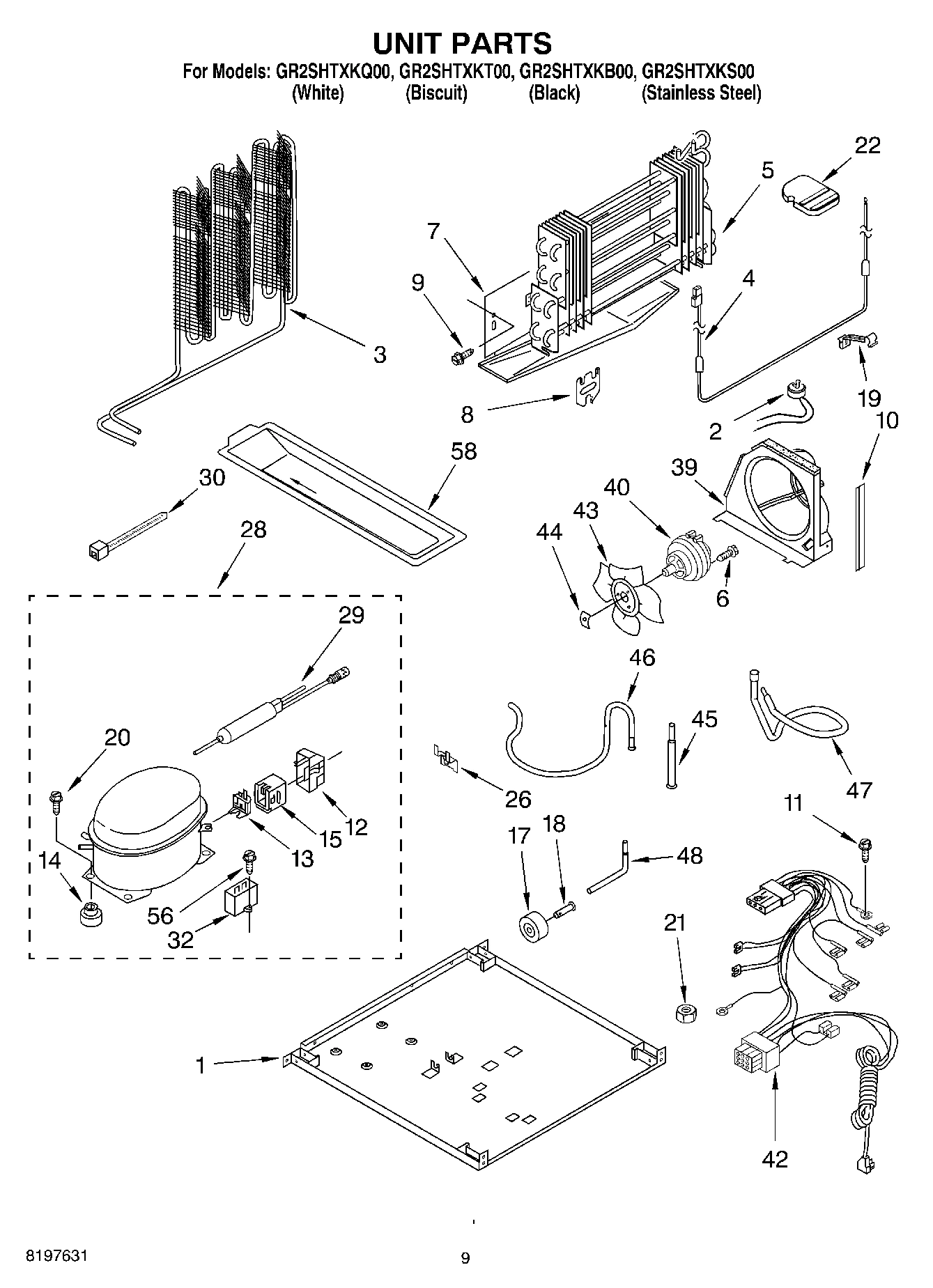

Wire Assembly WPL 2187291 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

6

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

Hole Plug (Black) WPL 2204840 Contact Us For Availability

7

Shield, Switch WPL 2210547 Contact Us For Availability

7

Frame Assembly, Shelf (2) WPL 2174447 Contact Us For Availability

8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $94.28

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $151.83

8

285006 Whirlpool Spray In Stock WPL 285006 $27.45

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

8

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

8

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

8

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

8

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

8

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

8

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

8

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

8

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

8

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

8

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

8

Torx Key WPL 1117510 Contact Us For Availability

8

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

8

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

8

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

8

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

8

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

9

WP2314549 Whirlpool Refrigerator Cover In Stock WPL WP2314549 $103.84

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2176225 Whirlpool Glass Shelf Backorder WPL WP2176225 $120.79

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Housing Compartment WPL 2210566 Contact Us For Availability

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

12

Frame Assembly, Meat Shelf WPL 2205162 Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

Thermostat Assembly (Includes Items 5, 18, & WPL 2210491 Contact Us For Availability

13

Tray, Door WPL 2195388 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

16

WP999520 Whirlpool Refrigerator Glass Shelf Backorder WPL WP999520 $127.04

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

17

Shelf, Freezer WPL 2184667 Contact Us For Availability

18

Nameplate WPL 2220214 Contact Us For Availability

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $89.14

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

Handle (White) WPL 2212624 Contact Us For Availability

Handle (Biscuit) WPL 2212645 Contact Us For Availability

Handle (Black) WPL 2221644 Contact Us For Availability

Handle (White) WPL 2225094 Contact Us For Availability

Handle (Biscuit) WPL 2225095 Contact Us For Availability

Handle (Black) WPL 2225108 Contact Us For Availability

WP2204813 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204813 $48.02

WP2218132K Whirlpool Crisper Meat Pan In Stock WPL WP2218132K $102.95

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

21

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $39.75

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

WP2218109 Whirlpool Refrigerator Door Compres Backorder WPL WP2218109 $42.64

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Support Block WPL 2201185 Contact Us For Availability

23

Air Tower WPL 2182340 Contact Us For Availability

23

Trim, Door Shelf WPL 2159306 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

24

Fitting, Water Tube (Not Serviced) WPL ARI67904A8 Contact Us For Availability

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

27

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

27

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

27

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

28

Installation Kit WPL 482801 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

32

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Grille (White) WPL 2201006 Contact Us For Availability

Grille (Black) WPL 2201008 Contact Us For Availability

Grille (Biscuit) WPL 2201020 Contact Us For Availability

37

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

38

Endcap, Door Trim WPL 2177340 Contact Us For Availability

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

Rail Center (Not Serviced) WPL ARI67905A6 Contact Us For Availability

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $27.12

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2210542 Contact Us For Availability

44

Trim, Meat Pan WPL 2176357 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI67906A1 Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $28.80

46

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.91

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

Evap. Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
