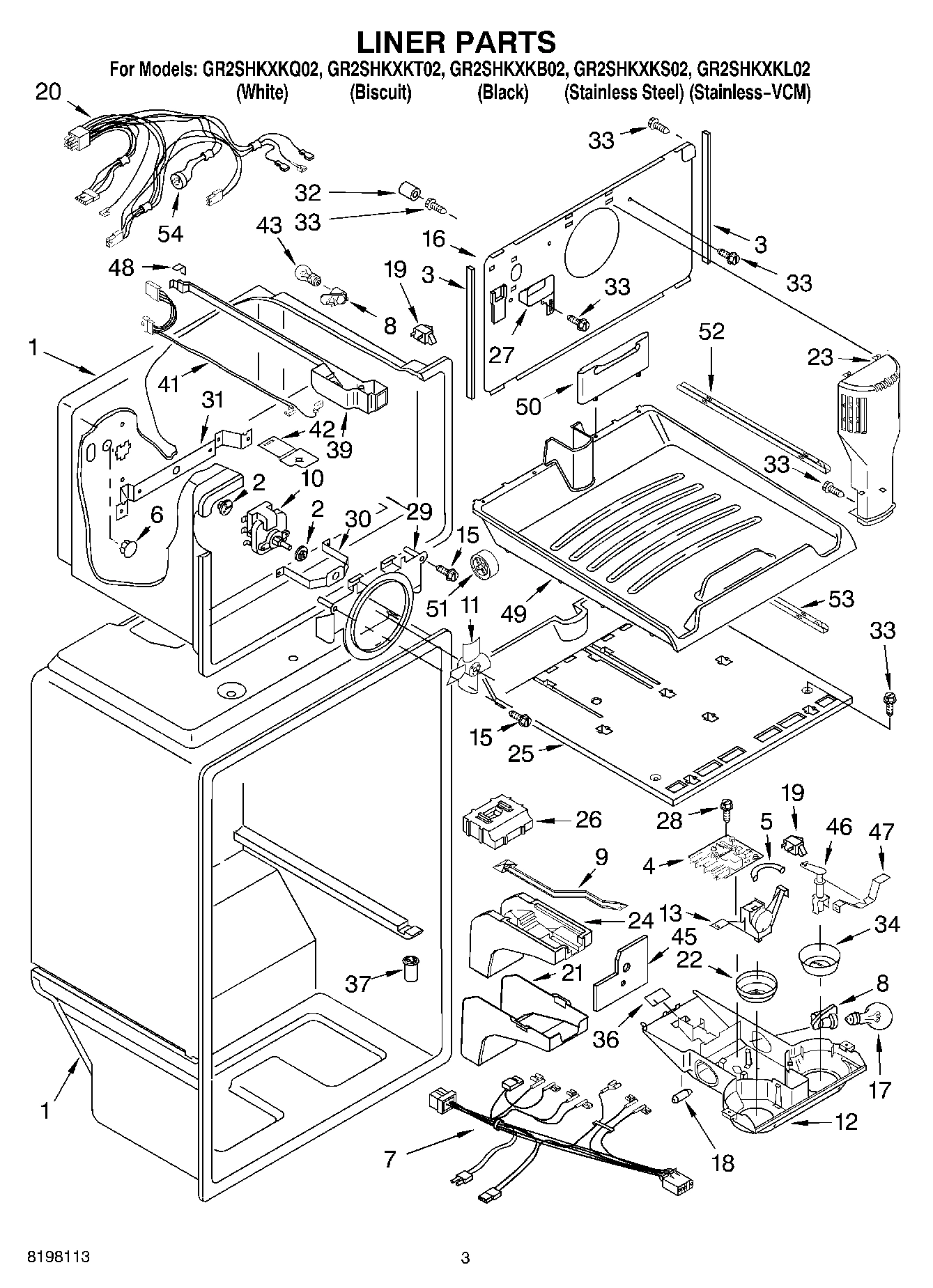

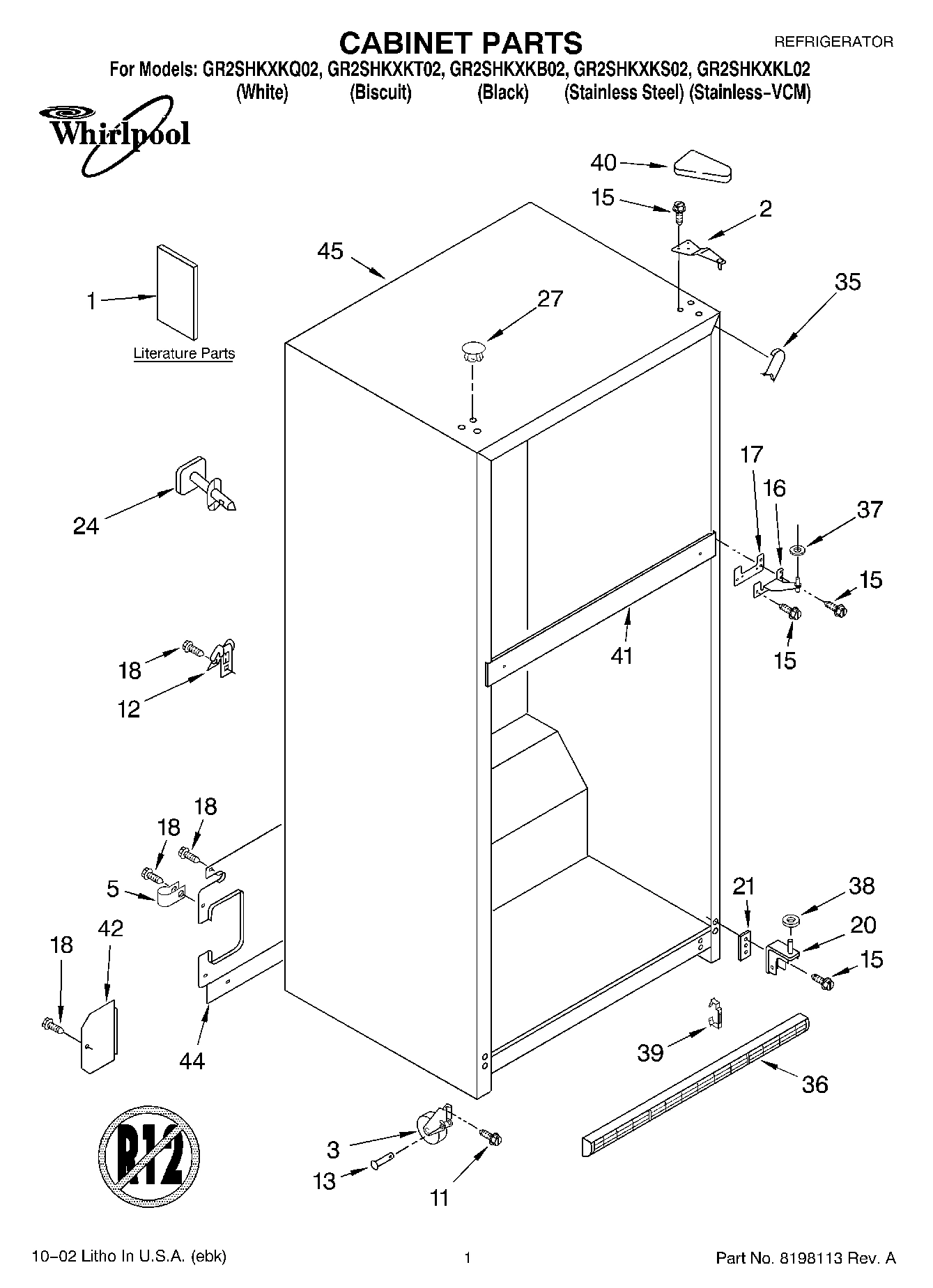

Model Whirlpool GR2SHKXKT02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

1
Refrigerator Door (Includes No.8 & No.12) (Bl
Refrigerator Door (Includes No.8 & No.12) (Bl WPL 2204867 Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.8 & No.12) (St
Refrigerator Door (Includes No.8 & No.12) (St WPL 2218278 Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.8 & No.12) (St
Refrigerator Door (Includes No.8 & No.12) (St WPL 2218505 Contact Us For Availability
View on Model
1
Plate, Unit Mounting
Plate, Unit Mounting WPL 2205340 Contact Us For Availability
View on Model
1
Freezer Door (Includes No.8& No.12) (White)
Freezer Door (Includes No.8& No.12) (White) WPL 2202520 Contact Us For Availability
View on Model
1
Freezer Door (Includes No.8& No.12) (Biscuit)
Freezer Door (Includes No.8& No.12) (Biscuit) WPL 2204854 Contact Us For Availability
View on Model
1
Freezer Door (Includes No.8& No.12) (Black)
Freezer Door (Includes No.8& No.12) (Black) WPL 2204856 Contact Us For Availability
View on Model
1
Freezer Door (Includes No.8& No.12) (Stainles
Freezer Door (Includes No.8& No.12) (Stainles WPL 2212419 Contact Us For Availability
View on Model
1
Freezer Door (Includes No.8& No.12) (Stainles
Freezer Door (Includes No.8& No.12) (Stainles WPL 2218508 Contact Us For Availability
View on Model
5
HOLE PLUG, ENDCAP (WHITE)
HOLE PLUG, ENDCAP (WHITE) WPL 2204837 Contact Us For Availability
View on Model
5
Hole-Plug Endcap (Biscuit)
Hole-Plug Endcap (Biscuit) WPL 2204838 Contact Us For Availability
View on Model
5
HOLE PLUG, ENDCAP (BLACK)
HOLE PLUG, ENDCAP (BLACK) WPL 2204840 Contact Us For Availability
View on Model
5
Evaporator Assy.
Evaporator Assy. WPL 2195390 Contact Us For Availability
View on Model
7
Wire Assembly, Control Box
Wire Assembly, Control Box WPL 2187352 Contact Us For Availability
View on Model
7
Drain Pan
Drain Pan WPL 2172620 Contact Us For Availability
View on Model
8
Bracket, Heater
Bracket, Heater WPL 2176301 Contact Us For Availability
View on Model
10
Extension, Air Baffle
Extension, Air Baffle WPL 2163780 Contact Us For Availability
View on Model
11
Housing Compartment
Housing Compartment WPL 2210566 Contact Us For Availability
View on Model
13
Thermostat Assembly (Includes Items 5, 18, &
Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability
View on Model
13
Tray, Door
Tray, Door WPL 2195388 Contact Us For Availability
View on Model
17
Trim, Door Shelf (2)
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
View on Model
18
Nameplate
Nameplate WPL 2220214 Contact Us For Availability
View on Model
19
Clip, Heater
Clip, Heater WPL 2182338 Contact Us For Availability
View on Model
19
Handle (White)
Handle (White) WPL 2212624 Contact Us For Availability
View on Model
19
Handle (Biscuit)
Handle (Biscuit) WPL 2212645 Contact Us For Availability
View on Model
19
Handle (Black)
Handle (Black) WPL 2221644 Contact Us For Availability
View on Model
19
Handle (White)
Handle (White) WPL 2225094 Contact Us For Availability
View on Model
19
Handle (Biscuit)
Handle (Biscuit) WPL 2225095 Contact Us For Availability
View on Model
19
Handle (Black)
Handle (Black) WPL 2225108 Contact Us For Availability
View on Model
21
Cover, Air Diffuser
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
View on Model
21
Shim, Bottom Hinge
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
View on Model
22
WPL 876029
WPL 876029 WPL 876029 Contact Us For Availability
View on Model
22
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
22
Torx Key
Torx Key WPL 1117510 Contact Us For Availability
View on Model
22
Support Block
Support Block WPL 2201185 Contact Us For Availability
View on Model
22
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
View on Model
22
CEM
CEM WPL 542639 Contact Us For Availability
View on Model
22
WPL 799340
WPL 799340 WPL 799340 Contact Us For Availability
View on Model
22
WPL 799832
WPL 799832 WPL 799832 Contact Us For Availability
View on Model
22
WPL 799833
WPL 799833 WPL 799833 Contact Us For Availability
View on Model
23
Air Tower
Air Tower WPL 2182340 Contact Us For Availability
View on Model
23
Trim, Door Shelf
Trim, Door Shelf WPL 2159306 Contact Us For Availability
View on Model
26
Air Diffuser, Top
Air Diffuser, Top WPL 2204690 Contact Us For Availability
View on Model
27
Cover, Hole
Cover, Hole WPL 2205003 Contact Us For Availability
View on Model
30
Bracket, Evap. Fan, Front
Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability
View on Model
38
Endcap, Door Trim
Endcap, Door Trim WPL 2177340 Contact Us For Availability
View on Model
39
CLIP, GRILLE
CLIP, GRILLE WPL 2189356 Contact Us For Availability
View on Model
39
Air Baffle
Air Baffle WPL 2198921 Contact Us For Availability
View on Model
41
Grommet
Grommet WPL 531933 Contact Us For Availability
View on Model
42
Wire Assy. Unit
Wire Assy. Unit WPL 2187384 Contact Us For Availability
View on Model
43
Fan, Blade
Fan, Blade WPL 2190685 Contact Us For Availability
View on Model
45
Tube, Transition
Tube, Transition WPL 2212603 Contact Us For Availability
View on Model
46
Tube, Discharge
Tube, Discharge WPL 2205384 Contact Us For Availability
View on Model
47
Tube, Suction
Tube, Suction WPL 2225237 Contact Us For Availability
View on Model
50
REAR FENCE PULL-OUT FREEZER FLOOR
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
View on Model
58
Evaporator Tray
Evaporator Tray WPL 2210451 Contact Us For Availability
View on Model
58
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
58
VALVE, ACCESS (1/2``)
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
View on Model
