Model Whirlpool GR2SHKXKB02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
02 - LINER
05 - UNIT

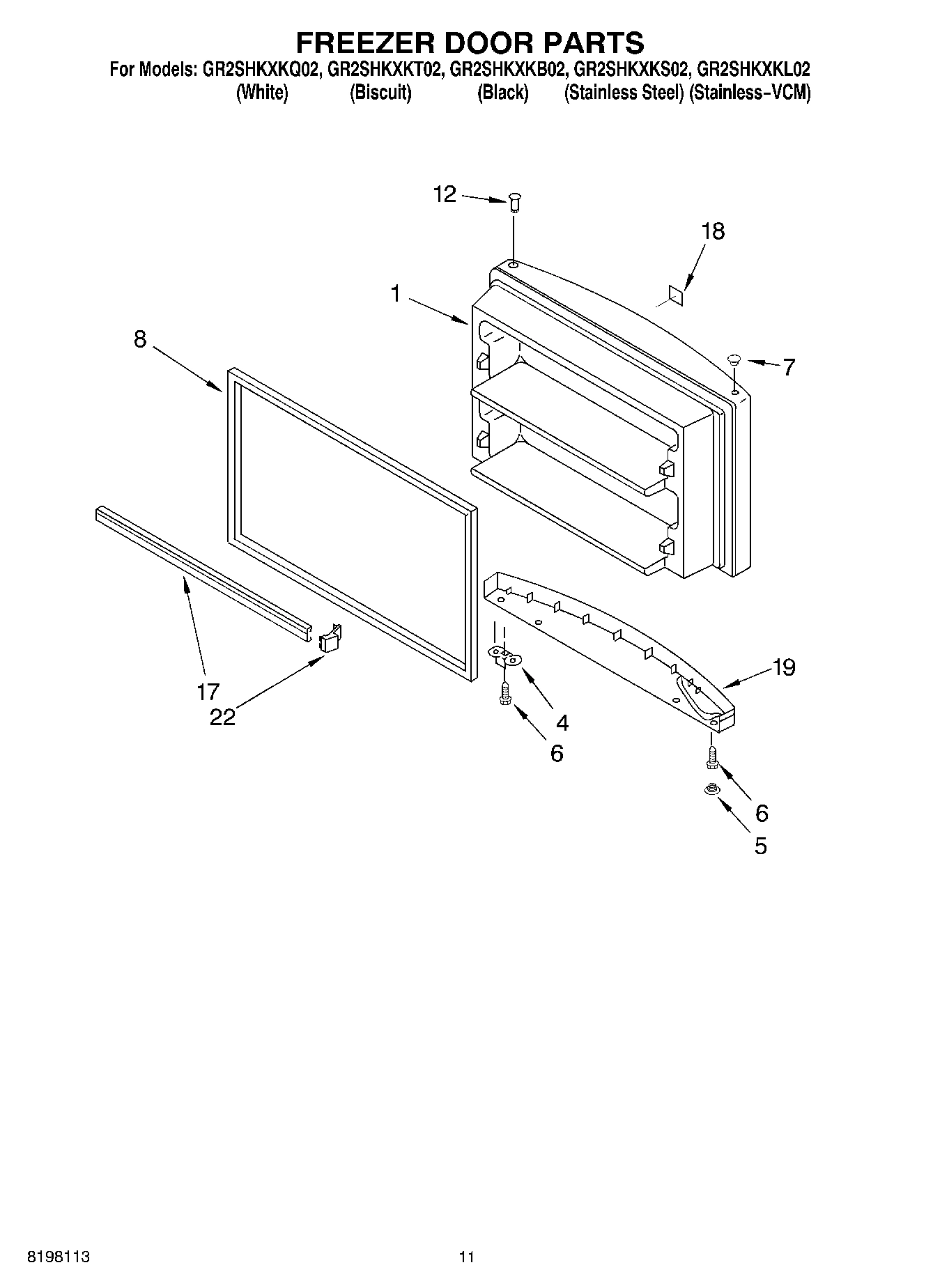

06 - FREEZER DOOR, OPTIONAL

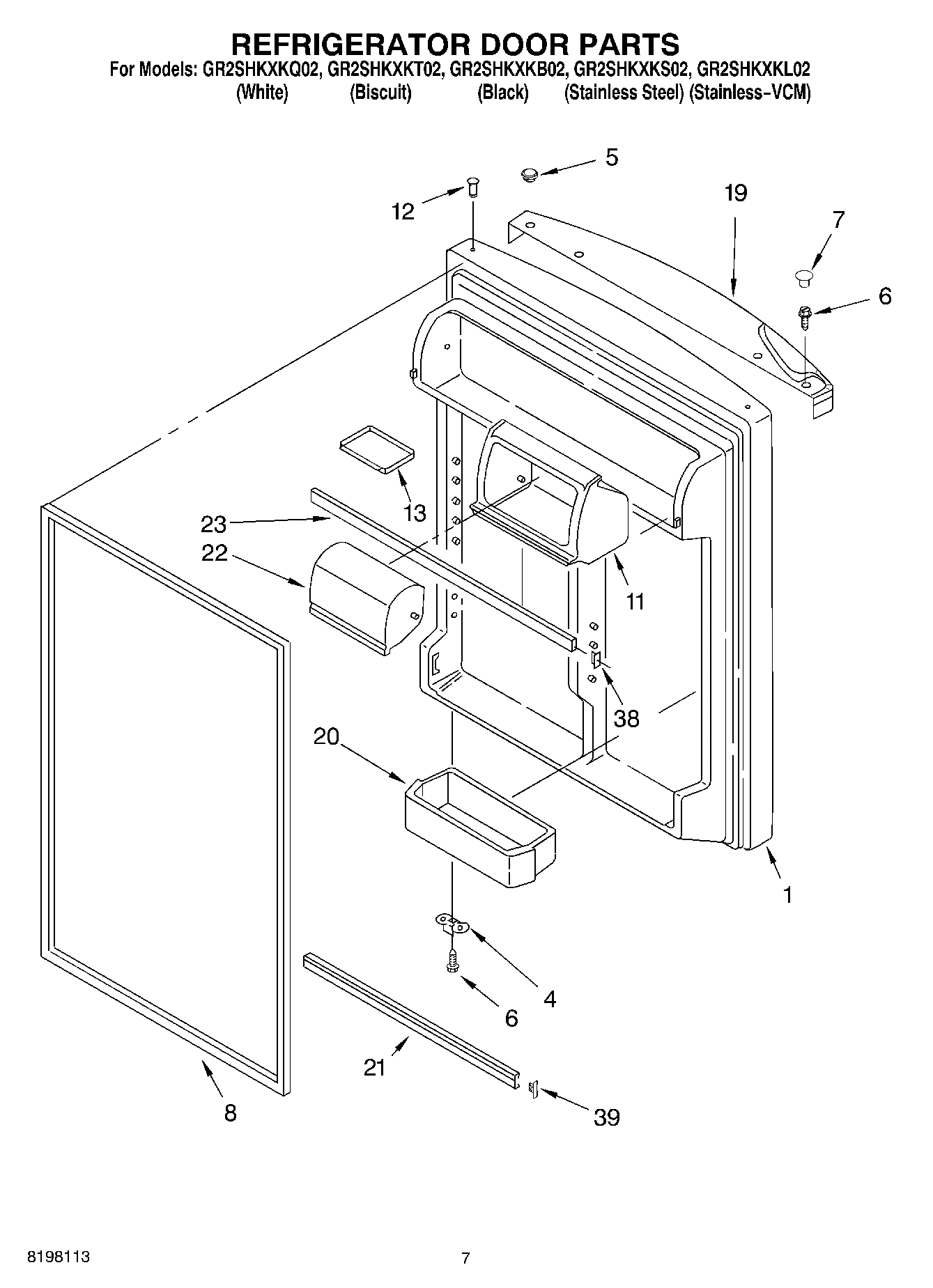

04 - REFRIGERATOR DOOR

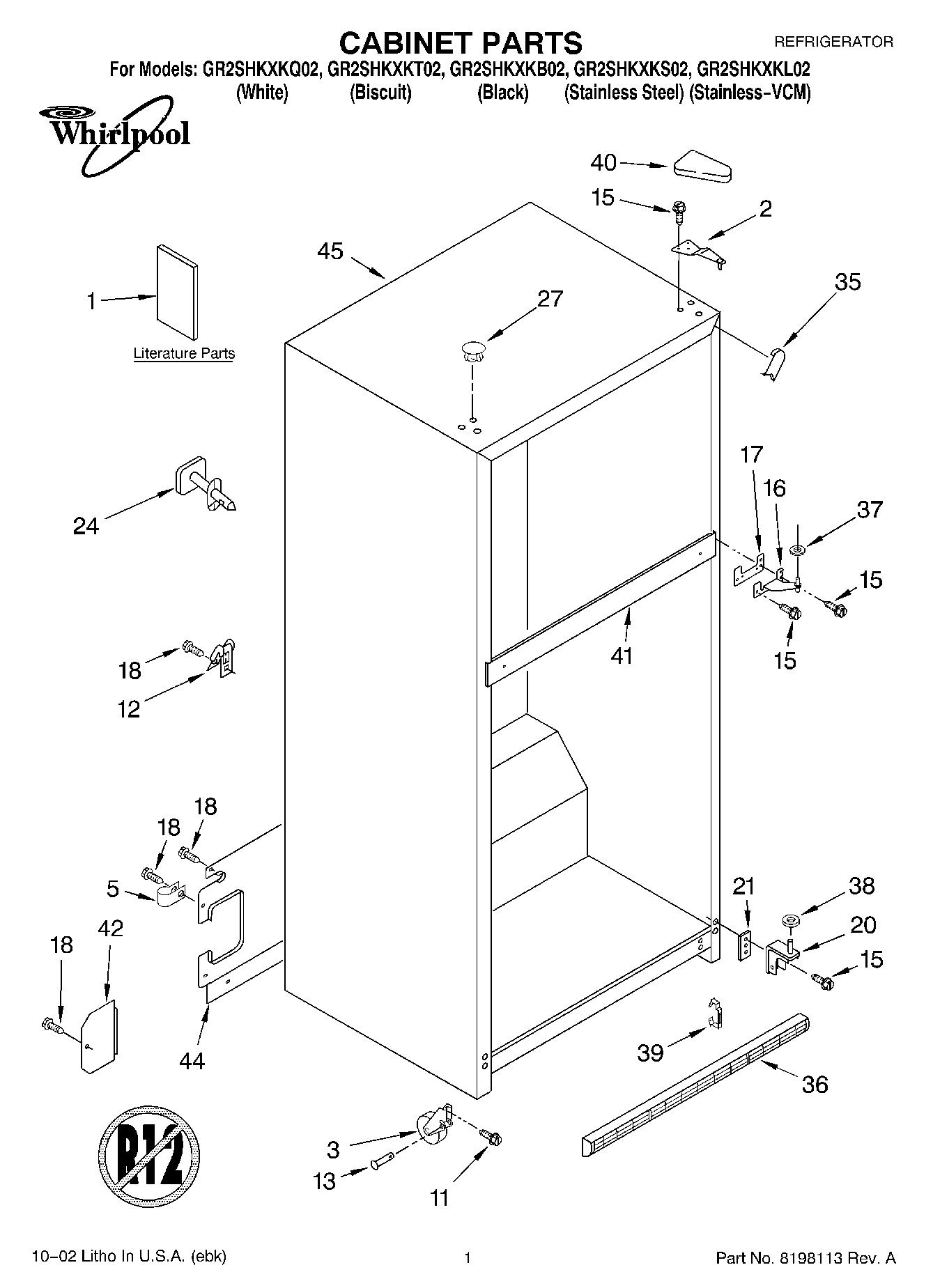

01 - CABINET, LITERATURE

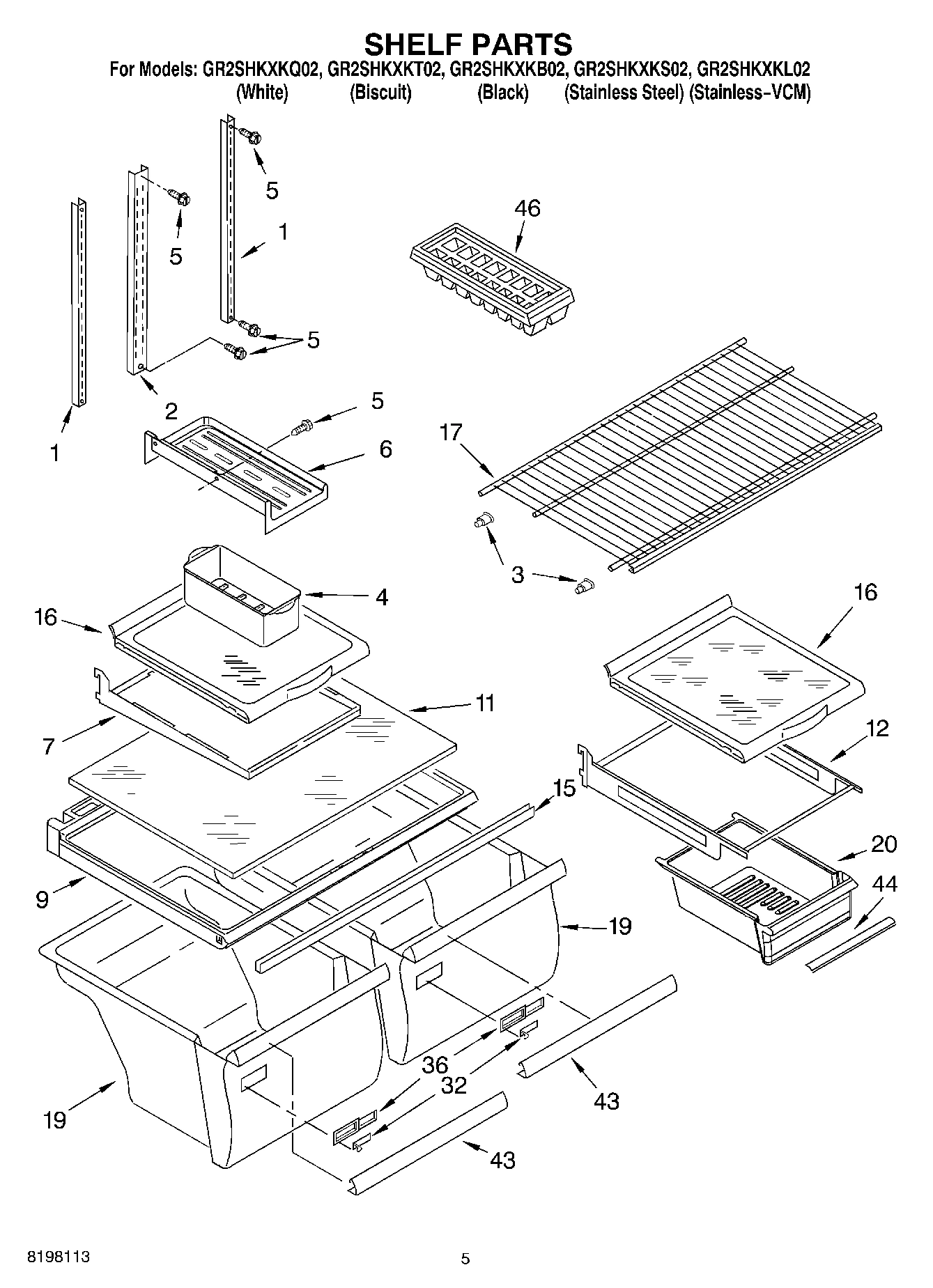

03 - SHELF
Common parts from model Whirlpool GR2SHKXKB02 TOP MOUNT REFRIGERATOR
Do-It-Yourself Manual Ref./Fzr. WPL LIT677969 Contact Us For Availability
1
Refrigerator Door (Includes No.8 & No.12) (Wh WPL 2202519 Contact Us For Availability
1
Refrigerator Door (Includes No.8 & No.12) (Bi WPL 2204865 Contact Us For Availability
1
Refrigerator Door (Includes No.8 & No.12) (Bl WPL 2204867 Contact Us For Availability
1
Refrigerator Door (Includes No.8 & No.12) (St WPL 2218278 Contact Us For Availability
1
Refrigerator Door (Includes No.8 & No.12) (St WPL 2218505 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT2218590 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT2218840 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2218877 Contact Us For Availability
1
Literature Parts (Customer Quick Tips) WPL LIT2225413 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2210522 Contact Us For Availability
2
Shelf, Ladder Center WPL 2202821 Contact Us For Availability
5
HOLE PLUG, ENDCAP (WHITE) WPL 2204837 Contact Us For Availability
5
Hole-Plug Endcap (Biscuit) WPL 2204838 Contact Us For Availability
5
HOLE PLUG, ENDCAP (BLACK) WPL 2204840 Contact Us For Availability
6
Shelf, Ice Tray WPL 2212770 Contact Us For Availability
7
Wire Assembly, Control Box WPL 2187352 Contact Us For Availability
7
Frame Assembly, Shelf (2) WPL 2174447 Contact Us For Availability
11
Housing Compartment WPL 2210566 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2205162 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability
13
Tray, Door WPL 2195388 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
18
Nameplate WPL 2220214 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle (White) WPL 2225094 Contact Us For Availability
19
Handle (Biscuit) WPL 2225095 Contact Us For Availability
19
Handle (Black) WPL 2225108 Contact Us For Availability
19
Handle (White) WPL 2212624 Contact Us For Availability
19
Handle (Biscuit) WPL 2212645 Contact Us For Availability
19
Handle (Black) WPL 2221644 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
22
DOOR COMPARTMENT WPL 2218109 Contact Us For Availability
22
WPL 876029 WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
WPL 799344 WPL 799344 Contact Us For Availability
22
Torx Key WPL 1117510 Contact Us For Availability
22
Support Block WPL 2201185 Contact Us For Availability
22
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
22
CEM WPL 542639 Contact Us For Availability
22
WPL 799340 WPL 799340 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 799833 WPL 799833 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Trim, Door Shelf WPL 2159306 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI67655A7 Contact Us For Availability
26
Air Diffuser, Top WPL 2204690 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
30
Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
36
Grille (White) WPL 2201006 Contact Us For Availability
36
Grille (Black) WPL 2201008 Contact Us For Availability
36
Grille (Biscuit) WPL 2201020 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI67656A8 Contact Us For Availability
42
Cover, Water Valve WPL 2166251 Contact Us For Availability
43
Fan, Blade WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2210542 Contact Us For Availability
44
Trim, Meat Pan WPL 2176357 Contact Us For Availability
45
Cabinet (Not A Serviceable Part) WPL ARI67657A7 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
58
Evaporator Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
