Model Whirlpool GR2SHKXKB00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

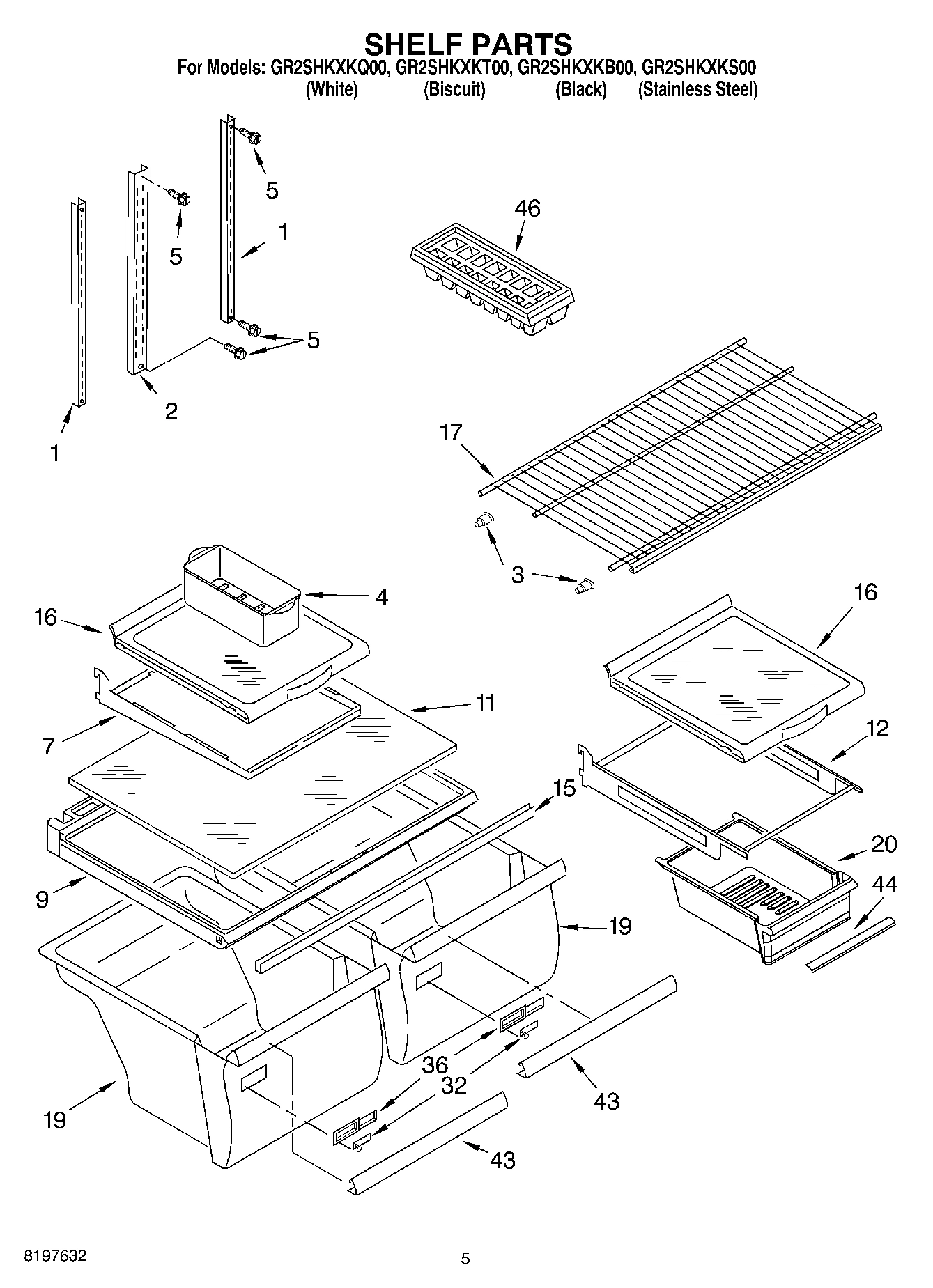

03 - SHELF

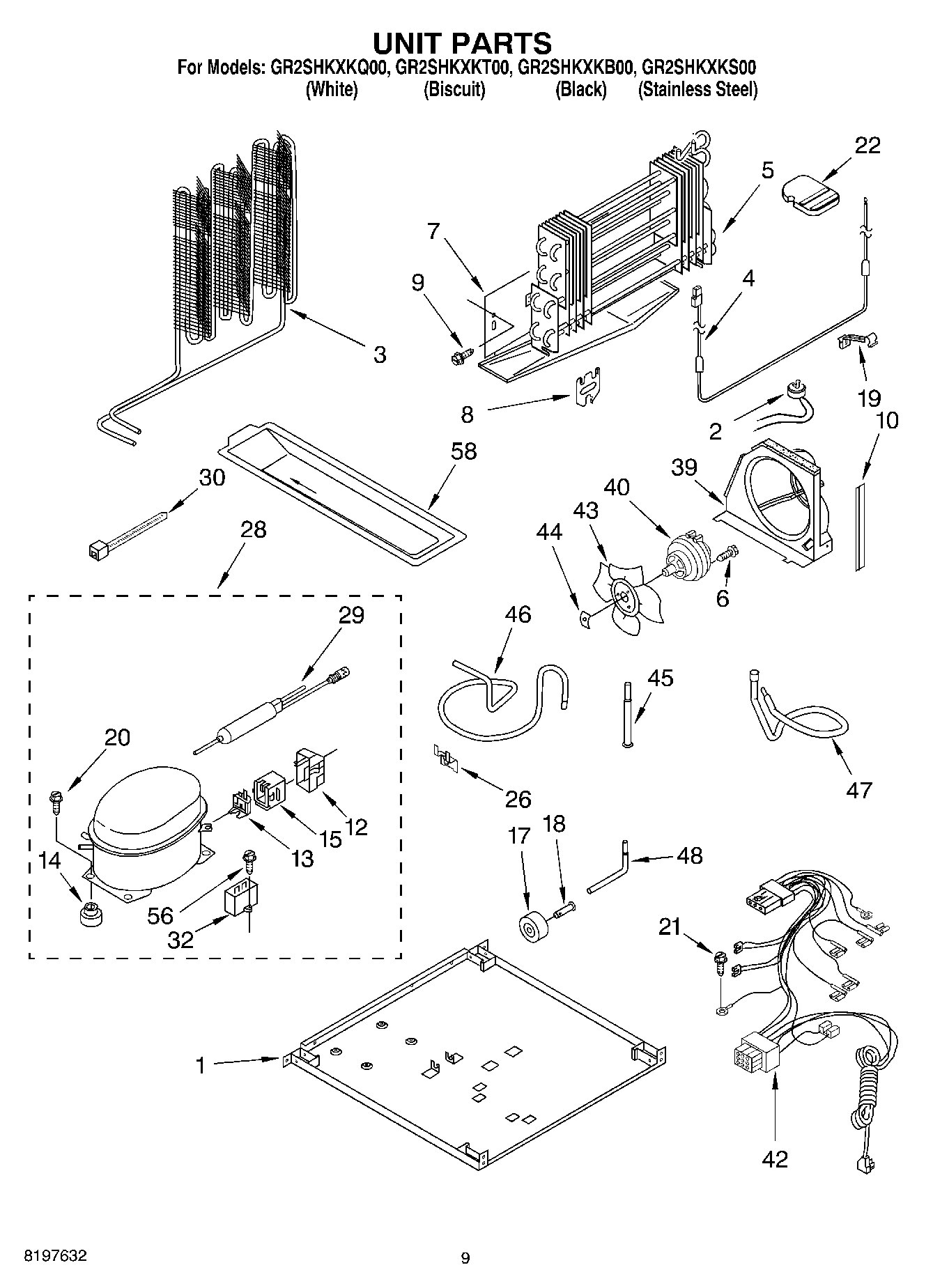

05 - UNIT
04 - REFRIGERATOR DOOR
06 - FREEZER DOOR, OPTIONAL
01 - CABINET, LITERATURE
02 - LINER
Common parts from model Whirlpool GR2SHKXKB00 TOP MOUNT REFRIGERATOR
1
Literature Parts (Use & Care Guide) WPL LIT2212539 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2213196 Contact Us For Availability
1
Energy Label WPL LIT2218067 Contact Us For Availability
1
Literature Parts (Do-It-Yourself Manual, Ref/ WPL LIT677969 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI67650A8 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
5
Thermostat Tube Barrier WPL 2212485 Contact Us For Availability
7
Wire Assy. Control Box WPL 2187352 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
12
Control Box WPL 2212982 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover, Evaporator WPL 2201180 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
18
Nameplate WPL 2220214 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2187295 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
22
WPL 876029 WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
WPL 799344 WPL 799344 Contact Us For Availability
22
Torx Key WPL 1117510 Contact Us For Availability
22
Support Block WPL 2201185 Contact Us For Availability
22
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
WPL 799340 WPL 799340 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 799833 WPL 799833 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Trim, Door Shelf WPL 2159306 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI67647A6 Contact Us For Availability
25
Freezer Floor WPL 2190589 Contact Us For Availability
26
Air Diffuser, Top WPL 2204690 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200641 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
36
Grille (White) WPL 2201006 Contact Us For Availability
36
Grille (Black) WPL 2201008 Contact Us For Availability
36
Grille (Biscuit) WPL 2201020 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Housing Base WPL 2201153 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI67648A1 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2187280 Contact Us For Availability
42
Cover, Water Valve WPL 2166251 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Fan, Blade WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2210542 Contact Us For Availability
45
Cabinet (Not A Serviceable Part) WPL ARI67649A5 Contact Us For Availability
45
Shield, heat WPL 2204639 Contact Us For Availability
46
Post, Damper WPL 2179859 Contact Us For Availability
47
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189449 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
58
Evap. Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
