Model LG GR-L31GHSXM.ASTCSE1 REFRIGERATOR – Common Parts & Diagrams

Common parts from model LG GR-L31GHSXM.ASTCSE1 REFRIGERATOR

5251JA3004E LG Drain Tube Assembly

5251JA3004E LG Drain Tube Assembly Backorder LGE 5251JA3004E $19.31

5251JA2006B LG Drain Tube Assembly

5251JA2006B LG Drain Tube Assembly Backorder LGE 5251JA2006B $19.31

AFC72909201 LG Leg Assembly Adjust

AFC72909201 LG Leg Assembly Adjust In Stock LGE AFC72909201 $24.91

ADJ73632208 LG Duct Connector Assembly

ADJ73632208 LG Duct Connector Assembly Backorder LGE ADJ73632208 $94.66

AHJ73070401 LG Roller Assembly

AHJ73070401 LG Roller Assembly Backorder LGE AHJ73070401 $15.77

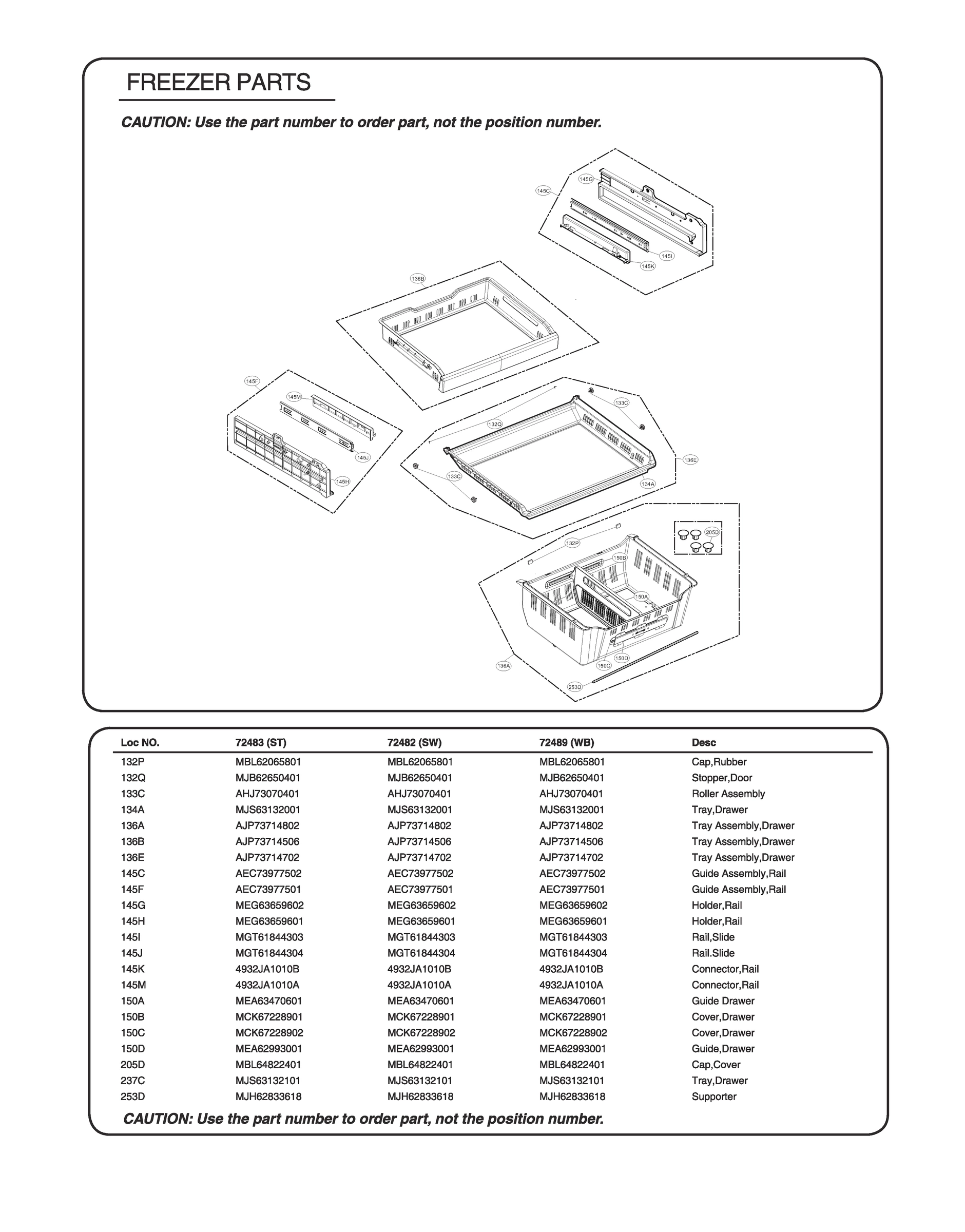

AJP73714802 LG Tray Drawer Assembly

AJP73714802 LG Tray Drawer Assembly Backorder LGE AJP73714802 $172.59

AJP74154609 LG Drawer Tray Assembly

AJP74154609 LG Drawer Tray Assembly Backorder LGE AJP74154609 $215.95

AJP73714702 LG Drawer Tray Assembly

AJP73714702 LG Drawer Tray Assembly Backorder LGE AJP73714702 $114.35

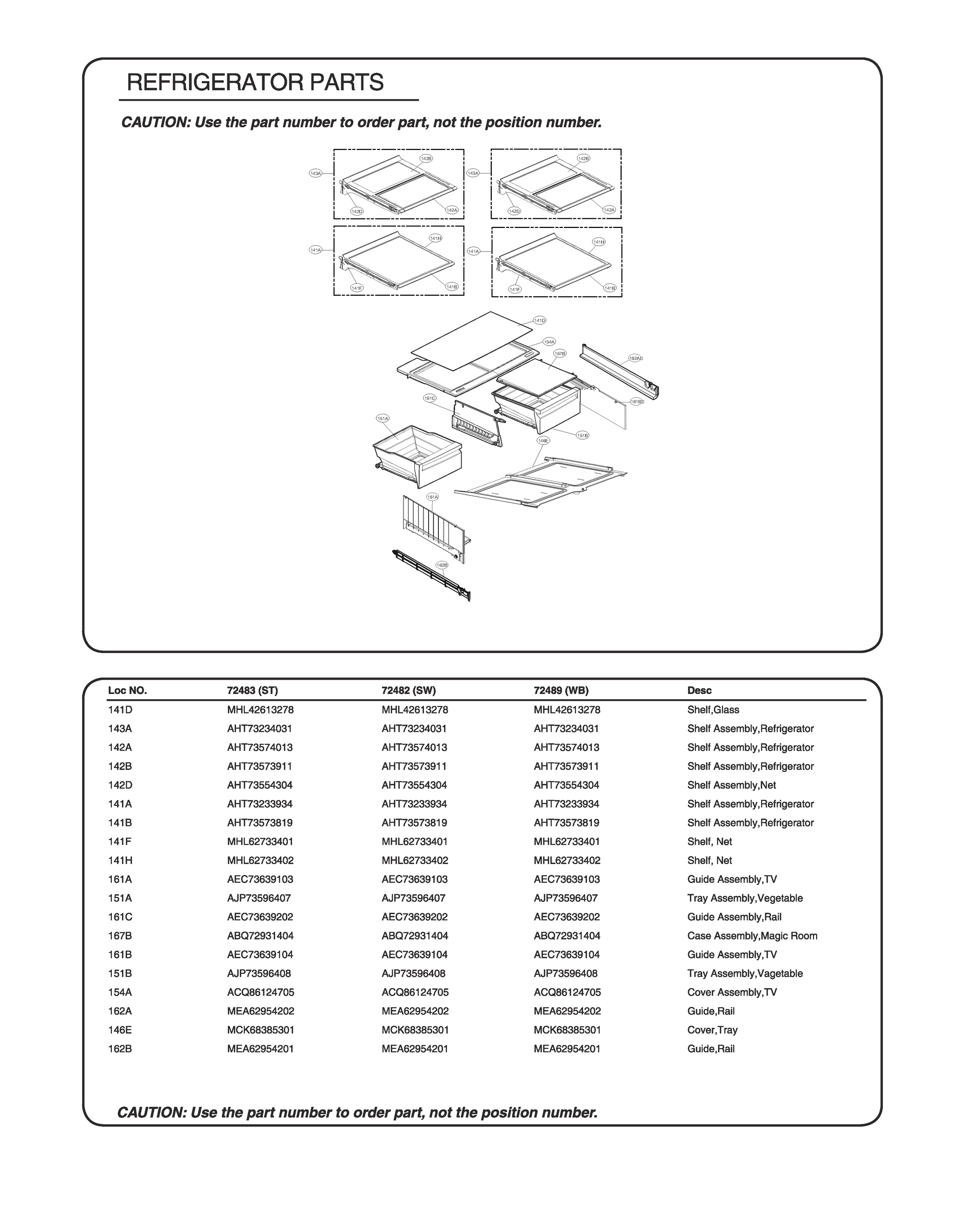

MHL42613278 LG Glass Shelf

MHL42613278 LG Glass Shelf Backorder LGE MHL42613278 $60.67

AHT73234031 LG Shelf Assembly

AHT73234031 LG Shelf Assembly Backorder LGE AHT73234031 $152.39

AEC73977502 LG Refrigerator Rail Guide Assemb

AEC73977502 LG Refrigerator Rail Guide Assemb Backorder LGE AEC73977502 $94.66

AEC73977501 LG Refrigerator Rail Guide Assemb

AEC73977501 LG Refrigerator Rail Guide Assemb Backorder LGE AEC73977501 $94.66

MGT61844304 LG Slide Rail Assembly

MGT61844304 LG Slide Rail Assembly Backorder LGE MGT61844304 $77.79

4932JA1010B LG Refrigerator Rail Connector

4932JA1010B LG Refrigerator Rail Connector In Stock LGE 4932JA1010B $10.52

4932JA1010A LG Refrigerator Rail Connector

4932JA1010A LG Refrigerator Rail Connector In Stock LGE 4932JA1010A $10.52

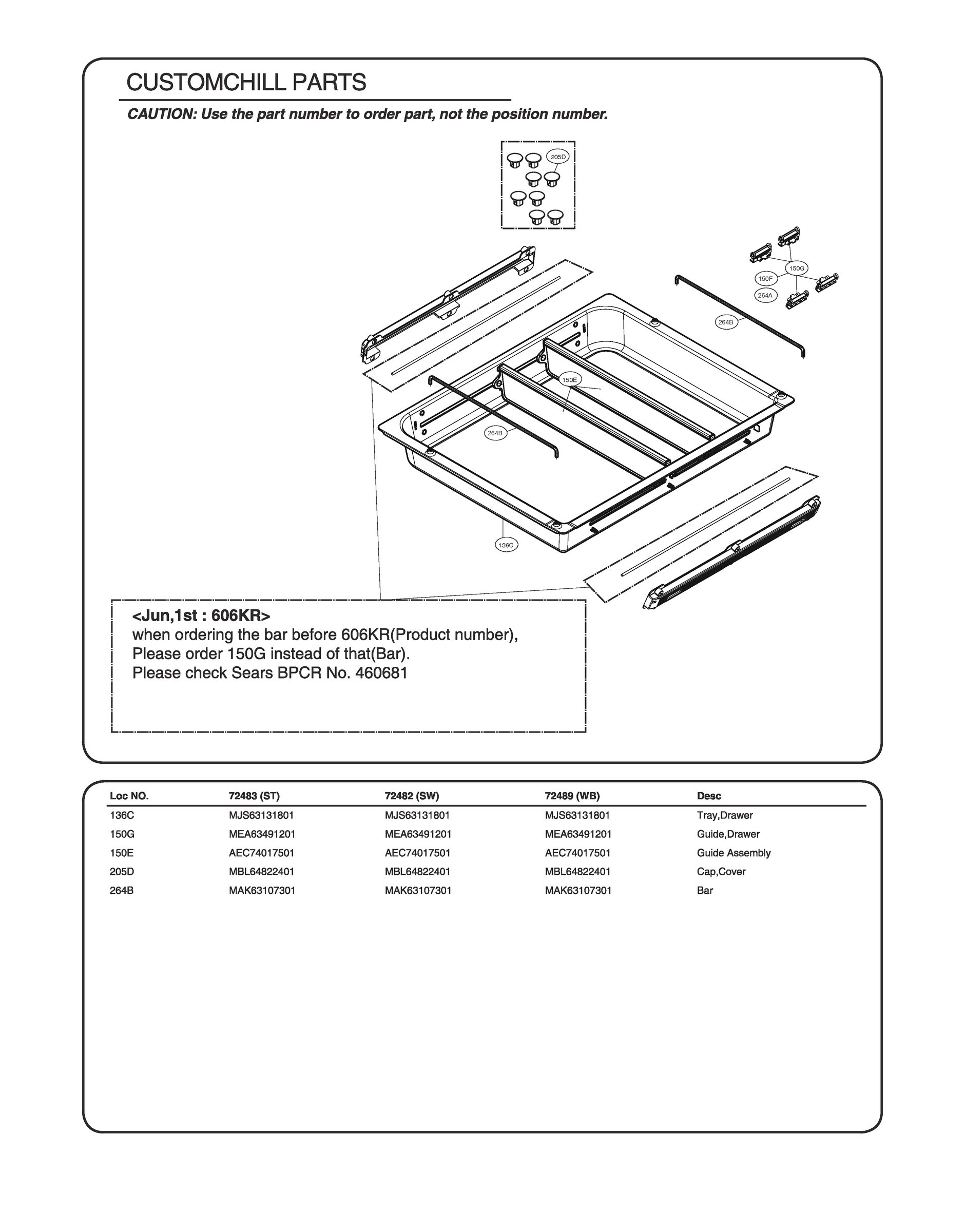

MEA62993001 LG Drawer Guide

MEA62993001 LG Drawer Guide Backorder LGE MEA62993001 $10.52

AEC74017501 LG Refrigerator Guide Assembly

AEC74017501 LG Refrigerator Guide Assembly In Stock LGE AEC74017501 $60.38

AJP73596407 LG Vegetable Tray Assembly

AJP73596407 LG Vegetable Tray Assembly Backorder LGE AJP73596407 $133.22

ACQ86124705 LG Refrigerator TV Cover Assembly

ACQ86124705 LG Refrigerator TV Cover Assembly Backorder LGE ACQ86124705 $94.66

EBD60925804 LG Temperature Sensor

EBD60925804 LG Temperature Sensor In Stock LGE EBD60925804 $15.77

AHJ35783201 LG Refrigerator Roller Assembly

AHJ35783201 LG Refrigerator Roller Assembly Backorder LGE AHJ35783201 $15.77

AEC73639103 LG TV Assembly Guide

AEC73639103 LG TV Assembly Guide Backorder LGE AEC73639103 $39.18

RAB32775604 LG Ferrite Magnet

RAB32775604 LG Ferrite Magnet Backorder LGE RAB32775604 $6.62

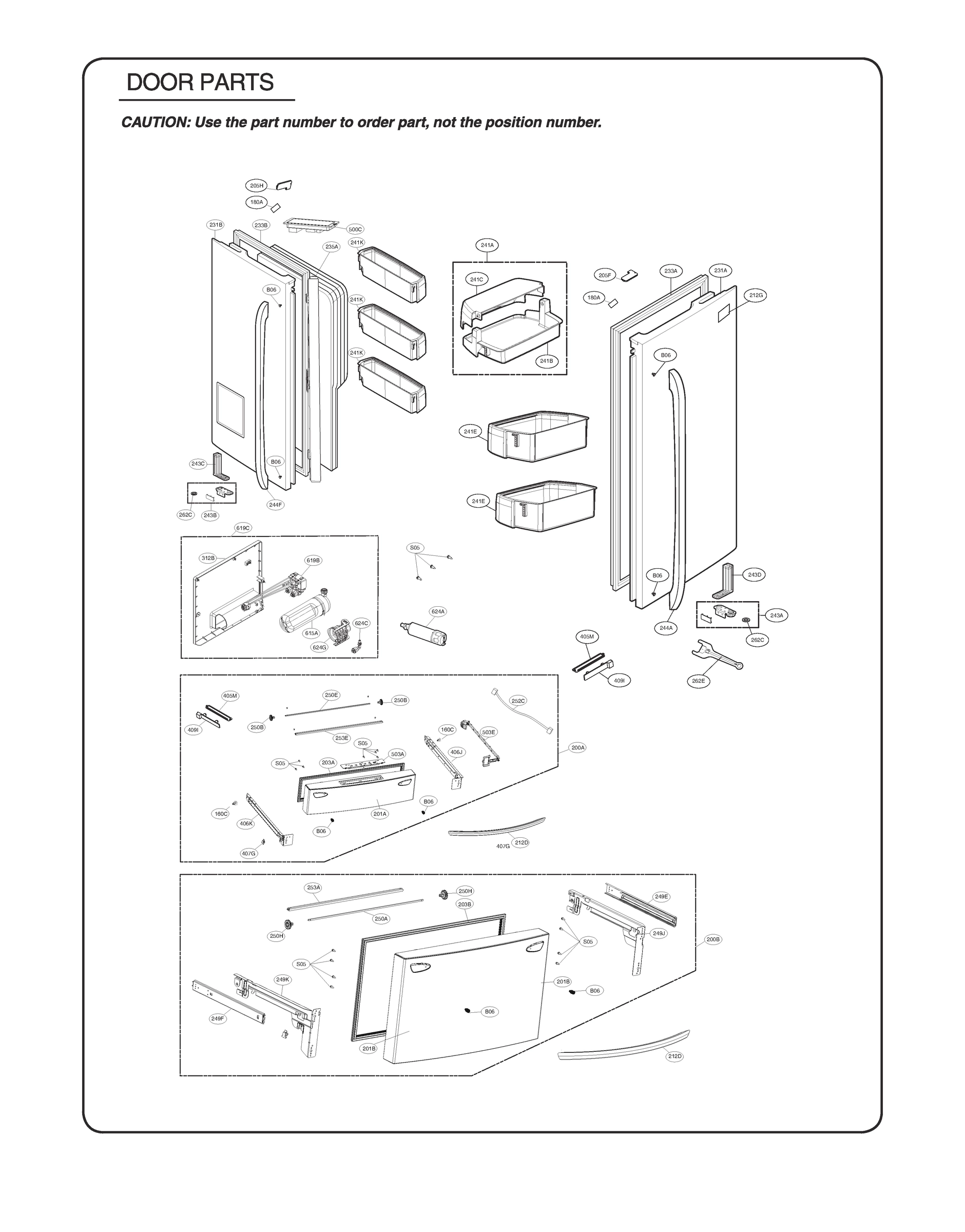

ADD74236102 LG Refrigerator Freezer Door Foam

ADD74236102 LG Refrigerator Freezer Door Foam Backorder LGE ADD74236102 $336.07

ADX73450630 LG Refrigerator Door Gasket Assem

ADX73450630 LG Refrigerator Door Gasket Assem Backorder LGE ADX73450630 $60.67

MBL65698302 LG Cap Cover Assembly

MBL65698302 LG Cap Cover Assembly Backorder LGE MBL65698302 $6.62

MCK67917601 LG Hinge Cover

MCK67917601 LG Hinge Cover Backorder LGE MCK67917601 $24.91

MFT61866214 LG Nameplate

MFT61866214 LG Nameplate Backorder LGE MFT61866214 $14.31

ADD74615802 LG Door Foam Assembly

ADD74615802 LG Door Foam Assembly Backorder LGE ADD74615802 $352.16

ADD74236502 LG Door Foam Assembly

ADD74236502 LG Door Foam Assembly Backorder LGE ADD74236502 $485.53

AGU74268161 LG Refrigerator Assembly Front Pl

AGU74268161 LG Refrigerator Assembly Front Pl Backorder LGE AGU74268161 $133.22

AAP73252202 LG Refrigerator Door Shelf Bin As

AAP73252202 LG Refrigerator Door Shelf Bin As In Stock LGE AAP73252202 $52.63

AAP73252302 LG Refrigerator Door Shelf Basket

AAP73252302 LG Refrigerator Door Shelf Basket In Stock LGE AAP73252302 $46.83

AJC68689633 LG Refrigerator Door Stopper Asse

AJC68689633 LG Refrigerator Door Stopper Asse Backorder LGE AJC68689633 $46.70

AJC68689632 LG Door Stopper Assembly

AJC68689632 LG Door Stopper Assembly Backorder LGE AJC68689632 $46.70

AEH36821908 LG Refrigerator Center Door Hinge

AEH36821908 LG Refrigerator Center Door Hinge Backorder LGE AEH36821908 $77.79

AEH36821910 LG Refrigerator Center Hinge Asse

AEH36821910 LG Refrigerator Center Hinge Asse Backorder LGE AEH36821910 $77.79

AED72952820 LG Refrigerator Handle Assembly

AED72952820 LG Refrigerator Handle Assembly Backorder LGE AED72952820 $172.59

AEC73317809 LG Rail Guide Assembly

AEC73317809 LG Rail Guide Assembly In Stock LGE AEC73317809 $46.70

MGT61844010 LG Slide Rail

MGT61844010 LG Slide Rail Backorder LGE MGT61844010 $133.22

MGT61844009 LG Slide Rail

MGT61844009 LG Slide Rail Backorder LGE MGT61844009 $133.22

EAD62729001 LG Refrigerator Harness Assembly

EAD62729001 LG Refrigerator Harness Assembly Backorder LGE EAD62729001 $69.11

MCD62527203 LG Refrigerator Rail Connector

MCD62527203 LG Refrigerator Rail Connector In Stock LGE MCD62527203 $94.66

MDT62648401 LG Refrigerator Gear

MDT62648401 LG Refrigerator Gear Backorder LGE MDT62648401 $69.11

AEC73317808 LG Refrigerator Rail Guide Assemb

AEC73317808 LG Refrigerator Rail Guide Assemb Backorder LGE AEC73317808 $60.67

MDT62567501 LG Ice Gear

MDT62567501 LG Ice Gear Backorder LGE MDT62567501 $6.62

MDT62287201 LG Ice Gear

MDT62287201 LG Ice Gear Backorder LGE MDT62287201 $6.62

MDT62627101 LG Ice Gear

MDT62627101 LG Ice Gear Backorder LGE MDT62627101 $5.27

EAD62885101 LG Assembly Harness

EAD62885101 LG Assembly Harness Backorder LGE EAD62885101 $39.18

MJH62553608 LG Refrigerator Cover Support

MJH62553608 LG Refrigerator Cover Support Backorder LGE MJH62553608 $46.70

MGZ42997101 LG Ring

MGZ42997101 LG Ring Backorder LGE MGZ42997101 $6.62

MHU38218908 LG Refrigerator Spanner

MHU38218908 LG Refrigerator Spanner In Stock LGE MHU38218908 $10.52

AEH74178010 LG Hinge Center Assembly

AEH74178010 LG Hinge Center Assembly Backorder LGE AEH74178010 $60.67

MHY62784403 LG Refrigerator Spring

MHY62784403 LG Refrigerator Spring Backorder LGE MHY62784403 $6.62

AEH73998906 LG Upper Hinge Assembly

AEH73998906 LG Upper Hinge Assembly Backorder LGE AEH73998906 $31.90

AEH73998905 LG Upper Hinge Assembly

AEH73998905 LG Upper Hinge Assembly Backorder LGE AEH73998905 $31.90

Cap Assembly,Duct

Cap Assembly,Duct LGE ABN72938907 Contact Us For Availability

MHY62603708 LG Lever Spring

MHY62603708 LG Lever Spring Backorder LGE MHY62603708 $6.62

MEG63262301 LG Lever Holder

MEG63262301 LG Lever Holder Backorder LGE MEG63262301 $6.62

MHY62603707 LG Lever Spring

MHY62603707 LG Lever Spring Backorder LGE MHY62603707 $6.62

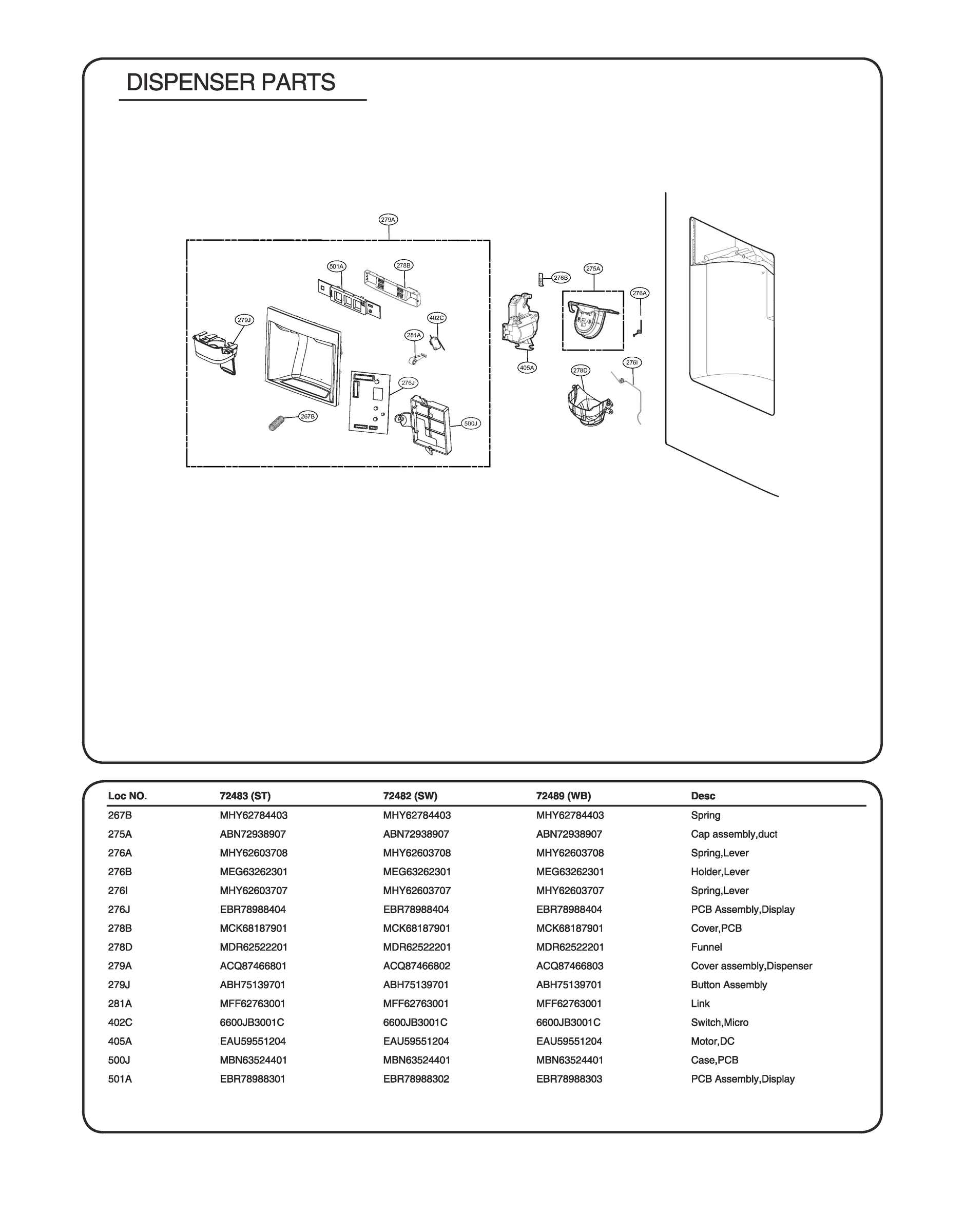

EBR78988404 LG Display PCB Assembly

EBR78988404 LG Display PCB Assembly Backorder LGE EBR78988404 $103.57

ABH75139701 LG Refrigerator Button Assembly

ABH75139701 LG Refrigerator Button Assembly Backorder LGE ABH75139701 $86.64

MFF62763001 LG Refrigerator Link

MFF62763001 LG Refrigerator Link Backorder LGE MFF62763001 $6.62

TCA38151706 LG Compressor Assembly Set

TCA38151706 LG Compressor Assembly Set In Stock LGE TCA38151706 $343.89

ACG73645004 LG Condenser Wire Assembly

ACG73645004 LG Condenser Wire Assembly In Stock LGE ACG73645004 $139.93

ADL74221702 LG Evaporator Assembly

ADL74221702 LG Evaporator Assembly In Stock LGE ADL74221702 $199.76

ADL74221802 LG Evaporator Assembly

ADL74221802 LG Evaporator Assembly In Stock LGE ADL74221802 $148.78

EAD64168631 LG Refrigerator Harness Assembly

EAD64168631 LG Refrigerator Harness Assembly In Stock LGE EAD64168631 $133.22

MCK70052506 LG Refrigerator PTC Cover

MCK70052506 LG Refrigerator PTC Cover Backorder LGE MCK70052506 $10.52

MHA62513601 LG Refrigerator Roller

MHA62513601 LG Refrigerator Roller Backorder LGE MHA62513601 $10.52

4J04238A LG Common Pin

4J04238A LG Common Pin Backorder LGE 4J04238A $6.62

MJS62233503 LG Drip Tray

MJS62233503 LG Drip Tray Backorder LGE MJS62233503 $39.18

ADP73273401 LG Fan Assembly

ADP73273401 LG Fan Assembly Backorder LGE ADP73273401 $24.91

4J00977P LG Compressor Sealing Pipe

4J00977P LG Compressor Sealing Pipe In Stock LGE 4J00977P $6.62

4620JA3015A LG Refrigerator Compressor Stoppe

4620JA3015A LG Refrigerator Compressor Stoppe Backorder LGE 4620JA3015A $6.62

5901JA1021A LG Refrigerator Fan Blade

5901JA1021A LG Refrigerator Fan Blade In Stock LGE 5901JA1021A $10.52

EBF61314813 LG Refrigerator Magnet Switch

EBF61314813 LG Refrigerator Magnet Switch In Stock LGE EBF61314813 $19.31

6600JB3001C LG Refrigerator Micro Switch

6600JB3001C LG Refrigerator Micro Switch In Stock LGE 6600JB3001C $14.14

EAU63103301 LG DC Motor

EAU63103301 LG DC Motor Backorder LGE EAU63103301 $94.66

EAU63103204 LG DC Motor

EAU63103204 LG DC Motor In Stock LGE EAU63103204 $56.59

EAU59551204 LG Refrigerator Dispenser Motor

EAU59551204 LG Refrigerator Dispenser Motor In Stock LGE EAU59551204 $52.17

MAZ61845401 LG Motor Bracket

MAZ61845401 LG Motor Bracket Backorder LGE MAZ61845401 $19.31

5040JA2009B LG Refrigerator Damper Support Mo

5040JA2009B LG Refrigerator Damper Support Mo Backorder LGE 5040JA2009B $6.62

5040JA2004B LG Refrigerator Motor Rubber Grom

5040JA2004B LG Refrigerator Motor Rubber Grom Backorder LGE 5040JA2004B $6.62

MCK61880502 LG Motor Cover

MCK61880502 LG Motor Cover Backorder LGE MCK61880502 $6.62

MCK66769001 LG Lamp Cover

MCK66769001 LG Lamp Cover In Stock LGE MCK66769001 $6.62

EBF61314816 LG Refrigerator Magnet Switch

EBF61314816 LG Refrigerator Magnet Switch In Stock LGE EBF61314816 $19.31

ACJ73650101 LG Connector Assembly

ACJ73650101 LG Connector Assembly Backorder LGE ACJ73650101 $94.66

ACJ73650102 LG Connector Assembly

ACJ73650102 LG Connector Assembly Backorder LGE ACJ73650102 $94.66

ABA72913426 LG Motor Bracket Assembly

ABA72913426 LG Motor Bracket Assembly In Stock LGE ABA72913426 $133.22

MCK67227902 LG Refrigerator Door Switch Cover

MCK67227902 LG Refrigerator Door Switch Cover In Stock LGE MCK67227902 $10.52

MEE62805303 LG Refrigerator Defrost Heater

MEE62805303 LG Refrigerator Defrost Heater In Stock LGE MEE62805303 $114.35

MEE62805106 LG Sheath Heater

MEE62805106 LG Sheath Heater In Stock LGE MEE62805106 $94.66

EAV61916704 LG LED Assembly

EAV61916704 LG LED Assembly Backorder LGE EAV61916704 $69.11

EAV61572001 LG LED Assembly

EAV61572001 LG LED Assembly Backorder LGE EAV61572001 $31.90

EAV61652805 LG LED Assembly

EAV61652805 LG LED Assembly In Stock LGE EAV61652805 $34.10

EAE32501017 LG Refrigerator Capacitor

EAE32501017 LG Refrigerator Capacitor In Stock LGE EAE32501017 $39.74

EAD62329149 LG Power Cord Assembly

EAD62329149 LG Power Cord Assembly Backorder LGE EAD62329149 $69.11

CSP30021033 LG Service Printed Circuit Board

CSP30021033 LG Service Printed Circuit Board Backorder LGE CSP30021033 $336.07

ABQ72940028 LG Refrigerator Circuit Board Cas

ABQ72940028 LG Refrigerator Circuit Board Cas In Stock LGE ABQ72940028 $86.98

EBR64730408 LG Power Control PCB Assembly

EBR64730408 LG Power Control PCB Assembly Backorder LGE EBR64730408 $20.90

EBR78988301 LG Display PCB Assembly

EBR78988301 LG Display PCB Assembly Backorder LGE EBR78988301 $177.09

ABQ56655348 LG Refrigerator Display Case Asse

ABQ56655348 LG Refrigerator Display Case Asse Backorder LGE ABQ56655348 $216.87

ACQ87038604 LG Display Cover Assembly

ACQ87038604 LG Display Cover Assembly Backorder LGE ACQ87038604 $103.57

MCK67972701 LG Display Cover Assembly

MCK67972701 LG Display Cover Assembly Backorder LGE MCK67972701 $24.91

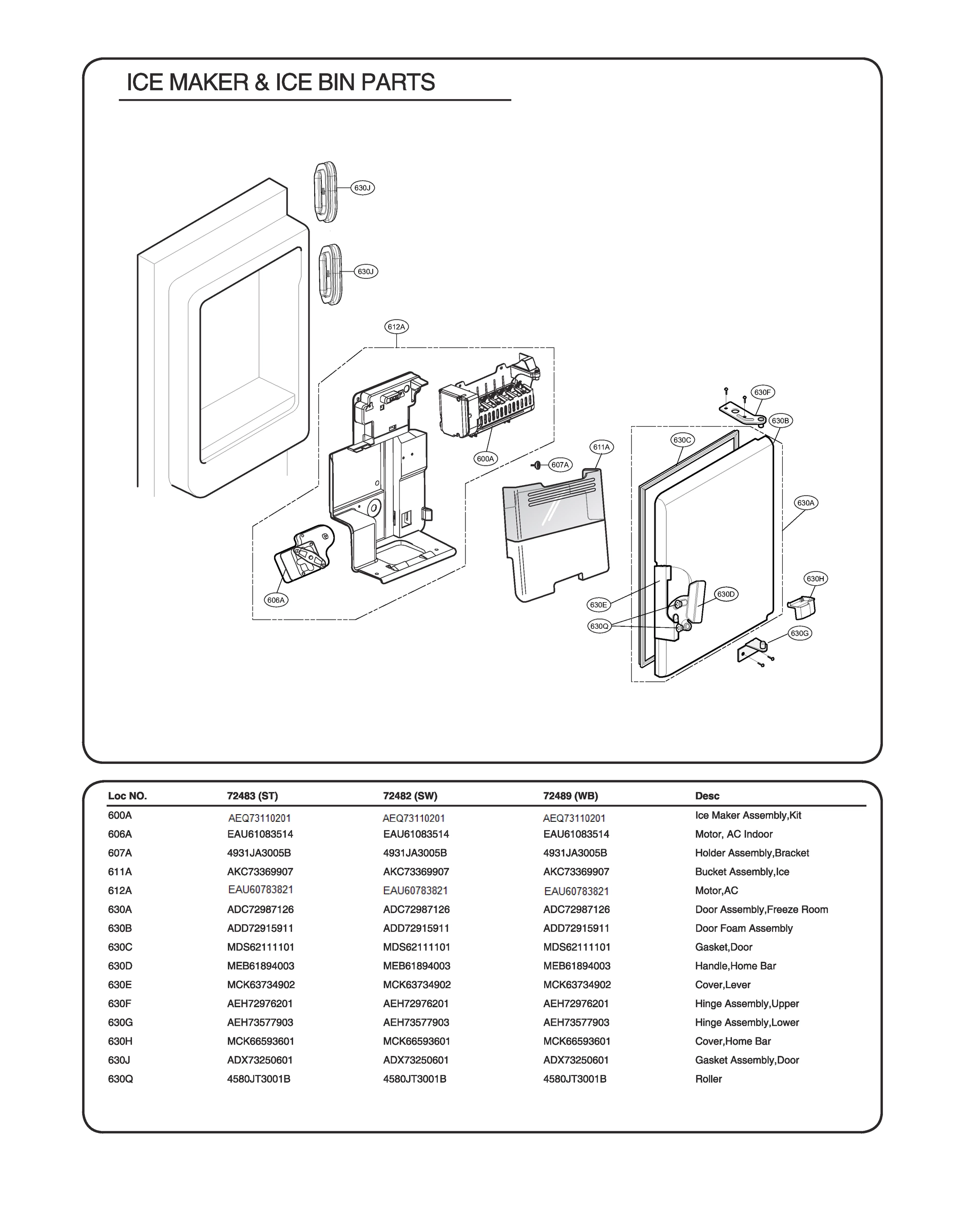

AEQ73110210 LG Refrigerator Ice Maker Kit Ass

AEQ73110210 LG Refrigerator Ice Maker Kit Ass In Stock LGE AEQ73110210 $158.68

4004JA3003A LG Refrigerator Clip

4004JA3003A LG Refrigerator Clip In Stock LGE 4004JA3003A $6.62

AHJ30124502 LG Roller Assembly

AHJ30124502 LG Roller Assembly Backorder LGE AHJ30124502 $19.31

EAU61083522 LG Air Conditioner Indoor Motor

EAU61083522 LG Air Conditioner Indoor Motor Backorder LGE EAU61083522 $177.09

AEB72913942 LG Fan Grille Assembly

AEB72913942 LG Fan Grille Assembly In Stock LGE AEB72913942 $159.53

6500JB2002E LG Refrigerator Temperature Senso

6500JB2002E LG Refrigerator Temperature Senso In Stock LGE 6500JB2002E $26.68

6500JB2001B LG Refrigerator Humidity Sensor T

6500JB2001B LG Refrigerator Humidity Sensor T In Stock LGE 6500JB2001B $24.91

EBR71326804 LG Printed Circuit Board Assembly

EBR71326804 LG Printed Circuit Board Assembly Backorder LGE EBR71326804 $69.11

AKC73369912 LG Ice Bucket Assembly

AKC73369912 LG Ice Bucket Assembly In Stock LGE AKC73369912 $177.09

EAU60783840 LG Air Conditioner Motor

EAU60783840 LG Air Conditioner Motor In Stock LGE EAU60783840 $336.07

MJM62864601 LG Refrigerator Water Tank

MJM62864601 LG Refrigerator Water Tank Backorder LGE MJM62864601 $60.38

AJR56656503 LG Refrigerator Ice Water Line Tu

AJR56656503 LG Refrigerator Ice Water Line Tu In Stock LGE AJR56656503 $24.91

4932JA3002C LG Tube Connector

4932JA3002C LG Tube Connector In Stock LGE 4932JA3002C $15.77

AJU72992603 LG Refrigerator Water Inlet Fill

AJU72992603 LG Refrigerator Water Inlet Fill In Stock LGE AJU72992603 $95.59

MJX62831301 LG Refrigerator Water Valve

MJX62831301 LG Refrigerator Water Valve In Stock LGE MJX62831301 $62.95

ADQ73913306 LG Water Filter Assembly

ADQ73913306 LG Water Filter Assembly In Stock LGE ADQ73913306 $67.28

AJU73872501 LG Refrigerator Gas Valve Assembl

AJU73872501 LG Refrigerator Gas Valve Assembl In Stock LGE AJU73872501 $109.92

5006JJ2009A LG Cap Cover

5006JJ2009A LG Cap Cover Backorder LGE 5006JJ2009A $6.62

ADQ73613402 LG Refrigerator Water Filter

ADQ73613402 LG Refrigerator Water Filter Backorder LGE ADQ73613402 $47.94

ADQ73613301 LG Filter Head Assembly

ADQ73613301 LG Filter Head Assembly Backorder LGE ADQ73613301 $60.67

MEG42758601 LG Pipe Holder

MEG42758601 LG Pipe Holder Backorder LGE MEG42758601 $6.62

MCK66592001 LG Refrigerator LED Cover

MCK66592001 LG Refrigerator LED Cover Backorder LGE MCK66592001 $10.52

ADC72987148 LG Room Door Assembly

ADC72987148 LG Room Door Assembly Backorder LGE ADC72987148 $172.59

MDS62111103 LG Door Gasket

MDS62111103 LG Door Gasket In Stock LGE MDS62111103 $94.66

MEB61894003 LG Refrigerator Ice Room Door Han

MEB61894003 LG Refrigerator Ice Room Door Han Backorder LGE MEB61894003 $15.77

MCK63734902 LG Cover Lever Assembly

MCK63734902 LG Cover Lever Assembly Backorder LGE MCK63734902 $6.62

AEH73577903 LG Lower Hinge Assembly

AEH73577903 LG Lower Hinge Assembly In Stock LGE AEH73577903 $19.31

ADX73250604 LG Door Gasket Assembly

ADX73250604 LG Door Gasket Assembly Backorder LGE ADX73250604 $31.90

4580JT3001B LG Refrigerator Roller

4580JT3001B LG Refrigerator Roller Backorder LGE 4580JT3001B $6.62

1STZJA3004F LG Customized Screw

1STZJA3004F LG Customized Screw In Stock LGE 1STZJA3004F $5.11

MJB63190001 LG Refrigerator Handle Stopper Sc

MJB63190001 LG Refrigerator Handle Stopper Sc In Stock LGE MJB63190001 $6.62

4J00415D LG Refrigerator Customized Screw

4J00415D LG Refrigerator Customized Screw In Stock LGE 4J00415D $4.74

4J00415H LG Custom Screw

4J00415H LG Custom Screw Backorder LGE 4J00415H $6.62

FAB30025701 LG Screw Assembly

FAB30025701 LG Screw Assembly In Stock LGE FAB30025701 $5.16

1SBZJA3004L LG Customized Screw

1SBZJA3004L LG Customized Screw Backorder LGE 1SBZJA3004L $6.62

1SZZJJ3010F LG Customized Screw

1SZZJJ3010F LG Customized Screw Backorder LGE 1SZZJJ3010F $4.78

1SZZJA3022B LG Customized Screw

1SZZJA3022B LG Customized Screw Backorder LGE 1SZZJA3022B $6.62
