Model Whirlpool GL6050VL0 GAS DRYER – Common Parts & Diagrams

WPL 799344
WPL 799344 WPL 799344 Contact Us For Availability
View on Model
1
Clip, Harness
Clip, Harness WPL 688412 Contact Us For Availability
View on Model
6
Screw, 10-32 x 1/2
Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability
View on Model
7
Base, Burner
Base, Burner WPL 693986 Contact Us For Availability
View on Model
7
Panel, Rear
Panel, Rear WPL 347736 Contact Us For Availability
View on Model
8
Wire, Ground (Motor)
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 3)
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 2)
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
View on Model
14
Spring, Door (2)
Spring, Door (2) WPL 237979 Contact Us For Availability
View on Model
15
Clip, Toe Panel
Clip, Toe Panel WPL 3391221 Contact Us For Availability
View on Model
18
Cabinet (White)
Cabinet (White) WPL 690847 Contact Us For Availability
View on Model
18
Cabinet (Almond)
Cabinet (Almond) WPL 690848 Contact Us For Availability
View on Model
21
Pipe, Gas Supply
Pipe, Gas Supply WPL 233273 Contact Us For Availability
View on Model
21
Front Panel Assembly (White)
Front Panel Assembly (White) WPL 338012 Contact Us For Availability
View on Model
21
Front Panel Assembly (Almond)
Front Panel Assembly (Almond) WPL 689533 Contact Us For Availability
View on Model
22
Valve & Union, Shut-Off
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
View on Model
24
Nut, Compression
Nut, Compression WPL 233076 Contact Us For Availability
View on Model
28
Hinge, R.H.
Hinge, R.H. WPL 687905 Contact Us For Availability
View on Model
28
Hinge, L.H.
Hinge, L.H. WPL 687906 Contact Us For Availability
View on Model
30
Nut, Push-In (2)
Nut, Push-In (2) WPL 358473 Contact Us For Availability
View on Model
34
Conversion Kit Type 1 (Natural) To Type 3 (Ma
Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability
View on Model
35
Door, Rear
Door, Rear WPL 695954 Contact Us For Availability
View on Model
36
Door, Front (White)
Door, Front (White) WPL 348728 Contact Us For Availability
View on Model
36
Door, Front (Almond)
Door, Front (Almond) WPL 689330 Contact Us For Availability
View on Model
37
Handle, Door (Almond)
Handle, Door (Almond) WPL 690271 Contact Us For Availability
View on Model
40
Screw, 10-24 x 1
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
View on Model
41
Strap, Ground
Strap, Ground WPL 22965 Contact Us For Availability
View on Model
46
Wire, Ground
Wire, Ground WPL 364089 Contact Us For Availability
View on Model
49
Panel, Toe (White)
Panel, Toe (White) WPL 692427 Contact Us For Availability
View on Model
49
Panel, Toe (Almond)
Panel, Toe (Almond) WPL 692428 Contact Us For Availability
View on Model
67
Nut, Push-On (4)
Nut, Push-On (4) WPL 689559 Contact Us For Availability
View on Model
67

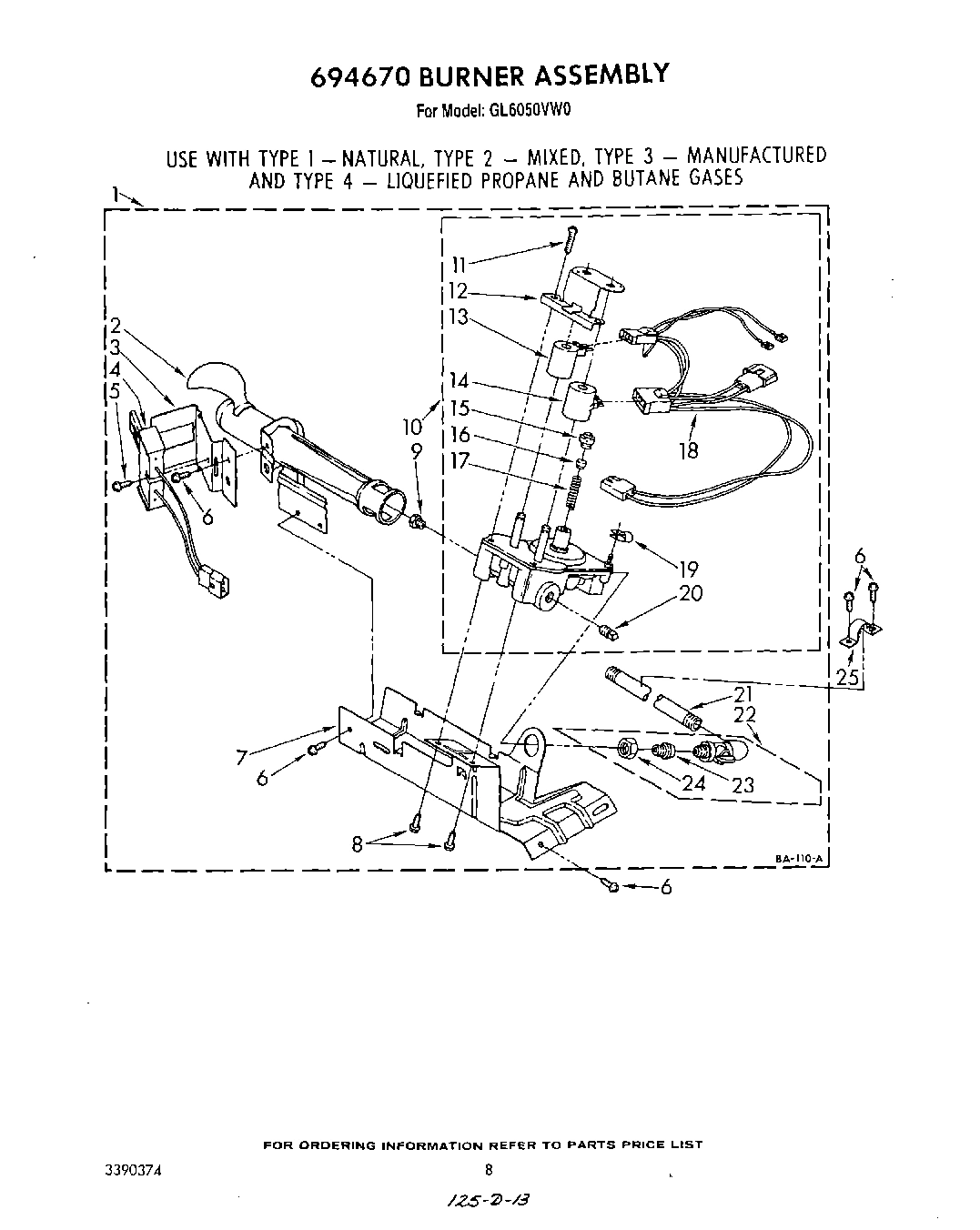

WPL 694670
WPL 694670 WPL 694670 Contact Us For Availability
View on Model
72
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
75
Receptacle, 3-Way Terminal (Use W/94614)
Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability
View on Model
78
WPL 694510
WPL 694510 WPL 694510 Contact Us For Availability
View on Model
79
Switch, Temperature Selector
Switch, Temperature Selector WPL 696321 Contact Us For Availability
View on Model
81
Knob, Push-To-Start
Knob, Push-To-Start WPL 3391829 Contact Us For Availability
View on Model
