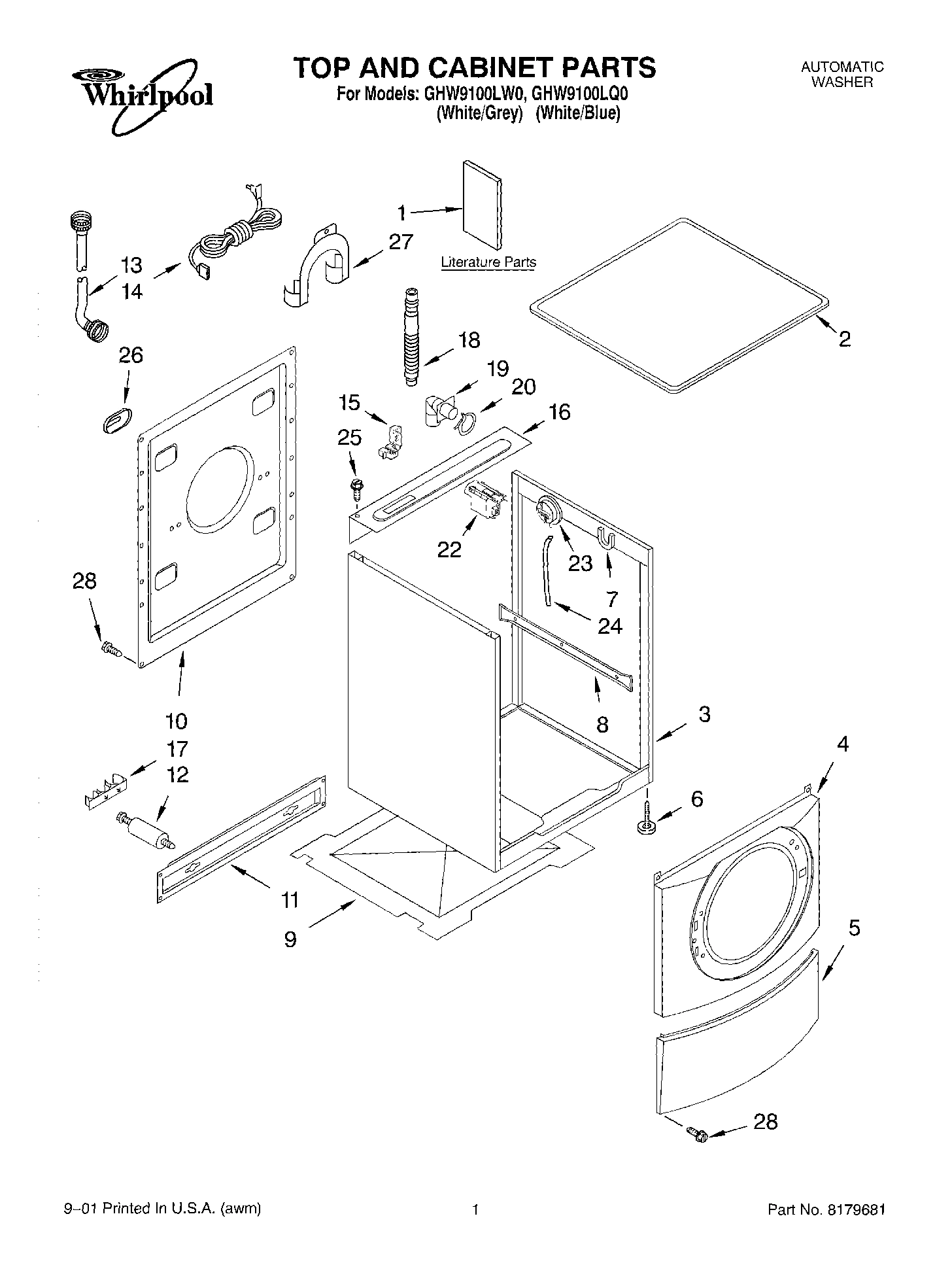

Model Whirlpool GHW9100LW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

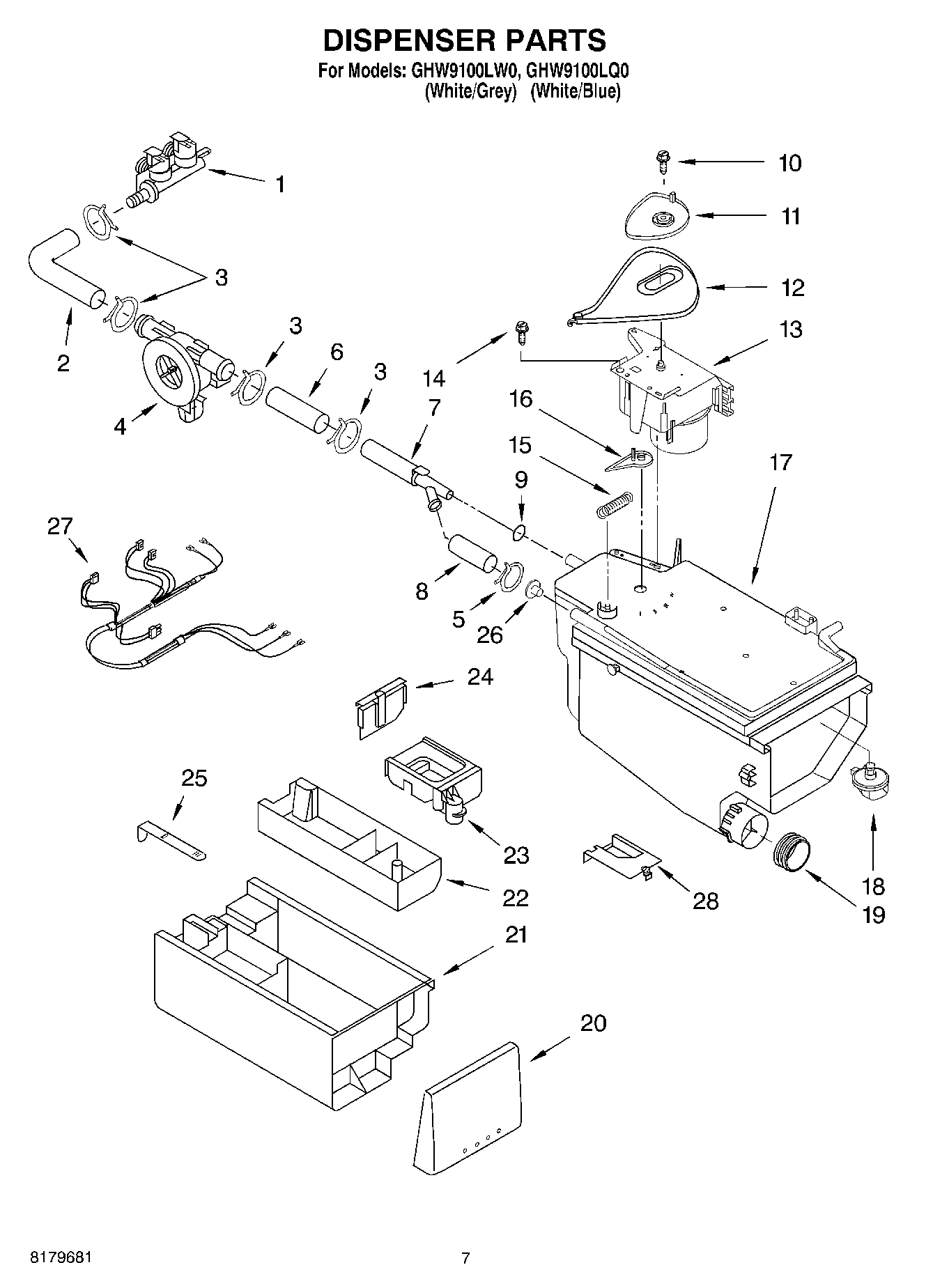

1

WP8181694 Whirlpool Washer Inlet Valve In Stock WPL WP8181694 $47.43

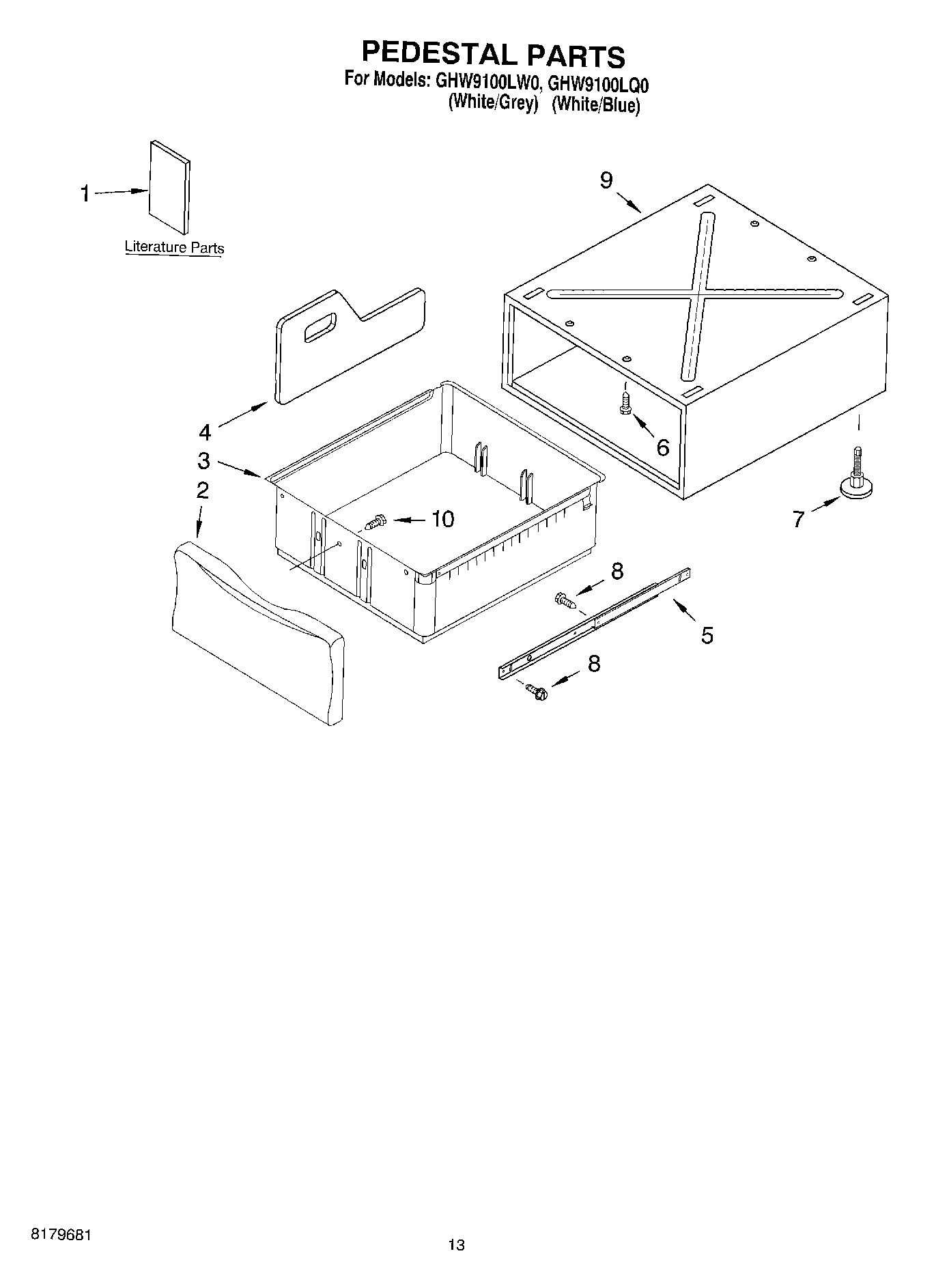

1

Literature Parts (Installation Instructions) WPL LIT8528308 Contact Us For Availability

1

Literature Parts (Parts List) WPL LIT8528309 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8181790 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8181901 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT8181902 Contact Us For Availability

1

Literature Parts (Video-Instruction) WPL LIT8181903 Contact Us For Availability

2

WP8181710 Whirlpool Hose Assembly Backorder WPL WP8181710 $9.77

2

User Interface WPL 8181905 Contact Us For Availability

2

Hose, Box to Bellow WPL 8181711 Contact Us For Availability

2

Drawer Front Assembly (White) WPL 8181772 Contact Us For Availability

2

Drawer Front Assembly (Biscuit) WPL 8181773 Contact Us For Availability

2

Drawer Front Assembly (Graphite) WPL 8181774 Contact Us For Availability

2

Top WPL 8181799 Contact Us For Availability

3

Button, Power WPL 8181860 Contact Us For Availability

3

Drawer WPL 8181775 Contact Us For Availability

3

Washer WPL 8181717 Contact Us For Availability

3

Cabinet WPL 8181630 Contact Us For Availability

4

WP8181861 Whirlpool Start Button In Stock WPL WP8181861 $42.29

4

WPW10110225 Whirlpool Flowmeter In Stock WPL WPW10110225 $69.71

4

Grid, Ventilation WPL 8181745 Contact Us For Availability

4

Nozzle, Inlet Window WPL 8181716 Contact Us For Availability

4

Divider, Drawer (Set Of 2) WPL 8181777 Contact Us For Availability

4

Panel, Front WPL 8181838 Contact Us For Availability

5

WP8181850 Whirlpool Bellow In Stock WPL WP8181850 $126.91

5

WP8578394 Whirlpool Slide Assembly Backorder WPL WP8578394 $35.89

5

Pipe, Ventilation WPL 8181744 Contact Us For Availability

5

Button Set, Soil Level (Grey) WPL 8181863 Contact Us For Availability

5

Toe Panel WPL 8181643 Contact Us For Availability

6

WP8182210 Whirlpool Clamp In Stock WPL WP8182210 $14.40

6

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $3.33

6

Foot, Leveling WPL 8181636 Contact Us For Availability

6

Button, Pause/Cancel WPL 8181862 Contact Us For Availability

6

Hose, Flowmeter WPL 8181708 Contact Us For Availability

7

WP8181743 Whirlpool Hose Assembly Backorder WPL WP8181743 $39.58

7

WP8181763 Whirlpool Bracket Assembly In Stock WPL WP8181763 $30.25

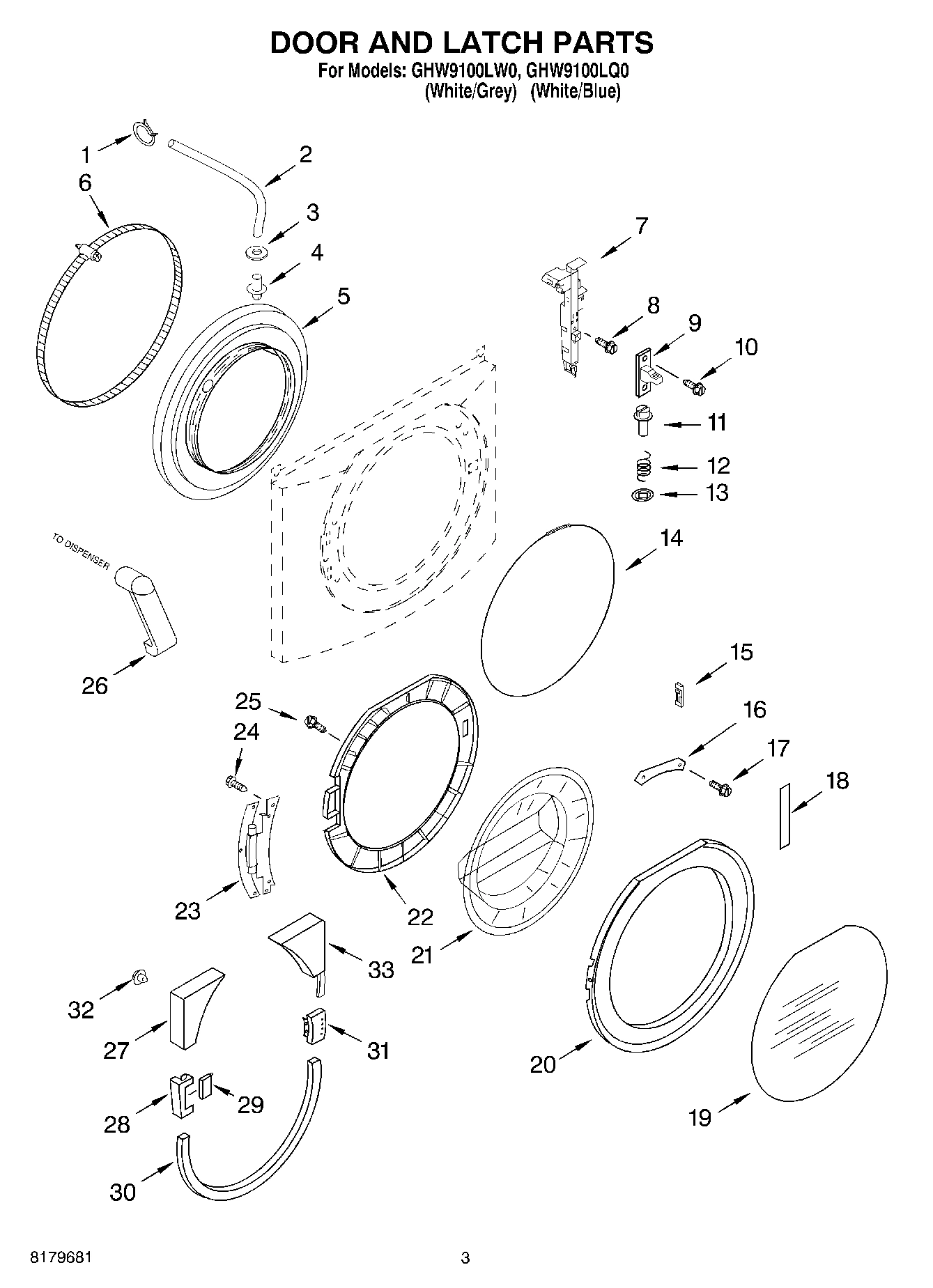

7

WP8182634 Whirlpool Latch Assembly In Stock WPL WP8182634 $66.59

7

WP8563585 Whirlpool Foot Assembly In Stock WPL WP8563585 $7.89

7

Nozzle, Inlet WPL 8181713 Contact Us For Availability

8

WP8540725 Whirlpool Screw Assembly In Stock WPL WP8540725 $3.33

8

Hose, Dispenser WPL 8181709 Contact Us For Availability

8

Screw, 6-30 x 3/8 WPL ARI65454A8 Contact Us For Availability

8

Brace, Side Panel WPL 8181634 Contact Us For Availability

9

WP8181651 Whirlpool Door Strike In Stock WPL WP8181651 $11.73

9

Counterweight, Rear WPL 8181644 Contact Us For Availability

9

Cabinet (Not A Serviceable Part) WPL ARI65455A4 Contact Us For Availability

9

O-Ring WPL 8181714 Contact Us For Availability

9

Pan, Bottom WPL 8181635 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

Gasket, Tub WPL 8181673 Contact Us For Availability

Screw WPL 8181758 Contact Us For Availability

SCREW WPL 8181728 Contact Us For Availability

Panel, Rear WPL 8181638 Contact Us For Availability

11

WPW10003040 Whirlpool Brace Backorder WPL WPW10003040 $37.92

11

Cam, Actuator WPL 8181726 Contact Us For Availability

11

Pin, Safety WPL 8181652 Contact Us For Availability

12

Lever, Water Distribution WPL 8181725 Contact Us For Availability

12

SPRING WPL 8181653 Contact Us For Availability

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $16.43

WPW10665207 Whirlpool Washer Switch Backorder WPL WPW10665207 $76.85

Seal, Filter Cap WPL 8181736 Contact Us For Availability

WASHER WPL 8181654 Contact Us For Availability

W10902779 Whirlpool Clamp Assembly In Stock WPL W10902779 $12.10

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

WP8183009 Whirlpool Power Cord Backorder WPL WP8183009 $52.78

Airtrap WPL 8181731 Contact Us For Availability

8182635 Whirlpool Strain Relief Backorder WPL 8182635 $7.34

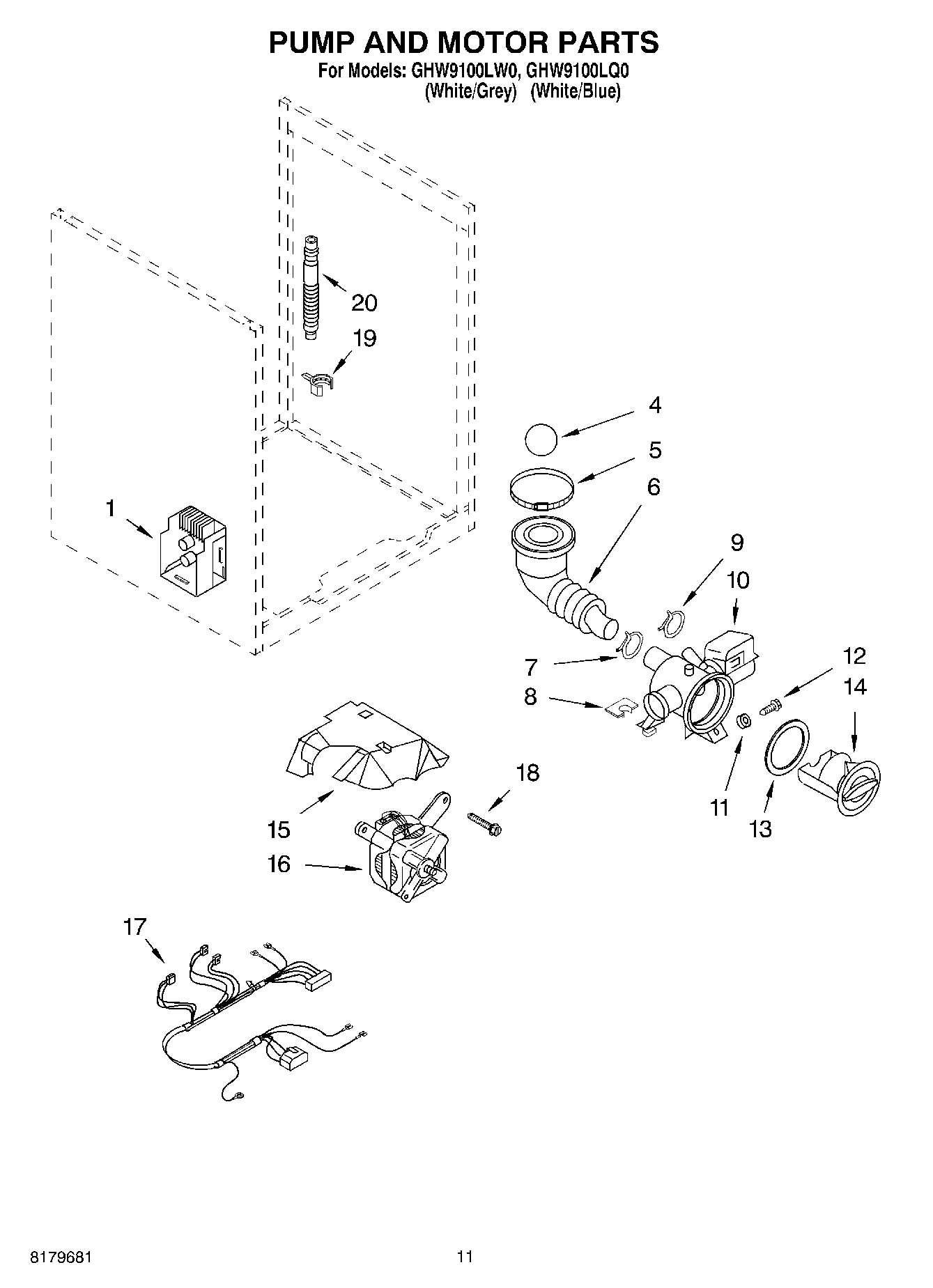

Cover, Motor WPL 8181766 Contact Us For Availability

Clamp, Support WPL 8181659 Contact Us For Availability

Spring, Lever WPL 8181727 Contact Us For Availability

Connection, Lever WPL 8181724 Contact Us For Availability

Motor WPL 8181682 Contact Us For Availability

Clamp, Glass WPL 8181650 Contact Us For Availability

Brace, Rear WPL 8181631 Contact Us For Availability

Harness, Wire WPL 8181783 Contact Us For Availability

SCREW WPL 8181785 Contact Us For Availability

Harness, Motor WPL 8181782 Contact Us For Availability

DISPENSER WPL 8181719 Contact Us For Availability

Clamp, Tube Transportation WPL 8181749 Contact Us For Availability

WP8181712 Whirlpool Nozzle Backorder WPL WP8181712 $32.48

WP8181737 Whirlpool Hose In Stock WPL WP8181737 $31.07

Foam, Door Handle WPL 8181845 Contact Us For Availability

Bolt, Motor WPL 8181761 Contact Us For Availability

8182209 Whirlpool Clip Backorder WPL 8182209 $8.99

WP8181747 Whirlpool Seal Assembly In Stock WPL WP8181747 $10.39

WP8181794 Whirlpool Dispenser Hose In Stock WPL WP8181794 $14.38

Connector, Hose Outlet WPL 8181738 Contact Us For Availability

Screen, Door WPL 8181847 Contact Us For Availability

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $16.56

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

W10289554A Whirlpool Bolt Kit In Stock WPL W10289554A $42.00

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $3.70

WP8181887 Whirlpool Handle Assembly Backorder WPL WP8181887 $54.73

WPW10003250 Whirlpool Hose In Stock WPL WPW10003250 $19.67

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Door Frame (Grey) WPL 8181848 Contact Us For Availability

Door Frame (Blue) WPL 8181878 Contact Us For Availability

Handle, Drawer (Blue) WPL 8181888 Contact Us For Availability

21

WP8181720 Whirlpool Drawer Assembly Backorder WPL WP8181720 $67.11

21

Glass, Door WPL 8181655 Contact Us For Availability

22

WPW10367632 Whirlpool Filter In Stock WPL WPW10367632 $44.62

22

Container, Detergent WPL 8181722 Contact Us For Availability

22

Door, Back Support WPL 8181849 Contact Us For Availability

WP8181859 Whirlpool Knob In Stock WPL WP8181859 $31.02

WP8181881 Whirlpool Knob Backorder WPL WP8181881 $14.31

WPW10514214 Whirlpool Water Level Switch In Stock WPL WPW10514214 $87.83

Hinge, Door WPL 8181843 Contact Us For Availability

Siphon, Bleach/Softener WPL 8181729 Contact Us For Availability

24

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $3.33

24

WPW10004260 Whirlpool Pressure Switch Hose In Stock WPL WPW10004260 $4.07

24

Separator WPL 8181730 Contact Us For Availability

25

WP8181721 Whirlpool Retainer Backorder WPL WP8181721 $30.25

25

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $4.01

25

Screw WPL 8181691 Contact Us For Availability

26

WP8540268 Whirlpool Cover Assembly Backorder WPL WP8540268 $3.70

26

WPW10005300 Whirlpool Hose In Stock WPL WPW10005300 $7.89

26

Nozzle, Window Rinse WPL 8181715 Contact Us For Availability

WPW10280024 Whirlpool Retainer Backorder WPL WPW10280024 $30.25

Harness, Wiring (Inlet Valve) WPL 8181781 Contact Us For Availability

Trim, Upper Left (Grey) WPL 8181842 Contact Us For Availability

Trim, Upper Left (Blue) WPL 8181875 Contact Us For Availability

28

Cover, Hinge (Outer) (Grey) WPL 8181841 Contact Us For Availability

28

Cover, Hinge (Outer) (Blue) WPL 8181874 Contact Us For Availability

28

Cover, Pre-Wash WPL 8181898 Contact Us For Availability

29

Cover, Hinge (Inner) (Grey) WPL 8181844 Contact Us For Availability

29

Cover, Hinge (Inner) (Blue) WPL 8181876 Contact Us For Availability

30

Trim, Lower (Grey) WPL 8181840 Contact Us For Availability

30

Trim, Lower (Blue) WPL 8181873 Contact Us For Availability

31

WP8181846 Whirlpool Washer Door Handle In Stock WPL WP8181846 $18.98

31

Handle, Door (Blue) WPL 8181877 Contact Us For Availability

32

Clip, Trim WPL 8519424 Contact Us For Availability

33

Trim, Upper Right (Grey) WPL 8181839 Contact Us For Availability

33

Trim, Upper Right (Blue) WPL 8181872 Contact Us For Availability
