Model GE GCWN4950D2WS Washer – Common Parts & Diagrams

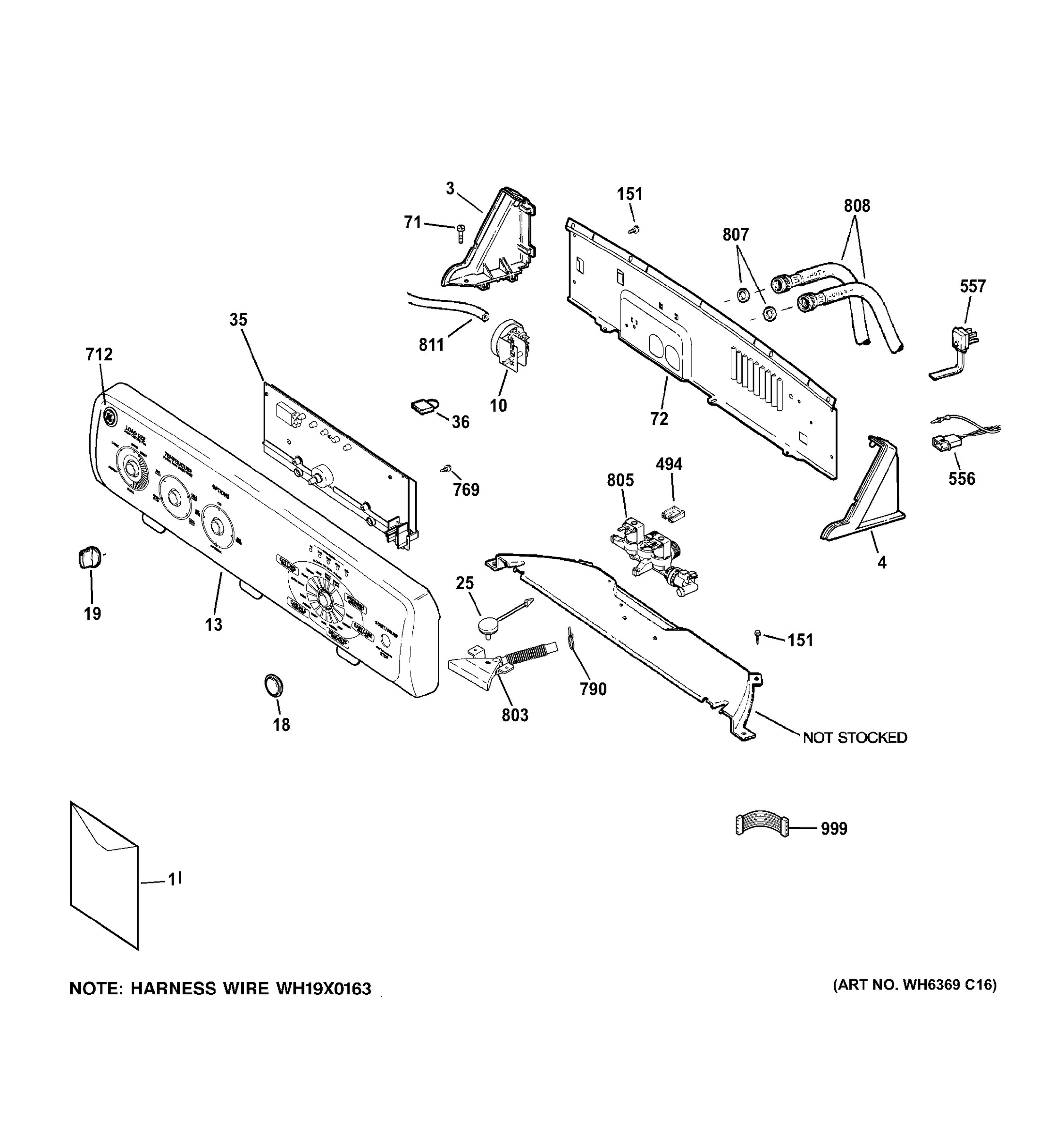

CONTROLS & BACKSPLASH

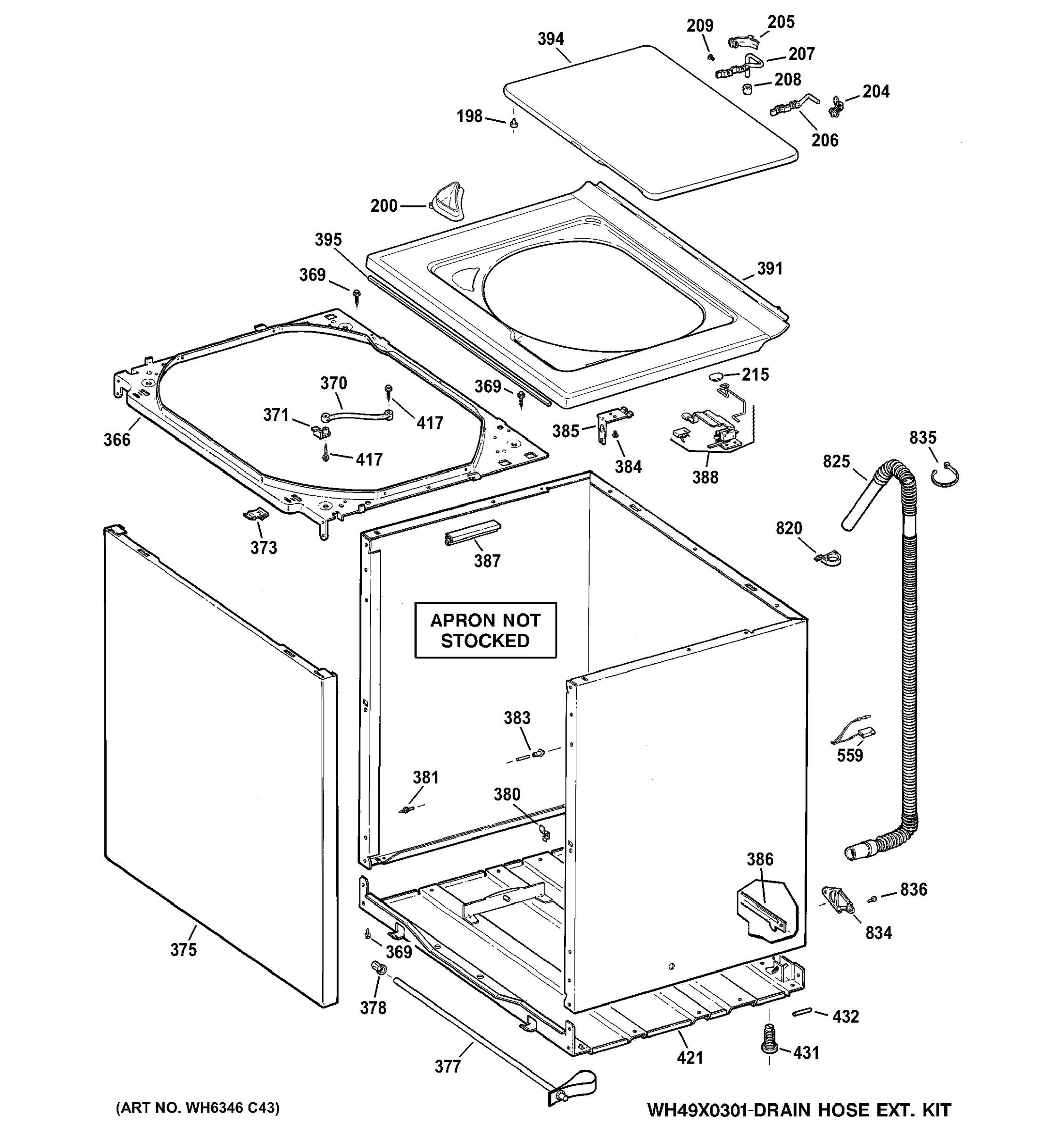

CABINET, COVER & FRONT PANEL
TUB, BASKET & AGITATOR
SUSPENSION, PUMP & DRIVE COMPONENTS
Common parts from model GE GCWN4950D2WS Washer
4
ENDCAP WASHER RH GEN WH42X22576 Contact Us For Availability
10
SWITCH PRESSURE GEN WH12X10412 Contact Us For Availability
13
BACKSPLASH ASM GEN WH42X22779 Contact Us For Availability
18
BUTTON SWITCH GEN WH01X10088 Contact Us For Availability
19
KNOB ASM GEN WH01X10650 Contact Us For Availability
25
PROBE SENSOR ATC GEN WH12X10410 Contact Us For Availability
36
CONNECTOR MODEL SELECT GEN WH12X10095 Contact Us For Availability
200
FUNNEL BLEACH GEN WH01X10057 Contact Us For Availability
205
BUSHING HINGE GEN WH01X10025 Contact Us For Availability
215
MAGNET ASM GEN WH12X10276 Contact Us For Availability
293
CLAMP HOSE GEN WH01X10134 Contact Us For Availability
300
PULSATOR GEN WH43X10058 Contact Us For Availability
301
SCR 1/4-20 MCH HXW 5/8 S GEN WH02X10284 Contact Us For Availability
302
DISPENSER ASM FS GEN WH43X10039 Contact Us For Availability
305
HOSE DRAIN ASM GEN WH41X10285 Contact Us For Availability
308
SCR 5/16-18 TPT IHW S N GEN WH02X10267 Contact Us For Availability
310
COUPLING PULSATOR GEN WH43X10037 Contact Us For Availability
311
SEAL TUB GEN WH02X10383 Contact Us For Availability
316
BASKET HUB & RING GEN WH45X10112 Contact Us For Availability
317
TUB ASM GEN WH45X20473 Contact Us For Availability
320
SHAFT AND TUBE ASM GEN WH38X10019 Contact Us For Availability
324
WASHER THRUST GEN WH02X10283 Contact Us For Availability
327
BALANCE RING ASM GEN WH45X10114 Contact Us For Availability
332
SCR 10-32 B TRT-25 5/8 GEN WH02X10139 Contact Us For Availability
373
CLIP LOCKING GEN WH02X10279 Contact Us For Availability
385
COVER CLIP GEN WH01X10422 Contact Us For Availability
386
BAR SELF LEVELING GEN WH46X10094 Contact Us For Availability
388
LID SWITCH ASM GEN WH12X10334 Contact Us For Availability
403
LEG AND PLATFORM ASM GEN WH17X10025 Contact Us For Availability
413
HEX NUT OVERMOLD ASM GEN WH02X10233 Contact Us For Availability
414
FRONT ROD & SPRING ASM GEN WH16X10158 Contact Us For Availability
415
REAR ROD & SPRING ASM GEN WH16X10159 Contact Us For Availability
419
SOCKET ROD SUPPORT GEN WH01X10001 Contact Us For Availability
421
BASE ASM GEN WH46X10145 Contact Us For Availability
603
BELT - 6 RIB GEN WH01X10302 Contact Us For Availability
630
MOTOR AND INVERTER ASM GEN WH20X20229 Contact Us For Availability
651
SCREW 1/4-20 TPT 1H 1/2 GEN WH02X10123 Contact Us For Availability
678
COUNTERWEIGHT GEN WH01X10643 Contact Us For Availability
679
BRACKET COUNTER WEIGHT GEN WH49X20708 Contact Us For Availability
680
WASHER BOLT COMBO GEN WH02X22434 Contact Us For Availability
712
BADGE GEN WH01X10648 Contact Us For Availability
725
DRIVE PULLEY GEN WH07X10019 Contact Us For Availability
803
FUNNEL SHOWER HEAD ASM GEN WH41X10299 Contact Us For Availability
805
VALVE TRIPLE WATER GEN WH13X10037 Contact Us For Availability
811
HOSE PRES SW GEN WH41X365 Contact Us For Availability
825
HOSE DRAIN EXTERNAL GEN WH41X10096 Contact Us For Availability
999
HARNESS WASHER GEN WH19X10102 Contact Us For Availability
× ![]()
