Model Whirlpool GCGM2991TQ0 COMMERCIAL GAS DRYER – Common Parts & Diagrams

Following Parts Not Illustrated
Following Parts Not Illustrated WPL ARI148025A Contact Us For Availability
View on Model
ACCESSORY PARTS
ACCESSORY PARTS WPL ARI148026A Contact Us For Availability
View on Model
1

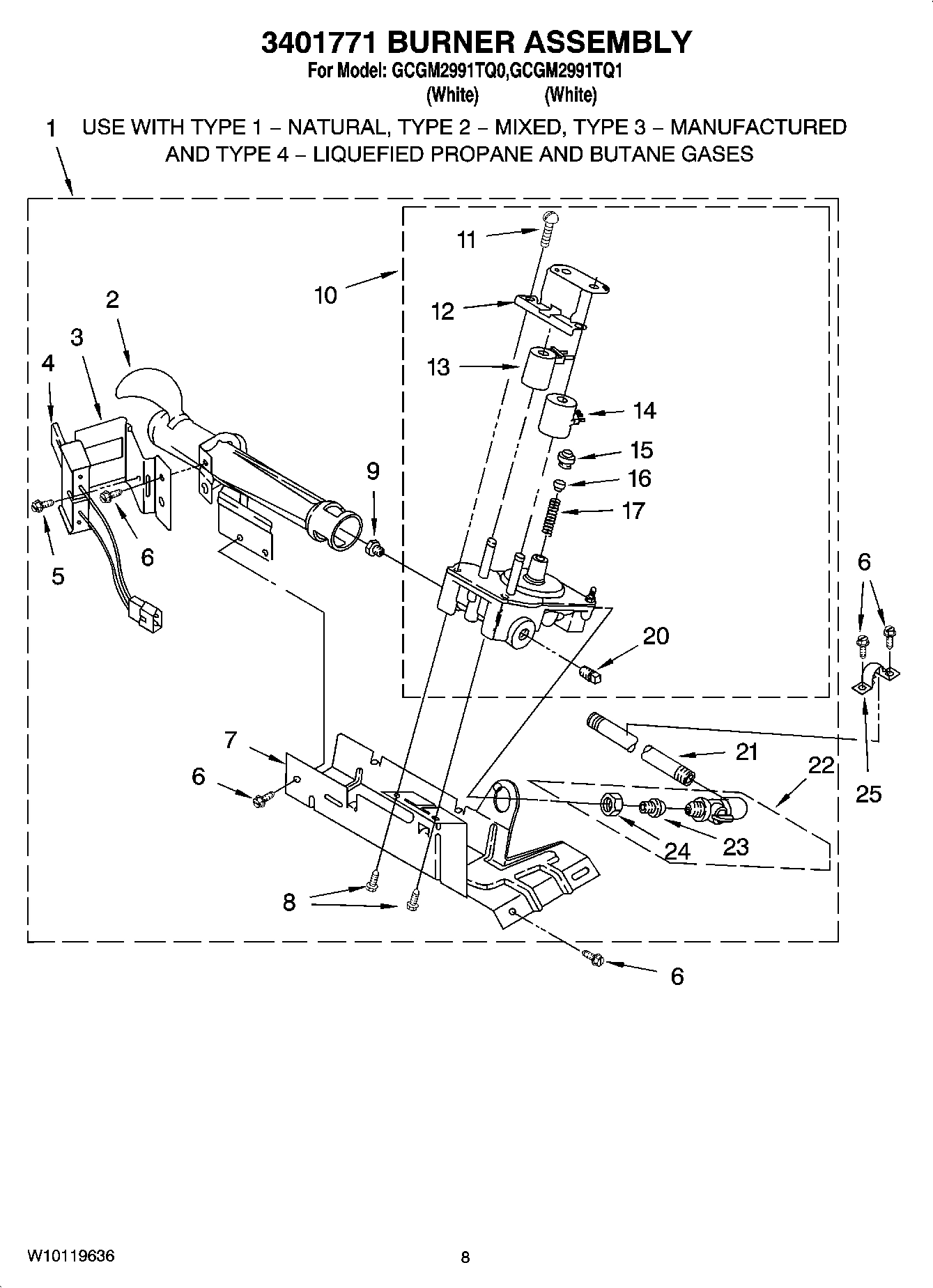

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 3401771 Contact Us For Availability
View on Model
2
Plug, Front Panel
Plug, Front Panel WPL 3394975 Contact Us For Availability
View on Model
2
Cover, Lint Screen
Cover, Lint Screen WPL 8283378 Contact Us For Availability
View on Model
6
End Cap (R.H.)
End Cap (R.H.) WPL 3949737 No Longer Available
View on Model
7
Base, Burner
Base, Burner WPL 693986 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 3)
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 2)
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
View on Model
19
TIMER
TIMER WPL 3979596 Contact Us For Availability
View on Model
21
Pipe, Gas Supply
Pipe, Gas Supply WPL 233273 Contact Us For Availability
View on Model
22
Valve & Union, Shut-Off
Valve & Union, Shut-Off WPL 3393658 Contact Us For Availability
View on Model
24
Nut, Compression
Nut, Compression WPL 233076 Contact Us For Availability
View on Model
25
Knob, Timer
Knob, Timer WPL 8529317 Contact Us For Availability
View on Model
35
Connector, Timer
Connector, Timer WPL 3397269 Contact Us For Availability
View on Model
