Model Whirlpool GCG2901XSW4 GAS DRYER – Common Parts & Diagrams
03 - BULKHEAD, LIT/OPTIONAL
04 - 3401771 BURNER

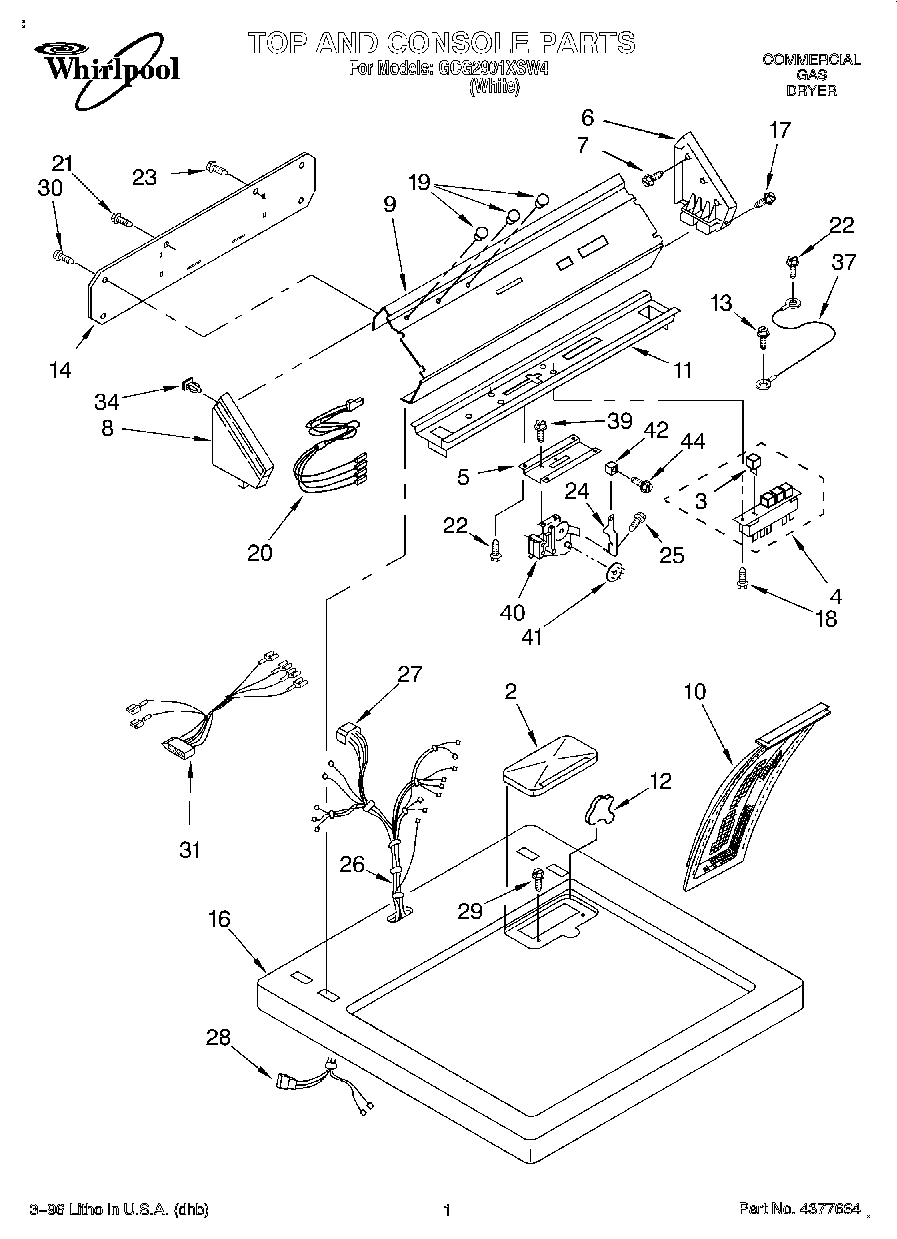

01 - TOP AND CONSOLE

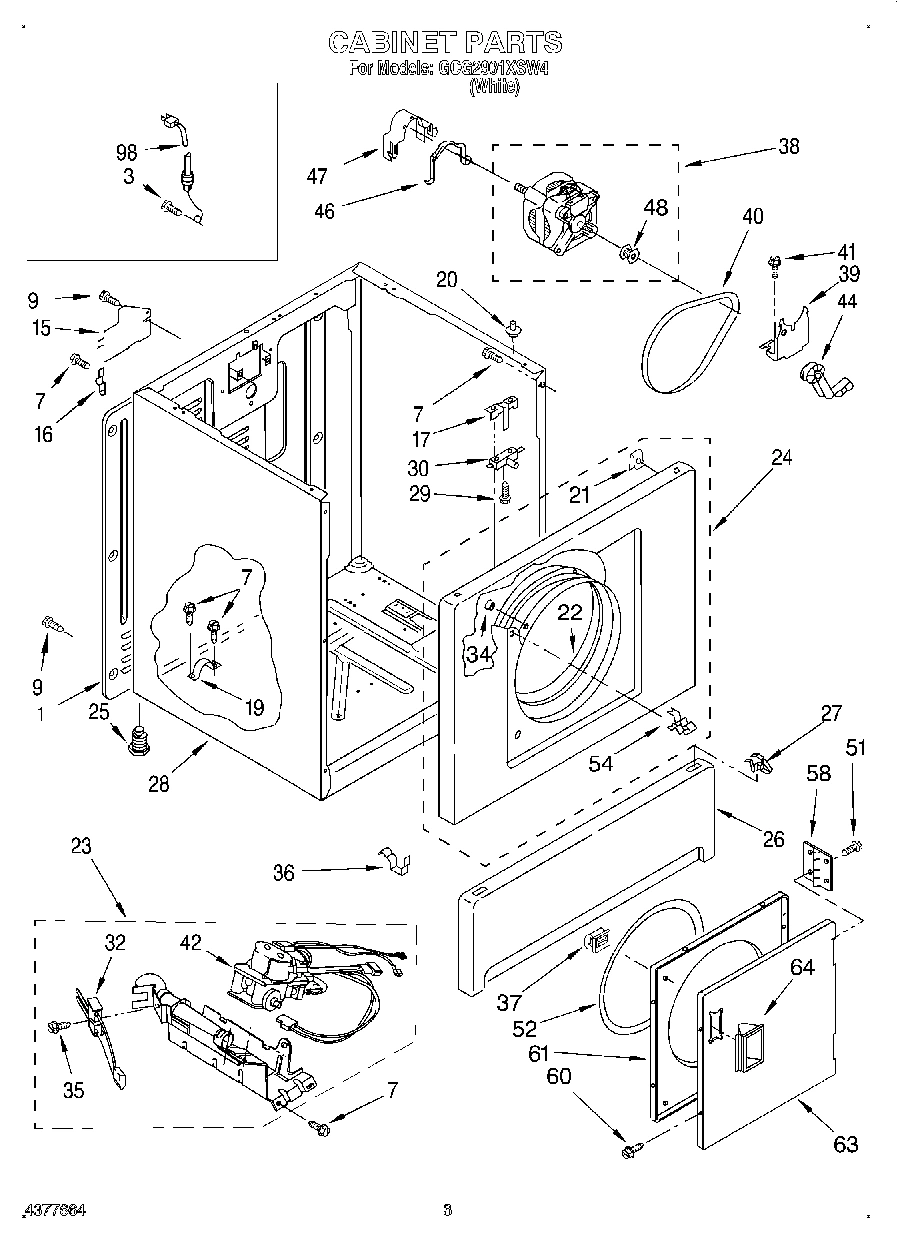

02 - CABINET
Common parts from model Whirlpool GCG2901XSW4 GAS DRYER
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Paint, Spray 13 Oz. (Almond) WPL 350956 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (Harvest Gold) WPL 72110 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (Avocado) WPL 72109 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Panel, Rear WPL 3396807 Contact Us For Availability
2
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
3
Button (4) WPL 3348587 Contact Us For Availability
4
Switch, Pushbutton WPL 3401851 Contact Us For Availability
5
Control, Bracket WPL 3388374 Contact Us For Availability
6
Cap, End. (R.H.) WPL 63795 Contact Us For Availability
7
Base, Burner WPL 693986 Contact Us For Availability
8
Cap, End (L.H.) WPL 63789 Contact Us For Availability
9
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
9
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
9
Panel, Control WPL 3389679 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Screw, Bracket Mounting (8-32 x 1/2) (2) WPL 694421 Contact Us For Availability
11
Bracket, Control WPL 3388375 Contact Us For Availability
12
Bracket, Coil WPL 694538 Contact Us For Availability
14
Panel, Rear WPL 386367 Contact Us For Availability
16
Top (White) WPL 3393385 Contact Us For Availability
17
Screw, 8A x 3/8 WPL 64211 Contact Us For Availability
19
Seal, Blower WPL 3392123 Contact Us For Availability
19
Clamp, Pipe (Rear) WPL 341029 Contact Us For Availability
20
Lights, Indicator WPL 3401761 Contact Us For Availability
20
Locator, Top (2) WPL 98669 Contact Us For Availability
21
Pipe, Gas Supply WPL 233273 Contact Us For Availability
22
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
23
Burner Assembly (50 Hz.) (Refer to Pages 4 Fo WPL 3401771 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
24
Lever, Timer WPL 694583 Contact Us For Availability
24
Front Panel Assembly (White) WPL 693202 Contact Us For Availability
26
Harness, Wiring (Complete) WPL 3401738 Contact Us For Availability
26
Panel, Toe (White) WPL 697095 Contact Us For Availability
27
Plug, Terminal (6 Way) (Uses Terminal WPL 352457 Contact Us For Availability
28
Plug, Terminal (Uses Terminal WPL 691707 Contact Us For Availability
28
Cabinet Assembly (Includes Illus. Nos. 1, 15, WPL 3399580 Contact Us For Availability
31
Harness, Console WPL 3401663 Contact Us For Availability
34
NUT, PUSH IN WPL 689559 Contact Us For Availability
37
Wire, Ground WPL 690853 Contact Us For Availability
42
Pushbutton WPL 3348574 Contact Us For Availability
44
Screw WPL 310410 Contact Us For Availability
48
Bulkhead WPL 3397264 Contact Us For Availability
74
Bracket, Support Shaft WPL 348945 Contact Us For Availability
× ![]()
