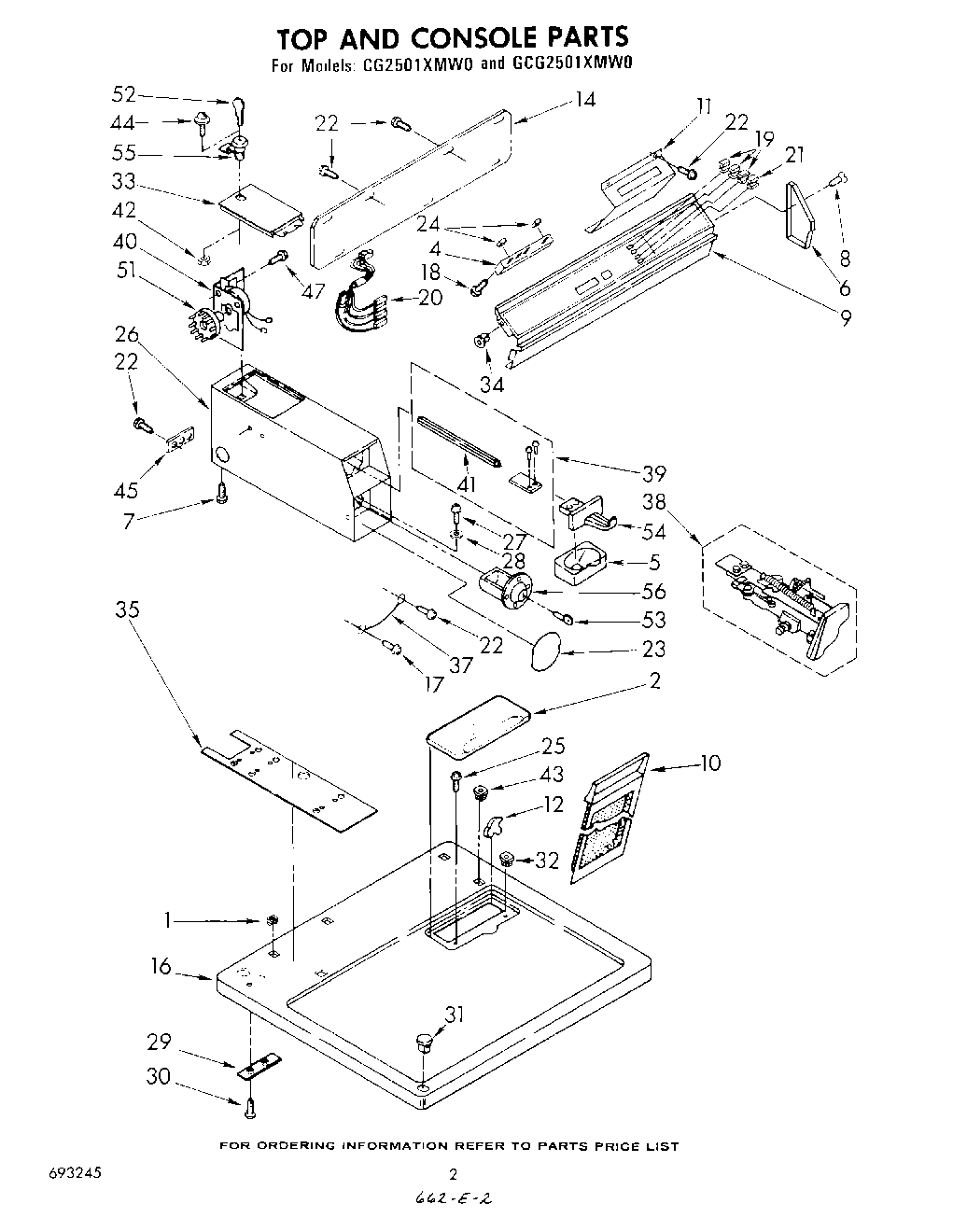

Model Whirlpool GCG2501XMW0 GAS DRYER – Common Parts &amp; Diagrams

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688637 Contact Us For Availability

1

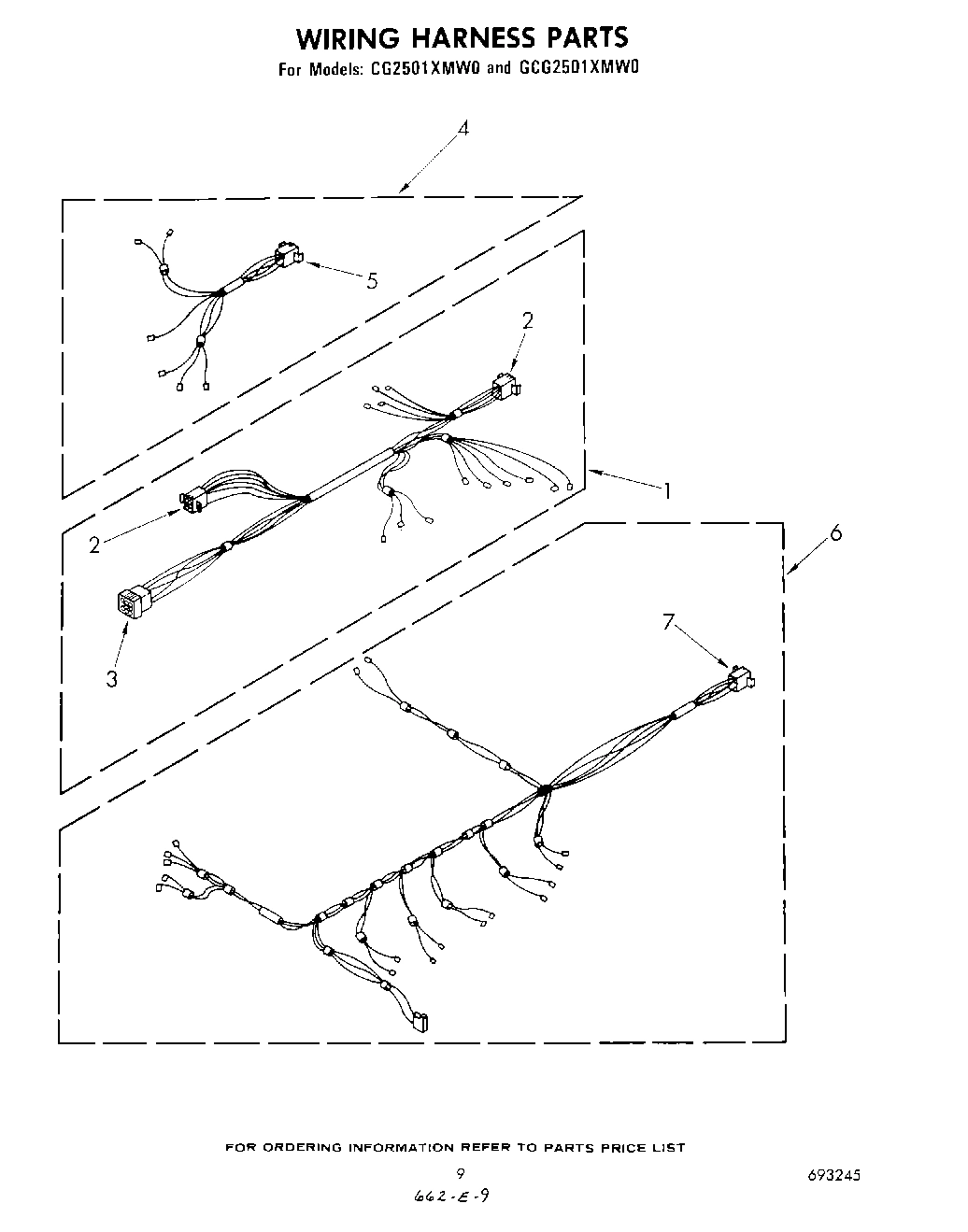

Harness, Console WPL 695077 Contact Us For Availability

1

Nut, Push-In (4) WPL 98219 Contact Us For Availability

2

Cap, Terminal (6-Way) (Uses Terminal 94614) WPL 352458 Contact Us For Availability

2

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

2

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

2

Cover, Lint Screen (New Avocado) WPL 689312 Contact Us For Availability

2

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

Cap, Terminal (9 Way) (Uses Terminal 94613) WPL 94612 Contact Us For Availability

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

4

Harness, Timer WPL 695076 Contact Us For Availability

4

Switch, Pushbutton WPL 693987 Contact Us For Availability

5

WP385421 Whirlpool Washer Coin-Operated Laund In Stock WPL WP385421 $27.83

5

Plug, Terminal (6 Way) WPL 352457 Contact Us For Availability

6

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

6

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

6

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

6

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.32

6

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

6

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

6

Harness, Lower WPL 691401 Contact Us For Availability

6

Cap, End (R.H.) WPL 385800 Contact Us For Availability

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

7

Plug, Terminal (9 Way) (Uses Terminal 94614) WPL 94611 Contact Us For Availability

7

Screw, 10-16 x 1/2 WPL 90057 Contact Us For Availability

8

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

8

Plate (2) WPL 338869 Contact Us For Availability

9

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

9

BURNER-GAS WPL 685947 Contact Us For Availability

9

Billboard, Console WPL 693988 Contact Us For Availability

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

10

Ring, ``O`` (2) WPL 296302 Contact Us For Availability

11

Connector, Wire (3) WPL 340140 Contact Us For Availability

11

Bracket, Control WPL 386567 Contact Us For Availability

11

Housing, Blower WPL 348494 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

Screw, Leak Limiter WPL 338868 Contact Us For Availability

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

13

Screw, Regulator Adjustment WPL 99996 Contact Us For Availability

14

Spring, Regulator WPL 339226 Contact Us For Availability

14

Panel, Rear WPL 356441 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

Thermostat, High Limit 205~F (96~C) WPL 660036 Contact Us For Availability

Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability

Top (White) WPL 693939 Contact Us For Availability

Top (Almond) WPL 693940 Contact Us For Availability

Top (New Avocado) WPL 693941 Contact Us For Availability

Top (Golden Harvest) WPL 693942 Contact Us For Availability

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

Pipe, Gas Supply WPL 233273 Contact Us For Availability

18

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

18

Nut, Compression WPL 233076 Contact Us For Availability

19

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

19

Lens, Amber (3) WPL 301006 Contact Us For Availability

19

Seal, Blower WPL 694630 Contact Us For Availability

20

Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability

20

Lights, Indicator WPL 358742 Contact Us For Availability

21

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

21

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

21

Lens, Yellow WPL 358741 Contact Us For Availability

22

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

23

Baseplate WPL 338455 Contact Us For Availability

23

Plate Assembly (Vault Cover) WPL 376429 Contact Us For Availability

24

BURNER-GAS WPL 688631 Contact Us For Availability

24

Button (4) WPL 385798 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

Case, Meter (White) WPL 385365 Contact Us For Availability

Case, Meter (Almond) WPL 385366 Contact Us For Availability

Case, Meter (New Avocado) WPL 385367 Contact Us For Availability

Case, Meter (Golden Harvest) WPL 385368 Contact Us For Availability

27

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

27

Bolt, 5/16-24 x 3/4 WPL 691983 Contact Us For Availability

28

Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability

28

Washer, 5/16 WPL 138485 Contact Us For Availability

29

Plate & Nut Assembly WPL 83701 Contact Us For Availability

30

W10841059 Whirlpool Screw Backorder WPL W10841059 $0.90

30

Coil Assembly (Main) WPL 348376 Contact Us For Availability

31

WP387371 Whirlpool Plug Backorder WPL WP387371 $45.33

31

Coil Assembly (Hold) WPL 348375 Contact Us For Availability

32

98460 Whirlpool Nut Backorder WPL 98460 $9.59

32

Coil Assembly (Assist) WPL 348374 Contact Us For Availability

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $63.59

W11283272 Whirlpool Washer Dryer Access Door In Stock WPL W11283272 $71.26

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability

Receptacle, 2 Way WPL 717252 Contact Us For Availability

Door, Service (Almond) WPL 385758 Contact Us For Availability

Door, Service (New Avocado) WPL 385759 Contact Us For Availability

Door, Service (Golden Harvest) WPL 385760 Contact Us For Availability

34

Plug, Button WPL 54690 Contact Us For Availability

35

WP3954812 Whirlpool Cushion Backorder WPL WP3954812 $15.85

36

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

37

Wire, Ground WPL 340025 Contact Us For Availability

38

Slide & Extension WPL 694308 Contact Us For Availability

39

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

39

Slide Extension Bag Assembly WPL 694339 Contact Us For Availability

40

279737 Whirlpool Dryer Load Timer In Stock WPL 279737 $167.71

41

WP8576635 Whirlpool Bolt Backorder WPL WP8576635 $26.72

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WP90406 Whirlpool Nut Backorder WPL WP90406 $3.51

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

43

NUT, PUSH IN WPL 352292 Contact Us For Availability

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

44

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

44

Screw & Washer WPL 358409 Contact Us For Availability

45

Strap, Support WPL 357856 Contact Us For Availability

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

339805 Whirlpool Screw Backorder WPL 339805 $9.59

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

47

Set Screw WPL 690046 Contact Us For Availability

48

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $40.37

48

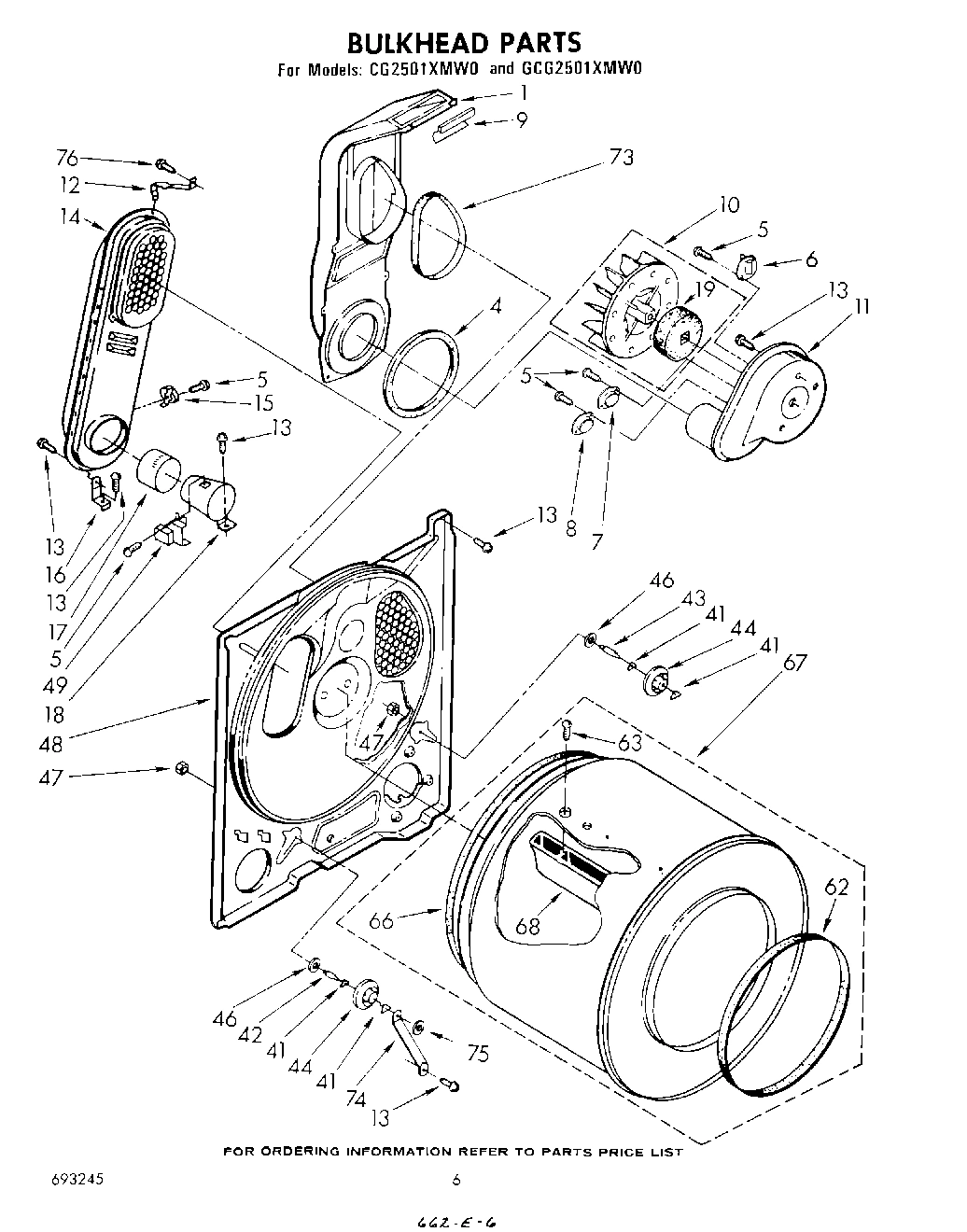

Bulkhead WPL 685769 Contact Us For Availability

49

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

WP339854 Whirlpool Cam Backorder WPL WP339854 $2.38

WP339855 Whirlpool Cam Backorder WPL WP339855 $2.51

WP343777 Whirlpool Cam Backorder WPL WP343777 $3.70

WPL 689791 WPL 689791 Contact Us For Availability

52

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $19.71

58

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

60

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

61

280077 Whirlpool Door Backorder WPL 280077 $116.57

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $40.88

WP348205 Whirlpool Door Backorder WPL WP348205 $55.84

WPL 689314 WPL 689314 Contact Us For Availability

WPL 689318 WPL 689318 Contact Us For Availability

WPL 689319 WPL 689319 Contact Us For Availability

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.70

WPL 689306 WPL 689306 Contact Us For Availability

WPL 689583 WPL 689583 Contact Us For Availability

WPL 689584 WPL 689584 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

68

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

74

Bracket, Support Shaft WPL 348945 Contact Us For Availability

75

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

New Avocado WPL 261888 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Instructions, Multi-Venting WPL 348772 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Instructions, Ins WPL 687454 Contact Us For Availability

WPL 692257 WPL 692257 Contact Us For Availability

WPL 693245 WPL 693245 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

87

WPL 356674 WPL 356674 Contact Us For Availability

90

WPL 427190 WPL 427190 Contact Us For Availability

91

WP487939 Whirlpool Refrigerator Nut Backorder WPL WP487939 $2.51

92

90984 Whirlpool Nut Backorder WPL 90984 $9.13

94

WPL 688021 WPL 688021 Contact Us For Availability

98

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

99

WPL 22965 WPL 22965 Contact Us For Availability

100

WPL 364089 WPL 364089 Contact Us For Availability

101

WPL 132848 WPL 132848 Contact Us For Availability
