Model Whirlpool GBD307PDB1 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

1

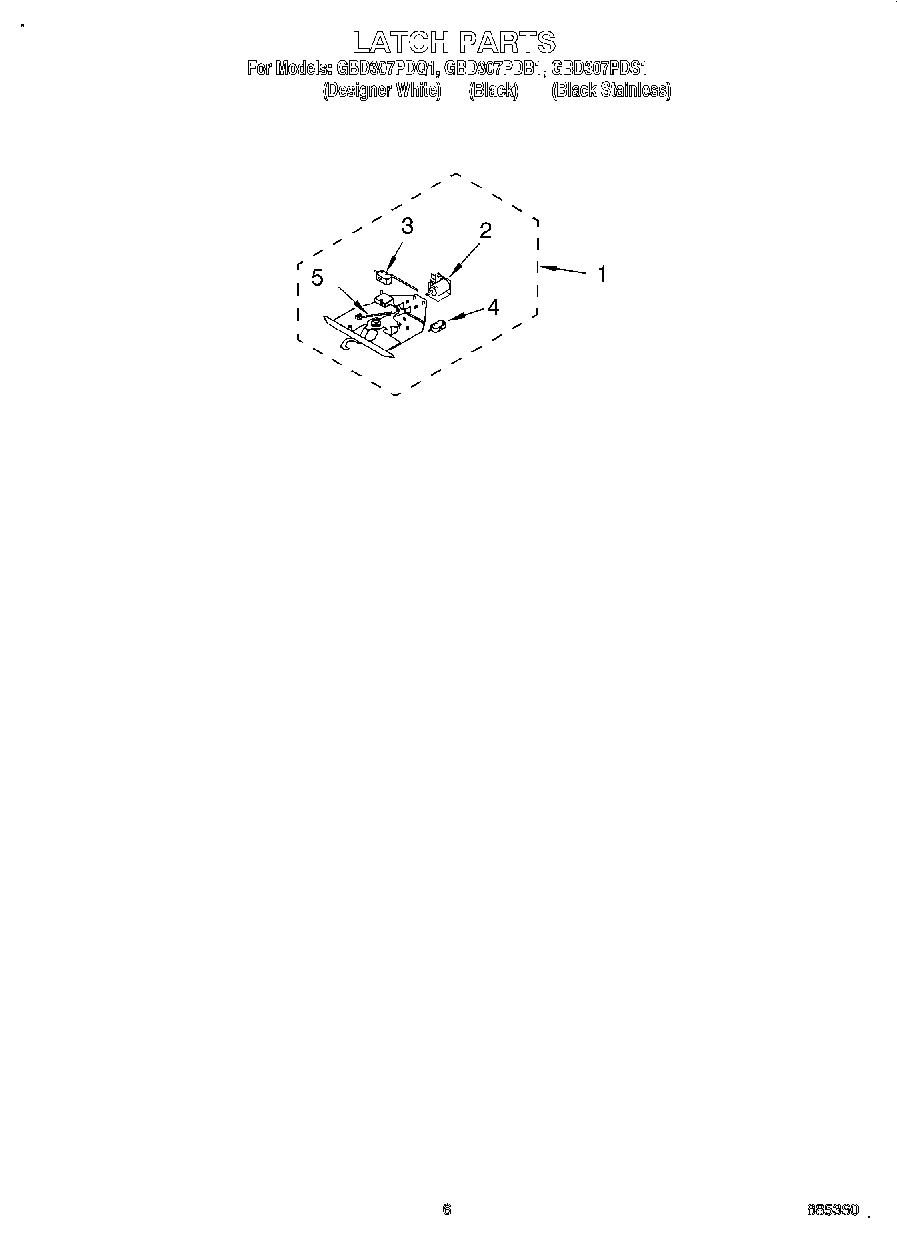

Latch Assembly WPL 4451424 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

6

Divider, Vent WPL 4452201 Contact Us For Availability

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

7

Top, Chassis WPL 4452237 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

Fan, Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

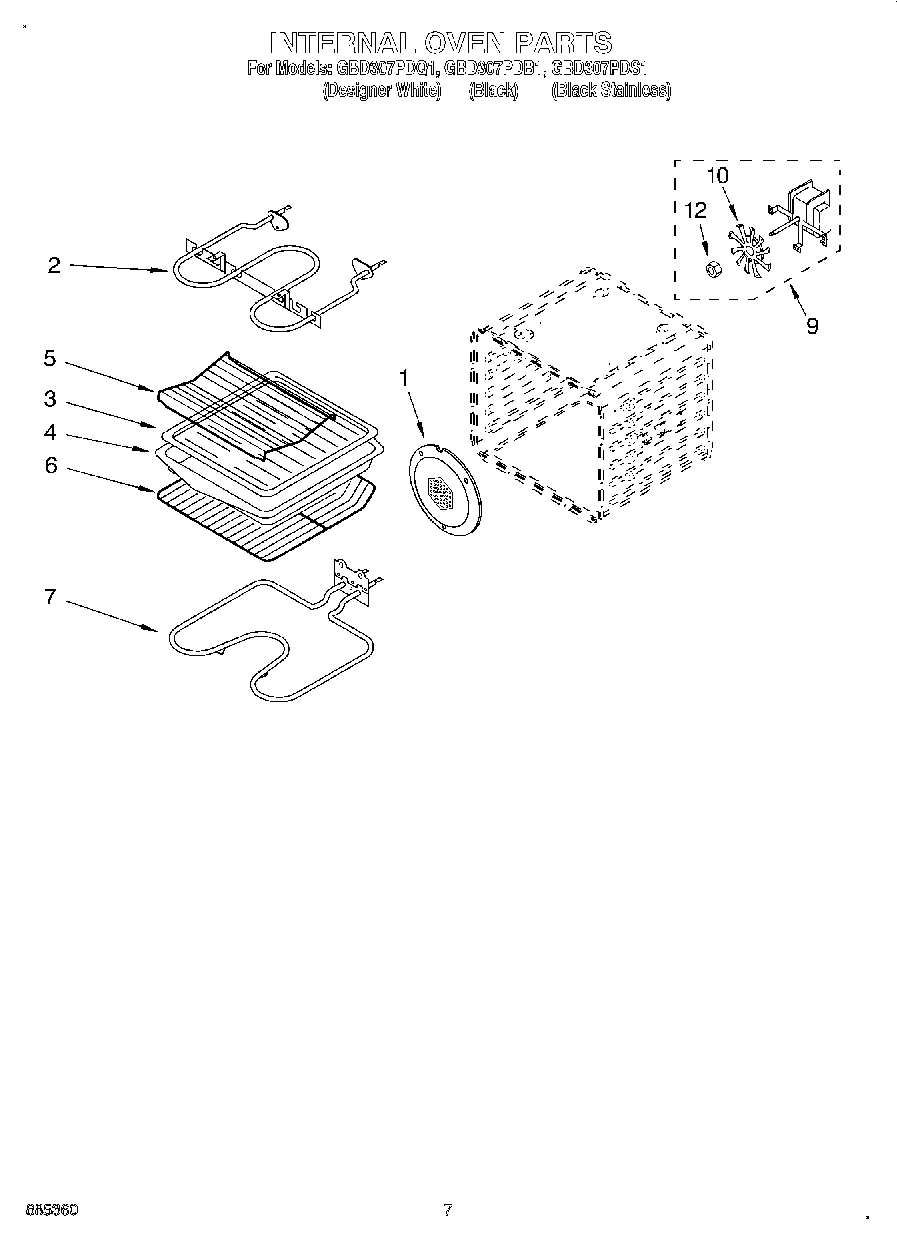

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

13

Door Handle (Black) WPL 4448854 Contact Us For Availability

13

Vent, Control Panel WPL 4448549 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4451740 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

15

Back, Control WPL 4452244 Contact Us For Availability

16

WP4450551 Whirlpool Top Cabinet Backorder WPL WP4450551 $52.43

18

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $45.99

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4451042 Whirlpool Thermal Fuse In Stock WPL WP4451042 $14.00

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Conduit, Double WPL 4450953 Contact Us For Availability

Support, Insulation WPL 4451478 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire (Latch, Lower) WPL 4452239 Contact Us For Availability

Harness, Wire (Main) WPL 4454922 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

21

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $86.57

21

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $86.66

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI58592A7 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI58593A1 Contact Us For Availability

29

Sensor WPL 4451665 Contact Us For Availability

34

Vent, Center WPL 4452267 Contact Us For Availability

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

43

Base, Chassis WPL 4451398 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

51

Trim, Bottom (Black Screw) WPL 4448477 Contact Us For Availability

51

Trim, Bottom (White) WPL 4448478 Contact Us For Availability

51

Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450365 Contact Us For Availability
