Model Whirlpool GB9FHDXWS01 REFRIGERATOR – Common Parts &amp; Diagrams

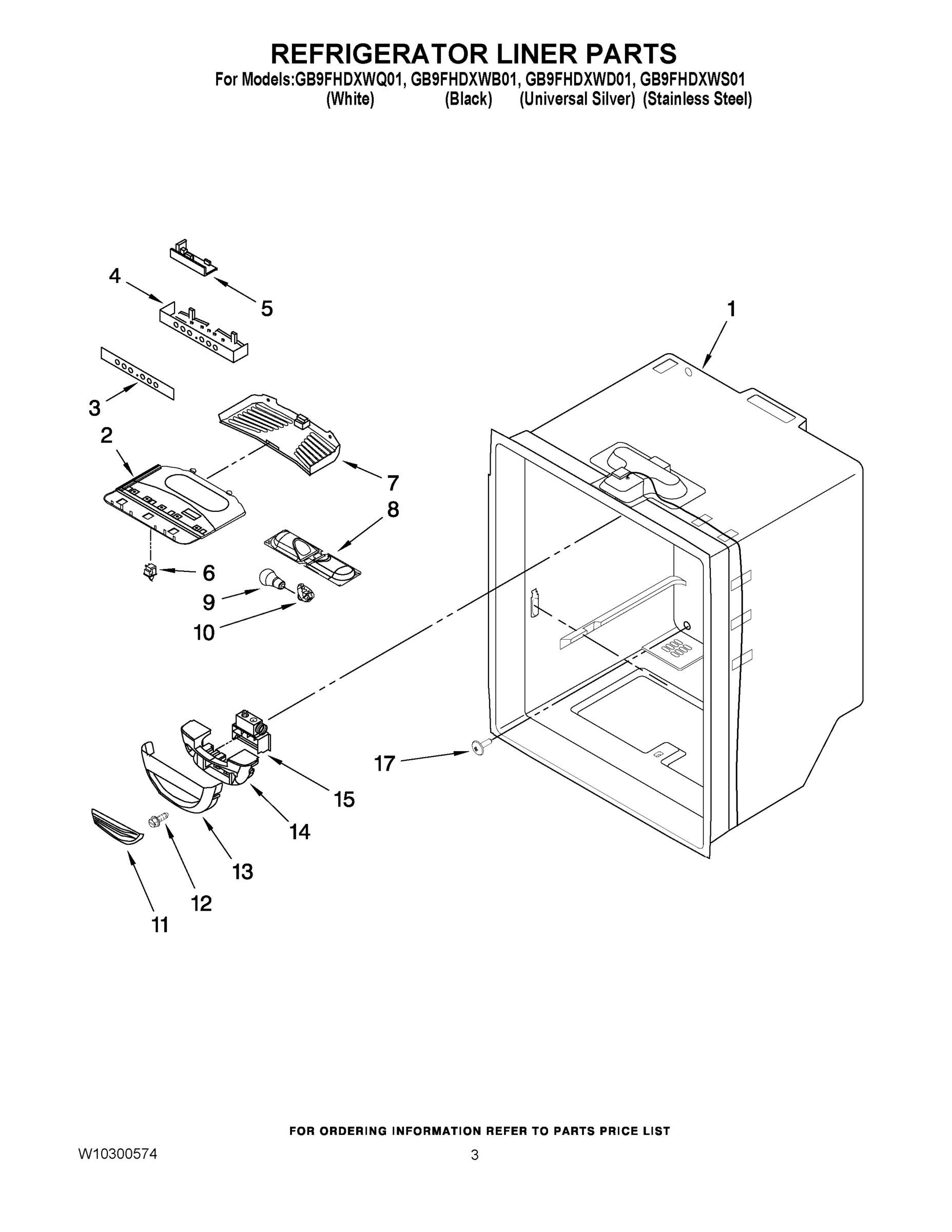

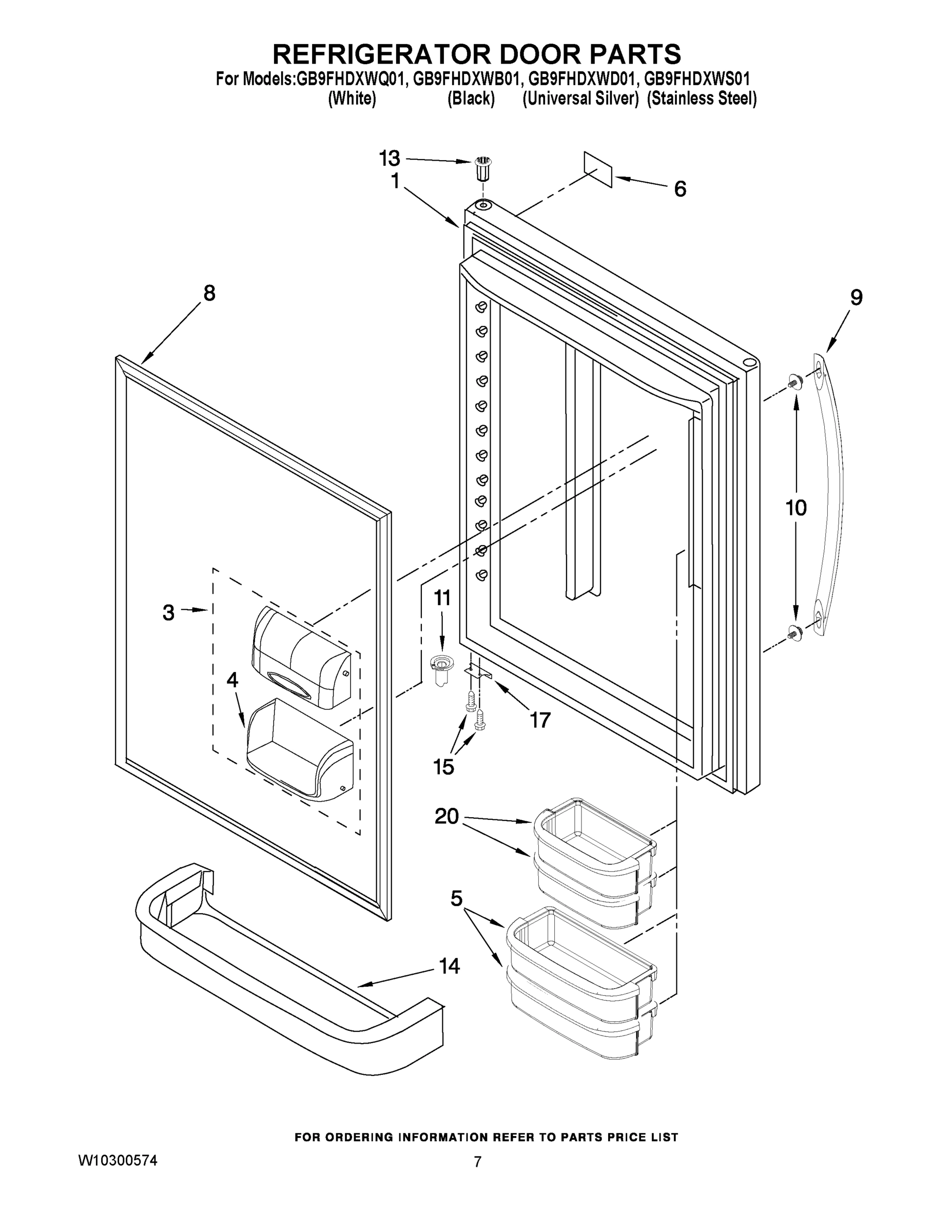

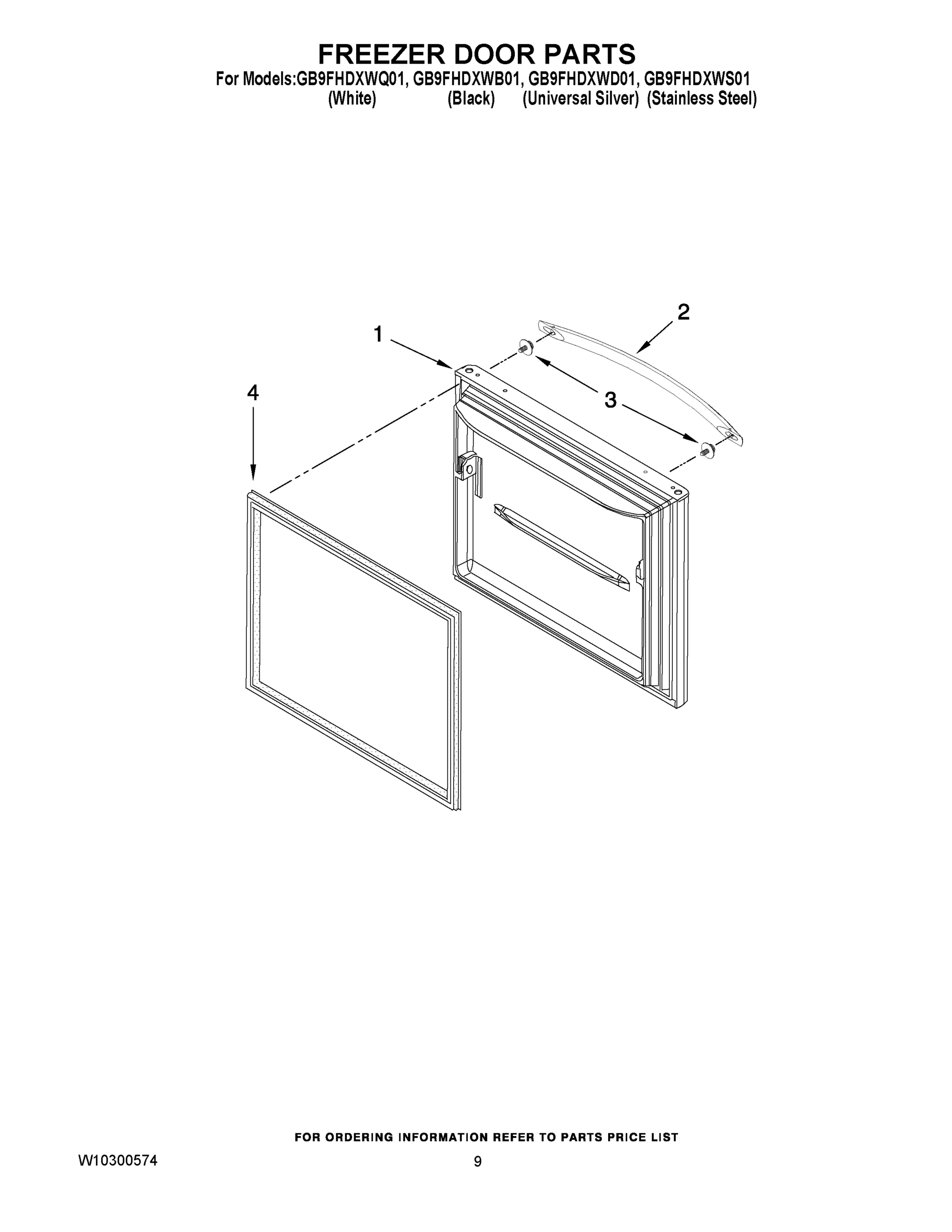

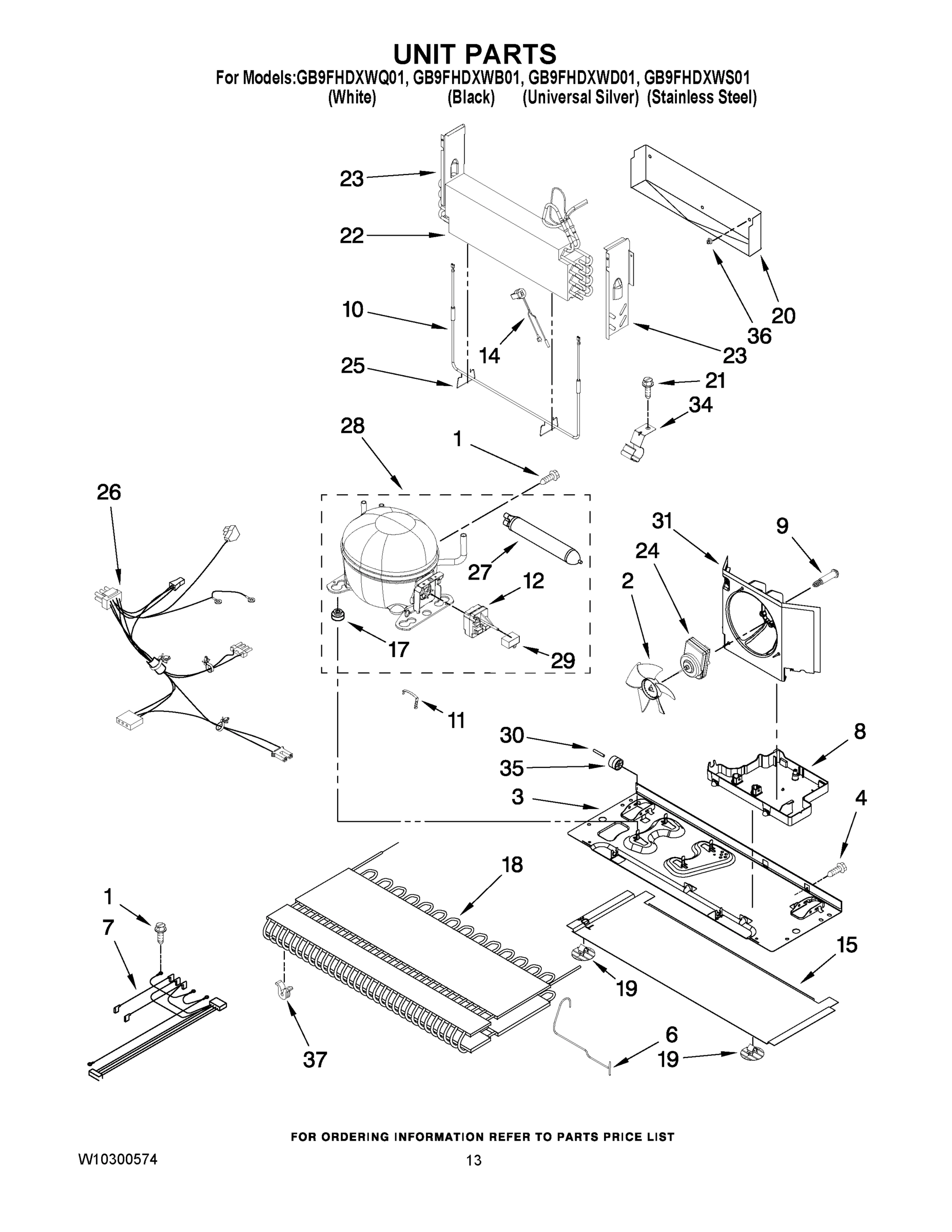

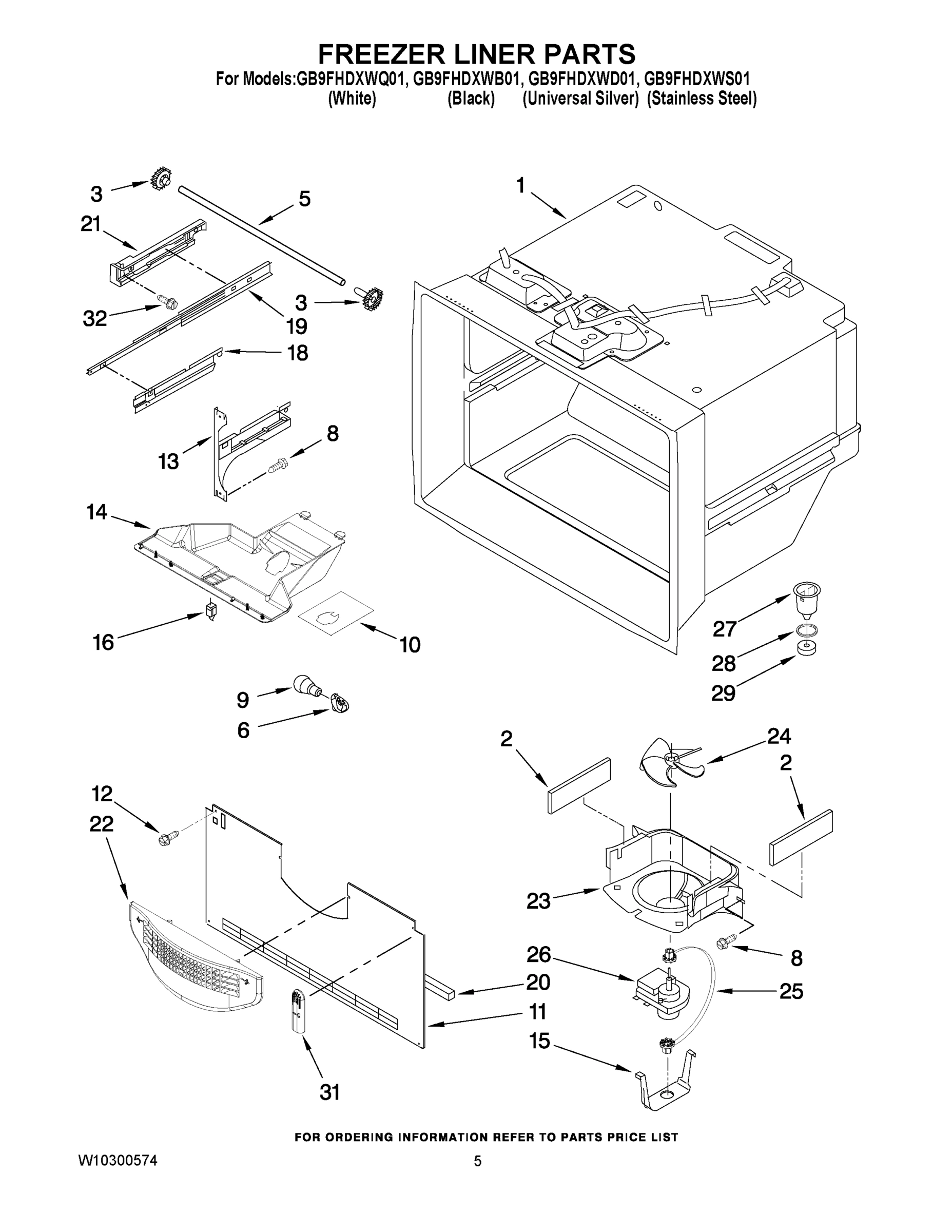

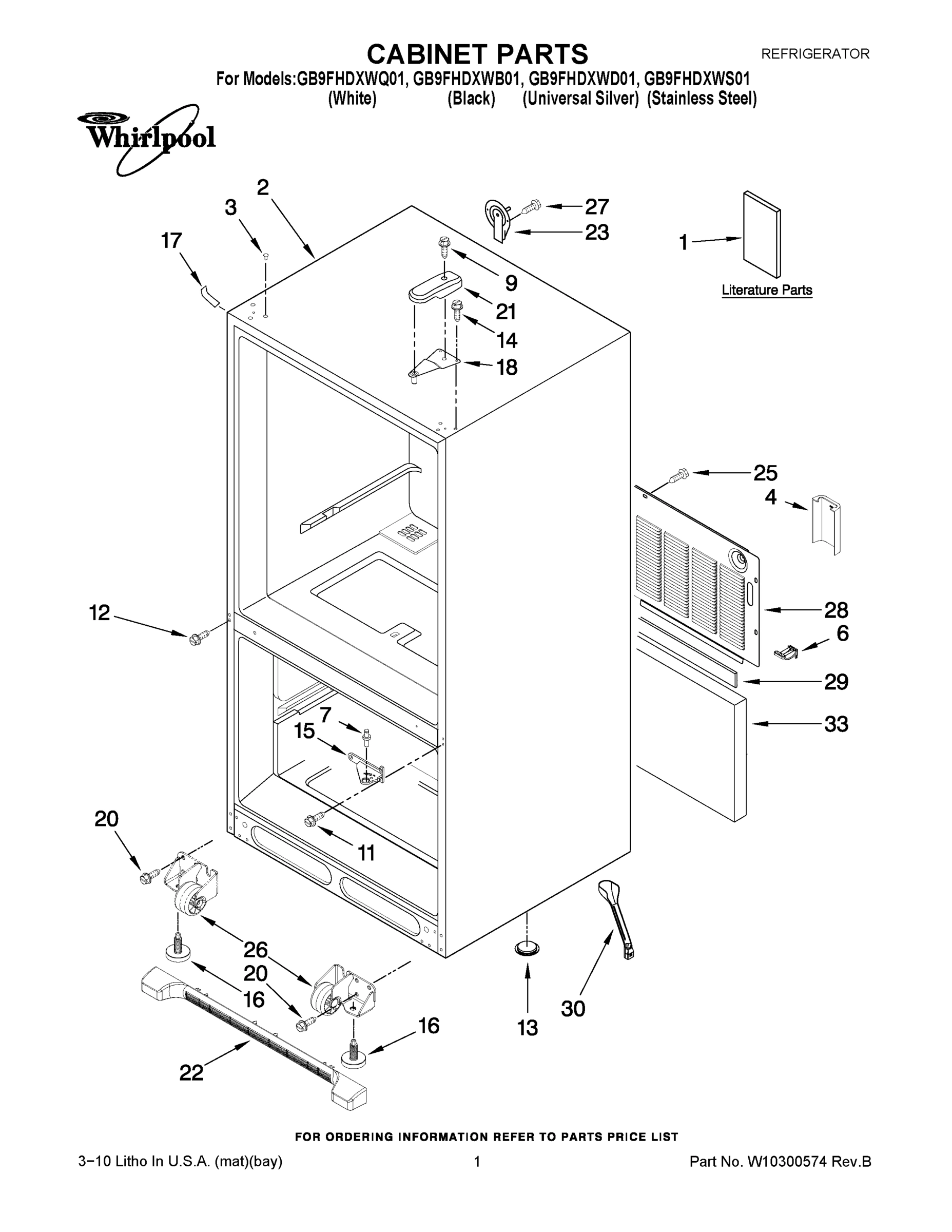

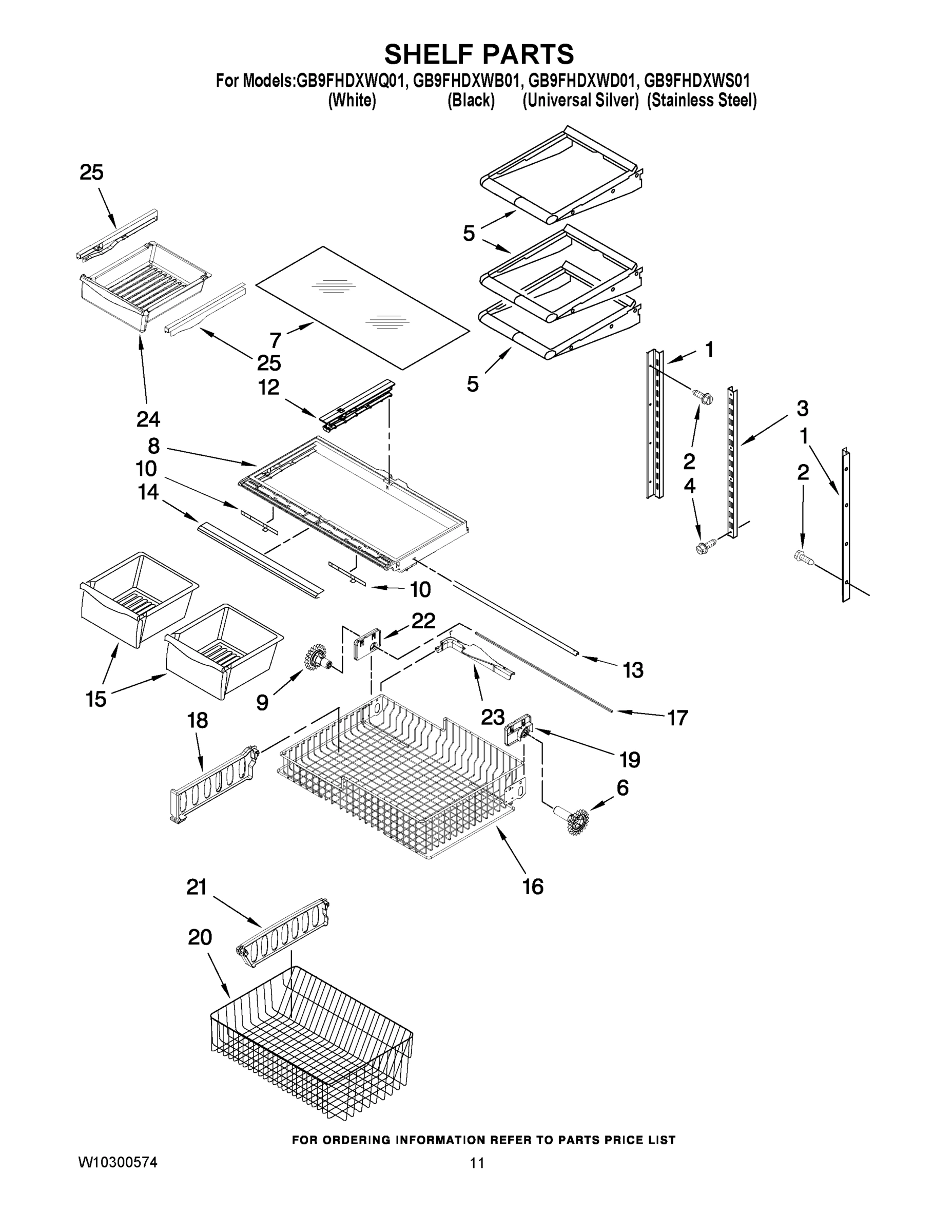

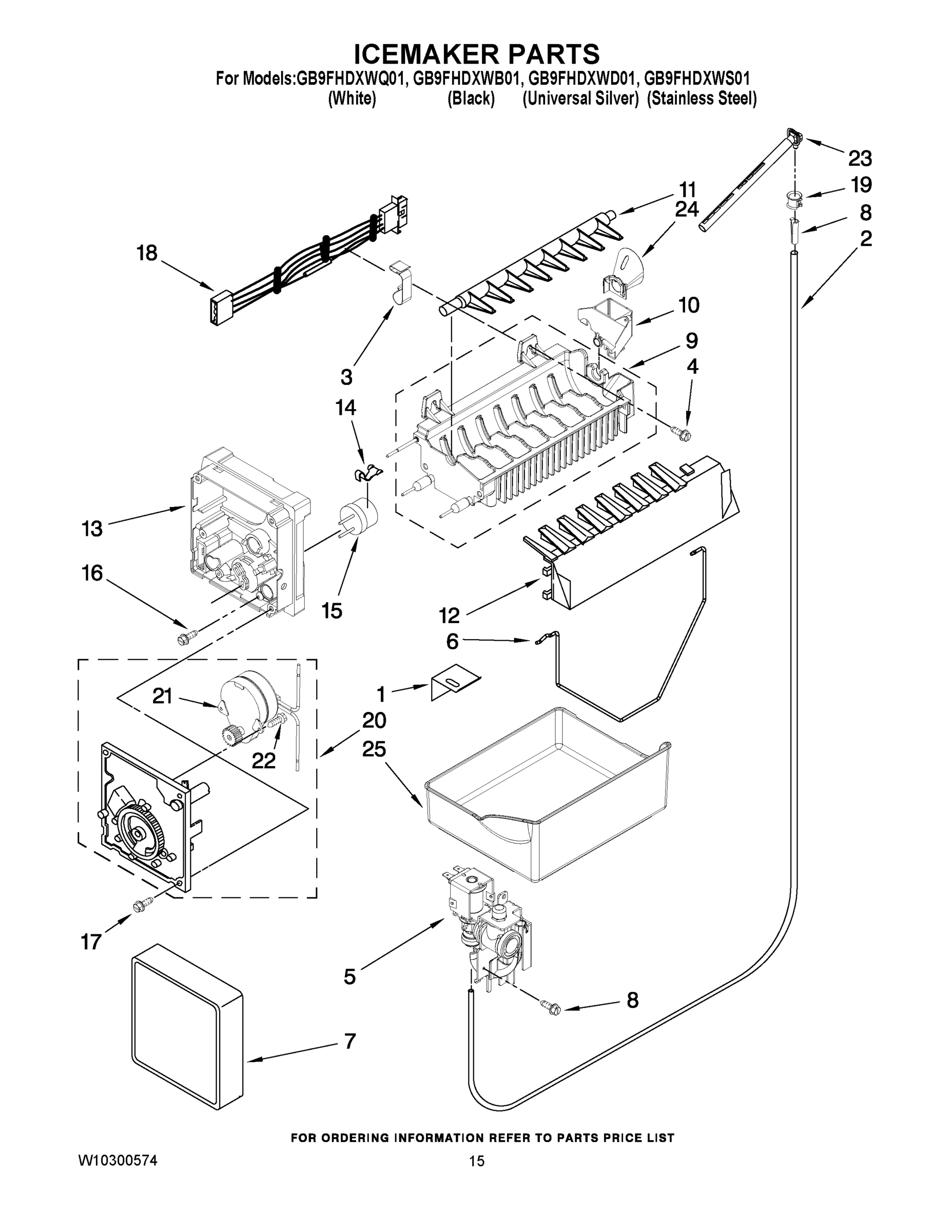

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

13092229WQ Whirlpool Refrigerator Door Backorder WPL 13092229WQ $458.96

1

W10251970 Whirlpool Refrigerator Ladder Backorder WPL W10251970 $11.91

1

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

1

REFRIGERATOR DOOR (W/ INSULATION) (BLACK) WPL 12658573BQ Contact Us For Availability

1

REFRIGERATOR DOOR (W/ INSULATION) (UNIVERSAL WPL 13023873DQ Contact Us For Availability

1

REFRIGERATOR DOOR (W/ INSULATION) (STAINLESS) WPL 13023885SQ Contact Us For Availability

1

OWNERS MANUAL WPL W10208431 Contact Us For Availability

1

ENERGY TAG WPL W10258247 Contact Us For Availability

1

TECH SHEET WPL W10279336 Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $45.71

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $37.20

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.38

3

W10480107 Whirlpool Refrigerator Plate Backorder WPL W10480107 $59.49

3

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $3.70

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $43.90

3

Plug, Button (3) (Black) WPL M0310731 Contact Us For Availability

4

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $33.53

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $48.97

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $43.30

5

SHAFT WPL 12812906WD Contact Us For Availability

6

W11285509 Whirlpool Refrigerator Shut-Off Arm Backorder WPL W11285509 $52.56

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

6

Nameplate WPL 2220214 Contact Us For Availability

6

SWEEP, WATER VALVE WPL W10216614 Contact Us For Availability

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

8

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $123.39

8

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $133.29

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $5.01

9

W11351146 Whirlpool Refrigerator Handle Backorder WPL W11351146 $105.70

9

W11351147 Whirlpool Refrigerator Handle Backorder WPL W11351147 $105.70

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

9

WPW10222984K Whirlpool Refrigerator Handle As Backorder WPL WPW10222984K $101.43

10

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

10

WP12729127 Whirlpool Refrigerator Heater In Stock WPL WP12729127 $68.91

10

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.58

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.70

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $29.21

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

WPW10308414 Whirlpool Refrigerator Evaporator Backorder WPL WPW10308414 $100.36

12

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

12

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

12

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $40.46

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $36.18

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $42.30

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $58.93

67001139 Whirlpool Refrigerator Shelf Trim Backorder WPL 67001139 $55.48

Backorder WPL W11750607 $19.22

WPW10231481 Whirlpool Refrigerator Shelf Trim In Stock WPL WPW10231481 $42.36

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $54.90

W11689473 Whirlpool Door Hinge In Stock WPL W11689473 $26.41

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $49.87

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $78.41

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

16

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

16

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.86

16

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.88

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.98

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $36.87

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $36.87

19

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

20

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.51

20

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $4.85

20

WPW10351081 Whirlpool Refrigerator Cantilever Backorder WPL WPW10351081 $46.23

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $29.13

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $14.42

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $14.51

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

WPW10534166 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534166 $38.78

WPW10534167 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534167 $37.99

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $30.25

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $35.83

Dam (Left Side) WPL 12225602 Contact Us For Availability

24

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.69

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

25

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

25

W11690160 Whirlpool Grommet Backorder WPL W11690160 $2.40

W11024089 Whirlpool Refrigerator Evaporator F In Stock WPL W11024089 $33.78

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $176.20

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $37.39

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $37.73

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.08

27

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

28

W10210978 Whirlpool Refrigerator Back Cover Backorder WPL W10210978 $79.68

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

29

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70

30

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $24.50

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $29.19

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

33

PAD-ACOUSTIC WPL 12820505 Contact Us For Availability

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

36

CLIP, EVAP (2) WPL 10623002 Contact Us For Availability

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.70

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
