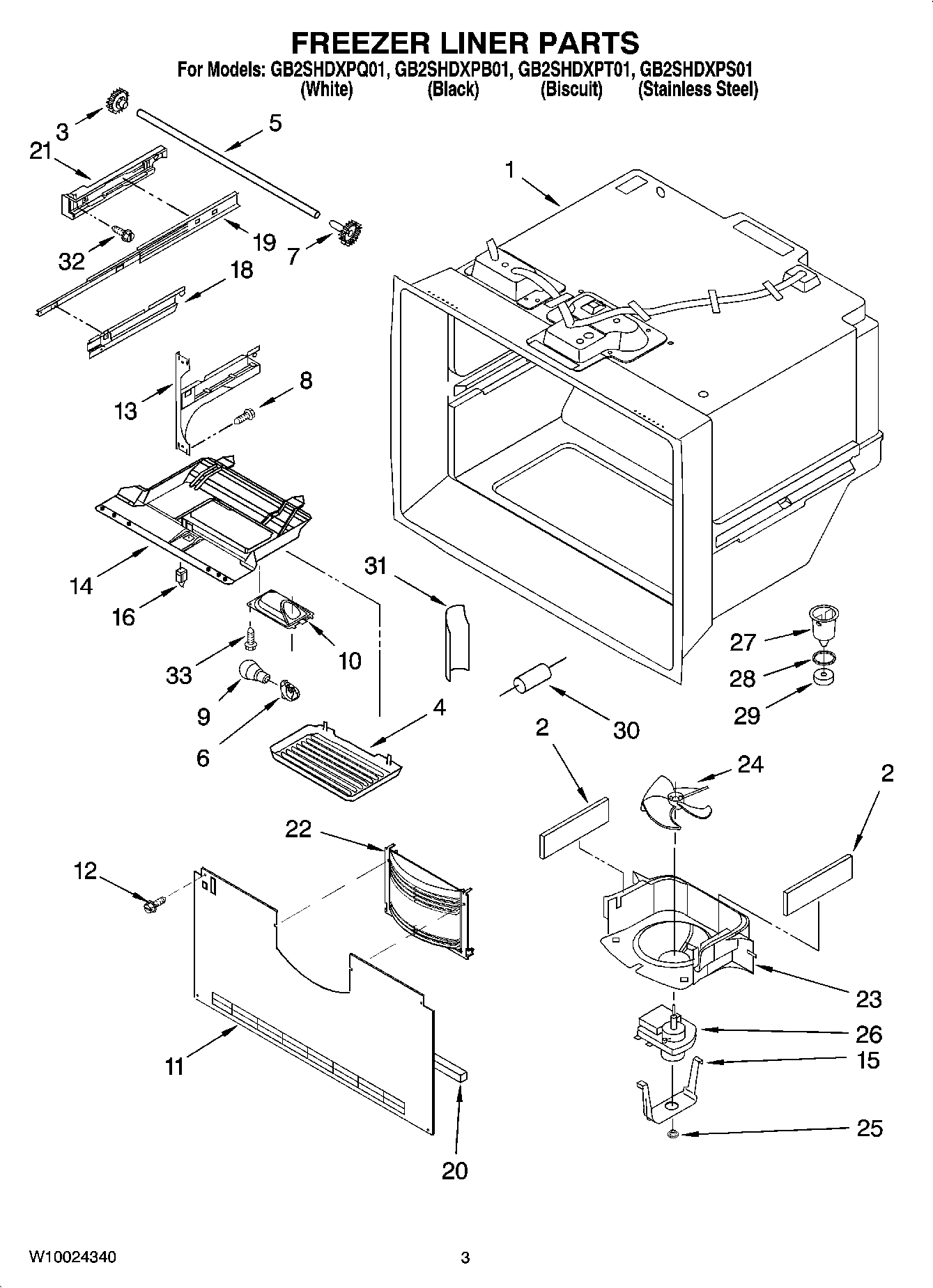

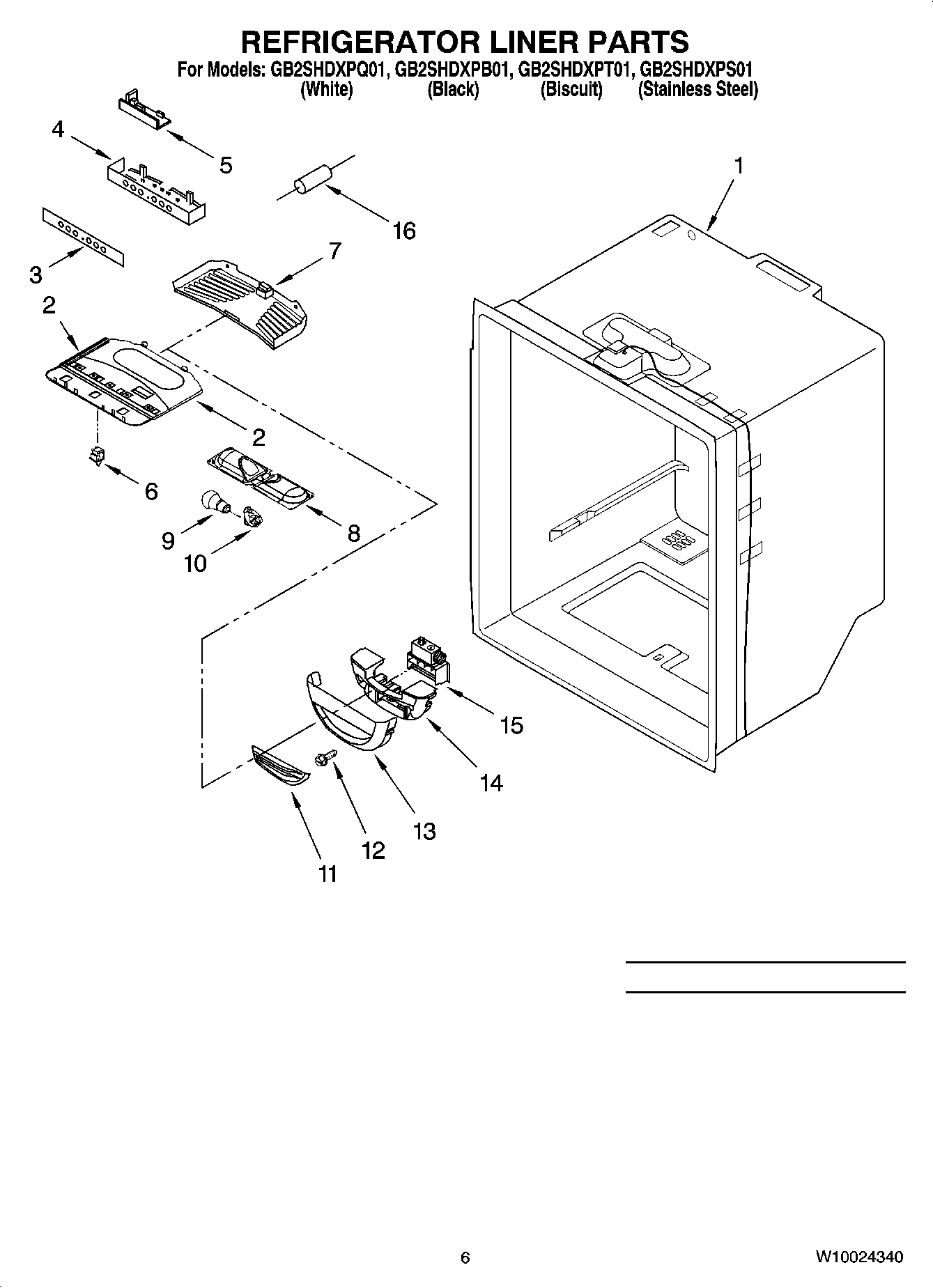

Model Whirlpool GB2SHDXPB01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL ARI147169A WPL ARI147169A Contact Us For Availability

WPL ARI147170A WPL ARI147170A Contact Us For Availability

WPL ARI147171A WPL ARI147171A Contact Us For Availability

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

Liner (Not A Serviceable Part) WPL ARI147160A Contact Us For Availability

1

Screw WPL 4344167 Contact Us For Availability

1

Use & Care Guide WPL 2300261 Contact Us For Availability

1

Tech Sheet WPL 8208183 Contact Us For Availability

1

Energy Tag WPL 8208239 Contact Us For Availability

1

Mold & Heater (Not Available, Order 4396418) WPL ARI147165A Contact Us For Availability

1

Freezer Door (w/ Insulation) (White) WPL 8208226 Contact Us For Availability

1

Freezer Door (w/ Insulation) (Black) WPL 8208227 Contact Us For Availability

1

Freezer Door (w/ Insulation) (Biscuit) WPL 8208228 Contact Us For Availability

1

Freezer Door (w/ Insulation) (Stainless Steel WPL 8208229 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (White) WPL 8171171 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Biscuit) WPL 8171203 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Stainless WPL 8208224 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Black) WPL 8208225 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $50.17

2

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.51

2

Bracket, Control and Lights WPL 8208184 Contact Us For Availability

2

Cabinet (Not A Servicable Part) WPL ARI147156A Contact Us For Availability

2

Rack, Wine WPL 4344294 Contact Us For Availability

3

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $119.64

3

W10709784 Whirlpool Refrigerator Handle Plug Backorder WPL W10709784 $10.23

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $55.71

3

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

3

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

3

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

3

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $131.01

3

Overlay WPL 8208185 Contact Us For Availability

3

Base WPL 8208232 Contact Us For Availability

3

Divider, Basket (Lower) WPL 8171227 Contact Us For Availability

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $48.97

4

WPW10464769 Whirlpool Refrigerator Housing Backorder WPL WPW10464769 $38.85

4

GASKET WPL 8170924 Contact Us For Availability

4

Basket, Freezer (Upper) WPL 8208181 Contact Us For Availability

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $43.30

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $124.77

5

Roller Assembly WPL 8170886 Contact Us For Availability

5

Basket, Freezer (Lower) WPL 8171225 Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.70

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

6

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $3.70

6

Clip, Grille WPL 8170869 Contact Us For Availability

6

Handle, Basket WPL 8208220 Contact Us For Availability

7

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

7

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $38.12

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

7

WP67006744 Whirlpool Refrigerator Center Pin Backorder WPL WP67006744 $3.70

7

Harness, Evap. Heater WPL 8208204 Contact Us For Availability

7

Frame, Shelf (Meat Pan) WPL 4344381 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $45.48

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

8

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $141.28

8

Drain Pan WPL 8170911 Contact Us For Availability

8

Thermostat (Not Available, Order 4396418) WPL ARI147166A Contact Us For Availability

8

Door Gasket, Magnetic (White) WPL 8171197 Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

9

WP2218127K Whirlpool Meat Pan Backorder WPL WP2218127K $85.99

9

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

9

Grommet (3) WPL 8171209 Contact Us For Availability

9

Door Handle (White) WPL 8170776 Contact Us For Availability

9

Door Handle (Biscuit) WPL 8170777 Contact Us For Availability

9

Door Handle (Black) WPL 8170961 Contact Us For Availability

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $43.94

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

WP67001794 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67001794 $77.65

Hinge Cover, Bottom (Black) WPL 8171002 Contact Us For Availability

Hinge Cover, Bottom (Biscuit) WPL 8171003 Contact Us For Availability

Hinge Cover, Bottom (White) WPL 8171004 Contact Us For Availability

Divider, Basket (Upper) WPL 8171226 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $86.21

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.70

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $42.09

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

Strap WPL 8170724 Contact Us For Availability

Shelf Assembly (3) WPL 8170763 Contact Us For Availability

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $4.56

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.59

Shelf, S/G, S/O WPL 8170964 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

Trim, Handle (White) WPL 8170752 Contact Us For Availability

Trim, Handle (Black) WPL 8170785 Contact Us For Availability

Trim, Handle (Biscuit) WPL 8170786 Contact Us For Availability

Support, Crisper (Left Side) WPL 8208230 Contact Us For Availability

Support, Crisper (Right Side) WPL 8208231 Contact Us For Availability

12001937 Whirlpool Refrigerator 42-Degree Def In Stock WPL 12001937 $53.40

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $33.03

Insulation WPL 8208194 Contact Us For Availability

Shelf, Bin (Large) WPL 8170795 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $26.41

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $49.87

WP67003903 Whirlpool Refrigerator Damper Cont In Stock WPL WP67003903 $102.84

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $22.72

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $49.17

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $30.25

Harness, Damper Control WPL 8208197 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI147161A Contact Us For Availability

Screw WPL 8171073 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $35.30

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $41.86

Cover, Corner (Biscuit) WPL 8170859 Contact Us For Availability

Crisper (2) WPL 8170717 Contact Us For Availability

18

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $36.18

18

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $138.54

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

19

Hinge Bottom (Black) WPL 8171066 Contact Us For Availability

19

Hinge Bottom (White) WPL 8171067 Contact Us For Availability

19

Module Assembly (Not Available, Order 4396418 WPL ARI147167A Contact Us For Availability

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $62.30

WPW10292802 Whirlpool Refrigerator Drip Tray In Stock WPL WPW10292802 $69.65

Screw WPL 8171202 Contact Us For Availability

Frame, Crisper WPL 8171168 Contact Us For Availability

R9800670 Whirlpool Refrigerator Screw Kit In Stock WPL R9800670 $2.78

Bracket, Slide (Left) WPL 8208215 Contact Us For Availability

Bracket, Slide (Right) WPL 8208216 Contact Us For Availability

Glass, Crisper Cover WPL 8170560 Contact Us For Availability

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $194.96

WP67002224 Whirlpool Refrigerator Grille Asse Backorder WPL WP67002224 $44.94

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $40.86

Grille Assembly (Includes Clips) (White) WPL 8170866 Contact Us For Availability

Grille Assembly (Includes Clips) (Biscuit) WPL 8170868 Contact Us For Availability

Ladder, Center WPL 8170870 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

Shroud, Evap.Fan WPL 8171153 Contact Us For Availability

Dam (Left Side) WPL 8171154 Contact Us For Availability

Dam (Right Side) WPL 8171155 Contact Us For Availability

Ladder, Side WPL 8170871 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

SCREW WPL 8170943 Contact Us For Availability

Plug, Button (Black) WPL 4343926 Contact Us For Availability

Plug, Button (White) WPL 8170953 Contact Us For Availability

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.70

NAMEPLATE WPL 8170797 Contact Us For Availability

Screw WPL 8170578 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

Harness, Unit WPL 8208233 Contact Us For Availability

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.08

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

Cover, Water Valve WPL 8170920 Contact Us For Availability

28

W10309989 Whirlpool Refrigerator Compressor In Stock WPL W10309989 $344.71

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

28

Spring WPL 4343686 Contact Us For Availability

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

29

Clip, Wire WPL 4343984 Contact Us For Availability

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

Cover, Unit WPL 8170910 Contact Us For Availability

Plug, Button WPL 4344316 Contact Us For Availability

Plug, Hole WPL 4344549 Contact Us For Availability

Note: The Following Parts Are Components of A WPL ARI147168A Contact Us For Availability

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

31

SHROUD WPL 8170906 Contact Us For Availability

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $30.89

32

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $17.57

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

Harness, Lights (Freezer) WPL 8208199 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI147159A Contact Us For Availability

34

Clip, Drier WPL 8170901 Contact Us For Availability

36

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

37

Tube, Drain WPL 8170861 Contact Us For Availability

38

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.41

39

Grommet (4) WPL 4343845 Contact Us For Availability

40

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

41

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70

41

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.98

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $29.13

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

Clip, Evaporator WPL 4344219 Contact Us For Availability

Cover, Hinge (Biscuit) WPL 8170976 Contact Us For Availability

43

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $4.72

43

W10709801 Whirlpool Refrigerator Screw Backorder WPL W10709801 $9.13

44

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

44

Bolt, Adjusting (Rear Roller) WPL 8208236 Contact Us For Availability

46

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

46

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.08

46

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI147157A Contact Us For Availability

53

Screw WPL 4344292 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Tube, Drain WPL 8171240 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI147162A Contact Us For Availability

and Optional Parts Not Included WPL ARI147163A Contact Us For Availability

REFRIGERANT CHARGE 5.00 Ozs. (R-134A) WPL ARI147164A Contact Us For Availability
