Model Maytag G37026FEAS10 REFRIGERATOR – Common Parts & Diagrams

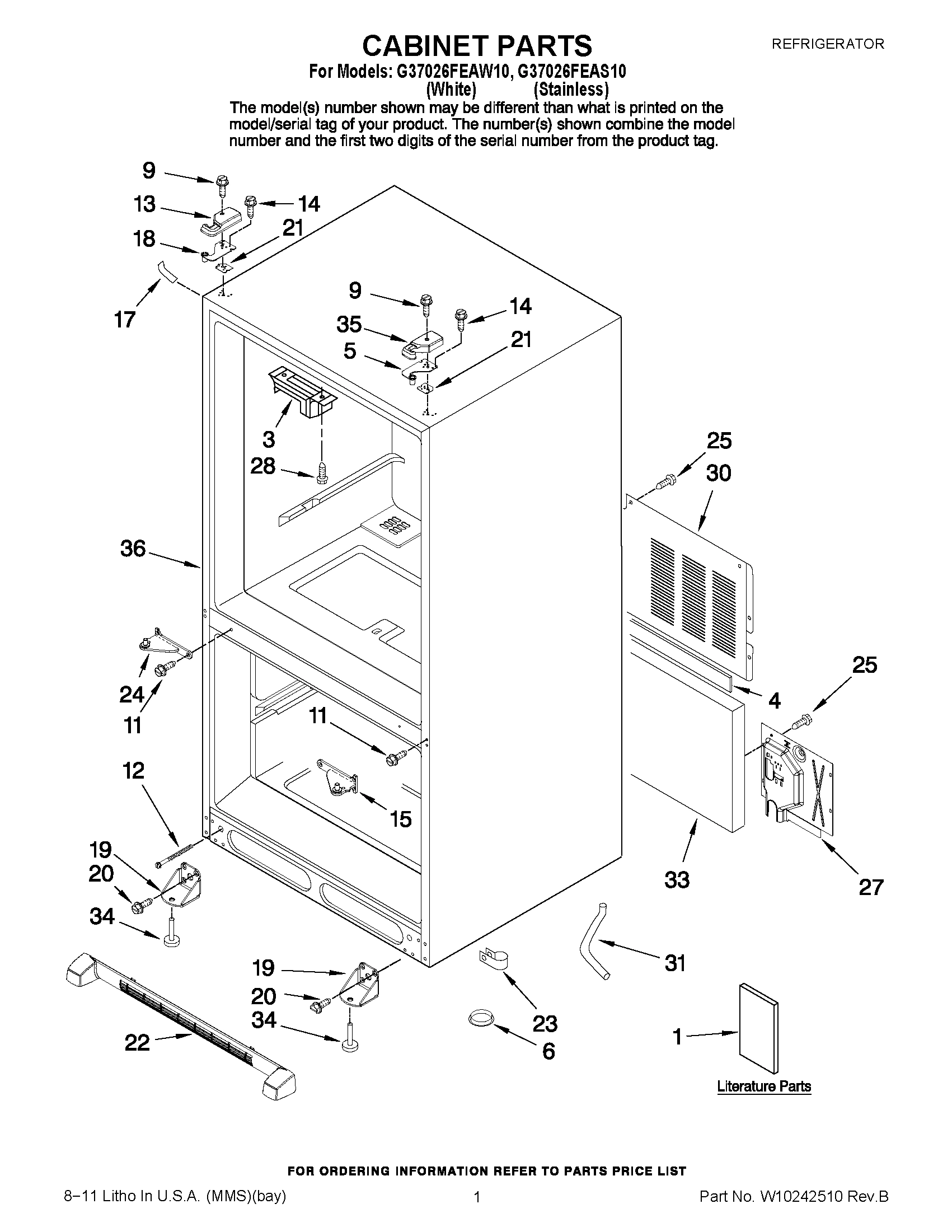

01 - CABINET PARTS

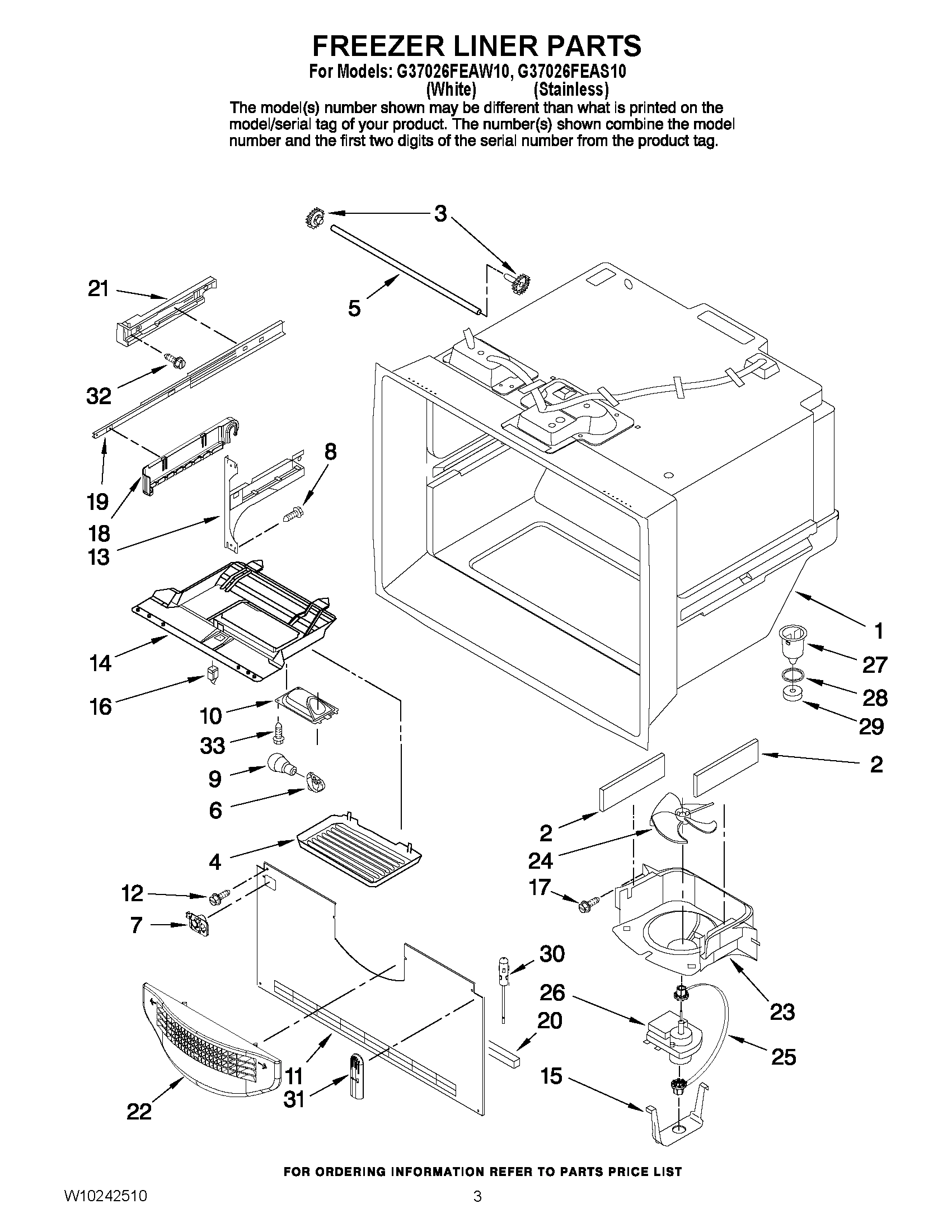

02 - FREEZER LINER PARTS
03 - REFRIGERATOR LINER PARTS
04 - REFRIGERATOR DOOR PARTS
05 - UNIT PARTS
06 - SHELF PARTS
07 - FREEZER DOOR PARTS
08 - ICEMAKER PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag G37026FEAS10 REFRIGERATOR
1
MAY 67002761 MAY 67002761 Contact Us For Availability
1
MAY 12732427WQ MAY 12732427WQ Contact Us For Availability
1
MAY 13024032SQ MAY 13024032SQ Contact Us For Availability
1
MAY 67006433 MAY 67006433 Contact Us For Availability
1
MAY W10185588 MAY W10185588 Contact Us For Availability
1
Freezer Door (White) MAY W10188317 Contact Us For Availability
1
Bracket, Ice Maker MAY 2256087 Contact Us For Availability
2
Bracket, Control and Lights MAY 67004078 Contact Us For Availability
2
Door, Right (White) MAY 67007053 Contact Us For Availability
2
MAY W10185587 MAY W10185587 Contact Us For Availability
2
MAY W10156818 MAY W10156818 Contact Us For Availability
2
MAY W10208663 MAY W10208663 Contact Us For Availability
2
Handle (Stainless) MAY 12850909 Contact Us For Availability
2
Handle (White) MAY W10119663 Contact Us For Availability
2
MAY 67003729 MAY 67003729 Contact Us For Availability
3
Keyboard MAY 67005055 Contact Us For Availability
3
MAY 67005889 MAY 67005889 Contact Us For Availability
3
MAY 67006608 MAY 67006608 Contact Us For Availability
3
MAY W10164040 MAY W10164040 Contact Us For Availability
3
MAY W10164041 MAY W10164041 Contact Us For Availability
3
MAY 67003932 MAY 67003932 Contact Us For Availability
4
Housing, Control MAY W10185244 Contact Us For Availability
4
Screw (2) MAY 67006425 Contact Us For Availability
4
MAY 489276 MAY 489276 Contact Us For Availability
5
MAY 12784416 MAY 12784416 Contact Us For Availability
6
Switch, Light (2) MAY C3680310 Contact Us For Availability
6
MAY W10198907 MAY W10198907 Contact Us For Availability
6
MAY W10198908 MAY W10198908 Contact Us For Availability
6
Compressor (Includes items 11,12,17,27, & 30) MAY 12049773 Contact Us For Availability
7
MAY 67006786 MAY 67006786 Contact Us For Availability
7
MAY W10169651 MAY W10169651 Contact Us For Availability
7
MAY 12582501 MAY 12582501 Contact Us For Availability
8
Gasket, Door (2) (White) MAY W10163894 Contact Us For Availability
8
MAY W10163895 MAY W10163895 Contact Us For Availability
8
Divider, Upper Basket MAY 67004127 Contact Us For Availability
8
MAY A3223101 MAY A3223101 Contact Us For Availability
9
MAY 61004743 MAY 61004743 Contact Us For Availability
9
Handle, Door (Stainless) MAY 12850910 Contact Us For Availability
9
MAY W10119666 MAY W10119666 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
10
MAY 67001035 MAY 67001035 Contact Us For Availability
10
Socket, Light (2) MAY W10134764 Contact Us For Availability
10
MAY 12729120 MAY 12729120 Contact Us For Availability
10
MAY 67005625 MAY 67005625 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
MAY 12968202W MAY 12968202W Contact Us For Availability
11
MAY 67007162 MAY 67007162 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
Screw (2) MAY 67006602 Contact Us For Availability
12
Nameplate MAY 66981-5 Contact Us For Availability
12
Overload/Relay (Service) MAY 2303344 Contact Us For Availability
12
MAY 67006453 MAY 67006453 Contact Us For Availability
12
MAY 67003793 MAY 67003793 Contact Us For Availability
12
MAY 2182124 MAY 2182124 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
MAY 67006604 MAY 67006604 Contact Us For Availability
14
Thermostat, Def. MAY 12639322SP Contact Us For Availability
14
Glide, Drawer(2) MAY 67007026 Contact Us For Availability
14
Retainer MAY 2315522 Contact Us For Availability
15
Control, Damper (Incl. Harness) MAY W10177399 Contact Us For Availability
15
Thermostat (Order 542369 Cement Alumilastic) MAY 627985 Contact Us For Availability
16
MAY 12575310 MAY 12575310 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
MAY 67007052 MAY 67007052 Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY 12975112 MAY 12975112 Contact Us For Availability
19
MAY 67004700 MAY 67004700 Contact Us For Availability
19
MAY 67004636 MAY 67004636 Contact Us For Availability
19
MAY M0114003 MAY M0114003 Contact Us For Availability
20
Gasket, Bottom MAY 67003731 Contact Us For Availability
20
MAY 67002490 MAY 67002490 Contact Us For Availability
20
Module Assembly (Includes Items 21& 22) MAY 626678 Contact Us For Availability
21
MAY W10128118 MAY W10128118 Contact Us For Availability
21
MAY W10128119 MAY W10128119 Contact Us For Availability
21
MAY 10623002 MAY 10623002 Contact Us For Availability
21
MAY 626684 MAY 626684 Contact Us For Availability
22
MAY W10175909 MAY W10175909 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
SHROUD, EVAP FAN MAY W10167023 Contact Us For Availability
23
MAY 67001083 MAY 67001083 Contact Us For Availability
23
MAY 67001084 MAY 67001084 Contact Us For Availability
23
MAY W10137519 MAY W10137519 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY W10211284 MAY W10211284 Contact Us For Availability
24
Screw (6) MAY 67006400 Contact Us For Availability
24
MAY 67005603 MAY 67005603 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
26
MAY 67005023 MAY 67005023 Contact Us For Availability
26
Harness, MC MAY W10169655 Contact Us For Availability
26
Screw (4) MAY 67006415 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
MAY 67005864 MAY 67005864 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
MAY 10547003 MAY 10547003 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 67004953 MAY 67004953 Contact Us For Availability
31
MAY 67006432 MAY 67006432 Contact Us For Availability
32
Screw (6) MAY 67006406 Contact Us For Availability
32
Screw (4) MAY 67006573 Contact Us For Availability
32
MAY W10143562 MAY W10143562 Contact Us For Availability
33
MAY 67006530 MAY 67006530 Contact Us For Availability
33
Divider, Lower Basket MAY 67006644 Contact Us For Availability
34
Basket, Freezer (Upper) MAY W10143524 Contact Us For Availability
38
Supports, Crisper Frame MAY 13062602 Contact Us For Availability
39
Rack, Ice Tray MAY 8170880 Contact Us For Availability
40
MAY 10972101 MAY 10972101 Contact Us For Availability
42
Grommet (4) MAY W10137529 Contact Us For Availability
42
Ice Cube Tray MAY 67001747 Contact Us For Availability
43
MAY 67005491 MAY 67005491 Contact Us For Availability
44
SCREW MAY 67006737 Contact Us For Availability
NI
MAY 13065802 MAY 13065802 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY 12973603 MAY 12973603 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, White (13 MAY 350930 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Black (13 MAY 350939 Contact Us For Availability
NI
Customer Touch-Up Material (Primer, White (13 MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
