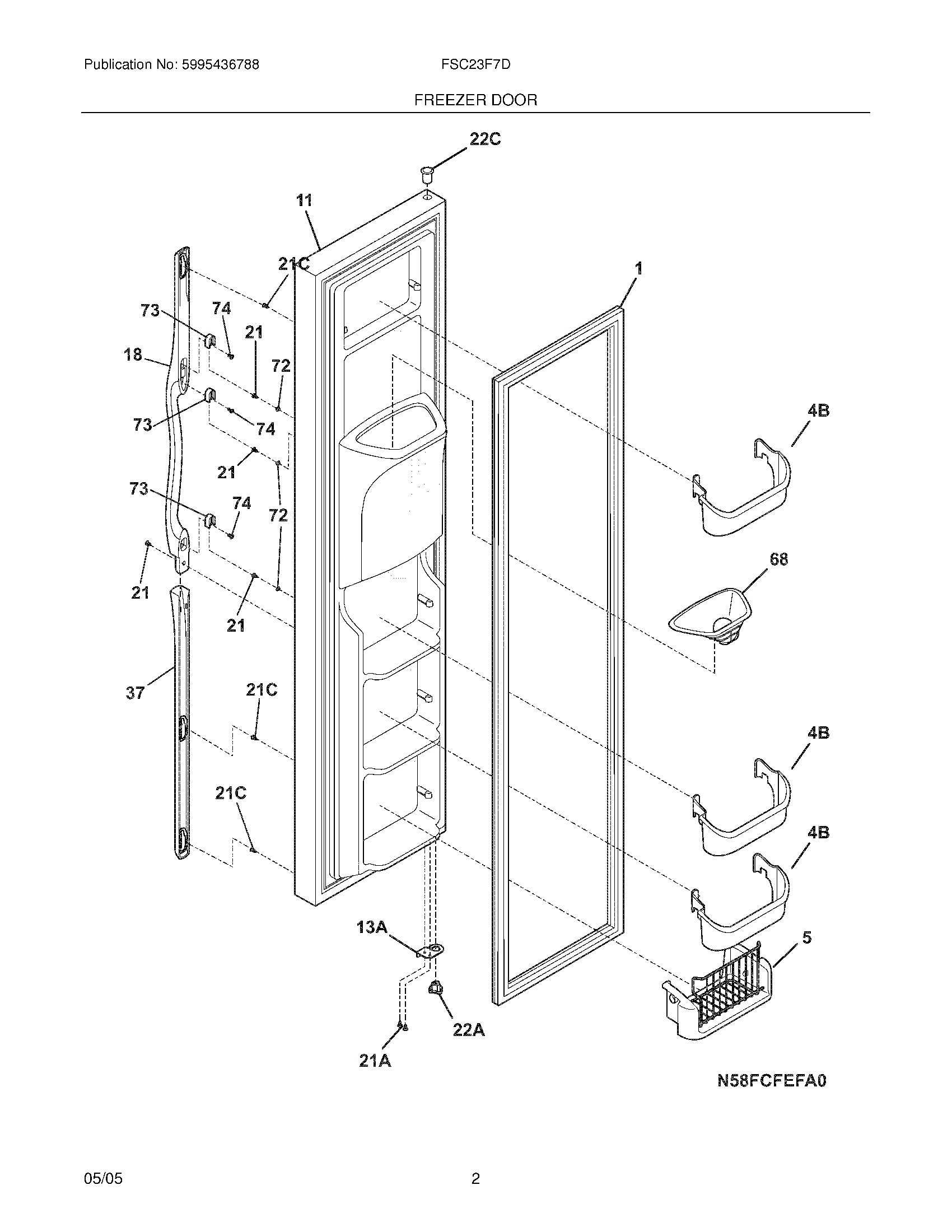

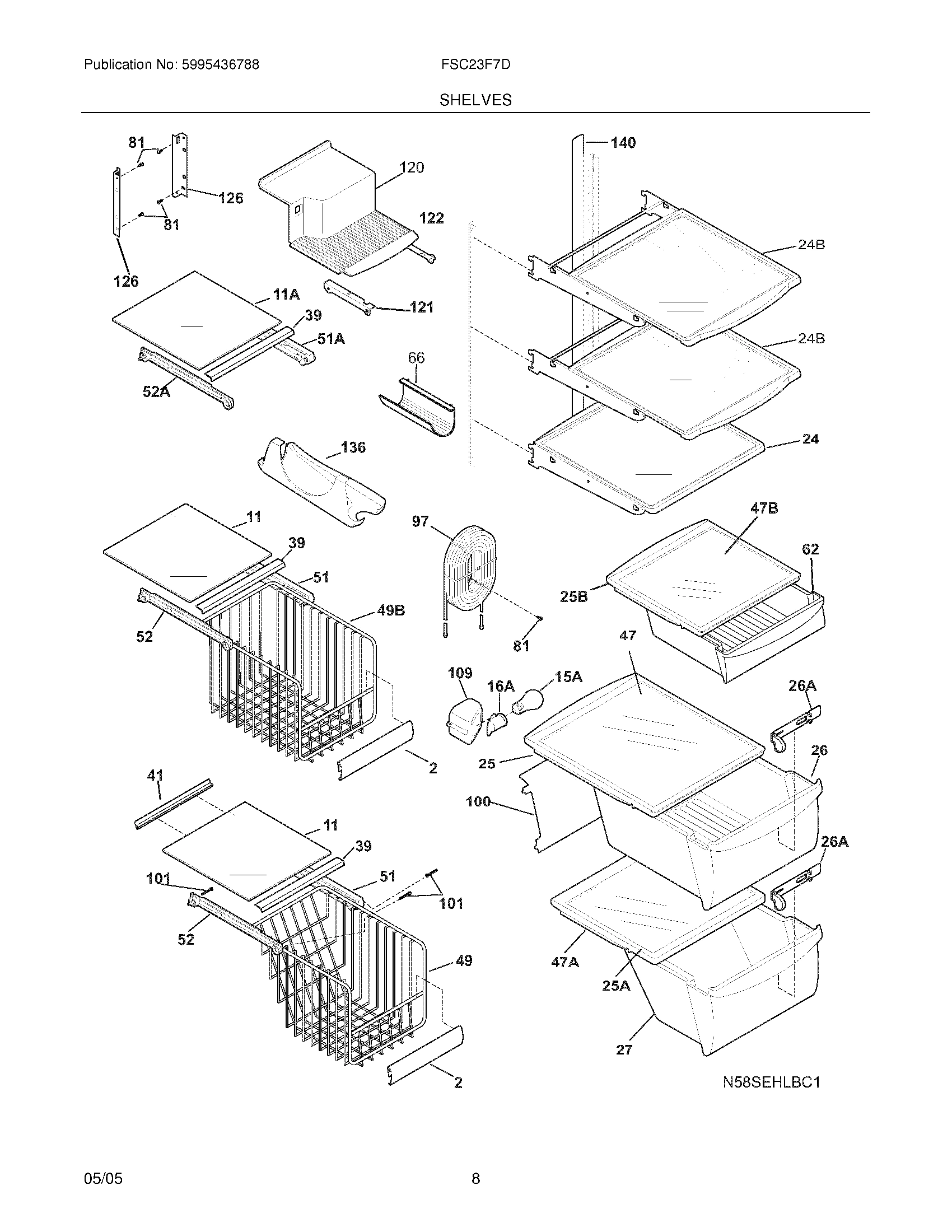

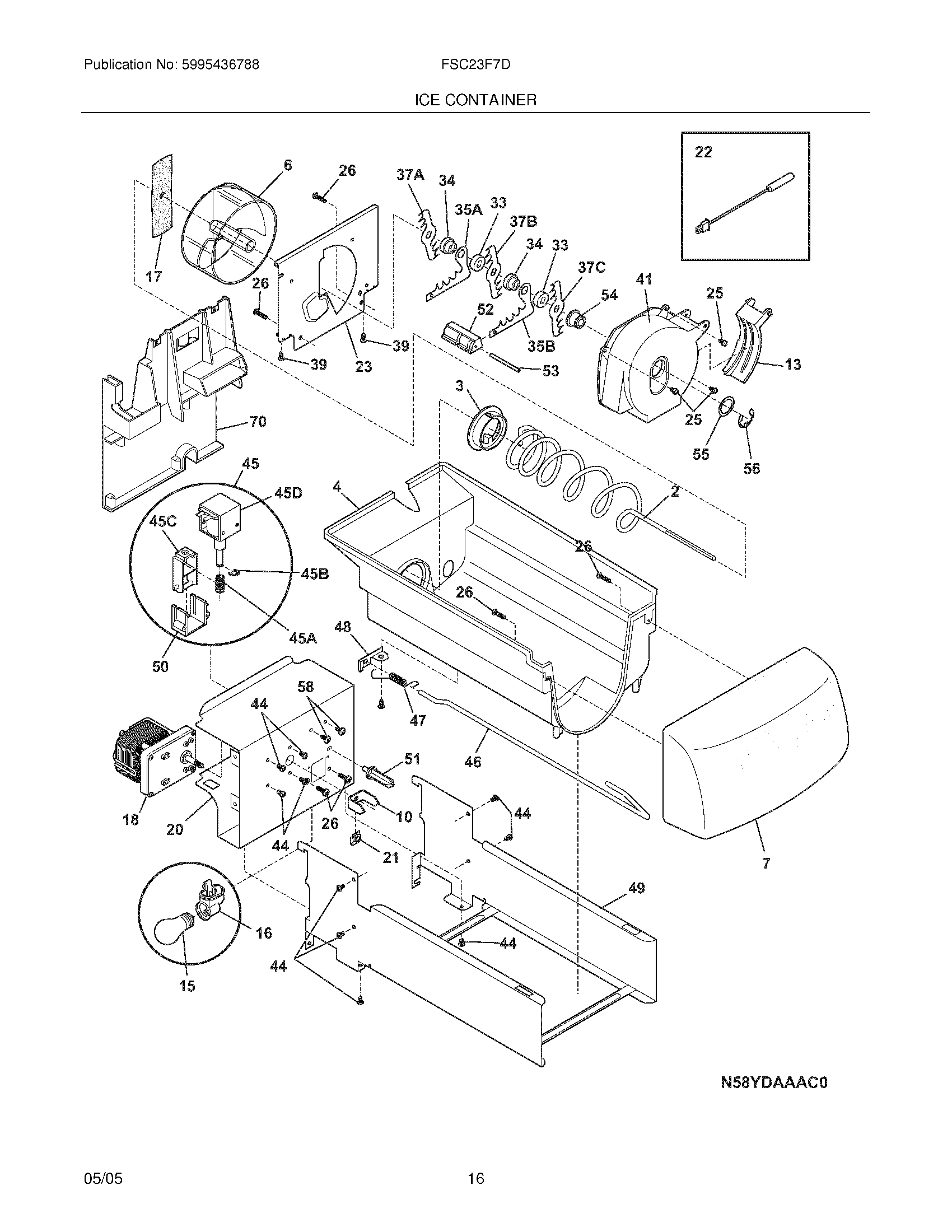

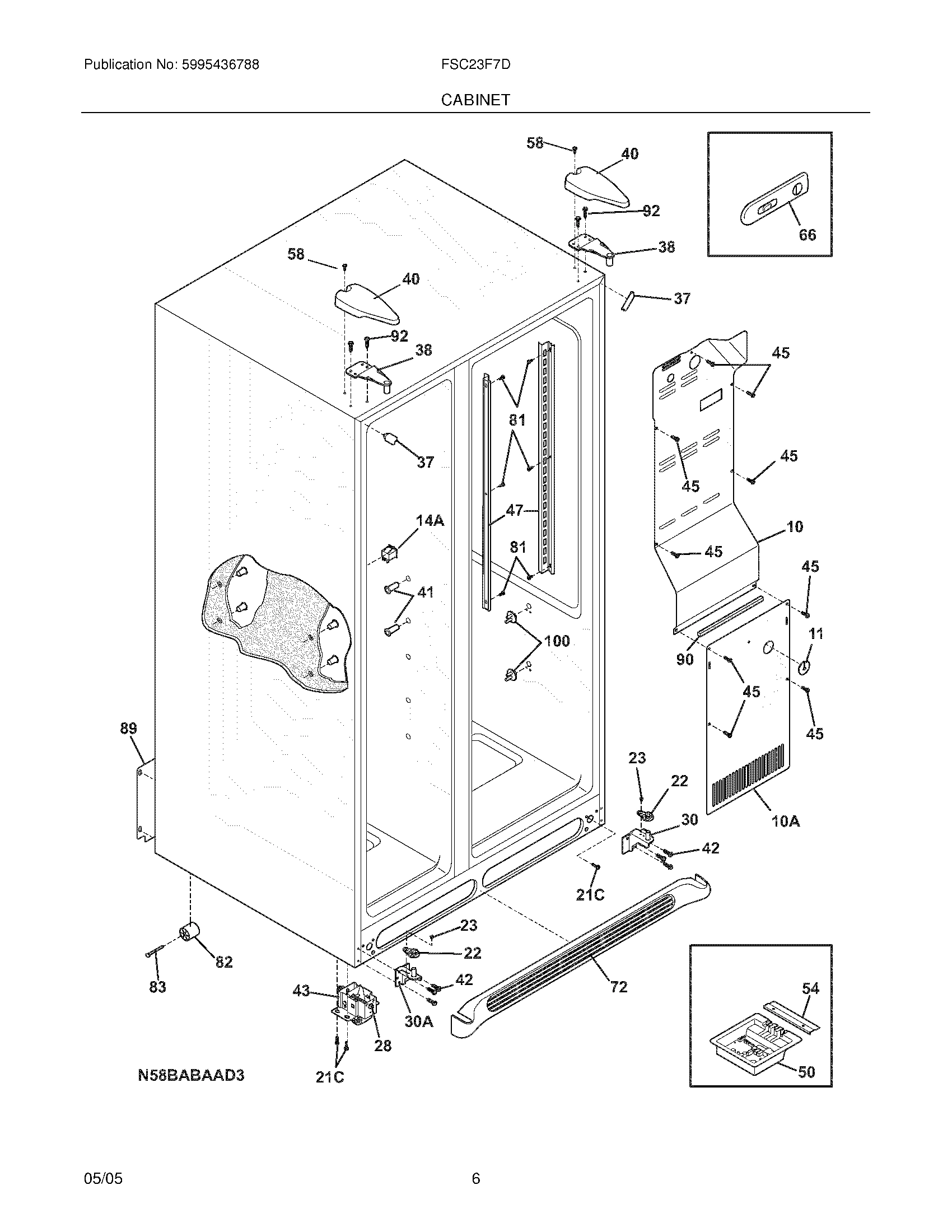

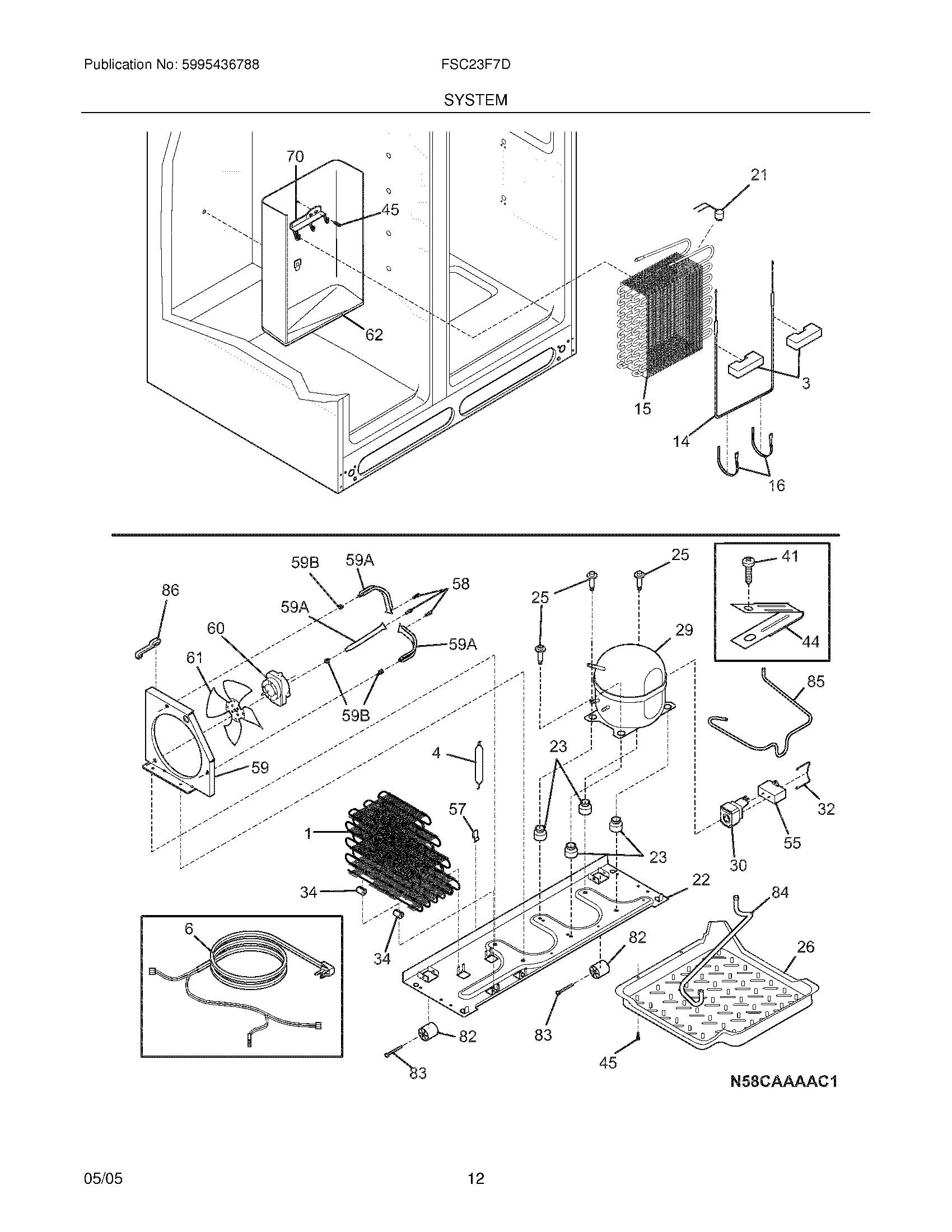

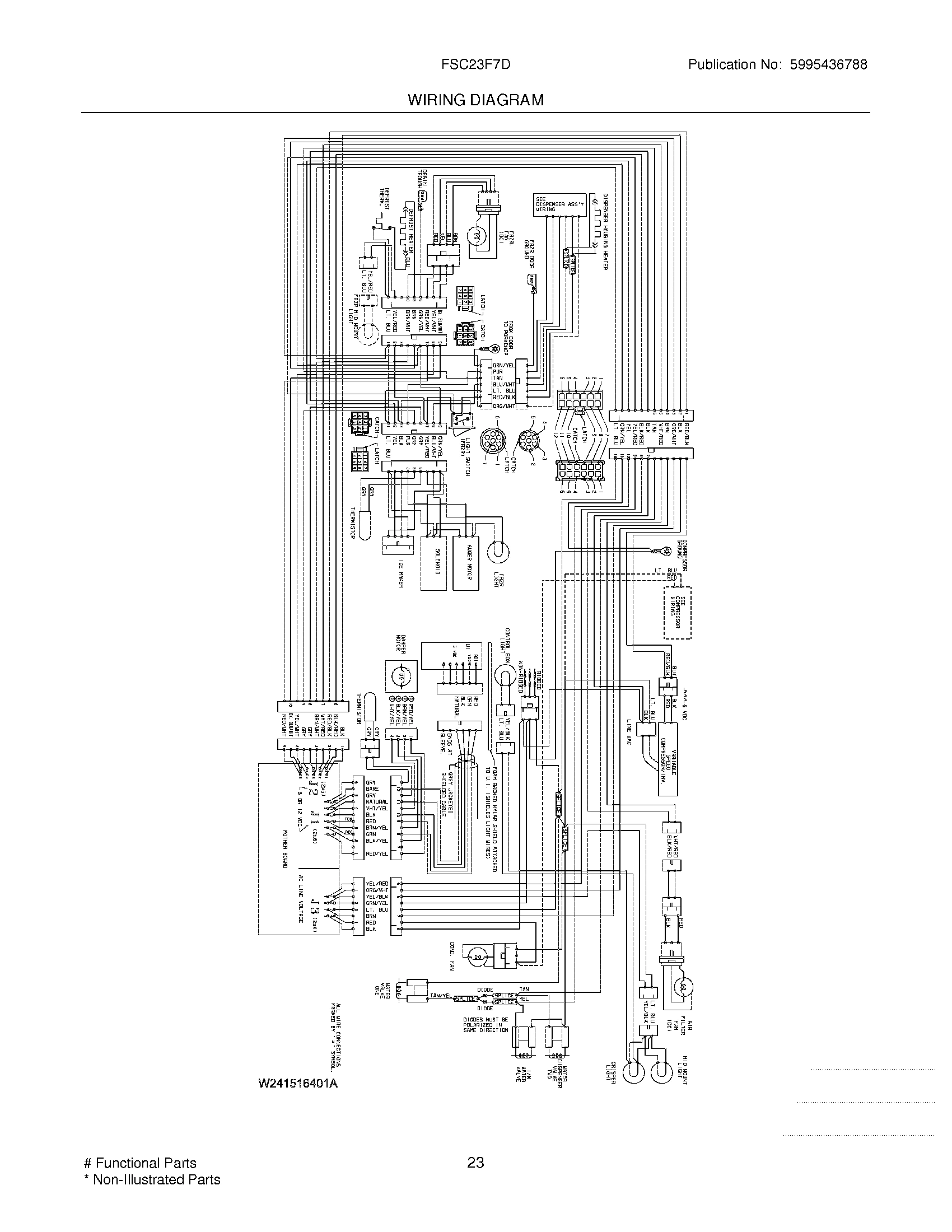

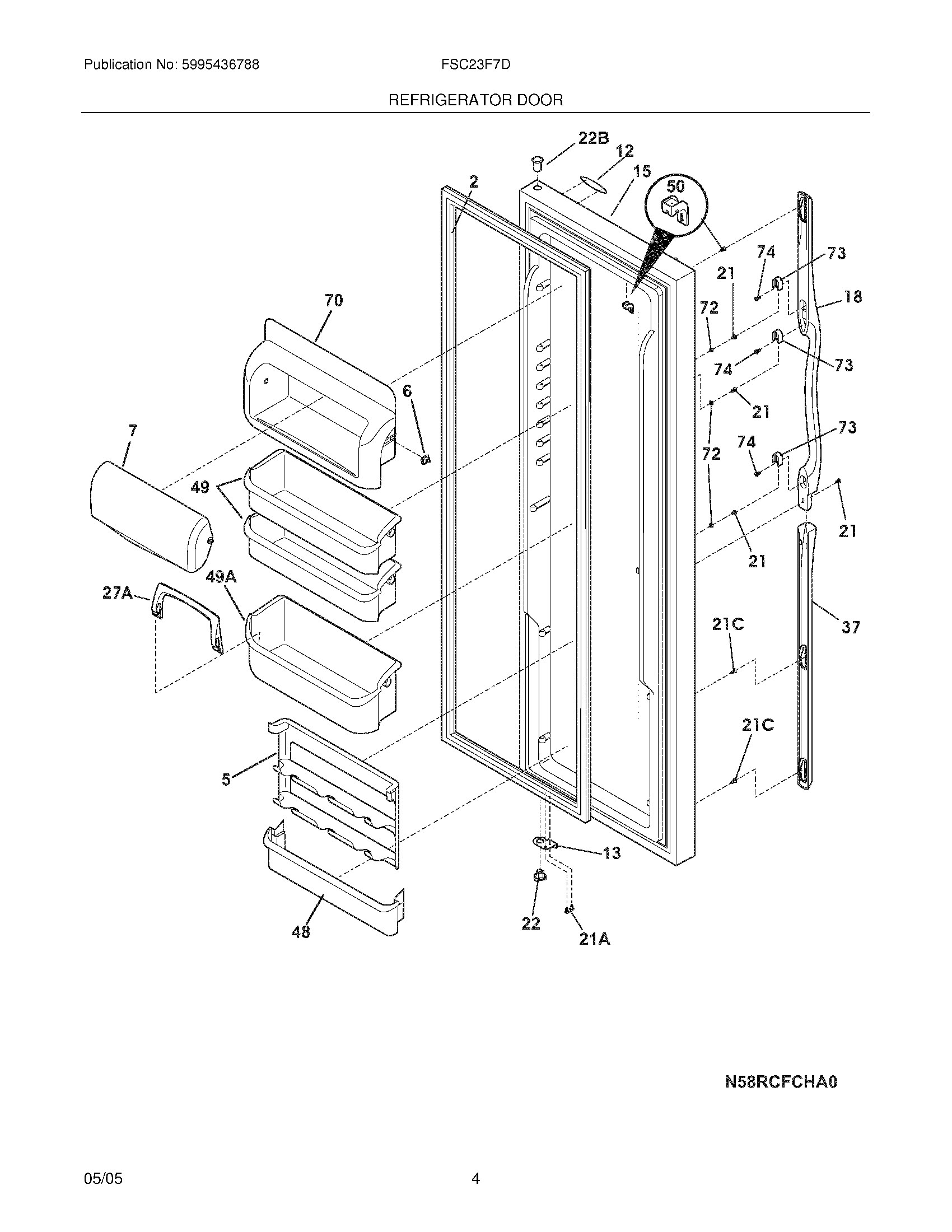

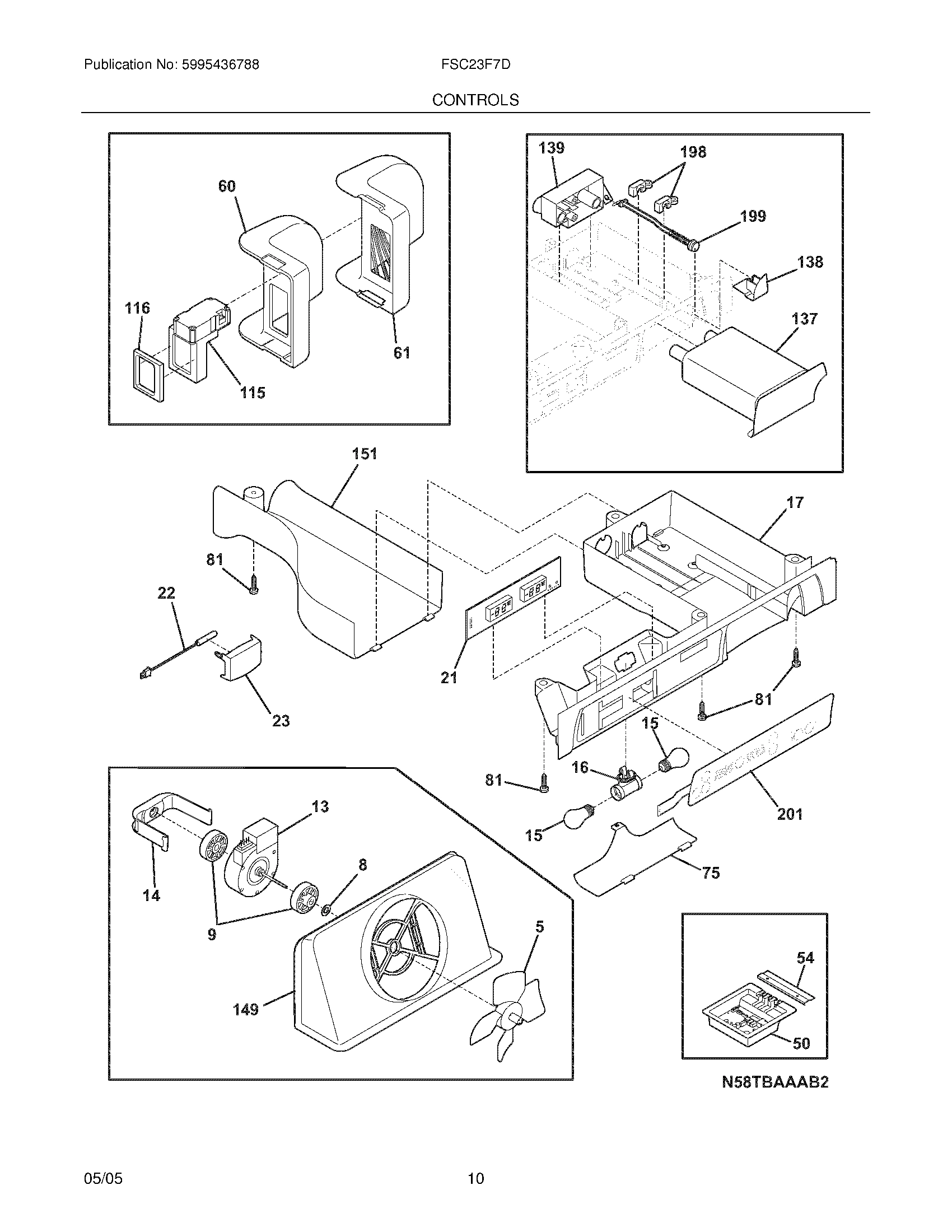

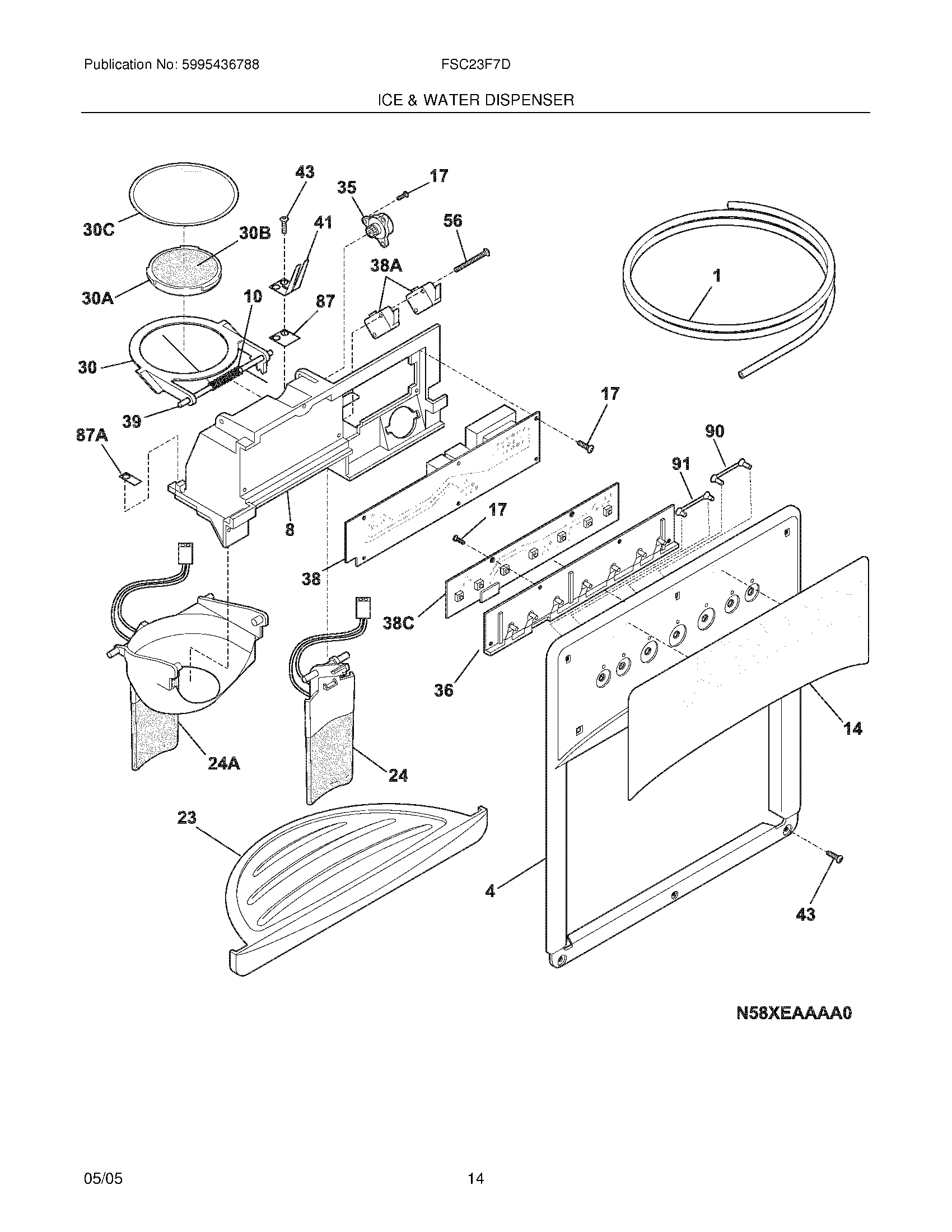

Model Electrolux FSC23F7DB5 REFRIGERATOR – Common Parts &amp; Diagrams

1

241510204 Frigidaire Refrigerator Door Gasket Backorder WCI 241510204 $58.27

2

241510203 Frigidaire Refrigerator Gasket Door Backorder WCI 241510203 $59.64

2

241684701 Frigidaire Refrigerator Ice Auger Backorder WCI 241684701 $144.11

2

WCI 5304436616 WCI 5304436616 Contact Us For Availability

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $26.72

4

241515202 Frigidaire Refrigerator Container Backorder WCI 241515202 $60.48

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4B

241511602 Frigidaire Refrigerator Door Bin In Stock WCI 241511602 $46.46

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

5

WCI 241516102 WCI 241516102 Contact Us For Availability

5

WCI 5304436604 WCI 5304436604 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

241515901 Frigidaire Refrigerator Dairy Compa Backorder WCI 241515901 $25.35

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $23.09

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

7

241515301 Frigidaire Refrigerator Cover Backorder WCI 241515301 $71.94

7

241515606 Frigidaire Refrigerator Door-Dairy In Stock WCI 241515606 $24.46

7

5304469407 Frigidaire Refrigerator Ice Maker Backorder WCI 5304469407 $97.46

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

SPACER-HOLD SWITCH WCI 3206312 Contact Us For Availability

9

241518301 Frigidaire Refrigerator Bushing Backorder WCI 241518301 $42.12

9

WCI 5304436610 WCI 5304436610 Contact Us For Availability

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.57

10

WCI 3206315 WCI 3206315 Contact Us For Availability

10A

WCI 240475907 WCI 240475907 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11

WCI 5304436618 WCI 5304436618 Contact Us For Availability

11A

240443358 Frigidaire Refrigerator Shelf In Stock WCI 240443358 $57.37

12

WCI 5304436614 WCI 5304436614 Contact Us For Availability

13

5303918455 Frigidaire Refrigerator Adjustable In Stock WCI 5303918455 $87.38

13

WCI 5304436613 WCI 5304436613 Contact Us For Availability

14

WCI 240323957 WCI 240323957 Contact Us For Availability

14

WCI 5304420652 WCI 5304420652 Contact Us For Availability

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $10.86

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15

5303918284 Frigidaire Refrigerator Evaporator In Stock WCI 5303918284 $330.62

15

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

16

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

16

WCI 5304436609 WCI 5304436609 Contact Us For Availability

16A

241622802 Frigidaire Refrigerator Light Socke Backorder WCI 241622802 $37.63

17

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

18

5304462594 Frigidaire Refrigerator Auger Moto Backorder WCI 5304462594 $182.46

18

WCI 5304436607 WCI 5304436607 Contact Us For Availability

19

WCI 5304436606 WCI 5304436606 Contact Us For Availability

20

WCI 5304404332 WCI 5304404332 Contact Us For Availability

20

WCI 5304408581 WCI 5304408581 Contact Us For Availability

21

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21

5304473031 Frigidaire Refrigerator Ice Stripp Backorder WCI 5304473031 $17.68

240328203 Frigidaire Refrigerator Door Hinge In Stock WCI 240328203 $13.57

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $36.22

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

WCI 5304436602 WCI 5304436602 Contact Us For Availability

22B

WCI 240328403 No Longer Available

22C

240328404 Frigidaire Refrigerator Upper Door In Stock WCI 240328404 $14.61

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241512901 Frigidaire Refrigerator Sensor Cove Backorder WCI 241512901 $50.24

241649003 Frigidaire Refrigerator Drip Tray In Stock WCI 241649003 $38.99

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

WCI 240402701 WCI 240402701 Contact Us For Availability

WCI 5304408582 WCI 5304408582 Contact Us For Availability

24

241685703 Frigidaire Refrigerator Lighted Wat In Stock WCI 241685703 $58.00

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24A

241682303 Frigidaire Refrigerator Actuator Backorder WCI 241682303 $133.50

25

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

25

240599301 Frigidaire Refrigerator Crisper Dra In Stock WCI 240599301 $39.88

26

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $9.50

26

240351061 Frigidaire Refrigerator Crisper Pan In Stock WCI 240351061 $45.88

26

WCI 5304420654 WCI 5304420654 Contact Us For Availability

26A

240362201 Frigidaire Refrigerator Humidity Co Backorder WCI 240362201 $43.91

27

240351240 Frigidaire Refrigerator Crisper Pan In Stock WCI 240351240 $113.90

27

SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,(2) WCI 3206338 Contact Us For Availability

27A

240396102 Frigidaire Refrigerator Retainer Backorder WCI 240396102 $12.22

28

Screw-timing stop`4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

SCREW,4-24 X 0.750 ,(6) WCI 3206323 Contact Us For Availability

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.71

30

SCREW-TIMING ADJ,8-32 X 1.000 WCI 3206341 Contact Us For Availability

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $33.84

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $39.94

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.59

31

WCI 3206342 WCI 3206342 Contact Us For Availability

32

WCI 3206343 WCI 3206343 Contact Us For Availability

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

33

WCI 5304436615 WCI 5304436615 Contact Us For Availability

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

34

WCI 5304420655 WCI 5304420655 Contact Us For Availability

35

WCI 5304421620 WCI 5304421620 Contact Us For Availability

35

WCI 5304408585 WCI 5304408585 Contact Us For Availability

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

36

WCI 5304421824 WCI 5304421824 Contact Us For Availability

36

WCI 5304436605 WCI 5304436605 Contact Us For Availability

37

WCI 240337603 WCI 240337603 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38

WCI 5304433619 WCI 5304433619 Contact Us For Availability

38A

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $5.10

38C

241708306 Frigidaire Refrigerator Control Boa Backorder WCI 241708306 $281.35

38C

WCI 5304430811 WCI 5304430811 Contact Us For Availability

39

240367603 Frigidaire Refrigerator Shelf Trim Backorder WCI 240367603 $47.07

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $27.62

39

241690501 Frigidaire Refrigerator Screw Backorder WCI 241690501 $10.41

40

240327007 Frigidaire Refrigerator Upper Hinge Backorder WCI 240327007 $34.43

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $14.03

241885001 Frigidaire Refrigerator Ice Crusher In Stock WCI 241885001 $47.97

WCI 241571201 WCI 241571201 Contact Us For Availability

42

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

43

WCI 215296300 WCI 215296300 Contact Us For Availability

44

WCI 218359200 WCI 218359200 Contact Us For Availability

45

241675704 Frigidaire Refrigerator Solenoid As In Stock WCI 241675704 $27.19

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.07

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $10.41

46

WCI 5304436635 WCI 5304436635 Contact Us For Availability

47

241513001 Frigidaire Refrigerator Shelf Mount In Stock WCI 241513001 $66.34

47

WCI 5304404342 WCI 5304404342 Contact Us For Availability

47A

240350603 Frigidaire Glass Shelf Backorder WCI 240350603 $73.07

48

241511701 Frigidaire Refrigerator Door Bin In Stock WCI 241511701 $40.45

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

49

241505301 Frigidaire Refrigerator Shelf Bin-D In Stock WCI 241505301 $42.57

49

241515001 Frigidaire Refrigerator Basket Slid Backorder WCI 241515001 $110.18

49

WCI 5304436702 WCI 5304436702 Contact Us For Availability

49A

241505501 Frigidaire Refrigerator Door Bin In Stock WCI 241505501 $39.78

49B

WCI 241514901 WCI 241514901 Contact Us For Availability

50

WCI 241511101 No Longer Available

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

50

WCI 241508401 WCI 241508401 Contact Us For Availability

51

241514501 Frigidaire Refrigerator Basket Hang Backorder WCI 241514501 $46.62

51

241796406 Frigidaire Refrigerator Water Fill Backorder WCI 241796406 $12.67

51

WCI 5304404336 WCI 5304404336 Contact Us For Availability

51A

241514701 Frigidaire Refrigerator Glass Shelf Backorder WCI 241514701 $40.32

52

241514601 Frigidaire Refrigerator Basket Hang Backorder WCI 241514601 $48.39

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

52A

241514801 Frigidaire Refrigerator Glass Shelf Backorder WCI 241514801 $236.28

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

WCI 241532401 No Longer Available

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $33.24

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

56

WCI 5304421830 WCI 5304421830 Contact Us For Availability

58

WCI 5304404331 WCI 5304404331 Contact Us For Availability

60

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

66

WCI 5304436611 WCI 5304436611 Contact Us For Availability

67

5304465210 Frigidaire Refrigerator Switch Kit Backorder WCI 5304465210 $134.77

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $48.59

70

241515801 Frigidaire Refrigerator Compartment Backorder WCI 241515801 $109.45

70

WCI 241504601 WCI 241504601 Contact Us For Availability

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.67

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.67

90

WCI 5304421831 WCI 5304421831 Contact Us For Availability

91

WCI 5304421850 WCI 5304421850 Contact Us For Availability

97

WCI 241532002 WCI 241532002 Contact Us For Availability

115

5303918899 Frigidaire Damper Control Assembly In Stock WCI 5303918899 $31.65

116

241518601 Frigidaire Refrigerator Damper Seal In Stock WCI 241518601 $5.88

121

WCI 241504701 WCI 241504701 Contact Us For Availability

122

WCI 241504702 WCI 241504702 Contact Us For Availability

138

WCI 240397301 WCI 240397301 Contact Us For Availability

139

240396002 Frigidaire Refrigerator Primary Bas In Stock WCI 240396002 $61.79

149

242204504 Frigidaire Shroud Assembly Backorder WCI 242204504 $23.09

198

240397401 Frigidaire Refrigerator Retainer As Backorder WCI 240397401 $37.63

199

240398401 Frigidaire Refrigerator Filter Rele Backorder WCI 240398401 $35.32

199

WCI 240397501 WCI 240397501 Contact Us For Availability

201

WCI 241504102 WCI 241504102 Contact Us For Availability

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

218709101 Frigidaire Refrigerator Handle Moun Backorder WCI 218709101 $4.09

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

218976903 Frigidaire Refrigerator Water Inlet Backorder WCI 218976903 $44.38

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $12.24

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $28.07

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

241519401 Frigidaire Refrigerator Clip Backorder WCI 241519401 $5.40

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

241583301 Frigidaire Refrigerator Air Deflect Backorder WCI 241583301 $29.88

241914702 Frigidaire Refrigerator Ice Contain In Stock WCI 241914702 $135.60

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $342.79

5303918344 Frigidaire Refrigerator Kit Ice Ma In Stock WCI 5303918344 $71.60

WCI 5303918222 WCI 5303918222 Contact Us For Availability

WCI 241522901 WCI 241522901 Contact Us For Availability

WCI 218888001 WCI 218888001 Contact Us For Availability

WCI 218976912 WCI 218976912 Contact Us For Availability

WCI 5303918300 WCI 5303918300 Contact Us For Availability

WCI 241519901 WCI 241519901 Contact Us For Availability

WCI 218976911 WCI 218976911 Contact Us For Availability

WCI 5304426535 WCI 5304426535 Contact Us For Availability

WCI 241551601 WCI 241551601 Contact Us For Availability

WCI 5304404364 WCI 5304404364 Contact Us For Availability

WCI 218515402 WCI 218515402 Contact Us For Availability

WCI 240352601 WCI 240352601 Contact Us For Availability

WCI 241604801 WCI 241604801 Contact Us For Availability
