Model Whirlpool FG6280 WASHER – Common Parts & Diagrams
01 - CABINET TOP
02 - CLOTHES DRUM

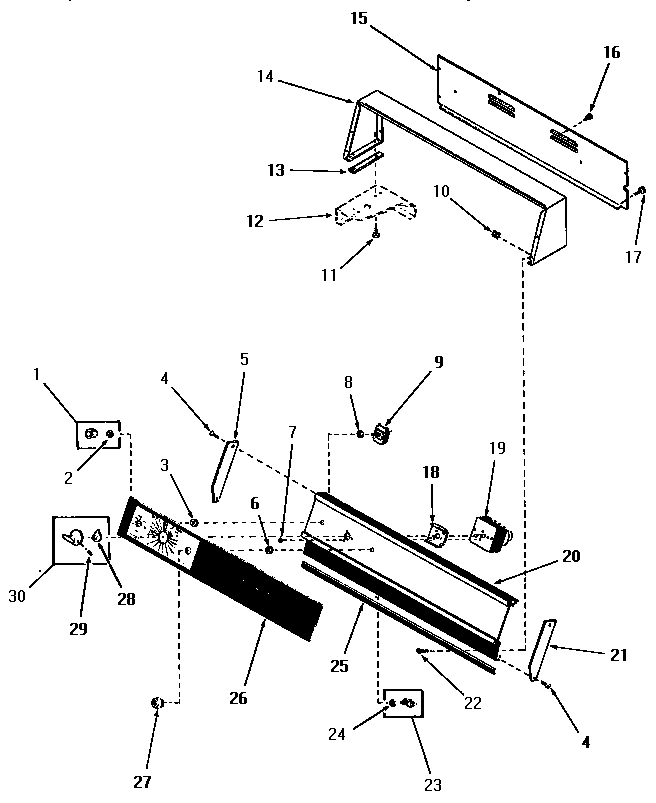

03 - CONTROL PANEL, CONTROL HOOD AND CONTROLS

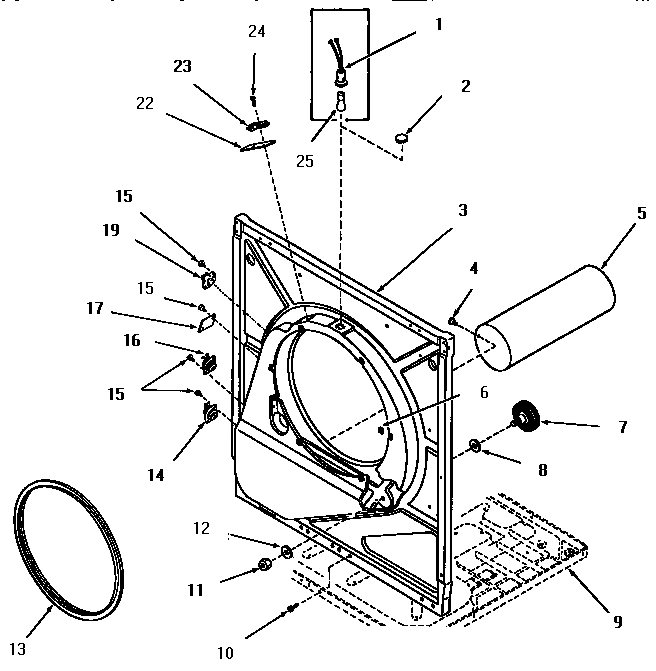

06 - FRONT FRAME AND AIR SHROUD

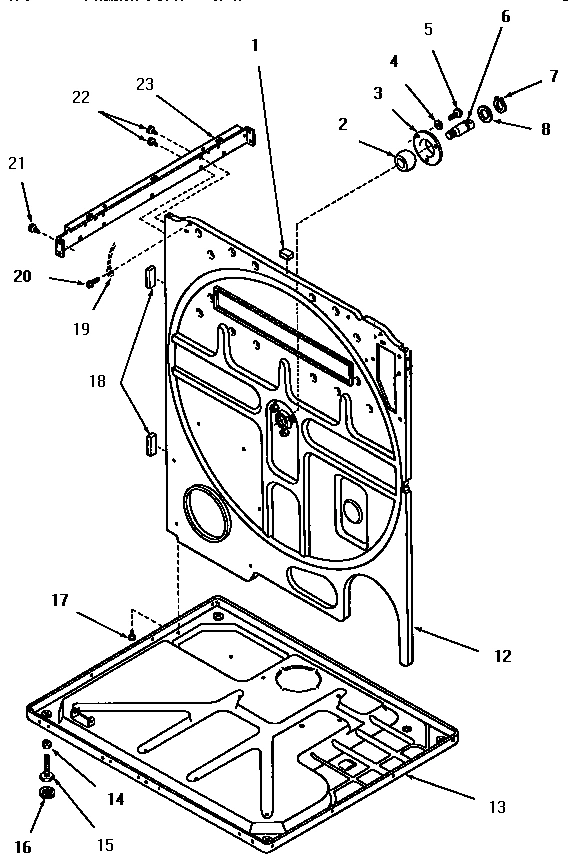

13 - REAR FRAME AND FRAME BASE

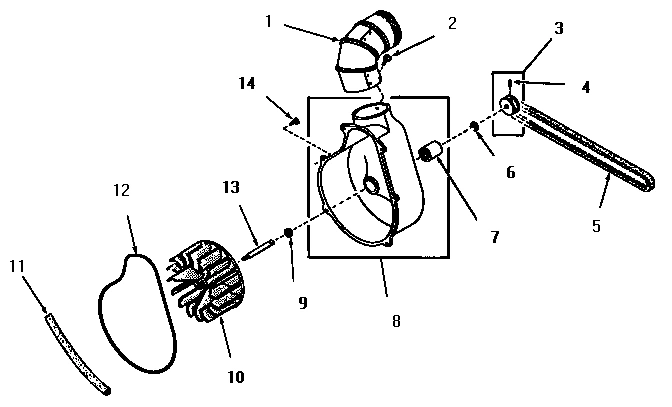

05 - EXHAUST FAN

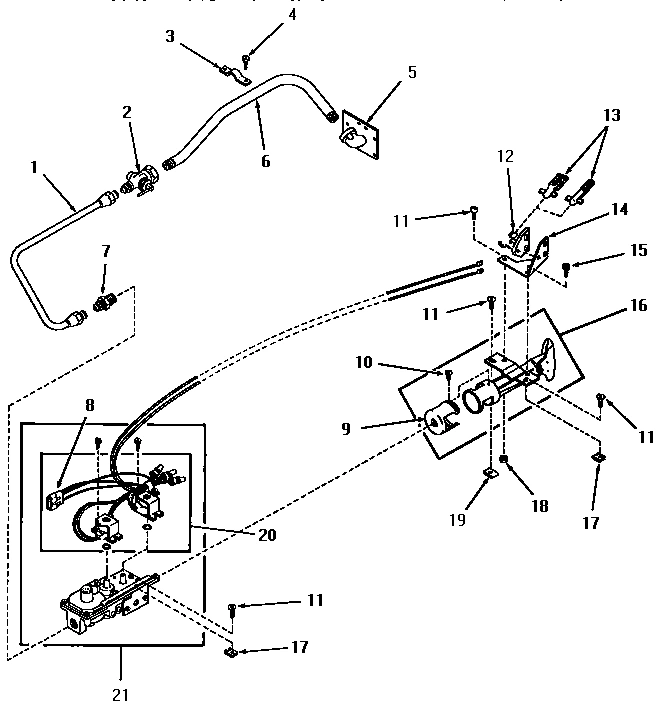

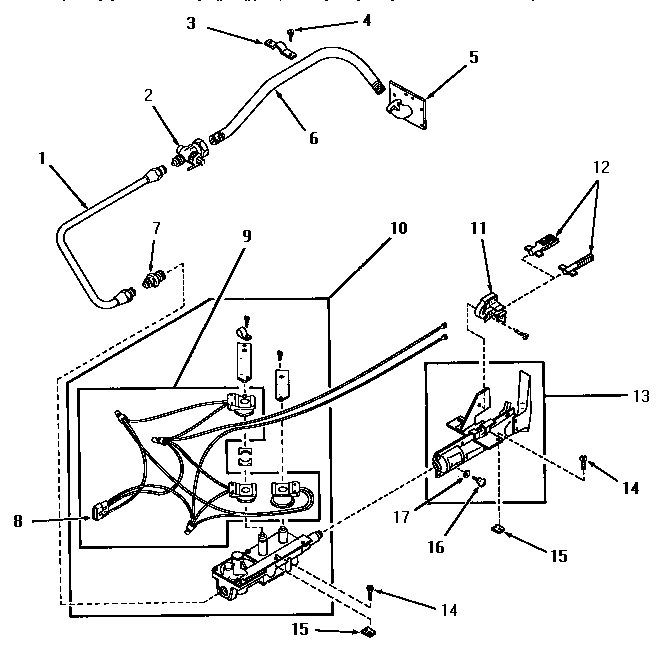

07 - GLOW BAR IGNITION BURNER
08 - GLOW BAR IGNITION BURNER

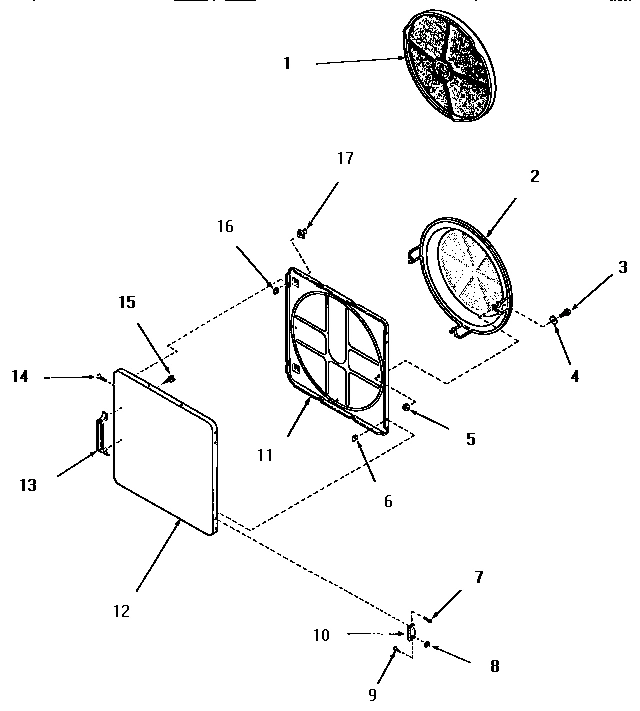

10 - LOADING DOOR

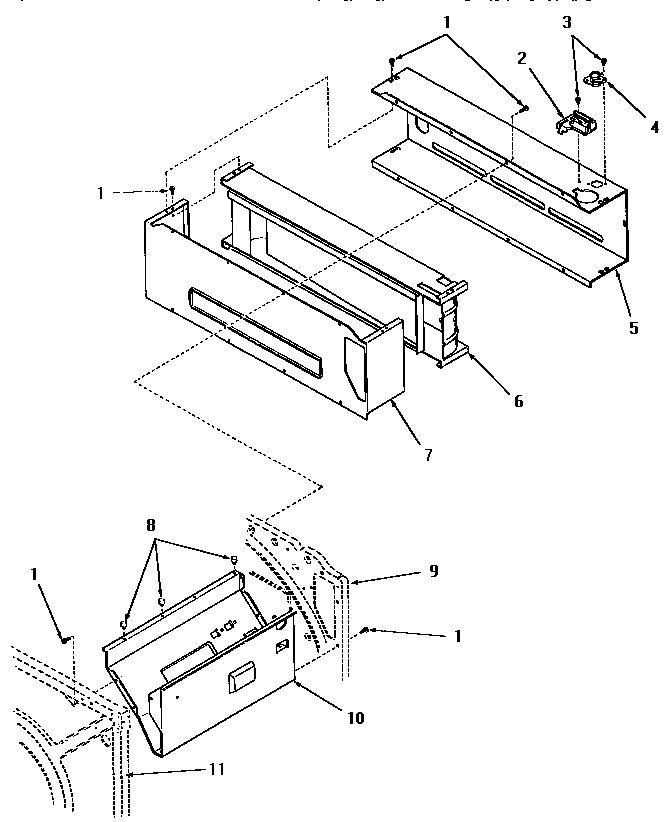

09 - HEATER BOX

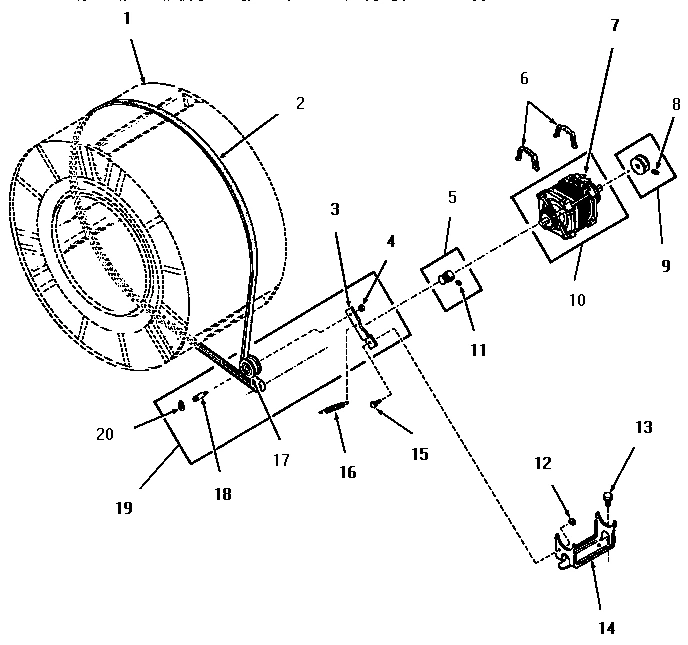

11 - MOTOR, IDLER AND BELT

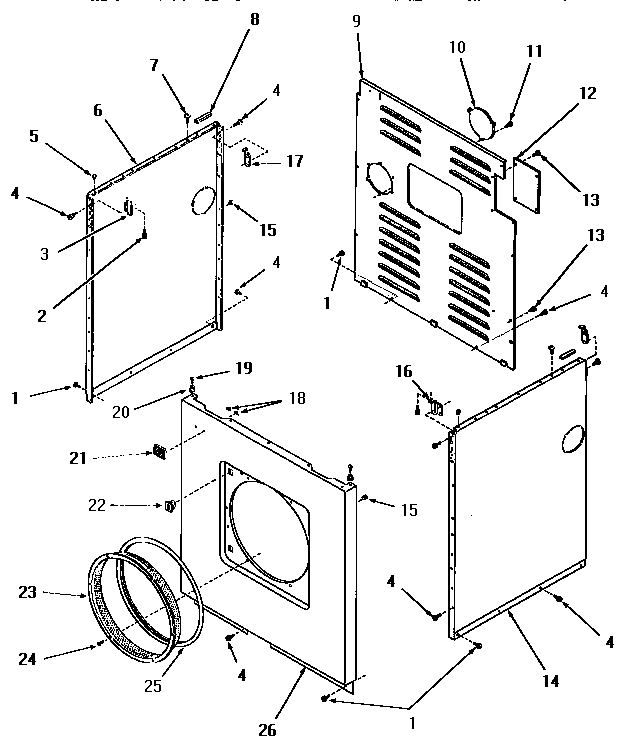

12 - PANELS

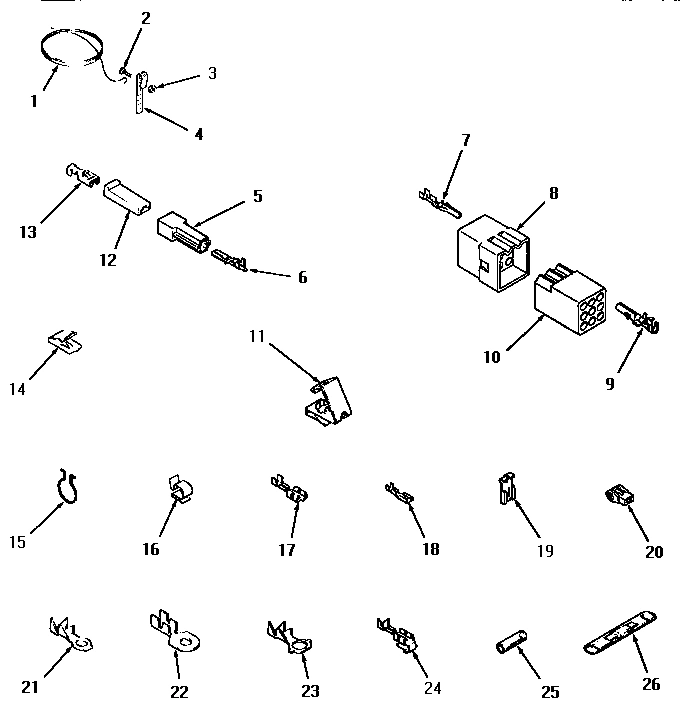

14 - WIRE AND TERMINALS

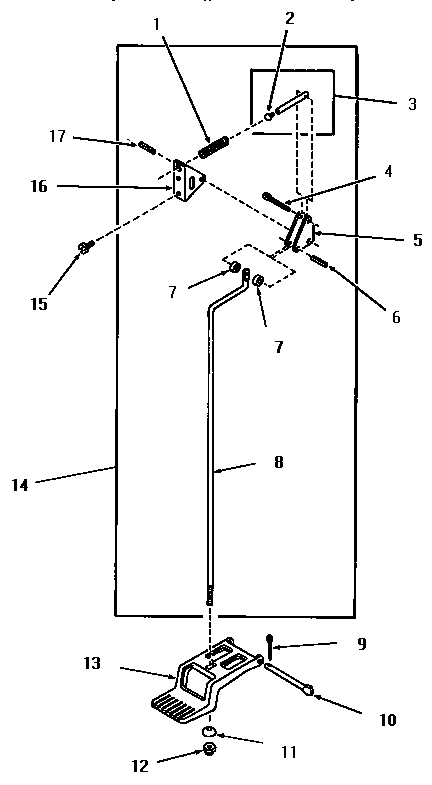

04 - DOOR RELEASE
Common parts from model Whirlpool FG6280 WASHER
1
ACCESS DOOR, AVOCADO WPL 52518A Contact Us For Availability
1
ACCESS DOOR, COPPERTONE WPL 52518C Contact Us For Availability
1
xREPLACE WPL 52518H Contact Us For Availability
1
ACCESS DOOR, WHITE WPL 52518W Contact Us For Availability
1
ASSY,DRUM WPL 53135 Contact Us For Availability
1
KNOB,CONTROL WPL 23128 Contact Us For Availability
1
SUB 56306, WASHER WPL Y0054609 Contact Us For Availability
1
ELEMENT, LARGE 120V WPL Y0054053 Contact Us For Availability
1
SWITCH, LIGHT (BLK) WPL Y0052707 Contact Us For Availability
1
ASSY,INLET GAS TUBE WPL 54407 Contact Us For Availability
1
INLET,GAS TUBE WPL 54460 Contact Us For Availability
1
NO LONGER AVAILABLE WPL 53002 Contact Us For Availability
1
GROUND WIRE WPL Y21429 Contact Us For Availability
1
DOOR RELEASE SPRING WPL 51065 Contact Us For Availability
2
SCREW,6-32 X 3/8 ROUND WPL 03630 Contact Us For Availability
2
SPRING WPL 52310 Contact Us For Availability
2
CLIP,C xREPLACE WPL 22244 Contact Us For Availability
2
PLUG BUTTON WPL 54610 Contact Us For Availability
2
BEARING,DRUM SHAFT WPL Y52079 Contact Us For Availability
2
VALVE WPL Y51058 Contact Us For Availability
2
ASSY,GRILL&SUPPORT-PUR WPL 54731 Contact Us For Availability
2
SENSOR WPL 55428 Contact Us For Availability
2
BELT WPL 52556 Contact Us For Availability
2
SCREW,10-24 X 3/4 SEMS WPL 23008 Contact Us For Availability
2
ROUND HEAD SCREW WPL 21431 Contact Us For Availability
2
PLUG WPL 51786 Contact Us For Availability
3
HINGE,REAR WPL 51351 Contact Us For Availability
3
STRAP,SEAL WPL 50781 Contact Us For Availability
3
KNURLED NUT WPL 24391 Contact Us For Availability
3
FRONT FRAME AND AIR SHROUD WPL 51850 Contact Us For Availability
3
COVER,BEARING WPL 51826 Contact Us For Availability
3
ASSY,PULLEY WPL 53521 Contact Us For Availability
3
GAS PIPE CLAMP WPL 51828 Contact Us For Availability
3
SCREW,1/4-20 X 1/2 HEX WPL 02422 Contact Us For Availability
3
LEVER,IDLER WPL 54410 Contact Us For Availability
3
BRACKET WPL 22847 Contact Us For Availability
3
NUT WPL Y20276 Contact Us For Availability
3
DOOR RELEASE PIN ASSEMBLY WPL 51841 Contact Us For Availability
4
STRAIN RELIEF WPL 21903 Contact Us For Availability
4
ASSY,SEAL WPL 51883A Contact Us For Availability
4
LOCKWASHER,1/4 STD-C P WPL 03189 Contact Us For Availability
4
SCREW,10B-16 X 1/2 HEX WPL 51784 Contact Us For Availability
4
WASHER WPL Q6275 Contact Us For Availability
4
THERMOSTAT WPL Y55742 Contact Us For Availability
4
STRAP,GROUND WPL 21430 Contact Us For Availability
5
CLIP WPL 51201 Contact Us For Availability
5
END CAP, LEFT WPL 26339 Contact Us For Availability
5
EXHAUST DUCT WPL 51821 Contact Us For Availability
5
SCREW,1/4-20 X 5/8 HEX WPL 53589 Contact Us For Availability
5
BELT WPL 51994 Contact Us For Availability
5
PIPE SUPPORT WPL 51842 Contact Us For Availability
5
USE B5716202 WPL 0055427 Contact Us For Availability
5
ASSY,MOTOR PULLEY WPL 52593 Contact Us For Availability
5
BUMPER WPL 21176 Contact Us For Availability
5
HOUSING,TAB WPL 90788 Contact Us For Availability
5
DOOR RELEASE LEVER WPL 51041 Contact Us For Availability
6
SPRING WPL 50168 Contact Us For Availability
6
KNURLED NUT WPL 23406 Contact Us For Availability
6
SHAFT,DRUM WPL 53132 Contact Us For Availability
6
INLET GAS PIPE WPL 51775 Contact Us For Availability
6
ASSY,HEATER BOX LINER WPL 55426 Contact Us For Availability
6
REPLACED BY 58047 WPL 51789 Contact Us For Availability
6
SIDE PANEL, LEFT, AVOCADO WPL 52669A Contact Us For Availability
6
SIDE PANEL, LEFT, COPPERTONE WPL 52669C Contact Us For Availability
6
SIDE PANEL, LEFT, HARVEST GOLD WPL 52669H Contact Us For Availability
6
SIDE PANEL, LEFT, WHITE WPL 52669W Contact Us For Availability
6
TERMINAL,TAB-1/4 MALE WPL 00133 Contact Us For Availability
7
GROUND WIRE, GREEN WPL 54300 Contact Us For Availability
7
SEE NOTE MOTOR SWITCH, WESTINGHOUSE -- (NOT R WPL Y00000000 Contact Us For Availability
7
SEAL,FRONT WPL 51881 Contact Us For Availability
7
PHILLIPS HEAD SCREW WPL 20272 Contact Us For Availability
7
DRUM ROLLER WPL 53555 Contact Us For Availability
7
RING,RETAINING WPL 70061 Contact Us For Availability
7
BEARING WPL 51991 Contact Us For Availability
7
CONNECTOR,MALE WPL 54408 Contact Us For Availability
7
SUB 58627CG, OVEN BOTTOM WPL Y0051866 Contact Us For Availability
7
SWITCH,MOTOR WPL 53226 Contact Us For Availability
7
SWITCH WPL 53249 Contact Us For Availability
7
SCREW, No.10-16 X 3/8`` WPL 52442 Contact Us For Availability
7
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
7
DOOR RELEASE SPACER WPL 51121 Contact Us For Availability
8
STRAP,RETAINER WPL 50169 Contact Us For Availability
8
LOCKWASHER,3/8 INTSHKP WPL 91176 Contact Us For Availability
8
WASHER WPL 52123 Contact Us For Availability
8
WASHER WPL Y52564 Contact Us For Availability
8
SCREW,1/4-20X3/8 HEX S WPL 02771 Contact Us For Availability
8
HOUSING,BLOWER WPL 51946 Contact Us For Availability
8
PLUG WPL 55452 Contact Us For Availability
8
NUT K WPL 51236 Contact Us For Availability
8
BUMPER, OVEN DOOR WPL 52552 Contact Us For Availability
8
BUMPER PAD WPL 80312 Contact Us For Availability
8
PLUG,9 CIRCUIT WPL 23033 Contact Us For Availability
8
DOOR RELEASE ROD WPL 51837 Contact Us For Availability
9
LOCKWASHER,No.10 EXT SHK WPL 03815 Contact Us For Availability
9
SWITCH,FABRIC SELECTOR WPL 52623 Contact Us For Availability
9
SHUTTER,AIR WPL 53007 Contact Us For Availability
9
BURNER COILS WPL 55439A Contact Us For Availability
9
SCREW,8-32 X 13/32 FL WPL 22649 Contact Us For Availability
9
PULLEY,MOTOR WPL 53522 Contact Us For Availability
9
PANEL,REAR xREPLACE WPL 52677GR Contact Us For Availability
9
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
9
PIN,COTTER WPL 02578 Contact Us For Availability
10
POWER CORD WPL 51508 Contact Us For Availability
10
NUT,SPEED U-TYPE WPL 54038 Contact Us For Availability
10
IMPELLER WPL 90585 Contact Us For Availability
10
ROUND HEAD SCREW WPL 53006 Contact Us For Availability
10
GAS VALVE ASSEMBLY WPL 55745 Contact Us For Availability
10
HINGE (COMML. PART) WPL 70014 Contact Us For Availability
10
BURNER SHIELD WPL Y52584 Contact Us For Availability
10
MOTOR WPL 52697 Contact Us For Availability
10
PLATE,COVER WPL 51855GR Contact Us For Availability
10
RECEPTACLE,9 CIRCUIT WPL 26163 Contact Us For Availability
10
PEDAL HINGE PIN WPL 51045 Contact Us For Availability
11
NUT WPL 52124 Contact Us For Availability
11
SEAL WPL 51790 Contact Us For Availability
11
BRACKET,IGNITER xREPLACE WPL 55448 Contact Us For Availability
11
INNER DOOR PANEL WPL 54665 Contact Us For Availability
11
SETSCREW WPL 52906 Contact Us For Availability
11
SCREW, 6B-20X5/16 WPL 51782 Contact Us For Availability
11
GROUND CLIP WPL 00158 Contact Us For Availability
11
NYLON WASHER WPL 51046 Contact Us For Availability
12
BUMPER WPL 51355 Contact Us For Availability
12
WASHER WPL 52122 Contact Us For Availability
12
FRAME,REAR WPL 52574 Contact Us For Availability
12
GASKET,HOUSING WPL 51791 Contact Us For Availability
12
BRACKET,IGNITER WPL 55435 Contact Us For Availability
12
IGNITER,80 VOLT WPL 55438 Contact Us For Availability
12
OUTER DOOR PANEL, AVOCADO WPL 52489A Contact Us For Availability
12
OUTER DOOR PANEL, COPPERTONE WPL 52489C Contact Us For Availability
12
OUTER DOOR PANEL, HARVEST GOLD WPL 52489H Contact Us For Availability
12
OUTER DOOR PANEL, WHITE WPL 52489W Contact Us For Availability
12
TERMINAL BLOCK ACCESS PLATE, G WPL 52108GR Contact Us For Availability
12
CONNECTOR WPL 90789 Contact Us For Availability
12
NUT WPL 51271 Contact Us For Availability
13
TOP BAFFLE ASSEMBLY WPL 52614 Contact Us For Availability
13
GASKET,CONTROL BOX END WPL 23028 Contact Us For Availability
13
GASKET WPL 51798 Contact Us For Availability
13
FRAME BASE WPL Y52572 Contact Us For Availability
13
EXHAUST FAN SHAFT WPL 53519 Contact Us For Availability
13
TUBE,BURNER WPL 55857 Contact Us For Availability
13
PULL,DOOR WPL 54068 Contact Us For Availability
13
CAP SCREW AND LOCKWASHER WPL 23928 Contact Us For Availability
13
TERMINAL,SPADE-1/4 FEM WPL Y00115 Contact Us For Availability
13
PEDAL,FOOT WPL 51802 Contact Us For Availability
14
SCREW,10-24 X 3/8 ROUND WPL 20267 Contact Us For Availability
14
SCREW, 8B-16X5/8 TAP WPL 52864 Contact Us For Availability
14
CONTROL HOOD, AVOCADO WPL 54526A Contact Us For Availability
14
CONTROL HOOD, HARVEST GOLD WPL 54526H Contact Us For Availability
14
CONTROL HOOD, WHITE WPL 54526W Contact Us For Availability
14
THERMOSTAT WPL 54736 Contact Us For Availability
14
NUT, HEX 3/8-16 WPL 52794 Contact Us For Availability
14
BRACKET WPL 55434 Contact Us For Availability
14
MOUNT,MOTOR WPL 51824 Contact Us For Availability
14
SIDE PANEL, RIGHT, AVOCADO WPL 52673A Contact Us For Availability
14
SIDE PANEL, RIGHT, COPPERTONE WPL 52673C Contact Us For Availability
14
SIDE PANEL, RIGHT, HARVEST GOL WPL 52673H Contact Us For Availability
14
SIDE PANEL, RIGHT, WHITE WPL 52673W Contact Us For Availability
14
CABLE CLIP WPL 20309 Contact Us For Availability
14
DOOR RELEASE ASSEMBLY WPL 51844 Contact Us For Availability
15
SCREW,8B-18 X 3/8 IND WPL 55985 Contact Us For Availability
15
CONTROL HOOD REAR COVER, GRAY WPL 54530GR Contact Us For Availability
15
SCREW, THERMOSTAT WPL 52150 Contact Us For Availability
15
NUT,SPEED WPL 21747 Contact Us For Availability
15
BOLT,SHOULDER WPL 52567 Contact Us For Availability
15
BUMPER WPL 20387 Contact Us For Availability
15
CLIP,WIRE WPL 51291 Contact Us For Availability
15
SCREW WPL 51246 Contact Us For Availability
16
NUT,NYLON WPL 22678 Contact Us For Availability
16
SPEED NUT WPL 52865 Contact Us For Availability
16
THERMOSTAT WPL 54737 Contact Us For Availability
16
TUBE,BURNER WPL 53011 Contact Us For Availability
16
THUMB SCREW WPL 54466 Contact Us For Availability
16
SPRING WPL 52323 Contact Us For Availability
16
BRACKET WPL 22846 Contact Us For Availability
16
CLIP,CABLE WPL 21036 Contact Us For Availability
16
DOOR RELEASE BRACKET WPL 51052 Contact Us For Availability
17
CABINET TOP, AVOCADO WPL 52503A Contact Us For Availability
17
CABINET TOP, COPPERTONE WPL 52503C Contact Us For Availability
17
CABINET TOP, HARVEST GOLD WPL 52503H Contact Us For Availability
17
CABINET TOP, WHITE WPL 52503W Contact Us For Availability
17
HEX HEAD SCREW WPL 25724 Contact Us For Availability
17
COVER PLATE WPL 52550 Contact Us For Availability
17
WASHER WPL 54735 Contact Us For Availability
17
LUG,HOLD-DOWN WPL 52487 Contact Us For Availability
17
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
17
PIN,ROLL 1/8 X 3/4 WPL 51161 Contact Us For Availability
18
BUMPER WPL 53445 Contact Us For Availability
18
SPACER WPL 26345 Contact Us For Availability
18
BUMPER PAD WPL 20354 Contact Us For Availability
18
NUT WPL 03673 Contact Us For Availability
18
SHAFT,IDLER LEVER WPL 54411 Contact Us For Availability
18
CLIP WPL 22161 Contact Us For Availability
18
TERMINAL,SPADE-3/16 FE WPL 00112 Contact Us For Availability
19
CAGED NUT WPL 23007 Contact Us For Availability
19
TIMER WPL 52610 Contact Us For Availability
19
THERMOSTAT WPL 53708 Contact Us For Availability
19
NUT,SPEED 10-24 WPL 20249 Contact Us For Availability
19
LEVER,IDLER WPL 54415 Contact Us For Availability
19
SCREW,10B-16 X 3/4 ROU WPL Q6535 Contact Us For Availability
19
TERMINAL,FLAG-1/4 FEMA WPL Y00120 Contact Us For Availability
20
SCREW,10-24 X 1/2 HEX WPL 51924 Contact Us For Availability
20
BUTTON, DOOR WPL Y0055283 Contact Us For Availability
20
COIL,BURNER WPL 55971A Contact Us For Availability
20
MOUNT,PANEL WPL 23020 Contact Us For Availability
20
INSULATOR,BLUE WPL 70210 Contact Us For Availability
21
END CAP, RIGHT WPL 26338 Contact Us For Availability
21
VALVE,GAS WPL 55971 Contact Us For Availability
21
MONOGRAM WPL 22086 Contact Us For Availability
21
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
22
RELIEF,STRAIN WPL 52113 Contact Us For Availability
22
SCREW,8AB-18X7/8 OVAL WPL 25232 Contact Us For Availability
22
INSULATION WPL 52112 Contact Us For Availability
22
TERMINAL,RING-10 STUD WPL Y00111 Contact Us For Availability
23
HINGE,FRONT WPL 51350 Contact Us For Availability
23
SWITCH,DOOR RELEASE WPL 53563 Contact Us For Availability
23
SWITCH WPL Y51143 Contact Us For Availability
23
SUPPORT CHANNEL, RIGHT OR LEFT WPL 51818 Contact Us For Availability
23
DUCT RING, GRAY WPL 52052GR Contact Us For Availability
23
TERMINAL,RING-1/4 STUD WPL Y00113 Contact Us For Availability
24
NUT,HEX 15/32-32 WPL 52947 Contact Us For Availability
24
SCREW,6B-20 X 7/8 HEX WPL 51783 Contact Us For Availability
24
SCREW,8B-18 X 1/2 RD H WPL 51778 Contact Us For Availability
24
TERMINAL,SPADE-1/4 FEM WPL Y00114 Contact Us For Availability
25
GASKET WPL 55287 Contact Us For Availability
25
LIGHT BULB WPL Y54608 Contact Us For Availability
25
SEAL,OUTER WPL 51799 Contact Us For Availability
25
INSULATOR SLEEVE WPL Y21365 Contact Us For Availability
26
BLOCK, FUSE WPL 0055282 Contact Us For Availability
26
FRONT PANEL, AVOCADO WPL 54664A Contact Us For Availability
26
FRONT PANEL, COPPERTONE WPL 54664C Contact Us For Availability
26
FRONT PANEL, HARVEST GOLD WPL 54664H Contact Us For Availability
26
FRONT PANEL, W WPL 54664W Contact Us For Availability
26
CONNECTOR TWO 1/4 INCH MALE WPL 21091 Contact Us For Availability
27
SWITCH COLLAR WPL 23130 Contact Us For Availability
28
INDICATOR WPL 24857 Contact Us For Availability
29
SETSCREW WPL 25285 Contact Us For Availability
30
ASSY,KNOB-TIMER WPL 24858 Contact Us For Availability
NI
ORIFICE,NG WPL 50326 Contact Us For Availability
NI
ORIFICE,LP No.55 DRILL WPL 51211 Contact Us For Availability
NI
STICKER WPL 52893 Contact Us For Availability
NI
STICKER WPL 52894 Contact Us For Availability
NI
ASSY,CONVERSION KIT WPL 53255 Contact Us For Availability
NI
PLUG,BLOCK-OPEN WPL 53390 Contact Us For Availability
NI
LABEL,CHANGE-OVER WPL 53408 Contact Us For Availability
NI
STICKER,CONVERSION WPL 53556 Contact Us For Availability
NI
SCREW,VENT WPL 53952 Contact Us For Availability
NI
VALVE CONVERTED STICKER WPL 55753 Contact Us For Availability
NI
ASSY,CONVERSION KIT WPL 56326 Contact Us For Availability
NI
STICKER WPL 56327 Contact Us For Availability
NI
PLUG,PIPE WPL 20247 Contact Us For Availability
NI
CAP,VENT WPL 54477 Contact Us For Availability
NI
PLUG,BLOCK-OPEN WPL 54495 Contact Us For Availability
NI
ASSY,CONVERSION KIT WPL 55749 Contact Us For Availability
NI
VALVE CONVERTED STICKER WPL 55750 Contact Us For Availability
NI
GASKET, DR REF. WPL Y0054476 Contact Us For Availability
NI
WIRE, 12 GAUGE WPL 20679 Contact Us For Availability
NI
18 GAUGE WIRE WPL 20680 Contact Us For Availability
× ![]()
Login and Registration Form
