Model Electrolux FFBD2408NW8C DISHWASHER, BUILT-IN – Common Parts & Diagrams

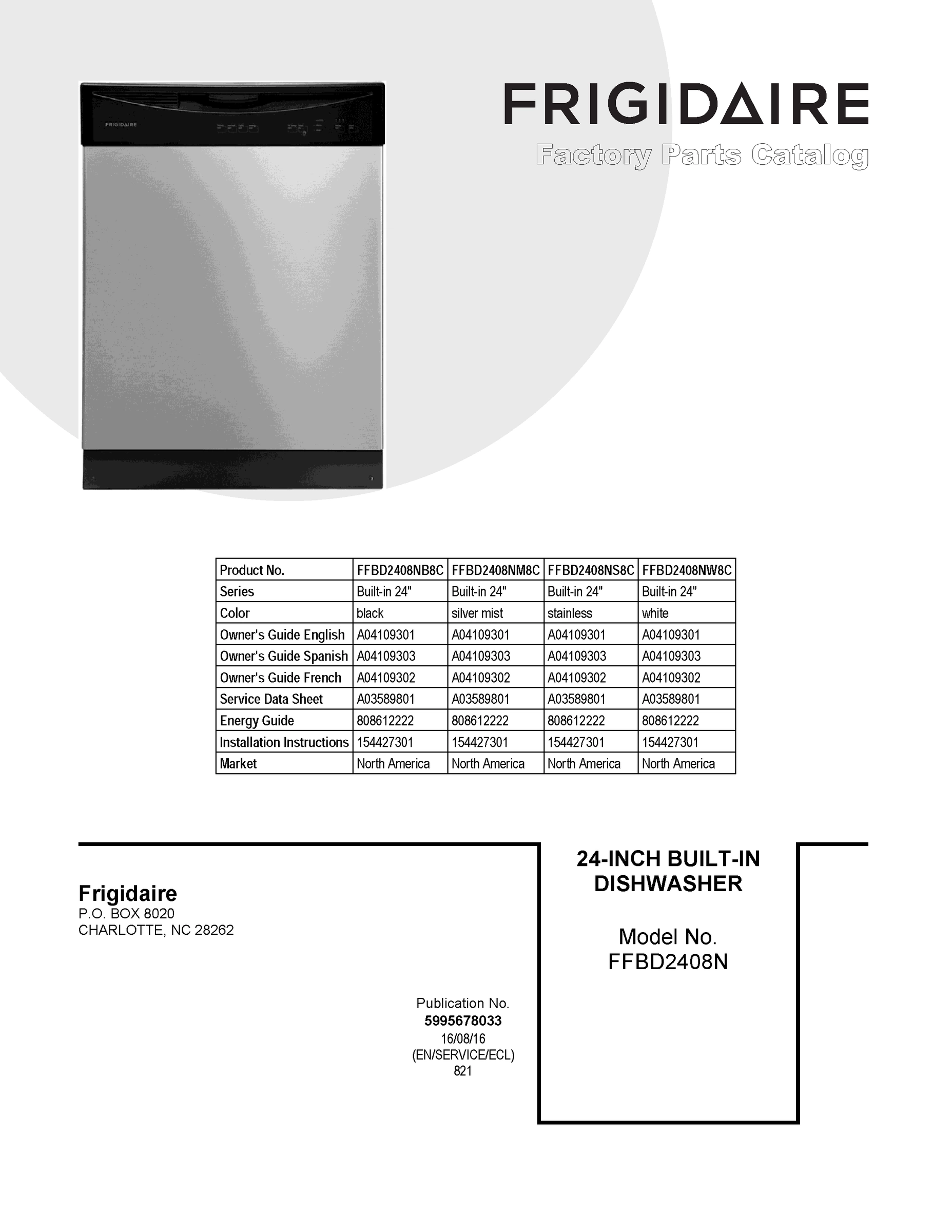

01 - COVER SHEET

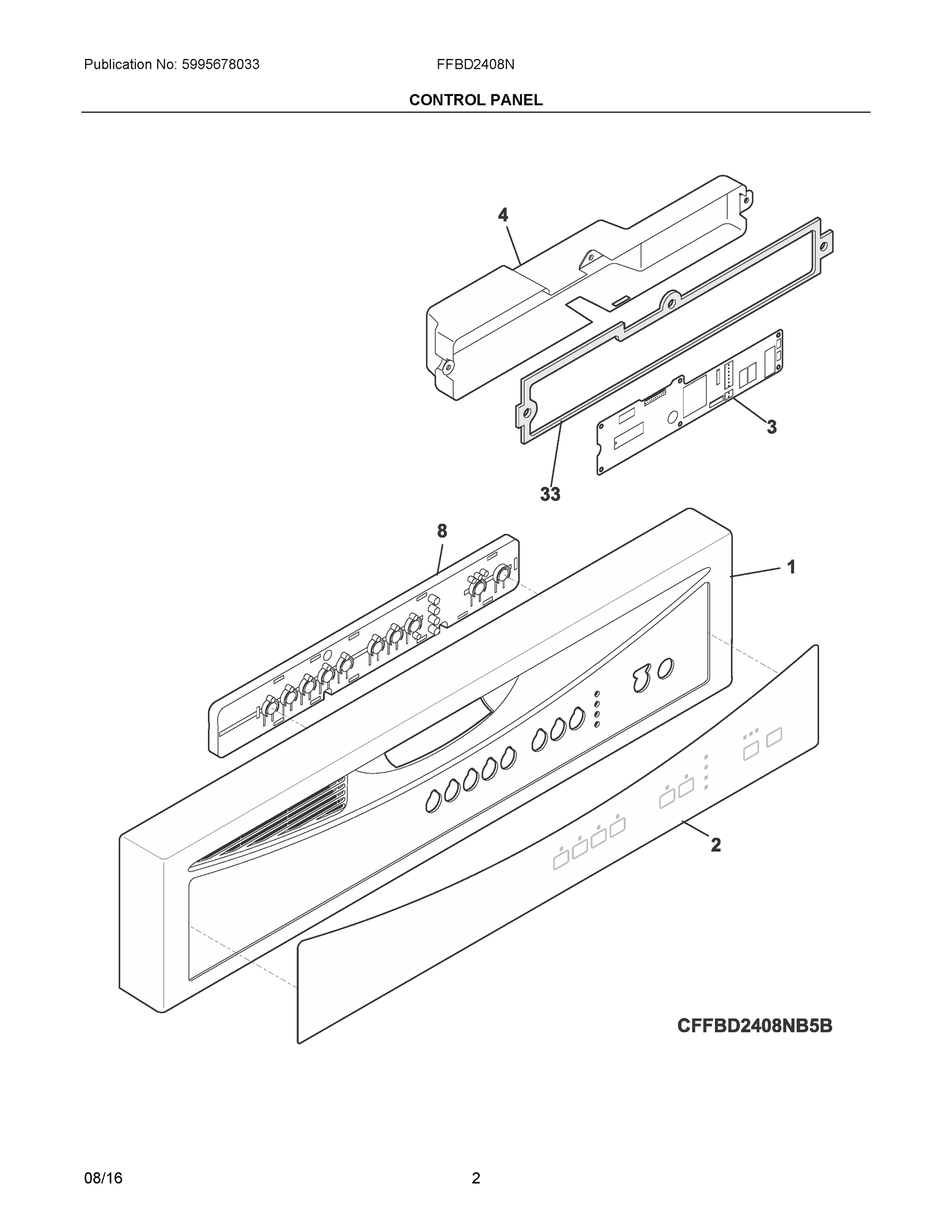

02 - CONTROL PANEL
03 - DOOR
04 - TUB
05 - MOTOR & PUMP
06 - FRAME
07 - RACKS
08 - WIRING DIAGRAM
Common parts from model Electrolux FFBD2408NW8C DISHWASHER, BUILT-IN
1
HEATER, ROUND WCI 154825001 Contact Us For Availability
1
SPRING, DOOR, (2) WCI 154430501 Contact Us For Availability
1
WCI 5304502972 WCI 5304502972 Contact Us For Availability
1
WCI 5304506542 WCI 5304506542 Contact Us For Availability
1A
LINKAGE, DOOR SPRING, (2) WCI 154325201 Contact Us For Availability
2
STRIKE, DOOR WCI 154662601 Contact Us For Availability
2
BRACKET, HEATER, (2) WCI 154465101 Contact Us For Availability
2
SCREW, ARM ASSY, (4) WCI 154093301 Contact Us For Availability
2
WCI 5304507084 WCI 5304507084 Contact Us For Availability
3
GASKET, TUB WCI 154827601 Contact Us For Availability
3
VALVE, WATER WCI 807047901 Contact Us For Availability
4
WHEEL & BUSHING ASSY, GREY, UPPER RACK, (8) WCI 154522902 Contact Us For Availability
4
WCI 808326801 WCI 808326801 Contact Us For Availability
4
COVER, CONTROL WCI 154552101 Contact Us For Availability
5
WCI 5304506510 WCI 5304506510 Contact Us For Availability
6
SLIDE, RACK, UPPER, (2) WCI 154597801 Contact Us For Availability
6
SCREW, W/WASHER, (8) WCI 5303943103 Contact Us For Availability
7
WCI 5304502917 WCI 5304502917 Contact Us For Availability
8
TOEPLATE, ADJUSTABLE, WHITE WCI 154745501 Contact Us For Availability
8
WCI 5304507086 WCI 5304507086 Contact Us For Availability
9
WCI 5304501482 WCI 5304501482 Contact Us For Availability
10
COVER, VOLUTE WCI 807145201 Contact Us For Availability
10
SCREW, PHILLIPS HEAD, WHITE WCI 154371301 Contact Us For Availability
10
SCREW, LATCH MTG, (2) WCI 154103702 Contact Us For Availability
11
PLATE, PUMP INLET WCI 807111601 Contact Us For Availability
11
SCREW, #10-32 X 3/8 WCI 154200701 Contact Us For Availability
13
GASKET, SUMP WCI 154246801 Contact Us For Availability
14
WCI 154728201 WCI 154728201 Contact Us For Availability
15
WCI 5304506540 WCI 5304506540 Contact Us For Availability
16
WCI 154246502 WCI 154246502 Contact Us For Availability
20
COVER, JUNCTION BOX, W/LABEL WCI 154758501 Contact Us For Availability
20
DOOR, OUTER, WHITE, W/BARRIER WCI 154829001 Contact Us For Availability
21
SCREW, TRUSS HD, 8-18 TYPE AB WCI 154754701 Contact Us For Availability
24
HOSE, DRAIN WCI 807117001 Contact Us For Availability
24B
WCI 5304506516 WCI 5304506516 Contact Us For Availability
25
WCI 5304506520 WCI 5304506520 Contact Us For Availability
28
SWITCH ASSY, FLOAT WCI 154773201 Contact Us For Availability
30
RETAINER, THERMOSTAT WCI 154241101 Contact Us For Availability
32
WCI 5304507087 WCI 5304507087 Contact Us For Availability
32A
GASKET, DELIVERY TUBE WCI 154406401 Contact Us For Availability
33
GASKET, COVER WCI 154553501 Contact Us For Availability
49
WCI 5304500204 WCI 5304500204 Contact Us For Availability
51
CLAMP, DRIP LOOP, WIRE WCI 154320301 Contact Us For Availability
58
WCI 154246402 WCI 154246402 Contact Us For Availability
59
O-RING, REAR WCI 154246901 Contact Us For Availability
59A
O-RING, FRONT WCI 154247001 Contact Us For Availability
61
WCI 5304506517 WCI 5304506517 Contact Us For Availability
63
WCI 5304506533 WCI 5304506533 Contact Us For Availability
65
WCI 5304506525 WCI 5304506525 Contact Us For Availability
70
MOTOR & PUMP ASSY, W/O-RINGS WCI 154844301 Contact Us For Availability
NI
WCI 5304504853 WCI 5304504853 Contact Us For Availability
NI
CLAMP, HOSE, 1.5" OPEN, WORM GEAR, (5) WCI 154380601 Contact Us For Availability
NI
WCI 154753101 WCI 154753101 Contact Us For Availability
NI
BRACKET KIT, COUNTERTOP MTG, W/SCRWS & INSTR WCI 154406801 Contact Us For Availability
NI
SCREW, PLT, 8-10 WCI 154783101 Contact Us For Availability
NI
BEARING, HINGE PIN WCI 154686401 Contact Us For Availability
NI
SCREW, #7 PLAS .375, (6), DISP. ASSY. WCI 154294701 Contact Us For Availability
NI
HINGE PIN, ARM ASSY WCI 154647101 Contact Us For Availability
NIA
NUT, HEATER, (2) WCI 154106202 Contact Us For Availability
NIA
SCREW, SUMP MTG, 8-16, (4) WCI 154754901 Contact Us For Availability
NIA
SCREW, PH, 8-10, (2) WCI 154779601 Contact Us For Availability
NIA
SCREW, DRAIN MOTOR MTG, (3) WCI 154741501 Contact Us For Availability
NIA
SCREW, RETAINER-THERMO WCI 154297701 Contact Us For Availability
NIB
FLAPPER, VALVE WCI 807048001 Contact Us For Availability
NIB
SHIELD, HEATER TERMINAL WCI 154289801 Contact Us For Availability
NIB
SCREW, DELIVERY TUBE WCI 154491101 Contact Us For Availability
× ![]()
