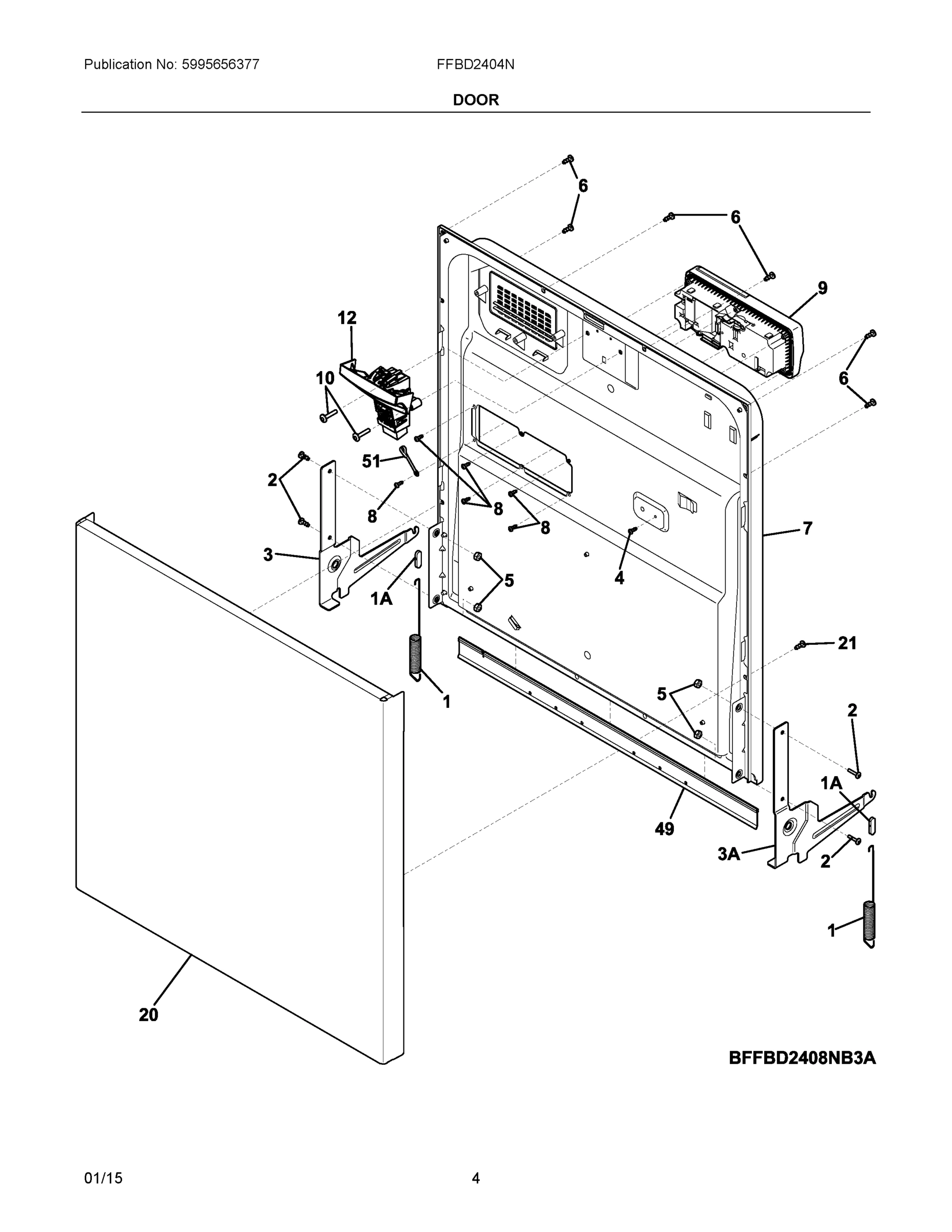

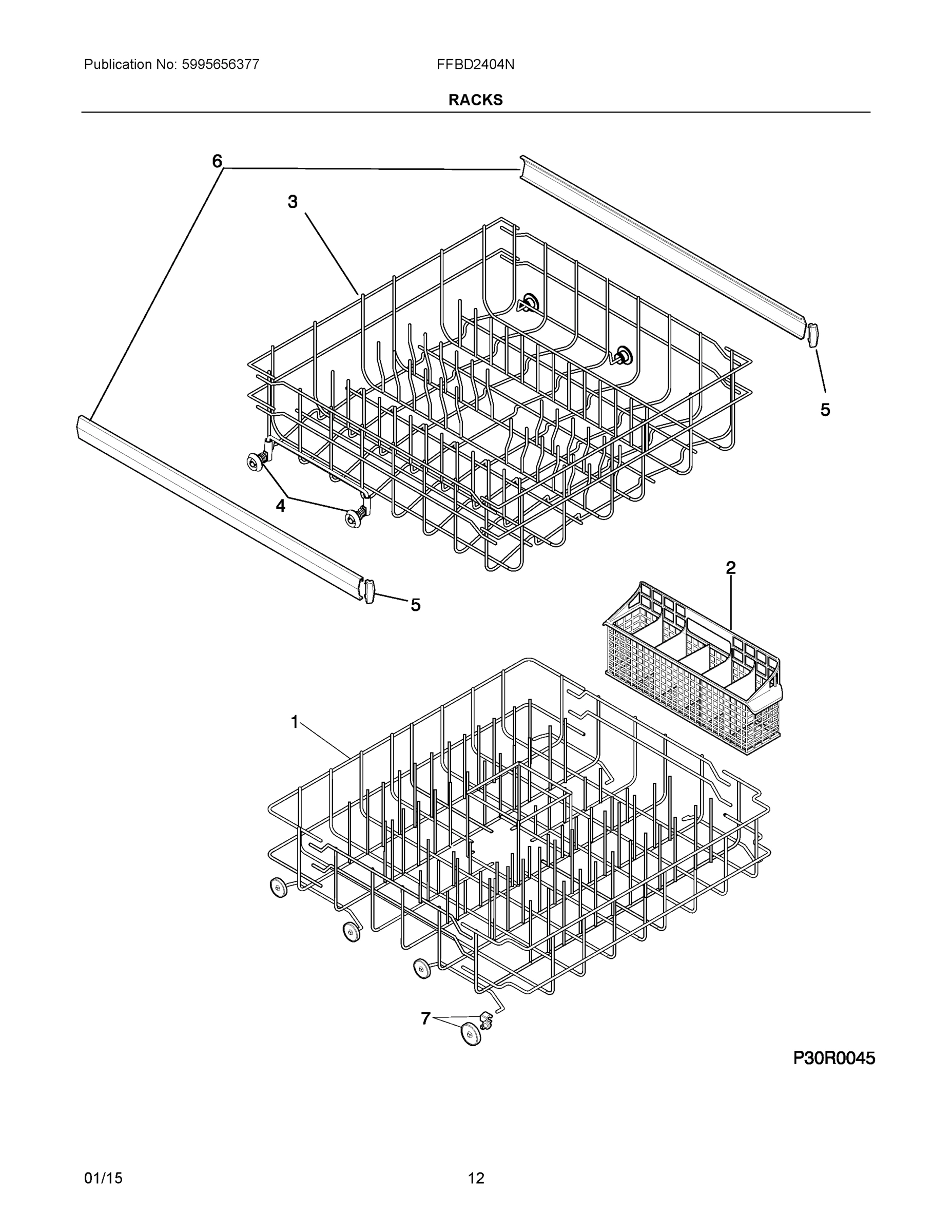

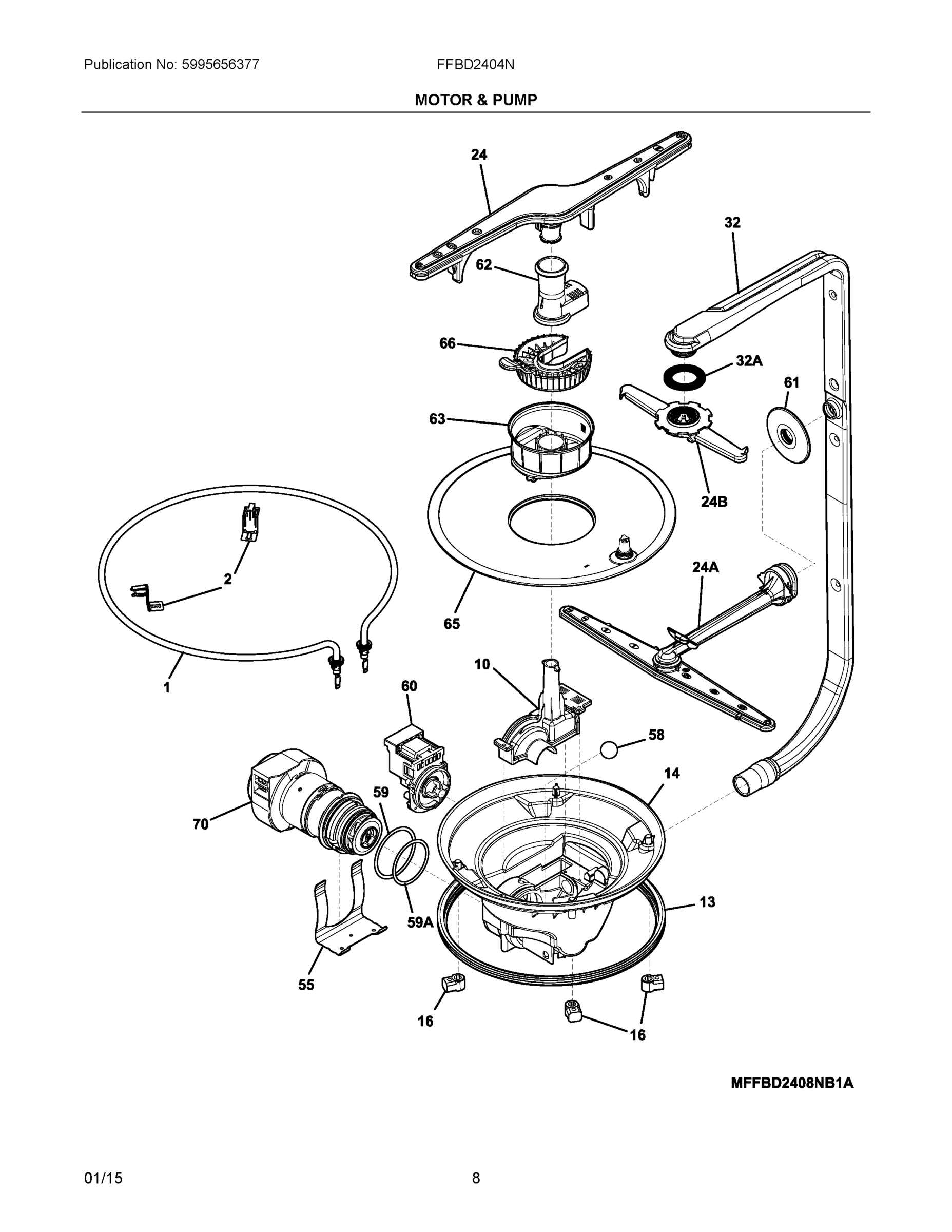

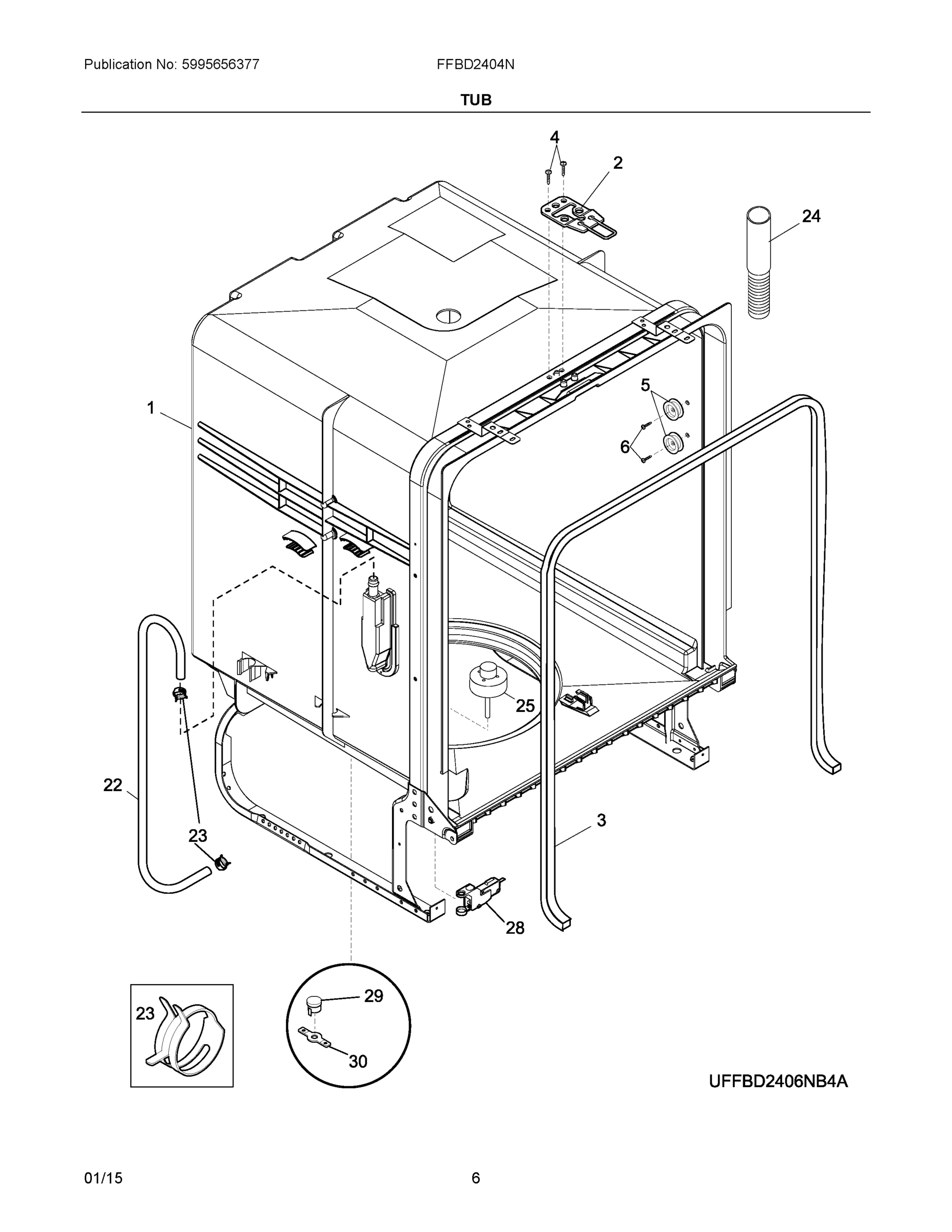

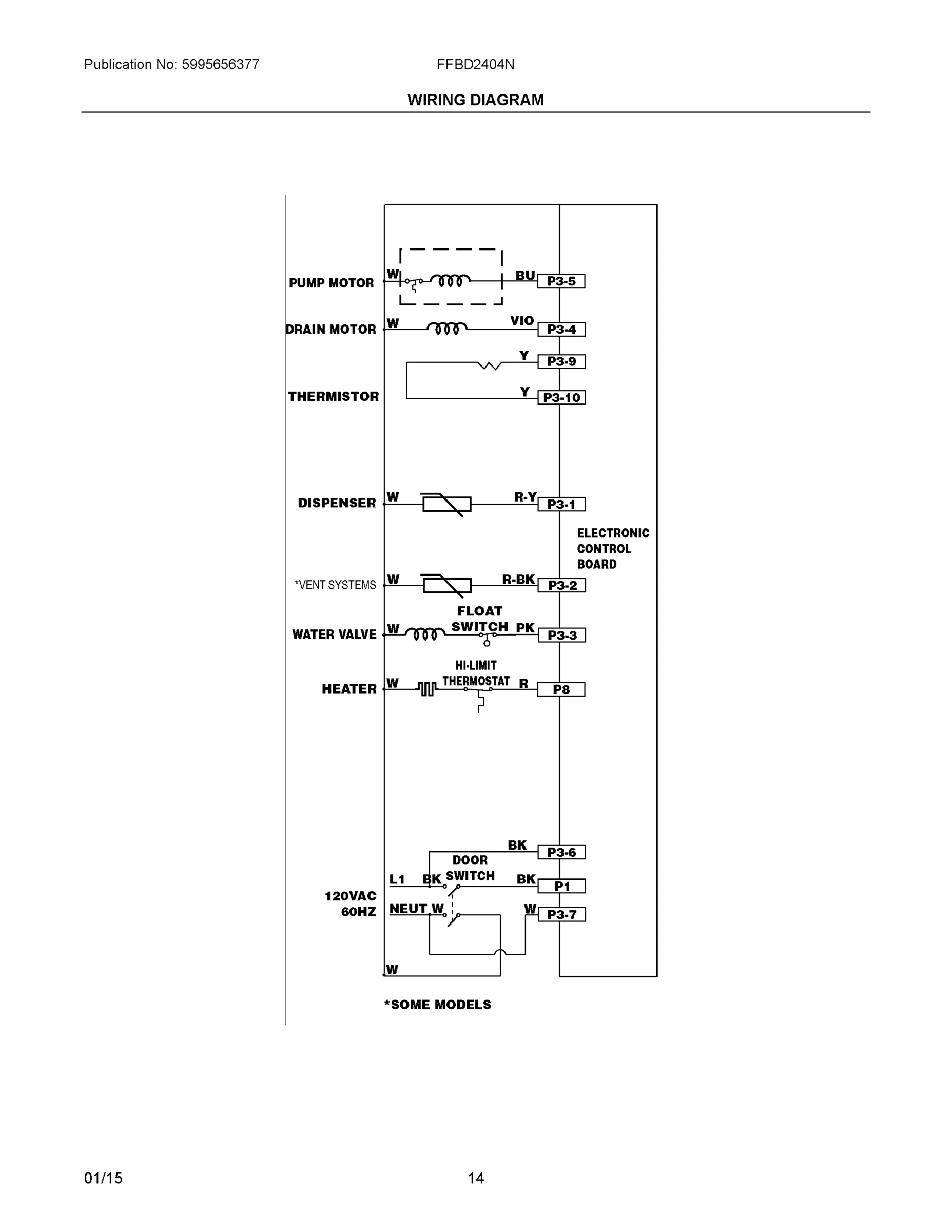

Model Electrolux FFBD2404NW3A DISHWASHER – Common Parts &amp; Diagrams

1

154430501 Frigidaire Dishwasher Door Spring In Stock WCI 154430501 $16.47

1

154825001 Frigidaire Dishwasher Round Heater In Stock WCI 154825001 $58.69

1

TUB ASSY, W/FRAME PARTS, WHITE, DF WCI 154729401 Contact Us For Availability

1

PANEL, CONSOLE, WHITE, 10 BUTTON WCI 154788801 Contact Us For Availability

1A

154325201 Frigidaire Linkage Spring In Stock WCI 154325201 $16.47

2

154093301 Frigidaire Dishwasher ARM Assembly In Stock WCI 154093301 $1.35

2

154465101 Frigidaire Dishwasher Heating Eleme Backorder WCI 154465101 $7.25

2

154662601 Frigidaire Door Strike Latch In Stock WCI 154662601 $25.37

2

5304509753 Frigidaire Silverware Basket In Stock WCI 5304509753 $23.11

2

OVERLAY, CONSOLE PANEL, WHITE WCI 154804201 Contact Us For Availability

3

154827601 Frigidaire Dishwasher Tub Gasket In Stock WCI 154827601 $12.79

3

5304512731 Frigidaire Dishwasher Control Boar In Stock WCI 5304512731 $56.61

3

5304535380 Frigidaire Upper Dishrack Assembly In Stock WCI 5304535380 $85.19

3

807047901 Frigidaire Dishwasher Inlet Water V In Stock WCI 807047901 $42.87

3A

5304513274 Frigidaire Dishwasher Counterbalan In Stock WCI 5304513274 $43.03

4

154522902 Frigidaire Dishwasher Wheel and Bus In Stock WCI 154522902 $21.58

4

5304508587 Frigidaire Dishwasher Brace Backorder WCI 5304508587 $18.12

4

808326801 Frigidaire Dishwasher Screw Backorder WCI 808326801 $1,679.98

4

COVER, CONTROL WCI 154552101 Contact Us For Availability

5

5304506510 Frigidaire Dishrack Slide Rail Sto In Stock WCI 5304506510 $4.51

5

5304506916 Frigidaire Dishwasher Assembly-Rol In Stock WCI 5304506916 $10.87

6

154597801 Frigidaire Dishwasher Upper Rack Sl In Stock WCI 154597801 $4.01

6

5303943103 Frigidaire Dishwasher P-1 Screw Ki In Stock WCI 5303943103 $11.32

7

5304532229 Frigidaire Dishwasher Lower Rack W In Stock WCI 5304532229 $3.18

7

WCI 5304500205 WCI 5304500205 Contact Us For Availability

8

154745501 Frigidaire Dishwasher Toekick Plate In Stock WCI 154745501 $13.59

8

154852501 Frigidaire Dishwasher Switch Assemb In Stock WCI 154852501 $89.41

9

5304501482 Frigidaire Dishwasher Kick Plate A In Stock WCI 5304501482 $32.62

9

5304506521 Frigidaire Dishwasher Dispenser In Stock WCI 5304506521 $37.72

10

154103702 Frigidaire Dishwasher Screw Backorder WCI 154103702 $8.60

10

154371301 Frigidaire Dishwasher Screw Backorder WCI 154371301 $8.14

10

154724001 Frigidaire Lower Arm Support In Stock WCI 154724001 $6.32

11

154200701 Frigidaire Dishwasher Screw Backorder WCI 154200701 $8.60

12

5304525220 Frigidaire Dishwasher Assembly-Lat In Stock WCI 5304525220 $50.66

13

154246801 Frigidaire Dishwasher Primary Gaske Backorder WCI 154246801 $31.71

14

154728201 Frigidaire Dishwasher Sump Assembly In Stock WCI 154728201 $39.44

15

5304506540 Frigidaire Dishwasher Leg Assembly In Stock WCI 5304506540 $6.79

16

154246502 Frigidaire Dishwasher Bracket In Stock WCI 154246502 $25.79

20

154758501 Frigidaire Power Cord Cover In Stock WCI 154758501 $12.67

20

154829001 Frigidaire Dishwasher Door Assembly Backorder WCI 154829001 $87.63

20

VENT ASSY, ACTIVE DRY, W/ACTUATOR WCI 154423601 Contact Us For Availability

21

154754701 Frigidaire Dishwasher Screw Backorder WCI 154754701 $2.26

22

5304523457 Frigidaire Inlet Hose In Stock WCI 5304523457 $8.15

23

5304538466 Frigidaire Hose Clamp Backorder WCI 5304538466 $1.48

24

5304517203 Frigidaire Dishwasher Lower Wash A In Stock WCI 5304517203 $22.11

24

807117001 Frigidaire Dishwasher Drain Hose In Stock WCI 807117001 $21.67

24A

5304506740 Frigidaire Dishwasher Spray Arm Ce In Stock WCI 5304506740 $24.98

24B

5304506516 Frigidaire Dishwasher Upper Spray In Stock WCI 5304506516 $9.96

25

5304532207 Frigidaire Float In Stock WCI 5304532207 $4.31

28

154773201 Frigidaire Dishwasher Switch Assemb In Stock WCI 154773201 $35.33

29

5304525221 Frigidaire Dishwasher Thermostat In Stock WCI 5304525221 $10.39

30

154241101 Frigidaire Dishwasher Retainer Backorder WCI 154241101 $2.26

32

5304507087 Frigidaire Dishwasher Tube In Stock WCI 5304507087 $43.03

32A

154406401 Frigidaire Delivery Tube Gasket In Stock WCI 154406401 $5.45

33

154553501 Frigidaire Dishwasher Gasket Backorder WCI 154553501 $27.05

49

5304500204 Frigidaire Gasket Bottom Door Seal In Stock WCI 5304500204 $16.54

51

CLAMP, DRIP LOOP, WIRE WCI 154320301 Contact Us For Availability

55

5304534830 Frigidaire Dishwasher Bracket In Stock WCI 5304534830 $3.46

58

154246402 Frigidaire Dishwasher P-1 Ball Asse Backorder WCI 154246402 $35.78

59

154246901 Frigidaire Dishwasher Rear O-Ring f In Stock WCI 154246901 $36.24

59A

154247001 Frigidaire Dishwasher Pump Gasket S In Stock WCI 154247001 $36.24

61

5304506517 Frigidaire Dishwasher Grommet Asse In Stock WCI 5304506517 $9.95

62

5304532235 Frigidaire Support Assembly In Stock WCI 5304532235 $4.57

63

5304532205 Frigidaire Base Assembly In Stock WCI 5304532205 $8.58

65

5304506525 Frigidaire Dishwasher Filter Assem In Stock WCI 5304506525 $17.21

66

154252701 Frigidaire Dishwasher Filter Trap In Stock WCI 154252701 $38.09

70

154844301 Frigidaire Dishwasher Motor Kit In Stock WCI 154844301 $183.86

154294701 Frigidaire Dishwasher Screw Backorder WCI 154294701 $5.86

154380601 Frigidaire Dishwasher Clamp Assembl In Stock WCI 154380601 $46.60

154406801 Frigidaire Dishwasher Anchor Kit (A Backorder WCI 154406801 $66.78

154647101 Frigidaire Dishwasher Pin Hinge Backorder WCI 154647101 $9.06

154686401 Frigidaire Dishwasher Bearing Backorder WCI 154686401 $6.79

154753101 Frigidaire Dishwasher Thermistor In Stock WCI 154753101 $15.83

154783101 Frigidaire Dishwasher Screw Backorder WCI 154783101 $4.51

808690701 Frigidaire Dishwasher Screw Backorder WCI 808690701 $2.26

WCI 808420901 WCI 808420901 Contact Us For Availability

154106202 Frigidaire Dishwasher Heater Nut In Stock WCI 154106202 $4.88

154297701 Frigidaire Dishwasher Screw Backorder WCI 154297701 $8.60

154741501 Frigidaire Dishwasher Screw Backorder WCI 154741501 $8.60

154754901 Frigidaire Dishwasher Screw In Stock WCI 154754901 $2.70

154779601 Frigidaire Dishwasher Screw Backorder WCI 154779601 $0.87

5304525214 Frigidaire Dishwasher Shield In Stock WCI 5304525214 $6.32

SCREW, DRY DUCT, (3) WCI 154793401 Contact Us For Availability

NIB

154289801 Frigidaire Dishwasher Shield Backorder WCI 154289801 $4.97

NIB

154491101 Frigidaire Dishwasher Screw Backorder WCI 154491101 $2.26

NIB

807048001 Frigidaire Dishwasher Check Valve In Stock WCI 807048001 $5.88
