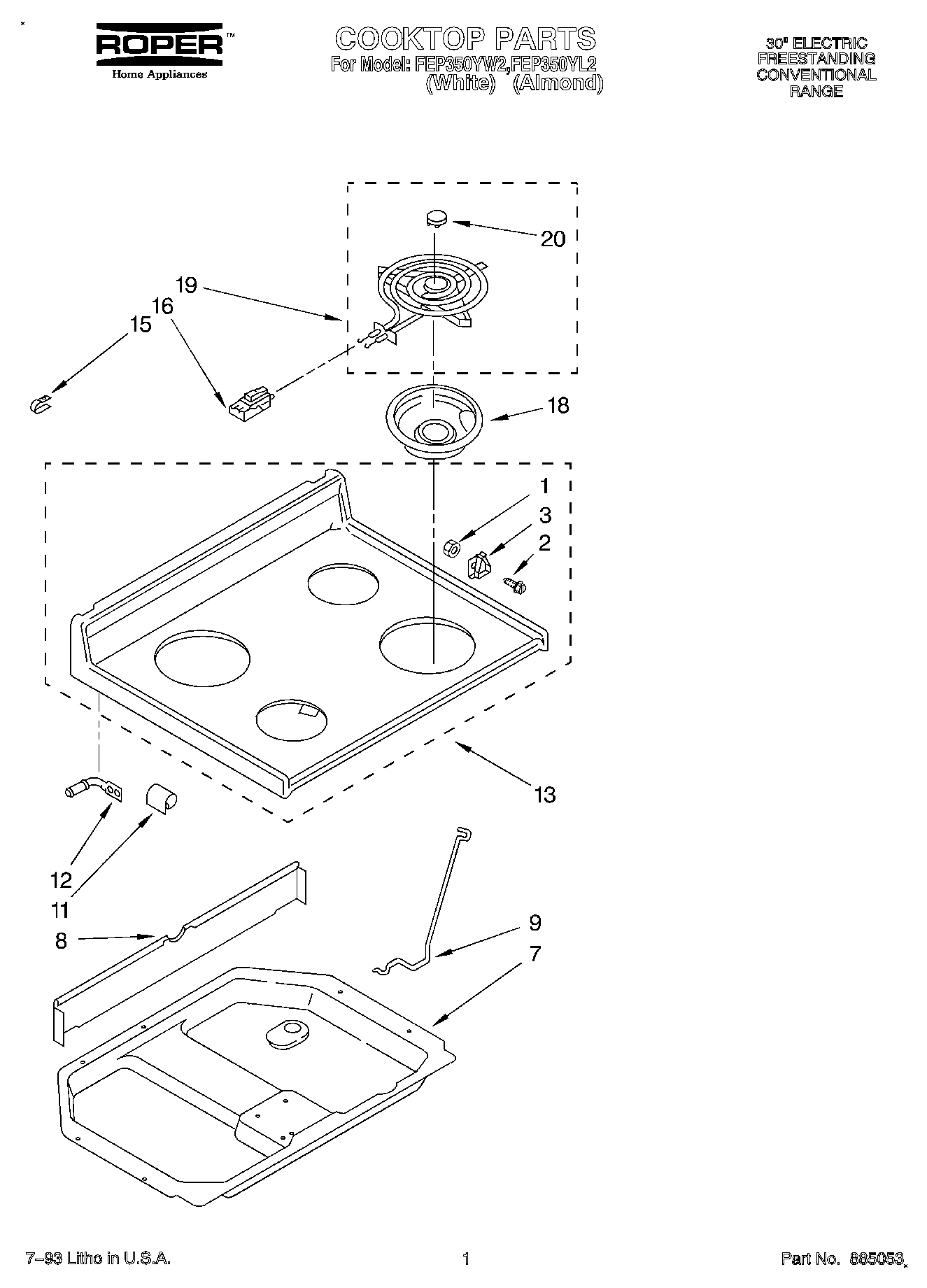

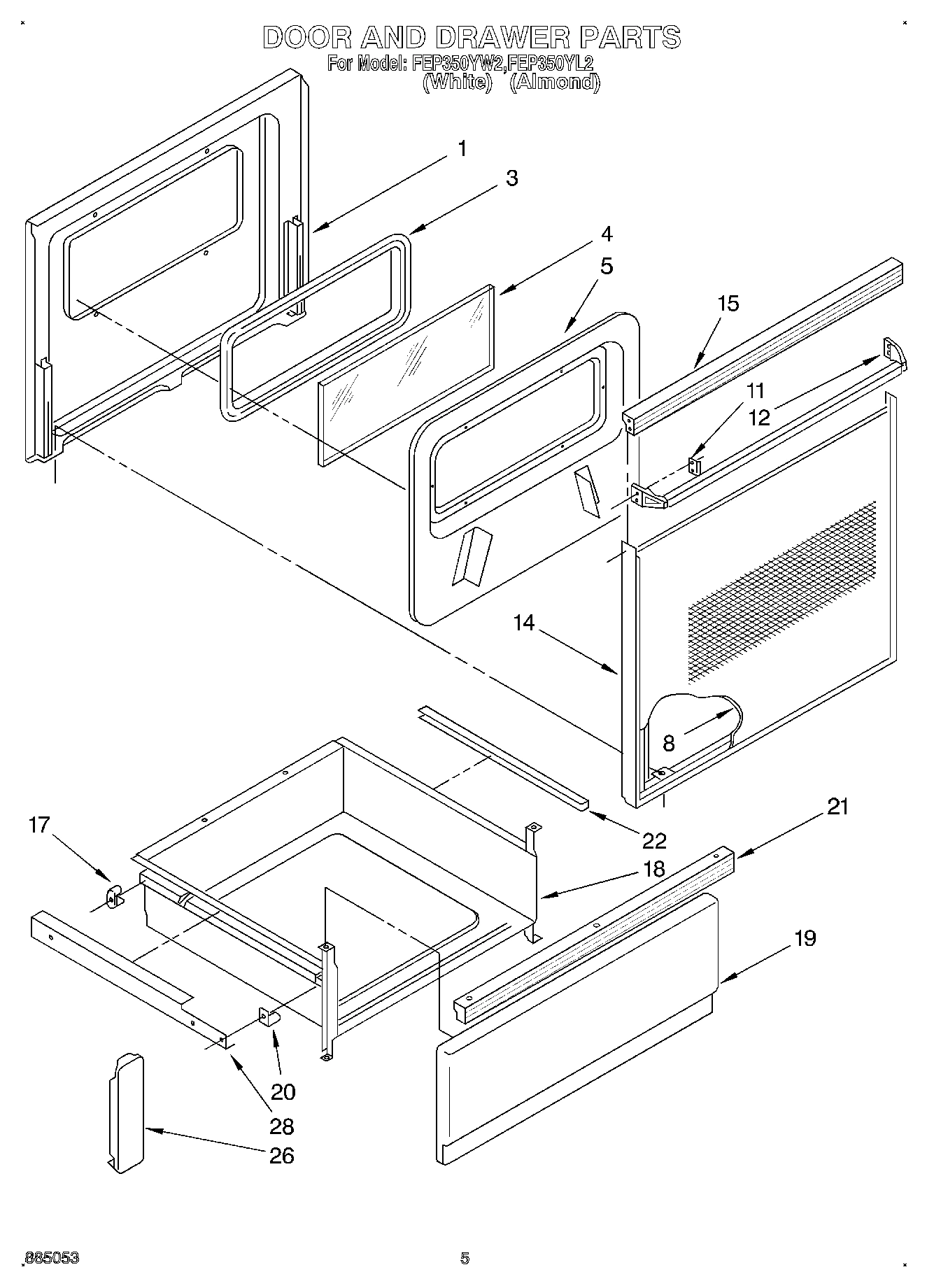

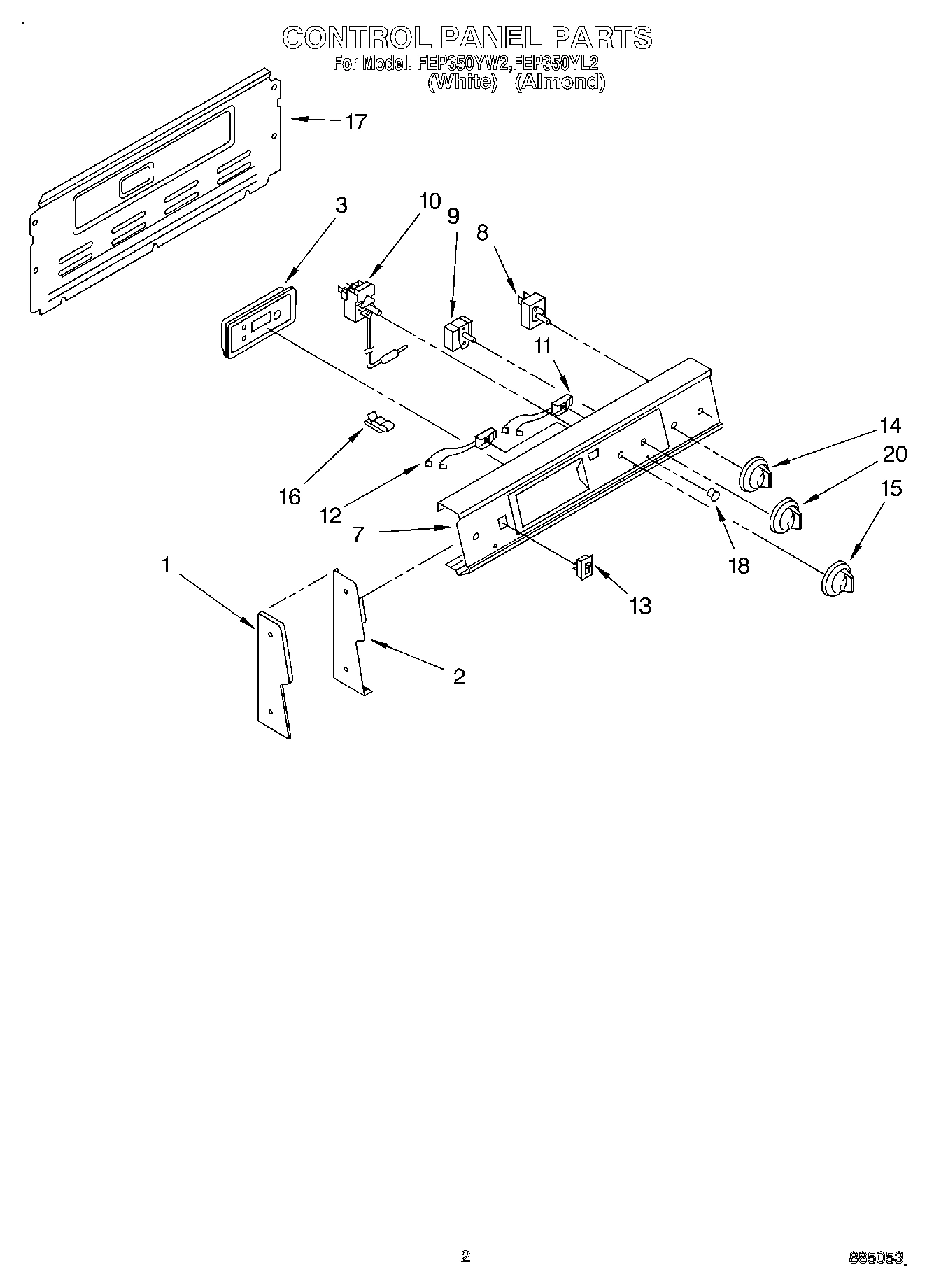

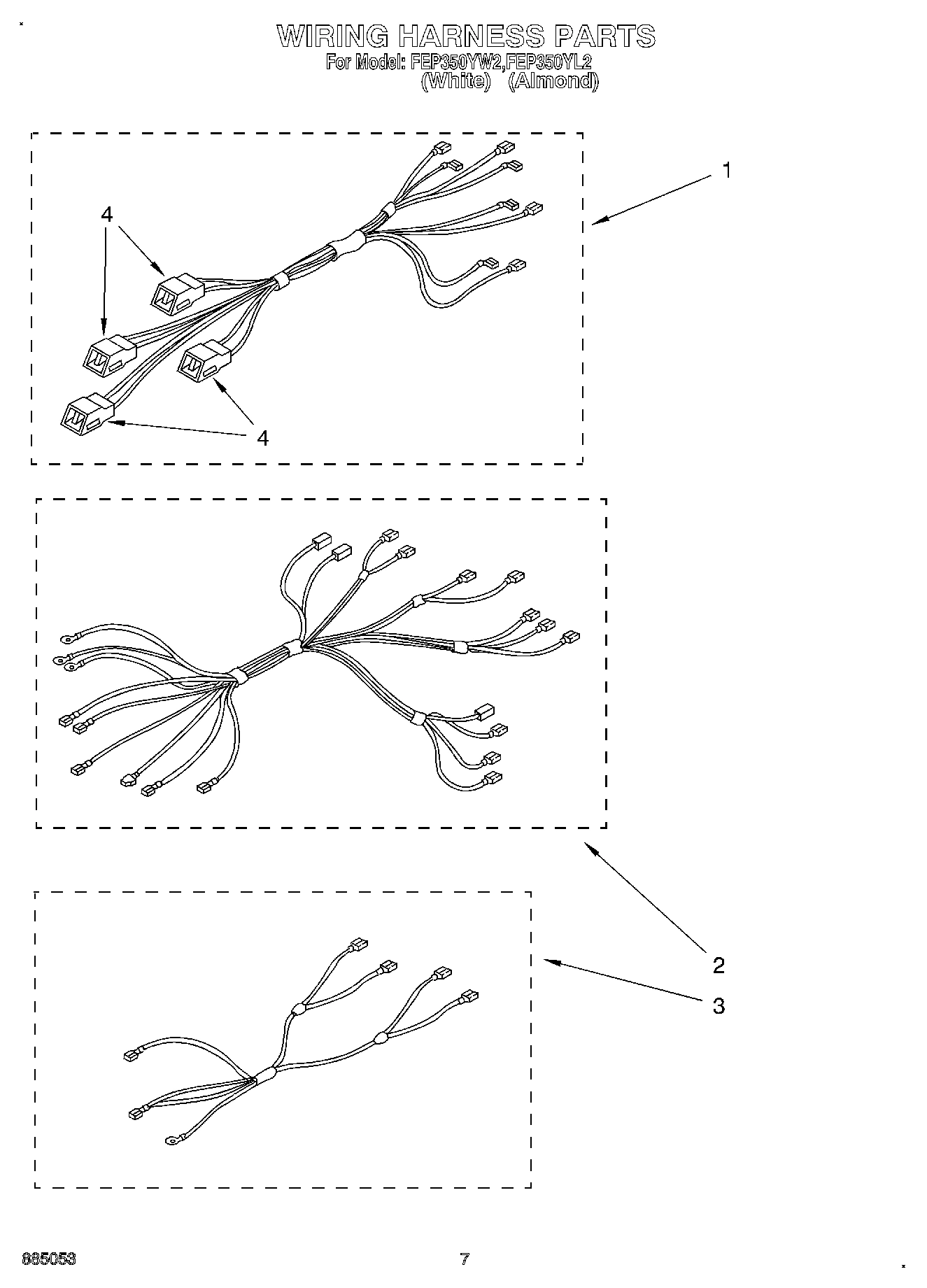

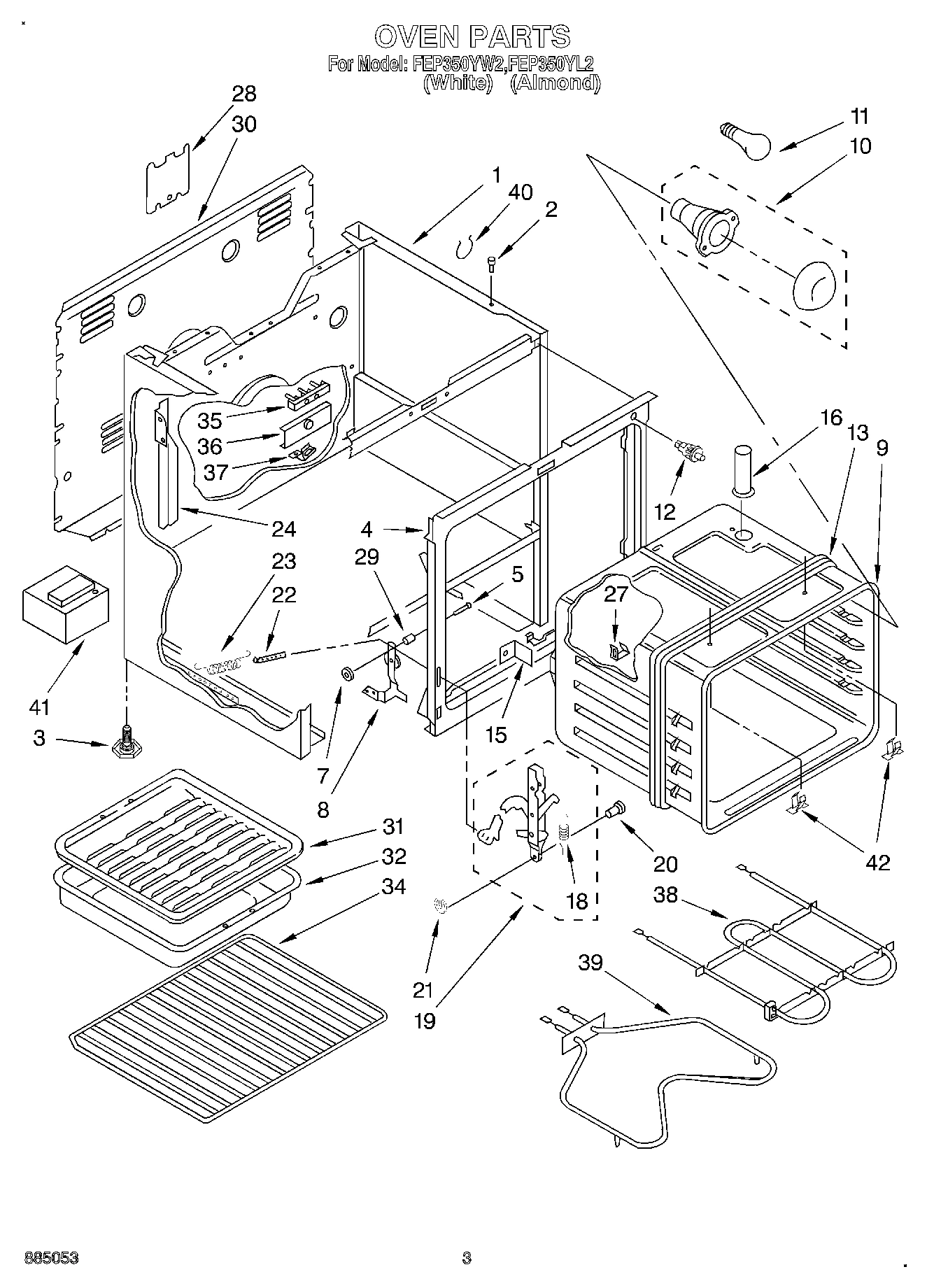

Model Whirlpool FEP350YW2 ELECTRIC RANGE – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3150400 WPL LIT3150400 Contact Us For Availability

WPL LIT3187098 WPL LIT3187098 Contact Us For Availability

WPL LIT3187321 WPL LIT3187321 Contact Us For Availability

WPL LIT3187488 WPL LIT3187488 Contact Us For Availability

WPL LIT677973 WPL LIT677973 Contact Us For Availability

WPL LIT885053 WPL LIT885053 Contact Us For Availability

1

Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Nut (4) WPL 814102 Contact Us For Availability

1

Screw, 8 x 3/8 (4) WPL 3162918 Contact Us For Availability

1

End Cap L.H. WPL 3183465 Contact Us For Availability

1

End Cap R.H. WPL 3183466 Contact Us For Availability

1

Liner, Door WPL 3172220 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

2

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

2

Harness, Wire (Oven) WPL 3187097 Contact Us For Availability

2

SHIELD (LH-White/Almond) WPL 3184353 Contact Us For Availability

2

SHIELD (RH-White/Almond) WPL 3184354 Contact Us For Availability

3

814103 Whirlpool Clip In Stock WPL 814103 $3.95

3

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Seal, Glass WPL 3148183 Contact Us For Availability

3

Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability

3

Timer, Clock (Oven Control Assembly) WPL 3184559 Contact Us For Availability

4

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $9.81

4

Screw (1) WPL 3150537 Contact Us For Availability

4

Frame, Front WPL 3176714 Contact Us For Availability

4

Glass, Inner WPL 3169202 Contact Us For Availability

5

Pin, Hinge (2) WPL 307985 Contact Us For Availability

5

Screw, 8-18 x 5/16 (6) WPL 3148443 Contact Us For Availability

5

Retainer, WPL 3148287 Contact Us For Availability

7

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

7

Pushnut (2) WPL 308306 Contact Us For Availability

7

Box, Burner WPL 3169186 Contact Us For Availability

7

Panel, Control WPL 3183473 Contact Us For Availability

8

WP3148953 Whirlpool Range Infinite Switch In Stock WPL WP3148953 $49.10

8

WP3149404 Whirlpool Range Surface Element Swi In Stock WPL WP3149404 $35.50

8

Hinge, R.H. WPL 3176710 Contact Us For Availability

8

Hinge, L.H. WPL 3176711 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability

8

Glass, Outer WPL 3148185 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Oven (30`` Conv.) WPL 3176611 Contact Us For Availability

9

Rod, Cooktop (2) WPL 3148659 Contact Us For Availability

9

Switch, Selector WPL 3149886 Contact Us For Availability

10

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

10

WP313808 Whirlpool Screw Backorder WPL WP313808 $2.51

10

Thermostat, Oven WPL 661150 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

Light, Indicator (Oven) WPL 314031 Contact Us For Availability

Clip, Handle (2) WPL 3148282 Contact Us For Availability

Bracket (2) WPL 307965 Contact Us For Availability

Switch, Door WPL 310345 Contact Us For Availability

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

Light, Indicator (Surface Unit) WPL 3150662 Contact Us For Availability

Handle, Door WPL 3149242 Contact Us For Availability

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $31.90

Seal, Heat WPL 3169283 Contact Us For Availability

Cooktop (White) WPL 3170981 Contact Us For Availability

Cooktop (Almond) WPL 3170982 Contact Us For Availability

14

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $12.19

14

Frame, Door WPL 3171530 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

Knob (Therm) (White/Almond) WPL 3149987 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

Top, Door WPL 3148223 Contact Us For Availability

9755804 Whirlpool Range Vent Tube Backorder WPL 9755804 $50.56

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

Screw, 6-32 x 9/32 (4) WPL 3185059 Contact Us For Availability

Tube Clip WPL 313570 Contact Us For Availability

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Rear Cover WPL 3187332 Contact Us For Availability

Glide, Rear WPL 307980 Contact Us For Availability

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.18

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.23

Spring, Stop WPL 308207 Contact Us For Availability

Lens, Amber (2) WPL 313101 Contact Us For Availability

Drawer, Utility WPL 327887 Contact Us For Availability

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $25.31

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $31.21

Channel, Arm (2) WPL 3176708 Contact Us For Availability

Panel Drawer (Screw, 8-18 x 1/2) WPL 309133 Contact Us For Availability

Panel Drawer (Black) WPL 309923 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

Medallion (4) WPL 309195 Contact Us For Availability

Knob (Selector) WPL 3149985 Contact Us For Availability

Glide, Front (2) WPL 3149257 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

21

Screw (2) 8A x 1/2 WPL 309029 Contact Us For Availability

21

Handle, Drawer WPL 3184530 Contact Us For Availability

22

Spring, Door (2) WPL 308127 Contact Us For Availability

22

Protector, Drawer (2) WPL 309329 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

24

Support, Channel (L.H.) WPL 313196 Contact Us For Availability

24

Support, Channel (R.H.) WPL 313197 Contact Us For Availability

26

Bracket, Rail (2) WPL 307981 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

Rail, Slide (Screw (2)) WPL 307748 Contact Us For Availability

Plate, Service WPL 307972 Contact Us For Availability

Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability

Rail, Slide (L.H. (Includes No. 20)) WPL 3149256 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

Cover, Rear WPL 3148975 Contact Us For Availability

31

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

34

Oven Rack (2) WPL 308173 Contact Us For Availability

35

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

35

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

35

Screw (2) WPL 98884 Contact Us For Availability

36

Bracket, Service WPL 3150190 Contact Us For Availability

37

Ground Strap WPL 308498 Contact Us For Availability

37

Clip WPL 313660 Contact Us For Availability

38

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.17

39

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

39

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

40

16515 Whirlpool Clip Backorder WPL 16515 $11.62

41

340184 Whirlpool Screw Backorder WPL 340184 $9.59

41

Block, Balance WPL 3149258 Contact Us For Availability

42

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.69

42

Insulation, Oven Wrap WPL 309961 Contact Us For Availability

42

Plug, Button (2) WPL 3169107 Contact Us For Availability
