Model Whirlpool FEP320YW2 ELECTRIC RANGE – Common Parts & Diagrams
03 - DOOR AND DRAWER, UNIT
04 - OVEN

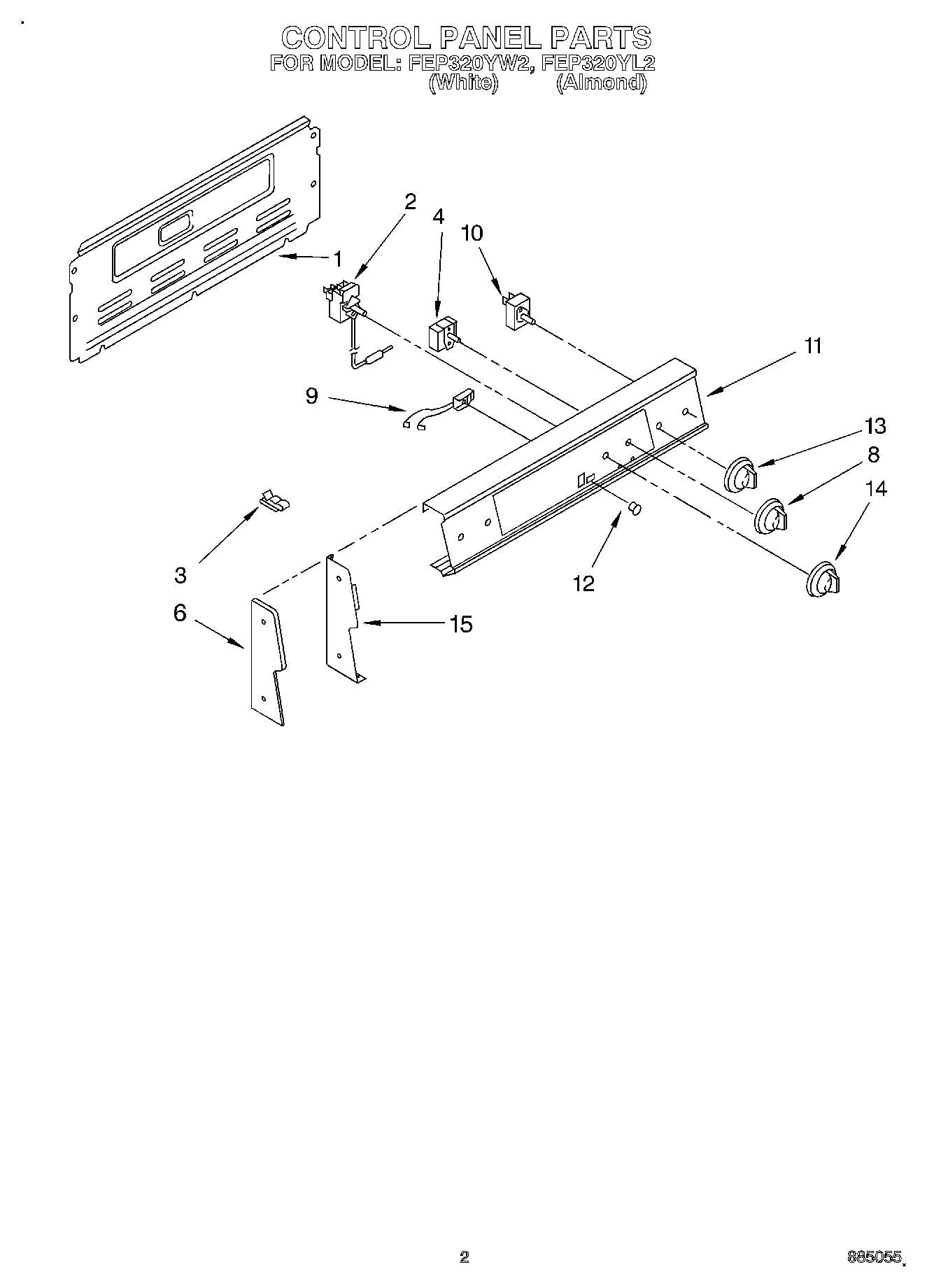

02 - CONTROL PANEL

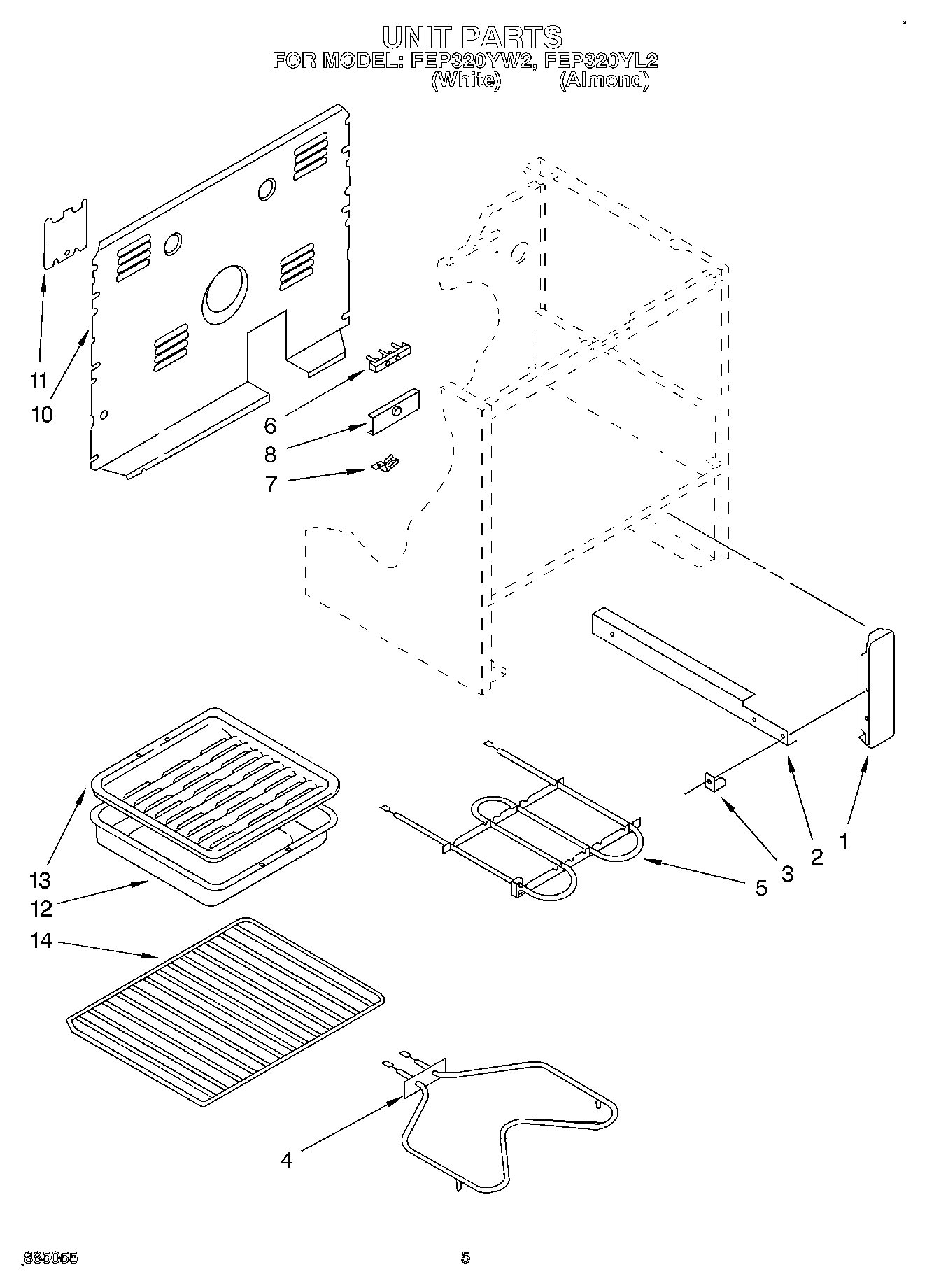

05 - OPTIONAL

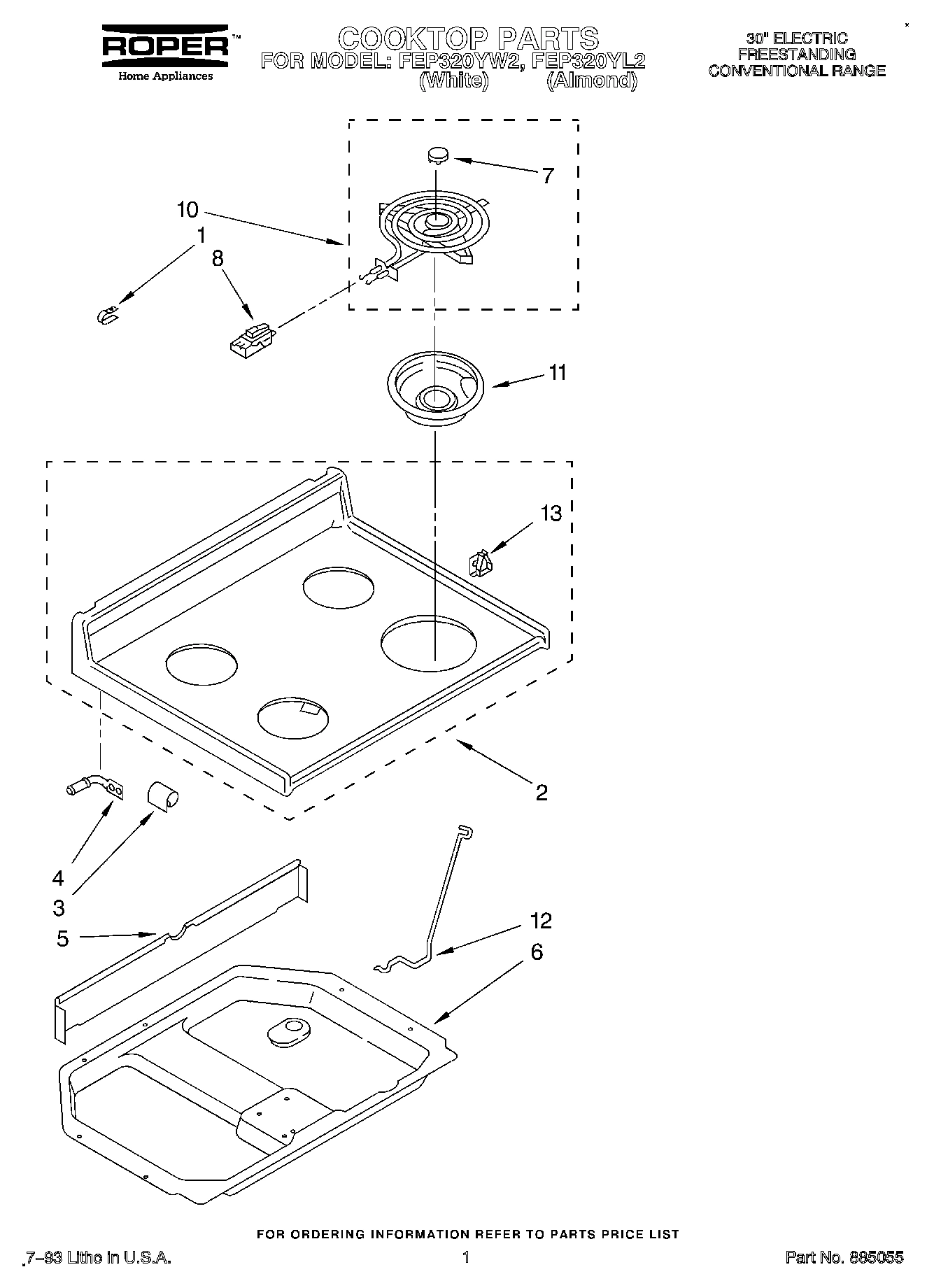

01 - COOKTOP, LITERATURE

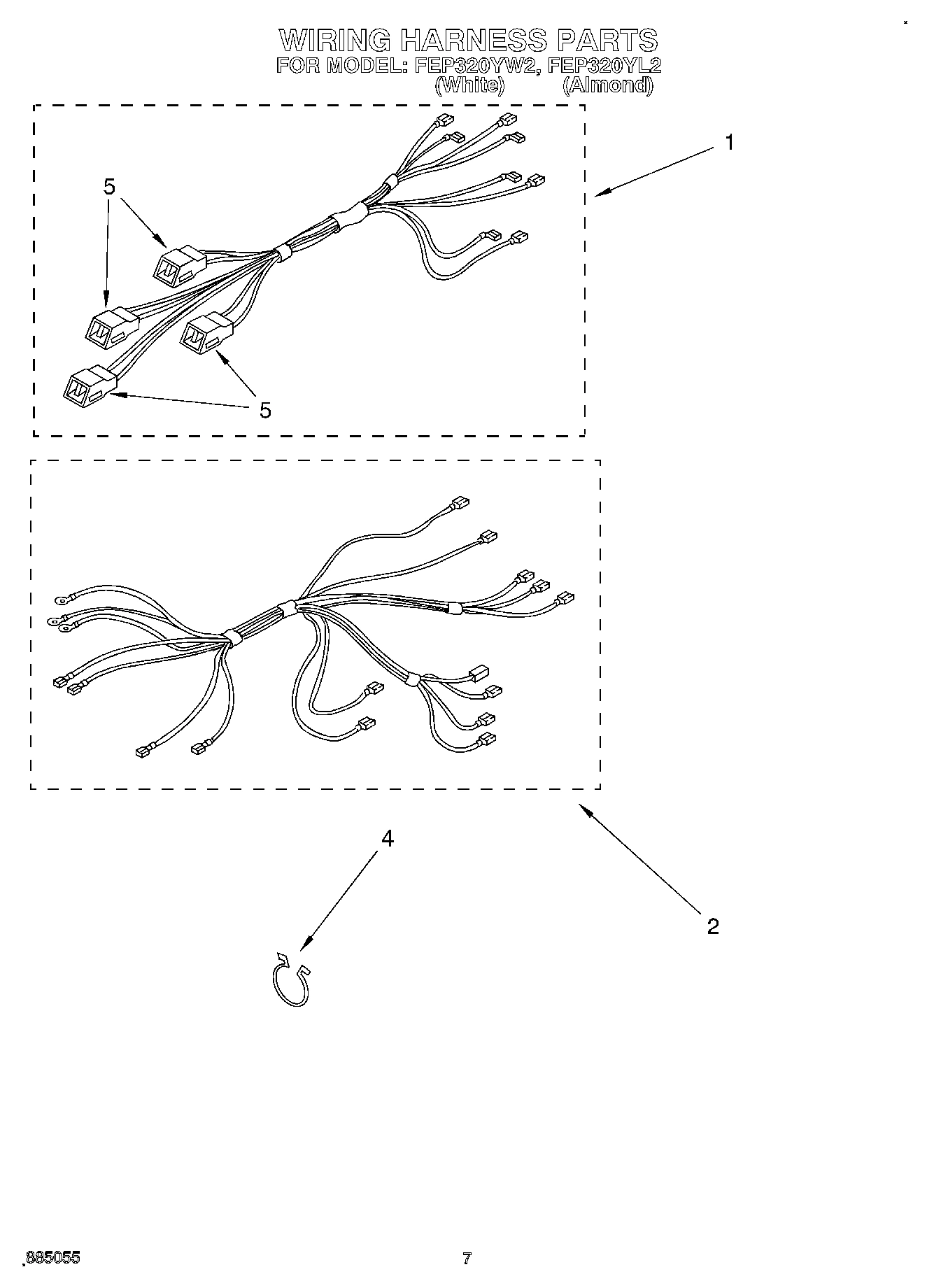

06 - WIRING HARNESS
Common parts from model Whirlpool FEP320YW2 ELECTRIC RANGE
Insallation Instr (Templet) WPL LIT3150400 Contact Us For Availability
Wiring Diagram WPL LIT3150655 Contact Us For Availability
Instructions, Installation WPL LIT3187321 Contact Us For Availability
Guide, Use & Care WPL LIT3187485 Contact Us For Availability
Manual, Range (Do It Yourself) WPL LIT677973 Contact Us For Availability
Repair Parts List WPL LIT885055 Contact Us For Availability
1
Cover, Rear WPL 3187332 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability
2
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
2
(Alt.) WPL 310864 Contact Us For Availability
2
(Alt.) WPL 311498 Contact Us For Availability
2
Thermostat, Oven WPL 661150 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Cooktop (White) WPL 3170989 Contact Us For Availability
2
Cooktop (Almond) WPL 3170990 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169147 Contact Us For Availability
3
Clamp, Tube WPL 313570 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Bracket, Cooktop WPL 307965 Contact Us For Availability
4
Switch, Selector WPL 3150430 Contact Us For Availability
4
Pin, Hinge (2) WPL 307966 Contact Us For Availability
5
Top, Door (Screw (2)) WPL 3149333 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Shield, Wiring WPL 307973 Contact Us For Availability
6
End Cap, R.H. (Screw 8A x 3/8 (4)) WPL 3162918 Contact Us For Availability
6
End Cap, R.H. (Black) WPL 3183465 Contact Us For Availability
6
End Cap, R.H. (Black End Cap, L.H.) WPL 3183466 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Box, Burner WPL 3169186 Contact Us For Availability
7
Clip, Handle (2) WPL 3148282 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Medallion (4) WPL 309926 Contact Us For Availability
8
Knob, Selector (Sel-Switch 3 Pos.) WPL 3149984 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Light, Indicator (Includes No. 12) (Oven Unit WPL 314031 Contact Us For Availability
9
Light, Indicator (Includes No. 12) (Surface U WPL 3150647 Contact Us For Availability
10
Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability
10
Cover, Rear (Cabinet) WPL 3148975 Contact Us For Availability
11
Panel, Control WPL 3183467 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Lens, Amber (2) WPL 313101 Contact Us For Availability
12
Rod, Cooktop WPL 3148659 Contact Us For Availability
13
Nut (4) WPL 814102 Contact Us For Availability
14
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
14
WPL 799344 WPL 799344 Contact Us For Availability
14
Knob, Temperature (White/Almond) WPL 3149987 Contact Us For Availability
14
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
14
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
14
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
14
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
14
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
14
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
14
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
14
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
14
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
14
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
14
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
14
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
14
Grease WPL 261582 Contact Us For Availability
14
WPL 261886 WPL 261886 Contact Us For Availability
14
WPL 261888 WPL 261888 Contact Us For Availability
14
WPL 261890 WPL 261890 Contact Us For Availability
14
WPL 261891 WPL 261891 Contact Us For Availability
14
WPL 285365 WPL 285365 Contact Us For Availability
14
WPL 285366 WPL 285366 Contact Us For Availability
14
WPL 285367 WPL 285367 Contact Us For Availability
14
WPL 285368 WPL 285368 Contact Us For Availability
14
WPL 308173 WPL 308173 Contact Us For Availability
14
WPL 309961 WPL 309961 Contact Us For Availability
14
WPL 72108 WPL 72108 Contact Us For Availability
14
WPL 72112 WPL 72112 Contact Us For Availability
14
WPL 799832 WPL 799832 Contact Us For Availability
14
WPL 978883 WPL 978883 Contact Us For Availability
15
Shield (L.H.) WPL 3184353 Contact Us For Availability
15
Shield (R.H.) WPL 3184354 Contact Us For Availability
17
Spring, Door Stop WPL 308207 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Plug Button WPL 308535 Contact Us For Availability
28
Block, Balance WPL 3149258 Contact Us For Availability
29
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
