Model Whirlpool FEP310YL0 ELECTRIC RANGE – Common Parts & Diagrams
05 - INTERNAL OVEN
06 - EXTERNAL OVEN

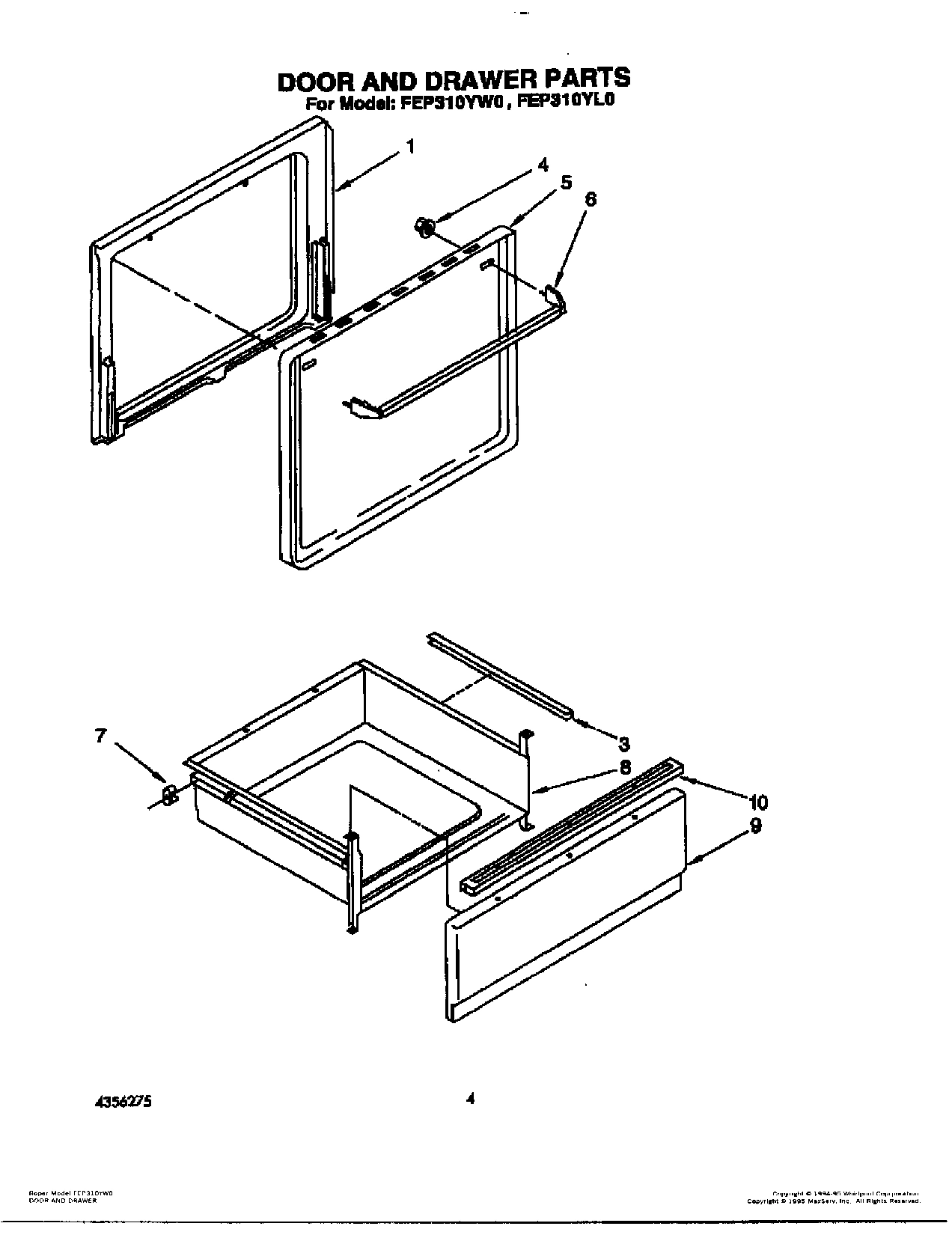

04 - DOOR AND DRAWER
02 - COOKTOP

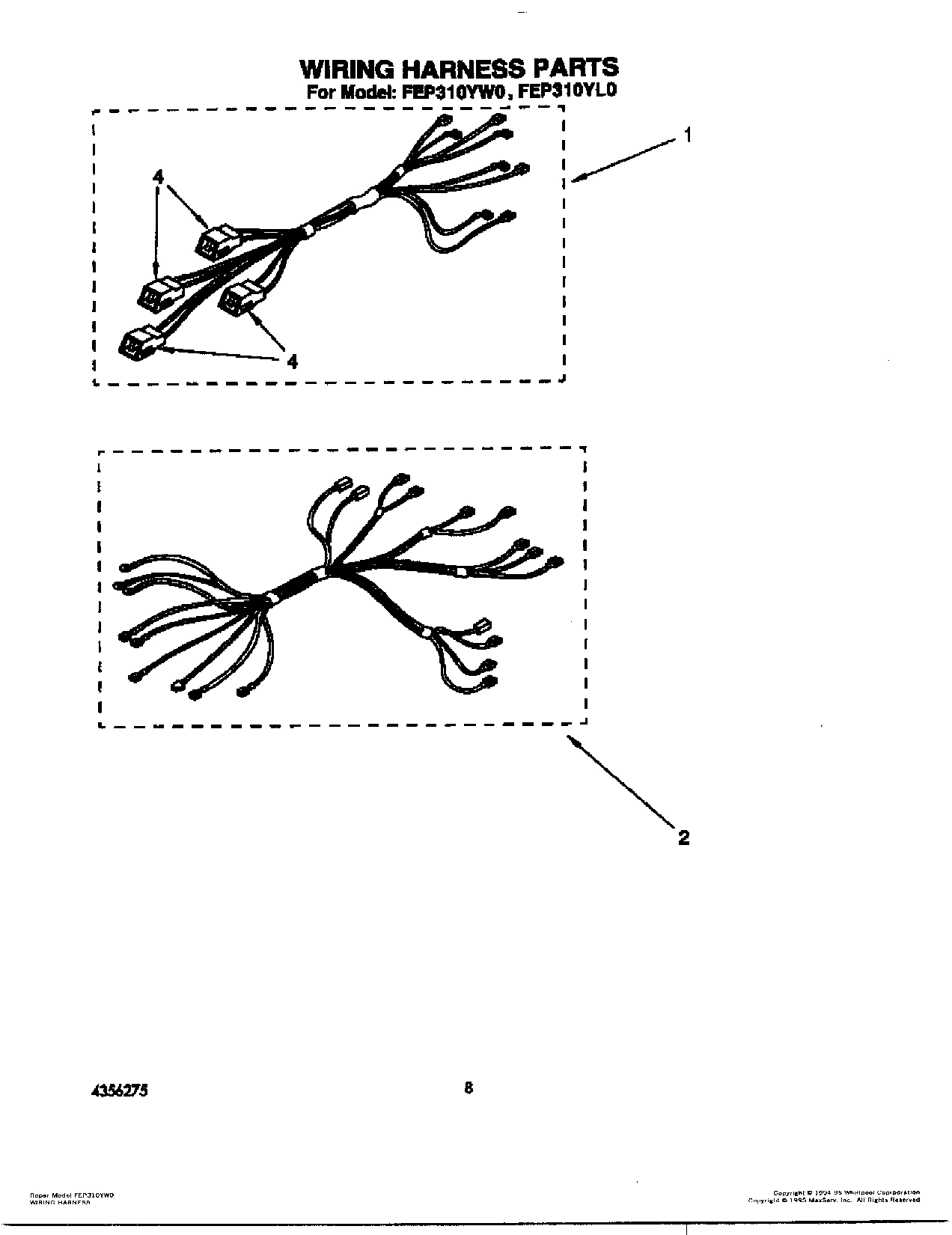

07 - WIRING HARNESS

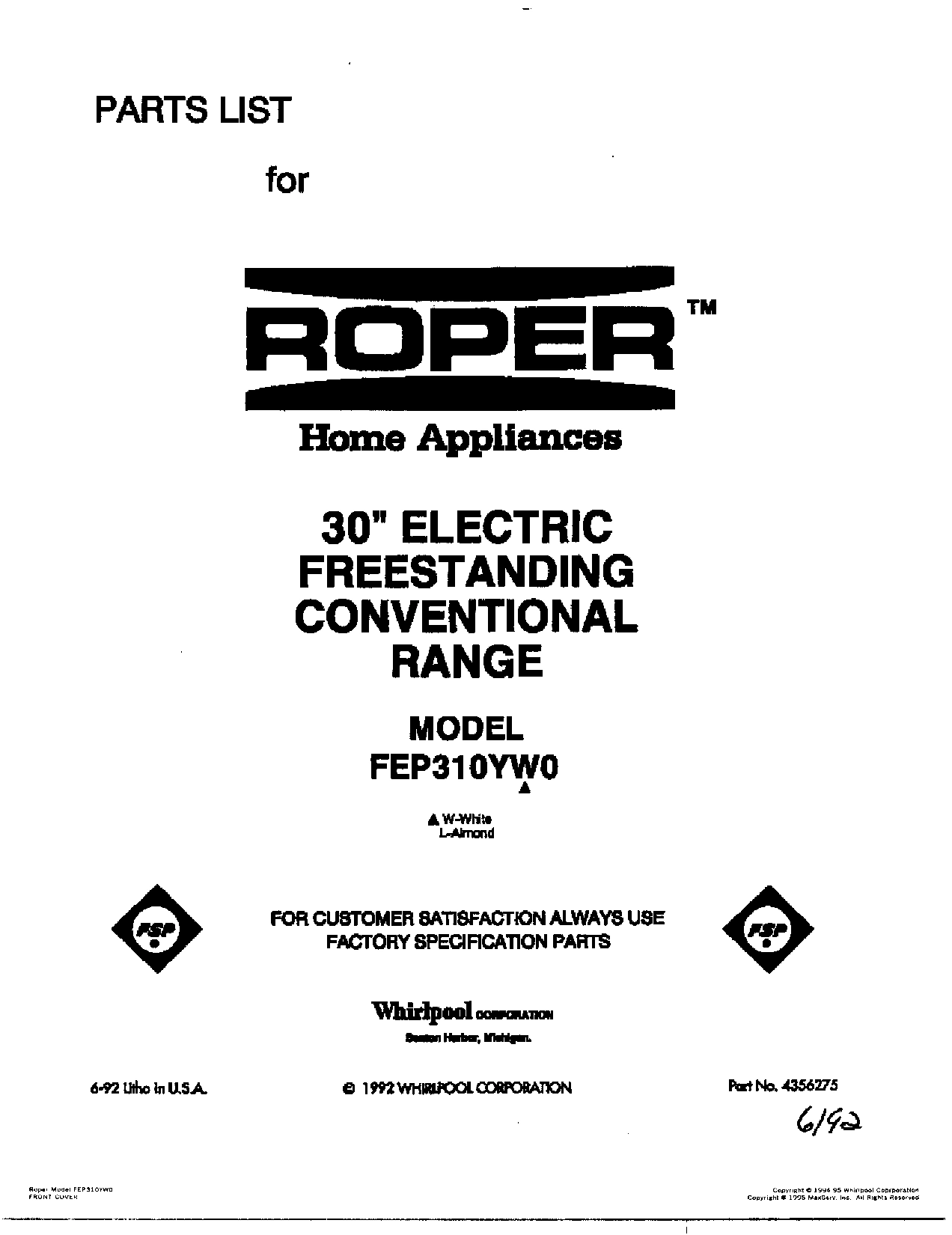

01 - COVER

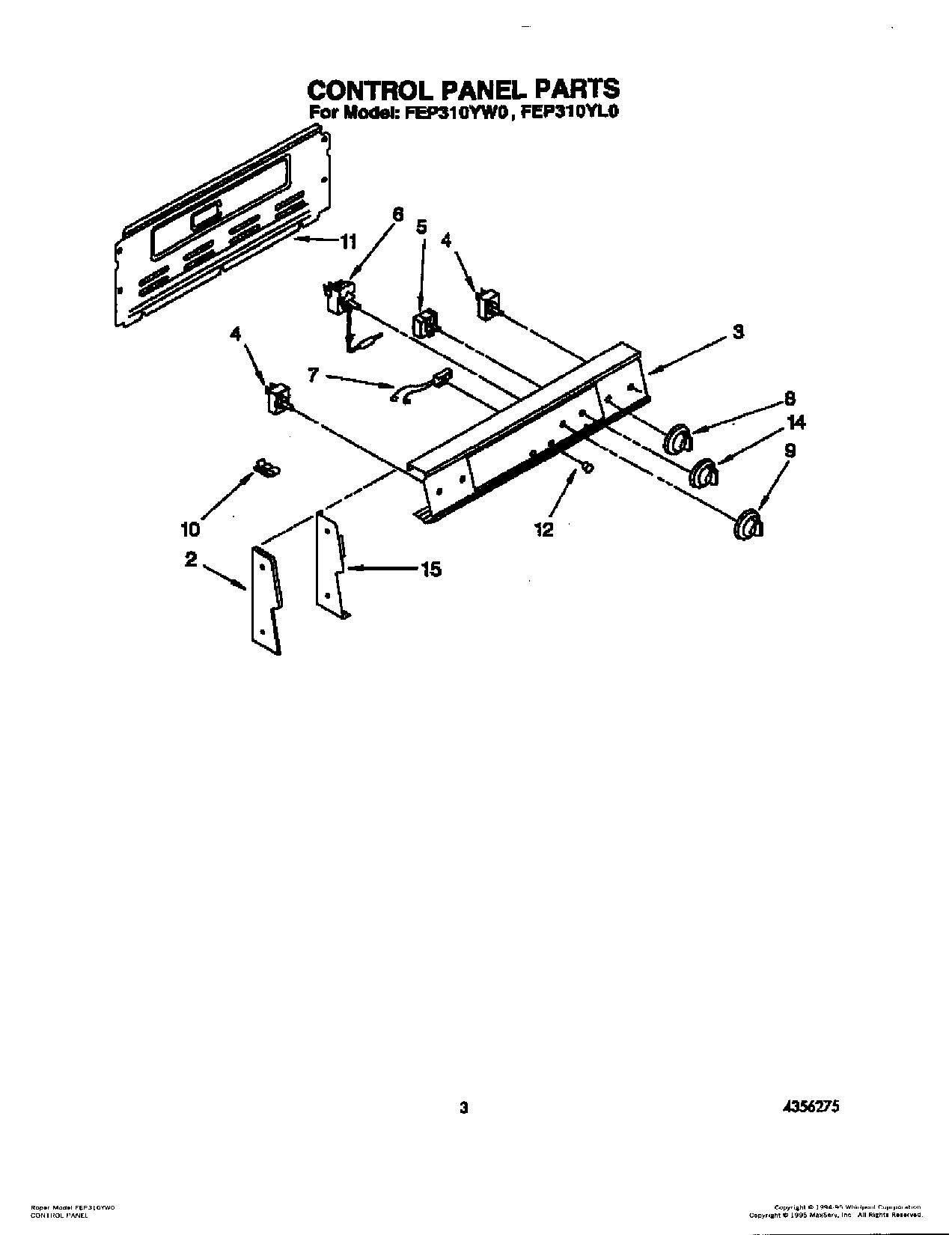

03 - CONTROL PANEL
Common parts from model Whirlpool FEP310YL0 ELECTRIC RANGE
Instructions, Installation WPL LIT3147400 Contact Us For Availability
Wiring Diagram WPL LIT3150655 Contact Us For Availability
Guide, Use & Care WPL LIT3184004 Contact Us For Availability
Repair Parts List WPL LIT4356275 Contact Us For Availability
1
Liner, Door WPL 3172221 Contact Us For Availability
1
Nut (4) WPL 814102 Contact Us For Availability
1
Harness, Wire (Surface Units) WPL 3149881 Contact Us For Availability
2
Screw, 8A x 5/8 (4) WPL 309133 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169147 Contact Us For Availability
2
End Cap L.H. WPL 3183465 Contact Us For Availability
2
End Cap R.H. WPL 3183466 Contact Us For Availability
3
Protector, Drawer (2) WPL 309329 Contact Us For Availability
3
Box, Burner WPL 3169186 Contact Us For Availability
3
Panel, Control WPL 3183467 Contact Us For Availability
4
Shield, Wiring WPL 307973 Contact Us For Availability
5
Switch, Selector (3 Position) WPL 3150430 Contact Us For Availability
5
Panel, Door (Screw, (3)) WPL 3149333 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Panel, Door (White) WPL 307889 Contact Us For Availability
5
Panel, Door (Almond) WPL 307897 Contact Us For Availability
5
Rod, Cooktop (2) WPL 3148659 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Handle, Oven Door WPL 3184128 Contact Us For Availability
6
Bracket, Cooktop WPL 307965 Contact Us For Availability
6
(Alt.) WPL 310864 Contact Us For Availability
6
(Alt.) WPL 311498 Contact Us For Availability
6
Thermostat WPL 661150 Contact Us For Availability
7
Light, Indicator (Oven On) WPL 314031 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
7
Glide, Rear (2) WPL 307980 Contact Us For Availability
7
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
7
Light, Indicator (Surface Unit On (Includes N WPL 3150662 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Drawer, Utility WPL 327887 Contact Us For Availability
8
Cooktop (White) WPL 3170989 Contact Us For Availability
8
Cooktop (Almond) WPL 3170990 Contact Us For Availability
9
Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability
9
Panel Drawer (White) WPL 307935 Contact Us For Availability
9
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
8A x 5/8 WPL 3150613 Contact Us For Availability
10
Handle, Drawer WPL 3184530 Contact Us For Availability
10
Tube Clip WPL 313570 Contact Us For Availability
11
Seal, Rubber WPL 309107 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Rear Cover Control Panel WPL 313195 Contact Us For Availability
12
Lens, Amber (2) WPL 313101 Contact Us For Availability
13
Medallion (4) WPL 309195 Contact Us For Availability
14
Knob, Control (Selector) WPL 3149984 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
15
Shield (2) (L.H.) WPL 3184353 Contact Us For Availability
15
Shield (2) (R.H.) WPL 3184354 Contact Us For Availability
17
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
17
WPL 799344 WPL 799344 Contact Us For Availability
17
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Grease WPL 261582 Contact Us For Availability
17
Coffee WPL 261886 Contact Us For Availability
17
New Avocado WPL 261888 Contact Us For Availability
17
Harvest Gold WPL 261890 Contact Us For Availability
17
Harvest WPL 261891 Contact Us For Availability
17
WPL 285365 WPL 285365 Contact Us For Availability
17
WPL 285366 WPL 285366 Contact Us For Availability
17
WPL 285367 WPL 285367 Contact Us For Availability
17
WPL 285368 WPL 285368 Contact Us For Availability
17
WPL 309961 WPL 309961 Contact Us For Availability
17
WPL 72108 WPL 72108 Contact Us For Availability
17
WPL 72112 WPL 72112 Contact Us For Availability
17
WPL 799832 WPL 799832 Contact Us For Availability
17
WPL 978883 WPL 978883 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
× ![]()
