Model Whirlpool FE9171 WASHER – Common Parts & Diagrams

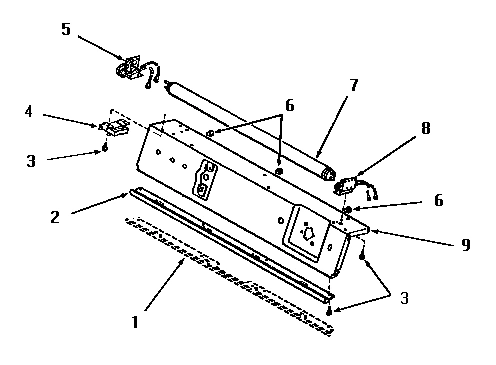

11 - PANEL SUPPORT PLATE AND FLUORESCENT TUBE

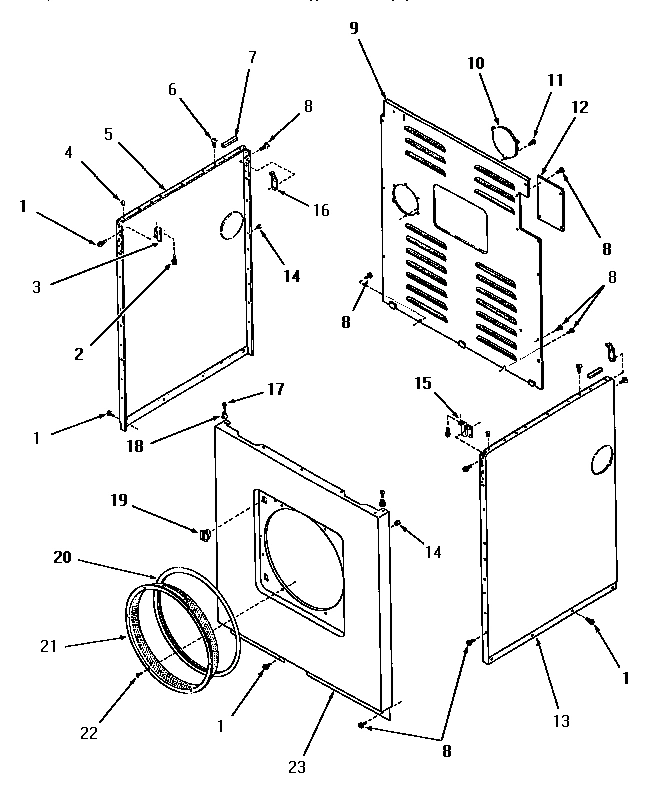

12 - PANELS

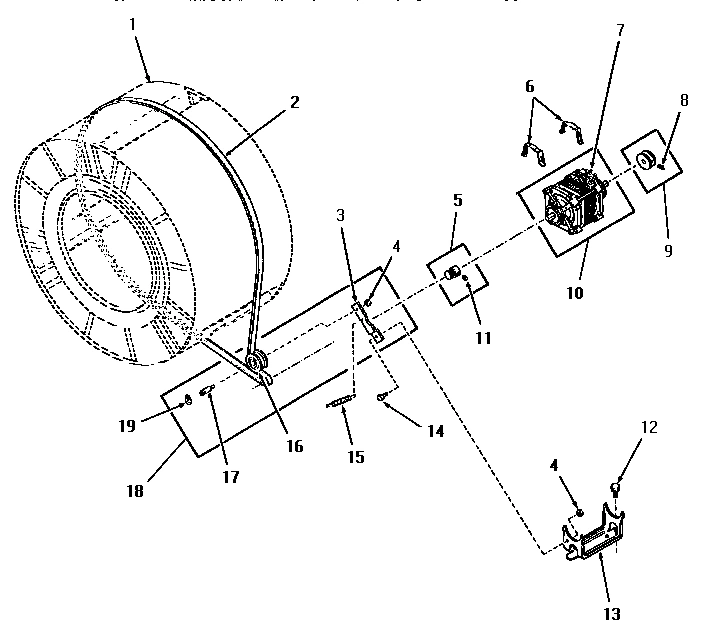

10 - MOTOR, IDLER AND BELT

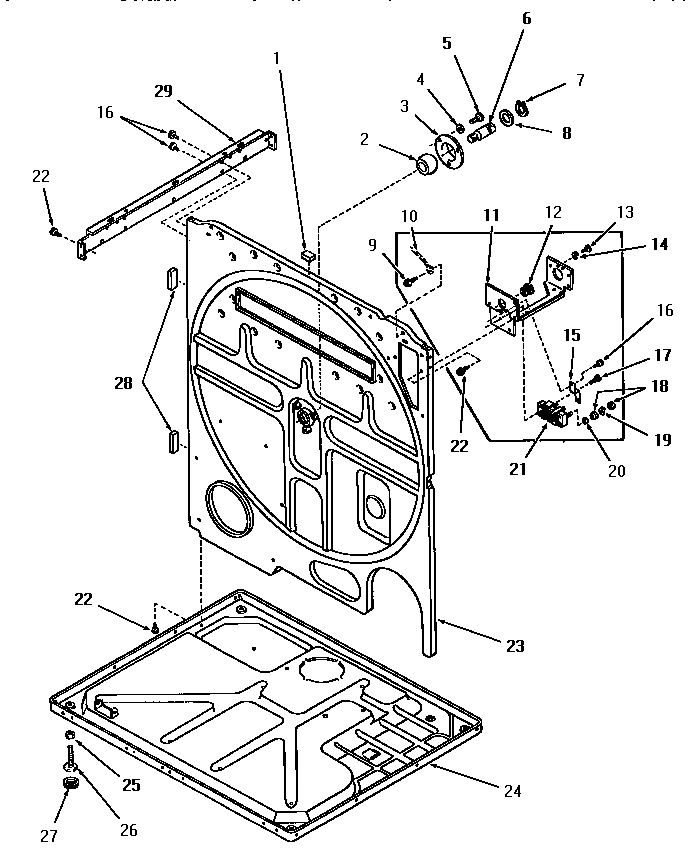

13 - REAR FRAME AND FRAME BASE

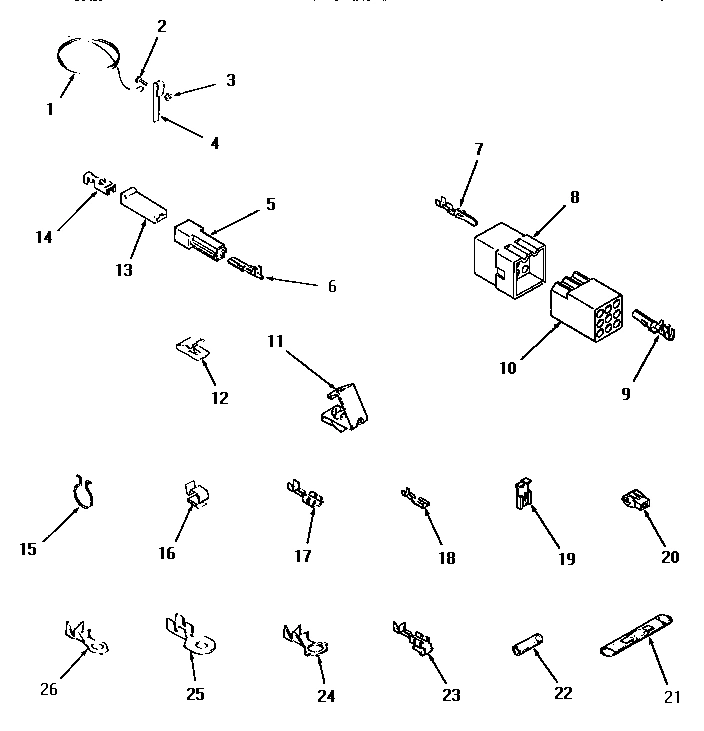

14 - WIRE AND TERMINALS

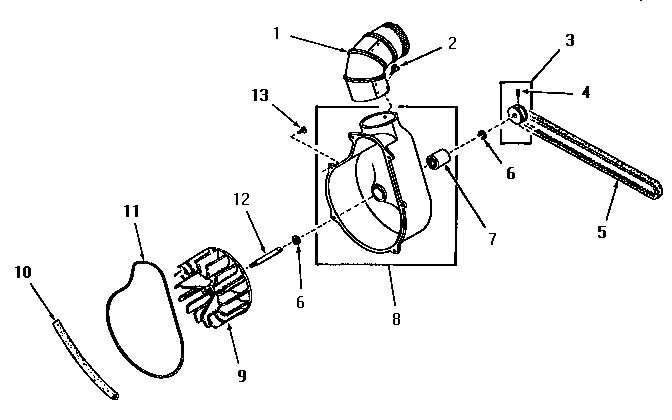

06 - EXHAUST FAN

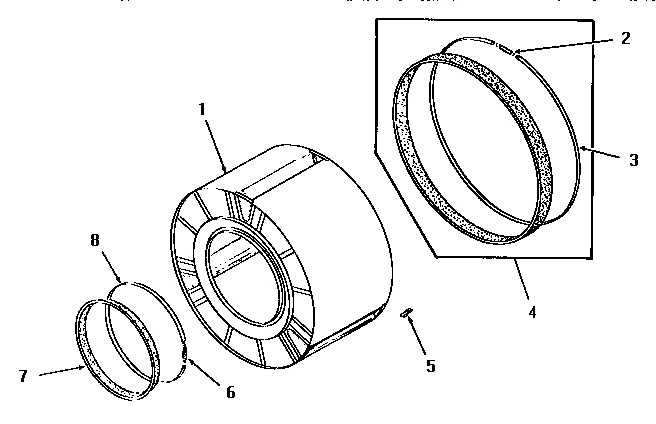

02 - CLOTHES DRUM

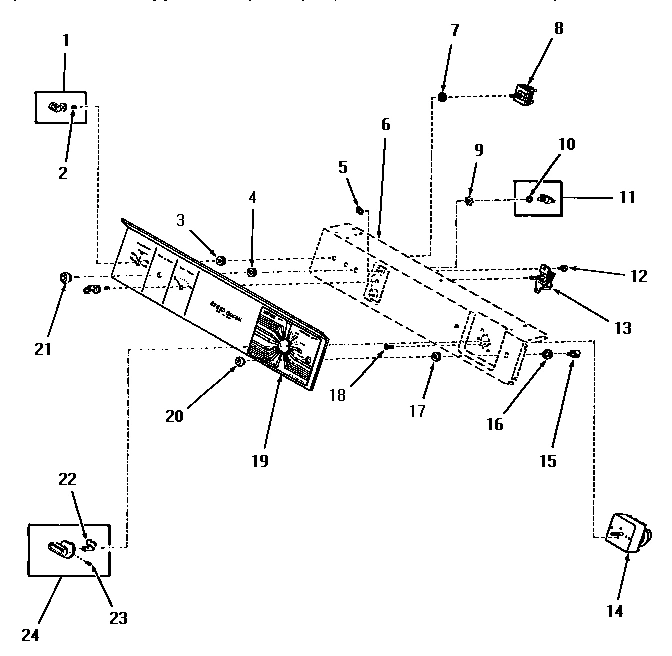

04 - CONTROL PANEL AND CONTROLS

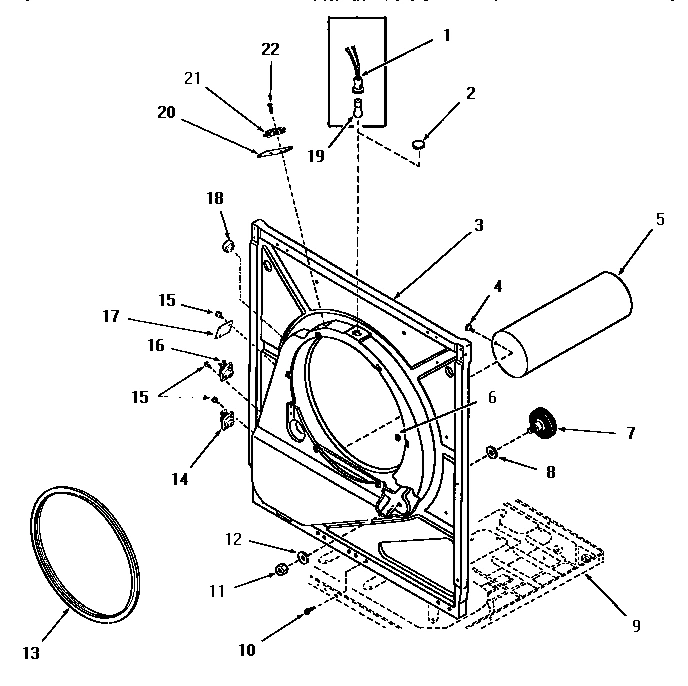

07 - FRONT FRAME AND AIR SHROUD

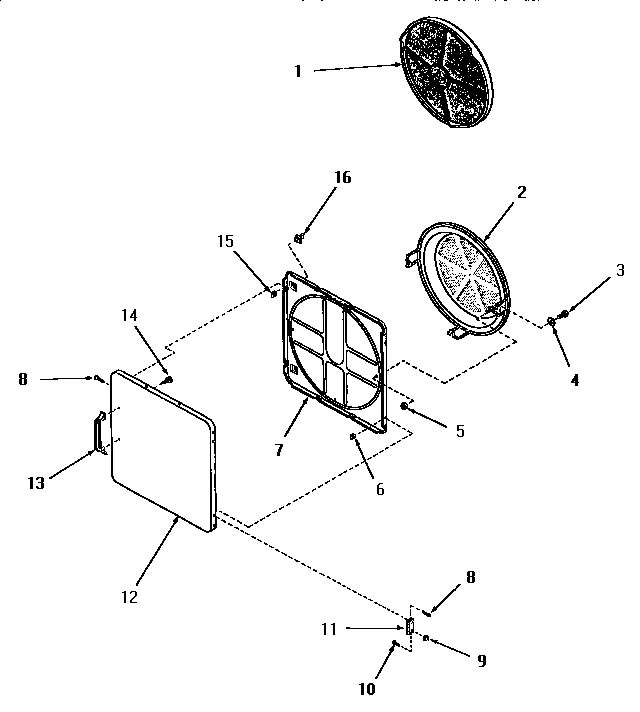

09 - LOADING DOOR

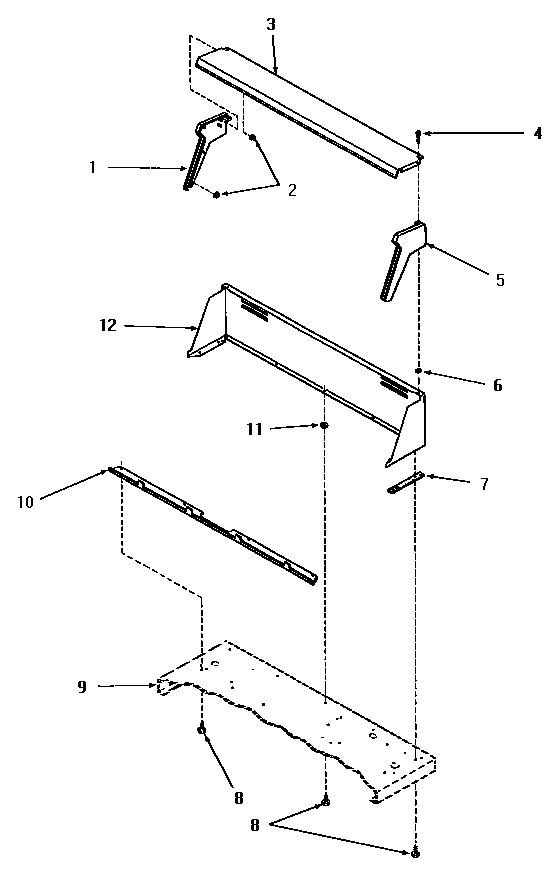

03 - CONTROL HOOD

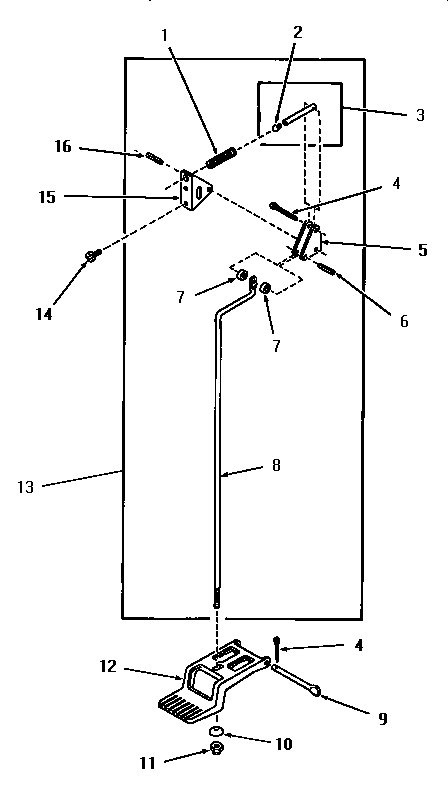

05 - DOOR RELEASE

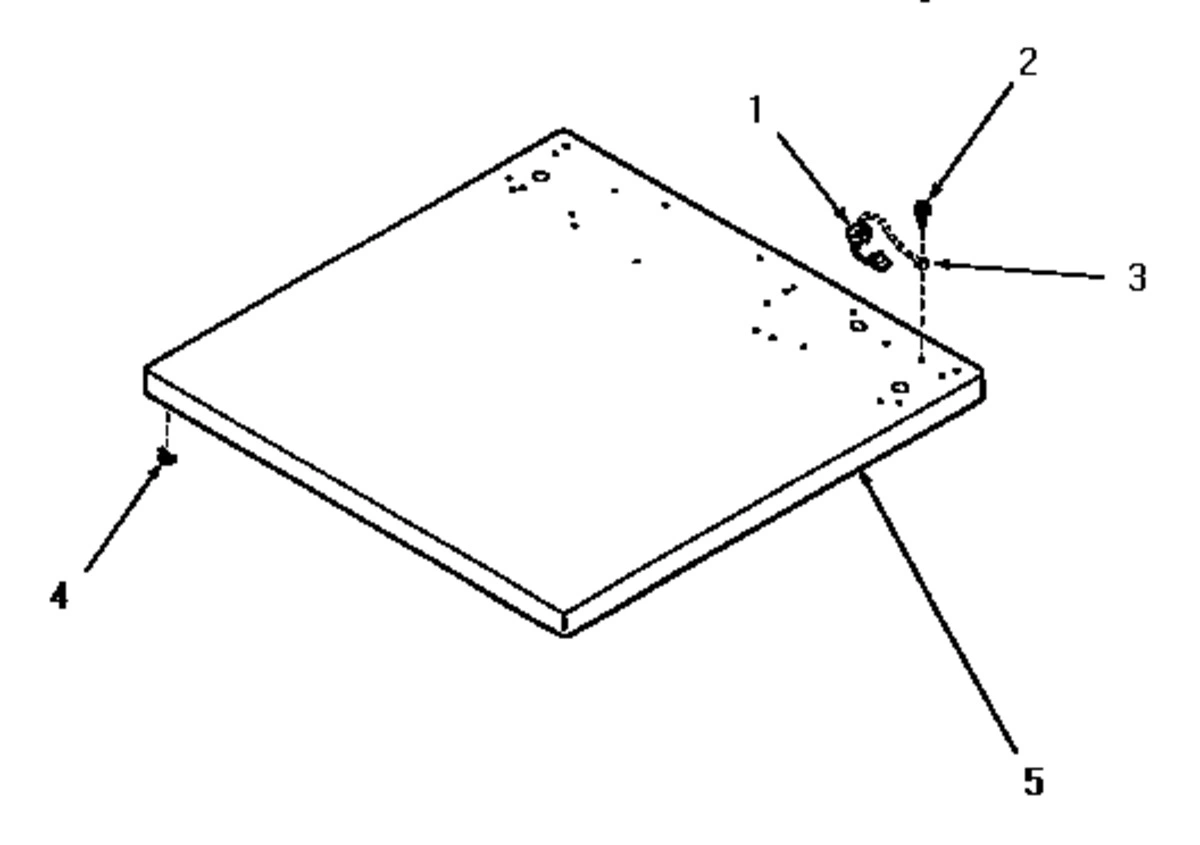

01 - CABINET TOP

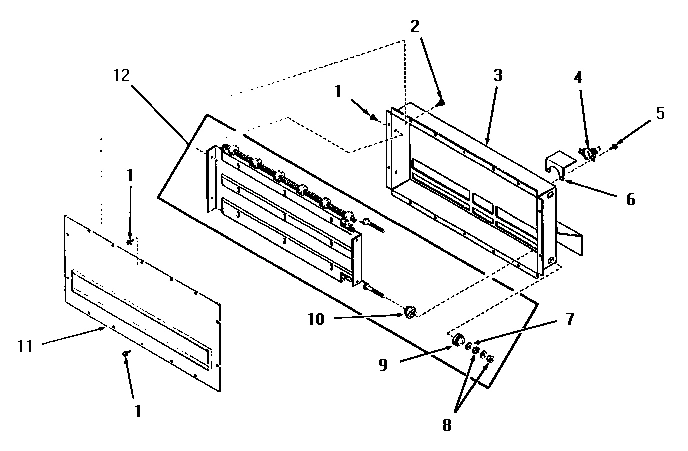

08 - HEATER BOX
Common parts from model Whirlpool FE9171 WASHER
1
BUMPER WPL 54024 Contact Us For Availability
1
GROUND WIRE WPL Y21429 Contact Us For Availability
1
SWITCH, LIGHT (BLK) WPL Y0052707 Contact Us For Availability
1
ASSY,DRUM WPL 53137 Contact Us For Availability
1
ASSY,KNOB-SWITCH WPL 26816 Contact Us For Availability
1
SUB 56306, WASHER WPL Y0054609 Contact Us For Availability
1
NO LONGER AVAILABLE WPL 53002 Contact Us For Availability
1
WIRING DIAGRAM WPL 23367 Contact Us For Availability
1
DOOR RELEASE SPRING WPL 51065 Contact Us For Availability
1
RELIEF, STRAIN WPL 52151 Contact Us For Availability
2
PANEL TRIM WPL Y52929 Contact Us For Availability
2
SCREW,10-24 X 3/4 SEMS WPL 23008 Contact Us For Availability
2
BELT WPL 52556 Contact Us For Availability
2
BEARING,DRUM SHAFT WPL Y52079 Contact Us For Availability
2
ROUND HEAD SCREW WPL 21431 Contact Us For Availability
2
ADAPTER, STRAIN RELIEF WPL 52130 Contact Us For Availability
2
CLIP FOR 26816 KNOB WPL 23392 Contact Us For Availability
2
PLUG BUTTON WPL 54610 Contact Us For Availability
2
ASSY,GRILL&SUPPORT-PUR WPL 54731 Contact Us For Availability
2
NUT WPL 23409 Contact Us For Availability
2
PLUG WPL 51786 Contact Us For Availability
2
SCREW,10-24 X 1/2 HEX WPL 51924 Contact Us For Availability
3
SEE NOTE GROUND WIRE, GREEN WPL Y00000000 Contact Us For Availability
3
BRACKET WPL 22847 Contact Us For Availability
3
LEVER,IDLER WPL 54410 Contact Us For Availability
3
COVER,BEARING WPL 51826 Contact Us For Availability
3
NUT WPL Y20276 Contact Us For Availability
3
ASSY,PULLEY WPL 53521 Contact Us For Availability
3
STRAP,SEAL WPL 50781 Contact Us For Availability
3
KNURLED NUT WPL 24391 Contact Us For Availability
3
FRONT FRAME AND AIR SHROUD WPL 51850 Contact Us For Availability
3
SCREW,1/4-20 X 1/2 HEX WPL 02422 Contact Us For Availability
3
CONTROL HOOD TOP WPL 52921 Contact Us For Availability
3
DOOR RELEASE PIN ASSEMBLY WPL 51841 Contact Us For Availability
3
HEATER BOX AND SHIELD WPL Y51876 Contact Us For Availability
4
BALLAST WPL 21975 Contact Us For Availability
4
BUMPER WPL 21176 Contact Us For Availability
4
SCREW,1/4-20X3/8 HEX S WPL 02771 Contact Us For Availability
4
LOCKWASHER,1/4 STD-C P WPL 03189 Contact Us For Availability
4
STRAP,GROUND WPL 21430 Contact Us For Availability
4
ASSY,SEAL WPL 51883A Contact Us For Availability
4
KNURLED NUT WPL 23406 Contact Us For Availability
4
WASHER WPL Q6275 Contact Us For Availability
4
SCREW,8AB-18X7/8 OVAL WPL 25232 Contact Us For Availability
4
PIN,COTTER WPL 02578 Contact Us For Availability
4
CAGED NUT WPL 23007 Contact Us For Availability
4
THERMOSTAT WPL 55523 Contact Us For Availability
5
FLUORESCENT TUBE HOLDER, LEFT WPL 23398 Contact Us For Availability
5
SIDE PANEL, LEFT, AVOCADO WPL 55907A Contact Us For Availability
5
SIDE PANEL, LEFT, COPPERTONE WPL 55907C Contact Us For Availability
5
SIDE PANEL, LEFT, HARVEST GOLD WPL 55907H Contact Us For Availability
5
SIDE PANEL, RIGHT, WHITE WPL 55907W Contact Us For Availability
5
ASSY,MOTOR PULLEY WPL 52593 Contact Us For Availability
5
SCREW,1/4-20 X 5/8 HEX WPL 53589 Contact Us For Availability
5
HOUSING,TAB WPL 90788 Contact Us For Availability
5
BELT WPL 51994 Contact Us For Availability
5
CLIP WPL 51201 Contact Us For Availability
5
NUT,SPEED-8A TINN C15 WPL 23407 Contact Us For Availability
5
EXHAUST DUCT WPL 51821 Contact Us For Availability
5
WIRING DIAGRAM WPL 23368 Contact Us For Availability
5
DOOR RELEASE LEVER WPL 51041 Contact Us For Availability
5
CABINET TOP, WHITE WPL 55903A Contact Us For Availability
5
CABINET TOP, COPPERTONE WPL 55903C Contact Us For Availability
5
CABINET TOP, HARVEST GOLD WPL 55903H Contact Us For Availability
5
CABINET TOP, WHITE WPL 55903W Contact Us For Availability
6
SCREW, No.10-16 X 3/8`` WPL 52442 Contact Us For Availability
6
SHAFT,DRUM WPL 53132 Contact Us For Availability
6
TERMINAL,TAB-1/4 MALE WPL 00133 Contact Us For Availability
6
SPRING WPL 50168 Contact Us For Availability
6
NUT,SPEED-8AB-18 C1995 WPL 24522 Contact Us For Availability
6
THERMOSTAT SHIELD WPL 52117 Contact Us For Availability
7
NO LONGER AVAILABLE WPL 24442 Contact Us For Availability
7
BUMPER PAD WPL 80312 Contact Us For Availability
7
SWITCH,MOTOR WPL 53226 Contact Us For Availability
7
SWITCH WPL 53249 Contact Us For Availability
7
RING,RETAINING WPL 70061 Contact Us For Availability
7
TERMINAL,PIN-1/8 MALE WPL Y00127 Contact Us For Availability
7
RECEPTACLE,12 CIRCUIT- WPL 54523 Contact Us For Availability
7
BEARING WPL 51991 Contact Us For Availability
7
SEAL,FRONT WPL 51881 Contact Us For Availability
7
DRUM ROLLER WPL 53555 Contact Us For Availability
7
INNER DOOR PANEL WPL 54665 Contact Us For Availability
7
GASKET,CONTROL BOX END WPL 23028 Contact Us For Availability
7
DOOR RELEASE SPACER WPL 51121 Contact Us For Availability
8
SCREW,8B-18 X 3/8 IND WPL 55985 Contact Us For Availability
8
FLUORESCENT TUBE HOLDER, RIGHT WPL 23397 Contact Us For Availability
8
WASHER WPL Y52564 Contact Us For Availability
8
PLUG,NYLON WPL 54522 Contact Us For Availability
8
HOUSING,BLOWER WPL 51946 Contact Us For Availability
8
STRAP,RETAINER WPL 50169 Contact Us For Availability
8
SWITCH,FABRIC SELECTOR WPL 52623 Contact Us For Availability
8
WASHER WPL 52123 Contact Us For Availability
8
SCREW, 8B-16X5/8 TAP WPL 52864 Contact Us For Availability
8
DOOR RELEASE ROD WPL 51837 Contact Us For Availability
8
NUT WPL 54531 Contact Us For Availability
9
PANEL SUPPORT PLATE WPL 53438 Contact Us For Availability
9
PANEL,REAR xREPLACE WPL 52677GR Contact Us For Availability
9
PULLEY,MOTOR WPL 53522 Contact Us For Availability
9
TERMINAL,PIN-1/8 FEMAL WPL Y00128 Contact Us For Availability
9
IMPELLER WPL 90585 Contact Us For Availability
9
LOCKWASHER,1/2 INT SHK WPL 25820 Contact Us For Availability
9
NUT K WPL 51236 Contact Us For Availability
9
PEDAL HINGE PIN WPL 51045 Contact Us For Availability
9
INSULATOR WPL 51145 Contact Us For Availability
10
PLATE,COVER WPL 51855GR Contact Us For Availability
10
MOTOR WPL 52697 Contact Us For Availability
10
SEAL WPL 51790 Contact Us For Availability
10
NUT,HEX 15/32-32 WPL 52947 Contact Us For Availability
10
SCREW,8-32 X 13/32 FL WPL 22649 Contact Us For Availability
10
PANEL SUPPORT BRACKET WPL 52912 Contact Us For Availability
10
NYLON WASHER WPL 51046 Contact Us For Availability
10
INSULATOR WPL 51146 Contact Us For Availability
11
SCREW, 6B-20X5/16 WPL 51782 Contact Us For Availability
11
SETSCREW WPL 52906 Contact Us For Availability
11
TERMINAL BLOCK BRACKET WPL Y52110 Contact Us For Availability
11
GROUND CLIP WPL 00158 Contact Us For Availability
11
GASKET,HOUSING WPL 51791 Contact Us For Availability
11
ASSY, SWITCH WPL 55878 Contact Us For Availability
11
NUT WPL 52124 Contact Us For Availability
11
HINGE (COMML. PART) WPL 70014 Contact Us For Availability
11
WASHER,7/32IDX7/16ODX. WPL 23425 Contact Us For Availability
11
NUT WPL 51271 Contact Us For Availability
11
HEATER BOX COVER PLATE WPL 51867 Contact Us For Availability
12
TERMINAL BLOCK ACCESS PLATE, G WPL 52108GR Contact Us For Availability
12
CAP SCREW AND LOCKWASHER WPL 23928 Contact Us For Availability
12
RELIEF,STRAIN WPL 52113 Contact Us For Availability
12
CABLE CLIP WPL 21312 Contact Us For Availability
12
EXHAUST FAN SHAFT WPL 53519 Contact Us For Availability
12
WASHER WPL 52122 Contact Us For Availability
12
DOOR,UNSHADED WPL 55902A Contact Us For Availability
12
OUTER DOOR PANEL, COPPERTONE WPL 55902C Contact Us For Availability
12
DOOR,UNSHADED WPL 55902H Contact Us For Availability
12
OUTER DOOR PANEL, WHITE WPL 55902W Contact Us For Availability
12
CONTROL HOOD, AVOCADO WPL 55906A Contact Us For Availability
12
CONTROL HOOD, COPPERTONE WPL 55906C Contact Us For Availability
12
CONTROL HOOD, HARVEST GOLD WPL 55906H Contact Us For Availability
12
CONTROL HOOD, WHITE WPL 55906W Contact Us For Availability
12
PEDAL,FOOT WPL 51802 Contact Us For Availability
12
ELEMENT,HEATER-208V WPL 52306 Contact Us For Availability
12
ELEMENT,HEATER-230V WPL 52608 Contact Us For Availability
12
ELEMENT,HEATER-240V WPL Y52626 Contact Us For Availability
13
SCREW,10B-16 X 1/2 HEX WPL 51784 Contact Us For Availability
13
SIDE PANEL, RIGHT, AVOCADO WPL 55908A Contact Us For Availability
13
SIDE PANEL, RIGHT, COPPERTONE WPL 55908C Contact Us For Availability
13
SIDE PANEL, RIGHT, HARVEST GOL WPL 55908H Contact Us For Availability
13
SIDE PANEL, RIGHT, WHITE WPL 55908W Contact Us For Availability
13
REPLACED BY 58047 WPL 51789 Contact Us For Availability
13
MOUNT,MOTOR WPL 51824 Contact Us For Availability
13
SCREW,10B-16 X 1/2 HEX WPL 52909 Contact Us For Availability
13
CONNECTOR WPL 90789 Contact Us For Availability
13
BUZZER WPL 53516 Contact Us For Availability
13
PULL,DOOR WPL 54068 Contact Us For Availability
13
DOOR RELEASE ASSEMBLY WPL 51844 Contact Us For Availability
14
BUMPER WPL 20387 Contact Us For Availability
14
BOLT,SHOULDER WPL 52567 Contact Us For Availability
14
TERMINAL,SPADE-1/4 FEM WPL Y00115 Contact Us For Availability
14
TIMER WPL 53466 Contact Us For Availability
14
SCREW, THERMOSTAT WPL 52150 Contact Us For Availability
14
THERMOSTAT WPL 54736 Contact Us For Availability
14
SCREW WPL 51246 Contact Us For Availability
15
BRACKET WPL 22846 Contact Us For Availability
15
SPRING WPL 52323 Contact Us For Availability
15
STRAP,GROUND WPL 53950 Contact Us For Availability
15
CLIP,WIRE WPL 51291 Contact Us For Availability
15
SWITCH WPL 23401 Contact Us For Availability
15
SPEED NUT WPL 52865 Contact Us For Availability
15
DOOR RELEASE BRACKET WPL 51052 Contact Us For Availability
16
LUG,HOLD-DOWN WPL 52487 Contact Us For Availability
16
CLIP,CABLE WPL 21036 Contact Us For Availability
16
LOCKWASHER,3/8 INTSHKP WPL 91176 Contact Us For Availability
16
THERMOSTAT WPL 54737 Contact Us For Availability
16
PIN,ROLL 1/8 X 3/4 WPL 51161 Contact Us For Availability
17
SCREW,10B-16 X 3/4 ROU WPL Q6535 Contact Us For Availability
17
SHAFT,IDLER LEVER WPL 54411 Contact Us For Availability
17
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
17
FERRULE WPL 23400 Contact Us For Availability
17
COVER PLATE WPL 52550 Contact Us For Availability
18
MOUNT,PANEL WPL 23020 Contact Us For Availability
18
LEVER,IDLER WPL 54415 Contact Us For Availability
18
NUT WPL Q6163 Contact Us For Availability
18
TERMINAL,SPADE-3/16 FE WPL 00112 Contact Us For Availability
18
SCREW,8-32 X 5/32 RD H WPL 70212 Contact Us For Availability
18
CAPILLARY & SUCTION LINE ASSY WPL Y0053719 Contact Us For Availability
19
WASHER,13/64IDX1/2ODX. WPL 51474 Contact Us For Availability
19
TERMINAL,FLAG-1/4 FEMA WPL Y00120 Contact Us For Availability
19
CONTROL PANEL WPL 55877 Contact Us For Availability
19
LIGHT BULB WPL Y54608 Contact Us For Availability
20
SEAL,OUTER WPL 51799 Contact Us For Availability
20
WASHER WPL Q6623 Contact Us For Availability
20
INSULATOR,BLUE WPL 70210 Contact Us For Availability
20
SWITCH COLLAR WPL 23399 Contact Us For Availability
20
INSULATION WPL 52112 Contact Us For Availability
21
DUCT RING, GRAY WPL 52052GR Contact Us For Availability
21
CONNECTOR TWO 1/4 INCH MALE WPL 21091 Contact Us For Availability
21
SWITCH COLLAR WPL 23130 Contact Us For Availability
21
SWITCH WPL Y51143 Contact Us For Availability
22
SCREW,8B-18 X 1/2 RD H WPL 51778 Contact Us For Availability
22
INSULATOR SLEEVE WPL Y21365 Contact Us For Availability
22
INDICATOR,TIMER KNOB WPL 24283 Contact Us For Availability
22
SCREW,6B-20 X 7/8 HEX WPL 51783 Contact Us For Availability
23
FRONT PANEL, AVOCADO WPL 55901A Contact Us For Availability
23
FRONT PANEL, COPPERTONE WPL 55901C Contact Us For Availability
23
PANEL,FRONT WPL 55901H Contact Us For Availability
23
FRONT PANEL, WHITE WPL 55901W Contact Us For Availability
23
FRAME,REAR WPL 52574 Contact Us For Availability
23
TERMINAL,SPADE-1/4 FEM WPL Y00114 Contact Us For Availability
23
SCREW,8-32 X 1/4 HEX S WPL 20310 Contact Us For Availability
24
FRAME BASE WPL Y52572 Contact Us For Availability
24
TERMINAL,RING-1/4 STUD WPL Y00113 Contact Us For Availability
24
TIMER KNOB ASSEMBLY WPL 55900 Contact Us For Availability
25
NUT, HEX 3/8-16 WPL 52794 Contact Us For Availability
25
TERMINAL,RING-10 STUD WPL Y00111 Contact Us For Availability
26
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
28
BUMPER PAD WPL 20354 Contact Us For Availability
29
SUPPORT CHANNEL, RIGHT OR LEFT WPL 51818 Contact Us For Availability
NI
WIRE, 12 GAUGE WPL 20679 Contact Us For Availability
NI
18 GAUGE WIRE WPL 20680 Contact Us For Availability
× ![]()
Login and Registration Form
