Model Whirlpool ET9AHTXLT02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI55076A4 Contact Us For Availability

1

Literature Parts (Instruction Sheet, Water Fi WPL LIT2210486 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2225376 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2225411 Contact Us For Availability

1

Literature Parts (Customer Instructions) WPL LIT2225413 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT2225623 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2225759 Contact Us For Availability

1

Literature Parts (Do-It-Yourself Manual, Ref/ WPL LIT677969 Contact Us For Availability

1

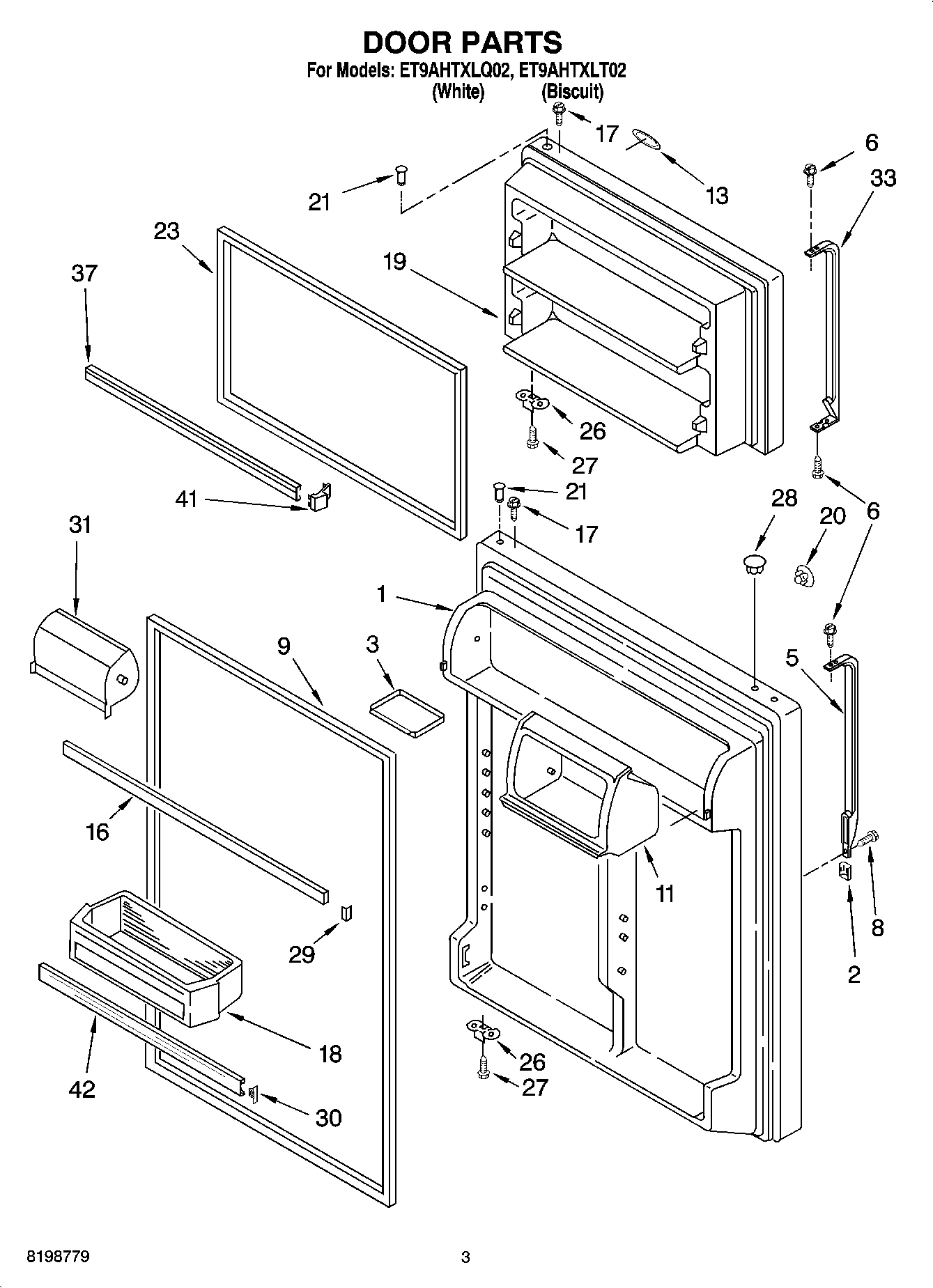

Refrigerator Door (Includes 9 & 21) (White) WPL 2183864 Contact Us For Availability

1

Refrigerator Door (Includes 9 & 21) (Biscuit) WPL 2205286 Contact Us For Availability

1

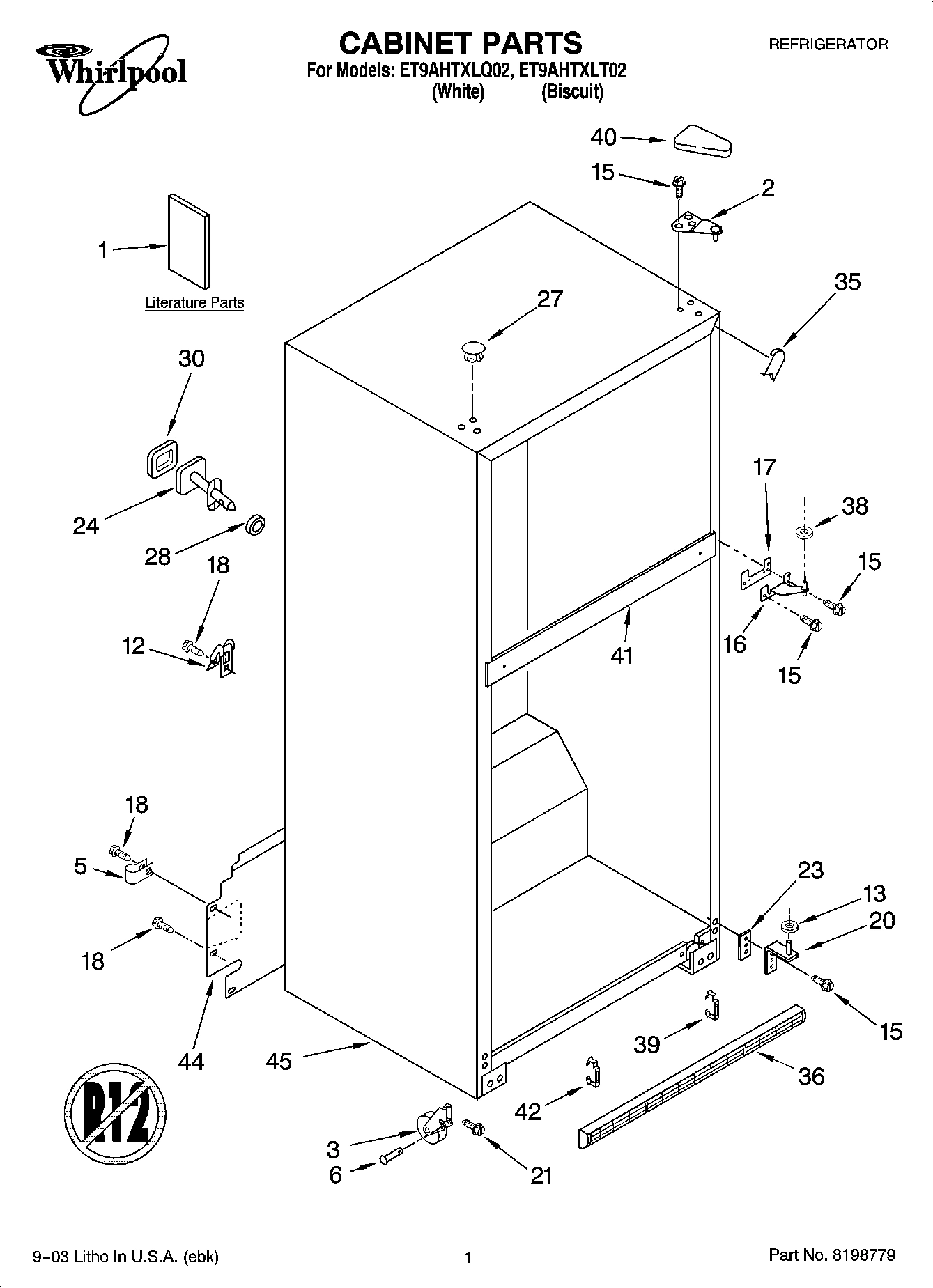

Plate, Unit Mounting WPL 2225597 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

2

Shelf Assembly, Cantilever (Includes 20, 26, WPL 2201107K Contact Us For Availability

2

Handle, Trim (Biscuit) WPL 2193353T Contact Us For Availability

3

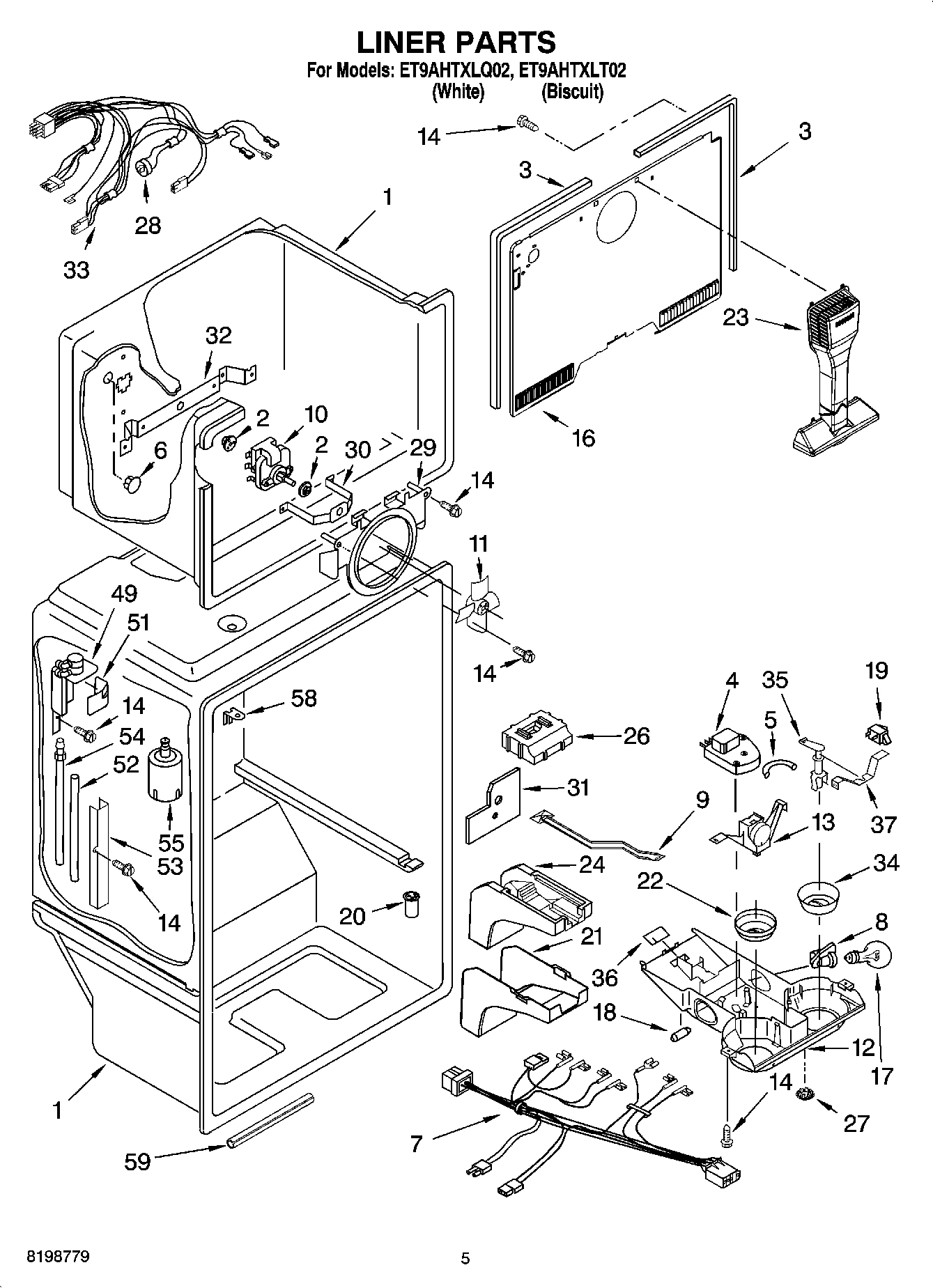

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

Tray, Door WPL 2159302 Contact Us For Availability

4

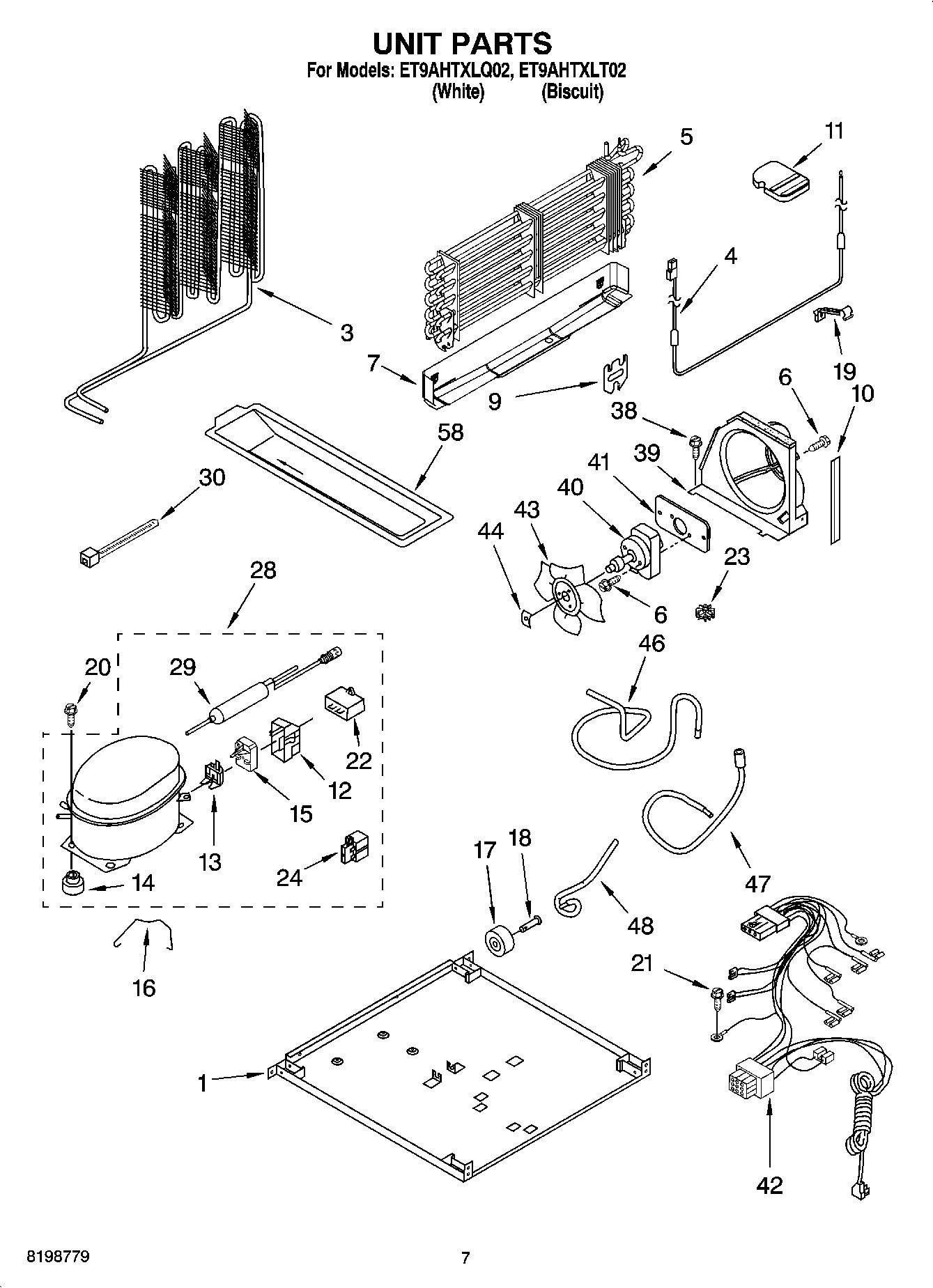

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $55.60

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Evaporator Assy. WPL 2254250 Contact Us For Availability

6

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

7

Drain Pan WPL 2254294 Contact Us For Availability

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

8

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $2.51

9

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

9

Bracket, Heater WPL 2176301 Contact Us For Availability

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

Support Block WPL 2201184 Contact Us For Availability

11

Housing Comp. WPL 2210566 Contact Us For Availability

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

13

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

13

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $50.58

13

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

14

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

15

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

Trim, Crisper Pan WPL 2195340 Contact Us For Availability

16

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

16

WP2159312 Whirlpool Refrigerator Door Trim Backorder WPL WP2159312 $41.05

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

18

Door Bin (3) WPL 2204811 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

Freezer Door Panel (White) WPL 2183860 Contact Us For Availability

Freezer Door Panel (Biscuit) WPL 2205130 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $2.51

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $27.12

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

22

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $78.12

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Grommet WPL 531933 Contact Us For Availability

W10920279 Whirlpool Refrigerator Start Relay In Stock WPL W10920279 $40.48

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

Fitting, Water Tube (Not Serviced) WPL ARI55077A1 Contact Us For Availability

26

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

26

Trim, Shelf Front WPL 2188684 Contact Us For Availability

27

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

27

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

27

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

Seal, Front (Not Serviced) WPL ARI55078A5 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

Plug-Trim WPL 2177340 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

Seal, Rear (Not Serviced) WPL ARI55079A8 Contact Us For Availability

31

WP2218109 Whirlpool Refrigerator Door Compres Backorder WPL WP2218109 $42.64

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

33

4388947 Whirlpool Refrigerator Door Handle Ki Backorder WPL 4388947 $97.92

33

4388949 Whirlpool Refrigerator Handle Backorder WPL 4388949 $99.97

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

35

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $31.60

37

Trim-Door (2) WPL 2195946 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

38

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

39

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $31.31

39

Air Baffle WPL 2198921 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

40

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $61.57

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

41

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

41

Rail Center (Not Serviced) WPL ARI55080A4 Contact Us For Availability

41

Plate WPL 2210750 Contact Us For Availability

42

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $47.29

42

CLIP, GRILLE WPL 2189356 Contact Us For Availability

42

Wire Assembly Unit WPL 2187383 Contact Us For Availability

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2221775 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI55081A9 Contact Us For Availability

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

Tube, Suction WPL 2225237 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

8201826 Whirlpool Refrigerator Evaporator Tra In Stock WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clip, Retainer WPL 2210563 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI55083A1 Contact Us For Availability

REFRIGERANT CHARGE 4.00 Ozs. (R134A) WPL ARI55084A3 Contact Us For Availability

59

Tube, Insulation WPL 2214981 Contact Us For Availability

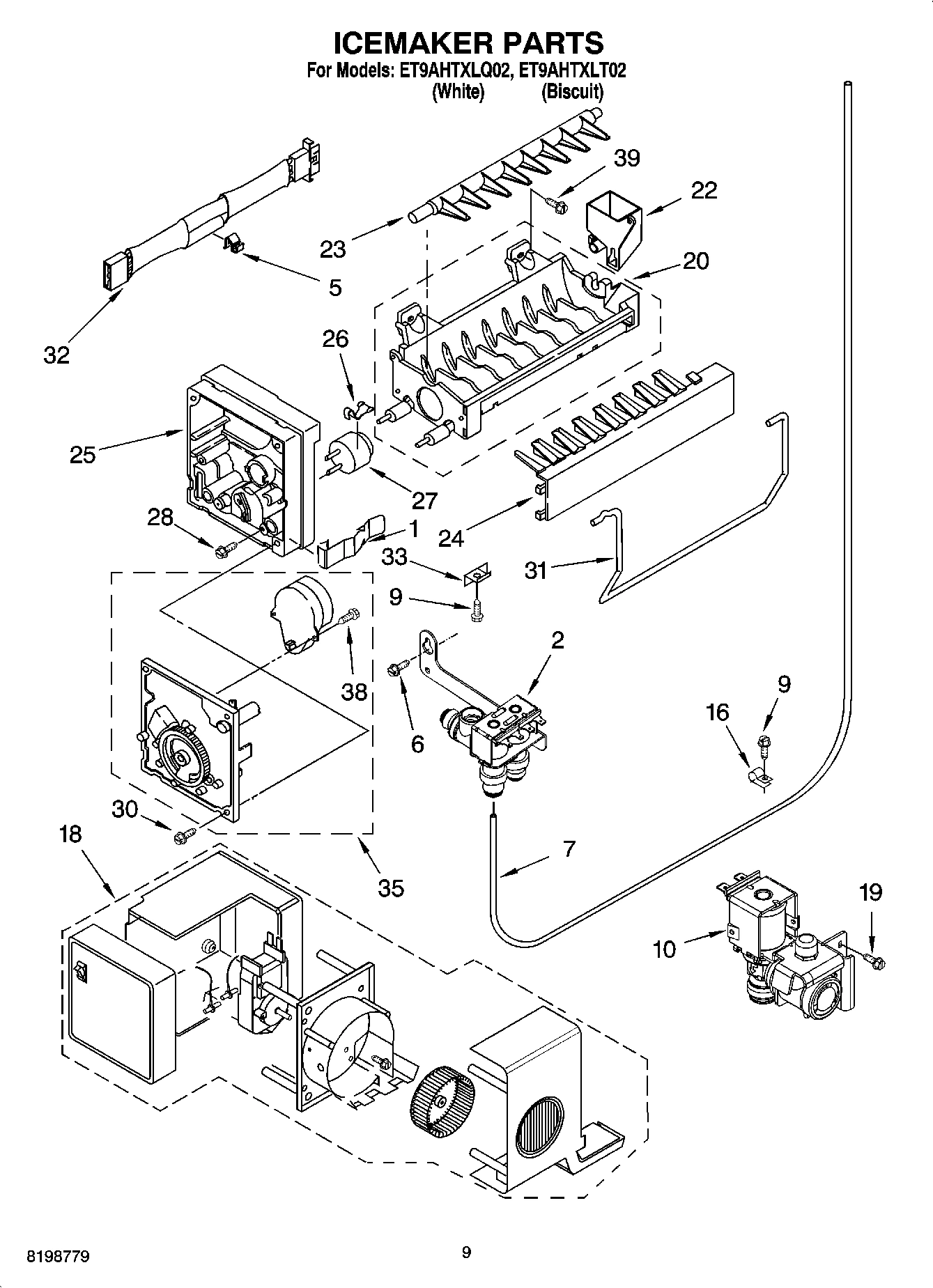

99

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
