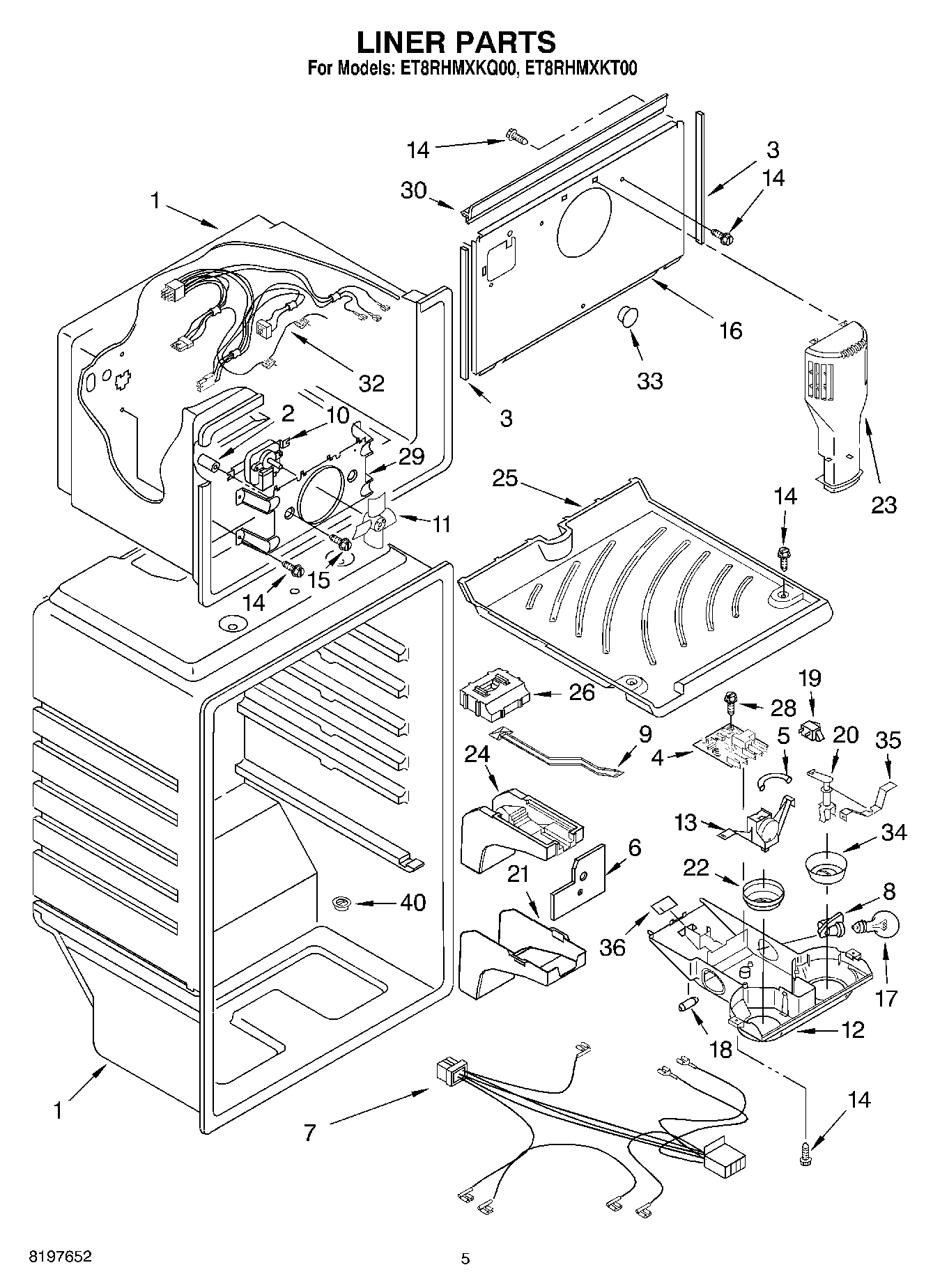

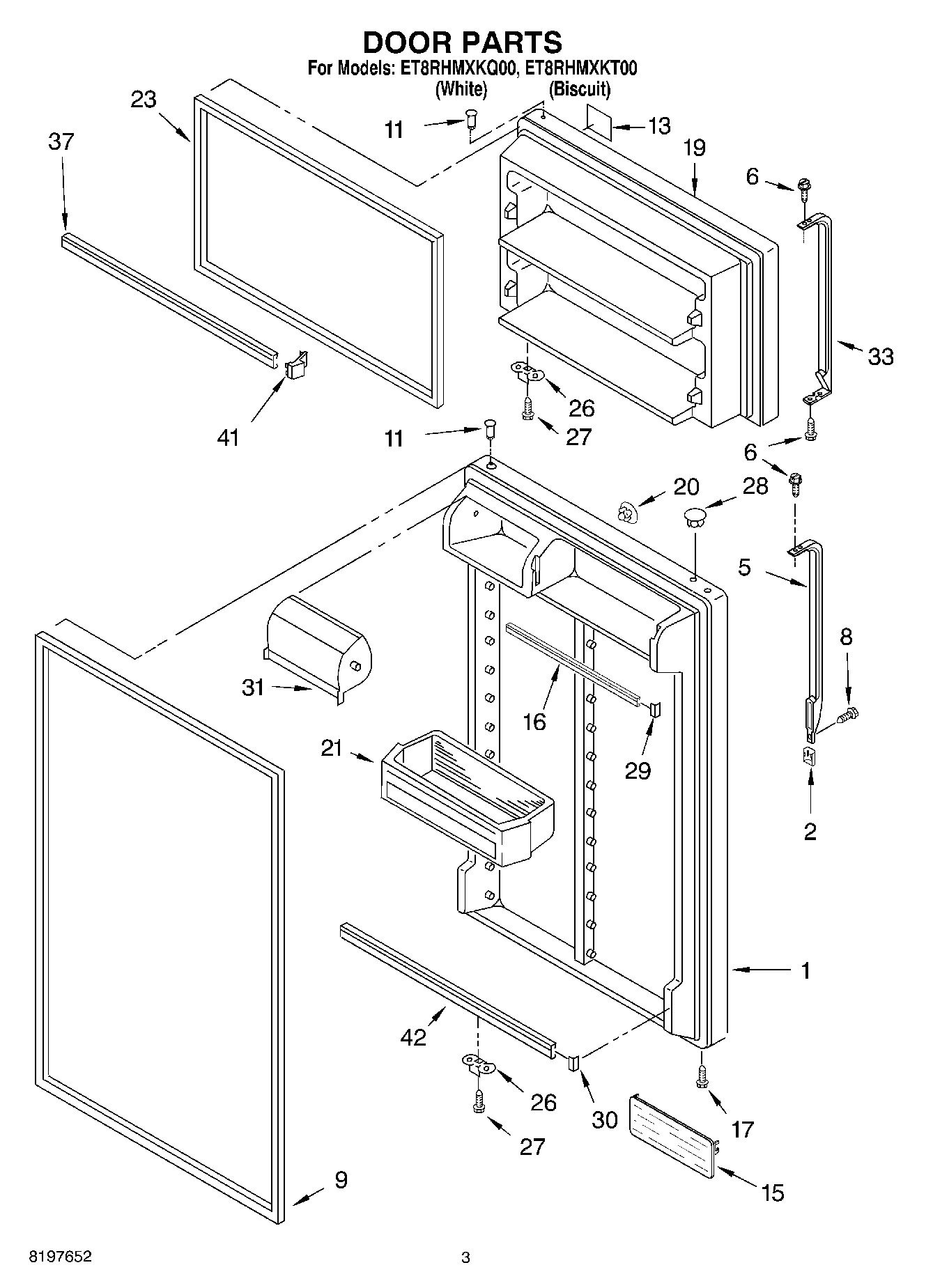

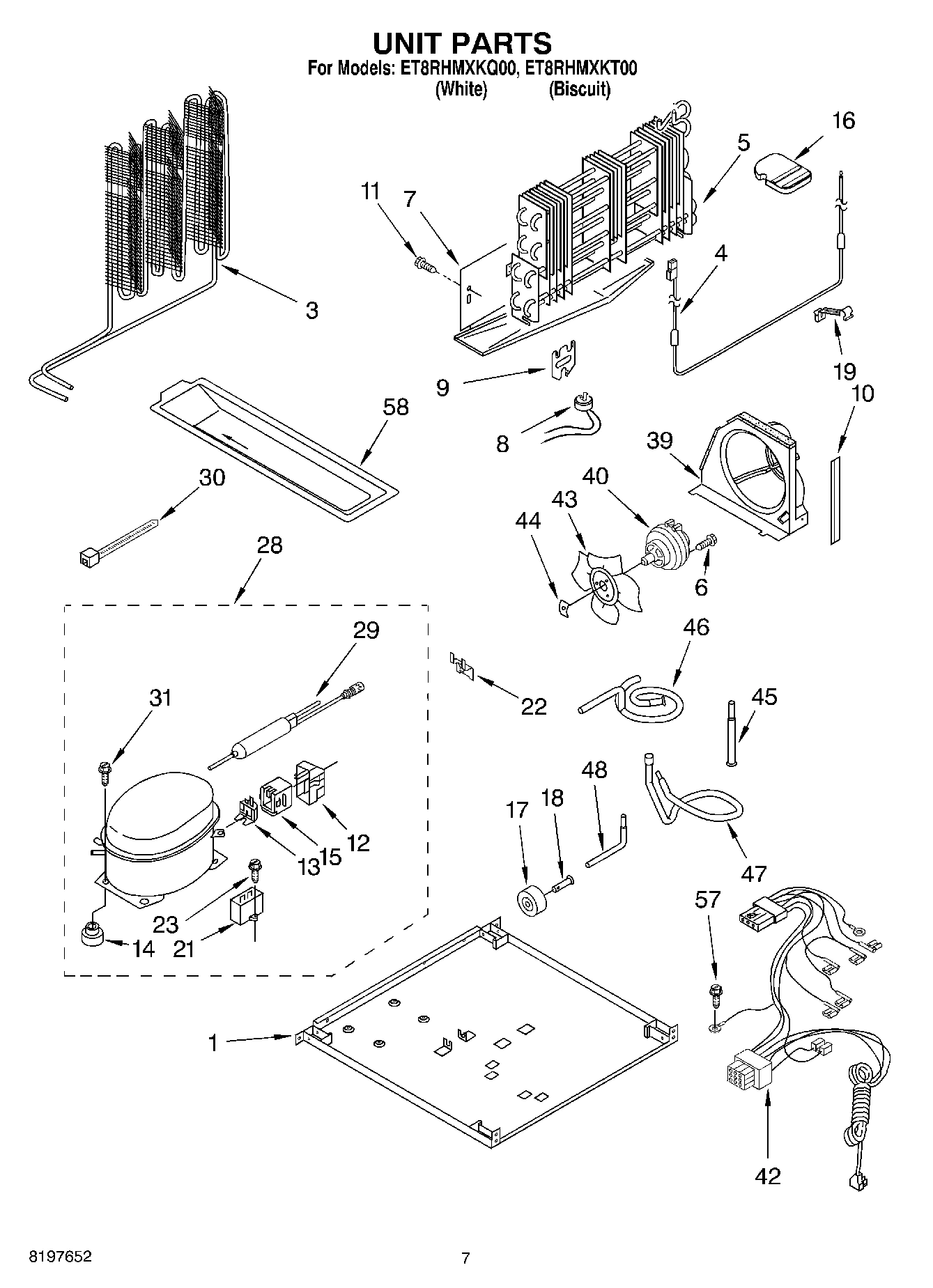

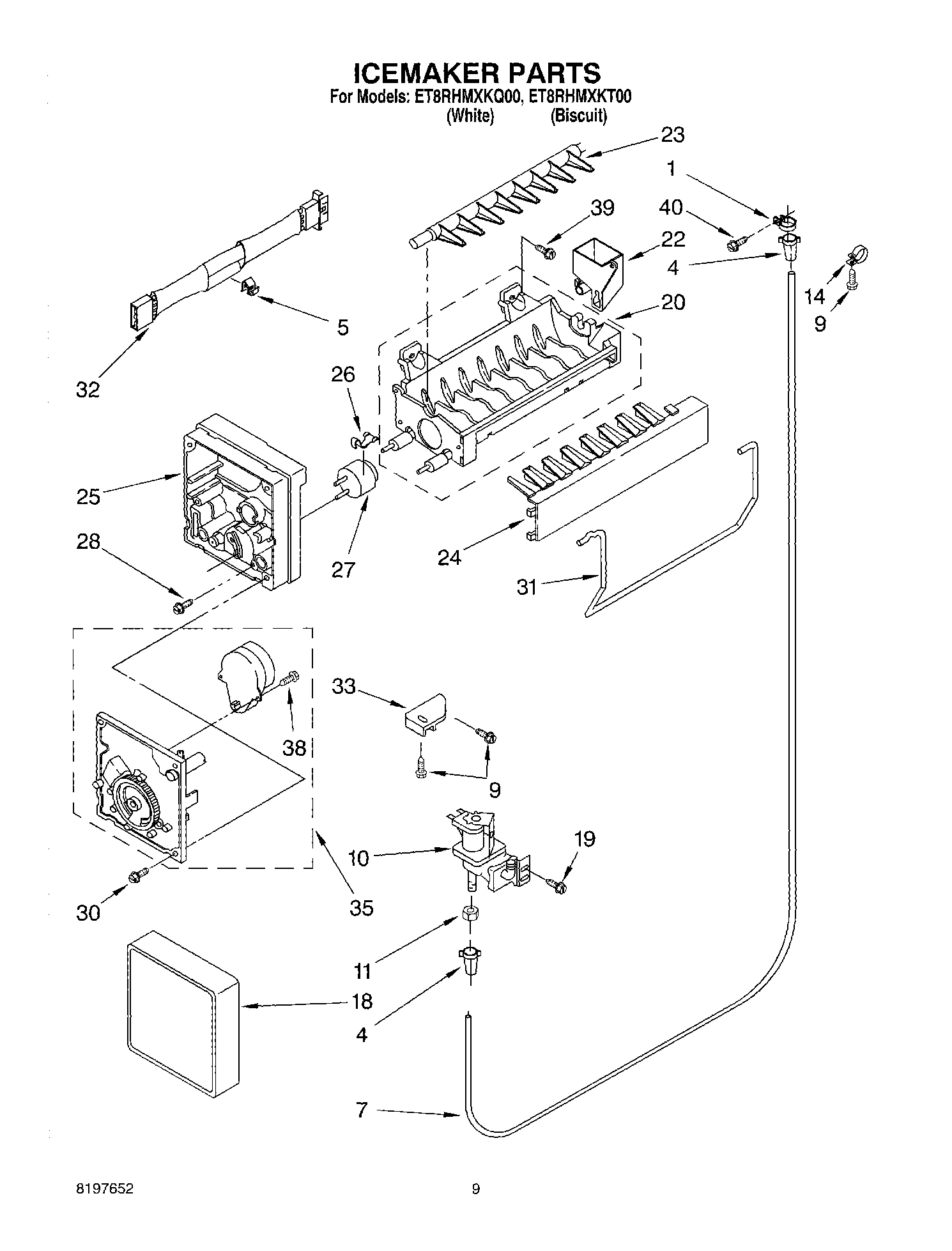

Model Whirlpool ET8RHMXKT00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

Liner (Not A Serviceable Part) WPL ARI54233A3 Contact Us For Availability

1

Refrigerator Door (Includes No.9 & No.11) (Wh WPL 2183898 Contact Us For Availability

1

Refrigerator Door (Includes No.9 & No.11) (Bi WPL 2205281 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

2

Shelf, Full Cantilever WPL 2201103 Contact Us For Availability

2

Grommet (2) WPL 531933 Contact Us For Availability

2

Cover, Endcap (Biscuit) WPL 2193353T Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

5

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Thermostat Tube Barrier WPL 2212485 Contact Us For Availability

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

Shield, heat WPL 2204639 Contact Us For Availability

7

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

7

Wire Assy. Control Box WPL 2187352 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

8

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

8

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $2.51

9

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

9

Damper, Air WPL 2179858 Contact Us For Availability

10

WP2169921 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2169921 $118.25

10

Fan Motor WPL 2183833 Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

Control Box WPL 2212982 Contact Us For Availability

WP4387938 Whirlpool Refrigerator Overload In Stock WPL WP4387938 $81.99

Thermostat (Includes Items 5, 18 & 36) WPL 2200830 Contact Us For Availability

Nameplate (White Model) WPL 2175383 Contact Us For Availability

Nameplate (Biscuit Model) WPL 2205769 Contact Us For Availability

15

WP2188234 Whirlpool Shelf Backorder WPL WP2188234 $29.43

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

Screw WPL 489412 Contact Us For Availability

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $38.41

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Support Block WPL 2201184 Contact Us For Availability

Cover-Evaporator WPL 2201170 Contact Us For Availability

17

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

18

Trim, Crisper Pan WPL 2195340 Contact Us For Availability

18

Weight, Thermal WPL 2200831 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

Clip, Heater WPL 2182338 Contact Us For Availability

Freezer Door (Includes No.11 & No.23) (White) WPL 2182487 Contact Us For Availability

Freezer Door (Includes No.11 & No.23) (Biscui WPL 2205279 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $2.51

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

Post, Damper WPL 2179859 Contact Us For Availability

21

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $27.12

21

WP2204810 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204810 $47.62

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

W10829461 Whirlpool Refrigerator Thermal Knob Backorder WPL W10829461 $12.08

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

22

Glass, Full Shelf WPL 2177824 Contact Us For Availability

23

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $78.12

23

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

23

Air Tower WPL 2182340 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

25

Freezer Floor WPL 2172565 Contact Us For Availability

26

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

26

Air Diffuser, Top WPL 2179877 Contact Us For Availability

27

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Installation Kit WPL 482801 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

29

Bracket, Fan Motor WPL 2200641 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

31

WP2218113 Whirlpool Dairy Door In Stock WPL WP2218113 $25.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

Wire Assembly, Freezer Compartment WPL 2187301 Contact Us For Availability

4388947 Whirlpool Refrigerator Door Handle Ki Backorder WPL 4388947 $97.92

4388949 Whirlpool Refrigerator Handle Backorder WPL 4388949 $99.97

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

Knob, Damper WPL 2176297 Contact Us For Availability

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

35

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

37

Trim-Door (2) WPL 2195946 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

42

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $47.29

43

Blade, Fan WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

Tube, Discharge WPL 2205294 Contact Us For Availability

48

W11676464 Whirlpool Tube Backorder WPL W11676464 $37.81

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

Evap. Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
