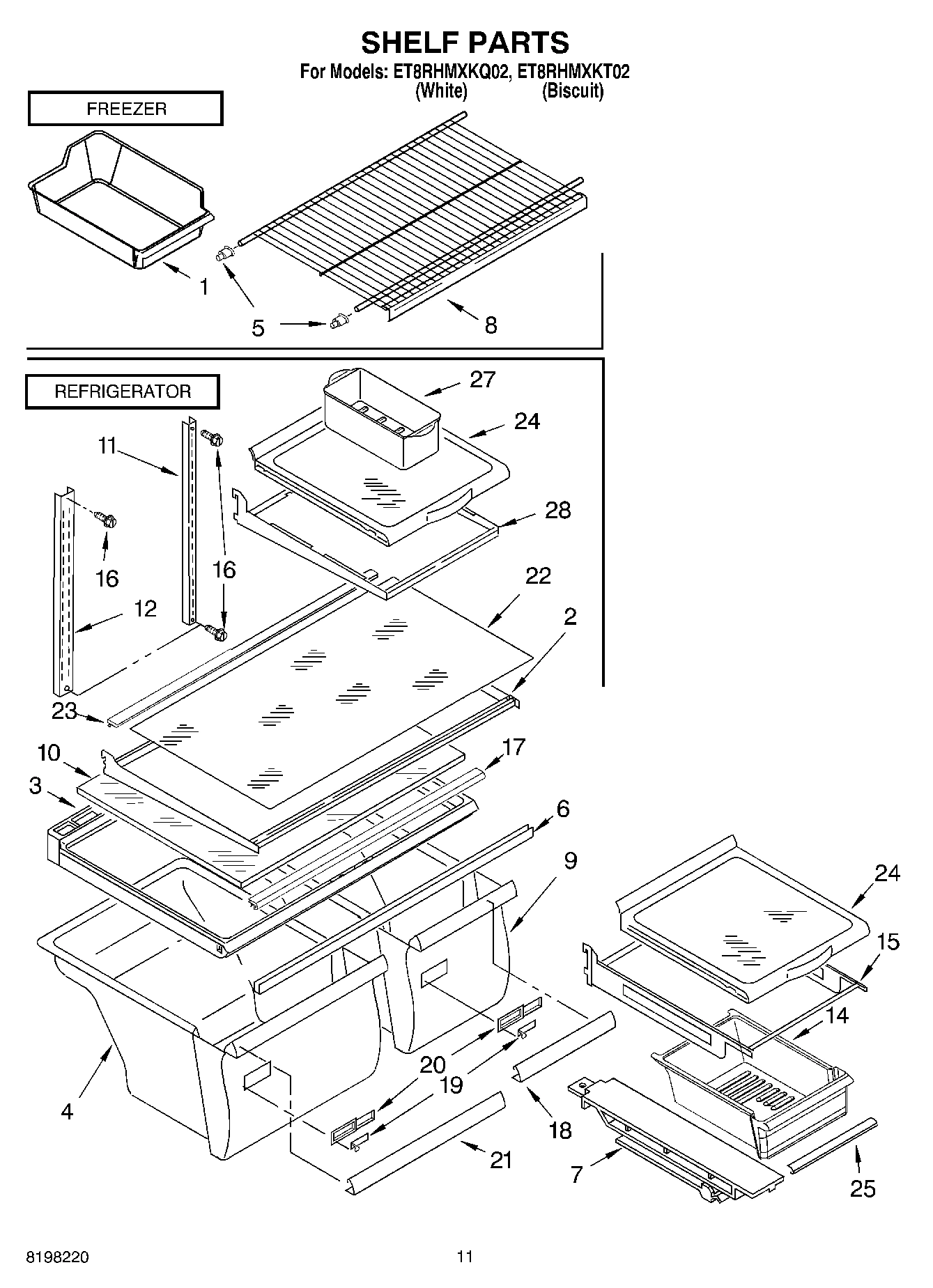

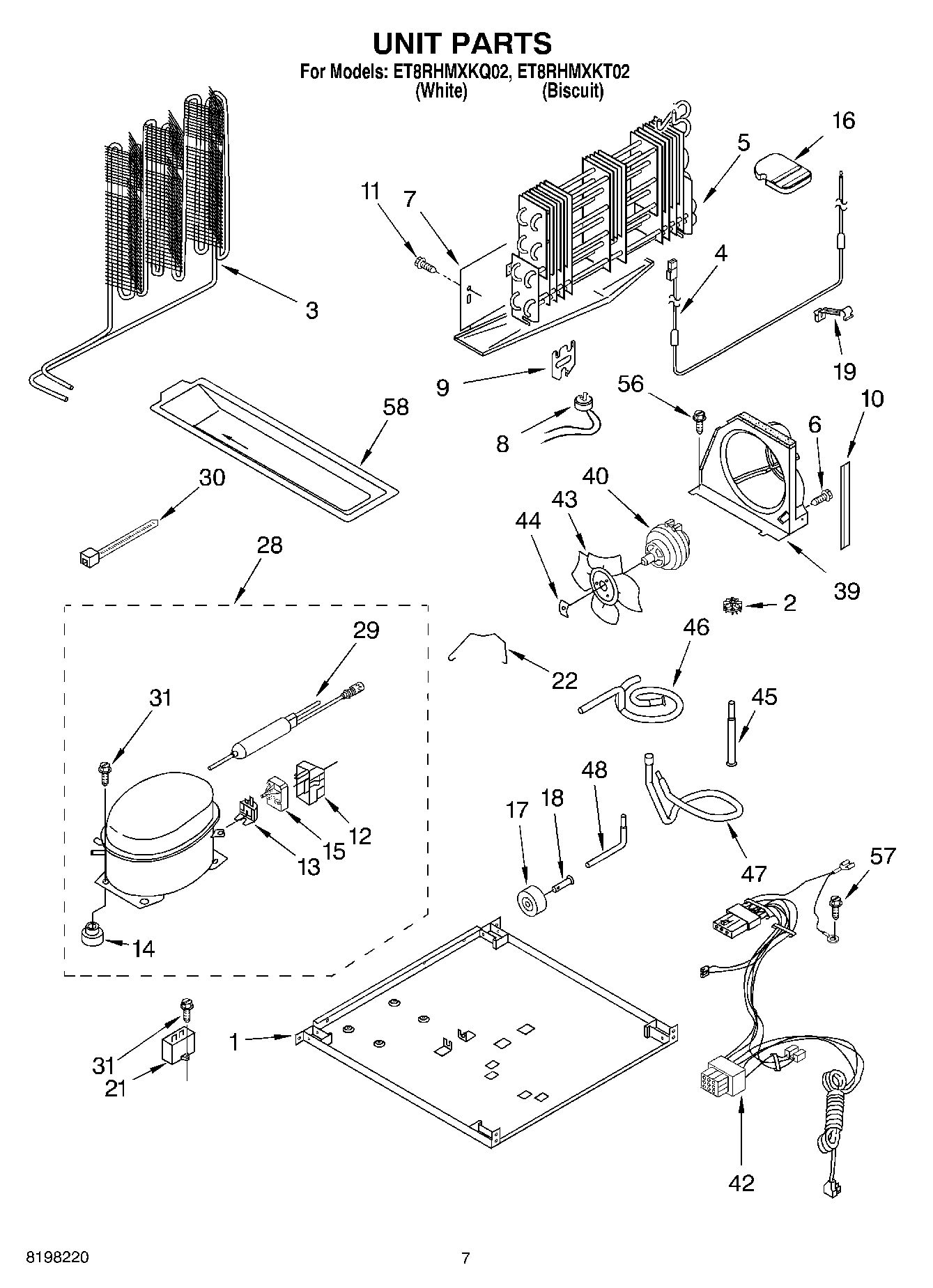

Model Whirlpool ET8RHMXKQ02 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

Refrigerator Door (Includes No.9 & No.11) (Wh WPL 2183898 Contact Us For Availability

1

Refrigerator Door (Includes No.9 & No.11) (Bi WPL 2205281 Contact Us For Availability

1

LITERATURE PARTS (Customer Quick Tips) WPL LIT2218340 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2218590 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2218844 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2218876 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Do-It-Yourself Manual Ref./Fzr. WPL LIT677969 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $43.15

2

Shelf, Full Cantilever WPL 2201103 Contact Us For Availability

2

Cover, Endcap (Biscuit) WPL 2193353T Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

Bracket, Fan Front WPL 2214979 Contact Us For Availability

5

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

7

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

7

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

8

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $33.49

8

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $73.09

8

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $2.51

9

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

10

WP2169921 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2169921 $130.50

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

13

WP4387938 Whirlpool Refrigerator Overload In Stock WPL WP4387938 $86.10

13

Nameplate (White Model) WPL 2175383 Contact Us For Availability

13

Nameplate (Biscuit Model) WPL 2205769 Contact Us For Availability

15

WP2188234 Whirlpool Shelf In Stock WPL WP2188234 $42.42

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $40.33

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $35.16

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Support Block WPL 2201184 Contact Us For Availability

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

Trim, Crisper Pan WPL 2195340 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

Slide, Crisper WPL 2176222 Contact Us For Availability

Clip, Heater WPL 2182338 Contact Us For Availability

Freezer Door (Includes No.11 & No.23) (White) WPL 2182487 Contact Us For Availability

Freezer Door (Includes No.11 & No.23) (Biscui WPL 2205279 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $2.51

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $32.54

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

21

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $28.47

21

WP2204810 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204810 $50.00

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

22

Glass, Full Shelf WPL 2177824 Contact Us For Availability

23

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $82.03

23

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

23

Air Tower WPL 2182340 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

24

Fitting, Water Tube (Not Serviced) WPL ARI54193A2 Contact Us For Availability

26

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

27

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

27

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

27

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

Installation Kit WPL 482801 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

31

WP2218113 Whirlpool Dairy Door In Stock WPL WP2218113 $36.60

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

33

4388947 Whirlpool Refrigerator Door Handle Ki Backorder WPL 4388947 $102.83

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

35

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $33.18

37

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

37

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

37

Trim-Door (2) WPL 2195946 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

40

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

41

Rail Center (Not Serviced) WPL ARI54194A3 Contact Us For Availability

42

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $49.65

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2221775 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI54195A3 Contact Us For Availability

46

Tube, Discharge WPL 2205294 Contact Us For Availability

48

W11676464 Whirlpool Tube Backorder WPL W11676464 $39.69

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

Evap. Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
