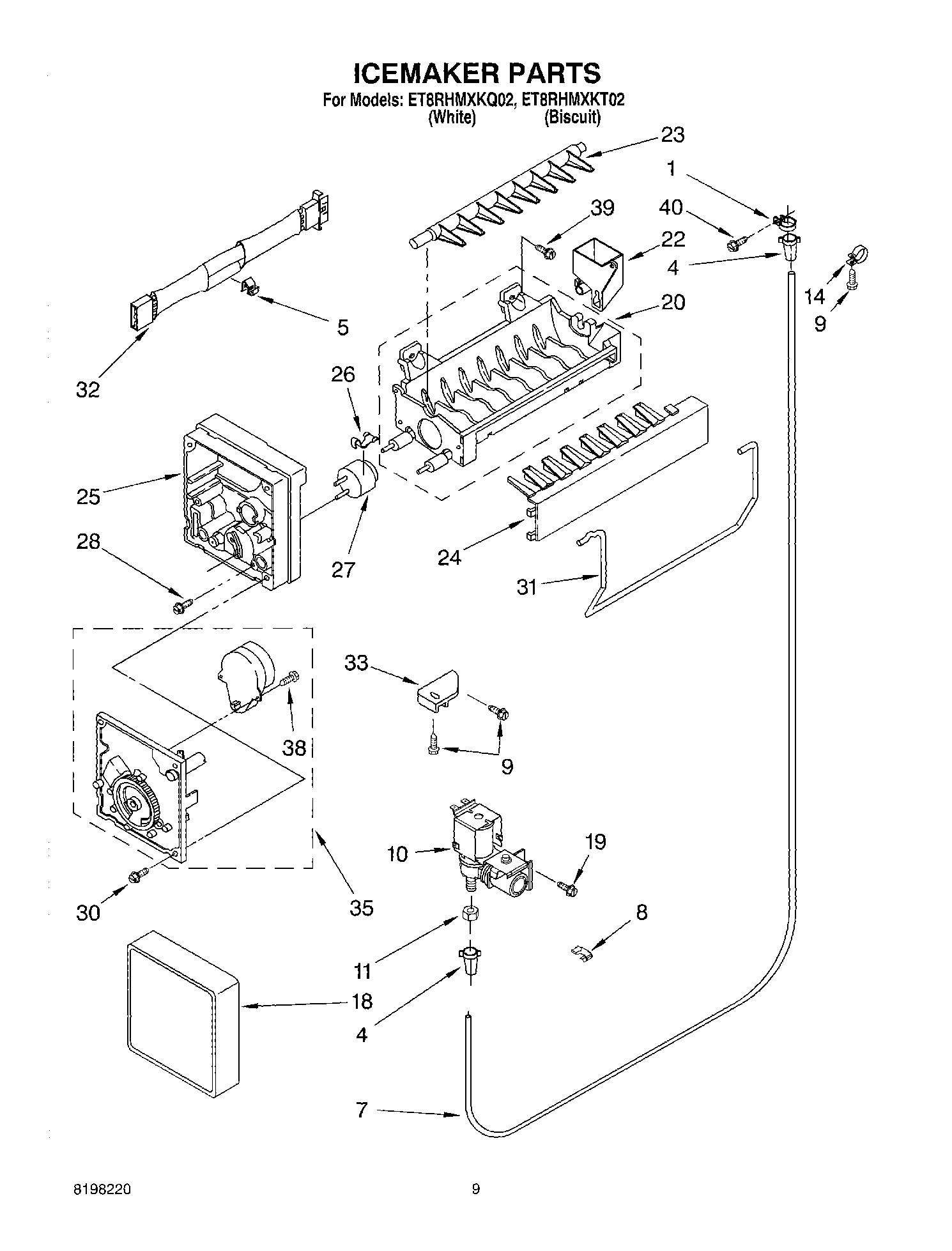

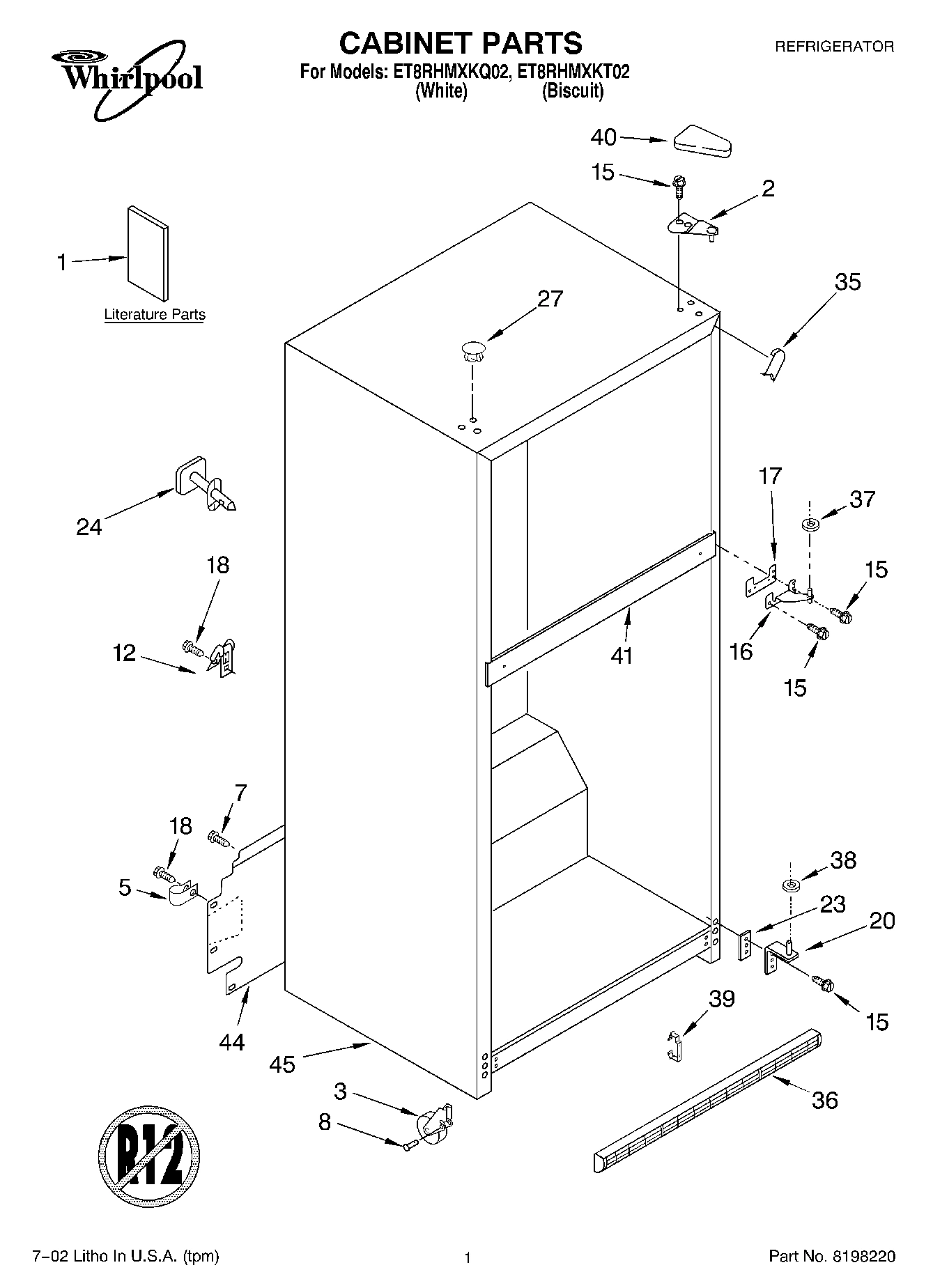

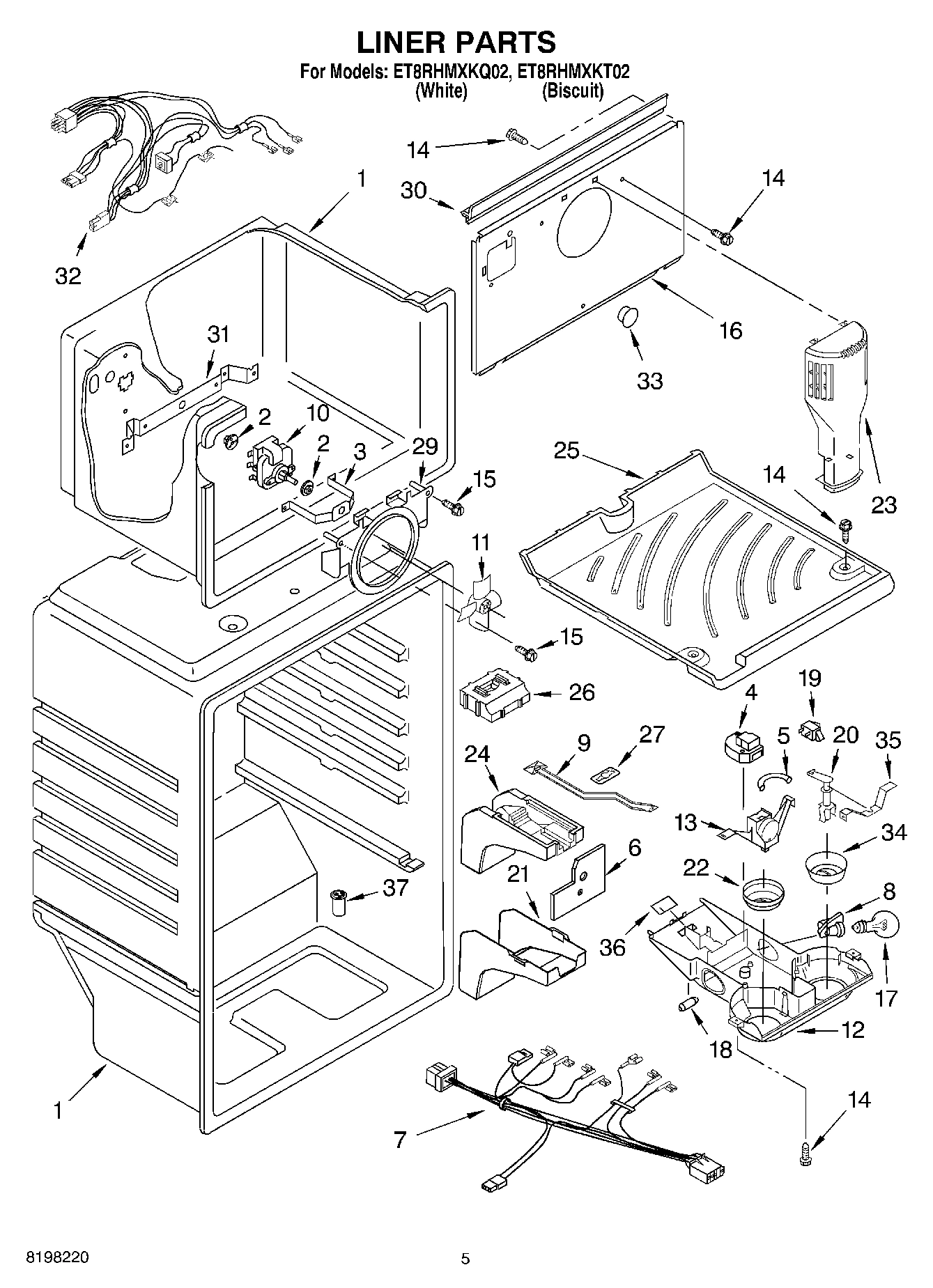

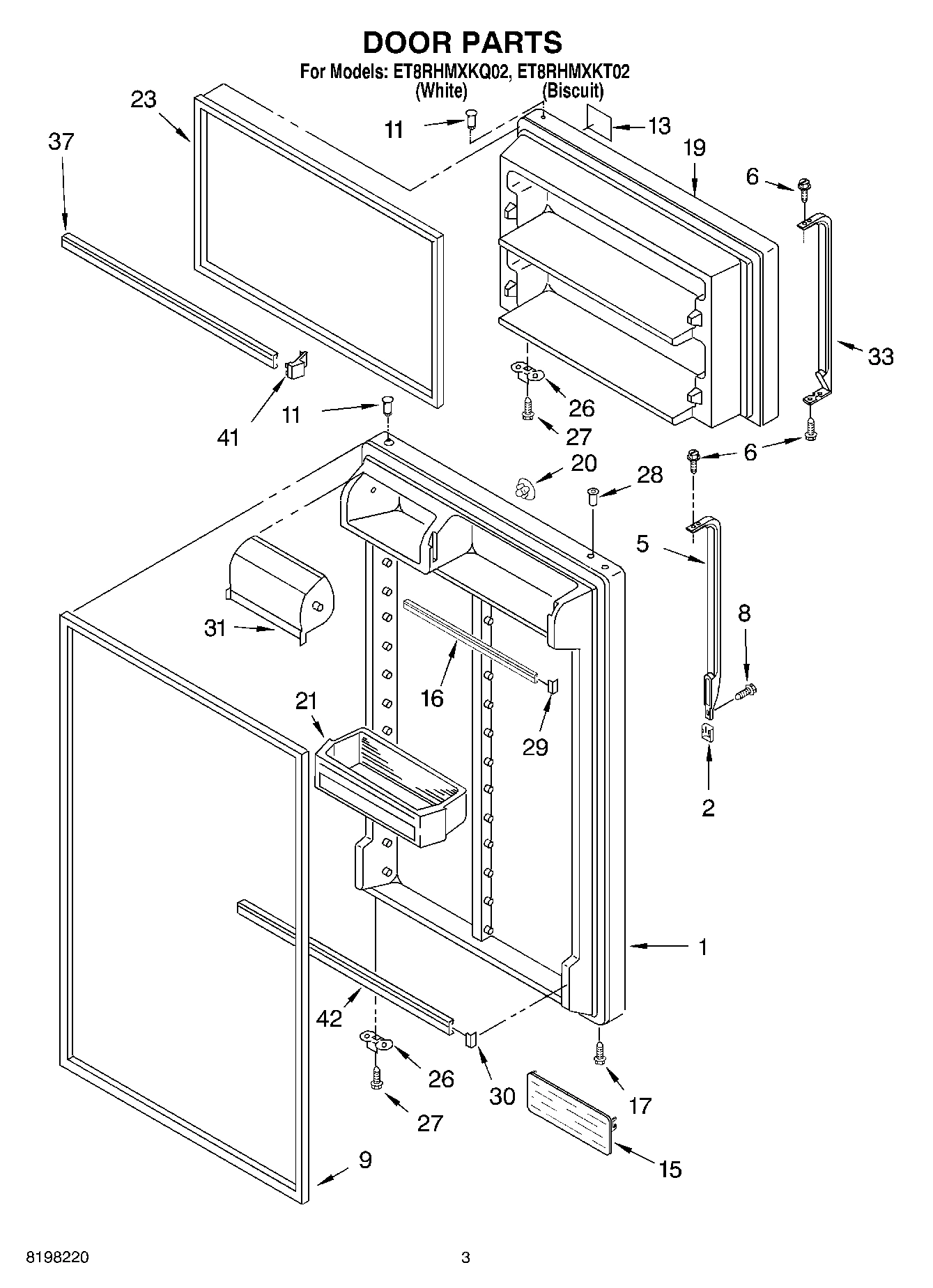

Model Whirlpool ET8RHMXKQ02 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

Refrigerator Door (Includes No.9 & No.11) (Wh WPL 2183898 Contact Us For Availability

1

Refrigerator Door (Includes No.9 & No.11) (Bi WPL 2205281 Contact Us For Availability

1

LITERATURE PARTS (Customer Quick Tips) WPL LIT2218340 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2218590 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2218844 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2218876 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Do-It-Yourself Manual Ref./Fzr. WPL LIT677969 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

2

Shelf, Full Cantilever WPL 2201103 Contact Us For Availability

2

Cover, Endcap (Biscuit) WPL 2193353T Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

Bracket, Fan Front WPL 2214979 Contact Us For Availability

5

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

7

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

7

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

8

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $31.90

8

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

8

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $2.51

9

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

10

WP2169921 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2169921 $118.25

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

13

WP4387938 Whirlpool Refrigerator Overload In Stock WPL WP4387938 $81.99

13

Nameplate (White Model) WPL 2175383 Contact Us For Availability

13

Nameplate (Biscuit Model) WPL 2205769 Contact Us For Availability

15

WP2188234 Whirlpool Shelf Backorder WPL WP2188234 $29.43

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $38.41

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Support Block WPL 2201184 Contact Us For Availability

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

Trim, Crisper Pan WPL 2195340 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

Clip, Heater WPL 2182338 Contact Us For Availability

Freezer Door (Includes No.11 & No.23) (White) WPL 2182487 Contact Us For Availability

Freezer Door (Includes No.11 & No.23) (Biscui WPL 2205279 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $2.51

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

21

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $27.12

21

WP2204810 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204810 $47.62

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

22

Glass, Full Shelf WPL 2177824 Contact Us For Availability

23

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $78.12

23

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

23

Air Tower WPL 2182340 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

24

Fitting, Water Tube (Not Serviced) WPL ARI54193A2 Contact Us For Availability

26

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

27

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

27

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

27

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

Installation Kit WPL 482801 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

31

WP2218113 Whirlpool Dairy Door In Stock WPL WP2218113 $25.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

33

4388947 Whirlpool Refrigerator Door Handle Ki Backorder WPL 4388947 $97.92

33

4388949 Whirlpool Refrigerator Handle Backorder WPL 4388949 $99.97

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

35

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $31.60

37

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

37

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

37

Trim-Door (2) WPL 2195946 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

40

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

41

Rail Center (Not Serviced) WPL ARI54194A3 Contact Us For Availability

42

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $47.29

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2221775 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI54195A3 Contact Us For Availability

46

Tube, Discharge WPL 2205294 Contact Us For Availability

48

W11676464 Whirlpool Tube Backorder WPL W11676464 $37.81

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

Evap. Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
