Model Whirlpool ET8CHMXKB00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

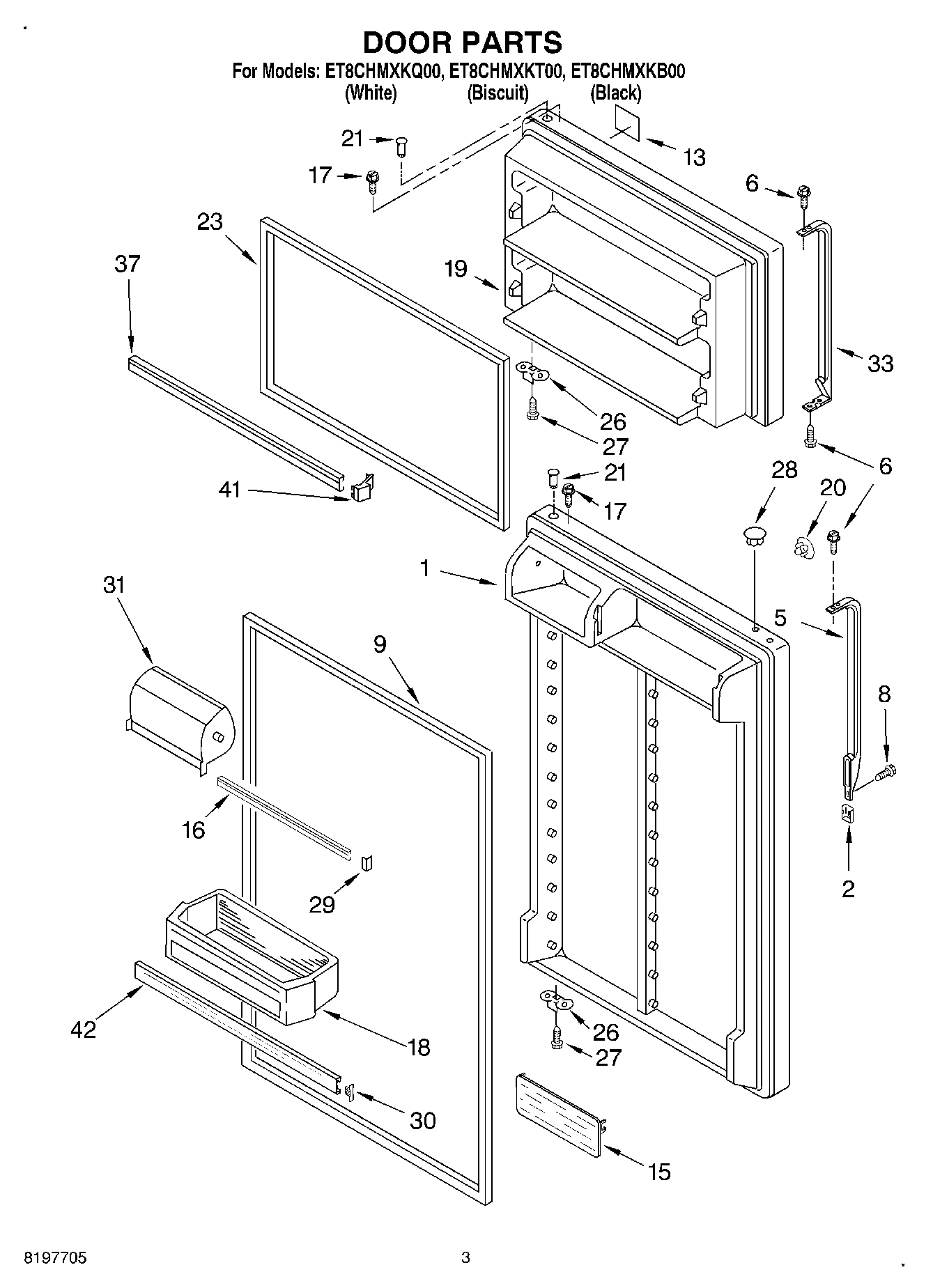

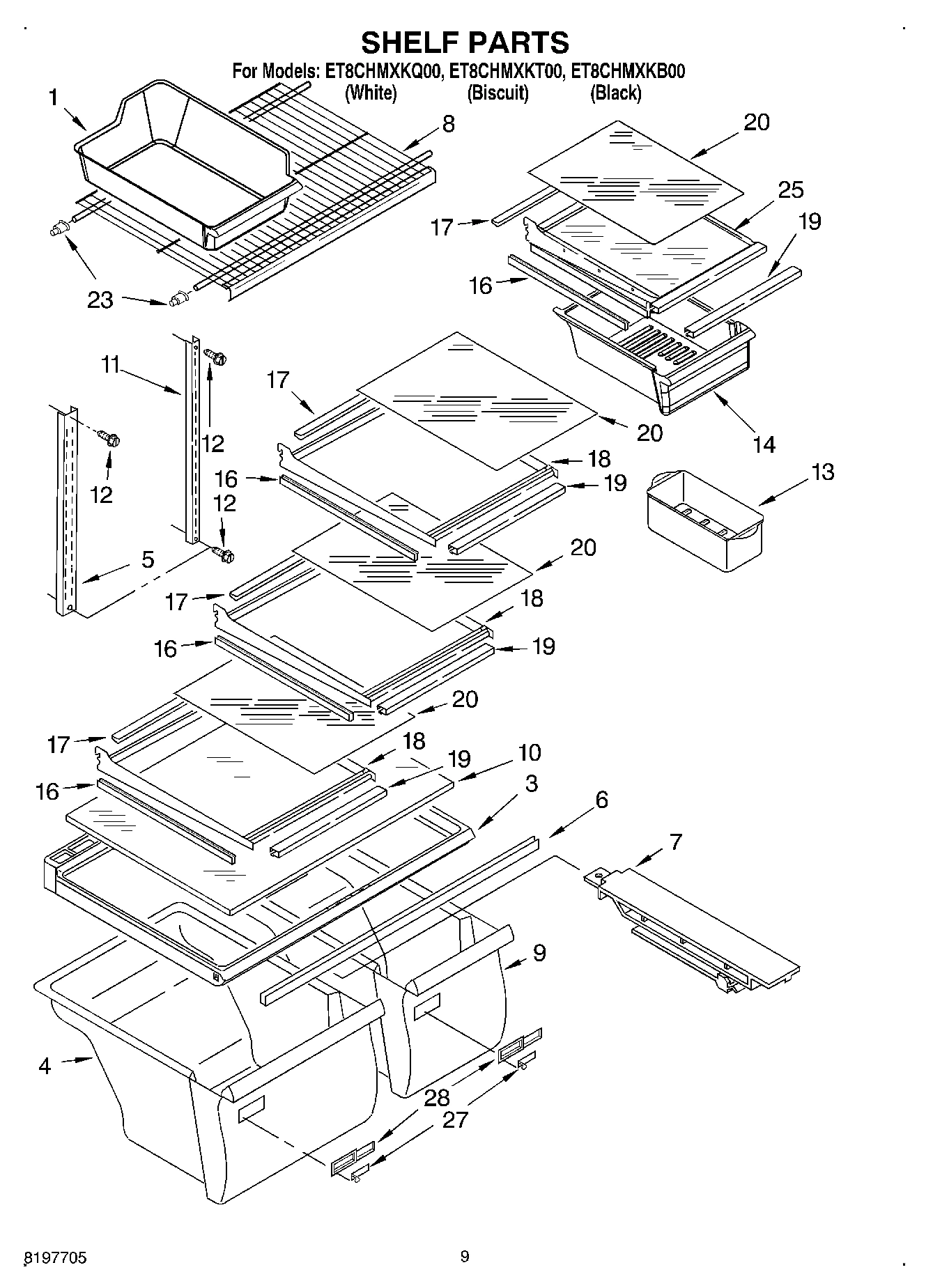

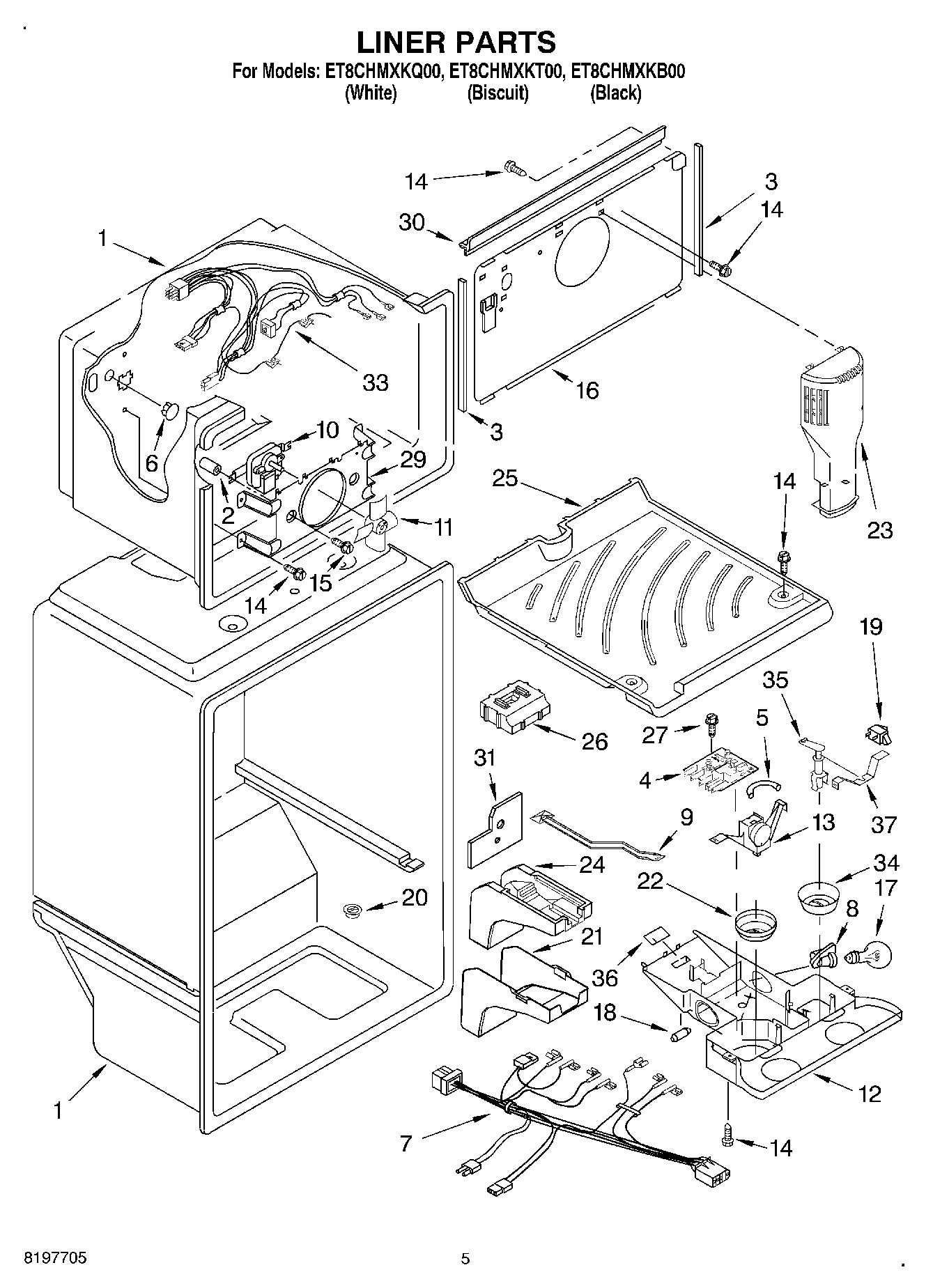

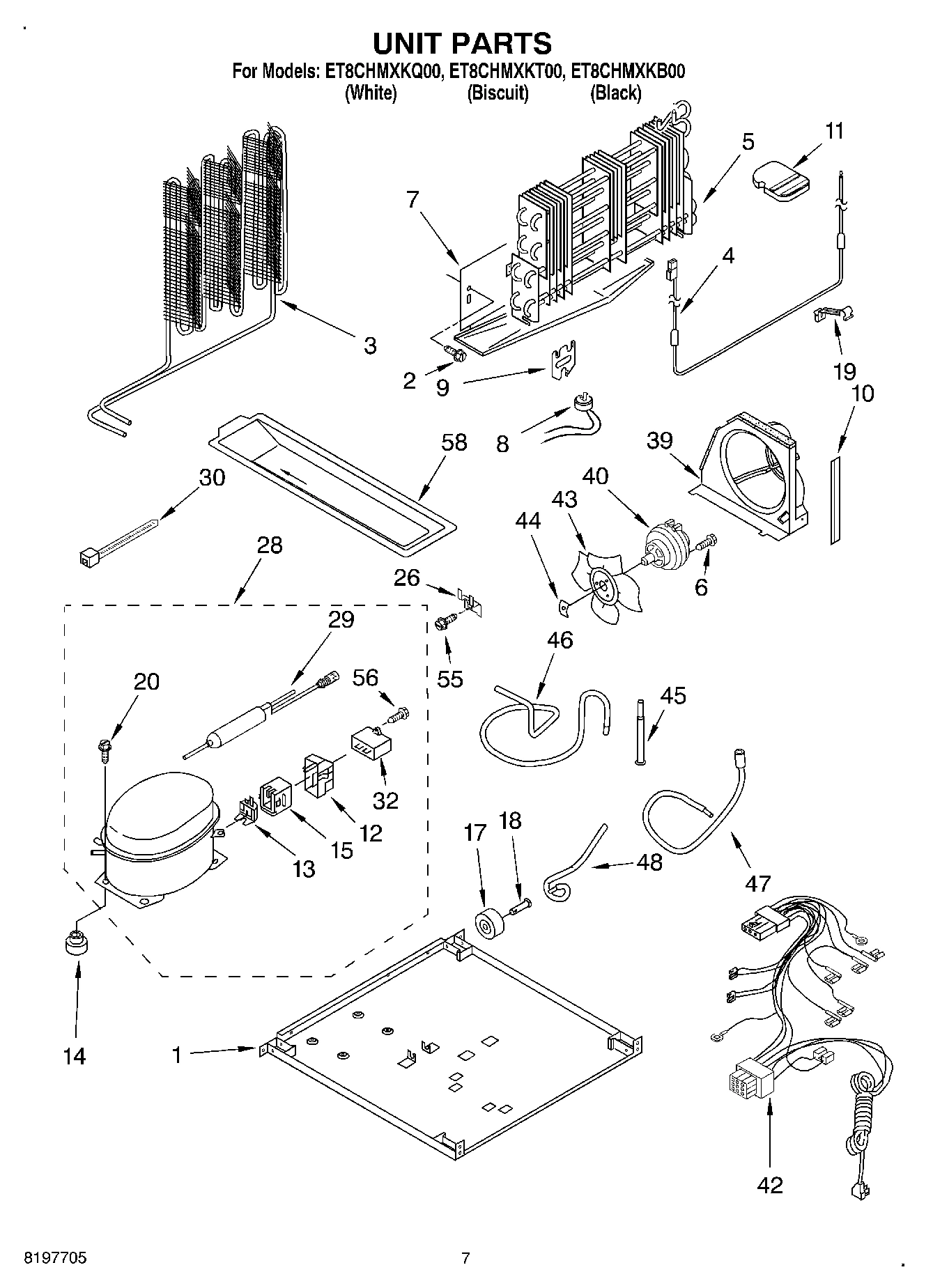

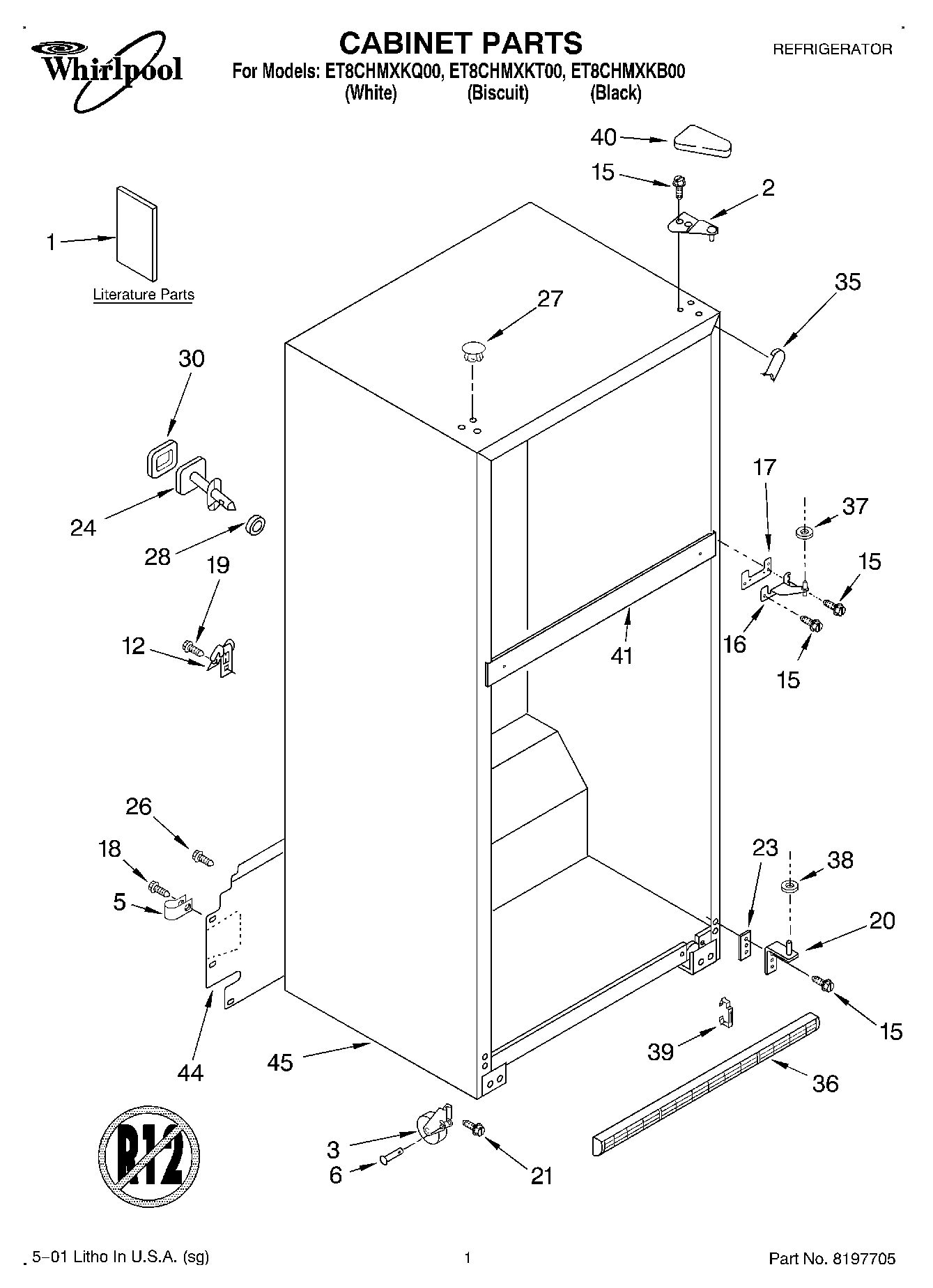

1

Refrigerator Door (Includes No.9 & No.21) (Wh WPL 2183898 Contact Us For Availability

1

Refrigerator Door (Includes No.9 & No.21) (Bl WPL 2200712 Contact Us For Availability

1

Refrigerator Door (Includes No.9 & No.21) (Bi WPL 2205281 Contact Us For Availability

1

Plate, Unit Mounting WPL 2205341 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

2

Cover, Endcap (Black) WPL 2193353B Contact Us For Availability

2

Cover, Endcap (Biscuit) WPL 2193353T Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $55.60

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Evaporator Assy. WPL 2195391 Contact Us For Availability

6

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

7

Wire Assy. Control Box WPL 2187352 Contact Us For Availability

7

Drain Pan WPL 2172619 Contact Us For Availability

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

8

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

8

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $2.51

9

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

9

2177305 Whirlpool Refrigerator Door FIP Gaske In Stock WPL 2177305 $145.16

9

Bracket, Heater WPL 2176301 Contact Us For Availability

10

WP2169921 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2169921 $118.25

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

11

Support Block WPL 2201184 Contact Us For Availability

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP4387938 Whirlpool Refrigerator Overload In Stock WPL WP4387938 $81.99

Nameplate (White) WPL 2175383 Contact Us For Availability

Nameplate (Black) WPL 2200944 Contact Us For Availability

Nameplate (Biscuit Model) WPL 2205769 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

15

8201769 Whirlpool Refrigerator Compressor Rel In Stock WPL 8201769 $58.17

15

WP2188234 Whirlpool Shelf Backorder WPL WP2188234 $29.43

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $38.41

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

WP2204810 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204810 $47.62

18

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

Clip, Heater WPL 2182338 Contact Us For Availability

Freezer Door (White) WPL 2182487 Contact Us For Availability

Freezer Door (Black) WPL 2200710 Contact Us For Availability

Freezer Door (Biscuit) WPL 2205279 Contact Us For Availability

20

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

20

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

20

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $2.51

21

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

21

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $78.12

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

2177304 Whirlpool Refrigerator FIP Gasket Backorder WPL 2177304 $124.26

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Air Tower WPL 2182340 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

26

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

26

Clip, Capacitator WPL 2166683 Contact Us For Availability

27

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

27

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

W10823815 Whirlpool Refrigerator Compressor In Stock WPL W10823815 $282.92

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP2218113 Whirlpool Dairy Door In Stock WPL WP2218113 $25.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

4388947 Whirlpool Refrigerator Door Handle Ki Backorder WPL 4388947 $97.92

4388949 Whirlpool Refrigerator Handle Backorder WPL 4388949 $99.97

4388950 Whirlpool Refrigerator Handle Backorder WPL 4388950 $126.93

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

Knob, Damper WPL 2176297 Contact Us For Availability

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

35

Post, Damper WPL 2179859 Contact Us For Availability

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

36

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

37

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

37

Trim-Door (2) WPL 2195946 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

39

Air Baffle WPL 2198921 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

41

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

42

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $47.29

42

Wire Assy. Unit WPL 2187358 Contact Us For Availability

43

Blade, Fan WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

45

Tube, Transition WPL 2212603 Contact Us For Availability

46

Tube, Discharge WPL 2205294 Contact Us For Availability

47

2205293 Whirlpool Refrigerator Tube Backorder WPL 2205293 $34.18

48

W11676464 Whirlpool Tube Backorder WPL W11676464 $37.81

55

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

Evap. Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
