Model Whirlpool ET21NKXGW02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - LINER
04 - UNIT

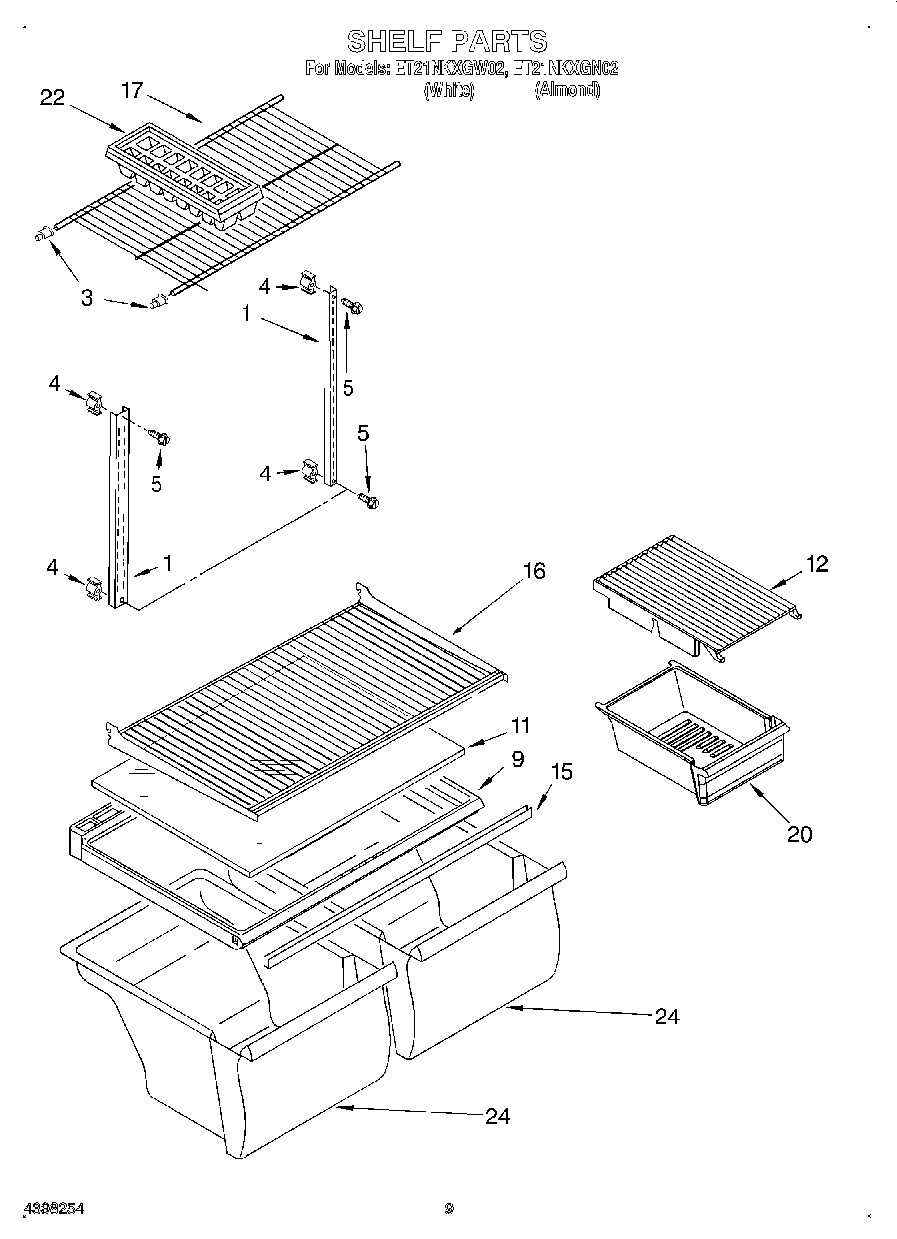

05 - SHELF, OPTIONAL

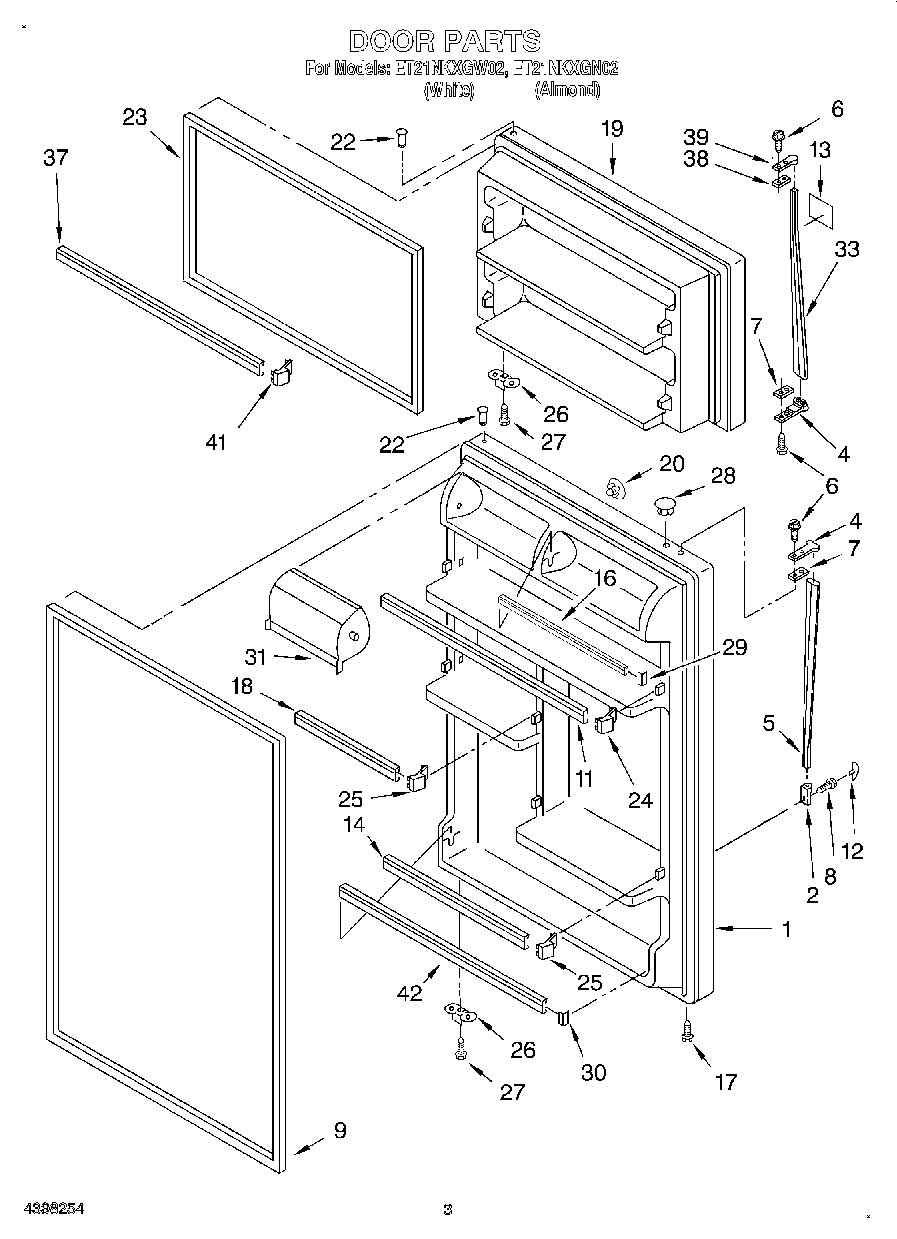

02 - DOOR

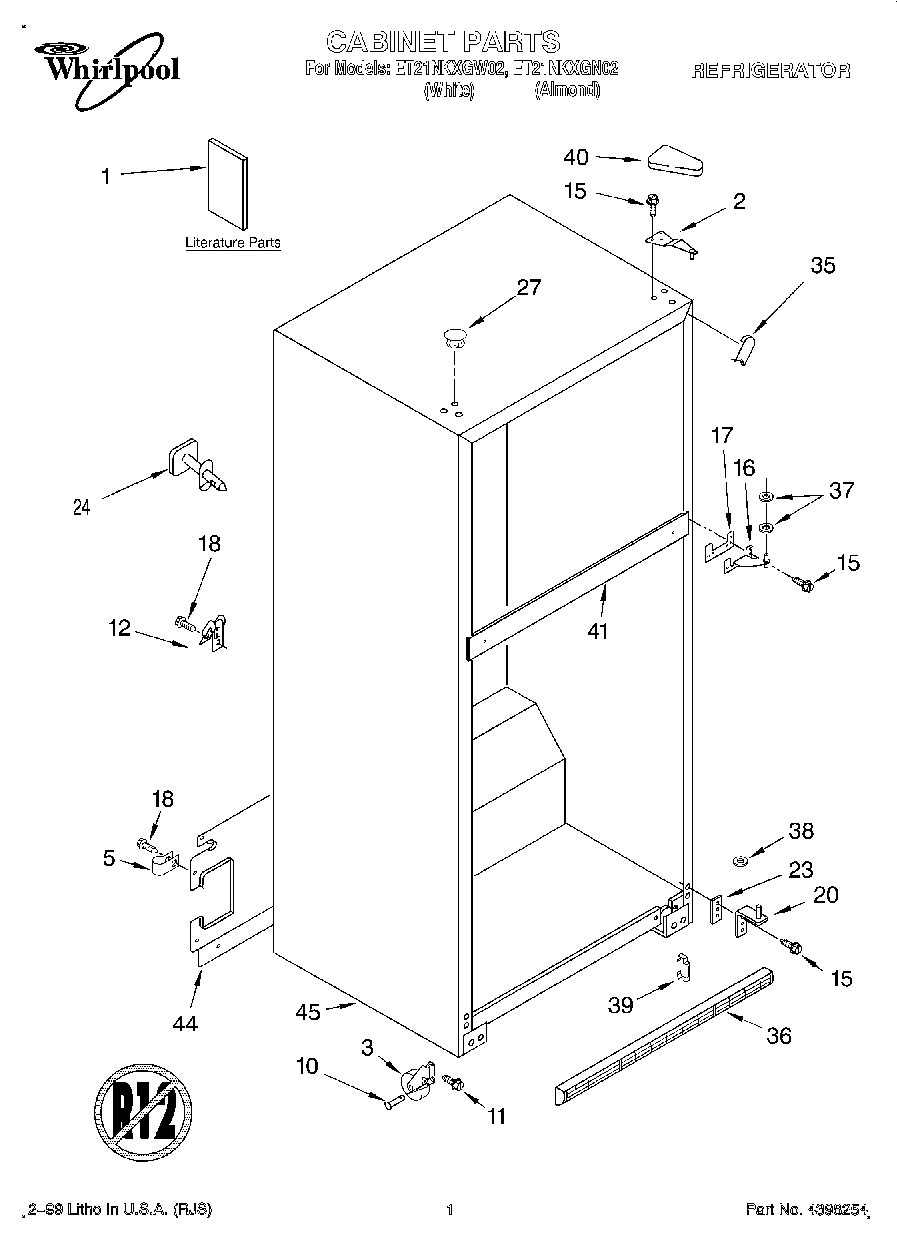

01 - CABINET, LITERATURE
Common parts from model Whirlpool ET21NKXGW02 TOP MOUNT REFRIGERATOR
1
Service & Wiring Sheet WPL LIT2195481 Contact Us For Availability
1
Use & Care Guide WPL LIT2200940 Contact Us For Availability
1
Energy Label WPL LIT2204706 Contact Us For Availability
1
Do-It-Yourself Manual Ref./Fzr. WPL LIT677969 Contact Us For Availability
1
Do-It-Yourself Manual, Icemaker WPL LIT677971 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Cover, Meat Pan WPL 2163848 Contact Us For Availability
13
Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2200859 Contact Us For Availability
13
Nameplate (White Model) WPL 2175383 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2175384 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2195398 Contact Us For Availability
17
Shelf, Freezer WPL 2189454 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.22 & No.23) (Almond WPL 2184400 Contact Us For Availability
20
Pan, Meat WPL 2200920K Contact Us For Availability
20
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI49832A1 Contact Us For Availability
26
Air Diffuser, Top WPL 2204690 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
36
Grille (White) WPL 2201006 Contact Us For Availability
36
Grille (Almond) WPL 2201007 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI49833A2 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2189476 Contact Us For Availability
45
Cabinet (Not A Serviceable Part) WPL ARI49834A5 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
100
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
100
FeaturePak (Includes 11, 12, 14, 18, 24, 29, WPL 2204638 Contact Us For Availability
× ![]()
