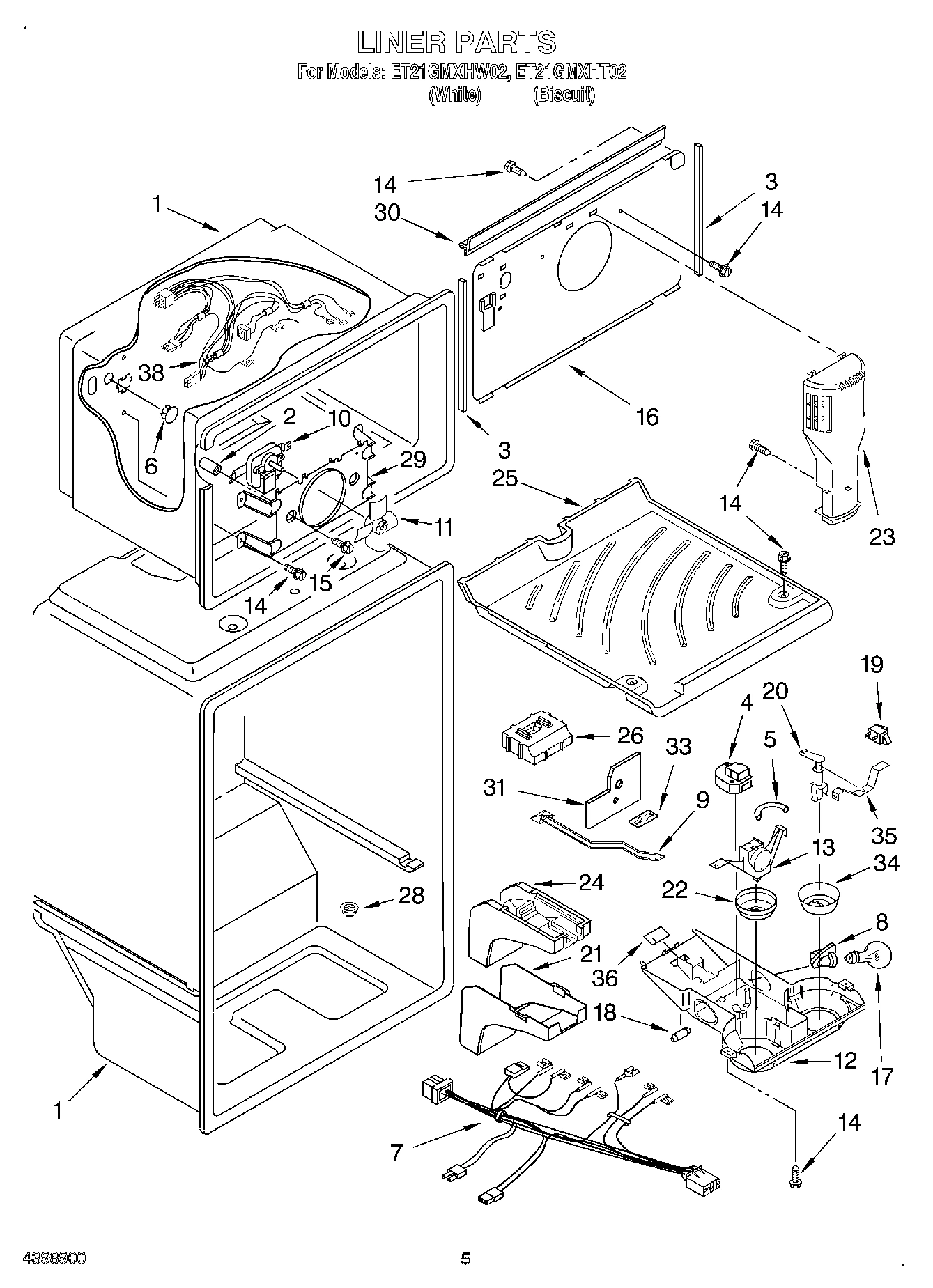

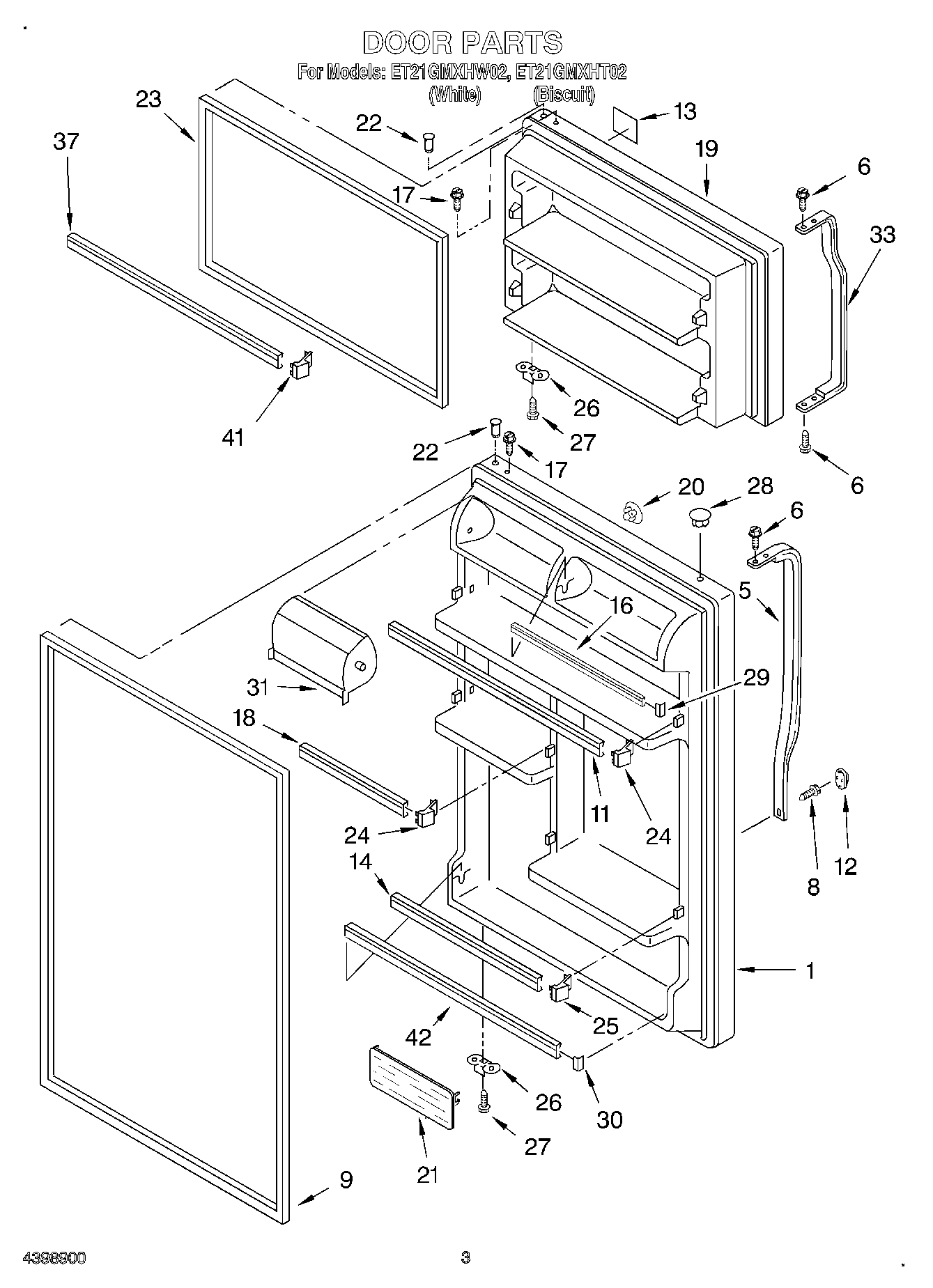

Model Whirlpool ET21GMXHW02 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

4

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

5

WP2202807W Whirlpool Handle Door In Stock WPL WP2202807W $89.09

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Handle Center (Biscuit) WPL 2202807T Contact Us For Availability

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Shelf, Cantilever WPL 2201102 Contact Us For Availability

8

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $2.51

9

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $98.99

10

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

10

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $42.13

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2176225 Whirlpool Glass Shelf In Stock WPL WP2176225 $126.83

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

WP2202819W Whirlpool Refrigerator Cover Backorder WPL WP2202819W $3.70

12

Cover, Screw (Biscuit) WPL 2202819T Contact Us For Availability

12

Pan, Shelf Cantilever WPL 2201106 Contact Us For Availability

13

Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2200859 Contact Us For Availability

14

WP2195943 Whirlpool Shelf Retainer Bar In Stock WPL WP2195943 $28.05

14

Glass, Shelf WPL 2174694 Contact Us For Availability

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $40.33

16

Shelf, Full Cantilever WPL 2201104 Contact Us For Availability

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

17

Shelf, Freezer WPL 2189454 Contact Us For Availability

18

2174157 Whirlpool Refrigerator Front Cover Backorder WPL 2174157 $31.99

18

WP2201062 Whirlpool Refrigerator Door Trim Backorder WPL WP2201062 $4.96

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

19

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

19

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

21

WP2188236 Whirlpool Refrigerator Shelf Door In Stock WPL WP2188236 $33.86

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Air Tower WPL 2182340 Contact Us For Availability

Support Block WPL 2201185 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

25

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $6.24

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

Installation Kit WPL 482801 Contact Us For Availability

Seal, Front (Not Serviced) WPL ARI49770A2 Contact Us For Availability

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Seal, Rear (Not Serviced) WPL ARI49771A4 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2202806W Whirlpool Refrigerator Handle Backorder WPL WP2202806W $76.13

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

35

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

36

Grille (White) WPL 2201006 Contact Us For Availability

36

Grille (Biscuit) WPL 2201020 Contact Us For Availability

37

WP2201060 Whirlpool Refrigerator Door Trim Backorder WPL WP2201060 $36.89

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

40

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

WP2156003 Whirlpool Refrigerator Door Shelf E In Stock WPL WP2156003 $4.72

41

Rail Center (Not Serviced) WPL ARI49772A5 Contact Us For Availability

43

Blade, Fan WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2189476 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI49773A8 Contact Us For Availability

46

Tube, Discharge WPL 2205294 Contact Us For Availability

48

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

KIT, FOAM WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
