Model Whirlpool ET20NKXFN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
04 - UNIT

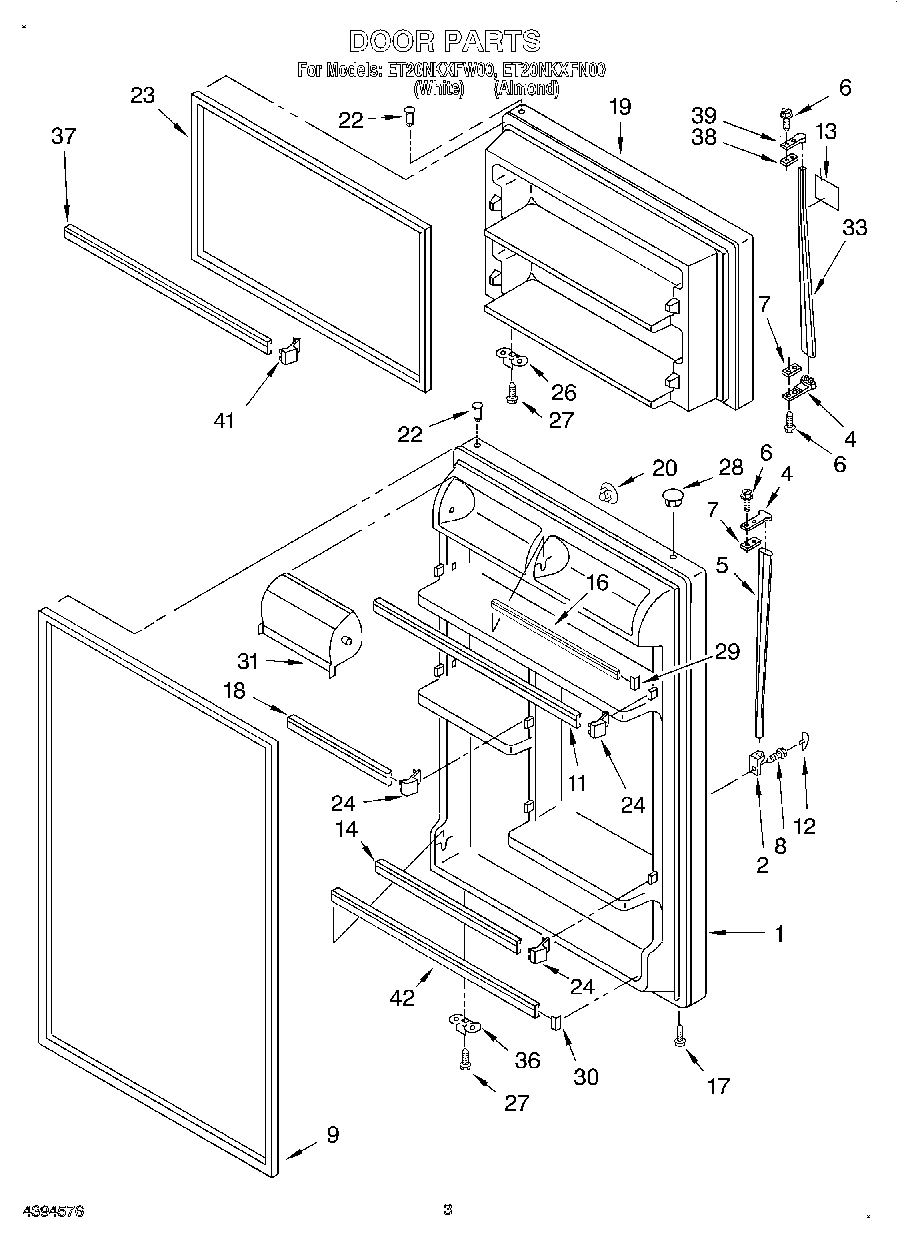

02 - DOOR

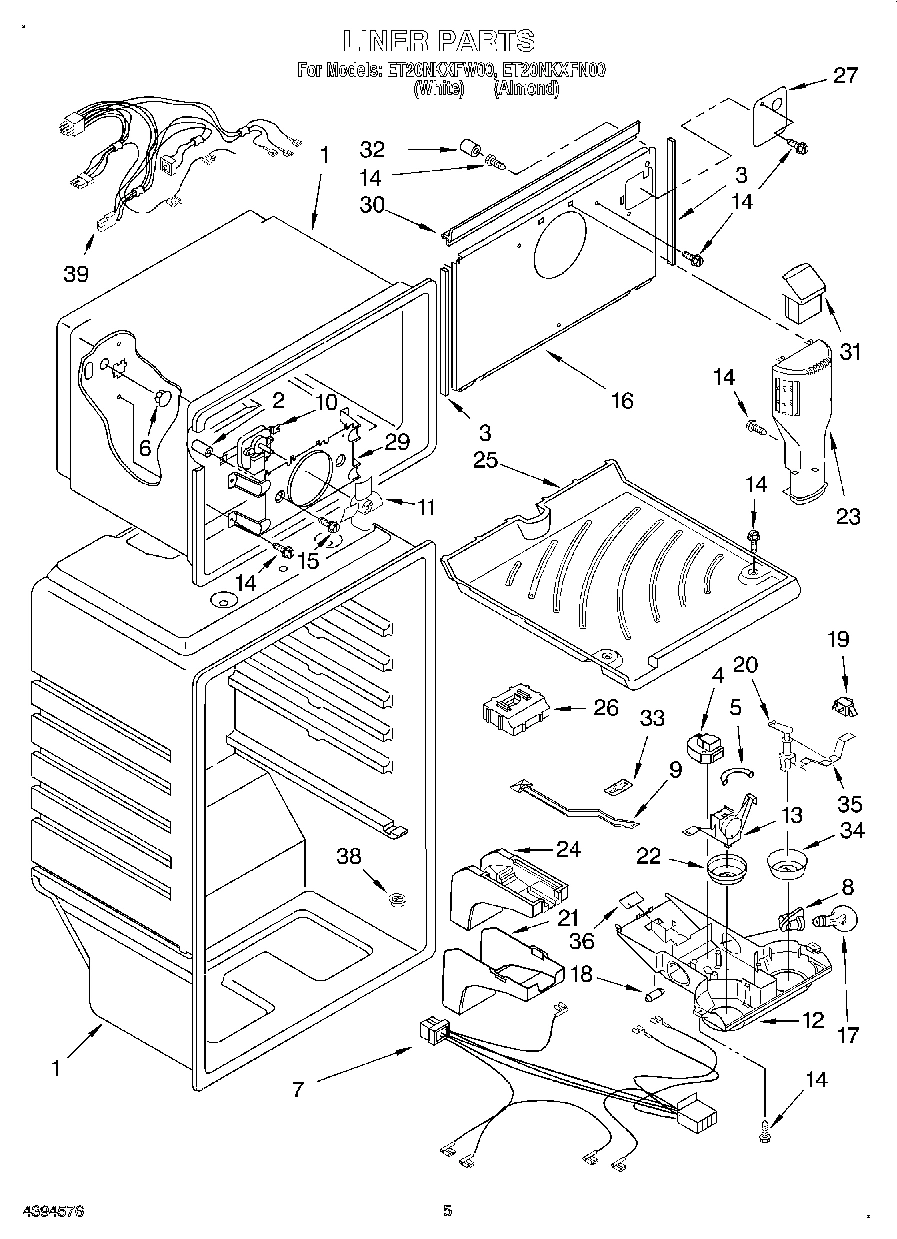

03 - LINER

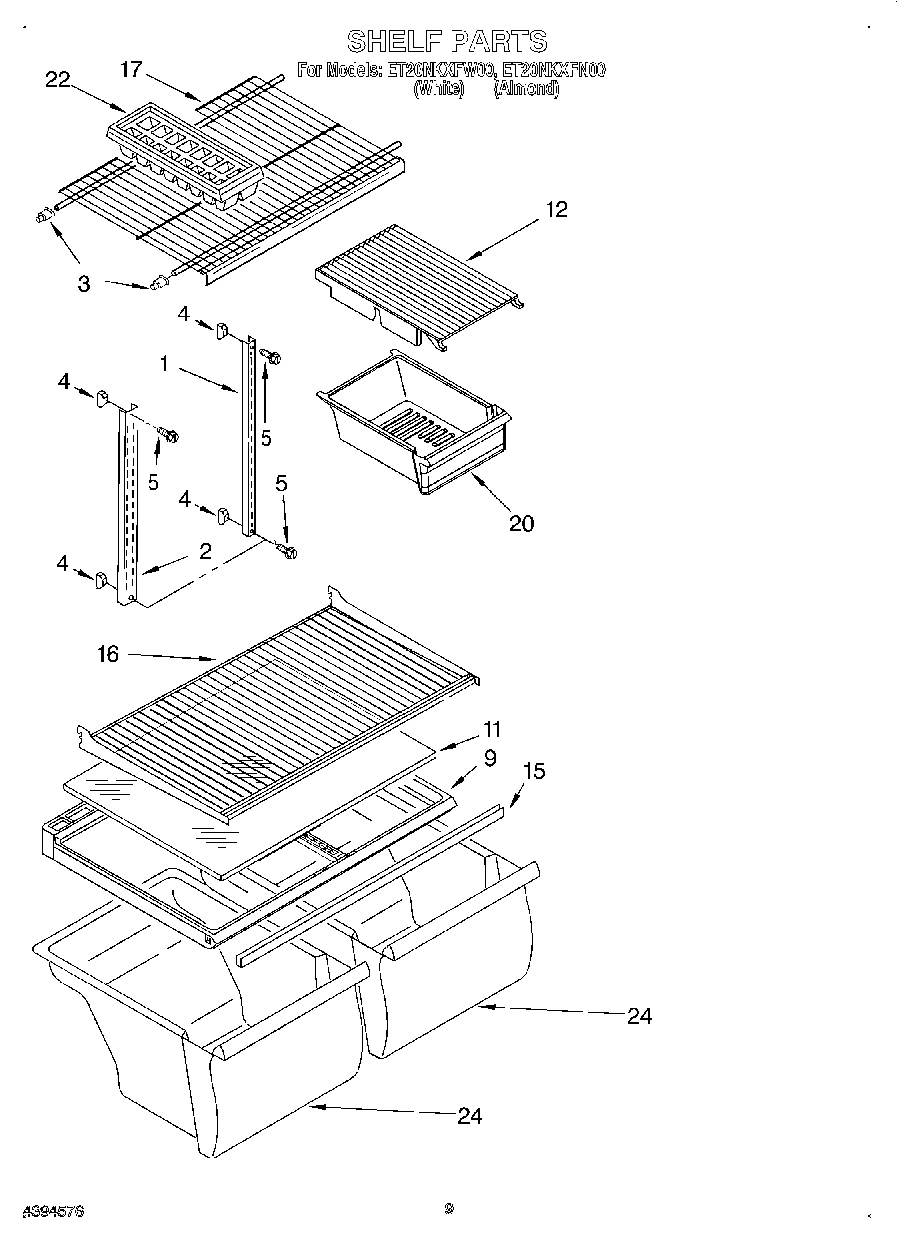

05 - SHELF, LIT/OPTIONAL
Common parts from model Whirlpool ET20NKXFN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2195369 WPL LIT2195369 Contact Us For Availability
WPL LIT2195481 WPL LIT2195481 Contact Us For Availability
WPL LIT2195606 WPL LIT2195606 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI48948A8 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193493 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
11
Trim, Door Shelf WPL 2195379 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Cover, Meat Pan WPL 2163848 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Nameplate (White Model) WPL 2175383 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2175384 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Shelf, Full Cantilever (2) WPL 2195398 Contact Us For Availability
16
Cover-Evaporator WPL 2189823 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
18
Trim, Door WPL 2195380 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.22 & No.23) (Almond WPL 2184400 Contact Us For Availability
20
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
20
Pan, Meat WPL 2169919 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
24
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
24
Door Reversal Instructions WPL 2172516 Contact Us For Availability
24
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
24
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
24
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
24
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
25
Floor, Freezer WPL 2184617 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Grille (Almond) WPL 2189156 Contact Us For Availability
36
Bracket, Door Stop WPL 944035 Contact Us For Availability
37
Trim-Door (2) WPL 2171265 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Wire Assembly, Freezer Compartment WPL 2195656 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
