Model Whirlpool ET20GKXDN10 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

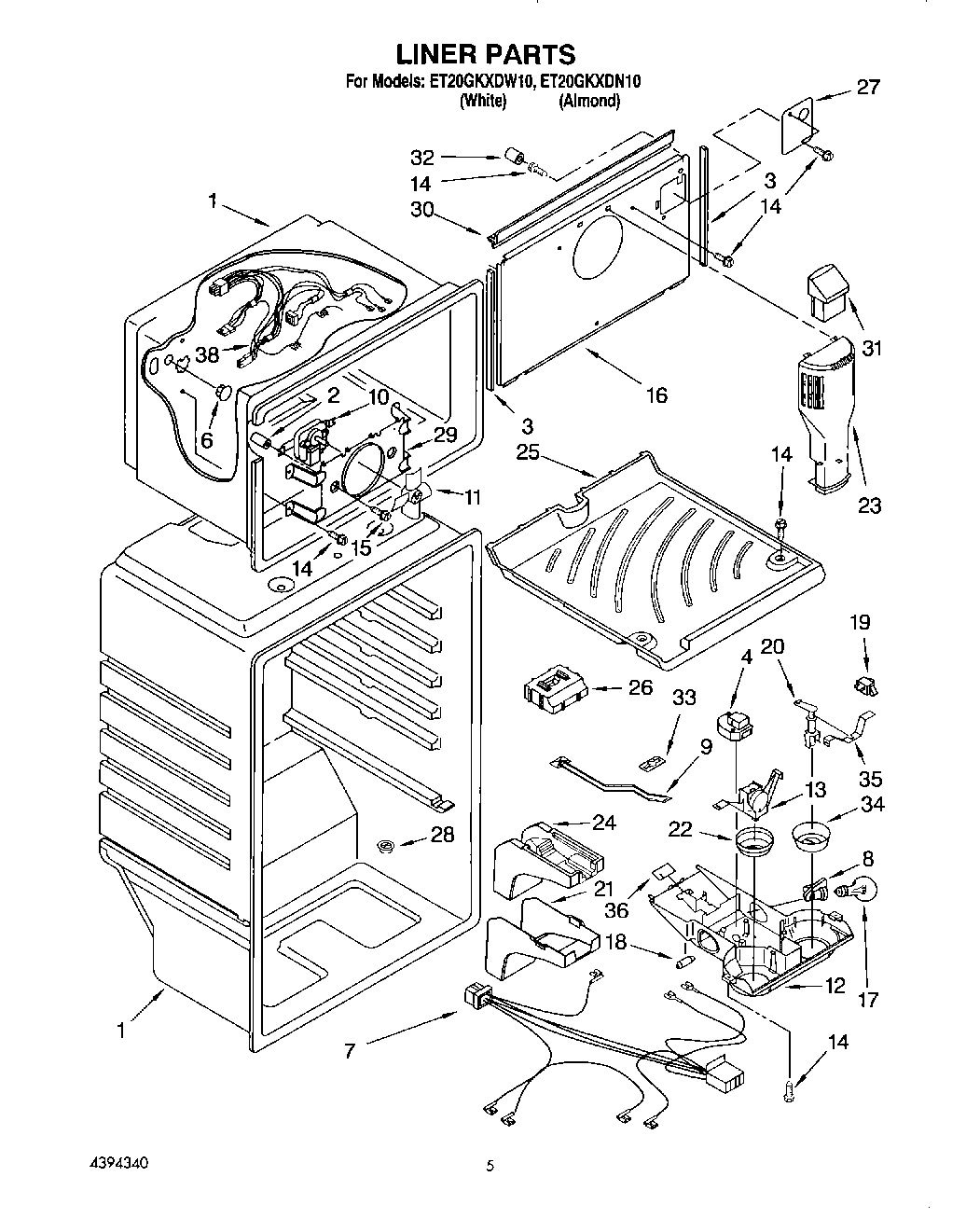

03 - LINER

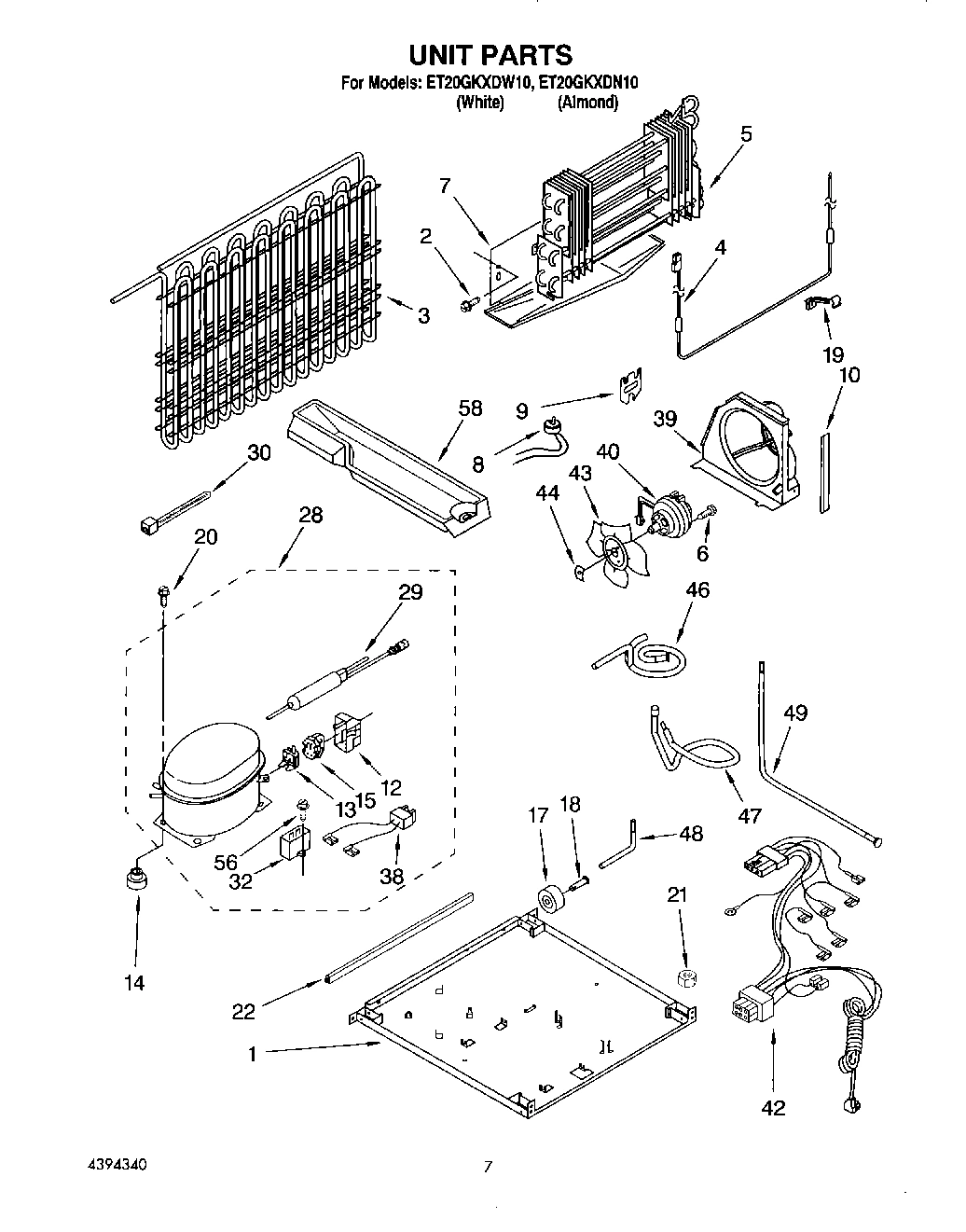

04 - UNIT

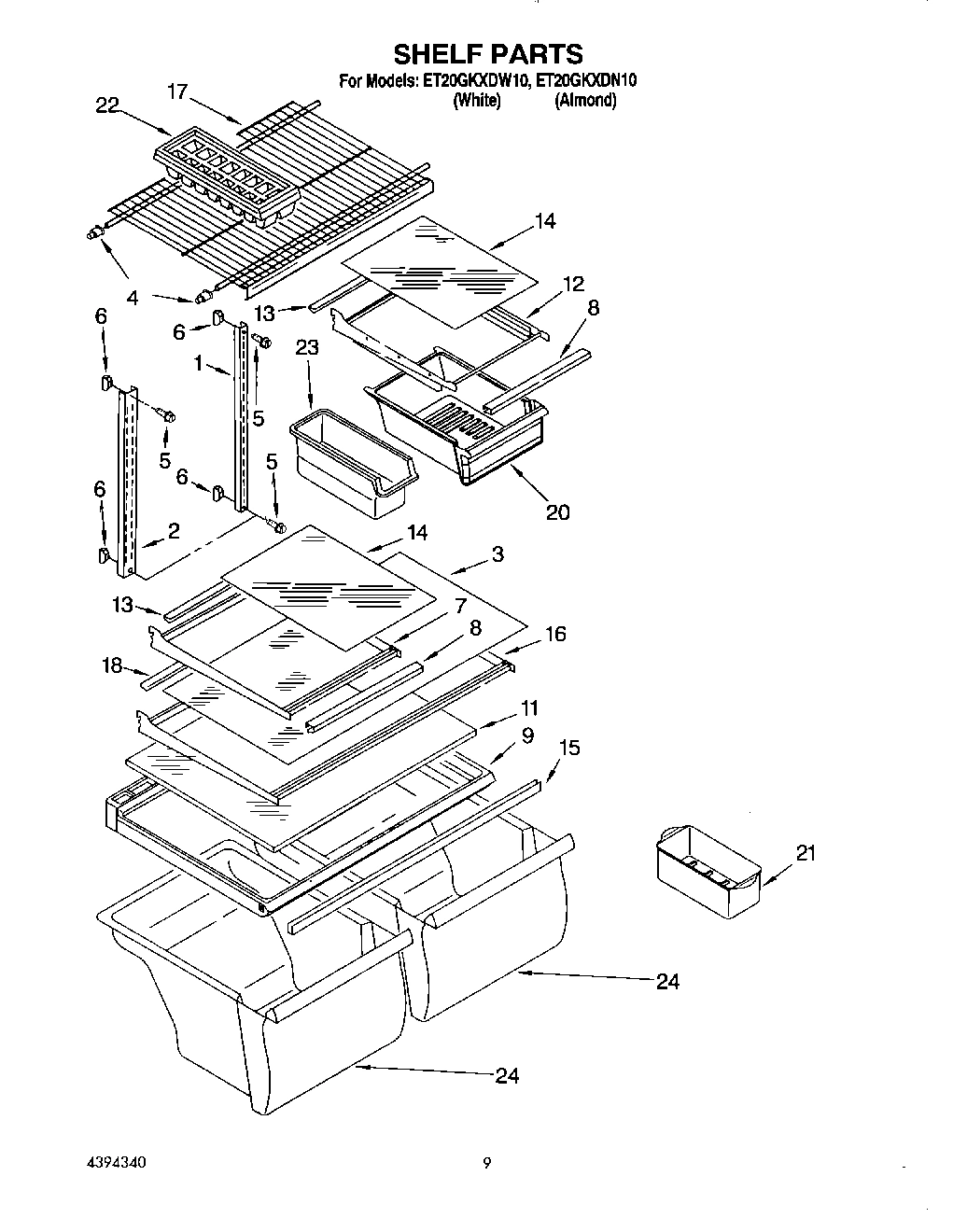

05 - SHELF, LIT/OPTIONAL

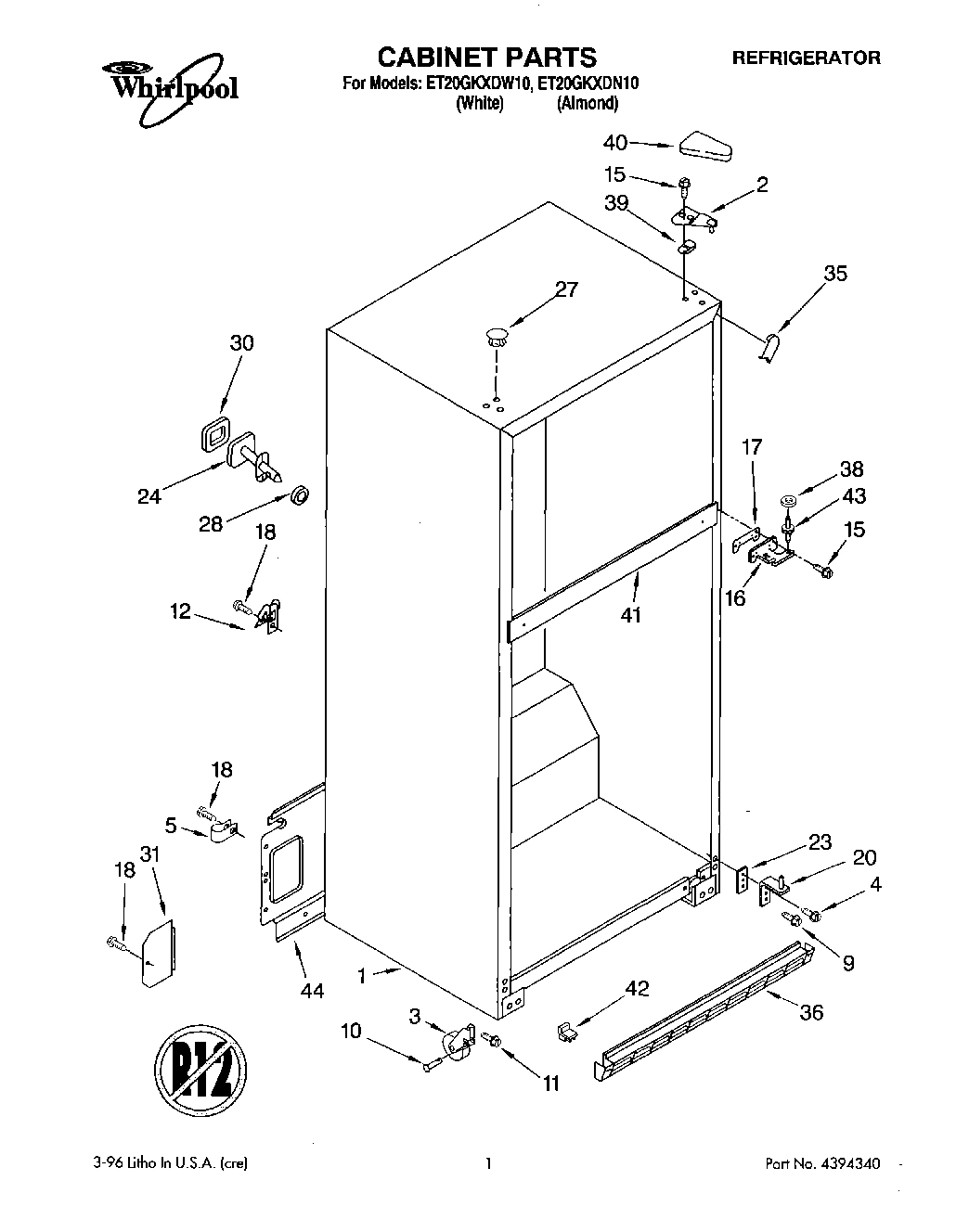

01 - CABINET

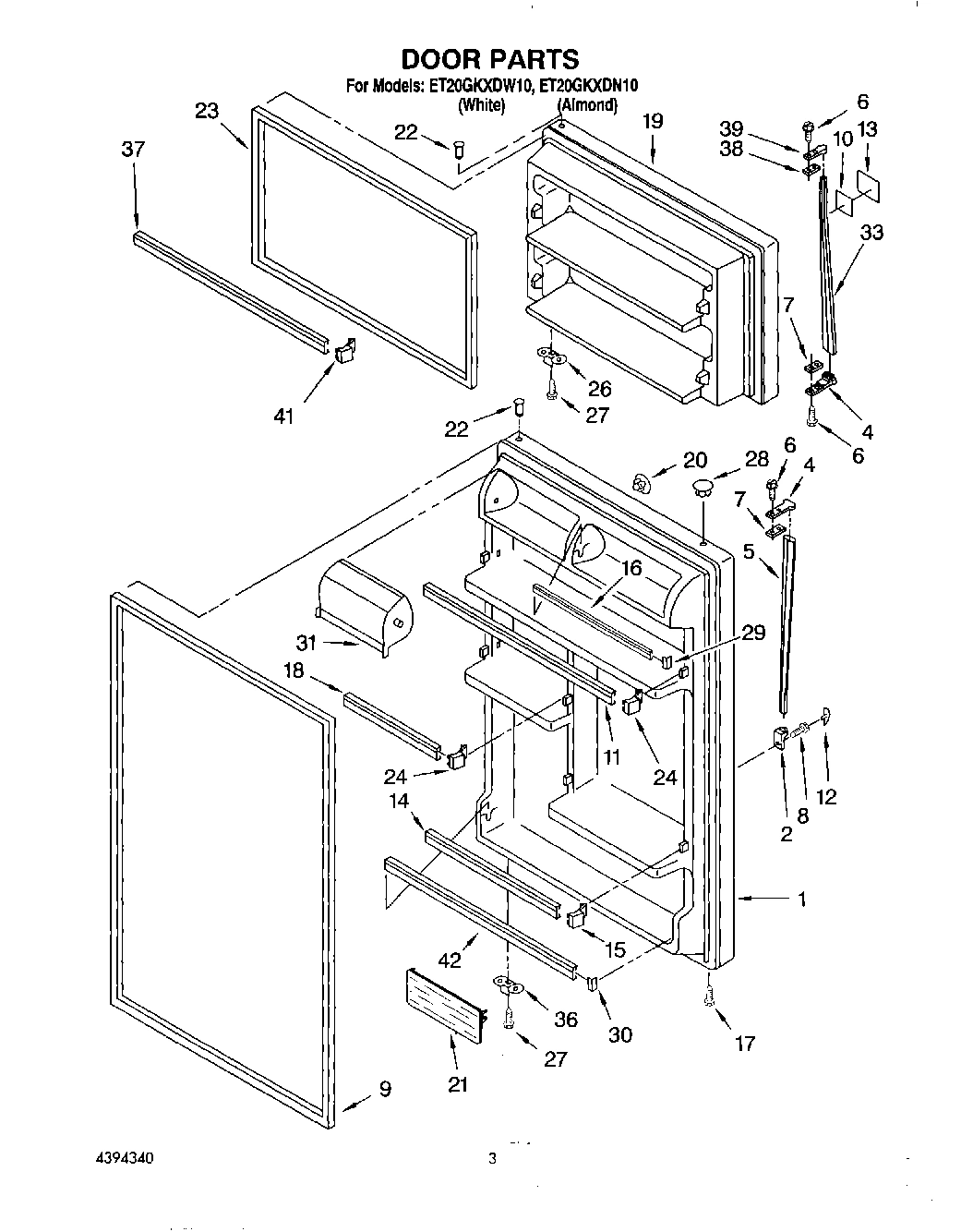

02 - DOOR
Common parts from model Whirlpool ET20GKXDN10 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2193190 WPL LIT2193190 Contact Us For Availability
WPL LIT2193214 WPL LIT2193214 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI48650A2 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2159276 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 2159277 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
3
Glass, Full Shelf WPL 2166217 Contact Us For Availability
4
Screw WPL 489459 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Shelf, Cantilever WPL 2163860 Contact Us For Availability
8
Trim, Shelf Front WPL 2176263 Contact Us For Availability
9
Screw WPL 489436 Contact Us For Availability
10
Tape WPL 991259 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Trim, Door Shelf WPL 2171147 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176306 Contact Us For Availability
13
Trim, Shelf Rear WPL 2163883 Contact Us For Availability
13
Nameplate (White Model) WPL 2175383 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2175384 Contact Us For Availability
14
Glass, Shelf WPL 2166218 Contact Us For Availability
14
Trim-Door Shelf WPL 2171041 Contact Us For Availability
15
Plug-Trim WPL 2156001 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163863 Contact Us For Availability
17
Shelf, Freezer WPL 2184566 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Trim, Shelf Rear WPL 2163885 Contact Us For Availability
18
Trim, Door WPL 2171149 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2184400 Contact Us For Availability
20
Pan, Meat WPL 2190686 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
24
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
24
Door Reversal Instructions WPL 2172516 Contact Us For Availability
24
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
24
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
24
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
24
WPL 978883 WPL 978883 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI48651A8 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI48652A3 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI48653A6 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2182432 Contact Us For Availability
36
Grille (Almond) WPL 2182433 Contact Us For Availability
36
Bracket, Door Stop WPL 944035 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI48654A8 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Trim, Door WPL 2171148 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
47
Tube, Suction WPL 2184550 Contact Us For Availability
48
Tube, Process WPL 2184319 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
