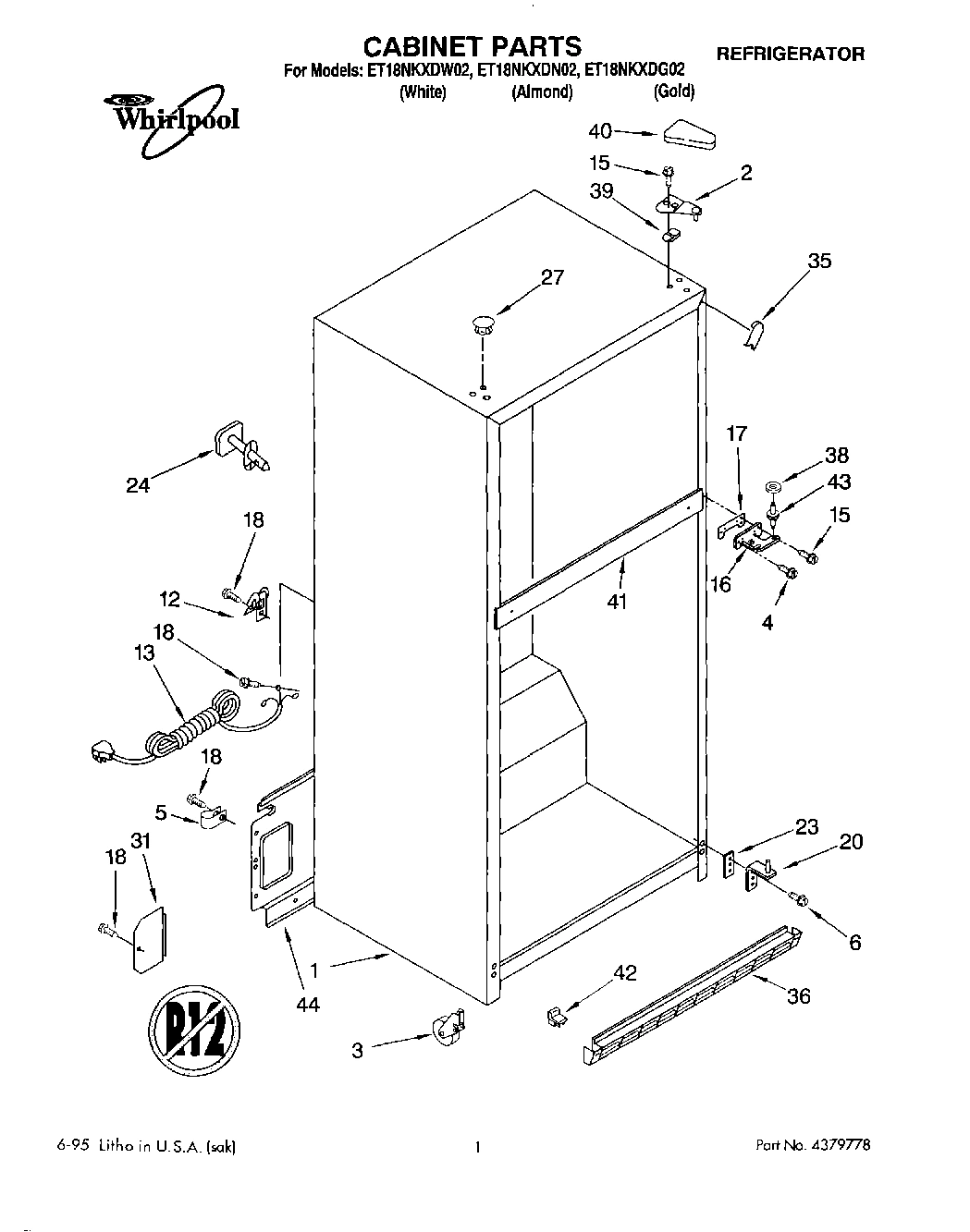

Whirlpool ET18NKXDN02 TOP MOUNT REFRIGERATOR Parts List

Torx Key WPL 1117510 Contact Us For Availability

View on Model

1

Liner (Not A Serviceable Part) WPL ARI44368A7 Contact Us For Availability

View on Model

1

Plate, Unit Mounting WPL 2174620 Contact Us For Availability

View on Model

2

WP2183139 Whirlpool Refrigerator Handle End C Backorder WPL WP2183139 $25.33

View on Model

2

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

View on Model

2

Grommet (2) WPL 531933 Contact Us For Availability

View on Model

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

View on Model

3

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

View on Model

3

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

View on Model

3

Hole Plug (2) (Gold) WPL 989879 Contact Us For Availability

View on Model

3

Condenser WPL 2179882 Contact Us For Availability

View on Model

4

819342 Whirlpool Refrigerator Endcap Kit In Stock WPL 819342 $32.24

View on Model

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $45.16

View on Model

4

Timer, Defrost WPL 2176340 Contact Us For Availability

View on Model

5

WP2162555 Whirlpool Refrigerator White Door H In Stock WPL WP2162555 $101.12

View on Model

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

View on Model

5

Handle, Center (Cherry Hill) WPL 1106189 Contact Us For Availability

View on Model

5

Handle, Center (Almond) WPL 2148036 Contact Us For Availability

View on Model

5

Evaporator Assy. WPL 2176337 Contact Us For Availability

View on Model

6

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

View on Model

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

View on Model

6

Screw WPL 489414 Contact Us For Availability

View on Model

7

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

View on Model

7

Spacer WPL 943188 Contact Us For Availability

View on Model

7

Wire Assy. Control Box WPL 2172542 Contact Us For Availability

View on Model

7

Drain Pan WPL 2172619 Contact Us For Availability

View on Model

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

View on Model

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $73.09

View on Model

8

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

View on Model

8

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

View on Model

9

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

View on Model

9

Damper, Air WPL 2179858 Contact Us For Availability

View on Model

9

Bracket, Heater WPL 2176301 Contact Us For Availability

View on Model

10

Insert WPL 2166149 Contact Us For Availability

View on Model

10

Tape WPL 991259 Contact Us For Availability

View on Model

10

Fan Motor WPL 2176298 Contact Us For Availability

View on Model

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

View on Model

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

View on Model

12

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

View on Model

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

View on Model

12

Cover, Screw (White) WPL 9791769 Contact Us For Availability

View on Model

12

Cover, Screw (Almond) WPL 9791770 Contact Us For Availability

View on Model

12

Control Box WPL 2179790 Contact Us For Availability

View on Model

13

4387562 Whirlpool Refrigerator Thermostat Col In Stock WPL 4387562 $119.30

View on Model

13

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $35.14

View on Model

13

WP2149959 Whirlpool Refrigerator Overload Backorder WPL WP2149959 $42.38

View on Model

13

Nameplate (Gold Model) WPL 2152334 Contact Us For Availability

View on Model

13

Nameplate (White Model) WPL 2162781 Contact Us For Availability

View on Model

13

Nameplate (Almond Model) WPL 2162782 Contact Us For Availability

View on Model

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

View on Model

14

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

View on Model

14

Grommet (4) (Production) WPL 2174621 Contact Us For Availability

View on Model

15

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

View on Model

15

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

View on Model

15

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

View on Model

15

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

View on Model

15

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

View on Model

15

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

View on Model

15

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

View on Model

15

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

View on Model

15

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

View on Model

15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

View on Model

15

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

View on Model

15

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

View on Model

15

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

View on Model

15

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

View on Model

15

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

View on Model

15

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

View on Model

15

Cover, Meat Pan WPL 2163848 Contact Us For Availability

View on Model

15

Screw WPL 489412 Contact Us For Availability

View on Model

15

Relay (See Overload) WPL ARI44369A9 Contact Us For Availability

View on Model

16

Trim, Door Shelf WPL 2171040 Contact Us For Availability

View on Model

16

Cover-Evaporator WPL 2179897 Contact Us For Availability

View on Model

17

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

View on Model

17

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

View on Model

17

Roller (2) WPL 2163782 Contact Us For Availability

View on Model

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

View on Model

18

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $40.33

View on Model

18

Weight, Thermal WPL 2163802 Contact Us For Availability

View on Model

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

View on Model

19

Freezer Door Panel (White) WPL 2159270 Contact Us For Availability

View on Model

19

Freezer Door Panel (Almond) WPL 2159271 Contact Us For Availability

View on Model

19

Freezer Door Panel (Gold) WPL 2175872 Contact Us For Availability

View on Model

19

Clip, Heater WPL 2166244 Contact Us For Availability

View on Model

20

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

View on Model

20

Hole Plug (Almond) WPL 1122654 Contact Us For Availability

View on Model

20

Hole Plug (Gold) WPL 1122694 Contact Us For Availability

View on Model

20

Post, Damper WPL 2179859 Contact Us For Availability

View on Model

20

Screw WPL 489433 Contact Us For Availability

View on Model

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

View on Model

21

Nut (Not Serviced) WPL ARI44370A6 Contact Us For Availability

View on Model

22

Knob, Thermostat WPL 2176296 Contact Us For Availability

View on Model

23

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $82.03

View on Model

23

Air Tower WPL 2182340 Contact Us For Availability

View on Model

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

View on Model

25

Trim, Door Shelf WPL 2171140 Contact Us For Availability

View on Model

25

Freezer Floor WPL 2172679 Contact Us For Availability

View on Model

26

Bracket, Door Stop WPL 2159367 Contact Us For Availability

View on Model

26

Air Diffuser, Top WPL 2179878 Contact Us For Availability

View on Model

27

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

View on Model

27

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $16.78

View on Model

27

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

View on Model

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

View on Model

28

W10823815 Whirlpool Refrigerator Compressor In Stock WPL W10823815 $282.92

View on Model

28

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

View on Model

28

Installation Kit WPL 482801 Contact Us For Availability

View on Model

28

Hole Plug (Almond) WPL 989196 Contact Us For Availability

View on Model

28

Hole Plug WPL 1103725 Contact Us For Availability

View on Model

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

View on Model

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

View on Model

29

Bracket, Fan Motor WPL 2163827 Contact Us For Availability

View on Model

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

View on Model

30

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $8.67

View on Model

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

View on Model

31

4388450 Whirlpool Refrigerator Insert Backorder WPL 4388450 $28.38

View on Model

31

WP2218113 Whirlpool Dairy Door In Stock WPL WP2218113 $36.60

View on Model

32

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

View on Model

32

Capacitor (Service Only) WPL 2169137 Contact Us For Availability

View on Model

33

Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability

View on Model

33

Handle, F.C. (Cherry Hill) WPL 2175873 Contact Us For Availability

View on Model

33

Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability

View on Model

34

Knob, Damper WPL 2176297 Contact Us For Availability

View on Model

35

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

View on Model

36

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

View on Model

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

View on Model

36

Bracke WPL 2159368 Contact Us For Availability

View on Model

37

Gasket, Air Diffuser WPL 2172594 Contact Us For Availability

View on Model

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

View on Model

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

View on Model

38

WPL 943187 WPL 943187 Contact Us For Availability

View on Model

38

Clip, Defrost Timer WPL 2176341 Contact Us For Availability

View on Model

39

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

View on Model

39

WP2191882 Whirlpool Refrigerator Handle End C Backorder WPL WP2191882 $33.31

View on Model

39

Baffle, Air WPL 2179849 Contact Us For Availability

View on Model

40

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

View on Model

40

Gasket, Air Tower WPL 2179839 Contact Us For Availability

View on Model

41

WP2156003 Whirlpool Refrigerator Door Shelf E In Stock WPL WP2156003 $4.72

View on Model

42

WPL 2171141 WPL 2171141 Contact Us For Availability

View on Model

42

Harns-Wire WPL 2182376 Contact Us For Availability

View on Model

43

Blade, Fan WPL 2176753 Contact Us For Availability

View on Model

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

View on Model

46

Tube, Discharge WPL 2179722 Contact Us For Availability

View on Model

47

Tube, Suction WPL 2179726 Contact Us For Availability

View on Model

48

Tube, Process WPL 2179725 Contact Us For Availability

View on Model

49

Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability

View on Model

56

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

View on Model

58

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

View on Model

58

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

View on Model

58

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

View on Model

58

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

View on Model

58

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

View on Model

58

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

View on Model

58

Evap. Tray WPL 2163795 Contact Us For Availability

View on Model

58

Start Kit WPL 482278 Contact Us For Availability

View on Model

58

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

View on Model

Model Whirlpool ET18NKXDN02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

Common parts from model Whirlpool ET18NKXDN02 TOP MOUNT REFRIGERATOR

Search result for :
