Model Whirlpool ET18HTXDN01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
04 - REFRIGERATOR DOOR

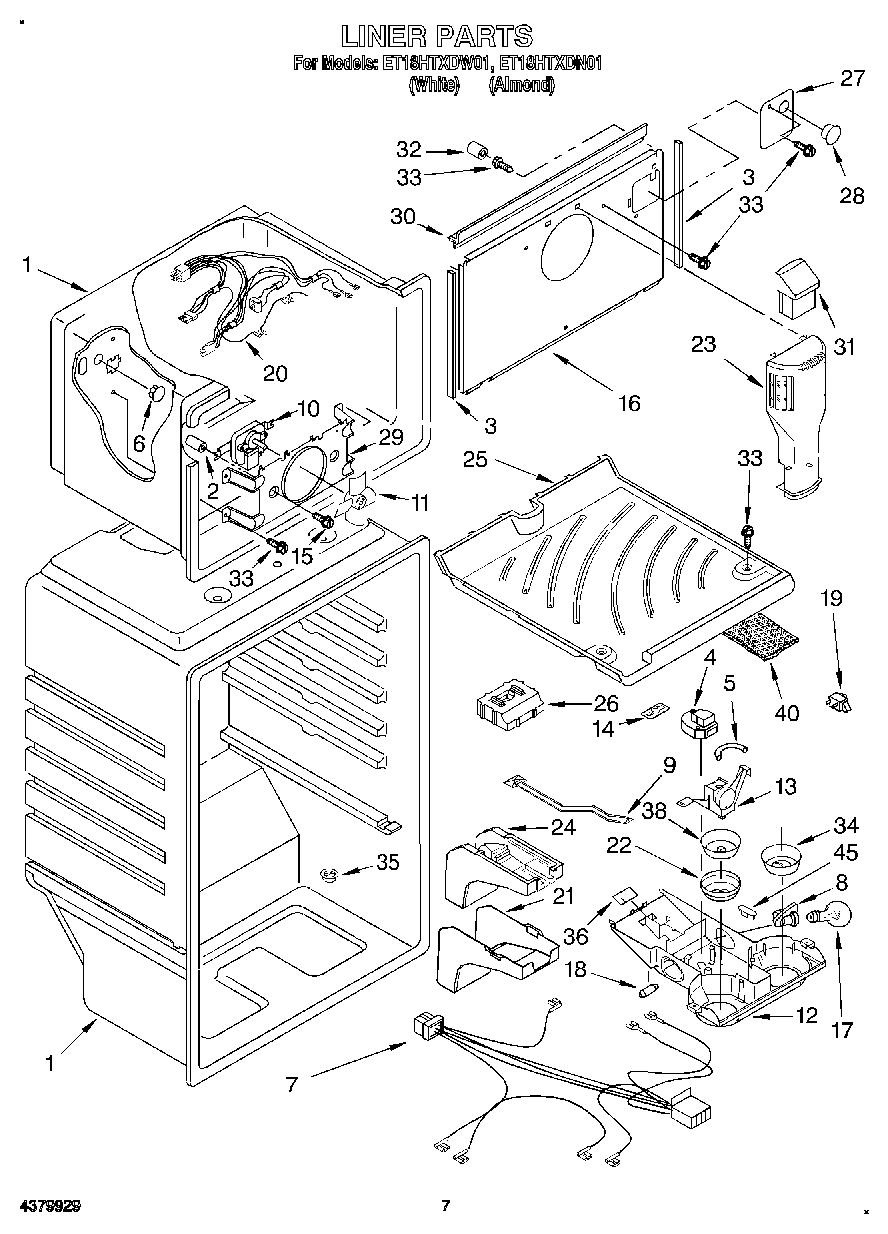

05 - LINER

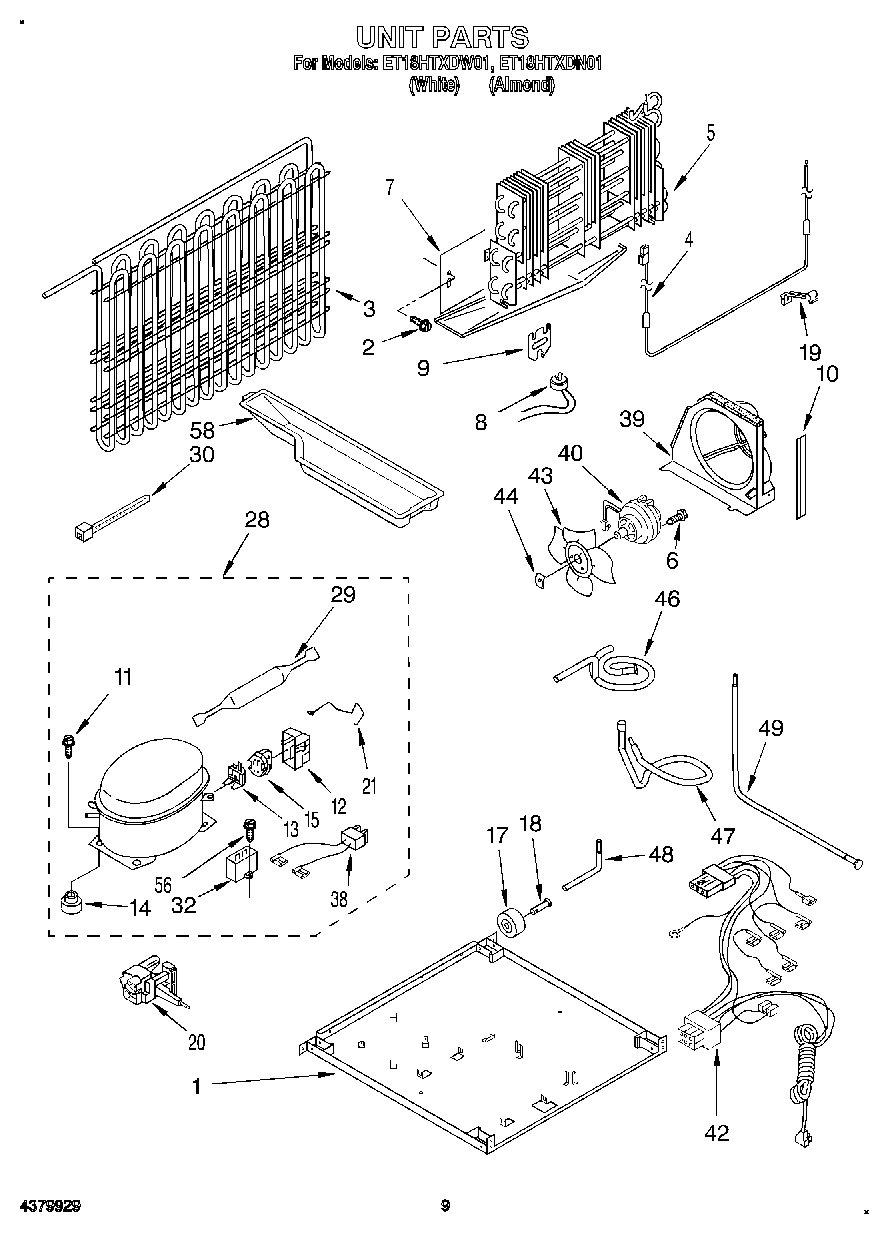

06 - UNIT, LIT/OPTIONAL
02 - FREEZER DOOR

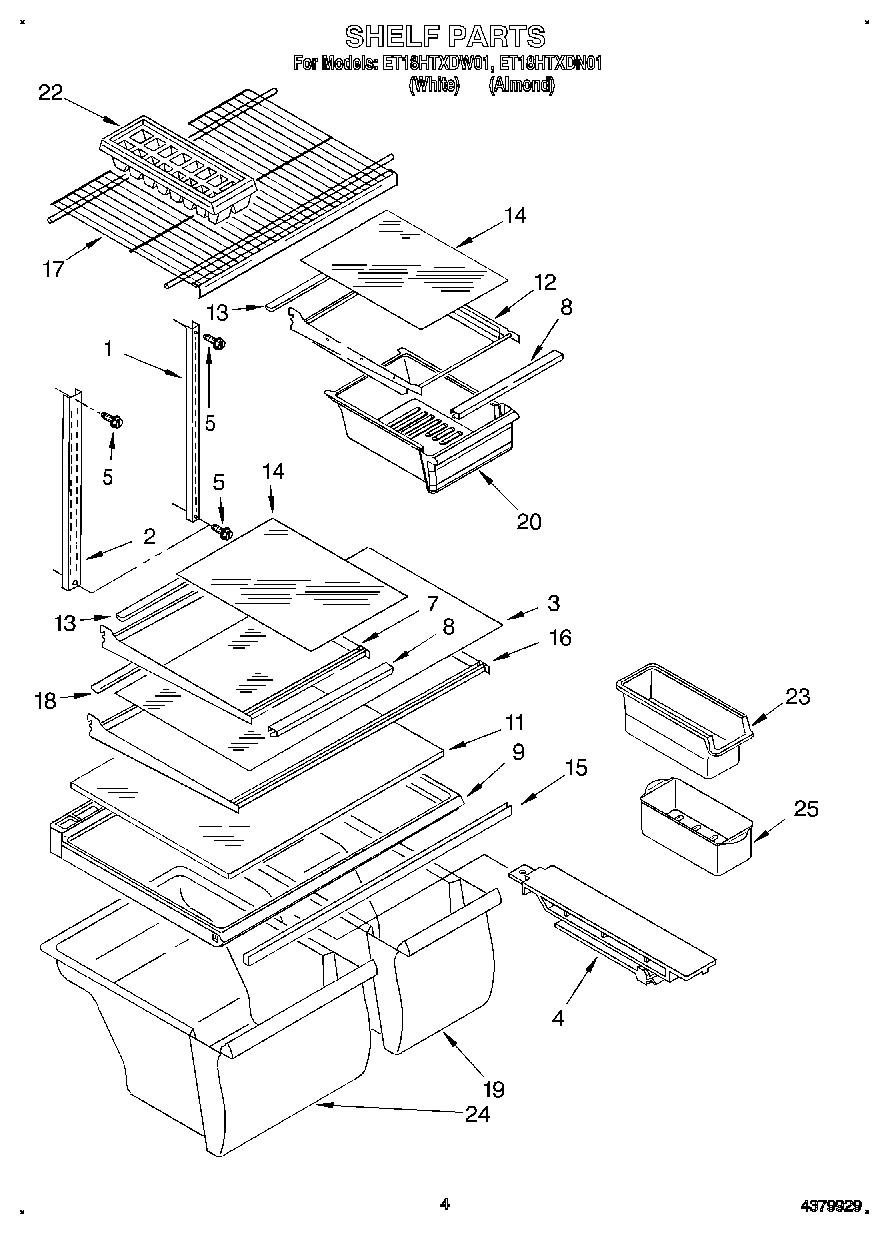

03 - SHELF
Common parts from model Whirlpool ET18HTXDN01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2180401 WPL LIT2180401 Contact Us For Availability
WPL LIT2180451 WPL LIT2180451 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Plate, Unit Mounting WPL 2174620 Contact Us For Availability
1
Door, Freezer (Includes Item 8) (White) WPL 2159270 Contact Us For Availability
1
Door, Freezer (Includes Item 8) (Almond) WPL 2159271 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
3
Glass, Full Shelf WPL 2166215 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 2163859 Contact Us For Availability
8
Trim, Shelf WPL 2176262 Contact Us For Availability
9
Damper, Air WPL 2179853 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Screw, Compressor WPL 489433 Contact Us For Availability
12
Control Box WPL 2179869 Contact Us For Availability
12
Handle, Center (Almond) WPL 2171044 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Retainer, Glass WPL 2163882 Contact Us For Availability
14
Spacer, Handle Door Panel WPL 943188 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
14
Glass, Meat Cover WPL 2166216 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Relay (See Overload) WPL ARI43846A1 Contact Us For Availability
16
Cover-Evaporator WPL 2179897 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163862 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171037 Contact Us For Availability
18
Screw Cover (White) WPL 9791769 Contact Us For Availability
18
Screw Cover (Almond) WPL 9791770 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Nameplate (White Model) WPL 2162781 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
18
Trim, Shelf Rear WPL 2163884 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
20
Module WPL 2169337 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Clamp WPL 2169464 Contact Us For Availability
22
Knob, Thermostat WPL 2174668 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
34
Knob, Damper WPL 2174669 Contact Us For Availability
39
Baffle, Air WPL 2179849 Contact Us For Availability
40
Seal, Freezer Floor WPL 2166079 Contact Us For Availability
42
Wire Assy. Unit WPL 2182355 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
45
Hole Plug WPL 2174667 Contact Us For Availability
46
Tube, Discharge WPL 2179884 Contact Us For Availability
47
Tube, Suction WPL 2179779 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
WPL 799344 WPL 799344 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Door Reversal Instructions WPL 2172516 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
58
WPL 799832 WPL 799832 Contact Us For Availability
58
WPL 799833 WPL 799833 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
58
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
