Model Whirlpool ET18HPXDW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

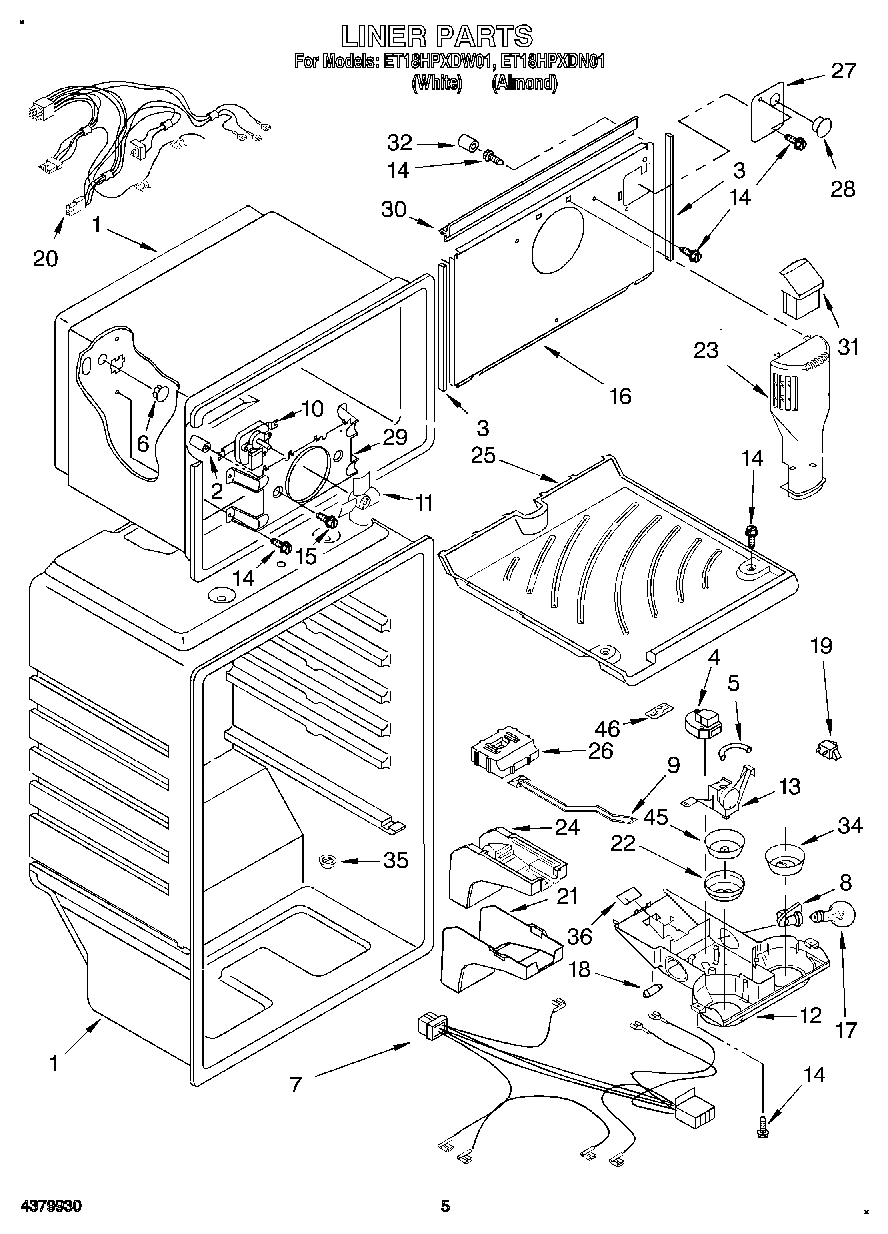

03 - LINER

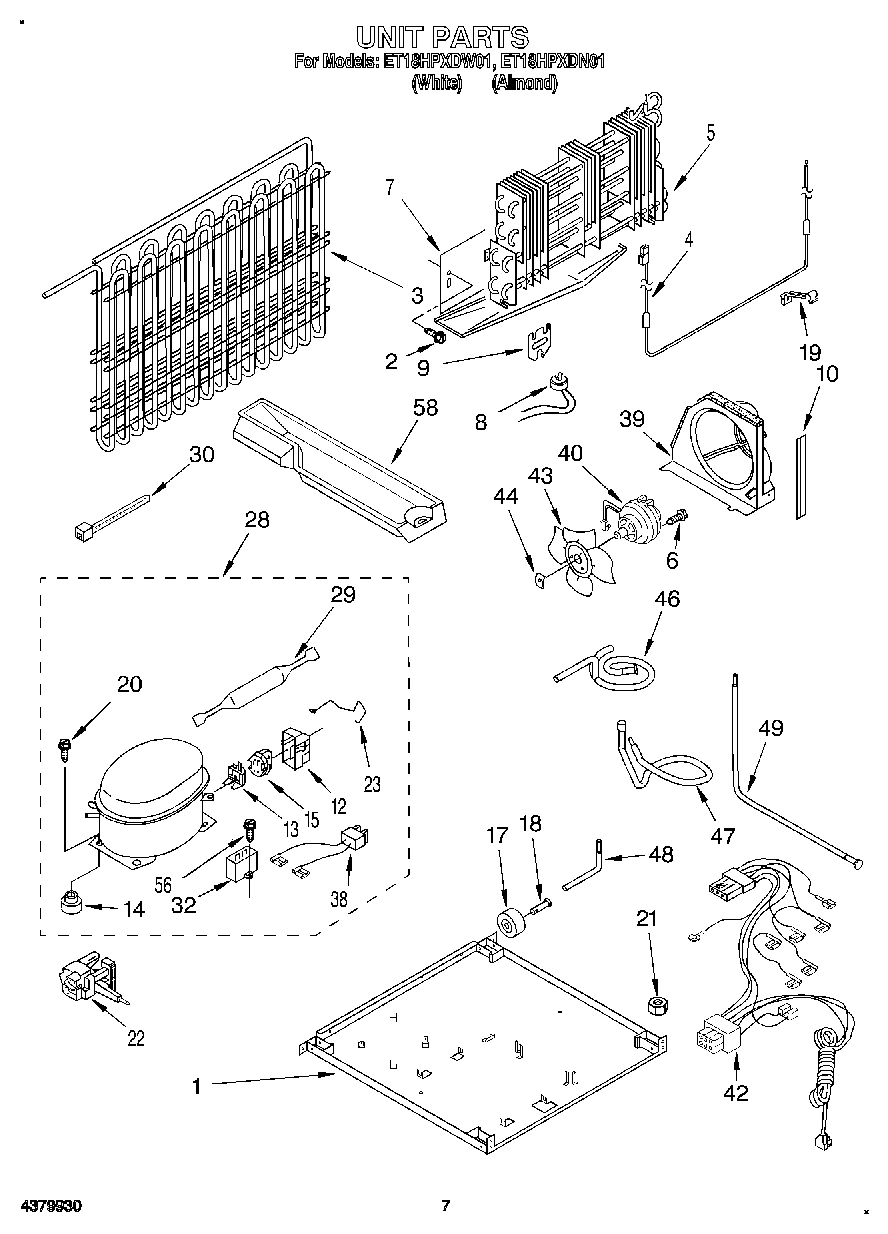

04 - UNIT

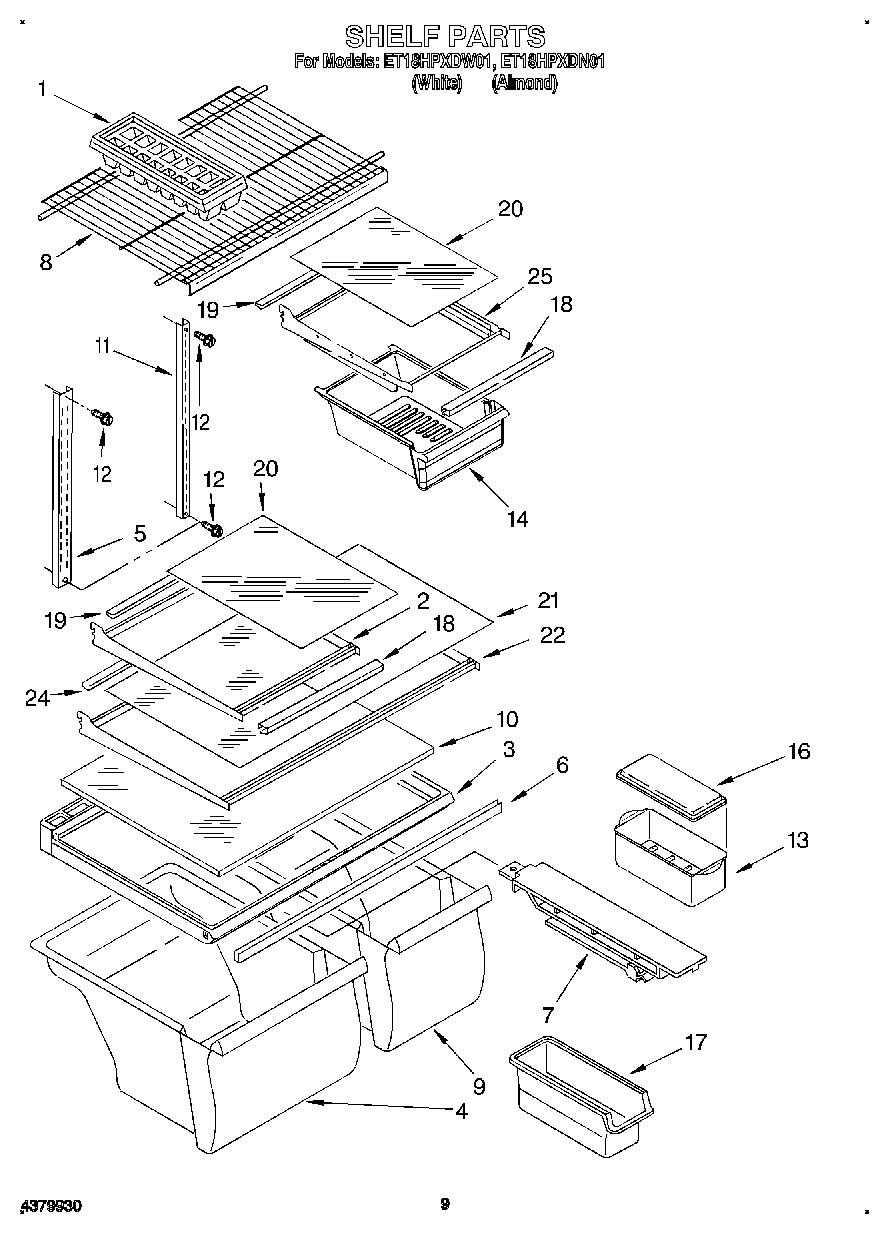

05 - SHELF, LIT/OPTIONAL

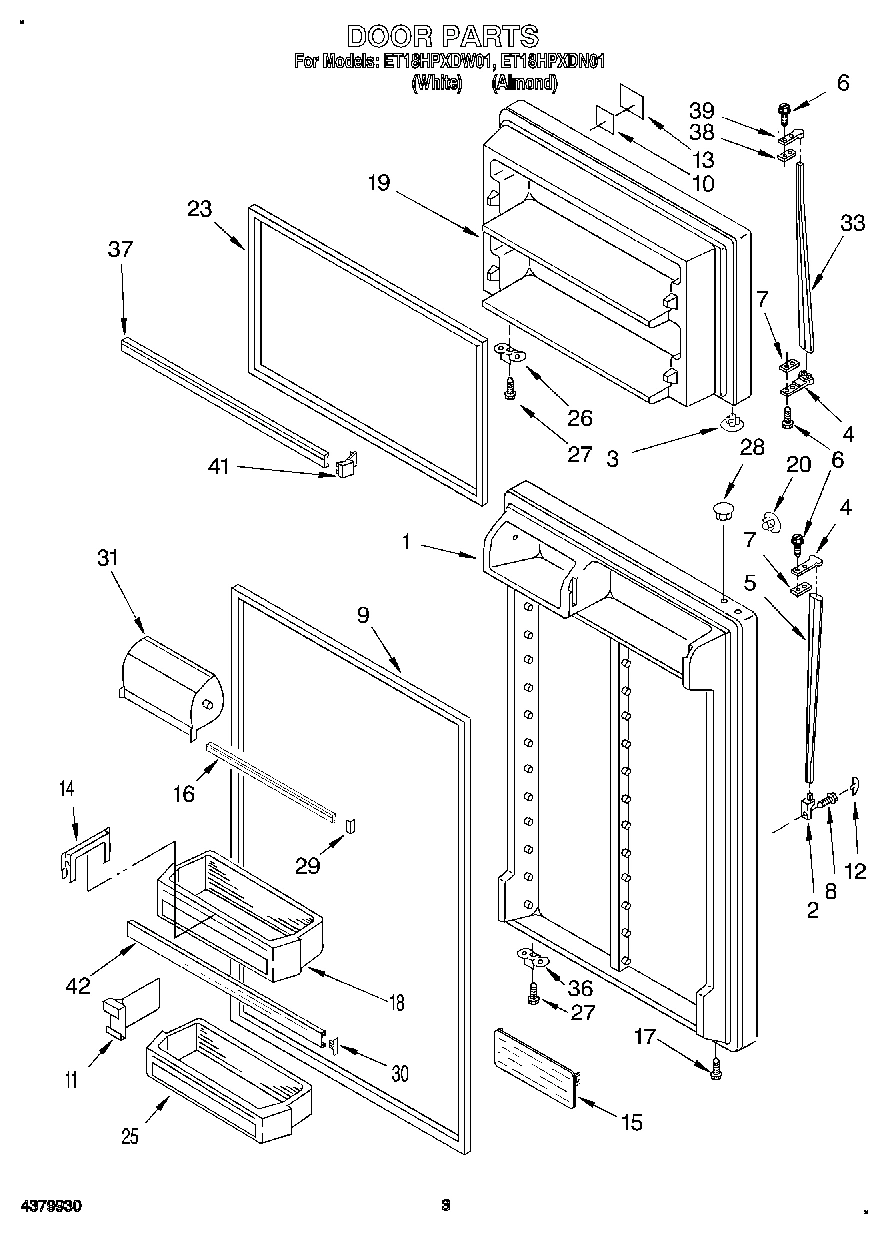

02 - DOOR

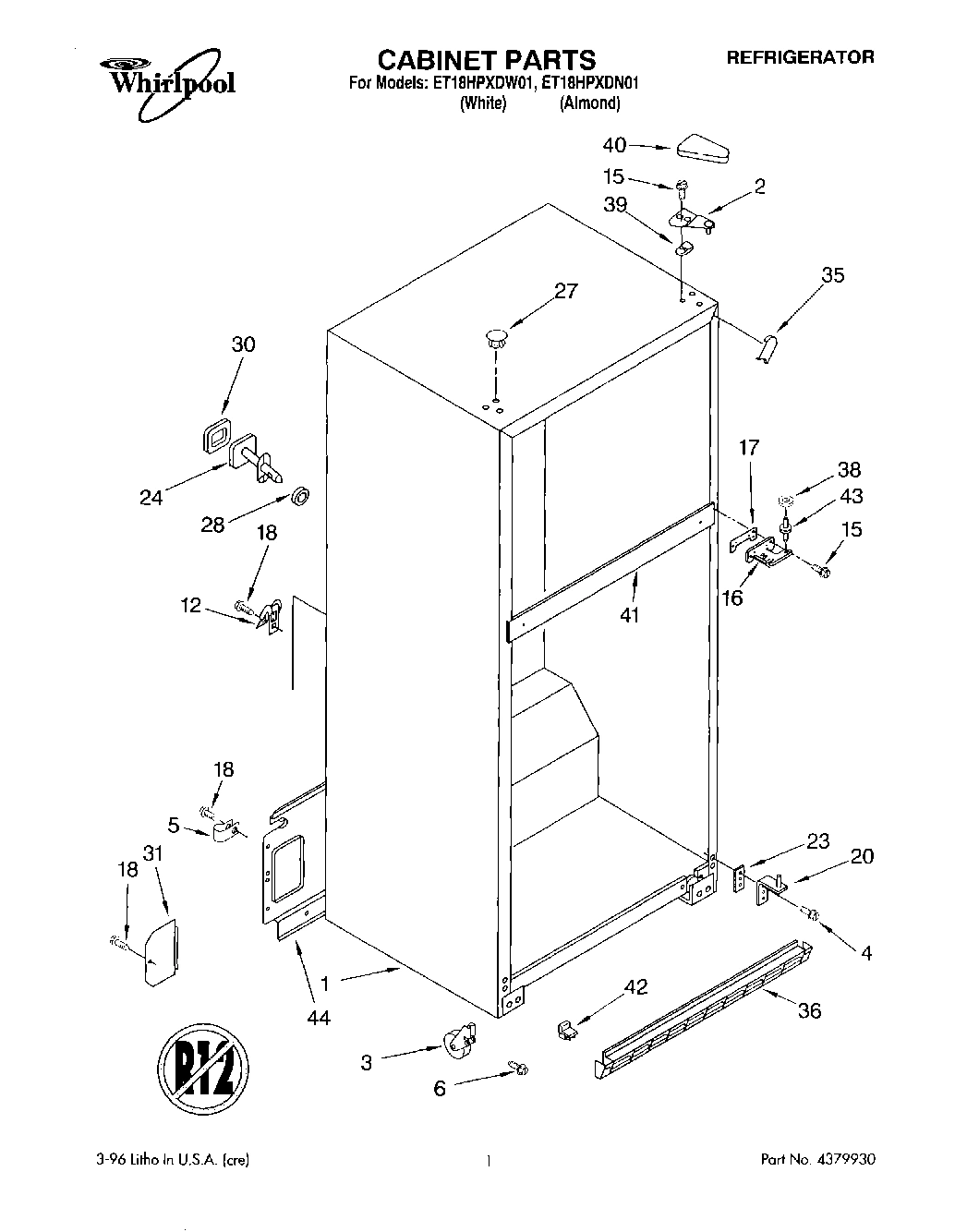

01 - CABINET
Common parts from model Whirlpool ET18HPXDW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2180401 WPL LIT2180401 Contact Us For Availability
WPL LIT2182507 WPL LIT2182507 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2159448 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 2159463 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI43812A6 Contact Us For Availability
2
Shelf WPL 2163859 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
4
Screw WPL 489459 Contact Us For Availability
5
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
6
Screw (Water Supply Line) WPL 2174650 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
10
Tape WPL 991259 Contact Us For Availability
11
Shelf, Ladder WPL 2172638 Contact Us For Availability
11
Divider, Bin WPL 2152335 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
13
Nameplate (White Model) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
16
Cover WPL 2170949 Contact Us For Availability
16
Trim, Door Shelf WPL 2171040 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Trim, Shelf Front WPL 2176262 Contact Us For Availability
18
Door Bin, Wide (2) WPL 2175883 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Trim, Shelf Rear WPL 2163882 Contact Us For Availability
19
Freezer Door Panel (White) WPL 2159270 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2159271 Contact Us For Availability
20
Glass, Half Shelf WPL 2166216 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI43819A5 Contact Us For Availability
21
Glass, Full Shelf WPL 2166215 Contact Us For Availability
22
Module WPL 2169337 Contact Us For Availability
22
Shelf, Cantilever WPL 2163862 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Clamp WPL 2169464 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Trim, Shelf Rear WPL 2163884 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI43813A3 Contact Us For Availability
25
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
25
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
25
Door Reversal Instructions WPL 2172516 Contact Us For Availability
25
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
25
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
25
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
25
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
25
WPL 978883 WPL 978883 Contact Us For Availability
25
Door Bin, Narrow (2) WPL 2175882 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI43814A4 Contact Us For Availability
30
Plug-Trim WPL 2159300 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI43815A9 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Bracket, Door Stop WPL 2159368 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
37
Trim-Door (2) WPL 2171037 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Baffle, Air WPL 2179849 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI43816A1 Contact Us For Availability
42
Wire Assy. Unit WPL 2182355 Contact Us For Availability
42
Trim, Door WPL 2171141 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2179786 Contact Us For Availability
46
Tube, Discharge WPL 2179884 Contact Us For Availability
47
Tube, Suction WPL 2179779 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
