Model Whirlpool ET18HNXDW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - LINER
05 - SHELF, LIT/OPTIONAL

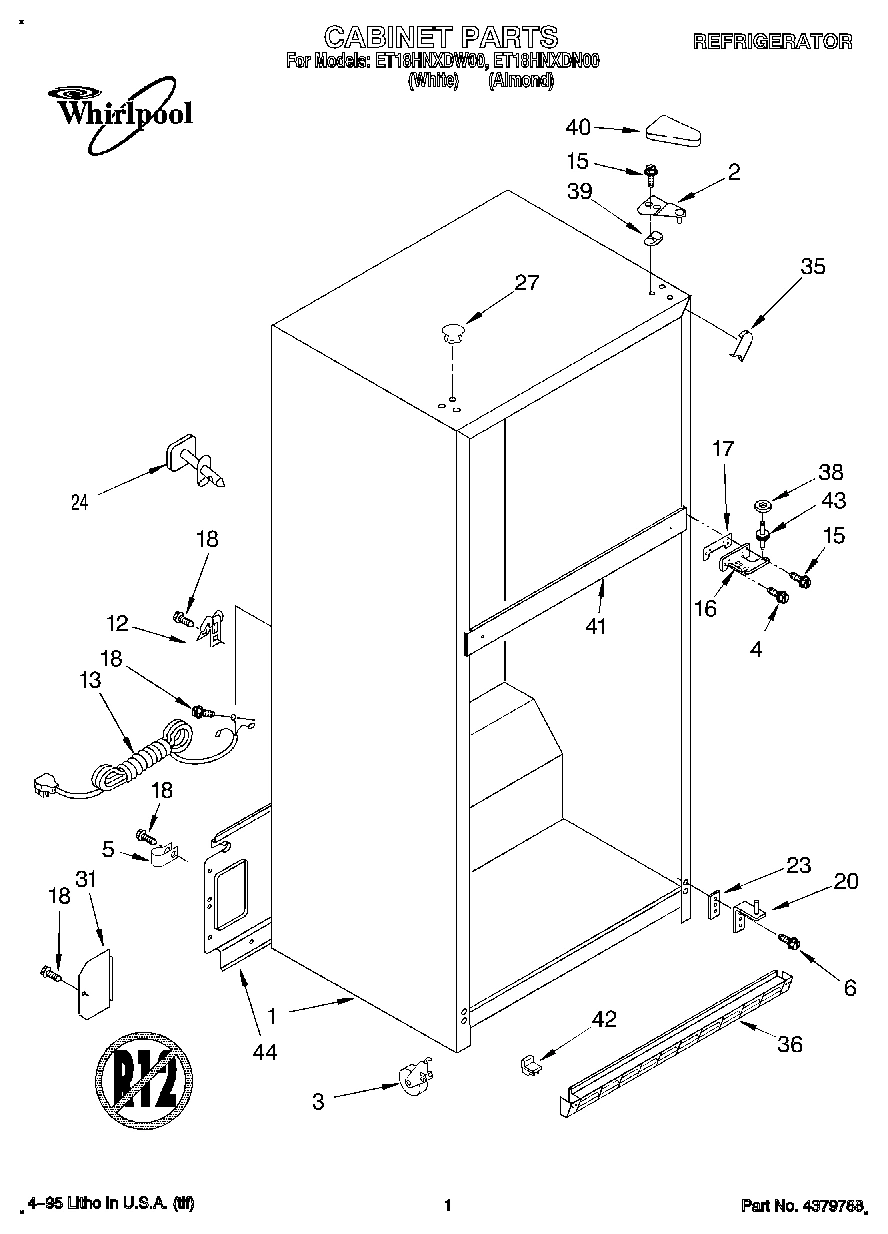

01 - CABINET

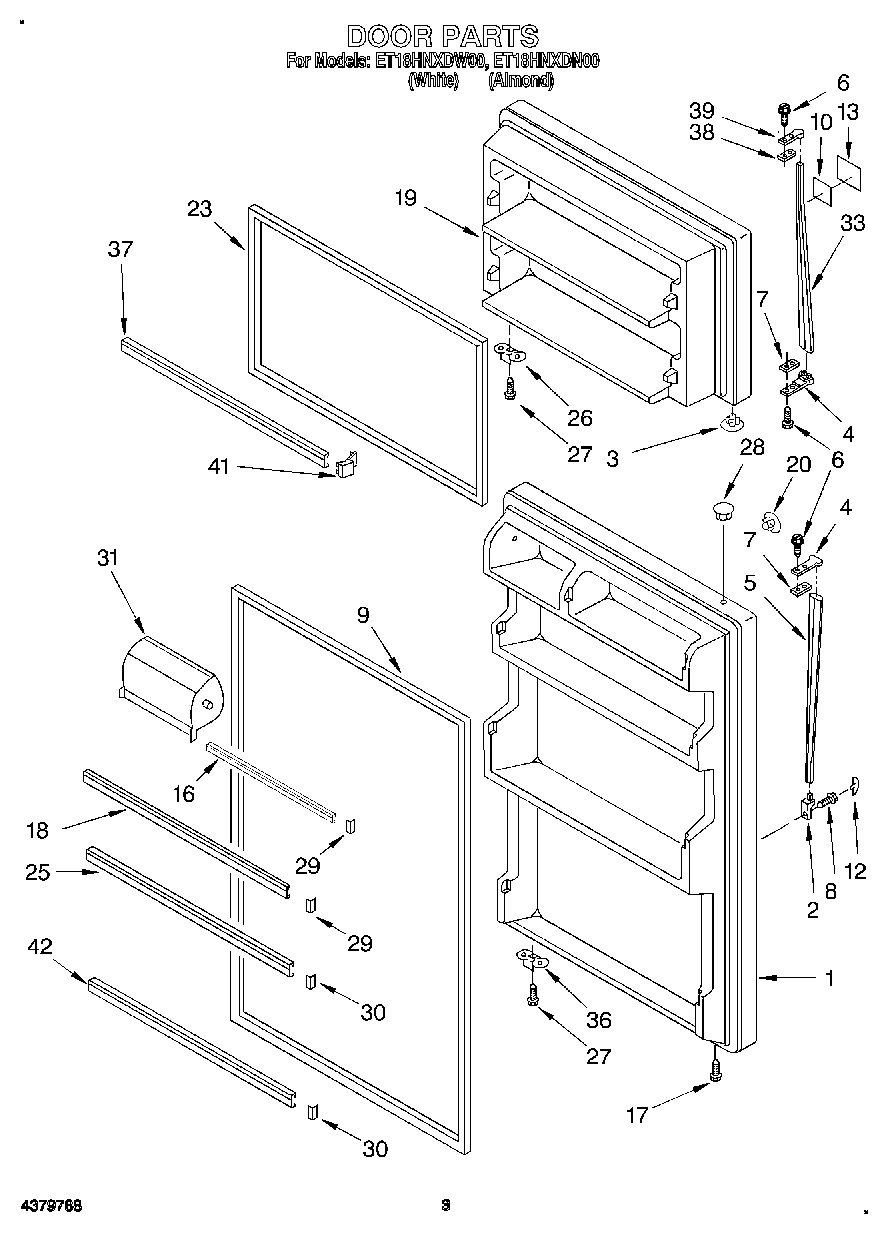

02 - DOOR

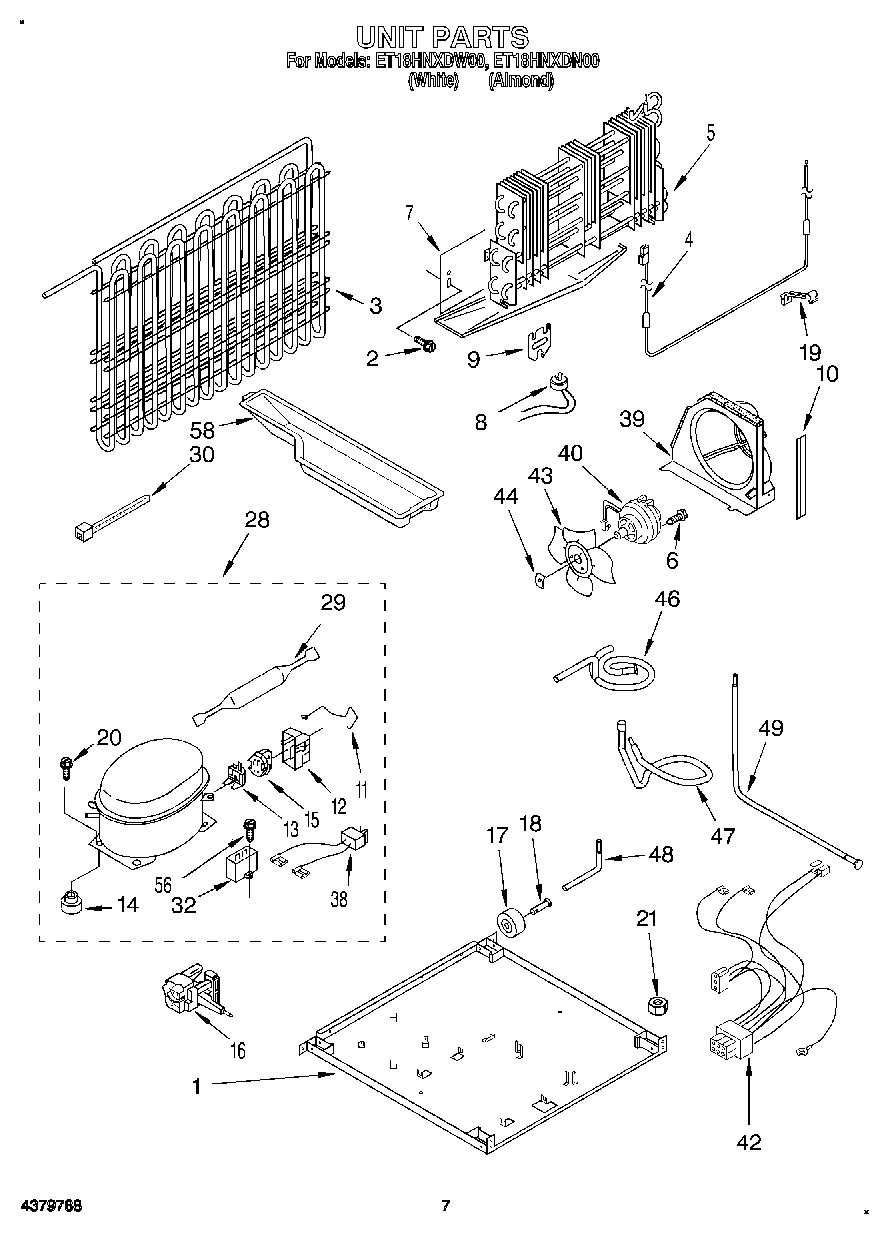

04 - UNIT
Common parts from model Whirlpool ET18HNXDW00 TOP MOUNT REFRIGERATOR
Torx Key WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI43766A2 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2171269 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 2171270 Contact Us For Availability
1
Plate, Unit Mounting WPL 2174620 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489457 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Tape WPL 991259 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Clamp (Production Only) WPL 2162400 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
13
Nameplate (White Model) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
14
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
15
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
15
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
15
Cover, Meat Pan WPL 2163848 Contact Us For Availability
15
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
15
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
15
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
15
Relay (See Overload) WPL ARI43770A1 Contact Us For Availability
16
Trim, Door Shelf WPL 2171040 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
19
Freezer Door Panel (White) WPL 2159270 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2159271 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Screw WPL 489433 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI43771A2 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI43767A1 Contact Us For Availability
25
Trim, Door Shelf WPL 2171140 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor WPL 2169137 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2163889 Contact Us For Availability
36
Grille (Almond) WPL 2166133 Contact Us For Availability
36
Bracket, Door Stop (White And Almond Models) WPL 2159368 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Baffle, Air WPL 2179849 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI43768A7 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Trim, Door WPL 2171141 Contact Us For Availability
42
Wire Assy., Unit WPL 2172600 Contact Us For Availability
43
Blade, Fan WPL 2176753 Contact Us For Availability
44
Cover, Unit WPL 2179786 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
