Model Whirlpool ET18CMXJW01 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

Service & Wiring Sheet WPL LIT2201079 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2205266 Contact Us For Availability

1

Energy Label WPL LIT2205490 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Do-It-Yourself Manual Ref./Fzr. WPL LIT677969 Contact Us For Availability

1

Do-It-Yourself Manual, Icemaker WPL LIT677971 Contact Us For Availability

1

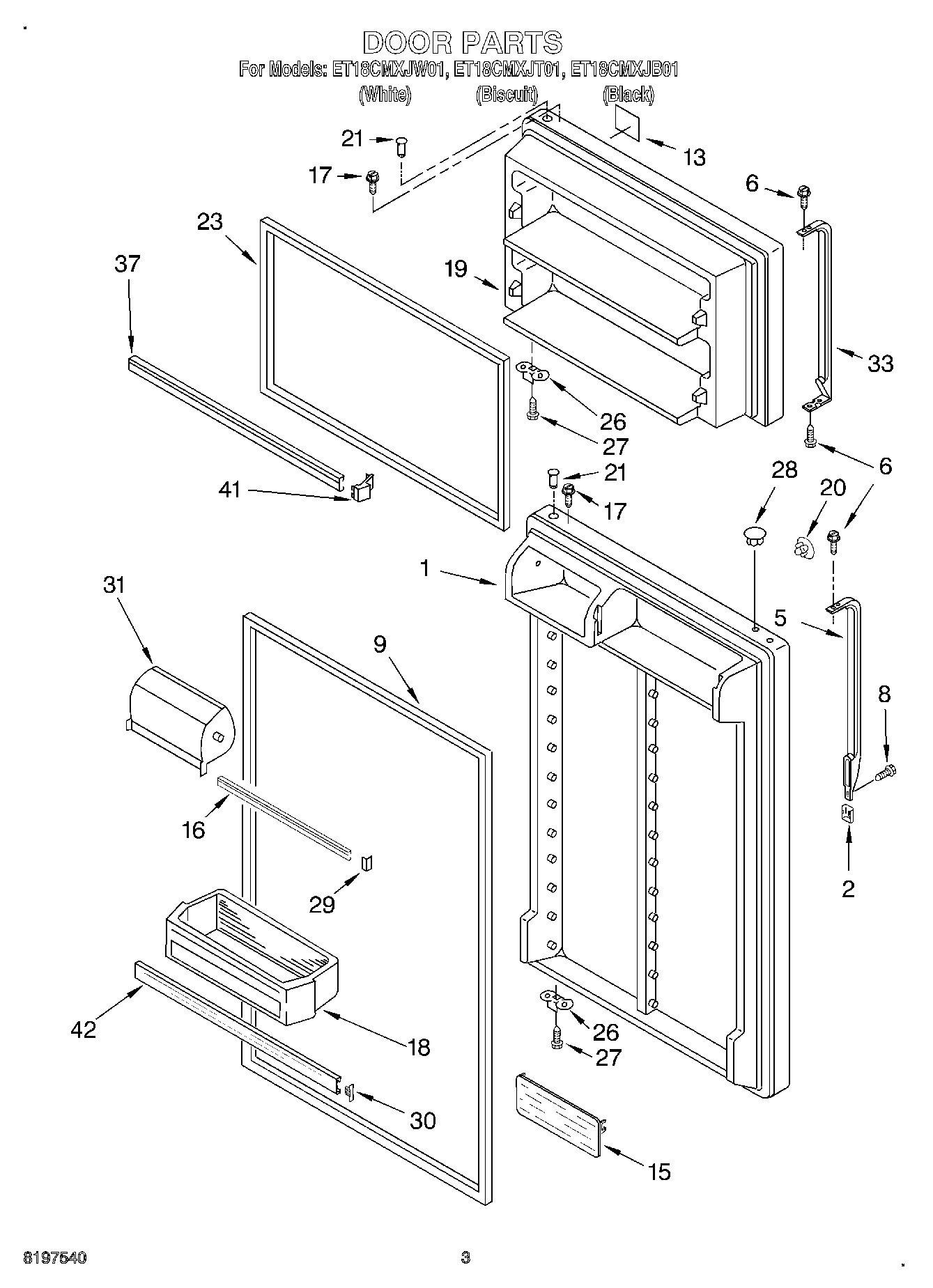

Refrigerator Door (Includes No.9 & No.21) (Wh WPL 2183898 Contact Us For Availability

1

Refrigerator Door (Includes No.9 & No.21) (Bl WPL 2200712 Contact Us For Availability

1

Refrigerator Door (Includes No.9 & No.21) (Bi WPL 2205281 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

2

Cover, Endcap (Black) WPL 2193353B Contact Us For Availability

2

Cover, Endcap (Biscuit) WPL 2193353T Contact Us For Availability

3

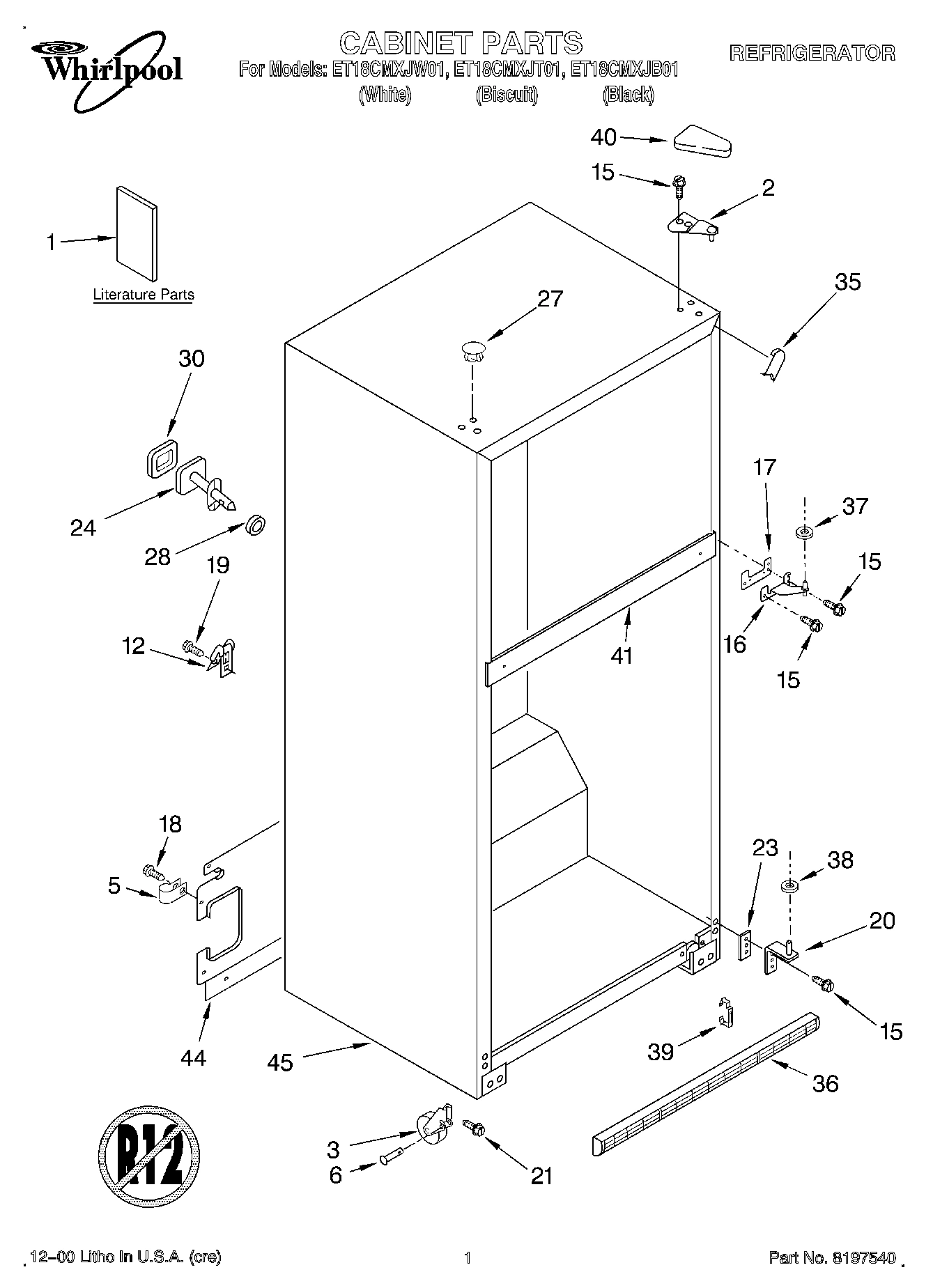

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

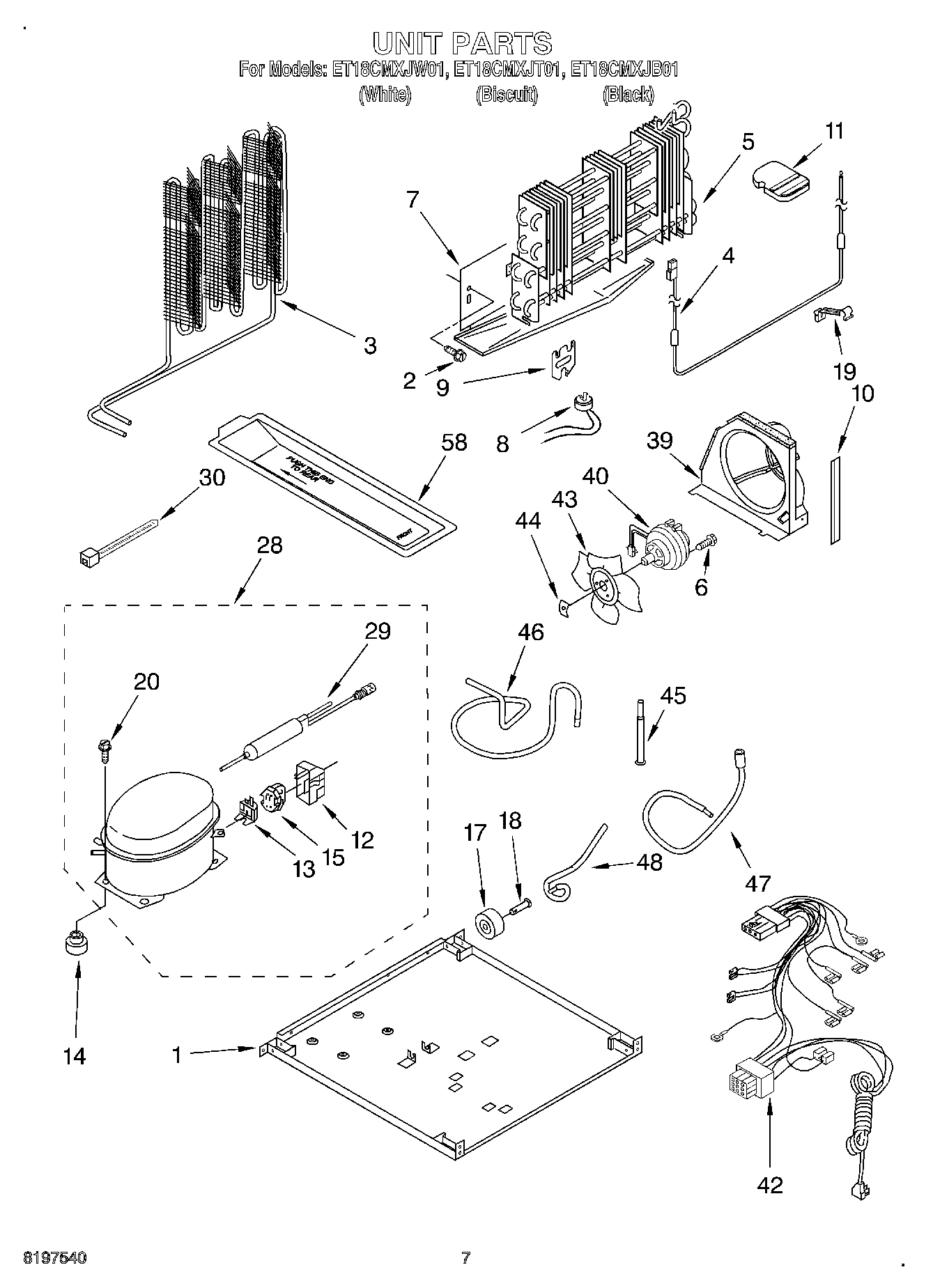

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

8

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $2.51

9

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

9

2177305 Whirlpool Refrigerator Door FIP Gaske In Stock WPL 2177305 $145.16

10

WP2169921 Whirlpool Refrigerator Glass Shelf In Stock WPL WP2169921 $118.25

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

11

Support Block WPL 2201184 Contact Us For Availability

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

13

Nameplate (White) WPL 2175383 Contact Us For Availability

13

Nameplate (Black) WPL 2200944 Contact Us For Availability

13

Nameplate (Biscuit Model) WPL 2205769 Contact Us For Availability

15

WP2188234 Whirlpool Shelf Backorder WPL WP2188234 $29.43

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $38.41

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

18

Door Bin (3) WPL 2195394 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

Freezer Door (White) WPL 2182487 Contact Us For Availability

Freezer Door (Black) WPL 2200710 Contact Us For Availability

Freezer Door (Biscuit) WPL 2205279 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $2.51

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

21

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

21

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $78.12

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

2177304 Whirlpool Refrigerator FIP Gasket Backorder WPL 2177304 $124.26

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Air Tower WPL 2182340 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

24

Fitting, Water Tube (Not Serviced) WPL ARI43325A2 Contact Us For Availability

26

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

Installation Kit WPL 482801 Contact Us For Availability

Seal, Front (Not Serviced) WPL ARI43326A7 Contact Us For Availability

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

Seal, Rear (Not Serviced) WPL ARI43327A5 Contact Us For Availability

31

WP2218113 Whirlpool Dairy Door In Stock WPL WP2218113 $25.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

4388947 Whirlpool Refrigerator Door Handle Ki Backorder WPL 4388947 $97.92

4388949 Whirlpool Refrigerator Handle Backorder WPL 4388949 $99.97

4388950 Whirlpool Refrigerator Handle Backorder WPL 4388950 $126.93

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

35

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

35

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $31.60

36

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

36

Grille (Black) WPL 2201011 Contact Us For Availability

37

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

37

Trim-Door (2) WPL 2195946 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

40

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

41

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

41

Rail Center (Not Serviced) WPL ARI43328A6 Contact Us For Availability

42

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $47.29

43

Blade, Fan WPL 2190685 Contact Us For Availability

44

WP2189475 Whirlpool Refrigerator Unit Cover Backorder WPL WP2189475 $68.24

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

45

Cabinet (Not A Serviceable Part) WPL ARI43329A8 Contact Us For Availability

46

Tube, Discharge WPL 2205294 Contact Us For Availability

48

W11676464 Whirlpool Tube Backorder WPL W11676464 $37.81

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

Evap. Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPO WPL 799833 Contact Us For Availability
